PowerBass + JBL + Kicker Car Audio Upgrade Package

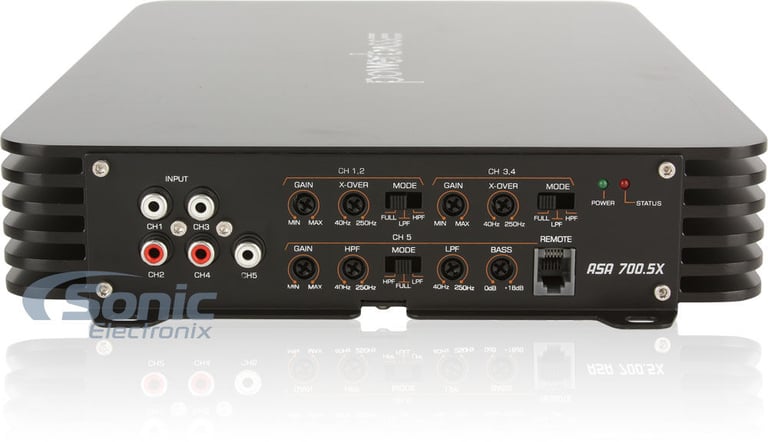

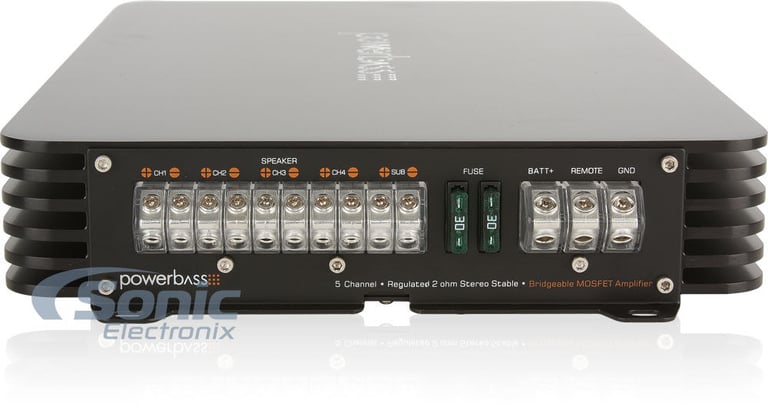

• Auto Sound Series 5-Channel Class A/B Car Amplifier
• RMS Power Rating:
  • 4 ohm: 50 watts x 4 chan. + 200 watts x 1 chan.
  • 2 ohm: 100 watts x 4 chan. + 400 watts x 1 chan.
  • 4 ohm Mono: 200 watts x 2 chan. + 400 watts x 1 chan.
• Max power output: 1600 watts
• MOSFET Power supply
• Power and status LED Indicators
• Remote bass level input (remote level control sold separately)
• Total harmonic distortion: <0.05%
• High-pass crossover (40-250 Hz, 12dB)
• Low-pass crossover (40-250 Hz, 12dB)
• Variable subwoofer EQ (0 + 18dB)
• Subwoofer EQ Frequency: 40 Hz
• Frequency response: 20-22,000 Hz
• Dimensions: 9.3"D x 14.9"W x 1.9"H
• 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• 1-year Manufacturer's warranty

General Features:

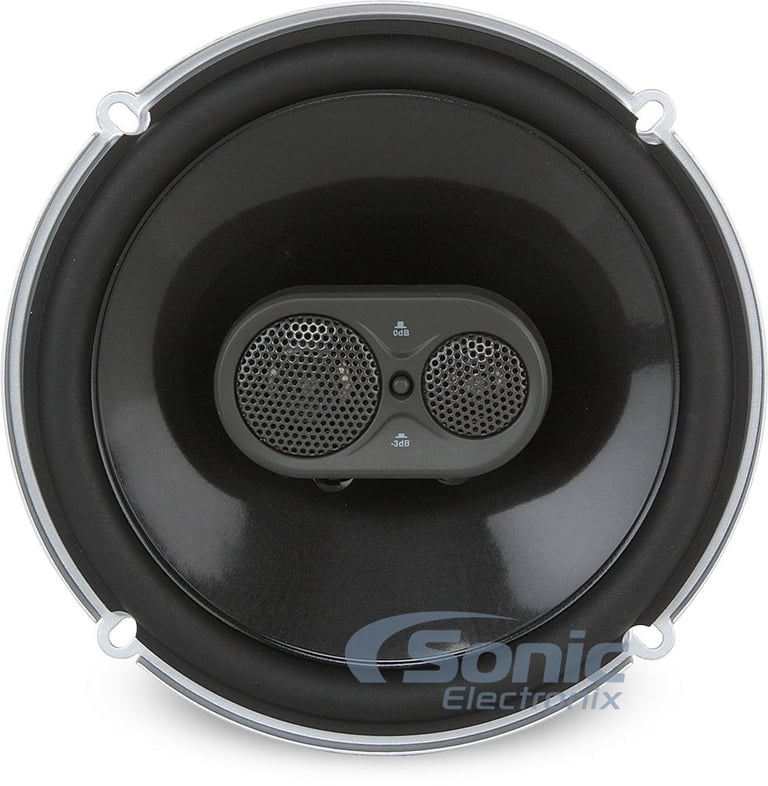

• 6-1/2"/6-3/4" Grand Touring Series 3-Way Car Speaker System
• Power Handling:
• Peak: 720 watts total / 180 watts each side
• RMS: 240 watts total / 60 watts each side
• Patent pending Plus One woofer cones
• Mylar/titanium composite dome tweeters
• Can be safely powered by any headunit
• Sensitivity: 92 dB
• 2 ohm impedance
• Frequency response: 50-21,000 Hz
• Top-mount depth: 2"
• Cutout diameter: 5-1/8"
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Subwoofer Features:

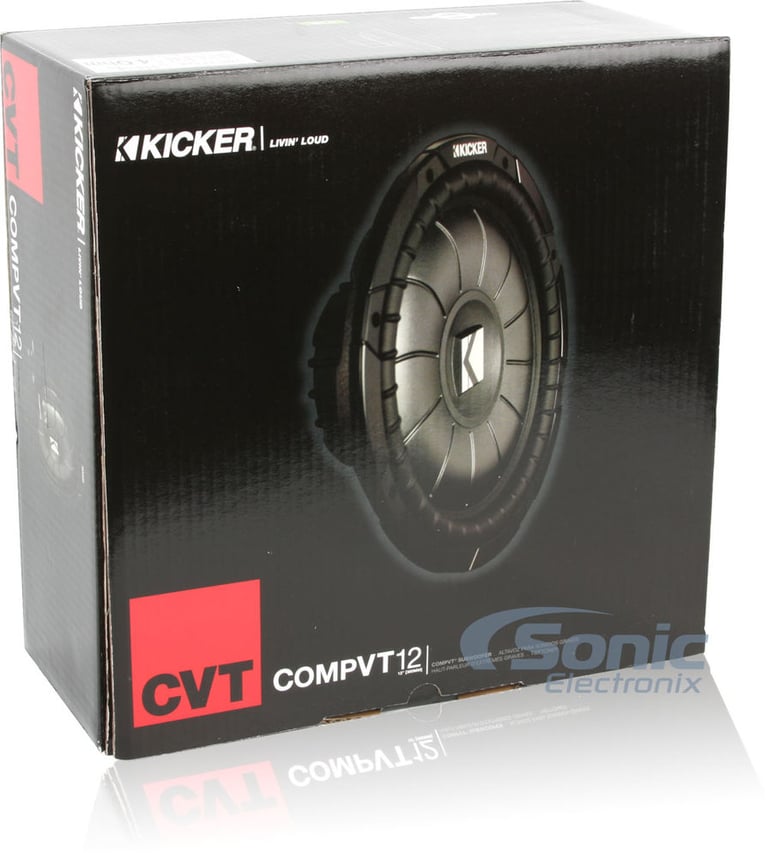

• 12" Single 2 Ohm CompVT (CVT) Subwoofer
• Shallow mount subwoofer allows for deep bass with minimum mounting depth
• Power Handling:
  • Peak: 800 watts
  • RMS: 400 watts
• Impedance: Single 2 Ohm
• Injection molded SoloKon cone
• Ribbed Santoprene surround
• Stitched surround for enhanced cone-to-surround strength
• Extra strong adhesive and stitching prevents the cone from detaching from the surround
• Spiralead tinsel lead technology weaves the tinsel leads into the spider
• Super rigid cone and 360-degree back bracing eliminate distortion
• Sturdy steel basket holds the subwoofer mounted firmly
• Steel basket features perimeter venting around the single voice coil
• Strong spring-loaded terminals
• Newly re-designed 2010 basket structure
• Includes a built-in steel clearance adapter plate, which replaces part of the enclosure wall to allow shallower installations
• Shallow mount subwoofer allows for deep bass with minimum mounting depth
• Ventless pole piece for extreme power handling
• Shallow four-layer voice coil
• High-Temperature voice coil
• Powerful rear magnet
• Frequency response: 25-350 Hz
• Mounting depth: 4-3/8"
• Also found as: 10CVT12-2 ohm, CompVT122, CompVT 122, CompVT 12" 2 ohm, 2010 CVT122
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

• 12" Single Sealed Slim Series Subwoofer Enclosure
• High power handling
• Designed and engineered to maximize specific subwoofers
• High performance in tight space applications
• Completely miter and dado end panels
• Premium carpeted finish
• Silver spring loaded terminal cups
• 3/4" MDF construction
• Glued and braced with fasteners
• Total box volume: 1.15 cubic feet
• Dimensions: 18"D x 36"W x 5"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

• Rockford Fosgate P3SD212
• Rockford Fosgate P3SD412
• Lanzar VCW10D
• Kicker 10CVT124
• Kicker 10CVT122
• Boss Audio NX12FD
• Diamond S124-12
• Kenwood KSCXW1200

General Features:

• Complete 4 Gauge 4-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
• Belva CCA wire is made from 30% copper while KnuKonceptz, XS Power and other CCA wire is just 10% copper
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
• Also available as 2-Channel Kit
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

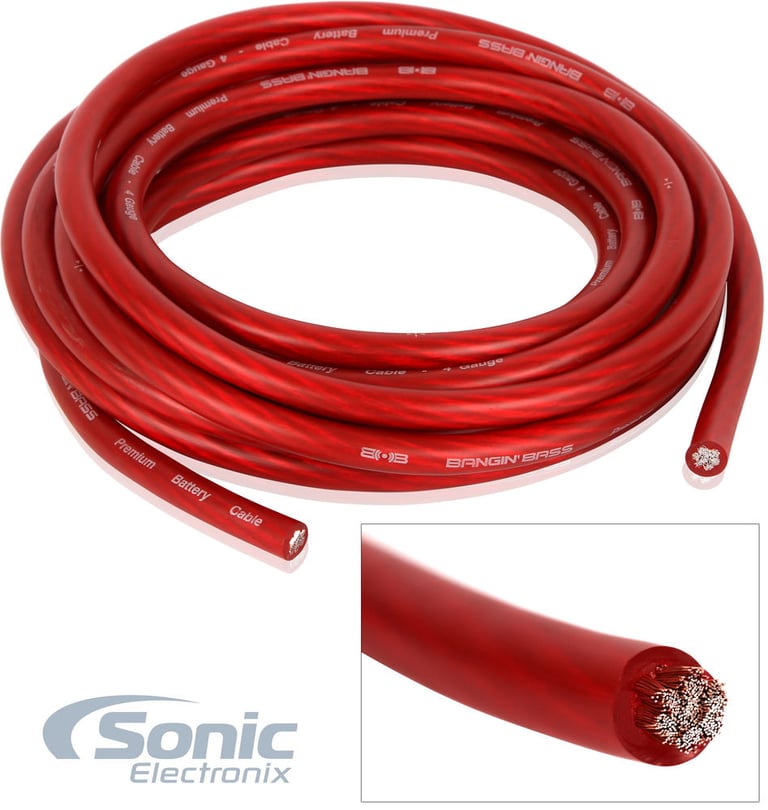

1. 17 ft. (5.2 meters) Red 4 gauge power wire

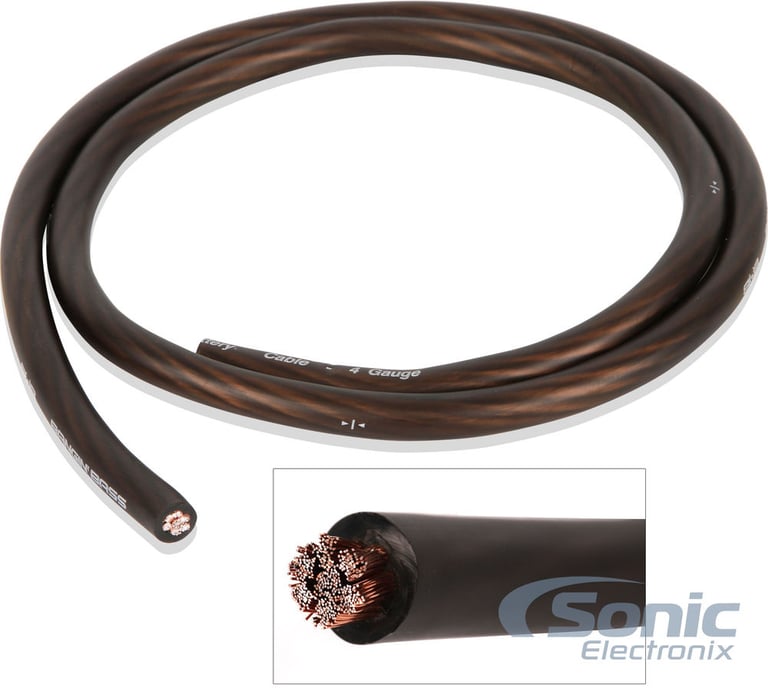

2. 3 ft. (.91 meters) Black 4 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

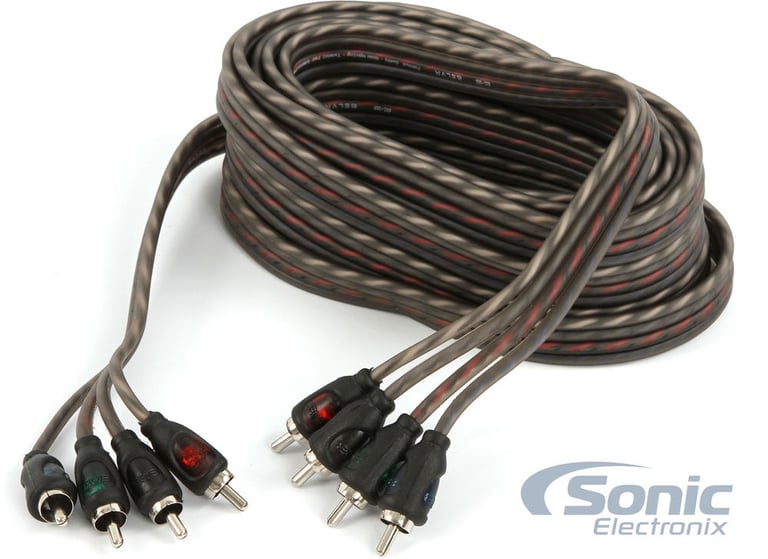

4. 17 ft. (5.2 meters) Helical Twist 4-channel RCA interconnect cable

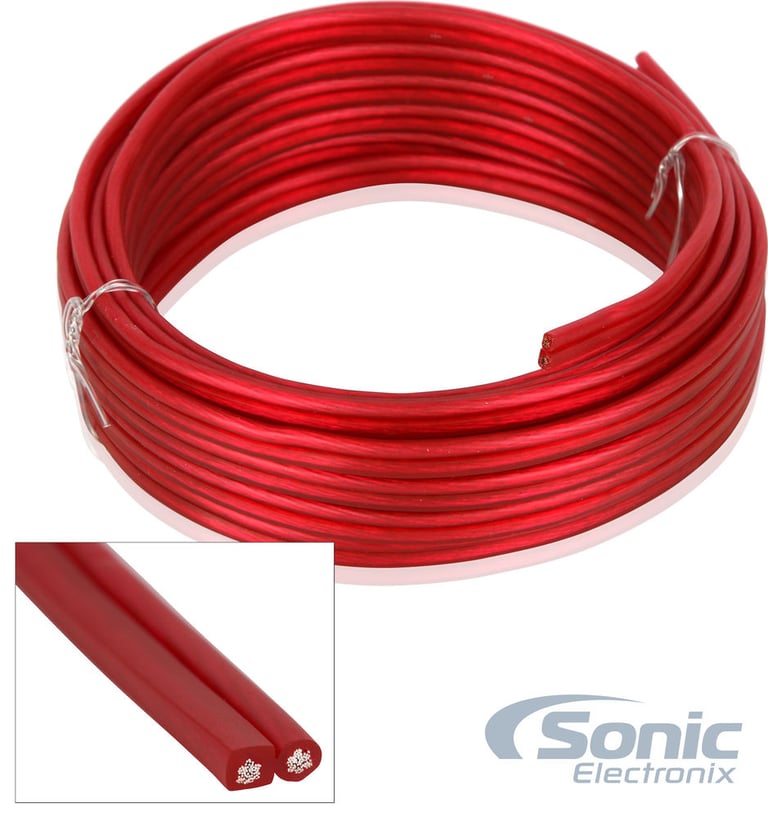

5. 65 ft. of Speaker Wire
6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. One 4 Gauge red chrome plated ring terminals
9. One 4 Gauge black chrome plated ring terminal
10. Three 18 Gauge red Spade terminal
11. Two 18 Gauge black Spade terminal
12. One 18 Gauge red butt connector
13. Ten 4" Black zip ties

General Features:

• Audio Interconnect Cable (CCA)
• 2-Channel RCA, perfect for stacking, strapping or connecting amps
• Helical Twist construction minimizes noise and interference
• Patented high tolerance compact machined metal end
• Packed in resealable bag
• Length: 5m (16.4 feet)
• Also available in 9.8 Ft.
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty
