BOYO Vision VTC700RQ-4 - Open Box, Very Good Condition (Used)

4Ch Digital Wireless Monitor and Wireless Camera System with Built-in DVR - Open Box

BOYO Vision
Shop all BOYO Vision
highlight-star-icon

• 2.4GHz Digital Wireless Signal
• 7" Monitor and heavy duty night vision camera
• Proprietary Frequency Hopping Signaling
• Viewable up to 4 cameras

Learn more about the LS-vtc700rq4-OBC6

We apologize

This item has been discontinued

Description


BOYO Vision brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Very Good Condition:
A Very Good Open Box used product represents a well-cared-for product that has seen only brief installation and/or limited use, but remains in great condition. The item is complete, unmarked, and undamaged, but may show some limited signs of wear. Original packaging, paperwork or protective wrapping may be missing or slightly damaged from the item being opened. Product works perfectly. Warranty details are included in the item description or comments.
Item Condition - Open Box, Very Good Condition:
A Very Good Open Box used product represents a well-cared-for product that has seen only brief installation and/or limited use, but remains in great condition. The item is complete, unmarked, and undamaged, but may show some limited signs of wear. Original packaging, paperwork or protective wrapping may be missing or slightly damaged from the item being opened. Product works perfectly. Warranty details are included in the item description or comments.

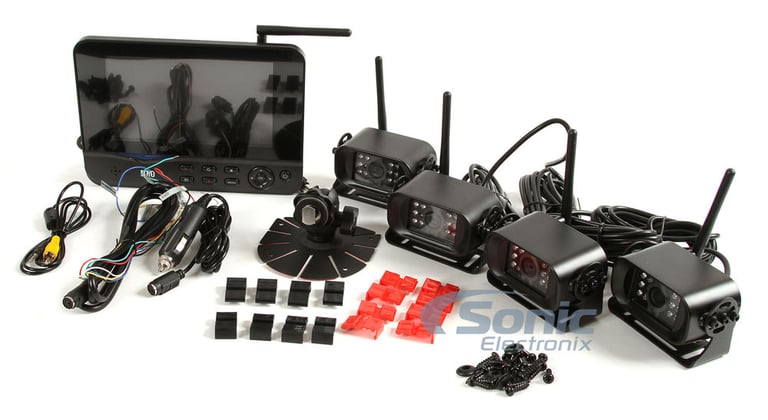

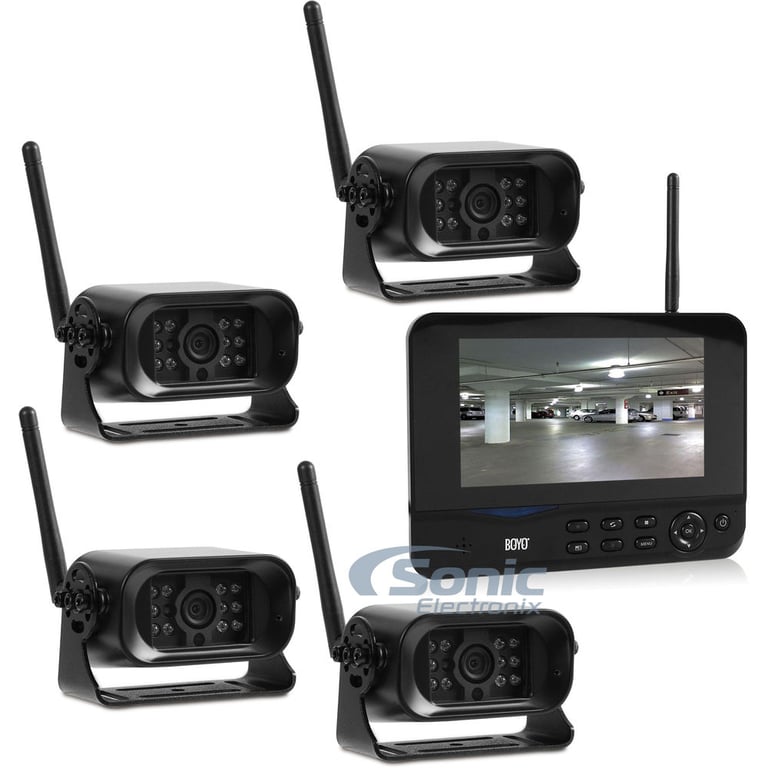

4Ch digital wireless multi-monitoring system with DVR. Simple installation, No video cables required; 2.4GHz Digital Wireless Signal, no interference, no privacy leak. Includes a 7" LCD monitor with integrated video recorder; Supports up to 32GB SD card. Also features, 10 feet night vision range, IP66 rated waterproof outdoor cameras, and trigger function for turn-signals. This system is Great for RVs, Trucks and Trailers!


General Features:

  • 2.4GHz Digital Wireless Signal
  • 7" Monitor and heavy duty night vision camera
  • 800x480 pixels
  • 200ft range on a line of sight

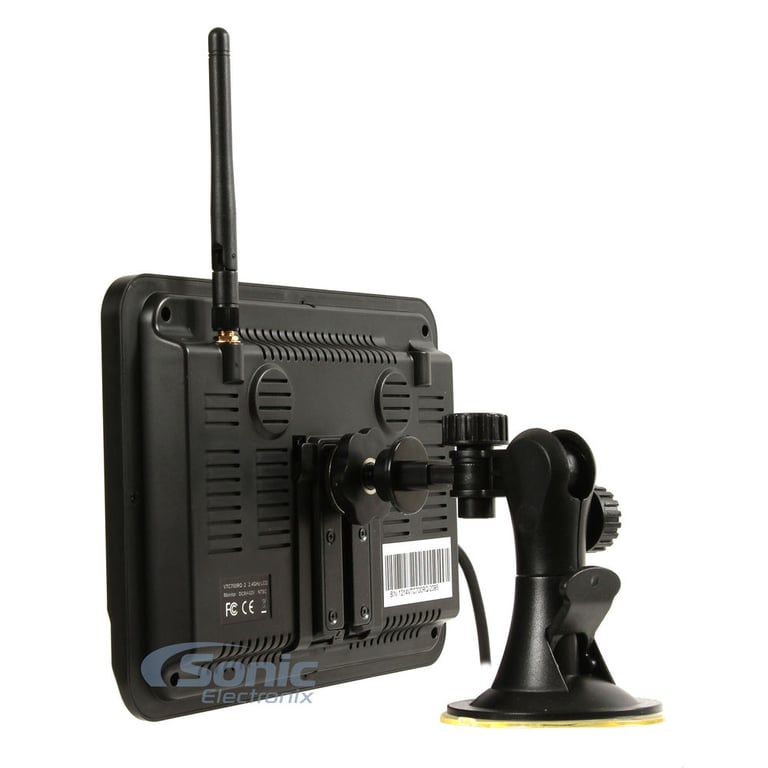

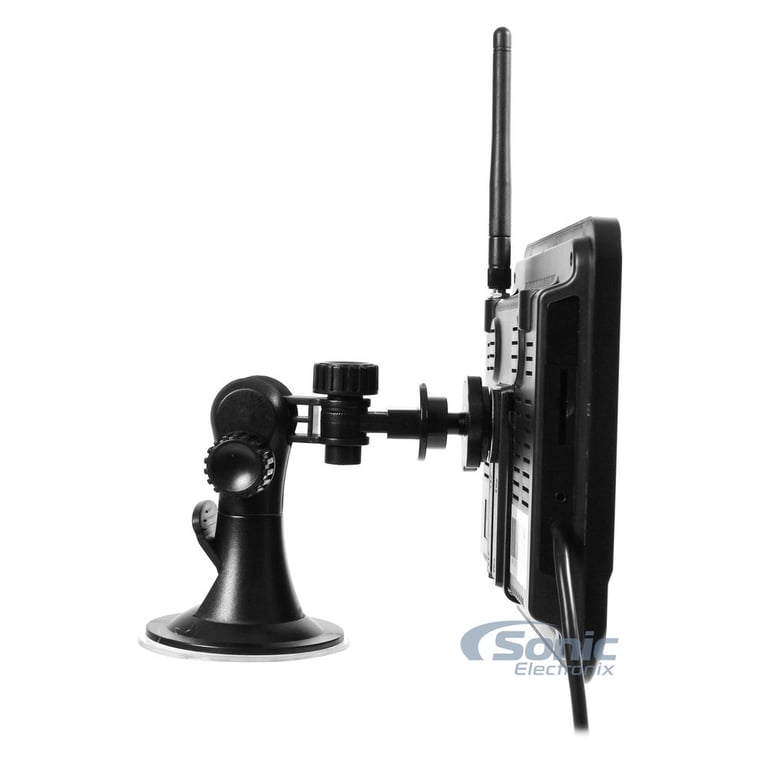

  • Includes dash mount stand

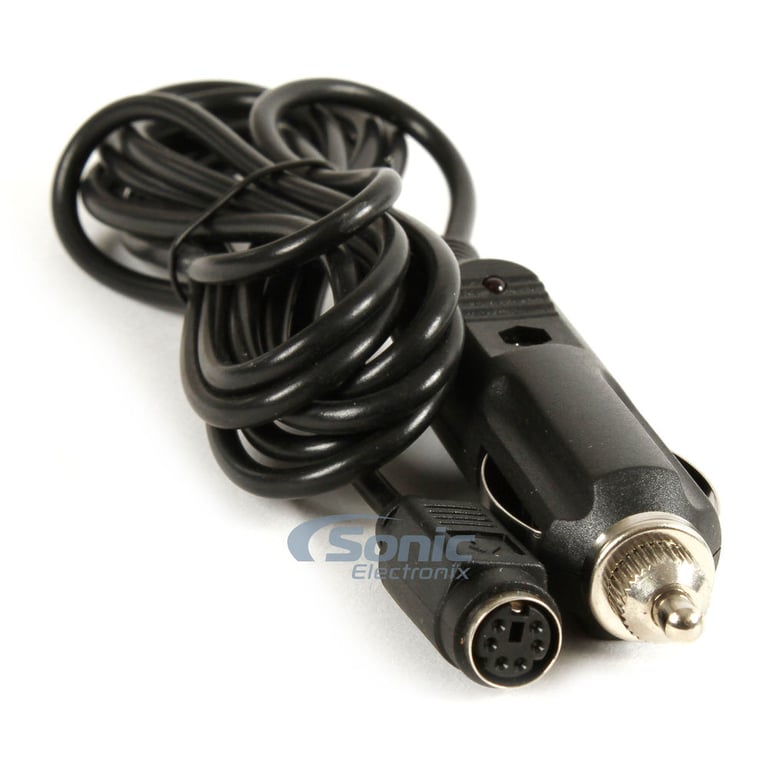

  • Power the monitor through the cigarette plug
  • Mirror/ Non-Mirror selector
  • Night vision distance 16ft.
  • Viewable up to 4 cameras
  • View in single, double, triple, or quad viewing mode.

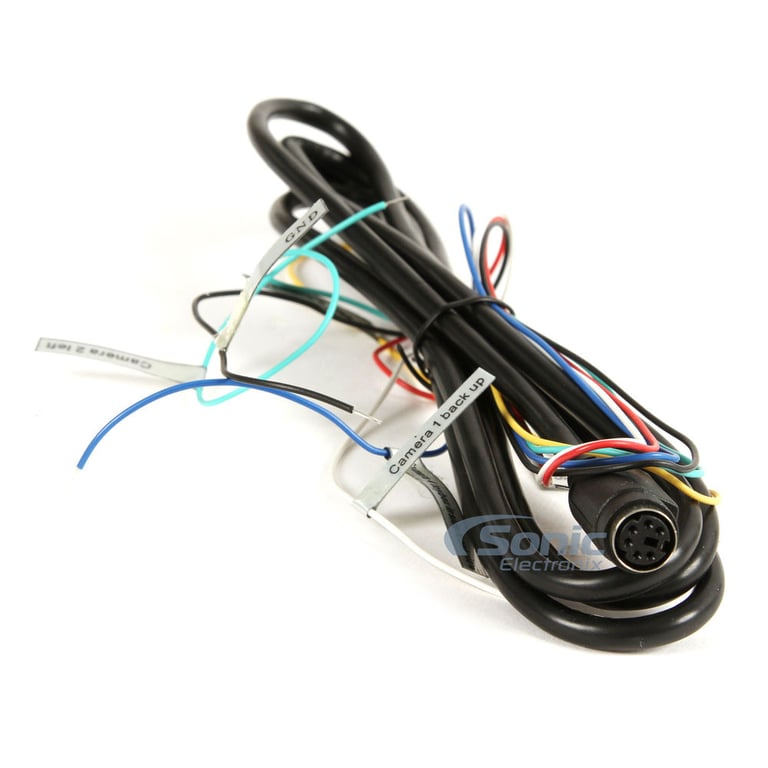

  • Trigger wire function support
  • Cameras are interchangeable
  • Records onto an SD card
  • DVR is built in the monitor
  • Compatible up to 32GB SD Card
  • Authorized Internet Dealer
  • 30 Day Sonic Electronix Warranty

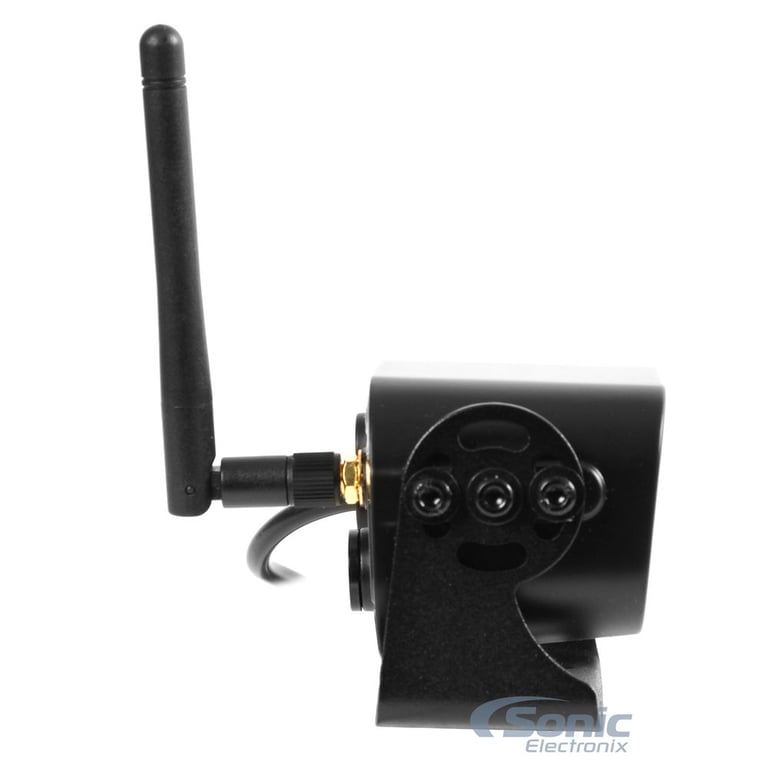

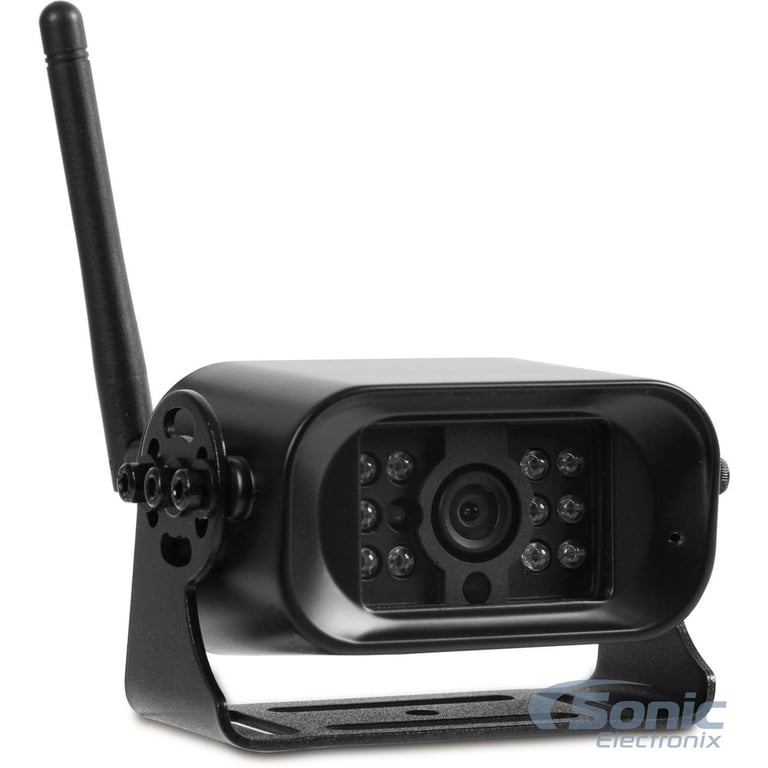

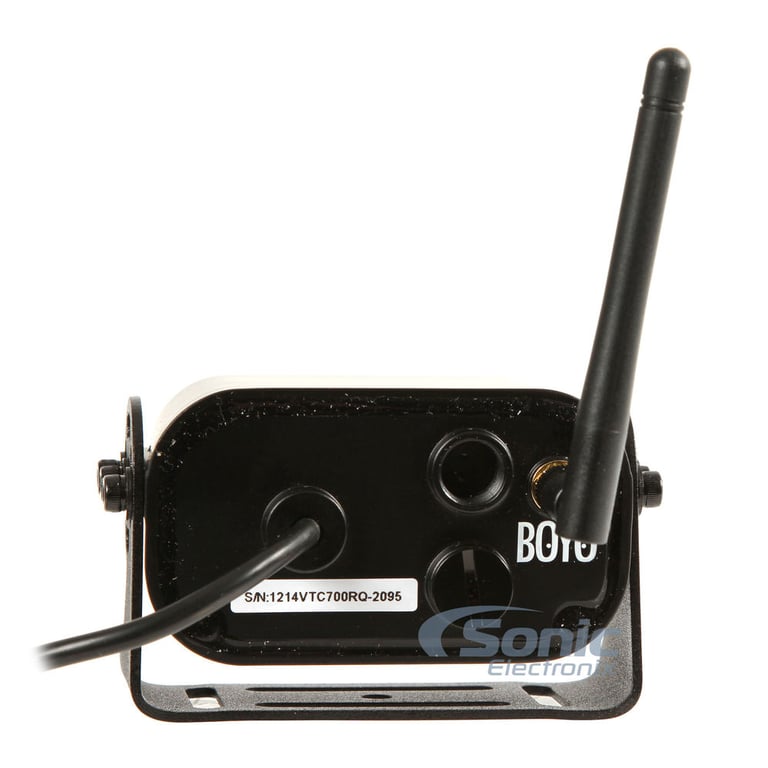

Camera Specifications:

  • Imaging Sensor: CMOS
  • Total Pixels: 640x480
  • Horizontal View Angle: 85⁰
  • Transmitting Frequency: ISM 2,400 ~ 2,483MHz
  • Minimum Illumination: 0Lux with IR On
  • Night Vision IR Distance: 3M
  • Modulating /Demodulating Method: 16QAM, QPSK, BPSK
  • Power Supply: DC+12V, +24VDC
  • Waterproof: IP66
  • Dimensions: 96mm W x 52mm D x 61mm H (Excluding Bracket)
  • Approximate Weight: 440g

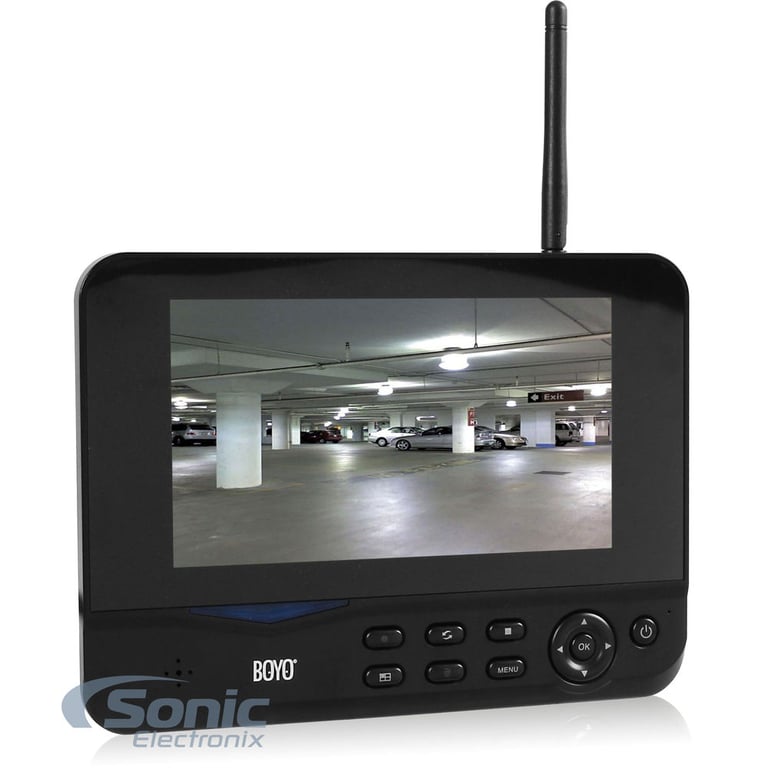

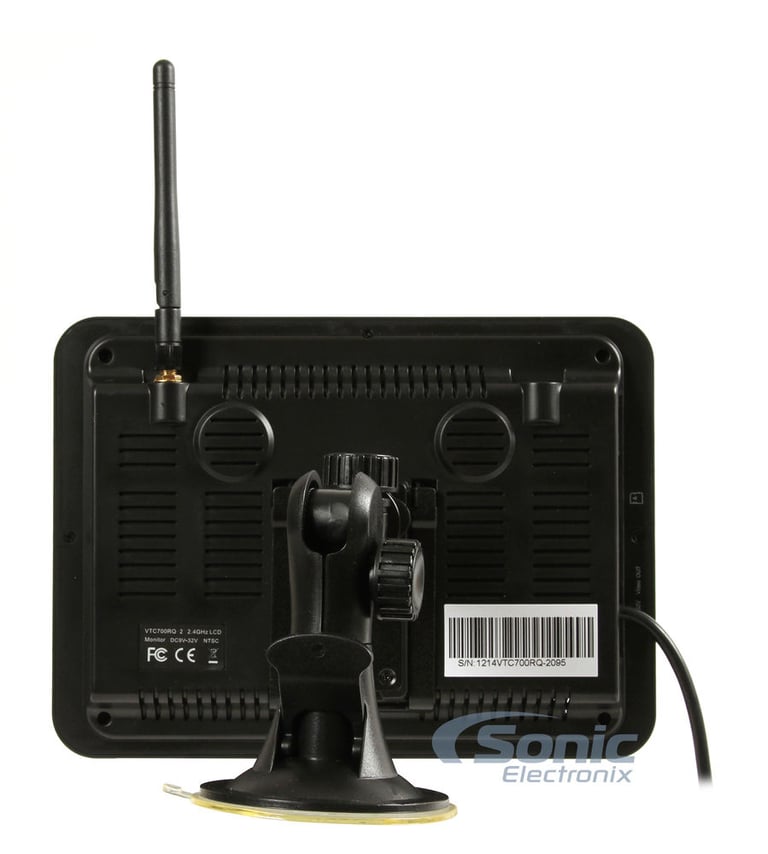

Monitor Specifications:

  • LCD Screen Type: 7", TFT LCD
  • Transmitting Frequency: ISM 2,400 ~ 2,483MHz
  • Screen Resolution: 800 x 480
  • Brightness: 200
  • Video System: NTSC/PAL
  • Receiving Sensitivity: -72 dBm @ QAM, -85 dBm @QPSK
  • Consumption Current Max: 650mA
  • Dimensions: 214mm W x 26mm D x 157mm H
  • Approx. Weight: 518g (excluding bracket)
  • Power Supply Voltage: DC10V ~ 32VDC
  • Unobstructed Effective Range (Matching): <130M
  • Operation Temperature: 0°C ~ +40°C
  • Storage Temperature: -20°C ~ +60°C
  • Operating Humidty (max): 15% ~ 85% RH
  • Safety: Proprietary Frequency Hopping Signaling With Digital Modulation 32Bit ID@QPSK

*The actual transmission range may vary according to the weather, location, interference and building construction

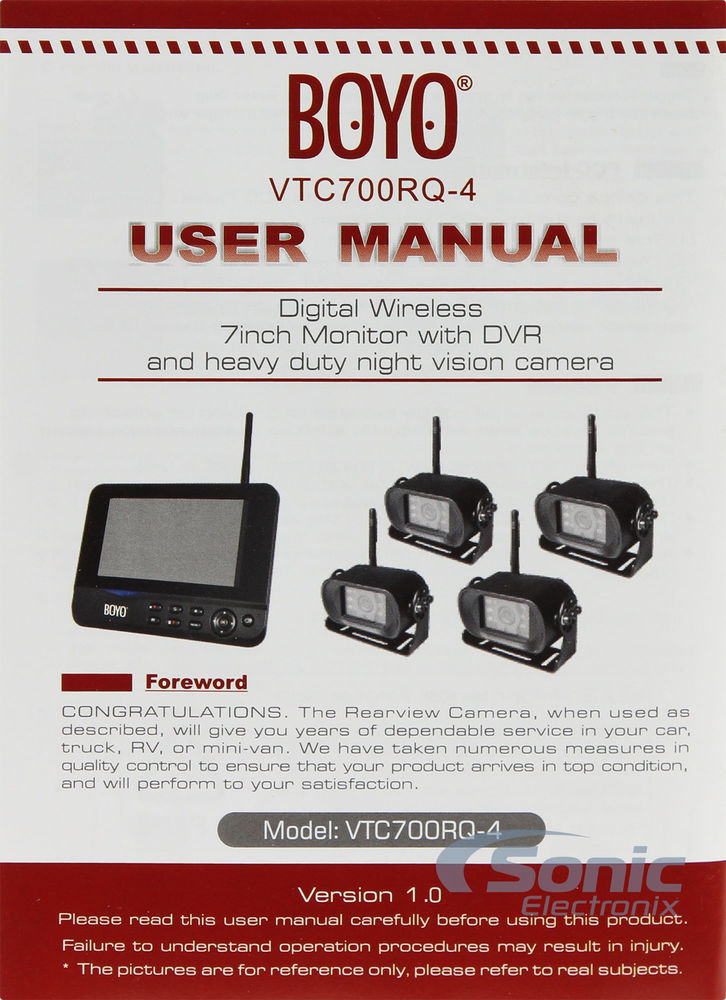

Check out the BOYO Vision VTC700RQ-4 Owner's Manual

Item Details


Manufacturer:

Model Number:

VTC700RQ-4-2

Weight:

7.94lbs

Internal SKU:

LS-vtc700rq4-OBC6

Internal Product ID:

137453
