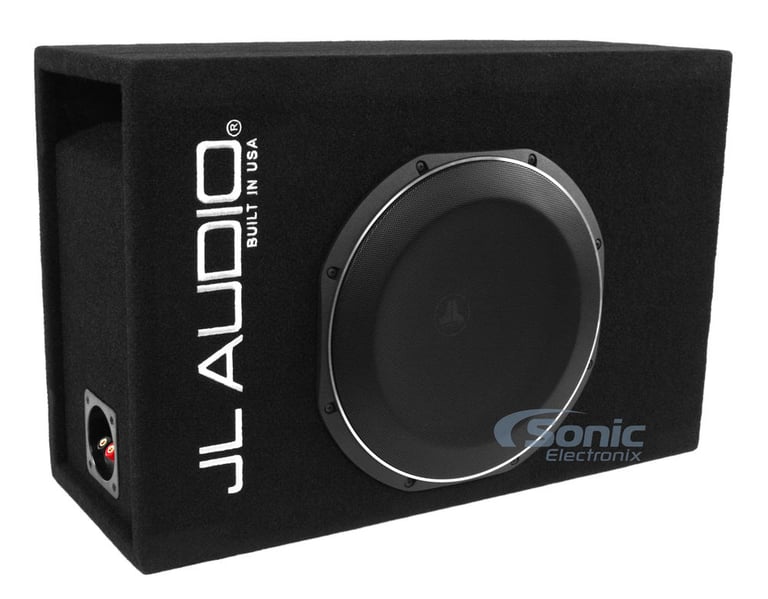

JL Audio MicroSub CP112LG-TW1-2 | 12" Loaded Subwoofer

JL Audio MicroSub CP112LG-TW1-2

300 Watt RMS Single 12" 12TW1-2 Subwoofer Loaded in a Slot-Ported MicroSub Enclosure (2 ohms Final Impedance)

300 Watt RMS Single 12" 12TW1-2 Subwoofer Loaded in a Slot-Ported MicroSub Enclosure (2 ohms Final Impedance)

• 300W Single 12" Vented Subwoofer Enclosure
• 12" Subwoofer
• CNC-Cut High-Grade MDF Construction with Black Carpet Finish
• five-way binding post terminal
• Enclosure Dimensions: 9.25" TD x 23.75" W x 15.751" H

10% Rewards
Free 2-day Shipping
Free Return Shipping
Extended Warranty
Learn More

5.0

(1)

$469.99

In Stock. Only 1 Left! with warranty
vip-image
Thanks , You Pay:
Order within 16 hrs 23 mins to ship 6/22

Qualifies for free 2-day shipping

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

BUNDLE AND SAVE (1 offer)

Add an NVX SDTK20 Sound Dampening Trunk Kit to your Subwoofer purchase and save 50%. Simply click the "Add Both to Cart" button. This offer cannot be combined with any other coupons or offers.

JL Audio MicroSub CP112LG-TW1-2

50% off


Priced separately $529 98

Bundle Savings of $30 00

Total bundle price:

$499 98

DESCRIPTION
JL Audio

Authorized dealer



JL Audio TW1 MicroSub Series Enclosed Subwoofer System

The TW1 subwoofer drivers offer an unparalleled combination of shallow mounting depth, nominal frontal clearance and extremely small enclosure requirements, making them an outstanding choice for tight-space, moderate power applications. They are the perfect bass solution for muscle cars, small cab trucks or any other application that requires JL Audio performance in an ultra-compact space. The driver achieves this extreme level of shallow-depth by compressing the architecture of the TW1 using a concentric tube structure that supports the oversized voice coil and the suspension attachments. This permits placing the large motor structure much further forward in the speaker than with conventional designs, while maintaining excellent linear excursion capability and mechanical stability. In addition, the DMA-optimized motor system produces a consistent motor force over a long range of strokes and power levels. Those strokes don't prevent the driver from remaining compact, however, thanks to the frame design that minimizes the frontal clearance required for the excursion of the driver. This is accomplished by recessing the suspension attachment surface, so that most of the forward excursion occurs within the frame's architecture. It is because of all these ground breaking achievements that JL Audio chooses the TW1 to provide the voice for many of their PowerWedge series enclosures and Stealthboxes.

Although the TW1 Subwoofer can be driven with as little as 75 Watts, for best audio performance it is recommended to run an amplifier capable of between 200 - 300 Watts of continuous power per driver, like the JL Audio XD300/1v2 or JL Audio JX250/1. In addition, these subwoofers are optimized to operate in extremely compact enclosures. In fact, they call for a 26% smaller enclosure than their TW3 brethren.

Like so many other industry leading JL Audio products, all TW1 series of subwoofers are built in JL Audio's Miramar, Florida factory with extreme prejudice to craftsmanship and overall build quality. Its this attitude that delivers the JL Audio quality and performance we have all become accustomed to.

Concentric Tube Suspension

Concentric Tube Suspension

JL Audio's patented solution to overcome the lack of mechanical clearance, presented by "low profile subwoofers", employs a molded structure which spans over the edge of the motor system, supporting the spider on the outside of the motor's boundaries and the large diameter voice coil on the inside. The large diameter voice coil permits the magnet to sit inside it, rather than surrounding the coil as is typical in most woofers. The concentric tube structure and the elimination of a conventional top-plate helps place the motor system higher up into the cone body's space to further compress depth, while still permitting excellent mechanical excursion.

Phenomenal Control

Phenomenal Control

DMA is JL Audio’s proprietary Dynamic Motor Analysis system and is aimed at improving dynamic motor behavior. As a result of DMA optimization, TW1 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass. Its main catalyst is the driver's Ultra-long Voice Coil, that allows extreme linear excursion, phenomenal power handling and control, control, control.



JL Audio 12TW1 Recommended Power Range

Product Features:









  • 12" TW1 (Thin-Line) Series Shallow Mount Subwoofer
  • Power Handling:
    • RMS: 300 watts
  • Recommended Power Range: 75 - 300 watts
  • Impedance: Single 2-Ohm
  • Injection molded, mica-filled polypropylene cone
  • Rubber surround
  • No pole vent: permits mounting close to rear wall of enclosure.
  • Ultra-compact sealed enclosure volume requirements
  • Long linear excursion capability
  • DMA-optimized motor designs
  • Engineered Lead-Wire System
  • Patented concentric tube architecture
  • Patented floating cone attach method technology
  • Cast alloy frame with flat edges for tight driver grouping
  • Steel mesh grille included with each driver
  • Precision-built in USA at JL Audio's Miramar, Florida factory

  •
  • Sensitivity: 85.07 dB
  • Xmax: 10.0 mm
  • Frequency response: ~24 ~ 200 Hz
  • Matching Amplifiers:
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

Enclosure Features:

  • Universal 12" Loaded Ported Enclosure
  • CNC-Cut High-Grade MDF Construction
  • Black Carpet Finish
  • 1 rectangular port
  • Nominal Impedance: 2-Ohms
  • Dimensions: 9.25" TD x 23.75" W x 15.751" H
FEATURES & SPECS
Subwoofer Specifications
Subwoofer Series
TW1 (JL Audio)
Subwoofer Size
12"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohms
RMS Power Handling
300 watts
Total RMS Power Handling
300 watts
Peak Power Handling
600 watts
Total Peak Power Handling
600 watts
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Rubber
Sensitivity
85.07 dB
Frequency Response
24 - 200 Hz
Xmax (millimeters)
10 mm
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Vented / Ported
Number of Subs/Speakers
1
Box Style/Shape
Square/Rectangle
Height
15.751"
Width
23.75"
Depth
9.25"
Number of Terminals
1
Box Exterior Color
Black
Box Finish
Carpet
Specials with this Item
Deals
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer
