See all parts that fit your 1976 Custom 500

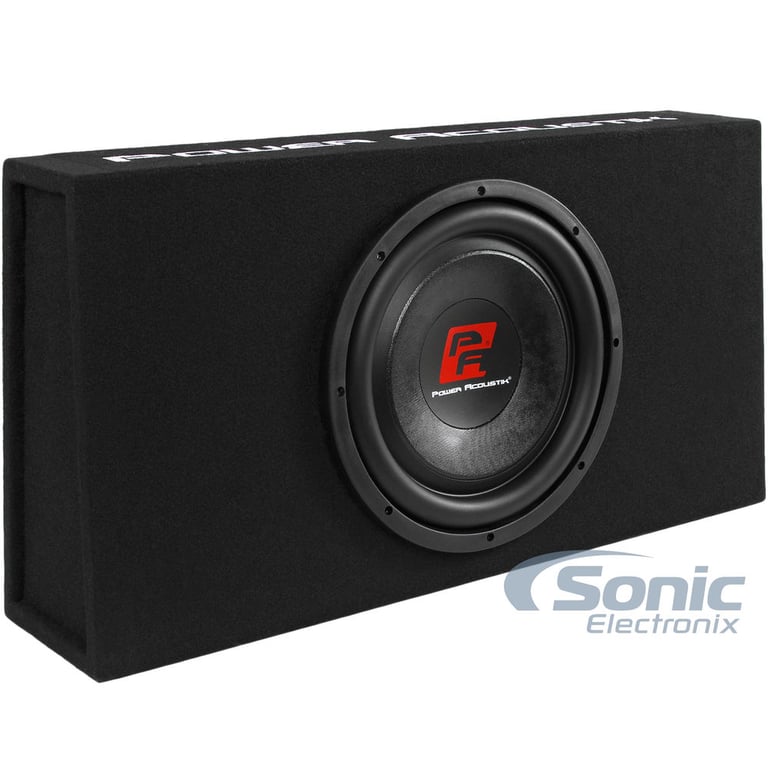

Power Acoustik THIN-12BXA Amplified Subwoofer Enclosure

650W Max Preloaded Single 12" Sealed Subwoofer Enclosure with Built in Amp

highlight-star-icon

• 650W Max Single 12" Sealed Subwoofer Enclosure with Built-In Amplifier
• Preloaded 12" Subwoofer
• Built-In 650 W Class D Amplifier
• MDF construction with carpet finish
• Enclosure Dimensions: 29.75" L x 14.5" H x 5.75" D

Learn more about the thin12bxa

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Description


Power Acoustik brand icon

Authorized dealer

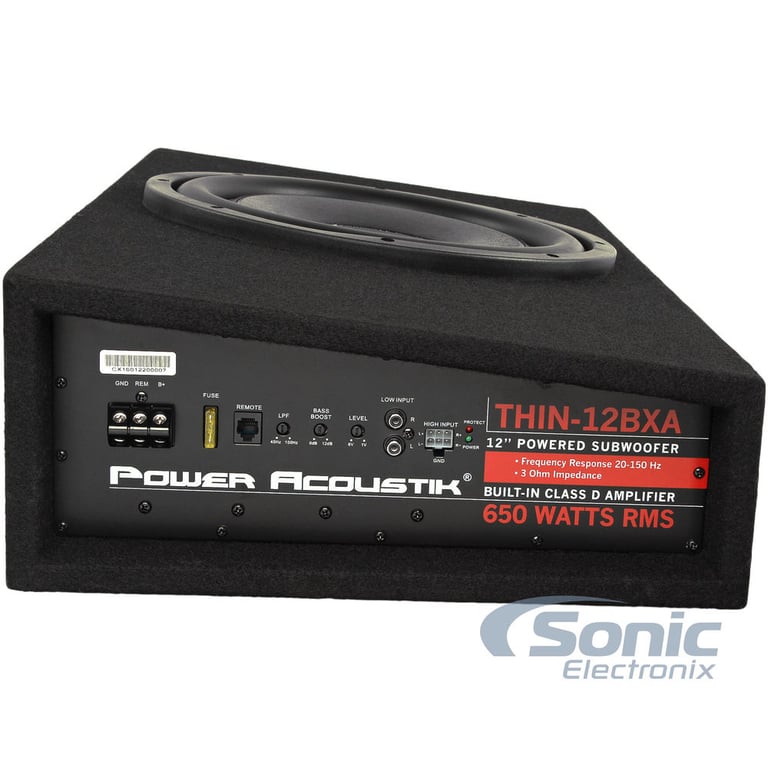

General Features:

  • 650W Max Single 12" Sealed Subwoofer Enclosure with Built in Amplifier
  • Power Handling:
    • Peak: 650W Total
    • RMS: 325W Total
  • Final Impedance: 3 ohm
  • Preloaded with single 12" Subwoofer
  • Sealed enclosure with carpet finish
  • Enclosure Dimensions: 29.75" L x 14.5" H x 5.75" D
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Features:

  • Injection Molded Polypropylene Cone
  • NBR Rubber Surround
  • Quick Disconnect Terminals
  • Steel Basket
  • Frequency Response: 20 - 150 Hz
  • Sensitivity: 85.6 dB

Amplifier Features (IF POWERED):

  • Class D amplifier
  • LED power (green) and protect (red) indicators
  • Built in Low Pass Filter
  • Variable Bass Boost: 0 to +12 dB
  • High level speaker inputs

Enclosure Features:

  • 12" Sealed low profile enclosure
  • MDF Construction
  • Carpeted Black w/ Embroidered Accents

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

Specifications & Details


Subwoofer Amplifier Power Specifications
Peak Power Output
650 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
Bass Boost
0 - 12 dB
Subwoofer Specifications
Subwoofer Size
12"
Total RMS Power Handling
300 watts
Total Peak Power Handling
600 watts
Woofer Surround
Nitrile Butadiene Rubber NBR
Woofer Composition
Polypropylene
Sensitivity
85.6 dB
Frequency Response
20 - 150 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
14.5"
Width
29.75"
Depth
5.75"
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

THIN-12BXA

Weight:

20.00lbs

Internal SKU:

thin12bxa

Internal Product ID:

93717

Customer Ratings & Reviews


Power Acoustik THIN-12BXA Amplified Subwoofer Enclosure thumbnail image

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.5
Features
4.5
Design
4.5
Usability
5

Customer Reviews

Sort by:

Loading...

Adds good bass to a factory system

I recommend this product to anyone looking to add tight accurate bass to a factory system, not for a bass head

By Cmoney on August 25, 2016

1 found this helpful


Good under seat solution for F150

I bought this to put under my rear seat in my 2017 F150 supercrew. For this application it works pretty well, it does stick out about 3/4" but it doesn't take away any floor space really.

The sub is plenty loud for my factory stereo. I did not replace any of the door speakers as of right now because I felt they were adequate for me, I don't listen to anything outrageously loud, but I did want my thump on kick drums and bass in the really lower registers. This loaded sub does an adequate job, but it certainly is not going to really hit super low 15hz tones or rattle your bones, but it does really fill the cabin with low E bass notes in rock music. Mine is still definitely breaking in so we'll see if it gets better, which subs usually do, but I'm pretty pleased with it.

Just FYI, this amp does not have signal sensing, so you will need an amp turn on or get a line out converter that gives you a signal turn on wire, which they do sell online.

By JB on July 20, 2017
