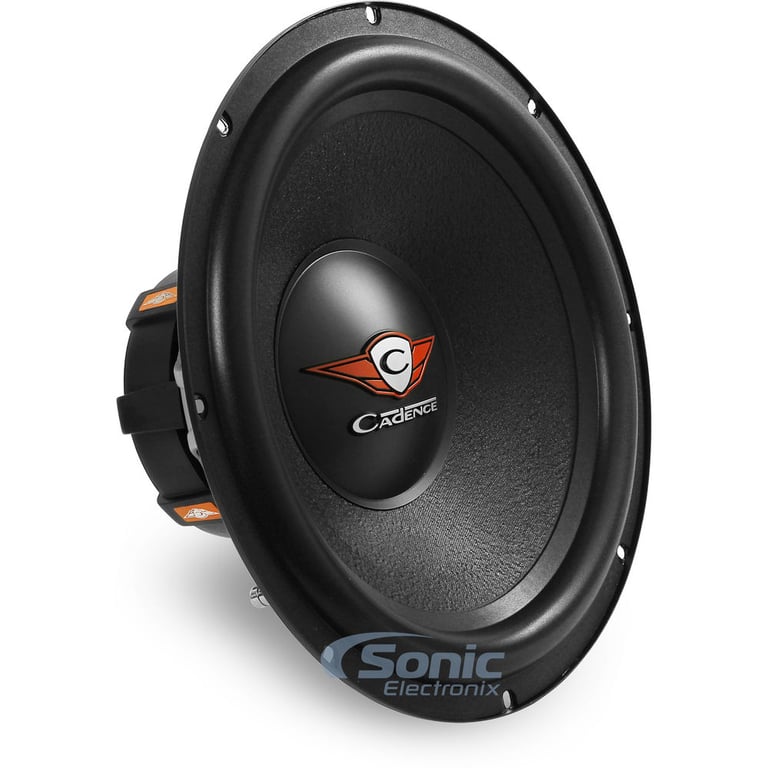

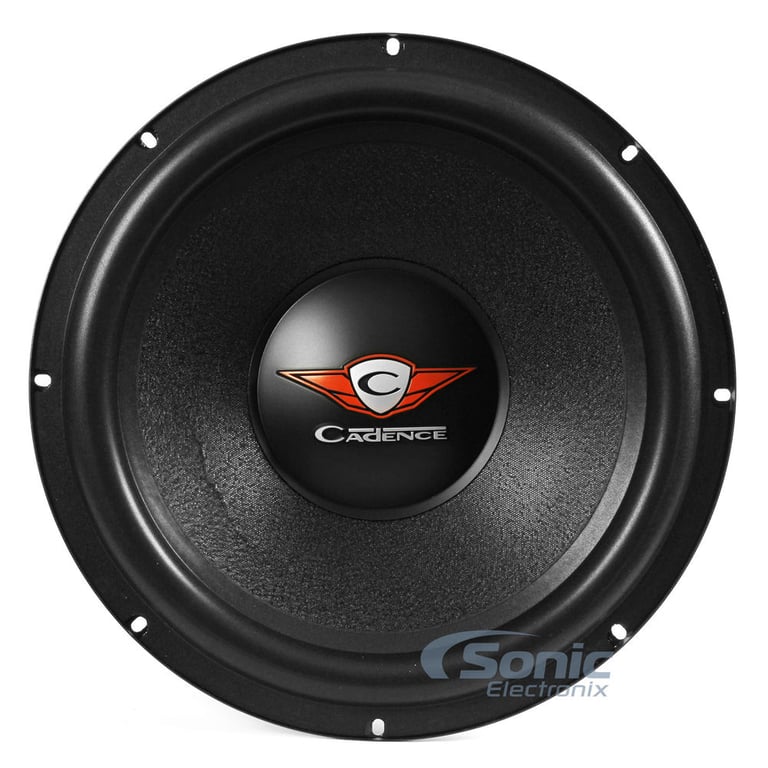

Cadence S1W15D4.v2

1200W Peak (600W RMS) 15-inch S1 Series Dual 4 ohm Car Subwoofer

Cadence
Shop all Cadence
Product videos
highlight-star-icon

• 600W RMS
• 1200W Max
• Pressed Paper Pulp Cone
• Double Laminated Foam Surround
• Expanded and Rolled Steel Basket
• Magnet Motor Heatsink with Heat Pump Cooling Technology
• Black Aluminum 4 Layer Voice Coil

Learn more about the s1w15d4v2

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

82-8148 main

Metra 82-8148

6" to 6.75" Speaker Bracket for select 1998-2024 vehicles from Toyota, Subaru, Scion

35
-50.01%

$18.99

List price $37.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

ACC-USB-TO3 main

iDataLink Maestro ACC-USB-TO3 USB Adapter

Connect Factory USB Port to Aftermarket Car Stereo in select 2018-2025 vehicles from Toyota

1
-23.09%

$19.99

List price $25.99

72-8110 main

Metra 72-8110

Install New Speakers and Tweeters in select 2003-2025 vehicles from Subaru, Toyota, Scion

8
99-8266BLHG main

Metra 99-8266BLHG Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2018-2020 Camry

2
-40.17%

$69.99

List price $116.99

70-1765 main

Metra 70-1765 Wiring Harness

Install a new car stereo and retain factory amplifier in select 2017-2023 vehicles from Toyota

1
-10.81%

$65.99

List price $73.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Product Highlights


• 600W RMS
• 1200W Max
• Pressed Paper Pulp Cone
• Double Laminated Foam Surround
• Expanded and Rolled Steel Basket
• Magnet Motor Heatsink with Heat Pump Cooling Technology
• Black Aluminum 4 Layer Voice Coil

Description


Cadence brand icon

Authorized dealer


General Features:

  • 15-inch Dual 4-Ohm S1 Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Recommended Power Range: 100 - 600 watts RMS
  • Pressed Paper Pulp Cone
  • Double Laminated Foam Surround for High Speed Bass Response

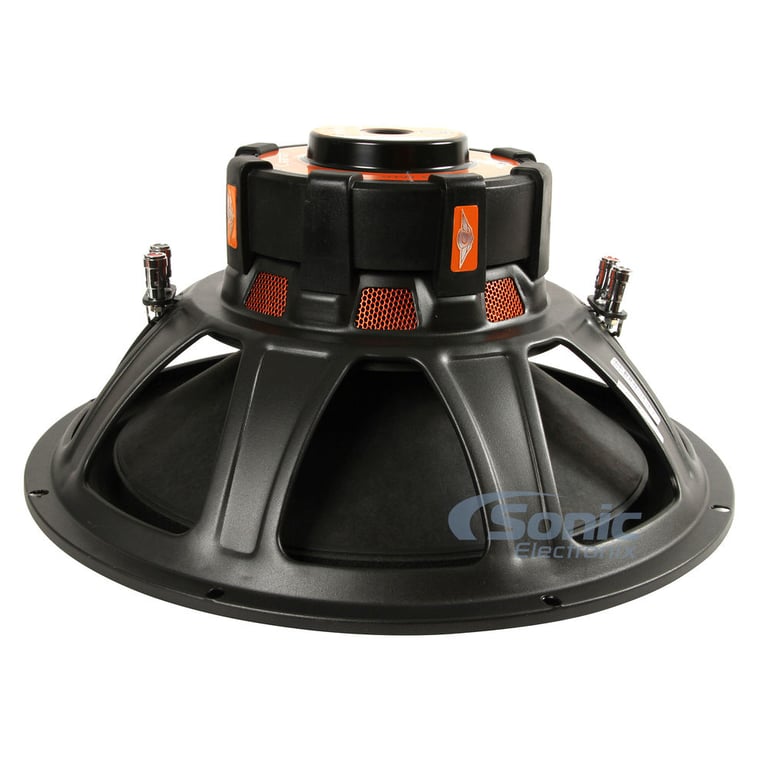

  • Expanded and Rolled Steel Basket
  • Magnet Motor Heatsink with Heat Pump Cooling Technology
  • Aero Style Oversized Magnet Motor Vent
  • Linear Progressive Conex Spiders
  • Integrated High-Current Tinsel Leads
  • Black Aluminum 4 Layer Voice Coil
  • Ultra Saturated, High BL Magnetic Motor Gap
  • One Piece Extended Pole Technology
  • Oversize Double Laminated Stitched Surround

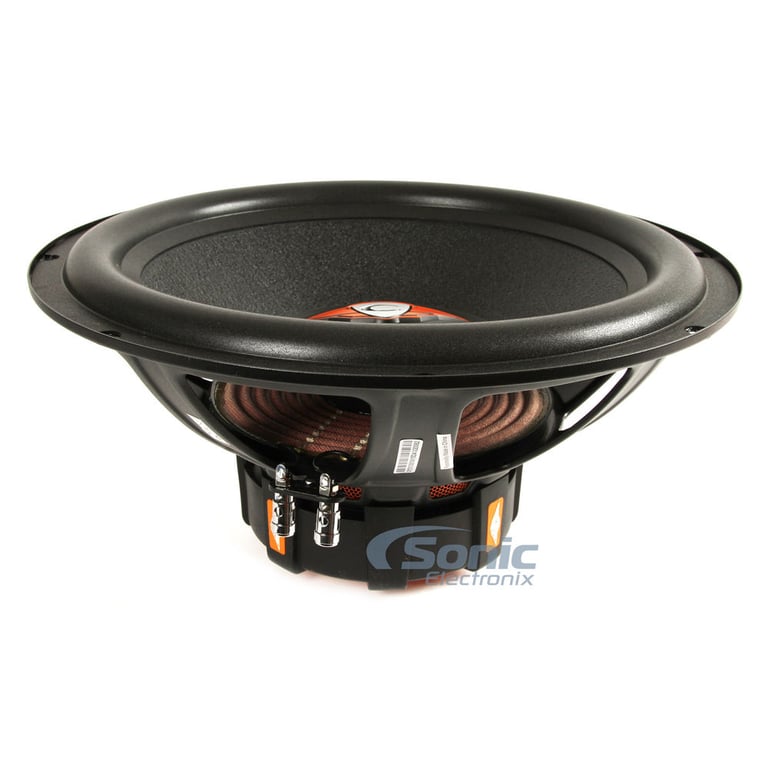

  • Dual Nickel Plated Spring Loaded Push Terminals
  • Fiber Reinforced Ultra-Stiff Paper Composite Cone
  • 3-D Injected Poly Dustcap
  • Stylized Protective Rubber Magnet Boot Cover

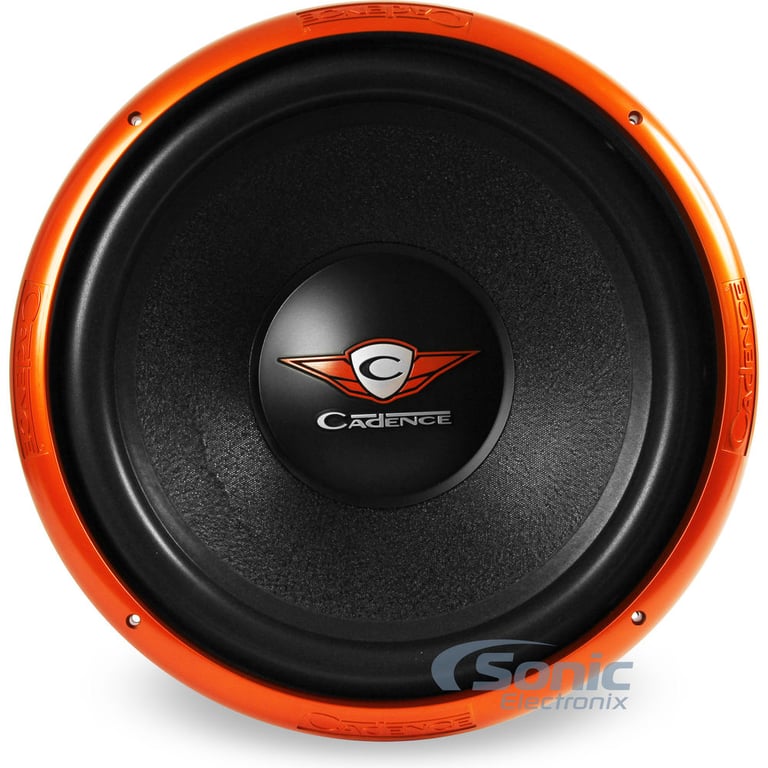

  • Molded Plastic Trim Gasket
  • Top-mount depth: 7.01 inches
  • Cutout Diameter: 14.21 inches
  • Frequency Response: 10 - 750 Hz
  • Magnet Weight: 66 oz
  • Sensitivity: 89 dB
  • Xmax: 11.0 mm
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Check out the Cadence S1W15D4.v2 Owner Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cadence S1W15D4.v2 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cadence S1W15D4.v2 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cadence S1W15D4.v2 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Cadence S1W15D4.v2 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BE-TOYCAM-G8 main

NVX Loaded BOOST Box - 2018-2024 Toyota Camry - BE-TOYCAM-G8

For select 2018-2024 Camry Hybrid and Camry - Single 10" 500W RMS Loaded BOOST Sealed Enclosure

-20.00%

$299.99

List price $374.99

PBK-TOYCAM-G8 main

NVX PBK-TOYCOR-G11 - 2018-Up Toyota Camry - Complete Bass Package

10" 500W RMS Subwoofer, Custom Box, Amplifier & Complete Wiring Kit for 2018 and Up Toyota Camry

88
-25.09%

$629.99

List price $840.96

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

49L7X152 small

Kicker L7X152 (49L7X152)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 2 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 11-9/16"

(2)

$799.99

List price $899.99

Specifications & Details


Subwoofer Specifications
Series
S1 Series
Subwoofer Size
15"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Frequency Response
10 - 750 Hz
Sensitivity
89 dB
Xmax (millimeters)
11 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Paper
Woofer Surround
Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.75 cubic feet
Optimum Sealed Box Volume
2.20 cubic feet
Maximum Sealed Box Volume
Infinite Baffle
Minimum Ported Box Volume
2.20 cubic feet
Optimum Ported Box Volume
2.26 cubic feet
Top-Mount Depth (Mounting Depth)
7.01"
Cutout Diameter
14.21"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Equivalent Compliance (Vas)
211.731 liters
Total Speaker Q Value (Qts)
0.558
Electrical Q Value (Qes)
0.623
Mechanical Q Value (Qms)
5.386
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

S1W15D4.v2

Weight:

15.00lbs

Internal SKU:

s1w15d4v2

Internal Product ID:

94083

Product and How-to Videos


Customer Ratings & Reviews


Cadence S1W15D4.v2 thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


KX-TG9392T small

Panasonic KX-TG9392T

DECT 6.0 Digital Expandable Corded / Cordless Answering System with 2 Extra Handsets (KX-TG9392)

$199.99

List price $249.99

No picture

Blaupunkt PCwi1200 12"

$59.99

List price $99.99

PD-2099T small

Phoenix Digital PD-2099T DVD Player

$99.99

List price $189.99

No picture

AudioControl DQS (Open Box with 1-year Warranty)

6-Channel Digital Car Audio Equalizer

$299.99

List price $549.99

10W3v2d2 small

JL Audio 10W3v2 ( 10W3v2D2 )

Dual 2 ohms 10" W3v2 Subwoofer W3

(1)

$149.99

List price $229.99

No picture

VizuaLogic 90A-79063-L503

Lexus GS 300/GS 430 2004 Lt. Charcoal Leather

$549.99

List price $1299.99

IESW201B small

Woodees Sport IESW201B

Inner Ear Sport Stereo Earbuds/Earphones with Sound Isolation, Natural Wood Housing, and Over-the-Ear Clips

$19.99

List price $69.99

MPS1000 small

JBL Marine MPS1000 Open Box

(Open Box) Marine 10" Amplified Bass System and Subwoofer Enclosure

$214.99

List price $469.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2018 Toyota Camry

1984 BMW 528e

2001 Saturn SW2

2007 Suzuki XL-7

2002 Chrysler PT Cruiser

2013 BMW X1

1978 Buick Century

2003 Kia Rio Cinco

1995 Ford Mustang

2014 Nissan Altima

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
