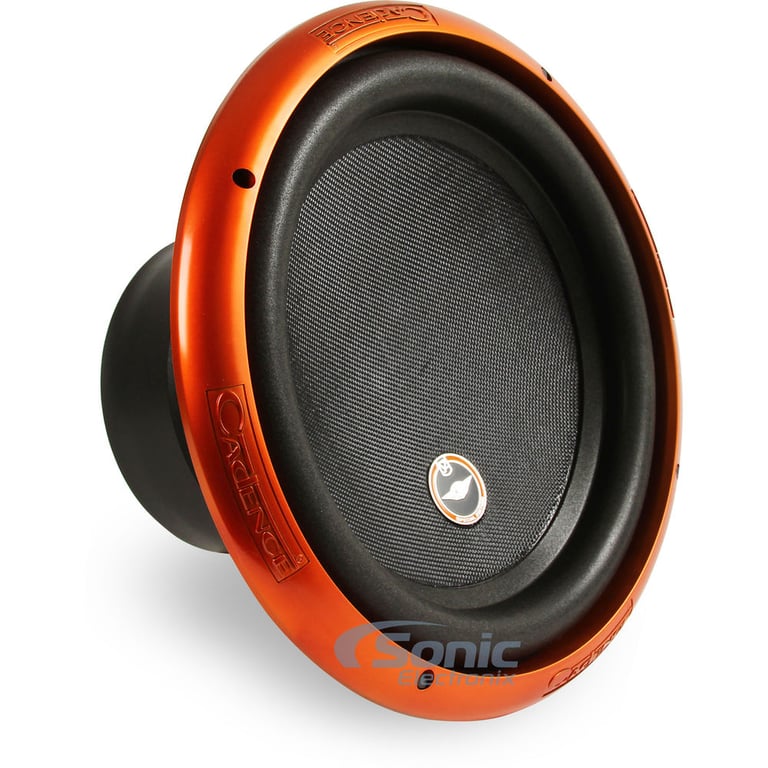

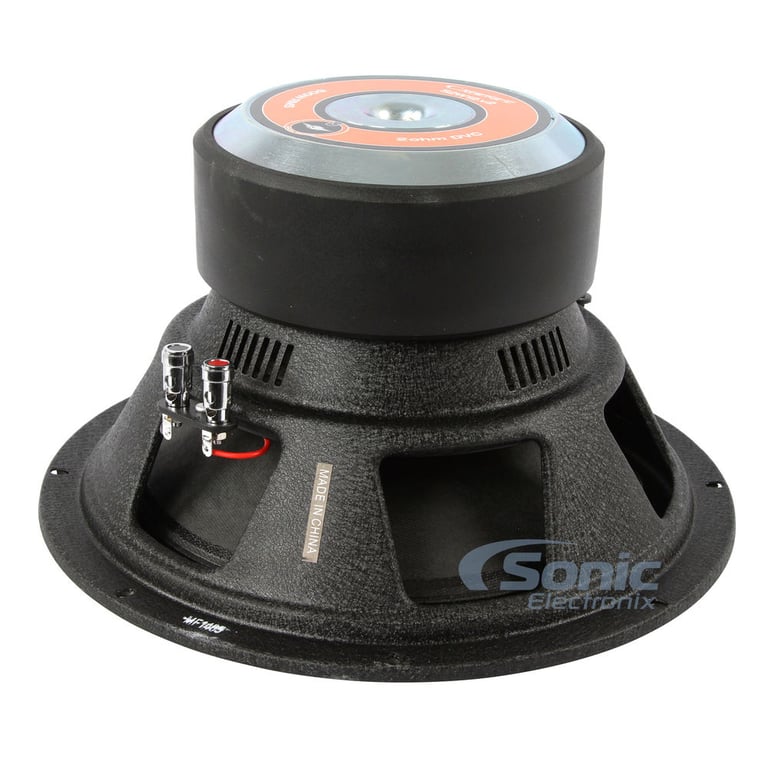

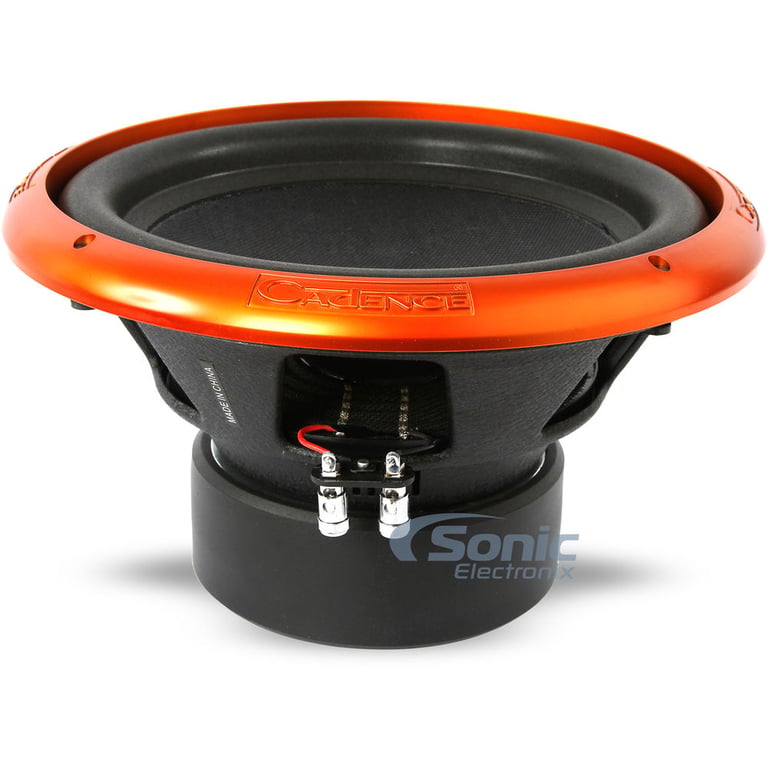

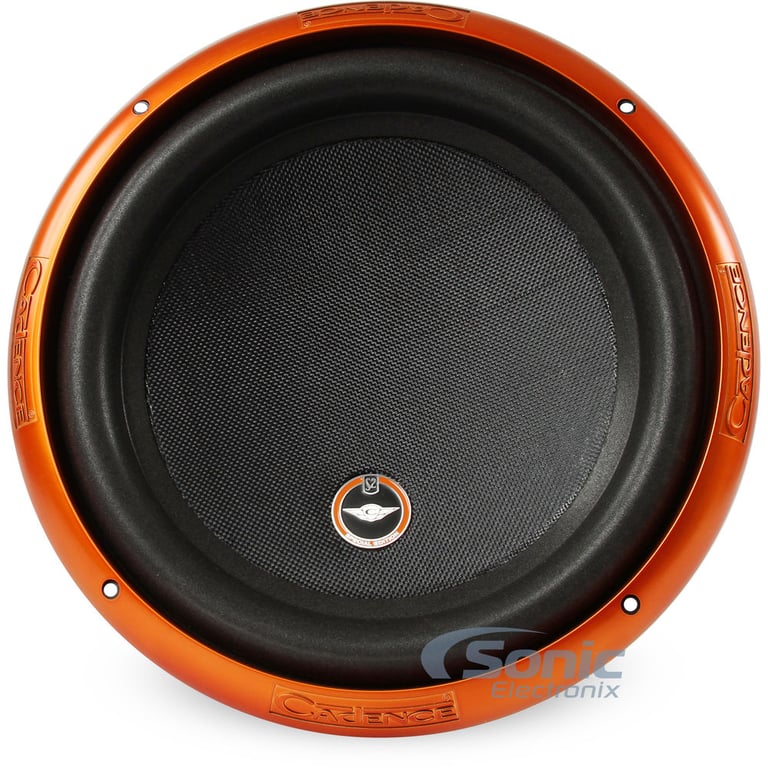

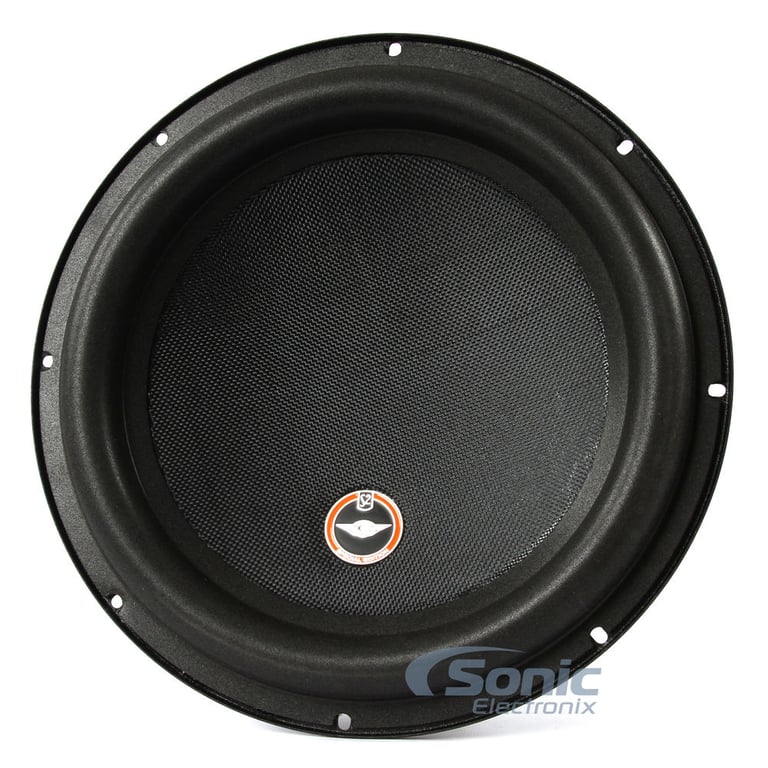

Cadence S2W12D2.V2

1200W 12" S2 Series Dual 2-ohm Car Subwoofer

Cadence
Shop all Cadence
Product videos
highlight-star-icon

• Peak Power: 1200W
• RMS Power: 600W
• Kevlar Reinforced Ultra-Stiff Paper Composite Cone
• High Excursion Double Laminated Foam Surround

Learn more about the cad-s2w12d2v2

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
95-5809 main

Metra 95-5809 Dash Kit

Install a new Double-DIN car stereo in select 1998-2002 Continental

-12.00%

$21.99

List price $24.99

Product Highlights


• Peak Power: 1200W
• RMS Power: 600W
• Kevlar Reinforced Ultra-Stiff Paper Composite Cone
• High Excursion Double Laminated Foam Surround

Description


Cadence brand icon

Authorized dealer

General Features:

  • 12" S2 Series Dual 2-ohm Car Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Kevlar Reinforced Ultra-Stiff Paper Composite Cone
  • High Excursion Double Laminated Foam Surround
  • 2" Dual ASV Voice Coil
  • Black Aluminum 4-Layer Voice Coil Former
  • Expanded and Rolled Steel Basket
  • Magnet Motor with Heat Pump Cooling Technology
  • Aero Style Oversize Magnet Motor Vent
  • Quad Layer Linear Progressive Conex Spiders
  • Integrated High-Current Tinsel Leads
  • Ultra Saturated, High “BL” Magnetic Motor Gap
  • Extended Pole Technology
  • Woven Fiberglass Dustcap
  • Molded Rubber Trim Gasket
  • Stylized Magnet Protection Rubber Boot
  • Dual Nickel Plated Spring Loaded Push Terminals
  • Top-mount depth: 6.50"
  • Cutout Diameter: 11.00"
  • Frequency Response: 20 - 500 Hz
  • Sensitivity: 92 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

TS Parameters

  • FO: 45.188 Hz
  • QMS: 9.722
  • QES: 1.080
  • QTS: 0.572
  • ERM: 0.611
  • CMS: 62.590 uM/N
  • MMS: 210 gr
  • MMD: 183.219 gr
  • NO: 0.198%
  • BL: 9.307 T/M
  • SPL: 92 dB
  • VAS: 22.463 L
  • RE: 1.6 Ohm
  • SD: 502.730 cm
  • XMAX: 24.5

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Check out the Cadence S2W12D2.V2 Owner's Manual

Product history:

Cadence S2W12D2.V2 thumbnail
(newest, current model)
Cadence S2-W12-D2 thumbnail
(previous model, replaced by Cadence S2W12D2.V2)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cadence S2W12D2.V2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cadence S2W12D2.V2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cadence S2W12D2.V2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Cadence S2W12D2.V2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
S2 Series
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2"
Frequency Response
20 - 500 Hz
Sensitivity
93 dB
Xmax (millimeters)
24.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Semi-Pressed Paper
Woofer Surround
Foam
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1 cubic feet
Optimum Sealed Box Volume
1.5 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Optimum Ported Box Volume
2 cubic feet
Maximum Ported Box Volume
2.5 cubic feet
Top-Mount Depth (Mounting Depth)
6.50"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Equivalent Compliance (Vas)
22.463 liters
Total Speaker Q Value (Qts)
0.572
Electrical Q Value (Qes)
1.080
Electrical Resistance of Voice Coil (Re)
1.6 ohm
Mechanical Q Value (Qms)
9.722
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

S2W12D2.V2

Weight:

22.45lbs

Internal SKU:

cad-s2w12d2v2

Internal Product ID:

94090
