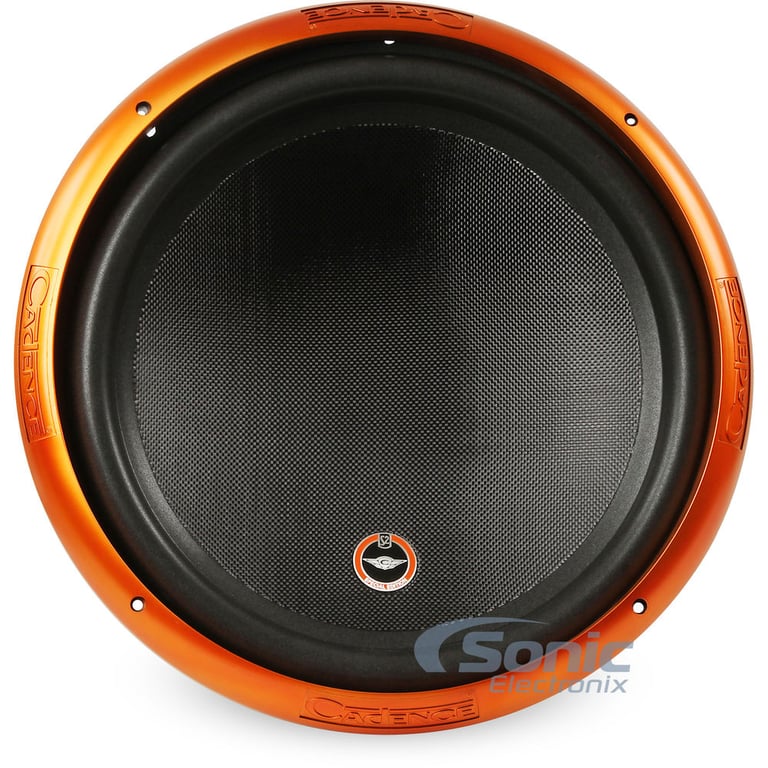

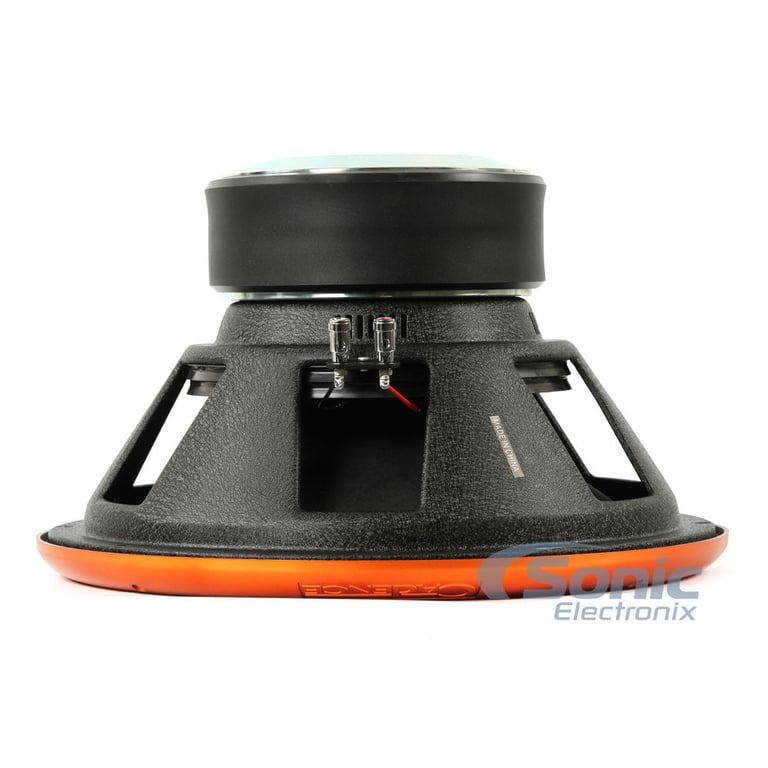

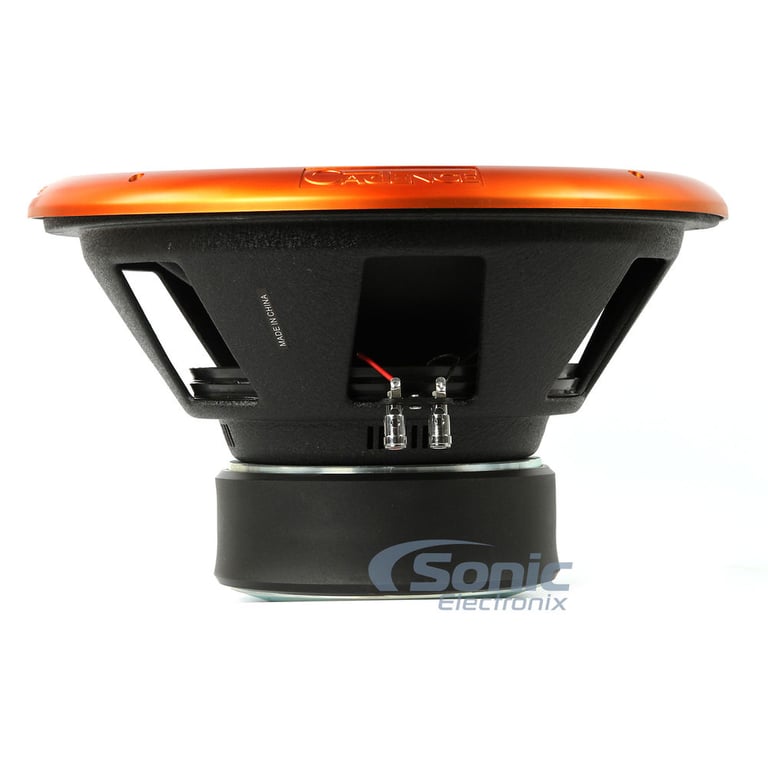

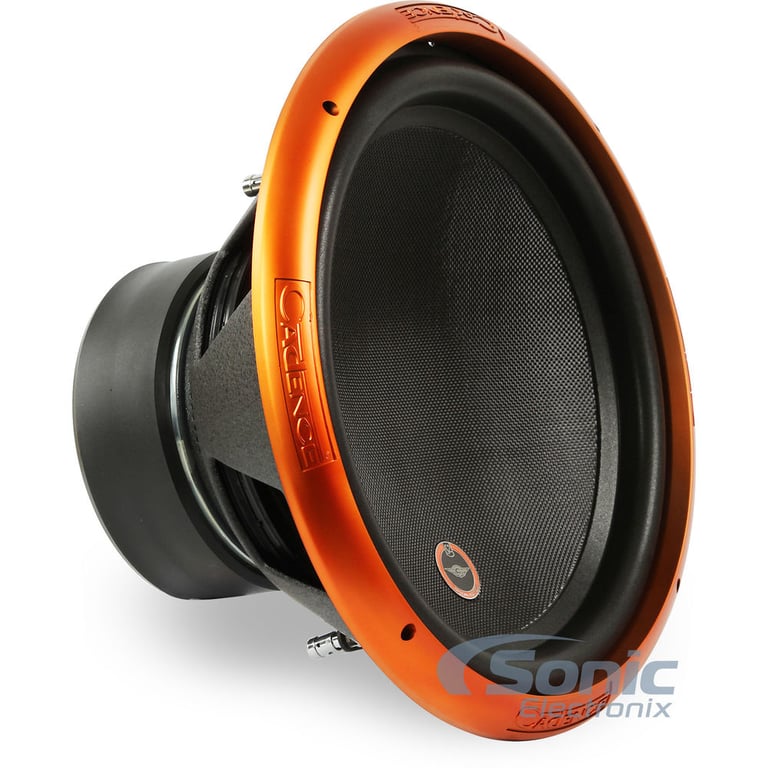

Cadence S2W15D4.V2

General Features:

• 15" S2 Series Dual 4-ohm Car Subwoofer
• Power Handling:
• Peak: 1600 watts
• RMS: 800 watts
• Recommended power range: 400 - 800 Watts RMS
• Kevlar Reinforced Ultra-Stiff Paper Composite Cone
• High Excursion Double Laminated Foam Surround
• 2" Dual ASV Voice Coil
• Black Aluminum 4-Layer Voice Coil Former
• Expanded and Rolled Steel Basket
• Magnet Motor with Heat Pump Cooling Technology
• Aero Style Oversize Magnet Motor Vent
• Quad Layer Linear Progressive Conex Spiders
• Integrated High-Current Tinsel Leads
• Ultra Saturated, High “BL” Magnetic Motor Gap
• Extended Pole Technology
• Woven Fiberglass Dustcap
• Molded Rubber Trim Gasket
• Stylized Magnet Protection Rubber Boot
• Dual Nickel Plated Spring Loaded Push Terminals
• Top-mount depth: 8.35"
• Cutout Diameter: 14.00"
• Frequency Response: 25 - 500 Hz
• Sensitivity: 94 dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Priced Individually

TS Parameters

• FO: 30.377 Hz
• QMS: 7.813
• QES: 0.561
• QTS: 0.524
• CMS: 84.438 uM/N
• MMS: 325.103 gr
• MMD: 311.237 gr
• NO: .403%
• BL: 18.808 T/M
• SPL: 94 dB
• VAS: 83.535 L
• RE: 3.6 Ohm
• SD: 834.680 cm
• XMAX: 24.5

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article
