Soundstream T5.122 (Open Box, Good)

2000W Peak (1000W RMS) 12" Tarantula T5 Series Dual 2-ohm Car Subwoofer

Soundstream
Shop all Soundstream
Product videos
highlight-star-icon

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Spruce Pulp cone
• Polyether Foam surround
• Mount depth: 7"
• Sensitivity: 86 dB

Learn more about the ls-t5122-u7

We apologize

This item has been discontinued

Product Highlights


• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Spruce Pulp cone
• Polyether Foam surround
• Mount depth: 7"
• Sensitivity: 86 dB

Description


Soundstream brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

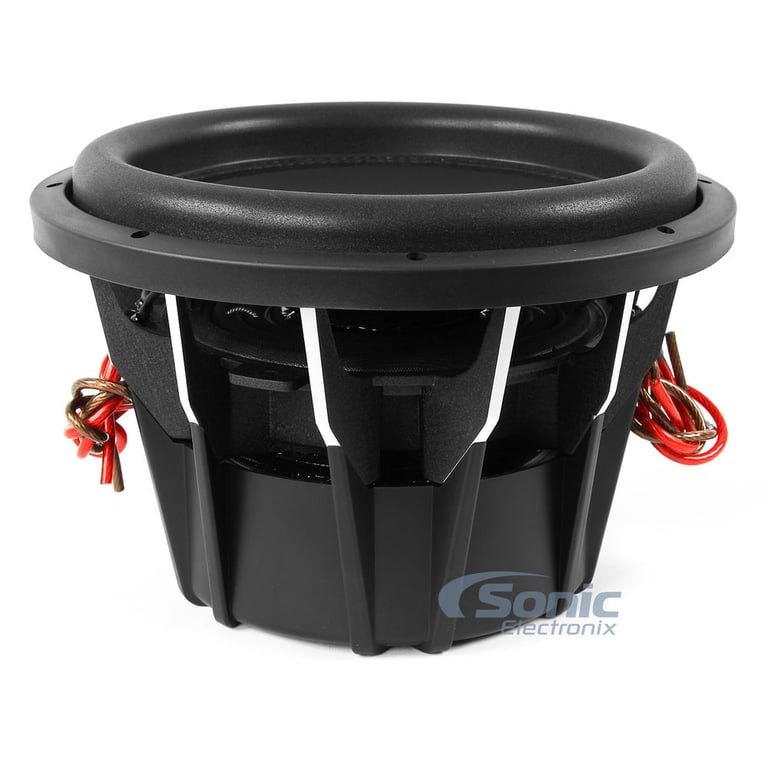

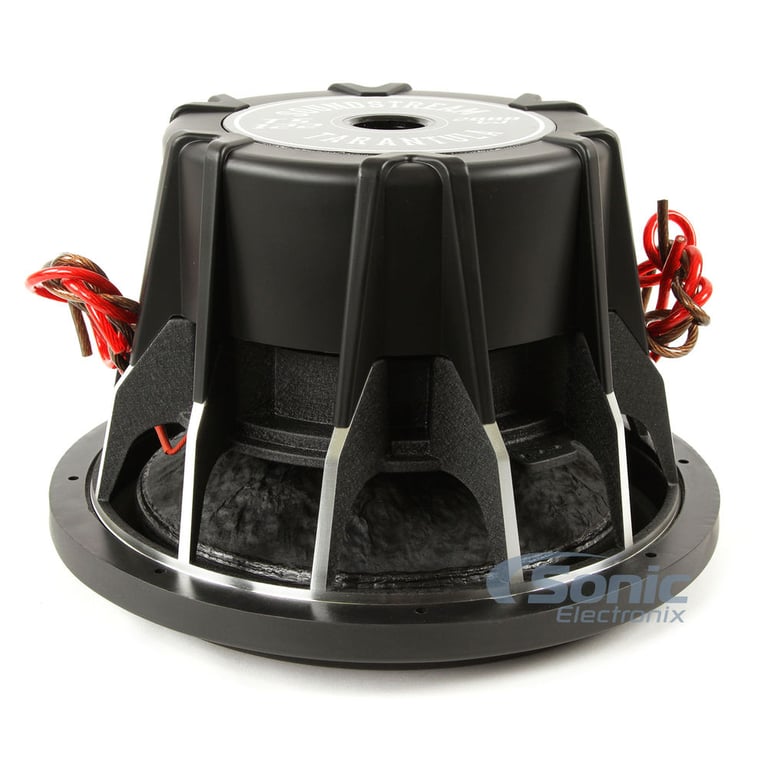

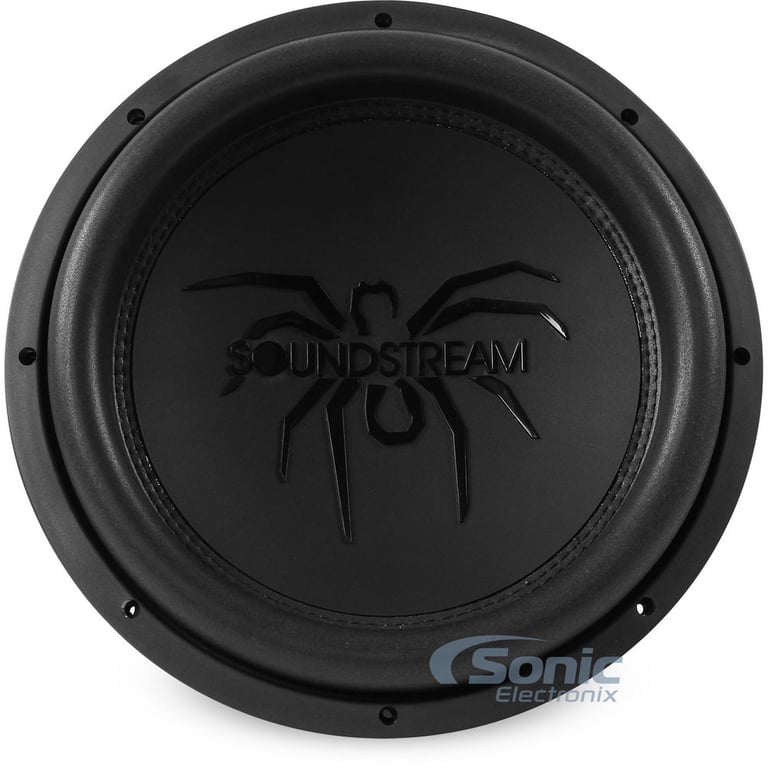

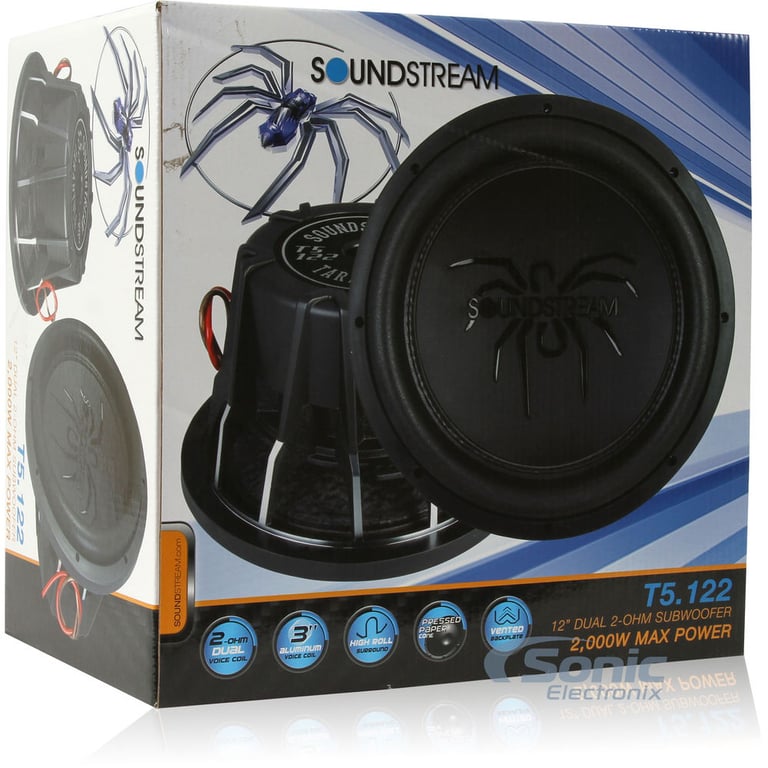

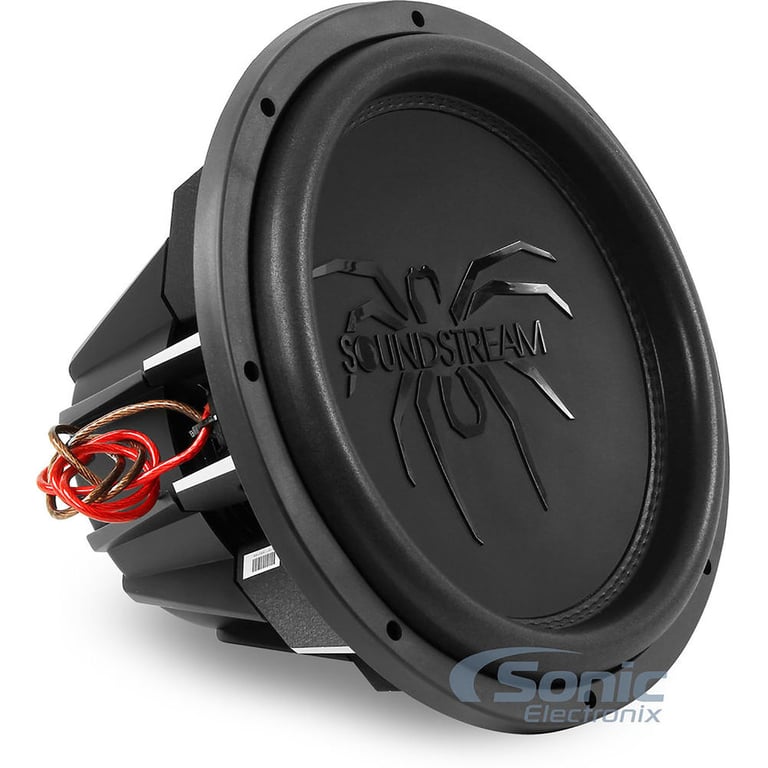

Soundstream T5.122

Tarantula subwoofers have grown to meet various performance and placement goals in recent years, keeping your, the Soundstream fanatic, suggestions in mind. However, more often than not, Soundstream hears your calls to bring back a legend.

Improvements include direct connect wire leads, over-saturated 12mm top plate and t-yoke, & double-stitched cone to high-density polyether foam surround for improved sound quality. Key components that you expect from T5 remain; big ass 3” voice coil, a triple-stack magnet assembly, high-density Spruce pulp sub-cone, and the iconic black-on-black Soundstream Spider. The T5 can handle a lot of power, so be sure to choose a suitable amplifier as these bass monsters want lots of power. Its different impedance configurations offer wiring flexibility you’ll appreciate as your system changes and grows, so you can always pull maximum power from your amp. It works well in sealed and ported enclosures, so you can choose what kind of bass you want to hear and feel.


Product Details:

  • 12" Dual 2 ohm Tarantula T5 Series Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 1000 watts
  • Spruce Pulp cone
  • Polyether Foam surround
  • Stitched and glued surround and cone joints
  • 12mm vented T-yoke and top plate
  • Dual poly-cotton suspension
  • Non-magnetic non-resonate die-cast aluminum frame
  • 3" 4-layer voice coil
  • High-temperature tolerance adhesives
  • 1 piece gasket/trim ring with concealed mounting holes included
  • 16.5 mm Xmax
  • Triple Stacked magnet motor structure
  • Resonance Frequency (Fs): 34.6 Hz
  • Sensitivity: 86 dB
  • Recommended sealed box volume: 0.75 cubic feet - 1.25 cubic feet
  • Recommended ported box volume: 1.75 cubic feet - 2.25 cubic feet
  • Top-mount depth: 7"
  • Cutout diameter: 11"
  • Soundstream T5.122RC recone kit sold separately
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconSoundstream T5122 owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Soundstream T5.122 (Open Box, Good) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Soundstream T5.122 (Open Box, Good) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Soundstream T5.122 (Open Box, Good) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Soundstream T5.122 (Open Box, Good) Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Tarantula T5 Series
Subwoofer Size
12"
Peak Power Handling
2000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
3"
Sensitivity
86 dB
Xmax (millimeters)
16.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Spruce Pulp
Woofer Surround
Polyether Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
Yes (Accessory available and sold separately)
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Optimum Sealed Box Volume
1 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Optimum Ported Box Volume
2 cubic feet
Maximum Ported Box Volume
2.25 cubic feet
Top-Mount Depth (Mounting Depth)
7"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
34.6 Hz
Equivalent Compliance (Vas)
0.73 liters
Total Speaker Q Value (Qts)
0.624
Electrical Q Value (Qes)
0.685
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
7.061
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

T5.122-2

Weight:

31.00lbs

Internal SKU:

ls-t5122-u7

Internal Product ID:

215808
