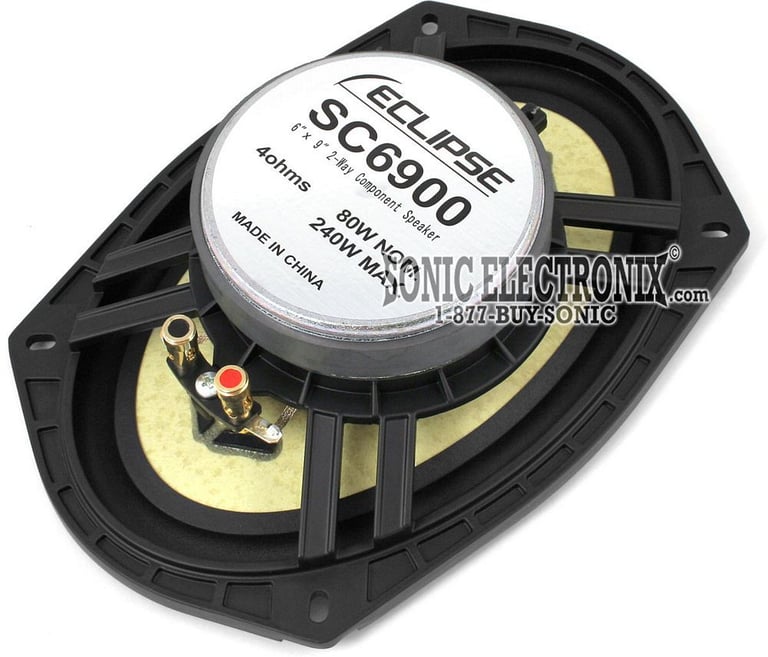

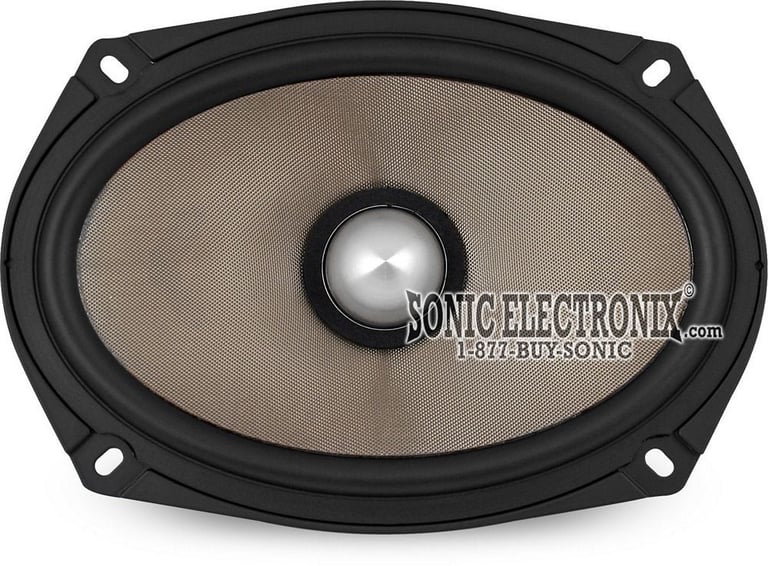

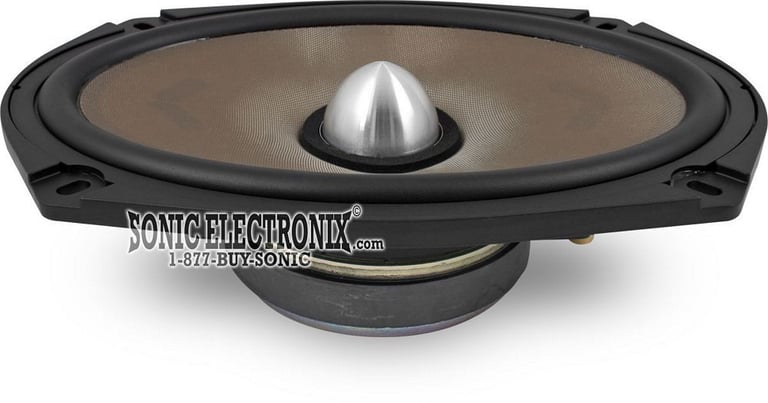

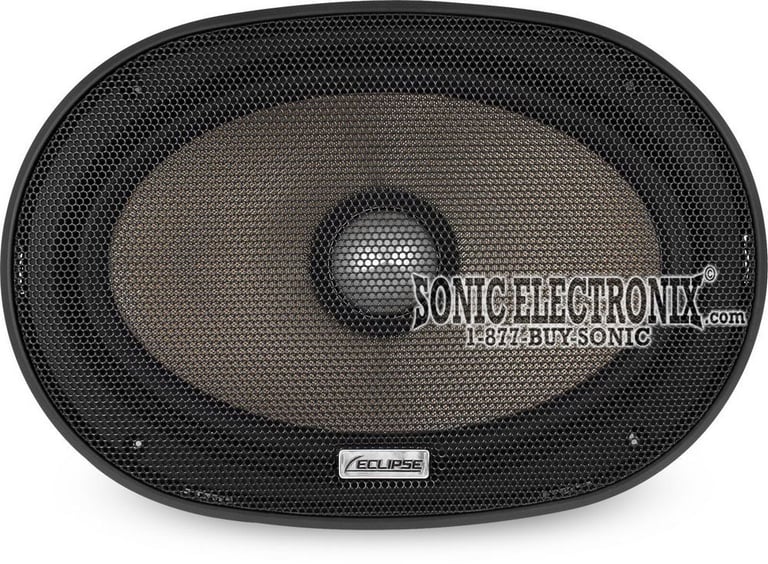

Eclipse SC6900

6" x 9" 2-way Component Speakers System

Eclipse
Shop all Eclipse
highlight-star-icon

6" x 9" Component Series Component System • 240W Max • 80W RMS • Glass Fiber-Kevlar cone • Rubber surround • Aluminum cast baskets • Passive crossover networks included • 1" Silk dome tweeters

Learn more about the ecl-sc6900

We apologize

This item has been discontinued


Loading...
MDA1B main

Scosche MDA1B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

366
-33.07%

$5.99

List price $8.95

82-3021 main

Metra 82-3021

6-6.75 inch speakers - Front door for select 2002-2009 vehicles from Chevrolet, GMC, Buick

5
-42.87%

$15.99

List price $27.99

GMK421 main

American International GMK421

Single DIN or Double DIN Stereo Dash Kit for select 1992-2012 vehicles from Chevrolet, GMC, Buick

15
-66.69%

$12.99

List price $39.00

SOCGM-17 main

Crux SOCGM-17 Wiring Interface

Install a new car stereo and retains the safety warning chimes in select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

6
-35.71%

$58.05

List price $90.30

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Description


  • 6" x 9" Component Series Component System
  • Power Handling:
    • Peak: 480 watts per system / 240 watts each side
    • RMS: 160 watts per system / 80 watts each side
  • Glass Fiber-Kevlar cone
  • Rubber surround

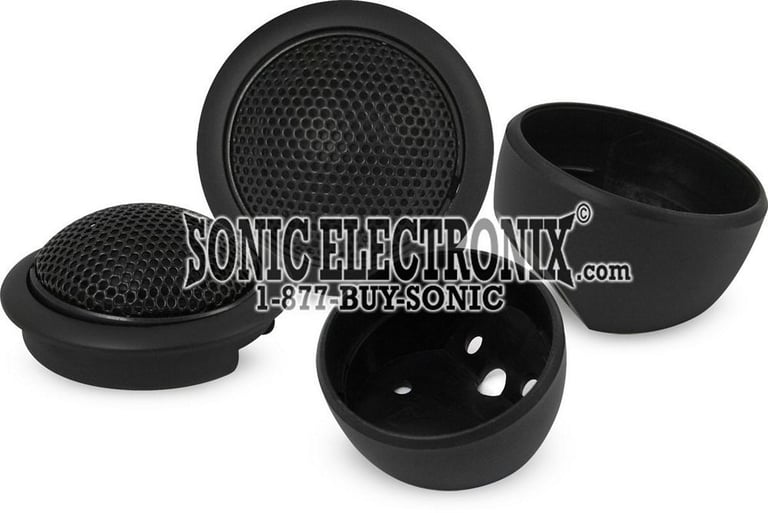

  • 1" Silk dome tweeters
  • Aluminum cast baskets
  • Aluminum phase plug
  • Aluminum voice coil former

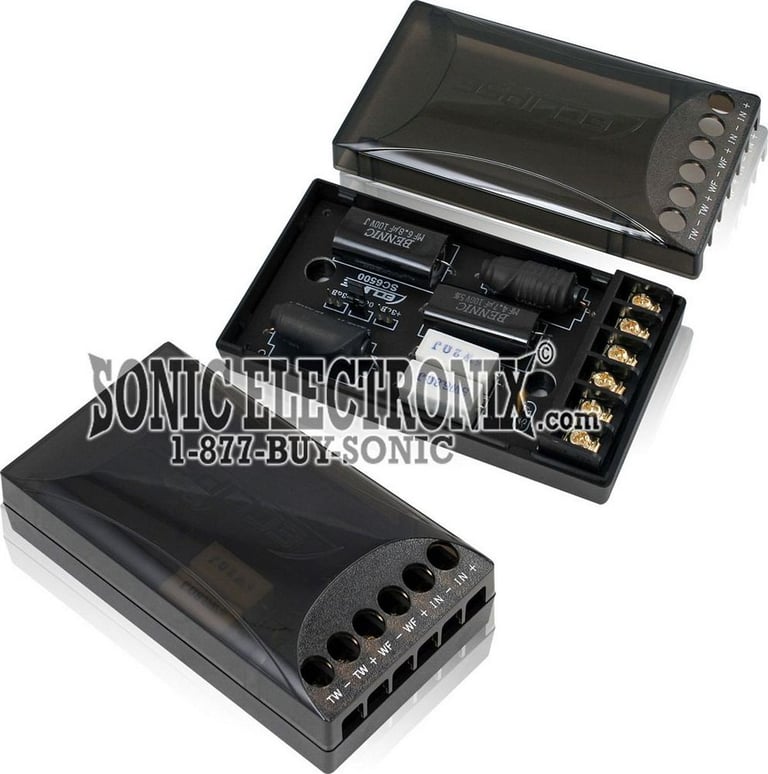

  • High-pass crossover network (12 dB/octave)
  • Low-pass crossover network (6 dB/octave)
  • Linkwitz Riley, Optimum "Q" alignment
  • OFC (Oxygen Free Copper)
  • Metallized polypropylene capacitors
  • Switchable tweeter protection circuitry
  • Selectable +3 dB/0 dB/-3 dB tweeter sensitivity
  • 4 ohm impedance
  • 16oz. magnet
  • Top-mount depth: 2-1/8"
  • 1-year SonicElectronix.com warranty

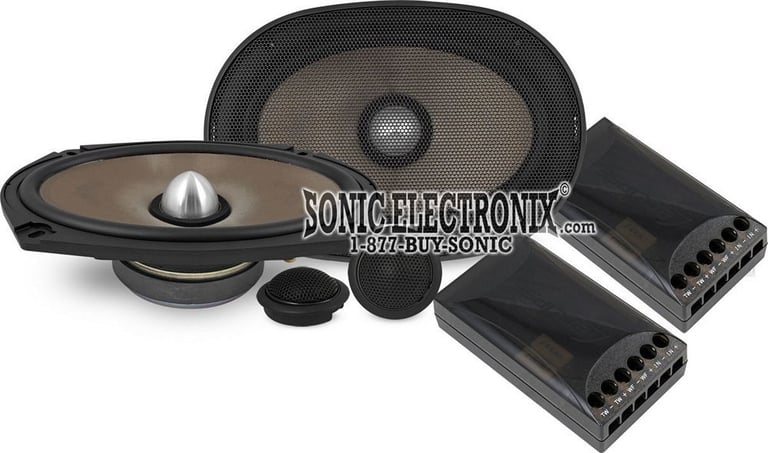

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00


Best selling similar products

PNW-69CS2 small

AudioControl PNW-69CS2

• 125 watts RMS Each
• 1" rear-dampened Hybrid Silk Dome tweeters
• Rigid Poly Mica cone material
• Impedance: 3 ohm
• Sensitivity: 88.78 dB

(1)

$349.00

List price $369.00

KFC-XP6902C small

Kenwood eXcelon KFC-XP6902C

• 300 watts Peak Each, 100 watts RMS Each
• 6x9" Woofer and 2.75" Midrange
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 84 dB
• Custom fit for select 2002-2024 vehicles from Toyota, Dodge, Chevrolet

(5)

$209.00

List price $320.00

REF697CF small

Infinity REF697CF (INFSPKRF697CFUS)

• 375 watts Peak Each, 125 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

$279.95

List price $309.95

Specifications & Details


Speaker Specifications
Speaker Size
6" x 9"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Composition
Silk
Woofer Composition
Glass Fiber-Kevlar
Woofer Surround
Rubber
Peak Power Handling
240 watts
RMS Power Handling
80 watts
Sensitivity
86 dB
Frequency Response
65 - 25000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-1/8"
Bottom-Mount Depth
3-1/4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SC6900

Weight:

12.00lbs

Internal SKU:

ecl-sc6900

Internal Product ID:

9487

Customer Ratings & Reviews


Eclipse SC6900 thumbnail image

5 star
57%
4 star
14%
3 star
14%
2 star
0%
1 star
14%



Durability
4
Value
4.3
Features
3.9
Design
4.3
Usability
4.3

Customer Reviews

Sort by:

Loading...

Really good buy!

I am quite pleased with the performance of the Eclipse SC6900 component set. I put a pair in the doors of my 4th gen F-body. The mid-bass response is very nice, especially considering there was NONE with the standard 6.5" speaker. Sonic had these available for less than $100! Wow! Thanks, Sonic!

By William on December 20, 2010

16 found this helpful


Perfect!

At this price, there is no reason to buy another speaker. I am running 4 6900's and 4 6500's. They are very comparable to my Kappas and MBQuarts that I also have and are very bright. They have a nice crisp mid-bass and excellent overall sound. The semi-shallow mounting depth will fool you as to how much power they can handle. Overall, I would recommend this speaker above all speakers that are even twice the price.

By Ben on May 3, 2011

15 found this helpful


Great speaker!

I've never had component speakers before this set and all I can say is WOW! Sound from a 6x9 like I've never heard before, I would highly recommend these!

By Coolbluestreak on March 13, 2011

14 found this helpful


Eclipse SC6900

These speakers sound excellent and are pretty loud. Crisp and clean sounding and price is awesome. Being 2way though there isn't alot of range in high but still are kick ***. I plan on another pair as I own 3 sets already. Would buy again and would defiantly recommend. Quality and price beats anything on the market in the same class range to me.

By Ted of Smeg on January 4, 2011

14 found this helpful


clean sound

these components sound great.very smooth,silk tweeters.the midbass is also pretty good.however make sure not to put to much power into them.i recommend under 50 watts rms,otherwize the tweeters shut down.they overheat,fast.typical silk tweeters.im sure the mids could handle maybe 70 watts of power ,not great engineering by eclipse there.i feel they should have matched the tweeters better to the mids.or maybe its in the crossovers.i didnt get into them,i actually sold both sets with the truck.i really wish they would handle more power as the install is sweet.the baskets are cast on the mids,fit and finish is great.oh well.sonic is an amazing place to shop!!

By Robert on January 1, 2011

14 found this helpful


eclipse sc6900

Don't buy at all, I bought it but worst than other speakers.

By chintan on August 9, 2012

13 found this helpful


Great speakers

Great speakers!

By Srgranados on October 9, 2011

13 found this helpful
