MB Quart ZC1-216

240W Peak (120W RMS) 6-1/2" Z-Line Series 2-Way Component Car Speakers

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• 240 Watts Max, 120 Watts RMS
• Composite basket w/original German-spec material
• Mounting Depth: 2.56"
• Mica-filled PP cone mated to UV butyl surround
• 4 Ohm Impedance
• Sensitivity: 88 dB

Learn more about the zc1216

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Product Highlights


• 240 Watts Max, 120 Watts RMS
• Composite basket w/original German-spec material
• Mounting Depth: 2.56"
• Mica-filled PP cone mated to UV butyl surround
• 4 Ohm Impedance
• Sensitivity: 88 dB

Description


MB Quart brand icon

Authorized dealer

Z-Line Series: Designed for Sound Quality


MB Quart's Z-Line Speakers reproduce a smooth and pleasant reproduction of your music. The tweeter has a nylon surround to reduce the resonance frequency for a more balanced high-end. The basket is a cast nylon material with the original German-spec material. These speakers are also designed to last. Military grade A titanium is used throughout the Z-Line speakers to ensure they can play loud and sound great. These MB Quart Z-Line speakers are a great addition to a car audio system.



General Features:

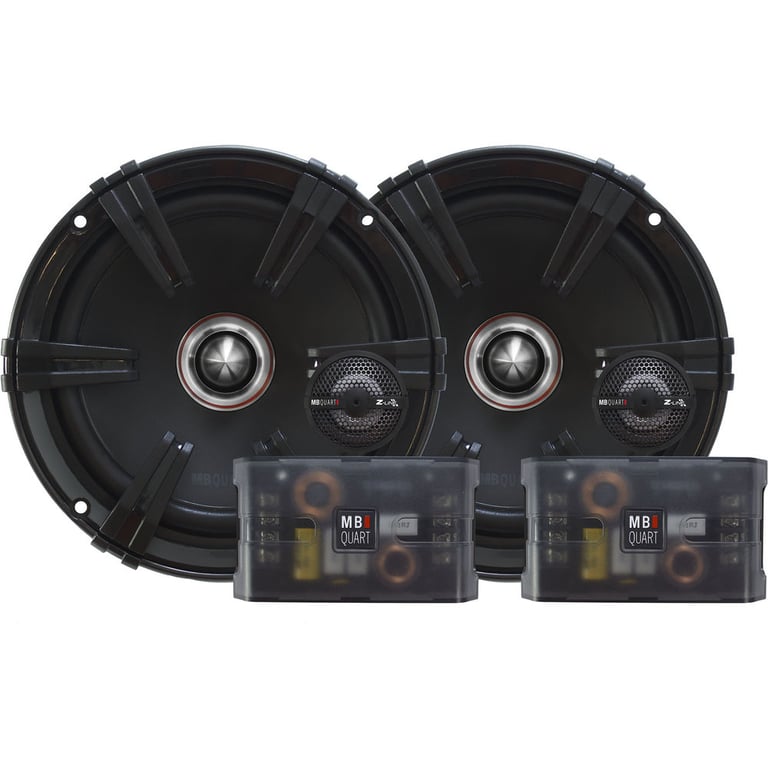

  • 6.5" Z Line Series 2-Way Component System
  • Power Handling:
    • Peak: 240 watts per set / 120 watts each side
    • RMS: 120 watts per set / 60 watts each side
  • Recommended power range: 10 - 60 watts RMS per channel
  • Composite basket w/original German-spec material
  • Mica-filled PP cone mated to UV butyl surround

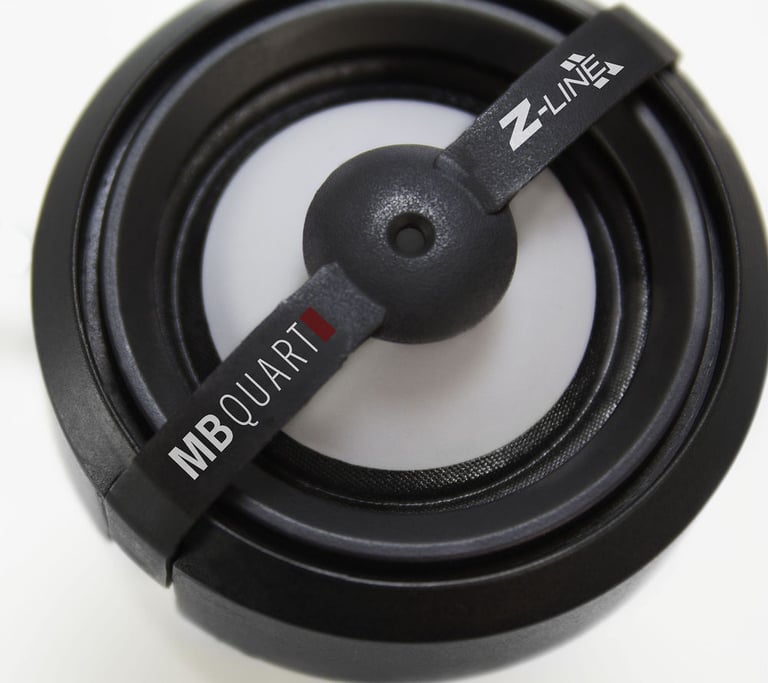

  • 30mm ceramic coated titanium dome tweeter
  • Military grade A titanium Dome
  • Nano ceramic coating for extended range
  • High heat tolerance handles more power
  • Greatest weight to strength ratio of any metal
  • Smooth response within the audible range
  • Tweeter features nylon surround for lower fs
  • Removable phase lens allows the tweeter to be tuned for the application
  • Rubber magnet boot cover
  • 4 ohm impedance
  • Frequency Response: 20 - 20,000 Hz
  • Top-mount Depth: 2.56 inches
  • Sensitivity: 88 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.


Best selling similar products

PNW-65CS2 small

AudioControl PNW-65CS2

• 125 watts Peak Each, 100 watts RMS Each
• 3/4" rear-dampened Hybrid Silk Dome tweeters
• Rigid Poly Mica cone material
• Impedance: 3 ohm
• Sensitivity: 88.8 dB

(4)

$319.00

List price $339.00

GX608C small

JBL GX608C (GX608CAM)

• 210 watts Peak Each, 70 watts RMS Each
• 1-13/16" Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 2.3 ohm
• Sensitivity: 92 dB

(7)

$119.95

List price $119.95

MPK 163.3 small

Hertz MPK163.3

• 300 watts Peak Each, 150 watts RMS Each
• Tetolon Soft Dome tweeters
• Pressed Pulp Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(2)

$999.99

List price $1175.00

Reference 6530CX small

Infinity Reference REF-6530cx (REF6530CXAM)

• 270 watts Peak Each, 90 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(14)

$108.99

List price $249.95

T2652-S small

Rockford Fosgate Power T2 T2652-S

• 200 watts Peak Each, 100 watts RMS Each
• 1" Aluminum Dome tweeters with integral suspension
• Carbon Fiber Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB

(42)

$449.99

List price $449.99

Stadium 62CF small

JBL Stadium 62CF (JBLSPKSD62CFAM)

• 330 watts Peak Each, 110 watts RMS Each
• 3/4" Aluminum Edge Driven Dome Tweeters
• Glass Fiber cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(2)

$449.95

List price $479.95

VSP65KIT small

NVX VSP65KIT

• 375 watts Peak Each, 125 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB
• Mounting Depth: 2.51"

(84)

$119.99

List price $143.99

MS1-216C small

MB Quart MS1-216C

• Front Speaker Upgrade for select 2019-2026 Sprinter 3500XD / 1500 / 3500 / 2500
• 100 watts Peak Each, 50 watts RMS Each
• Includes 6.5" component speakers and a 3" center dash speaker
• Impedance: 4 ohm (component)
• Sensitivity: 92 dB (component)

$379.99

List price $399.99

C2-650 small

JL Audio C2-650

• 60 watts RMS Each
• 3/4" Silk Dome tweeters
• Mica Injected Polypropylene - MIPP cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(21)

$254.99

List price $329.99

XQS65KITv2 small

NVX XQS65KIT Version 2 (XQS65KITv2)

• 300 watts Peak Each, 150 watts RMS Each
• 1-1/8" Silk Dome tweeters
• Carbon Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(9)

$399.99

List price $499.99

Specifications & Details


Speaker Specifications
Series
Z-Line Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
6-1/2"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Size
1-1/8"
Tweeter Composition
Titanium
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Butyl Rubber
Peak Power Handling
120 watts
RMS Power Handling
60 watts
Sensitivity
88 dB
Frequency Response
20 - 20,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black
Speaker Grilles
Yes
What is in the box?
Paperwork
User manual
WITB: Speakers
Speakers (2)
Grilles (2, attached)
Tweeters (2)

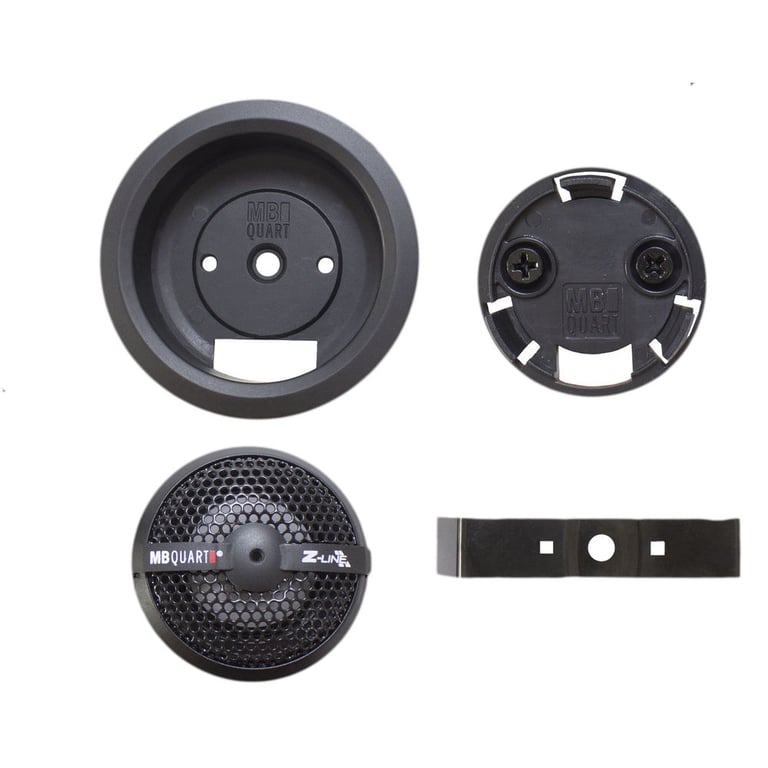

Tweeter surface mounts (2)

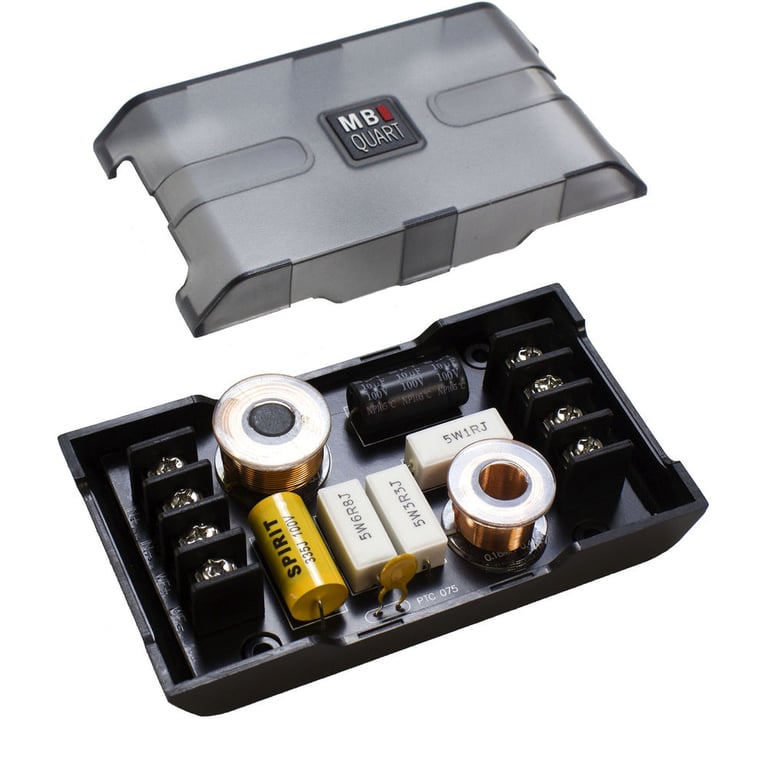

Crossover networks (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZC1-216

Weight:

5.85lbs

Internal SKU:

zc1216

Internal Product ID:

94883

Product and How-to Videos


Customer Ratings & Reviews


MB Quart  ZC1-216 thumbnail image

5 star
83%
4 star
0%
3 star
17%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.8
Design
4.9
Usability
4.8

Customer Reviews

Sort by:

Loading...

Awesome ???? sound ????

I installed these in my 2003 Honda Civic the highs are so clear I mean some cd's it almost sounds like it's Live really nice!!!! highly recommend them.

By Rob All-Clean on April 9, 2018

8 found this helpful


MB Quart ZC1-216

The product is easy to install if you listen to the installation video. I would definitely recommend this product to others the sound quality (if properly installed) is magnificent. You must order the installation kit as well.

By Anonymous on May 15, 2018 Checkmark Icon Verified purchase

2 found this helpful


Love them

I think its best purchase i did for my car.
Such grate sound, the high frequency is just what i was looking for.

By Yafim on April 15, 2018

2 found this helpful


stunned

almost shocked the Imaging and range is unmatched in my expiriance
but add to that the SPL these produce without breaking a sweat.. This is the sweet spot.

By MB what? on January 18, 2018

1 found this helpful


Great sound

These things rock hard. i would purchase again. you wont be dissapointed

By alan on November 3, 2016

1 found this helpful


MB Quart ZC1-216

I’ve always been a fan of MB Quart so when I purchased my 14’ Toyota Tundra 1794 Crewmax, I knew that I would be removing the factory JBL speakers to install these ZC1-216’s. After the 2 sets were installed, they sounded awesome!! A few months in I began hearing what sounded like a blown speaker coming from the RF. Turns out the speaker separated around the edges. I’ve just recently ordered another pair as a backup to swap out. I’m trying these for the last time! If another of the 6.5” components come apart, will give the JL Audio components a try

By Anonymous on July 13, 2018 Checkmark Icon Verified purchase


Excellent!

I have not purchased car speakers in over 15 years. When I did, all I had was MB Quart. I read concerns over quality, since they were bought out. Just got them installed and the Z-Line series sounds just like I remember and that is off the factory radio. Waiting to install the amp and I am sure they will sound even better!

By AS on October 5, 2017 Checkmark Icon Verified purchase


Crisp and clear

Easy fit and mounting. Sound great, super clean sound. Installed in 96 Yukon front doors. Sounds great

By Bman on September 15, 2017 Checkmark Icon Verified purchase


Great sound

Recommend: great value,beautiful frequency response,sound too price ratio is a no brainer

By Chad on August 10, 2017 Checkmark Icon Verified purchase


nice clear sound!

nothing bad to say just pure quality sound buy 2 pair for a trans am 01 and my friend loved how clear and loud sound was running with mtx 4 channel

By Wulfrano on July 6, 2017 Checkmark Icon Verified purchase
