Infinity Reference 1000S (REF1000S) (Open Box, Good)

800W Peak (200W RMS) 10" Reference Series Single 2-or 4-ohm Shallow Car Subwoofer

Infinity
Shop all Infinity
Product videos
highlight-star-icon

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Single 2 or 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.27"
• Sensitivity: 89 dB

Learn more about the ls-ref1000s-u7

We apologize

This item has been discontinued

Product Highlights


• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Single 2 or 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.27"
• Sensitivity: 89 dB

Description


Infinity brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

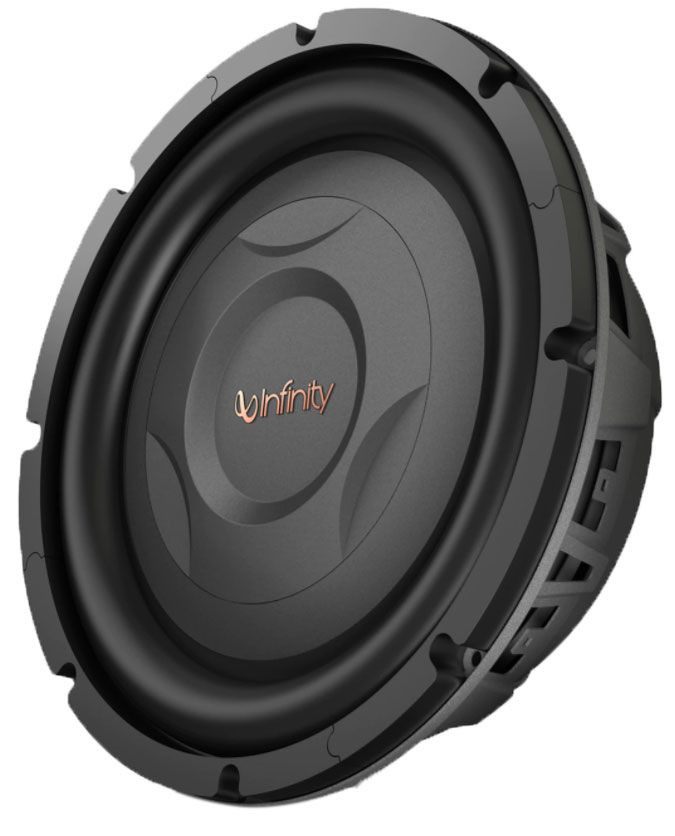

Infinity Reference 1000S

Infinity’s latest Reference subwoofers offer incredible installation flexibility. Their low-profile design allows them to fit perfectly into even the most shallow of enclosures — great for today’s compact cars. Polypropylene woofer cones deliver exceptional bass response at frequencies as low as 27Hz. But what makes these subs really stand out is their Harman-proprietary SSITM (Selectable Smart Impedance), which allows the subwoofer to present the amplifier with either a 2 or 4 ohm load at the flip of a switch.


Product Details:

  • 10" Single 2 or 4 ohm Reference Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 200 watts
  • Polypropylene Cone
  • Rubber Surround
  • 2" High Temperature Voice coil
  • 7.65 mm Xmax
  • Single Stacked magnet motor structure
  • Frequency Response: 35 - 175 Hz
  • Smart Selectable Impedance: 2 or 4 ohm
  • Resonance Frequency (Fs): 30.16 Hz
  • Sensitivity: 89 dB
  • Recommended sealed box volume: 0.5 cubic feet
  • Recommended ported box volume: 1.25 cubic feet
  • Top-mount depth: 3.27"
  • Cutout diameter: 9.50"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconInfinity REF1000S owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Infinity Reference 1000S (REF1000S) (Open Box, Good) Subwoofer

Mono Amp

Wiring Guide to Wire 2 Infinity Reference 1000S (REF1000S) (Open Box, Good) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 Infinity Reference 1000S (REF1000S) (Open Box, Good) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Infinity Reference 1000S (REF1000S) (Open Box, Good) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Reference Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 or 4 ohm
Voice Coil Diameter
2"
Frequency Response
35 - 175 Hz
Sensitivity
89 dB
Xmax (millimeters)
7.65 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.5 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
3.27"
Cutout Diameter
9.50"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30.16 Hz
Equivalent Compliance (Vas)
33.47 liters
Total Speaker Q Value (Qts)
0.59
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Reference 1000S-3

Weight:

11.88lbs

Internal SKU:

ls-ref1000s-u7

Internal Product ID:

228980
