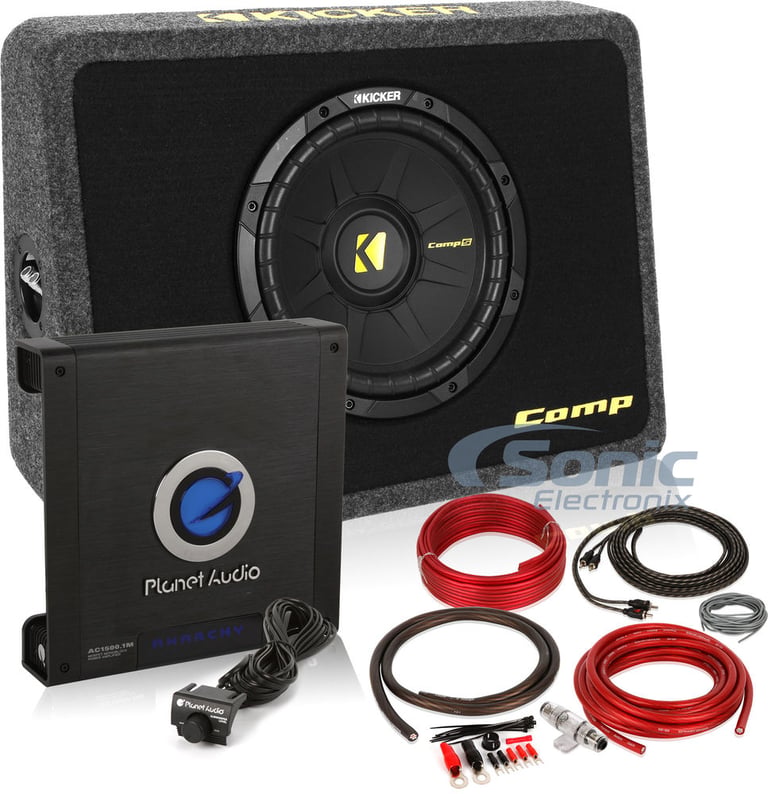

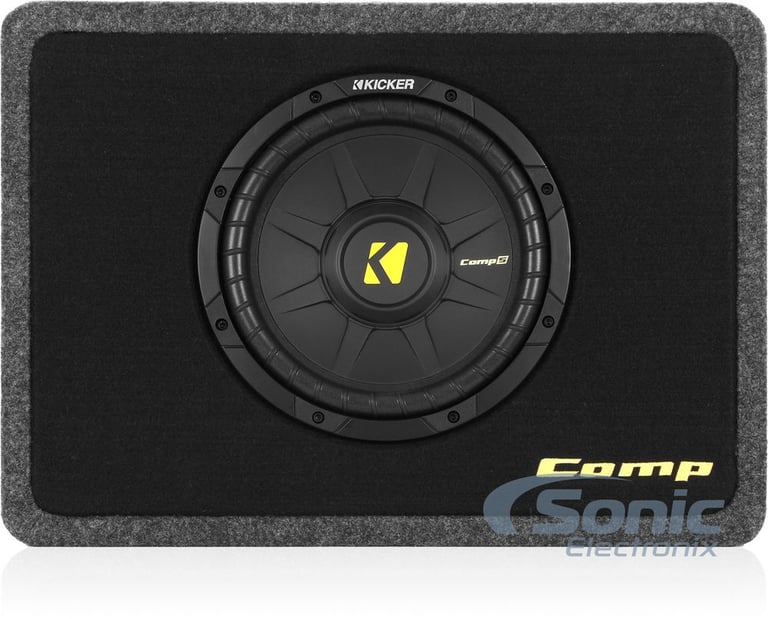

Kicker TCompS104 (40TCWS104)
600W 10" CompS Series Angled Truck Loaded Subwoofer Enclosure with 4 ohm Final Impedance
Quantity: 1
General Features:

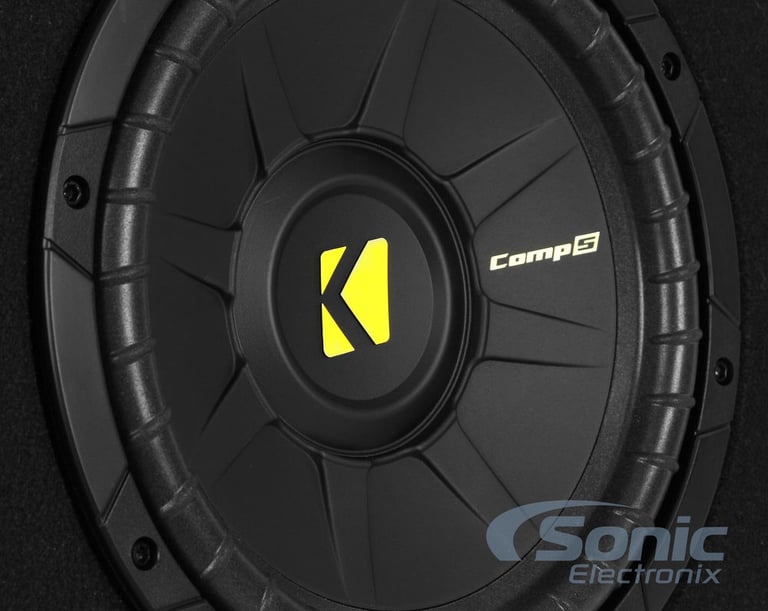

- 10" Single 4-Ohm CompS Series Subwoofer
- Power Handling:
- Peak: 600 watts
- RMS: 300 watts
- Injection-Molded Polypropylene Cone
- Ribbed polyurethane surround
- Large-diameter spider
- High-strength Spiralead tinsel leads
- Frequency response: 30-500 Hz
- Resonance Frequency (Fs): 33 Hz
- Top-mount depth: 4-13/16"
- Sensitivity: 86.2dB
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

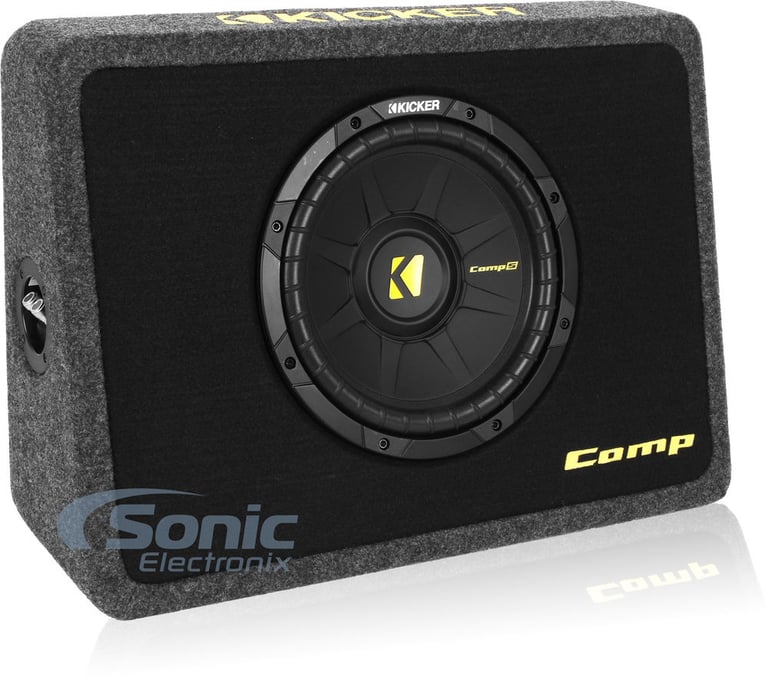

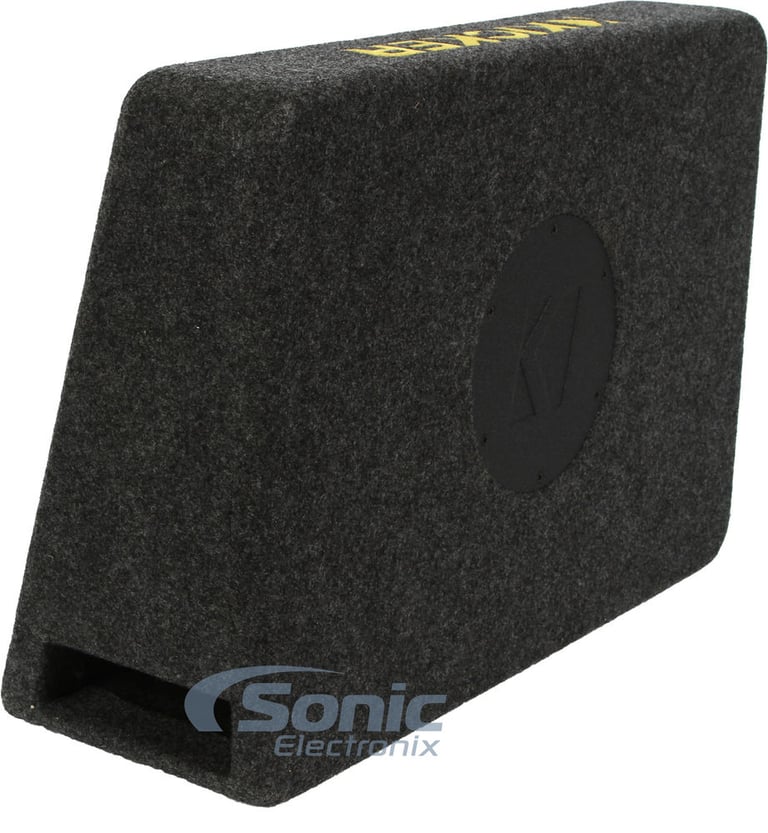

Enclosure Specifications:
- 10" Angled Vented Truck Enclosure
- Thin-profile 3/4" MDF Construction
- Rounded corners
- Slot vented design
- Internal bracing for additional strength and support
- Charcoal-gray carpeting with yellow Kicker embroidered logo
- Dimensions: 4"TD x 7-5/8"BD x 21-1/2"W x 15"H

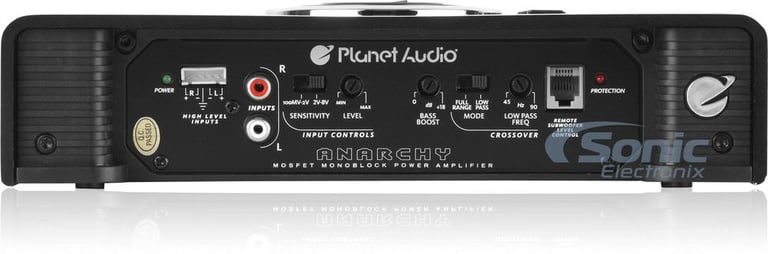

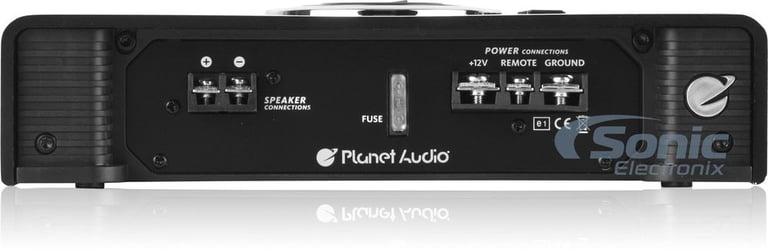

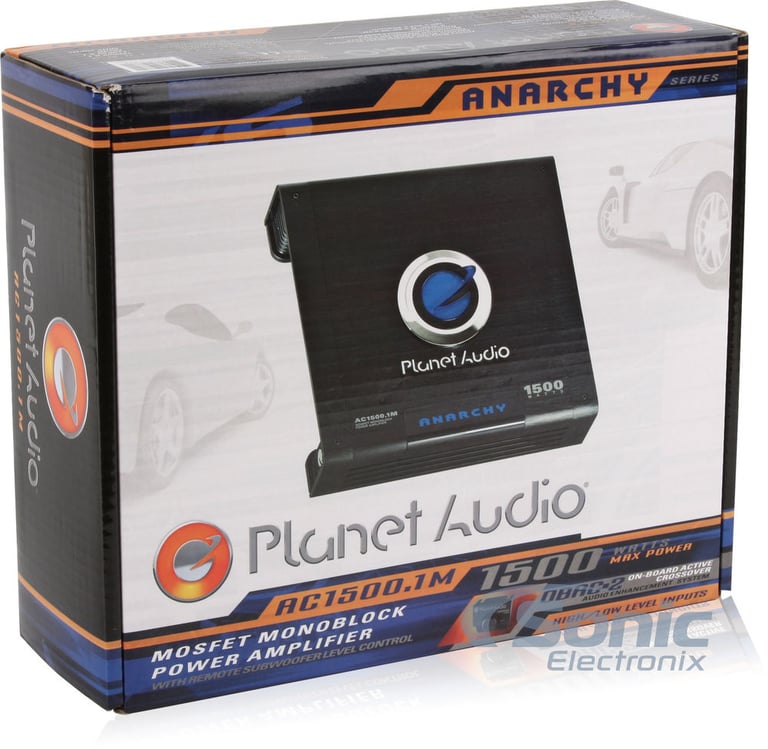

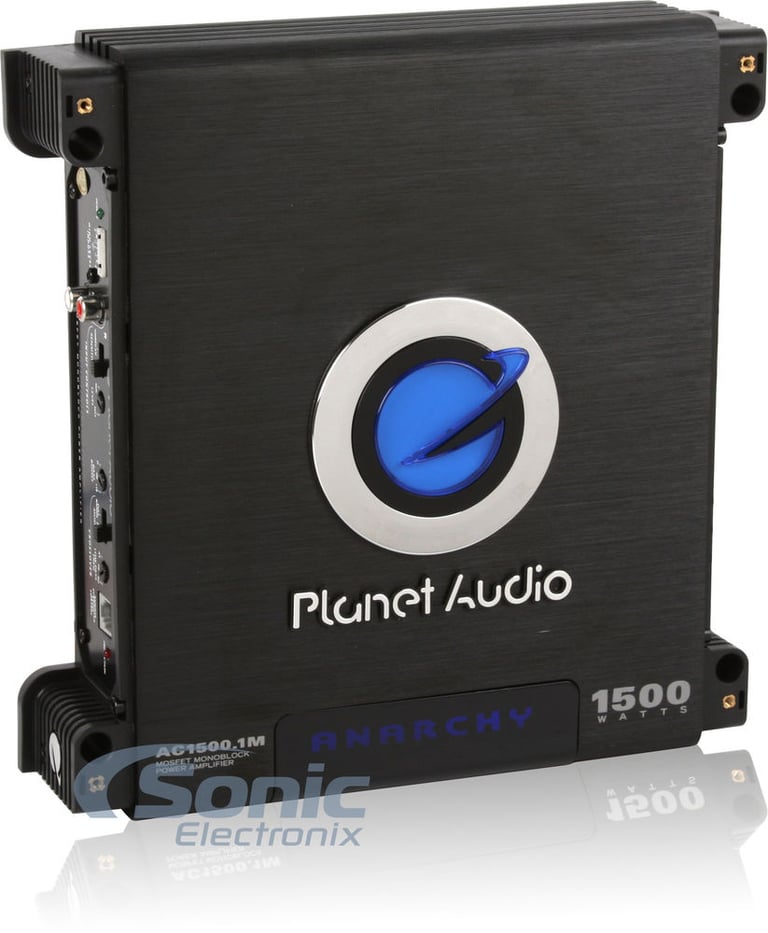

Planet Audio AC1500.1M
1500W Max Anarchy Series Monoblock Power Amplifier
Quantity: 1
General Features
- Anarchy Series Monoblock Car Amplifier
- RMS Power Rating:
- 4 ohm: 563 watts x 1 chan.
- 2 ohm: 1100 watts x 1 chan.
- Max power output:
- 2 ohm: 1500 watts x 1 chan.
- Pulse Width Modulated MOSFET power supply

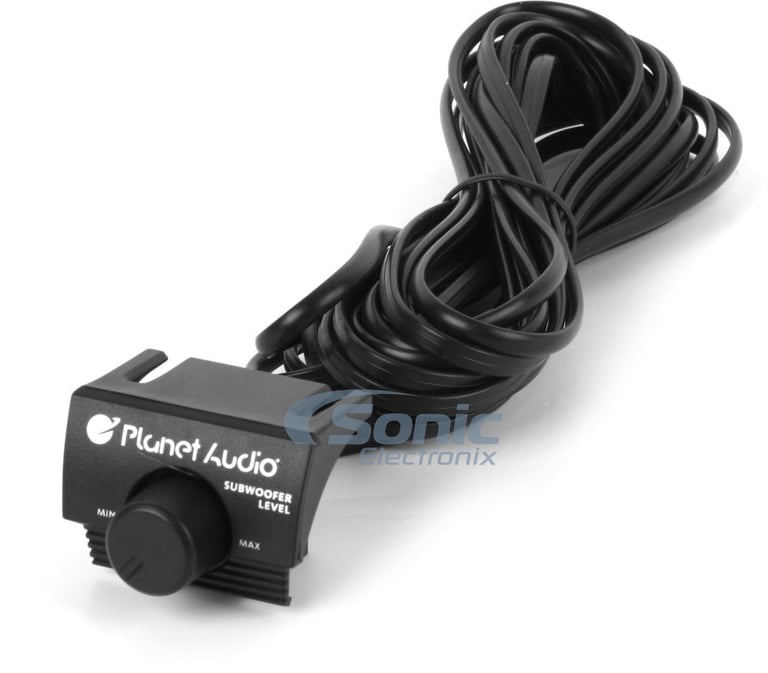

- Convenient remote subwoofer control
- LED power (green) and protect (red) indicators
- Chrome-plated connections enhance durability
- Variable low pass crossovers
- Illuminated logo
- 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy heatsink for extreme heat dissipation
- Low level and high level inputs
- Heavy-duty set-screw terminals
- Nickel-plated contacts
- Input sensitivity:
- Low level: 100mV-2V
- High level: 2V-8V
- Variable low-pass filter: 45 - 90 Hz, 24 dB/octave
- Variable Bass Boost 0 to +18 dB
- Signal-to-Noise Ratio: 102 dB
- Dampening Factor: 125+
- Frequency response: 15 - 20,000 Hz
- Dimensions: 10"L x 10"W x 2-3/16"H
- 4 gauge power and ground wiring is recommended for installation.
- Authorized Internet Dealer

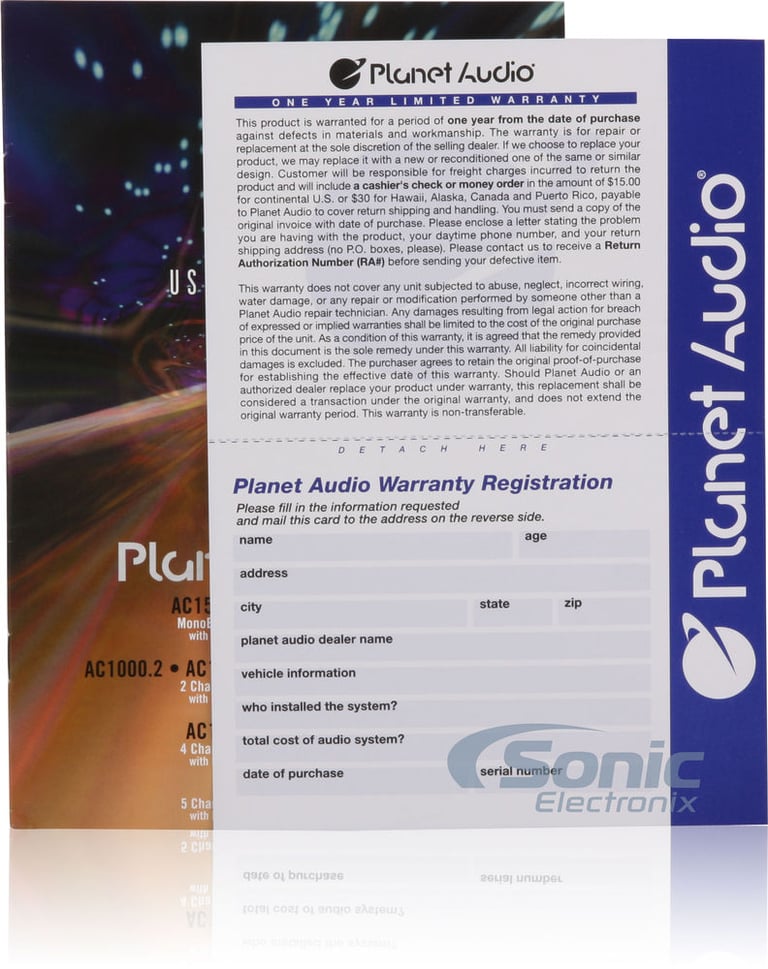

- 1-year Manufacturer's Warranty
Belva BAK42
Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)
Quantity: 1
General Features:
- Complete 4 Gauge 2-Channel Amplifier Installation Kit
- Designed specifically for car audio systems up to 1000 watts RMS
- Premium Powerflex power and ground wire provides optimal power transfer
- Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
- Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
- Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
- In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
- Also available in Black, Blue and as a 4-Channel Kit
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Kit includes:

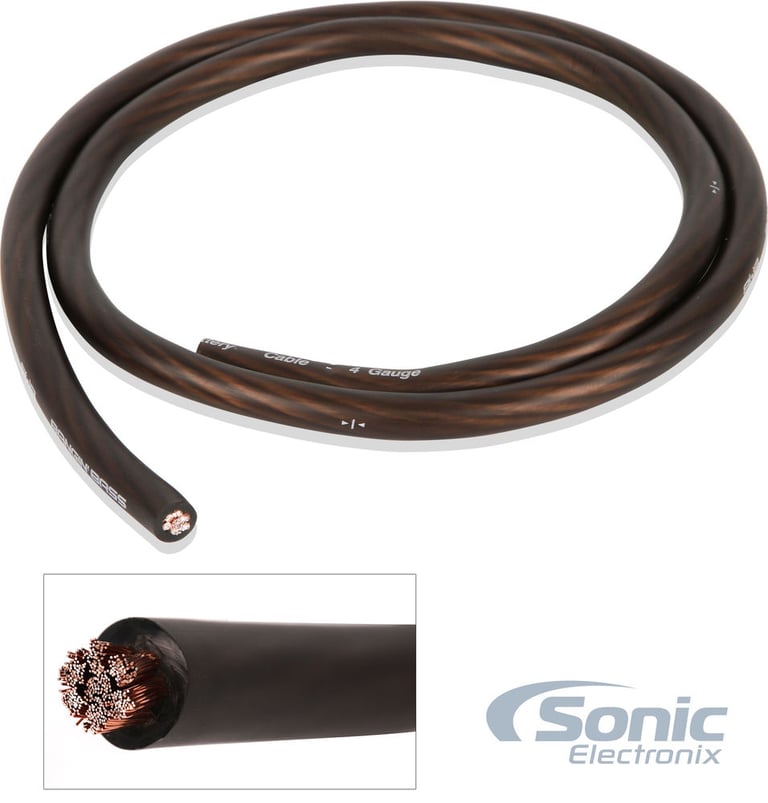

- 17 ft. (5.2 meters) Red 4 gauge power wire
- 3 ft. (.91 meters) Black 4 gauge ground wire
- 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
- 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
- 20 ft. (6.1 meters) 16 Gauge Speaker cable
- One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse
- One Black rubber firewall grommet
- One 4 Gauge red chrome plated ring terminals
- One 4 Gauge black chrome plated ring terminal
- Three 18 Gauge red Spade terminal
- Two 18 Gauge black Spade terminal
- One 18 Gauge red butt connector
- Ten 4" Black zip ties
