Astell & Kern AK 100 II

Portable Hi-Fidelity System

Astell & Kern
Shop all Astell & Kern
highlight-star-icon

• Portable Hi-Fidelity System
• Single Digital to Analog Converter (DAC)
• Balanced Output Helps Block External Noises
• 10 Band Equalizer
• Network Playback through MQS Streaming Server
• 64GB of Internal Flash Storage
• MicroSD Slot x 1 (Max 128GB)

Learn more about the ak100ii

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Description


Astell & Kern brand icon

Authorized dealer

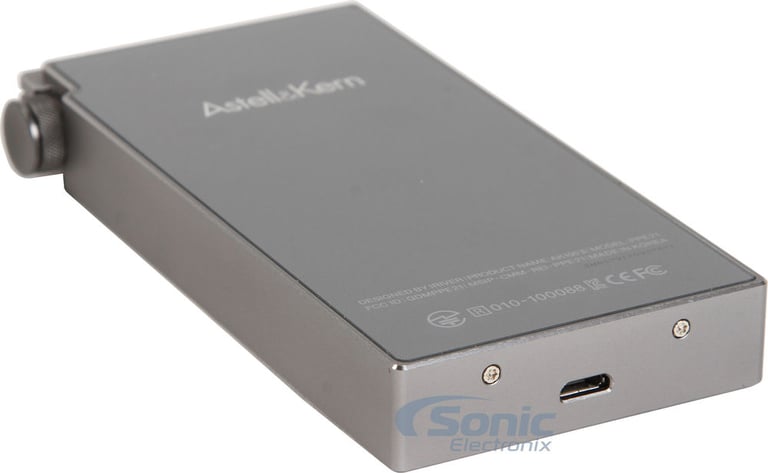

Astell & Kern AK 100 II: Portable Hi-Fidelity System

The Astell & Kern AK 100 II Portable Hi-Fidelity System Offers an Incredible Listening Experience

A new standard for listening to music was proposed while developing the AK100. Astell&Kern recognized that certain aspects of the AK100 needed improvement during research and development for a successor. While considering how to improve the AK100, they realized that there was a difference between measured audio specifications and what they felt sounded good. After much deliberation, their development efforts were focused on making the AK100 2nd Generation "feel" right to their senses rather than mechanically boosting technical specs. The original AK100 was developed according to audio specification standards, but development of the next-generation AK100 was developed to the "New Standard" of how the music sounds. We present "A New Standard in Listening to Music" with the AK100 2nd Generation.

Although the dramatic depth in sound quality delivered by the Balanced Out was proven in Astell&Kern's flagship model, we wondered if the same benefit could be gained by implementing the Balanced Out with a Single DAC. The newly designed demo board delivered the ear-pleasing sound quality they needed. The value of a Balanced Out with a Single DAC is confirmed with every musical note.

The AK100 2nd Generation provides a rich, warm sound experience through the re-tuned A-amp designed specifically for the CS4398 Single DAC.



MQS Streaming

Astell&Kern products have started to evolve into network players by providing Wi-Fi capability.

With the next-generation AK100, it's no longer necessary to turn on the PC, search for music, connect a device, and transfer files. Simply connect the AK100 2nd Generation to your PC or Mac via Wi-Fi on the same network and download or stream music wirelessly.

The Astell & Kern AK 100 II Portable Hi-Fidelity System Offers an Incredible Listening Experience

- "Astell&Kern MQS Streaming Server" software must be installed on your PC or MAC with a shared folder saved for MQS Streaming to work.



Full Touch Screen

The new AK100 2nd Generation utilizes a 3.31" AMOLED screen, an 82% increase over the previous screen's size. Now, users have access to more on-screen information than ever before. In addition, a full touchscreen means convenient, smartphone-style control.

The Astell & Kern AK 100 II Portable Hi-Fidelity System Offers an Incredible Listening Experience

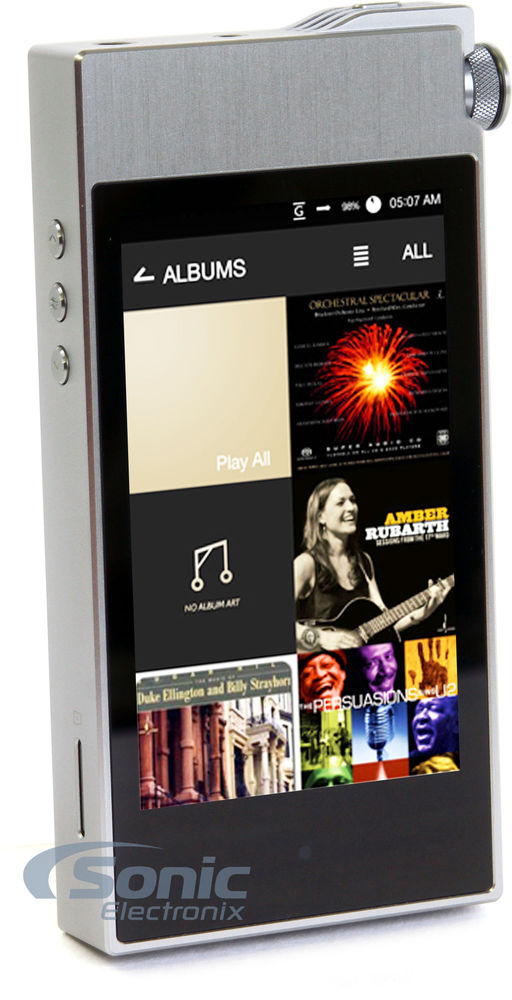

The Album View screen has been completely overhauled. The larger screen offers a view of six albums compared to the previous version's four, and the album art view offers intuitive search functionality.



More Detailed 10-Band 0.5 dB Step EQ

The Astell & Kern AK 100 II Portable Hi-Fidelity System Offers an Incredible Listening Experience

A more accurate EQ setting is available by doubling the bands (from 5 to 10) and halving the dB steps (from 1 dB to 0.5 dB). In addition, multiple user EQs are supported so that users may create custom EQs to fit each music genre and change them whenever desired.



64GB + microSD 128GB

The Astell & Kern AK 100 II Portable Hi-Fidelity System Offers an Incredible Listening Experience

The AK100 2nd Generation includes 64GB of internal flash storage. With the addition of a 128GB microSD card, the AK100 2nd Generation supports up to a total memory of 192GB. With 64GB of internal memory, the AK120 2nd Generation can store about 625 MQS (24bit/96kHz, 4 minute-long, 90MB) songs.



General Features:

  • Portable Hi-Fidelity System
  • Single Digital to Analog Converter (DAC)
  • Balanced Output Helps Block External Noises
  • 10 Band Equalizer for precise adjustments
  • Network Playback through MQS Streaming Server
  • Comes with 64GB of internal flash storage
  • MicroSD Slot x 1 (Max 128GB)
  • Native DSD Support

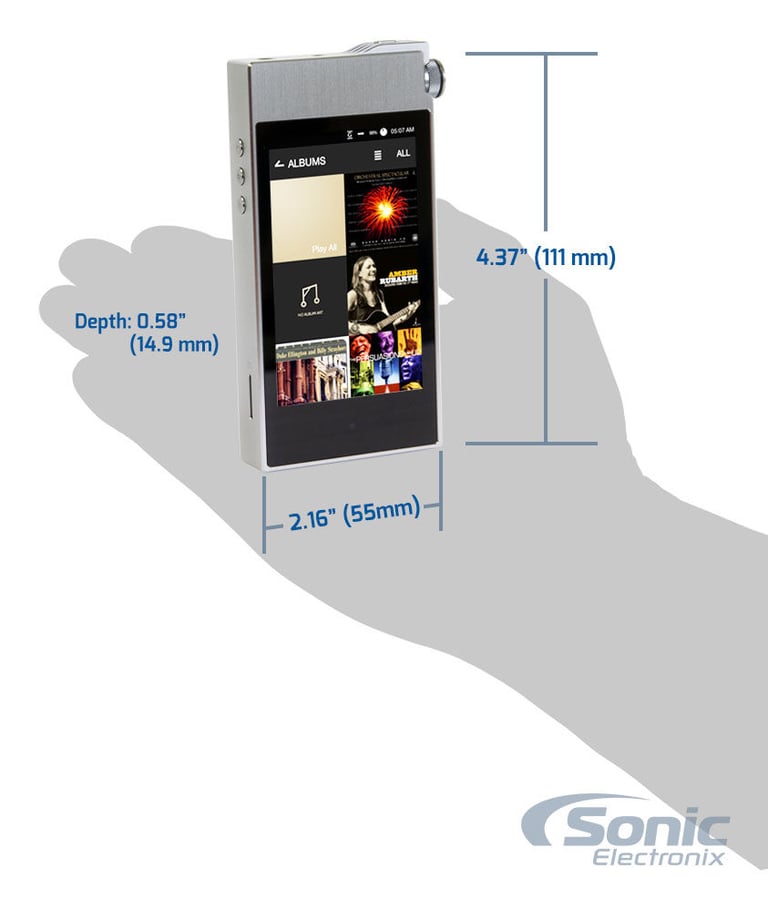

  • Dimensions: 2.16"W x 0.58"D x 4.37"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

General Features:

  • Model: AK100Ⅱ
  • Body Color: Smoky Blue
  • Body Material: Aluminum
  • Battery: 3,150mAh 3.7V Li-Polymer Battery
  • Built-in Memory: 64GB [NAND]
  • External Memory: microSD (Max 128GB) x1
  • Supported OS: Windows XP, Windows 7,8,10 (32/64bit), MAC OS X 10.7 and up
  • Display: 3.31inch WVGA (480 x 800) AMOLED Touchscreen
  • Supported Audio Formats: WAV, FLAC, WMA, MP3, OGG, APE(Normal, High, Fast), AAC, ALAC, AIFF, DFF, DSF
  • Sample rate: FLAC, WAV, ALAC, AIFF : 8kHz ~ 192kHz (8/16/24bits per Sample) / DSD : DSD64 (1bit 2.8MHz), Stereo / DSD128 (1bit 5.6MHz), Stereo
  • Output Level: Unbalance 2.0Vrms / Balance 1.7Vrms (Condition No Load)
  • DAC: Cirrus Logic CS4398 x1 (Single DAC)
  • Decoding: Support up to 24bit/192kHz Bit to Bit Decoding

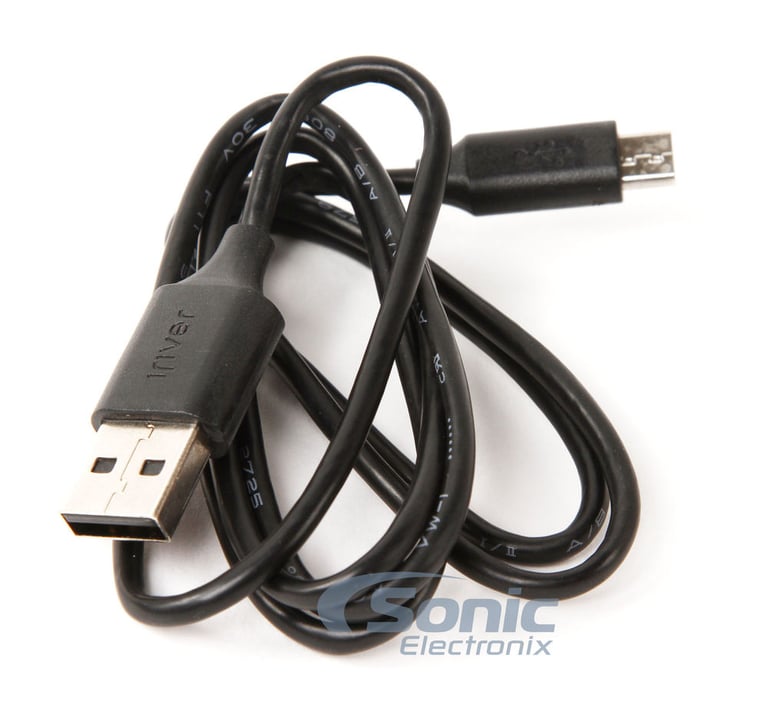

  • Input: USB Micro-B input (for charging & data transfer (PC & MAC)) / Connection Mode : MTP (Media Device)

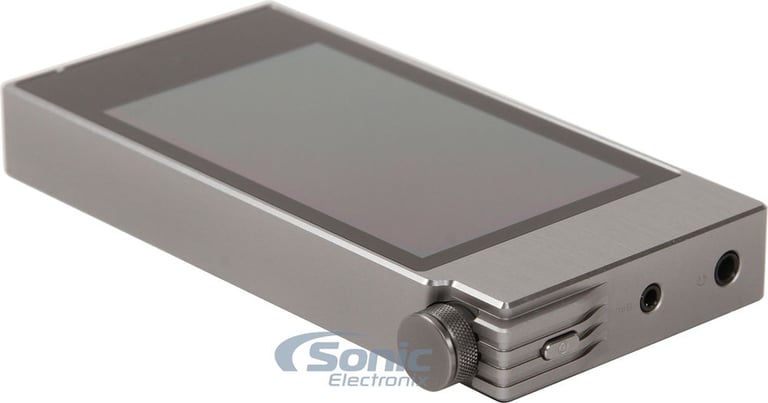

  • Outputs: PHONES (3.5mm) / Optical Out (3.5mm) / Balanced Out (2.5mm, only 4-pole supported)
  • Wi-Fi: 802.11 b/g/n (2.4GHz)
  • Bluetooth: V4.0 (A2DP, AVRCP)
  • Weight: 5.99 oz (170 g)
  • Feature Enhancements: Firmware upgrades supported (OTA)

Audio Performance:

  • Frequency Response:
    • ± 0.025dB (Condition: 20Hz~20kHz) Unbalance & Balance
    • ± 0.6dB (Condition: 10Hz~70kHz) Unbalance & Balance
  • Signal to Noise Ratio: 115dB @ 1kHz, Unbalance / 115dB @ 1kHz, Balance
  • Crosstalk: 127dB @ 1kHz, Unbalance / 130dB @ 1kHz, Balance
  • THD+N: 0.0009% @ 1kHz, Unbalance / 0.0008% @ 1kHz, Balance
  • IMD SMPTE: 0.0004% 800Hz 10kHz(4:1) Unbalance / 0.0003% 800Hz 10kHz(4:1)
  • Balance
  • Output Impedance: Balanced out 2.5mm (1ohm) / PHONES 3.5mm (2ohm)
