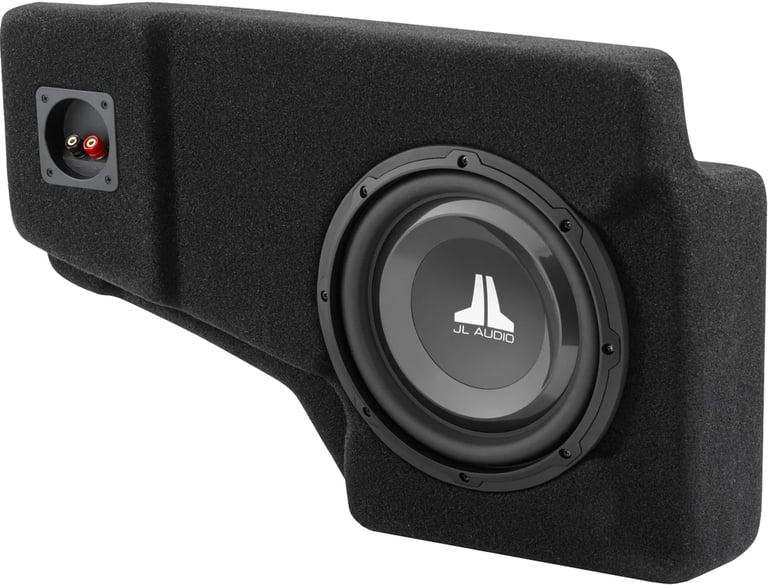

JL Audio Stealthbox® SB-F-EXPED/10W1v3

Custom fit subwoofer enclosure for select 1997-2002 Expedition and Navigator

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W1v3-2
• 300 Watts RMS
• For 1997 - 2002 Ford Expedition & 1998 - 2002 Lincoln Navigator
• Stealthbox inside passenger side cargo area trim panel

See compatible vehicles Learn more about the sbfexped10w1v3

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Reference 6530CX main

Infinity Reference REF-6530cx (REF6530CXAM)

540W Peak (180W RMS) 6.5" Reference Series 2 Way 3-ohm Component Speaker System

2
-56.40%

$108.99

List price $249.95

Product Highlights


• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W1v3-2
• 300 Watts RMS
• For 1997 - 2002 Ford Expedition & 1998 - 2002 Lincoln Navigator
• Stealthbox inside passenger side cargo area trim panel

Description


JL Audio brand icon

Authorized dealer




Subwoofer Features:

  • One JL Audio 10W1v3-2: Subwoofer
  • Power Handling:
    • RMS: 300 watts
  • Recommended power range: 75 - 300 watts RMS
  • Wired to a 2 ohm load
  • Injection molded, mica-filled polypropylene cone
  • Rubber surround
  • DMA-optimized motor design
  • Elevated frame cooling enhances power and sound quality
  • Patented "floating cone attach method" technology
  • Vented Reinforcement Collar
  • Insert Molded Suspension / Coil / Terminal Sub-Assembly
  • Engineered Lead-Wire System
  • Customizable Trim Ring
  • Xmax: 11.0 mm
  • Sensitivity: 83.9 dB
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

Enclosure Features:

  • Compatible with select 1997-2002 Expedition and Navigator
  • Side-firing design

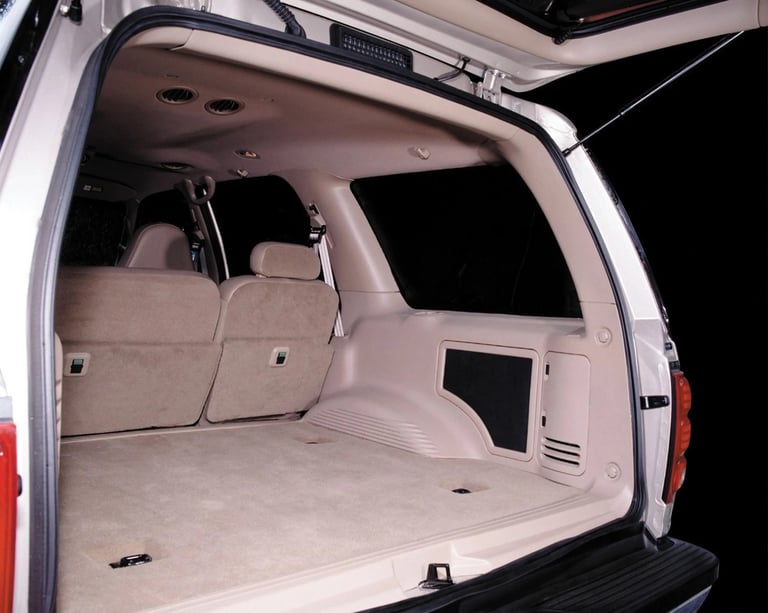

  • Stealthbox® inside passenger side cargo area trim panel
  • Fabric covered, steel mesh grille included
  • Grille is not compatible with Ford premium sound "subwoofer" grille
    • must purchase the standard factory side panel from Ford parts if vehicle is so equipped
  • Will not fit 2003 - Up Expedition/Navigator
  • Binding post terminals for secure and sturdy connection and installation
  • OEM Color: All
  • Color Match Grade: Black Grille
JL Audio SB-F-EXPED/10W1v3 owner’s manual

Compatible Vehicles


Please use our Fitment Guide to determine specific compatibility for the submodel and audio features

The vehicle you have selected 2025 Mazda CX-5 is not compatible. Change vehicle or See list of compatible similar products


Best selling similar products

SB-D-QDRAMD/10TW1 small

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Two JL Audio 10TW1-4 Subwoofers
• RMS: 600 watts per pair / 300 watts each
• For 2002-Up Dodge Ram
• Stealthbox Installs underneath rear seat

(3)

$1699.99

List price $1699.99

SB-GM-4GSUVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-4GSUVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1249.99

List price $1249.99

SB-J-GCHWK2/10W3v3/BK small

JL Audio Stealthbox® SB-J-GCHWK2/10W3v3/BK

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W3v3-2
• 500 Watts RMS Power Handling
• Stealthbox Installs into passenger-side rear cargo panel

(3)

$1199.99

List price $1199.99

Specifications & Details


Subwoofer Specifications
Subwoofer Design
Round / Circle
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
300 watts
Peak Power Handling
600 watts
Woofer Surround
Butyl Rubber
Woofer Composition
Mica Injected Polypropylene - MIPP
Sensitivity
83.9 dB
Xmax (millimeters)
11 mm
Subwoofer Size
10"
Enclosure Specifications
Number of Subwoofers
1
Box Style/Shape
Vehicle Specific
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Final Wired Impedance
2-ohm
Type of Enclosure
Loaded
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SB-F-EXPED/10W1v3

Weight:

38.00lbs

Internal SKU:

sbfexped10w1v3

Internal Product ID:

96893
