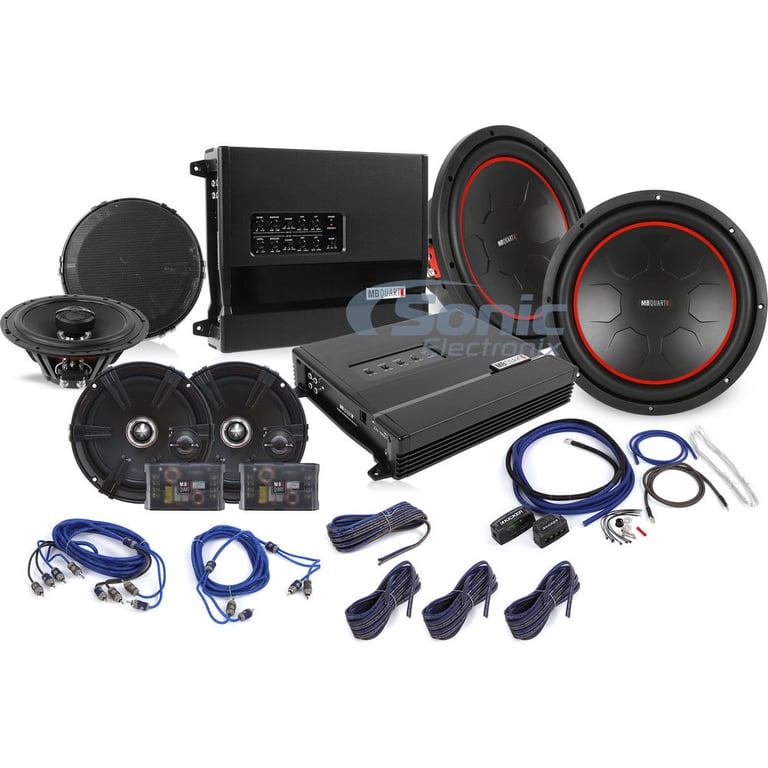

MB Quart Z-Line Complete Full-Range Audio Package w/ Premium Amp Wiring Kit

General Features:

• SIZE Series TYPE Car Speakers/Component System
• Power Handling:
• Peak: 240x watts per set / 120 watts each side
• RMS: 120 watts per set / 60 watts each side
• Recommended Minimum Power: 60 watts RMS each
• Composite basket w/original German-spec material
• Mica-filled PP cone mated to UV butyl surround
• 30mm ceramic coated titanium dome tweeter
• Tweeter features nylon surround for lower fs
• Removable phase lens allows the tweeter to be tuned for the application
• Voice coil size and type
• 4 ohm impedance
• Frequency Response: 20 - 20,000 Hz
• Top-mount Depth: 2.56"
• Sensitivity: 88 dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.

General Features:

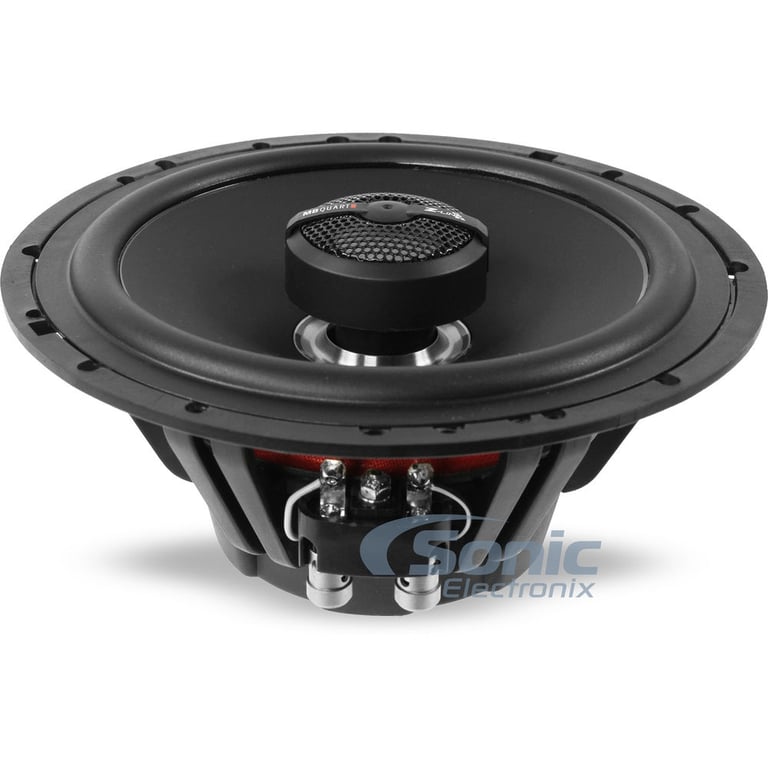

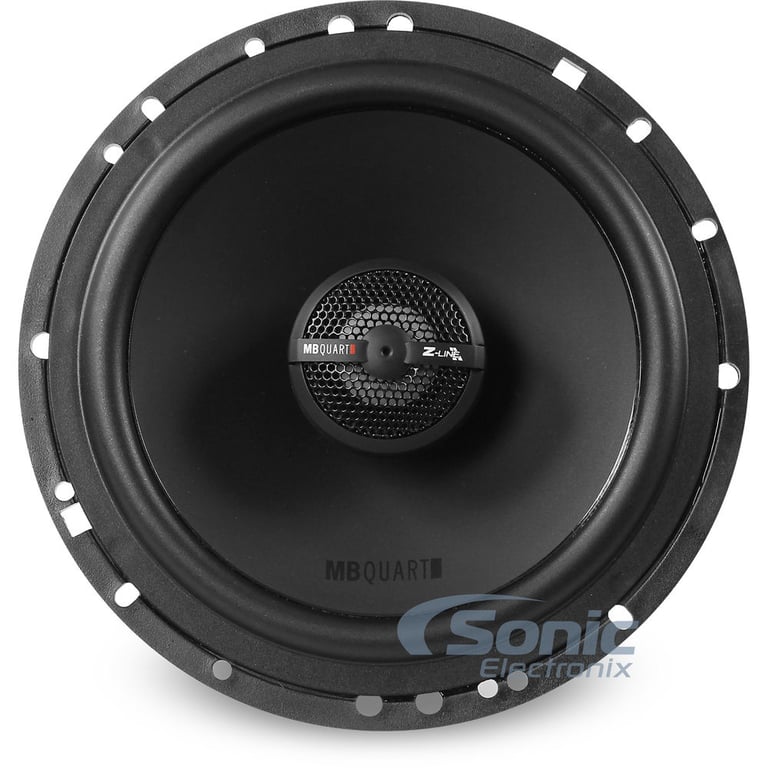

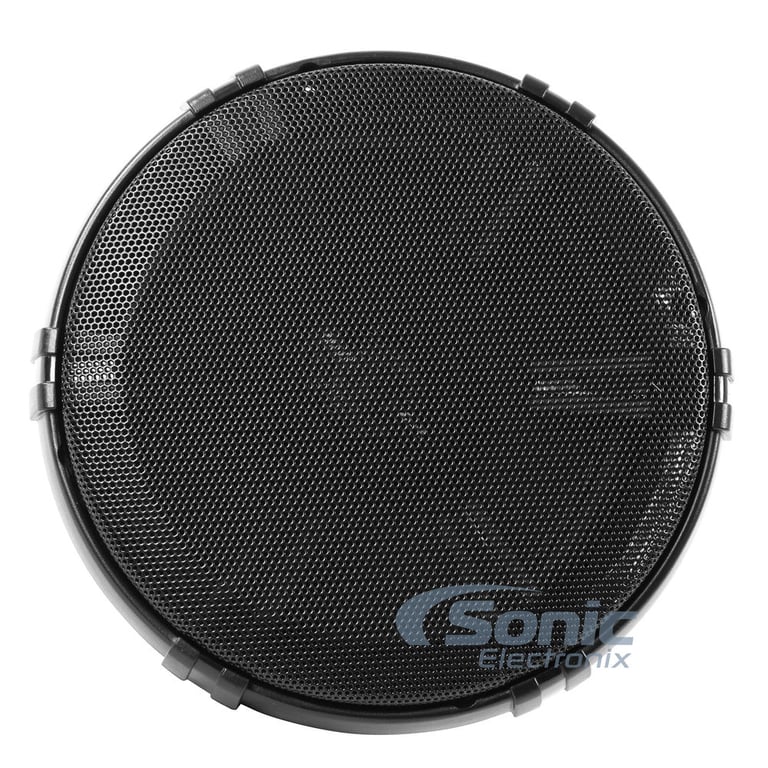

• 6-1/2" Z-Line Series 2-Way Car Speakers
• Power Handling:
• Peak: 240 watts per pair / 120 watts each
• RMS: 120 watts per pair / 60 watts each
• Mica-filled PP cone mated to UV butyl surround
• Composite basket w/original German-spec material
• 1" (30mm) ceramic coated titanium dome tweeter
• Tweeter features nylon surround for lower fs
• 12bd/octave crossovers used throughout line

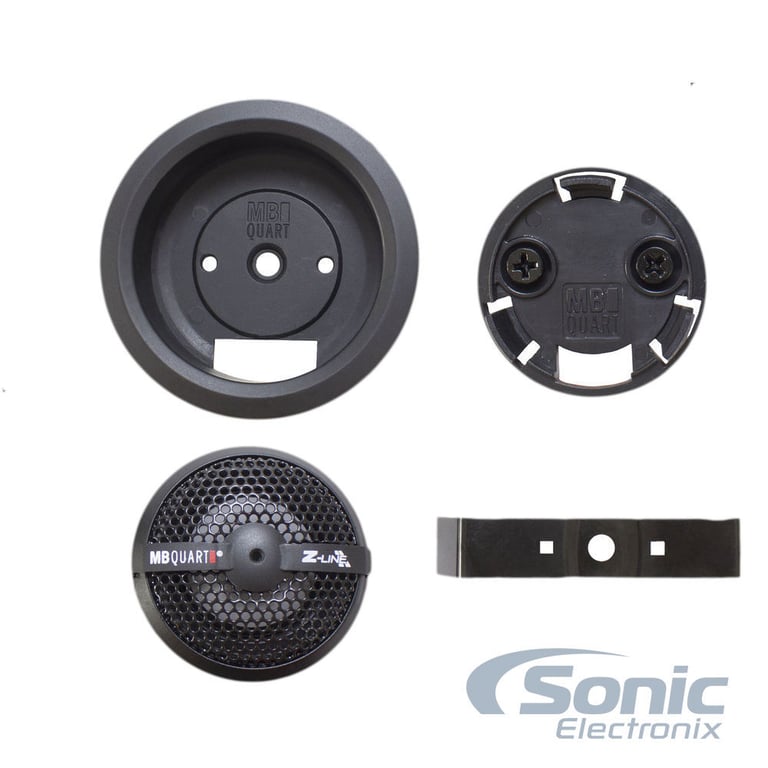

• Removable phase lens allows the tweeter to be tuned for the application
• 4 ohm impedance
• Frequency Response: 20-20,000 Hz
• Sensitivity: 88dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Priced Per Pair

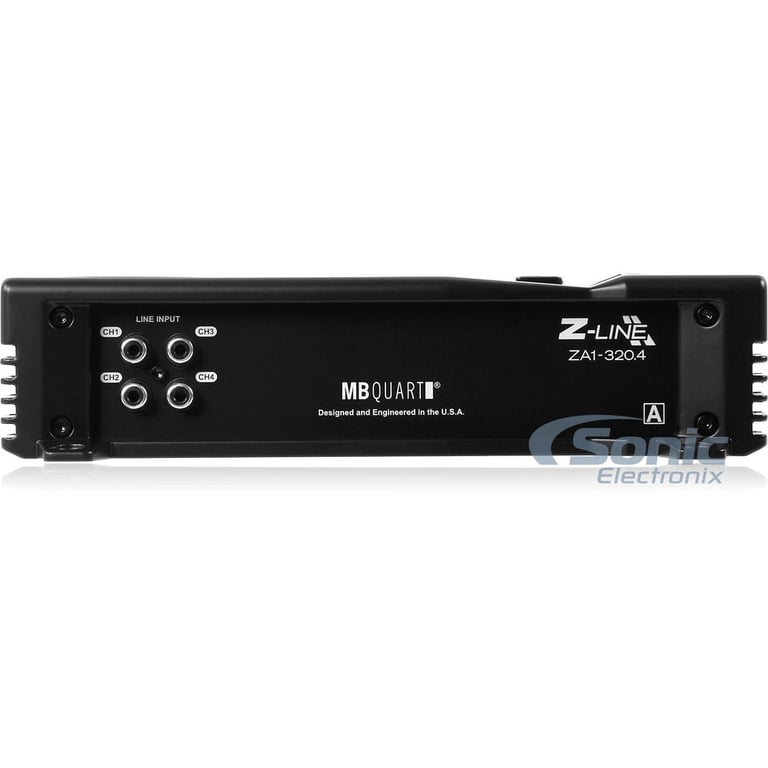

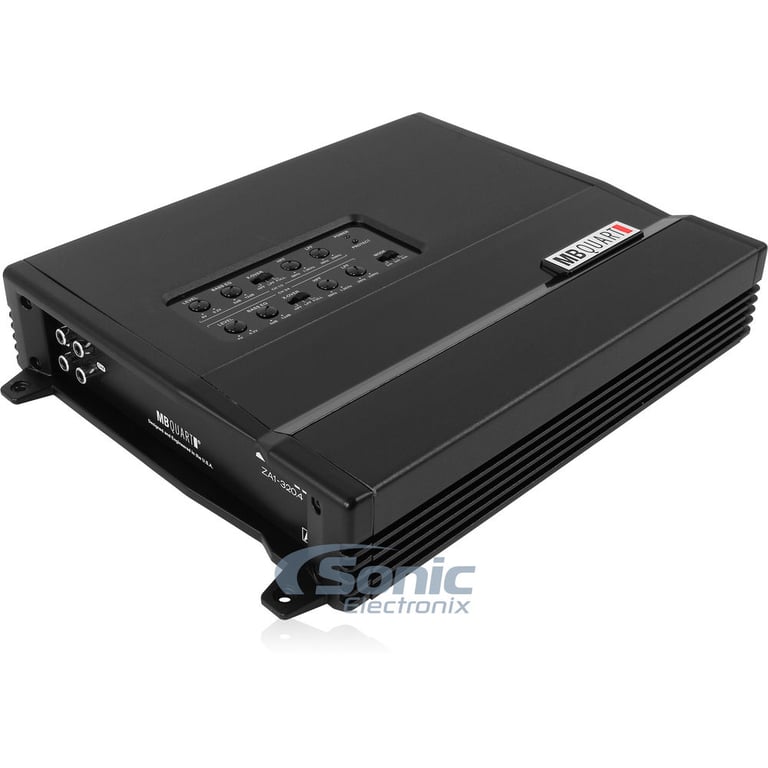

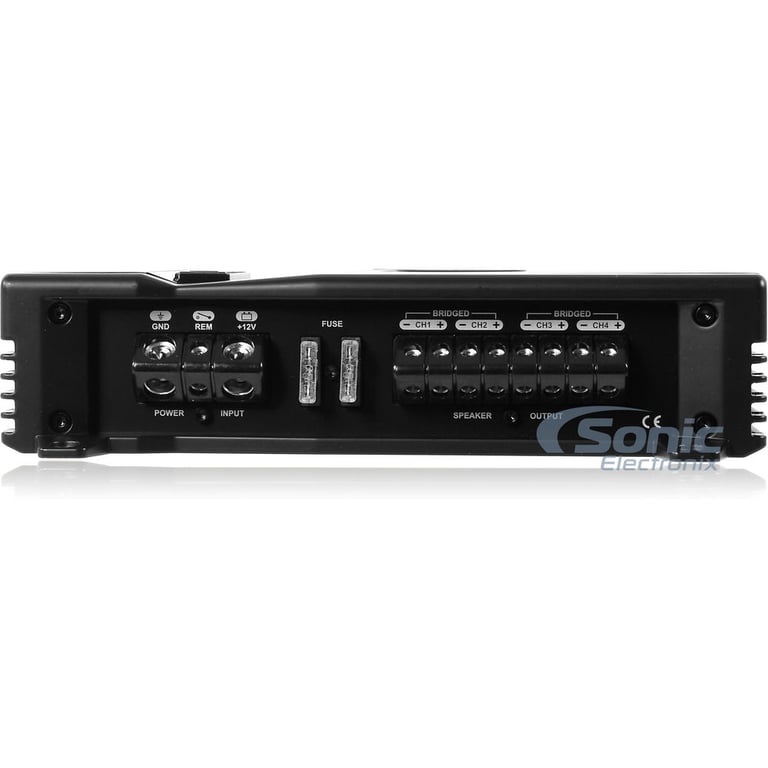

General Features:

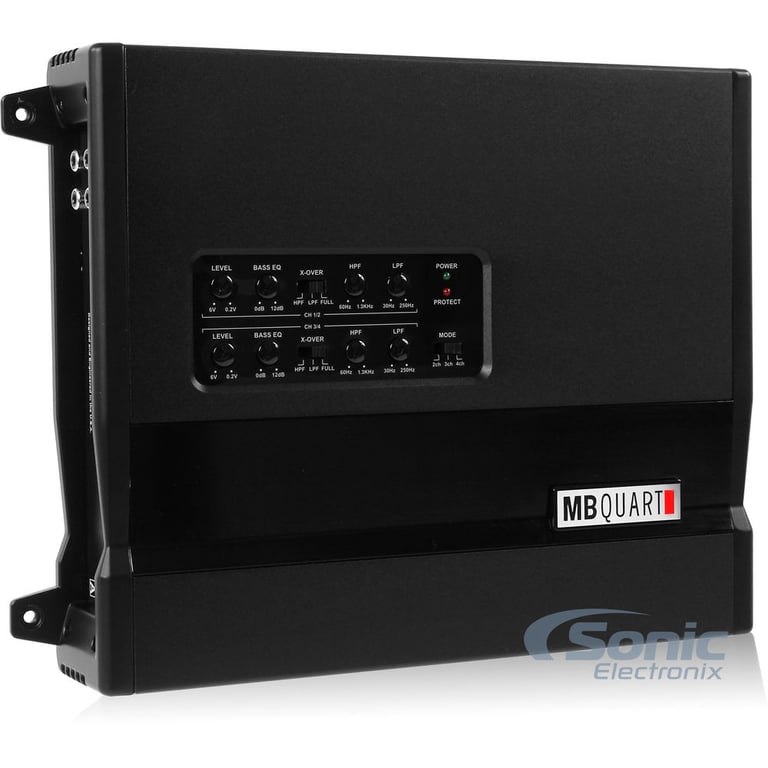

• Z-Line Series 4-Channel Class SQ A/B Amplifier
• RMS Power Rating:
• 4 ohm: 40 watts x 4 chan.
• 2 ohm: 80 watts x 4 chan.
• Bridged 4 ohm: 160 watts x 2 chan.
• Fluid-FETS hand selected insulated MOSFETS
• Focused mass heat sink designs
• Q-Stasis preamp stage with wide input range

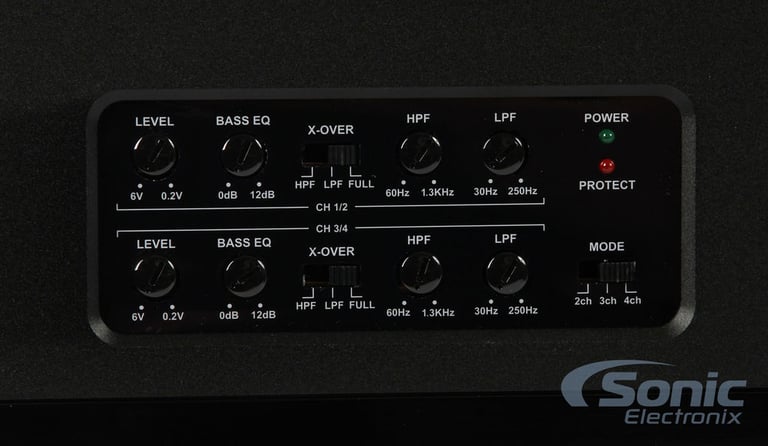

• Top mounted controls for simple setup & adjustment
• Elaborate preamplifier with extended control
• Easy access mounting tabs for a secure install
• LED power (green) and protect (red) indicators
• Selectable 2Ch/3Ch/4Ch Modes
• Selectable HPF/LPF /Full Crossover Settings
• Input sensitivity: 200mV - 6V
• Frequency Response: 15 - 45,000 Hz
• Signal to Noise Ratio: >90
• Total Harmonic Distortion (THD): <0.5%
• Variable Bass Boost: 0 to +12dB bass boost at 45Hz
• Variable low-pass filter: 30- 250 Hz
• Variable high-pass filter: 60 - 13,000 Hz
• Fuse Rating: 25A x 2
• CEA-2006 compliant amplifier
• 8 gauge power and ground wiring is recommended for installation.
• Dimensions: 9.20"W x 12.50"L x 2.20"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

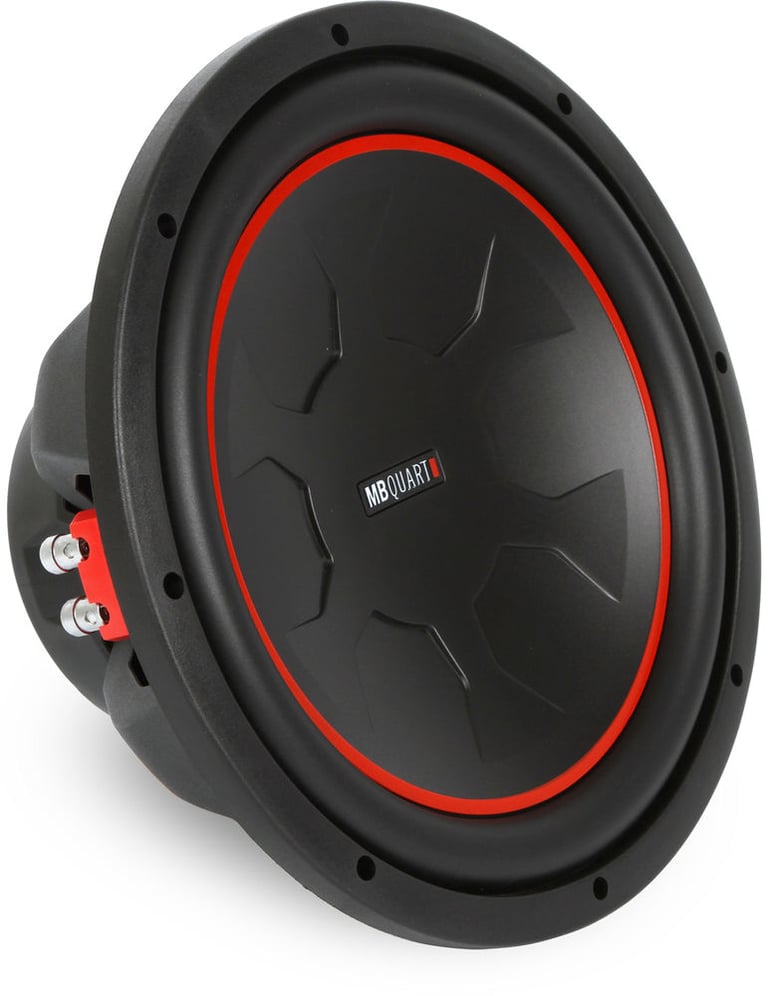

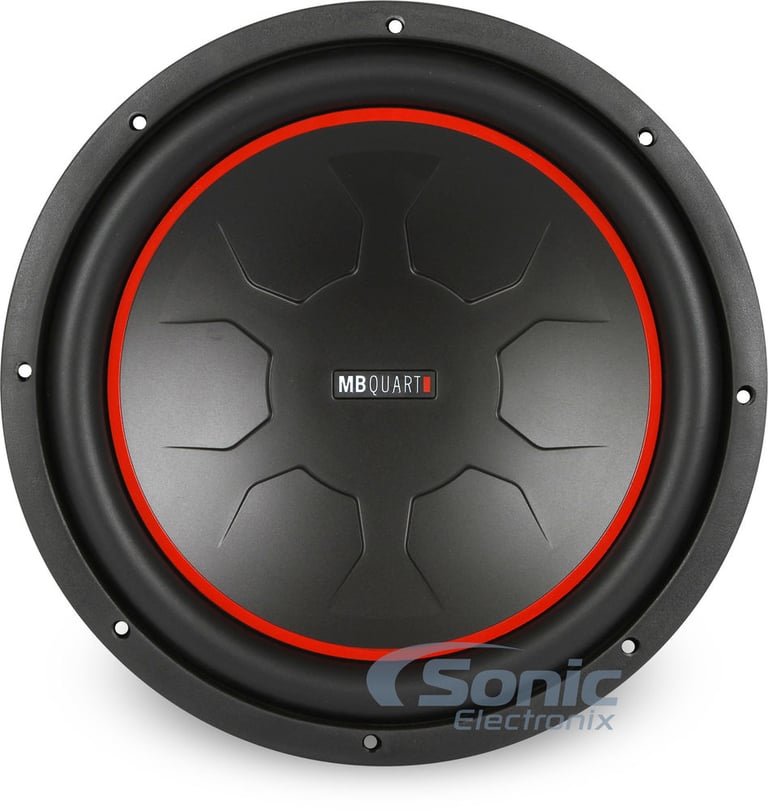

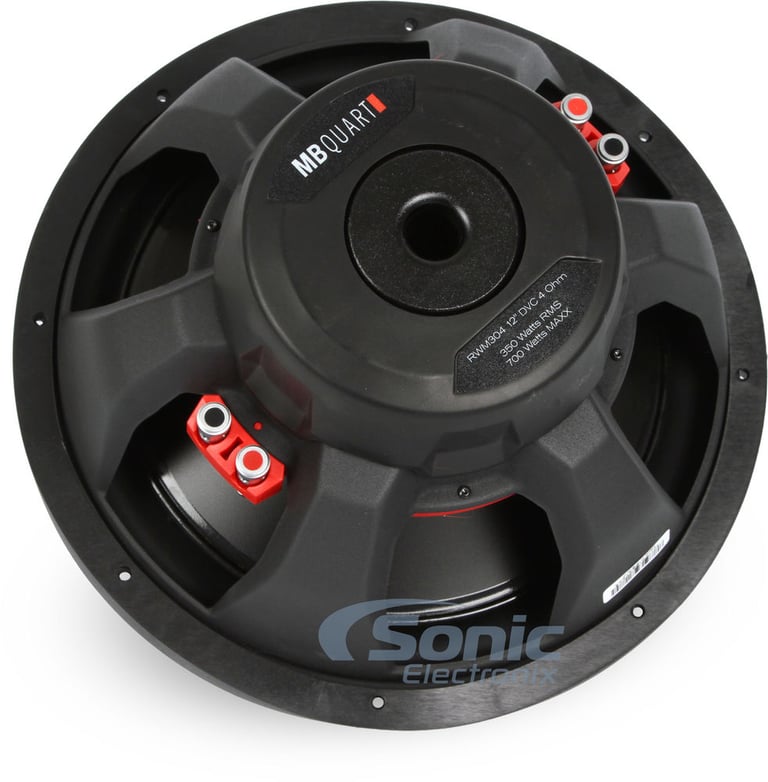

• 12" Dual 4 Ohm Reference Series Subwoofer
• Power Handling:
• Peak: 1400 watts per pair / 700 watts each
• RMS: 700 watts per pair / 350 watts each
• Impedance: 4 ohm
• Injection molded polypropylene cone
• UV Resistant butyl rubber surround
• Heavy duty textured powder coat finish
• Deep drawn heavy gauge stamped steel basket
• Dual mirror image treated spiders
• Spring loaded terminals
• Low profile subwoofer design
• 2" High temp aluminum voice coil
• Red nomex spider
• Anti-resonant magnet cover
• Top-mount depth: 5-9/16"
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

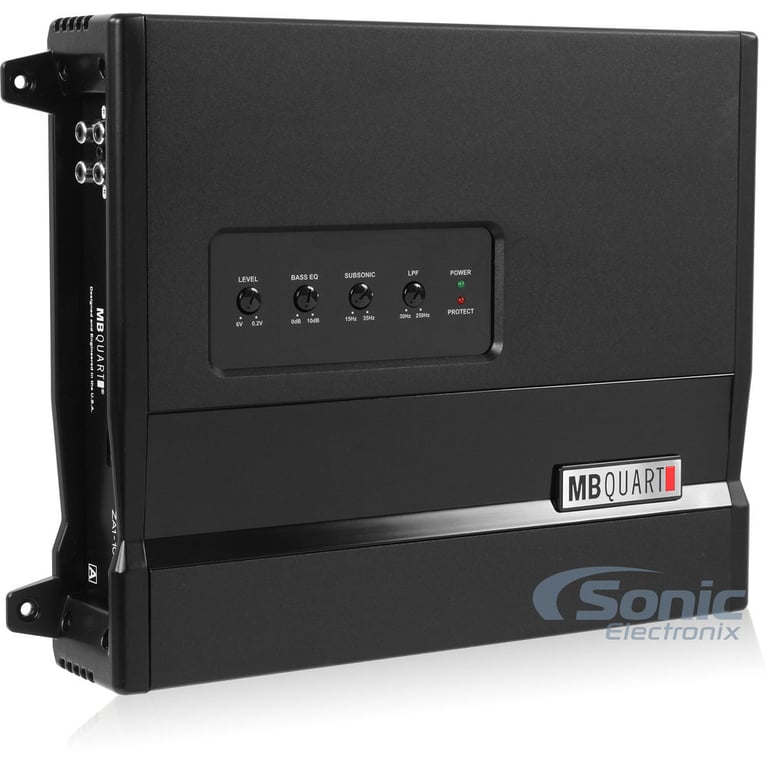

General Features:

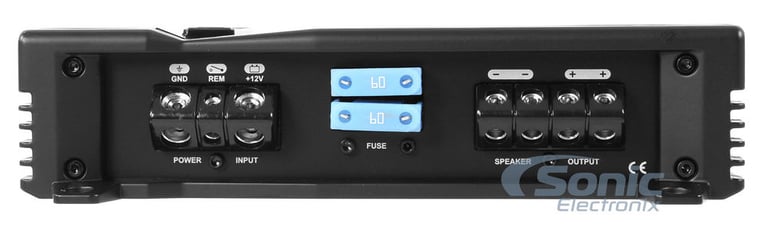

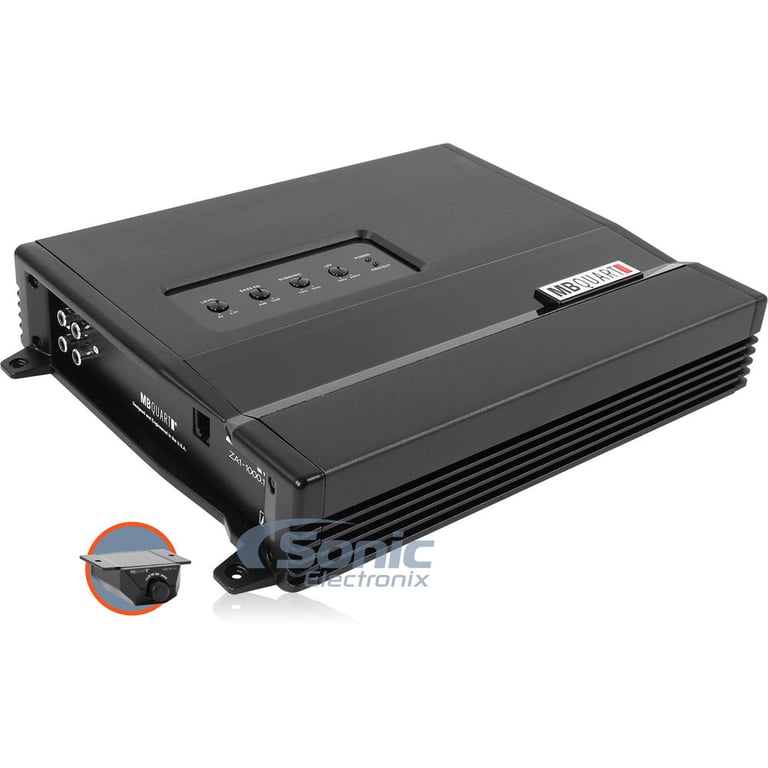

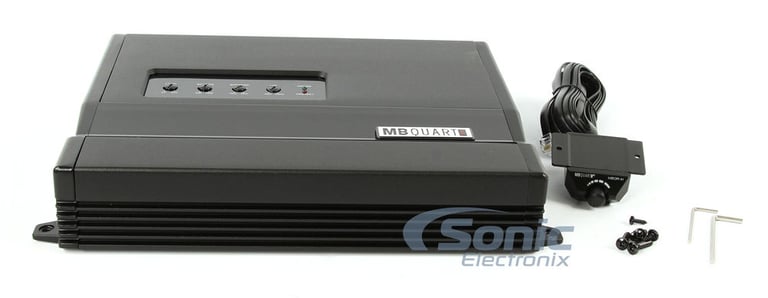

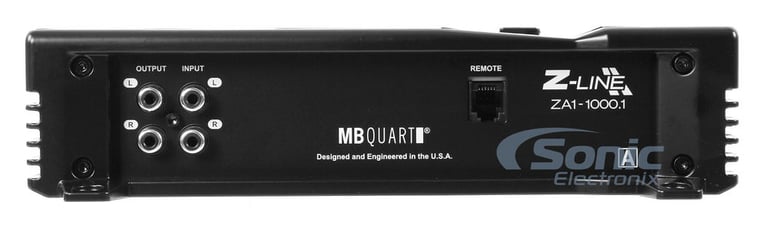

• Z-Line Series Monoblock Class SQ A/B Amplifier
• RMS Power Rating:
• 4 ohm: 475 watts x 1 chan.
• 2 ohm: 750 watts x 1 chan.
• 1 ohm: 1000 watts x 1 chan.
• Fluid-FETS hand selected insulated MOSFETS
• Focused mass heat sink designs
• Q-Stasis preamp stage with wide input range
• Top mounted controls for simple setup & adjustment
• Elaborate preamplifier with extended control
• Easy access mounting tabs for a secure install
• LED power (green) and protect (red) indicators
• Input sensitivity: 200mV - 6V
• Frequency Response: 15 - 250 Hz
• Signal to Noise Ratio: >90
• Total Harmonic Distortion (THD): <0.5%
• Variable Bass Boost: 0 to +10 dB bass boost at 45Hz
• Variable low-pass filter: 30- 250 Hz
• Subsonic filter: 15- 35 Hz
• Fuse Rating: 60A x 2
• CEA-2006 compliant amplifier
• 4 gauge power and ground wiring is recommended for installation.
• Dimensions: 9.20"W x 12.50"L x 2.20"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

• Dual 4 Gauge Power Amplifier Installation Kit
• Designed specifically for car audio systems up to 1500 watts
• Premium power and ground wire provides optimal power transfer
• Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
• Twisted-pair technology eliminates noise for crystal clear sound

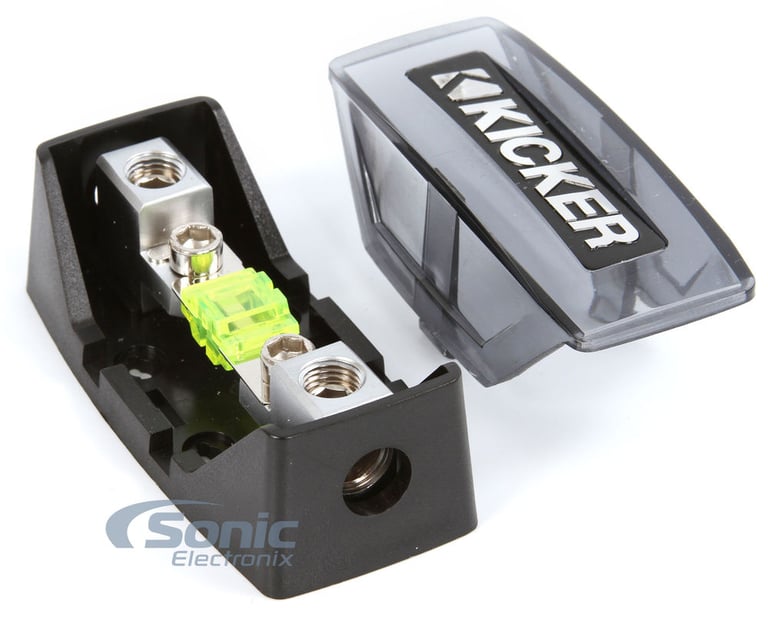

• ANL Fuse holder offers ideal protection for high powered systems
• Hyper-flex cable and wire
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

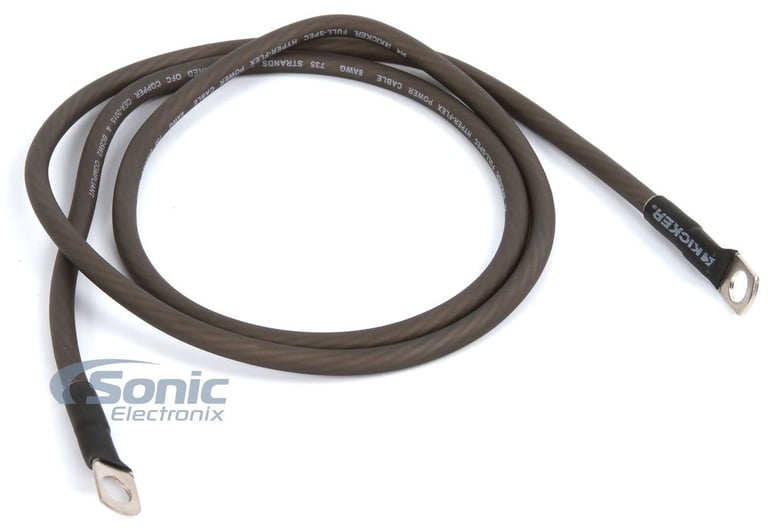

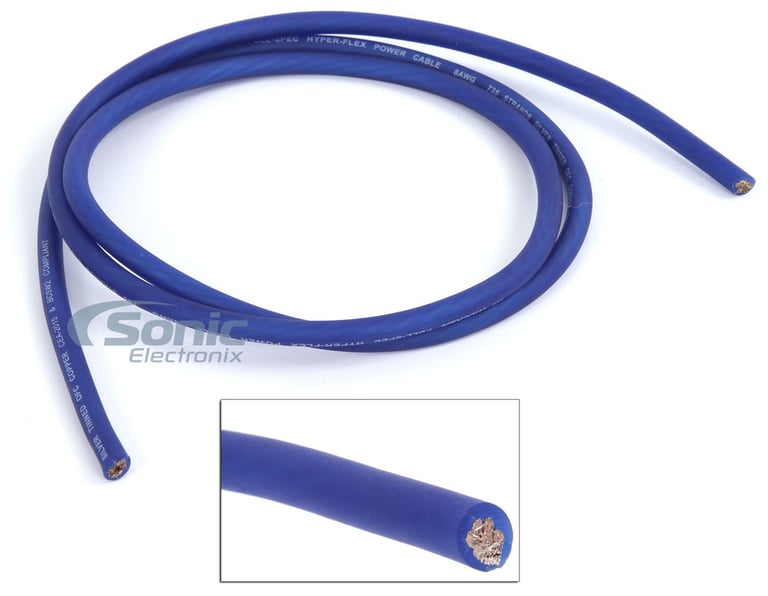

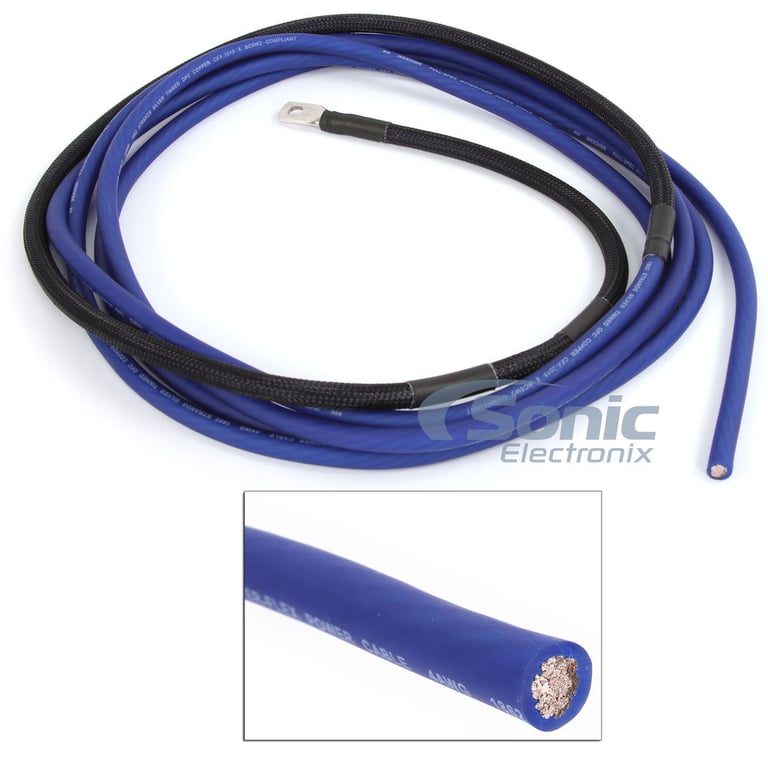

1. 17ft 4 AWG Blue Power Wire
2. 2ft 8 AWG Blue Power Wires (x2)
3. 4ft 8 AWG Gray Grounding Wire
4. 17ft 16 AWG Speaker Wire

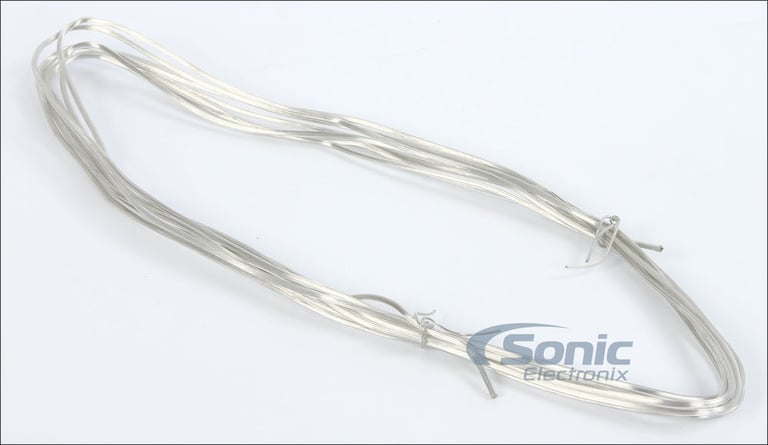

5. 17ft 18 AWG silver remote turn on wire
6. 100A mini-anl fuse

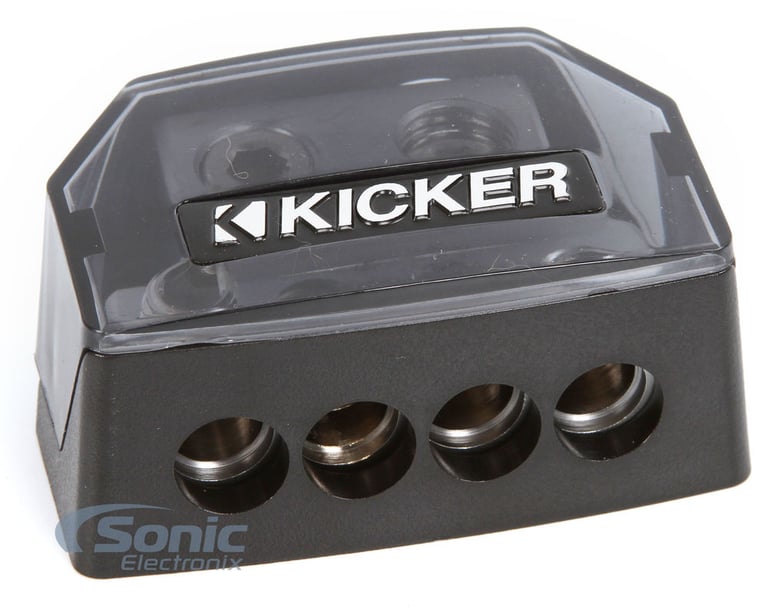

7. DB4 distribution block
8. Self-Tapping Grounding Bolts (x2)
9. 18-22 AWG Red butt connector
10. 3" zip-ties (x4)

General Features:

• 13 Ft. 2-Channel K Series Audio RCA Interconnect Cables
• Black protected mesh with wire loom jacket
• Unique cable winding patterns improve clarity and ensure consistent timing
• Hyperflex protective jacket minimizes friction for easy install
• Dual twisted pair conductors provide protection against interference
• Integrated AR foil shield
• RCA interconnect audio cable
• Cable Length: 13 ft. (4m)
• Color: Blue
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

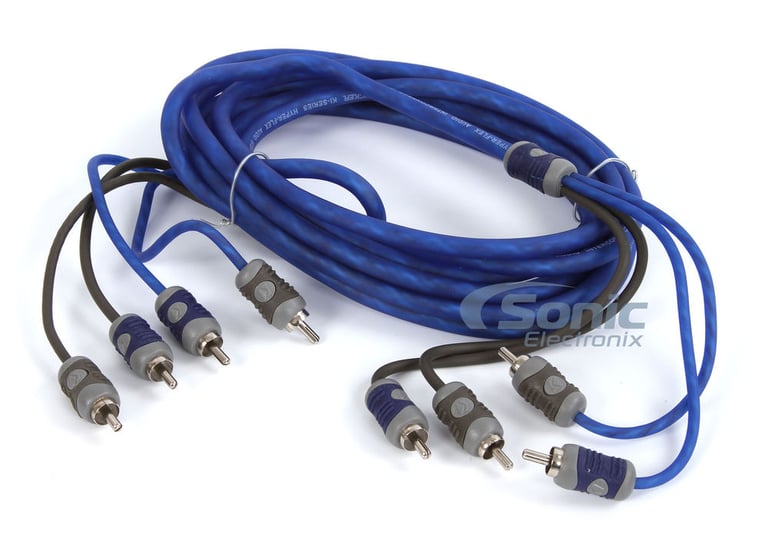

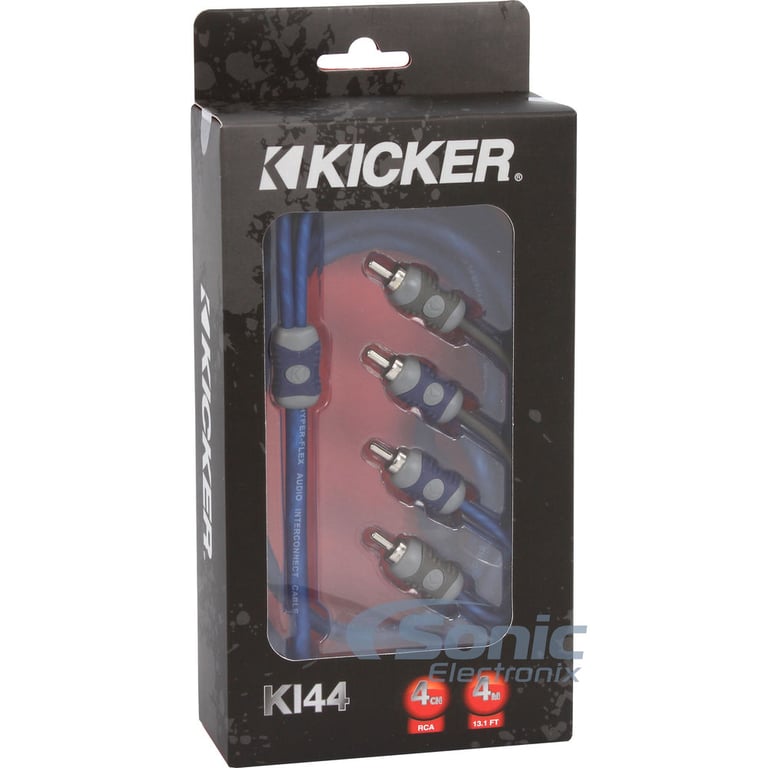

• 4 Meters (13 ft.) 4-Channel RCA Audio Interconnect Cable
• Dual twisted-pair, hyper-flex technology
• Constructed of silver-tinned, oxygen-free copper for bass response and signal clarity
• Silver-molded ends with gold-plated sure grip collars
• Split center pin allows maximum signal transfer
• Tactile-grip RCA ends
• Color-code strain relief identifies front-rear/light-right channels
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

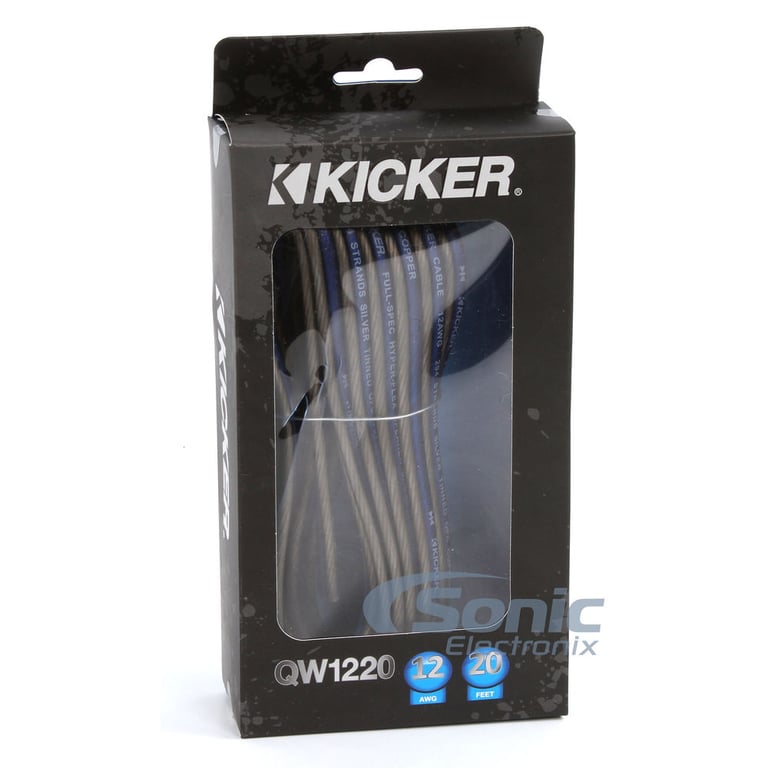

• 20 Ft. of 12 AWG Q-Series Speaker Wire
• Direct-connect engineering
• Fewer connections for less signal distortion
• Twisted-pair technology eliminates noise for crystal clear sound
• Hyper-flex cable and wire
• Jacket can be cut and and the wire split
• Full spec cable is true to gauge
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

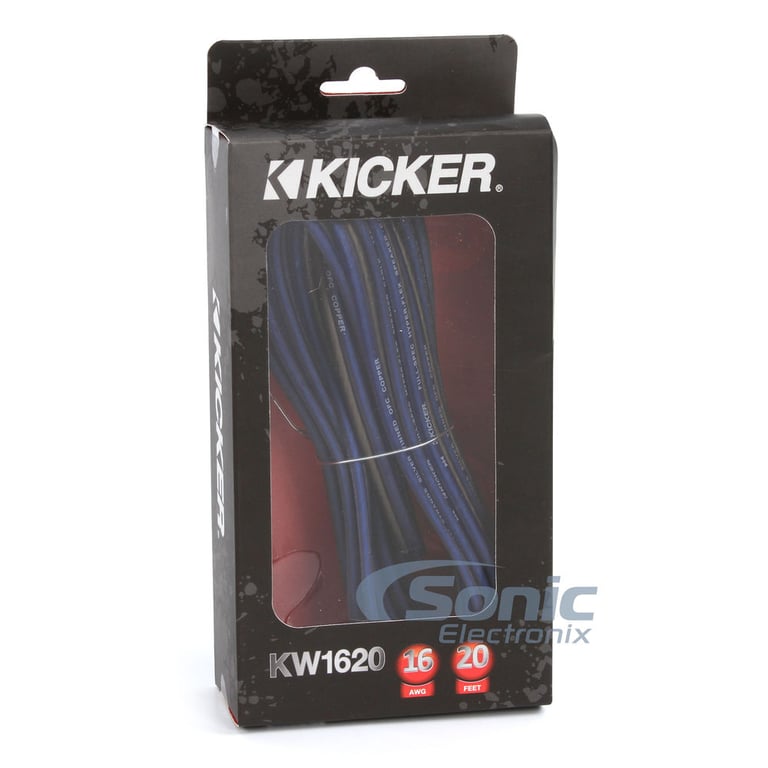

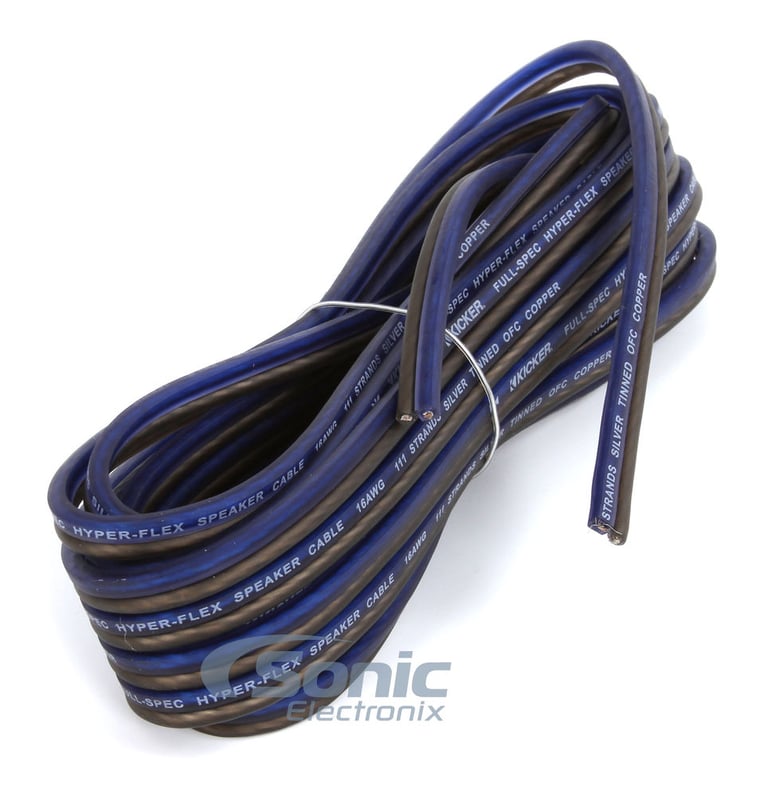

• 20 Ft.(6.1M) of 16 AWG Z-Series Speaker Wire
• Direct-connect engineering
• Fewer connections for maximum signal strength
• Twisted-pair technology
• Eliminates noise for crystal-clear sound
• Hyper-flex cable and wire
• Full spec cable is true to gauge
• Blue and gray coloring to easily distinguish between positive and negative
• Authorized Internet Dealer
• 1-year Manufacturer's warranty
