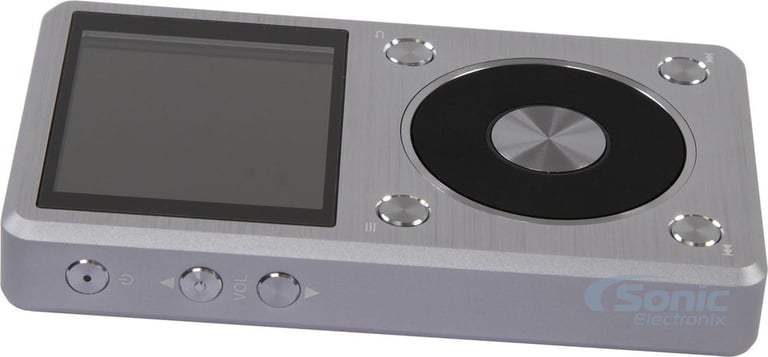

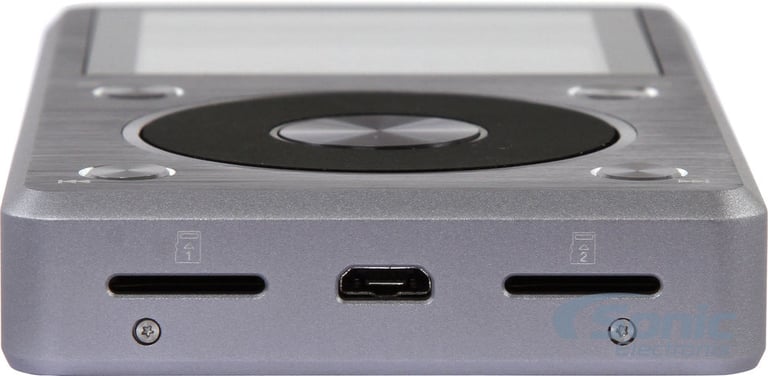

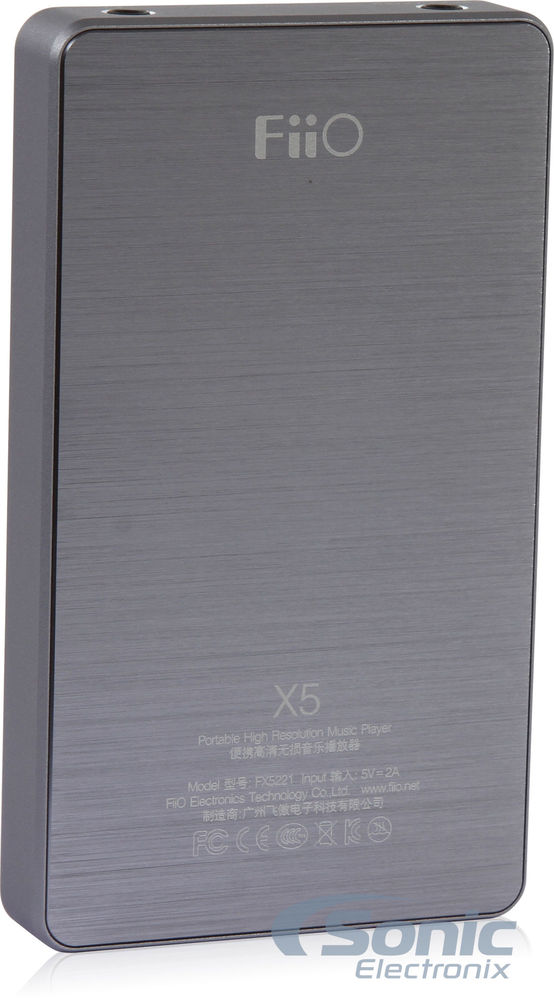

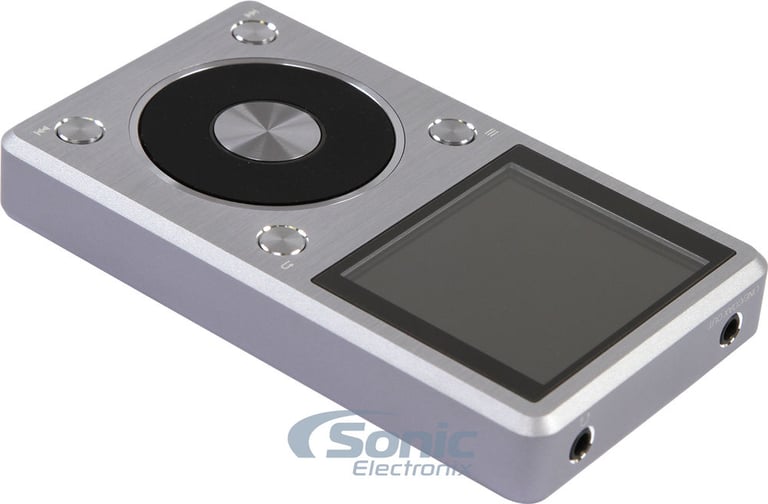

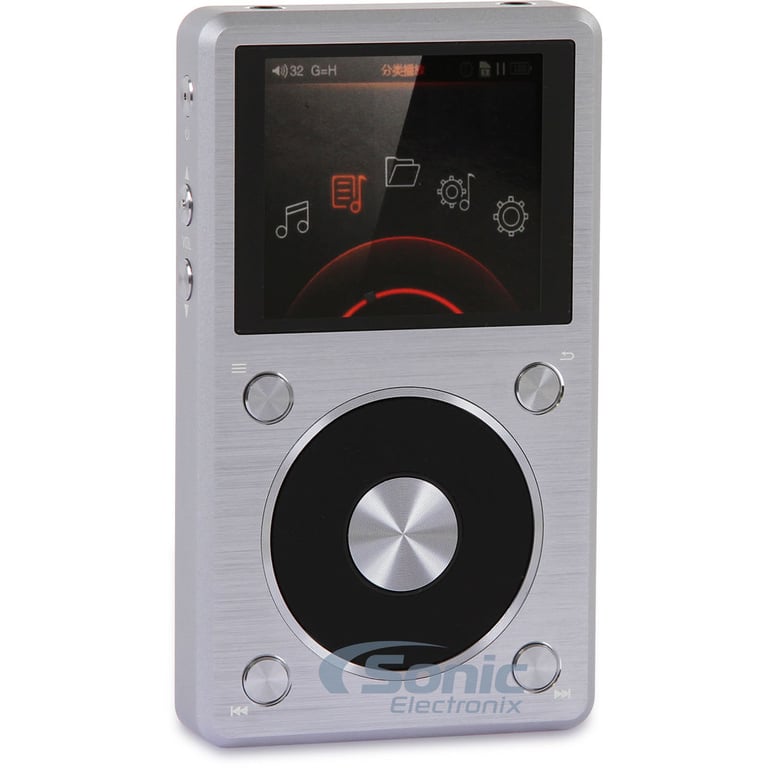

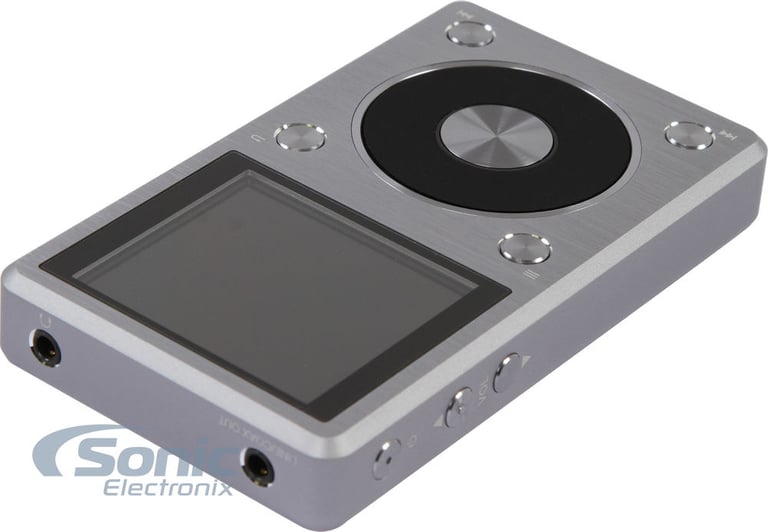

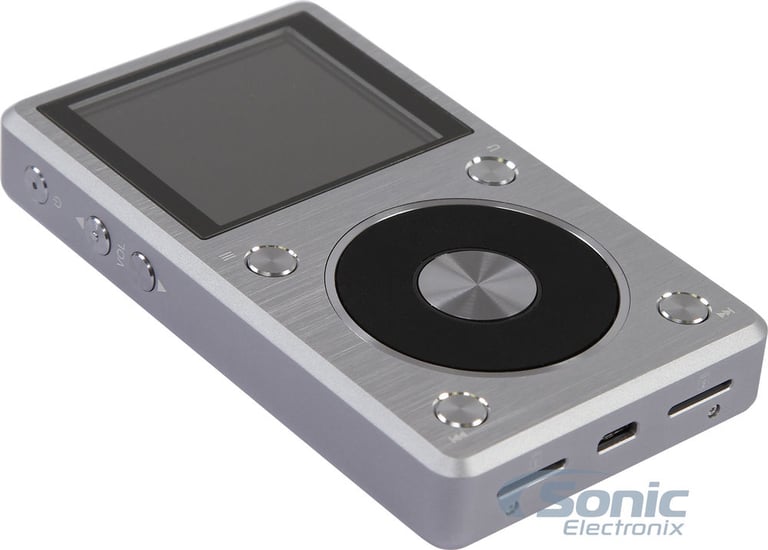

FiiO X5 II Titanium

Premium Audiophile Grade High Performance Lossless Digital Media Music Player

FiiO
Shop all FiiO
highlight-star-icon

• Lossless Digital Media Music Player
• 10-Band EQ
• User Display Themes
• Up to 10 hrs Battery Life
• Frequency Response: 20 Hz~20 kHz
• Volume Control: 120 Step Digital Potentiometer

Learn more about the fiio-x5ii

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Description


FiiO brand icon

Authorized dealer

One Small Step for your Eyes, One Giant Leap for your Ears.

All New Fiio X5 2nd gen Portable High Resolution Music Player

FiiO X5 II

Good Sound Comes from a Quality Power Supply

14V power supply for best power in class, up 40% from last generation X5

To improve sound quality, the all-new X5 employs seamless voltage switching between different gain levels. At high gain, the working voltage reaches 14V (±7V), 40% higher than the 1st gen X5, putting the opamps in their best working voltage, greatly increasing dynamics. At low gain, the working voltage is adjusted to ±5V, reducing power consumption, increasing runtime.

FiiO X5 II



Only the Best Parts

Synergistic combination of flagship components

The all-new X5 preserves the top-flight PCM1792A from Texas Instruments, coupled with the new OPA1652, with great dynamic performance and FET inputs for I/V conversion, realizing extra-low distortion (0.00005%) and noise. Also utilizing two top-flight OPA1612 for lowpass filtering and voltage amplification for extra-low distortion (0.000015%) and noise (1.1 nV/ ) . Finally, to attain sufficient driving current for wide-soundstage, highly-dynamic musical performance, and good bass power, the headphone output stage employs two BUF634U for current buffering, supplying up to 250mA current output (67% improvement over X5 1st gen).

FiiO X5 II



From Off to On in 0 Seconds Flat

Deep-sleep standby for instant-on music in everyday use

On the basis of the X5, we applied the newest technology from the likes of smartphones onto the all-new X5. Through the engineers’ efforts, the all-new X5 successfully reduced standby power consumption to <5mA, so that it may remain in standby for about 4 weeks from a full battery

FiiO X5 II



Lighter, Smaller, more Ergonomic

Portability is key

As a portable product, “portability” is always an important criterion to strive for. Through our engineers’ efforts, we packed the above-mentioned more advanced and complex circuitry into a 15% lighter, 12% smaller package than the X5 1st gen.

FiiO X5 II



User Customization

10-Band EG and User Display Themes

The all-new X5 also supports 10-EQ and user-defined playlist(.m3u/m3u8), and can switch between 5 different display themes on the same firmware.

FiiO X5 II



General Features:

  • Headphone Port: Standard 3.5mm Headphone Port
  • Volume Control: 120 step digital potentiometer
  • Weight: 5.82 oz (165 g)
  • Equalizer: 10-band equalizer (±6dB)
  • Display Screen: 2.4", 262,144 color HD IPS screen with 400x360 pixels
  • Line Out: Standard 3.5mm Port (Shared line out / S/PDIF coaxial out)

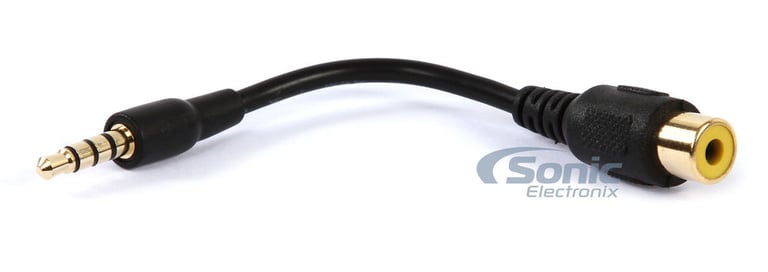

  • Digital Out (Coaxial): Standard 3.5mm Port (Shared line out / S/PDIF coaxial out)
  • Balance: 10 dB
  • USB DAC: Supporting up to 24bit / 192kHz and DSD (driver installation required)
  • Gain: 3.6dB (Gain=L) // 9.1dB (Gain=H)
  • Color: Titanium
  • Drive Ability: 16~150 ohm
  • Dimensions: 109 mm x 63.5 mm x 15.3 mm
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Partial Performance Parameters for Headphone Output:

  • Output Power 1: >245 mW (32 ohm / THD+N<1%)
  • Output Power 2: >436 mW (16 ohm / THD+N<1%)
  • Output Power 3: >27 mW (300 ohm / THD+N<1%)
  • Output Impedance: < 0.2 ohm (32 ohm)
  • Crosstalk: >75 dB (1 kHz)
  • THD+N: <0.001% (1 kHz)
  • Frequency Response: 20 Hz~20 kHz
  • MAX Output Voltage: >8.2 Vp-p
  • SNR: &GreaterEqual; 117 dB (A-weighted)
  • MAX Output Current: >250 mA (For reference)

Power and Battery:

  • Power: DC5V 2A recommended
  • Battery Capacity: 3300 mAh
  • Charge Display: Red light indicates , green light turns on after fully charged
  • Battery Life: >10 h (32 ohm ; normal volume with display off )
  • Battery Display: Yes (Accurate battery % readings)
  • Charging Time: <4h (DC5V 2A)

Audio Formats Supported:

  • Lossless:
    • DSD: DSD64, DSD128 (.iso&.dsf & .dff)
    • APE(Fast): 192 kHz / 24 bit
    • APE(Normal): 96 kHz / 24 bit
    • APE (High): 96 kHz / 24 bit
    • AIFF: 192 kHz / 24 bit
    • FLAC: 192 kHz / 24 bit
    • WAV: 192 kHz / 64 bit
    • WMA Lossless: 96 kHz / 24 bit
    • Apple Lossless: 192 kHz / 24 bit
  • Lossy compression:
    • MP2, MP3, AAC, ALAC, WMA, OGG
