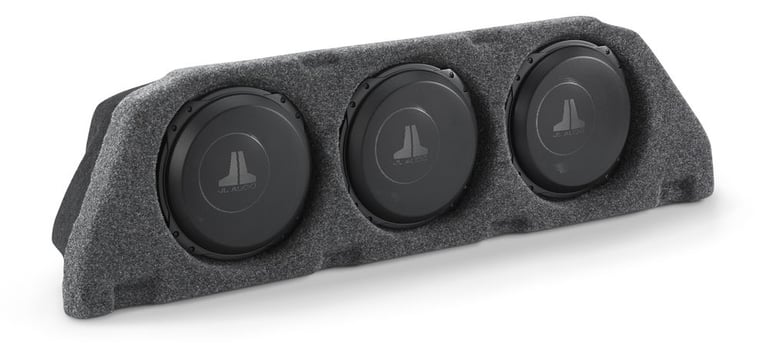

JL Audio Stealthbox® SB-GM-CTRIP/10TW3/DG

Custom fit subwoofer enclosure for select 2010-2015 Camaro

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Triple JL Audio 10TW3-D4
• 1200 Watts RMS
• For 2010-Up Chevrolet Camaro
• Stealthbox Installs between trunk and cockpit

See compatible vehicles Learn more about the sbgmctrip10tw3dg

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.15%

$211.66

List price $232.98

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Triple JL Audio 10TW3-D4
• 1200 Watts RMS
• For 2010-Up Chevrolet Camaro
• Stealthbox Installs between trunk and cockpit

Description


JL Audio brand icon

Authorized dealer




Subwoofer Features:

  • Three JL Audio 10TW3-D4 Subwoofer
  • Power Handling:
    • RMS: 1200 watts total / 400 watts each
  • Recommended power range: 600 - 1200 watts RMS
  • Wired to a 2.667 ohm load
  • No pole vent: permits mounting close to rear wall of enclosure
  • Very small sealed enclosure volume requirements
  • Very long linear excursion capability
  • DMA-optimized motor designs
  • Patented "concentric tube" architecture
  • Patented "floating cone attach method" technology
  • Cast alloy frame
  • Injection molded, mica-filled polypropylene cone
  • Rubber surround
  • Aluminum-alloy dust cap and rear cap with JL Audio logo
  • Xmax: 15.2 mm
  • Sensitivity: 82.10 dB
  • Matching Amplifiers:
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

Enclosure Features:

  • Compatible with select 2010-2015 Camaro
  • Rear-firing design
  • Sealed fiberglass enclosure
  • Steel mesh grilles included

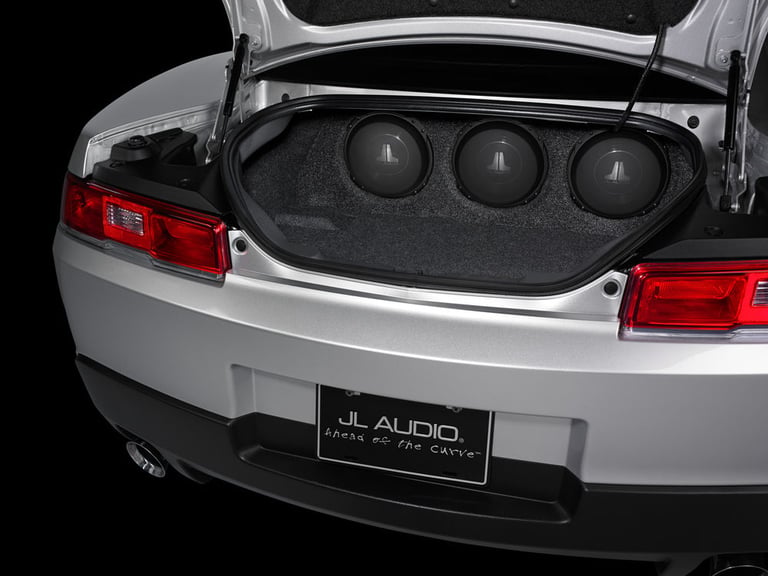

  • Stealthbox® Installs between trunk and cockpit
  • Binding post terminals for secure and sturdy connection and installation
  • Rear seat pass-through functionality is lost with installation
  • Will not fit convertible models
  • OEM Color: Trunk liner
  • Color Match Grade: N/A
  • Also available in an unfinished (primered) option: JL Audio SB-GM-CTRIP/10TW3/UF
  • Available Stealthbox® for Convertible Camaro: JL Audio SB-GM-CAMCONV/10W1v3
JL Audio SB-GM-CTRIP/10TW3/DG owner’s manual

Compatible Vehicles


Please use our Fitment Guide to determine specific compatibility for the submodel and audio features

The vehicle you have selected 1998 Acura TL is not compatible. Change vehicle or See list of compatible similar products


Best selling similar products

SB-GM-SLVCRW/10TW3 small

JL Audio Stealthbox® SB-GM-SLVCRW/10TW3

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Dual JL Audio 10TW3-D4
• 800 Watts RMS
• For 1999-2006 Chevrolet Silverado / GMC Sierra Crew Cab Trucks
• Stealthbox Installs neatly behind the rear seat

(1)

$1699.99

List price $1699.99

SB-GM-4GSUVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-4GSUVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1249.99

List price $1249.99

SB-GM-3GSLVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-3GSLVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1199.99

List price $1199.99

SB-D-QDRAMD/10TW1 small

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Two JL Audio 10TW1-4 Subwoofers
• RMS: 600 watts per pair / 300 watts each
• For 2002-Up Dodge Ram
• Stealthbox Installs underneath rear seat

(3)

$1699.99

List price $1699.99

SB-J-GCHWK2/10W3v3/BK small

JL Audio Stealthbox® SB-J-GCHWK2/10W3v3/BK

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W3v3-2
• 500 Watts RMS Power Handling
• Stealthbox Installs into passenger-side rear cargo panel

(3)

$1199.99

List price $1199.99

SB-H-PIO1K/10TW3 small

JL Audio Stealthbox® SB-H-PIO1K/10TW3

• Single JL Audio 10TW3-D4 Subwoofer
• Power handling: RMS 400 watts
• Sealed fiberglass enclosure
• Stealthbox® seamlessly installs beneath the driver's seat

$1299.99

List price $1299.99

SB-GM-SLVCC3/10TW3/BK2 small

JL Audio Stealthbox® SB-GM-SLVCC3/10TW3/BK2

• Sealed truck enclosure with 2 10" TW3 Shallow Mount Series Subwoofer
• Designed for select 2007-2013 vehicles from Chevrolet, GMC
• 800 watts per pair / 400 watts each RMS
• Final Impedance: 4-ohm
• Includes two JL Audio 10TW3-D8 subwoofers
• Installs easily under the truck's rear seat location

(4)

$1999.99

List price $1999.99

SB-D-QDRAM/10W3v3 small

JL Audio Stealthbox® SB-D-QDRAM/10W3v3 (Open Box, Like New)

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W3v3-2
• 500 Watts RMS Power Handling
• Stealthbox Installs under passenger side rear-bench seat

(1)

$1249.99

List price $1249.99

SB-GM-C7CP1/10TW3 small

JL Audio Stealthbox® SB-GM-C7CP1/10TW3

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW3-D4
• 400 Watts RMS
• For 2014-Up Chevrolet C7 Corvette Coupe (Single Driver)
• Stealthbox Installs into driver side hatch storage compartment

$1249.99

List price $1249.99

SB-GM-VETC6/10W1v3 small

JL Audio Stealthbox® SB-GM-VETC6/10W1v3

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W1v3-2
• 300 Watts RMS Power Handling
• Stealthbox Installs neatly into the rear corner of the hatch

(3)

$1149.99

List price $1149.99

Specifications & Details


Subwoofer Specifications
Subwoofer Design
Round / Circle
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
400 watts
Total RMS Power Handling
1200 watts
Woofer Surround
Butyl Rubber
Woofer Composition
Polymer/Mica Composite
Sensitivity
82.10 dB
Frequency Response
30 - 250 Hz
Xmax (millimeters)
15.2 mm
Subwoofer Size
10"
Enclosure Specifications
Number of Subwoofers
3
Box Style/Shape
Vehicle Specific
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Final Wired Impedance
2.7 ohms
Type of Enclosure
Loaded
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SB-GM-CTRIP/10TW3/DG

Weight:

83.00lbs

Internal SKU:

sbgmctrip10tw3dg

Internal Product ID:

98104
