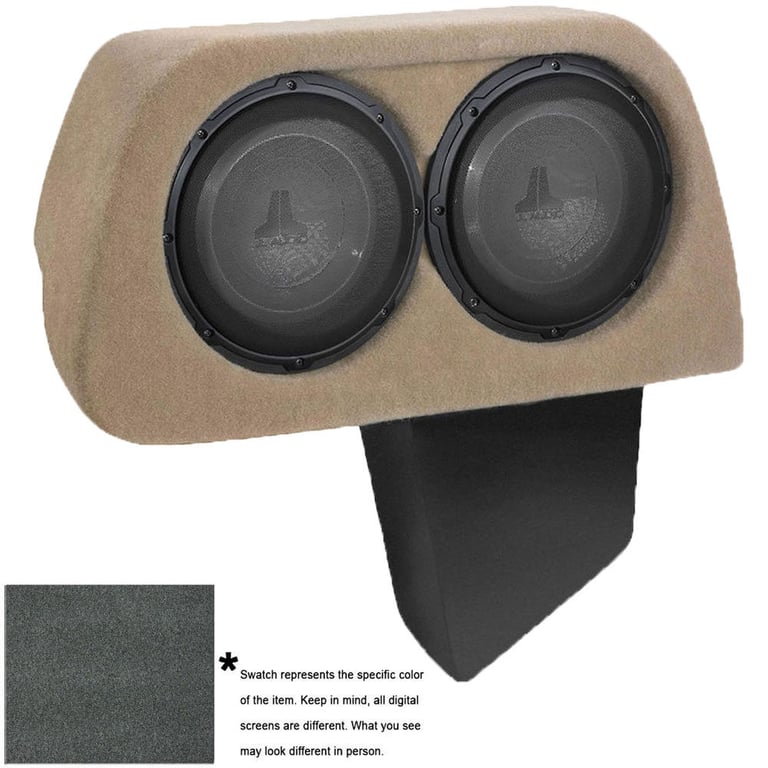

JL Audio SB-GM-ESC/10W1v3/GA2

Stealthbox for 2007-2013 Chevrolet / GMC Regular Wheelbase SUV's & Cadillac Escalade with Power Liftgate and Dark Titanium interior

JL Audio
Shop all JL Audio
highlight-star-icon

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W1v3-2
• 300 Watts RMS
• For 2007-2013 Chevrolet / GMC Regular Wheelbase SUV’s & Cadillac Escalade with Power Liftgate and Dark Titanium interior
• Stealthbox Installs on the driver side rear window ledge

See compatible vehicles Learn more about the sbgmesc10w1v3ga2

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

SHTA02B main

Scosche SHTA02B

Install New Speakers in select 1993-2015 vehicles from Toyota, Pontiac, Isuzu

7
-22.86%

$9.99

List price $12.95

99-8229S main

Metra 99-8229S

Single or Double DIN Installation Dash Kit for select 2011-2014 Sienna (998229S)

3
-47.38%

$19.99

List price $37.99

SWRTY-61J main

Crux SWRTY-61J Wiring Interface

Install new car stereo and retains steering wheel audio controls and other factory features in select 2003-2019 vehicles from Toyota, Lexus

-35.71%

$102.60

List price $159.60

SWRTY-61S main

Crux SWRTY-61S Wiring Interface

Install new car stereo and retains steering wheel audio controls and other factory features in select 2003-2014 vehicles from Toyota, Scion

3
-35.71%

$82.35

List price $128.10

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

206
Limited time!
DDX5707S main

Kenwood DDX5707S

6.8" Double DIN Touchscreen DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

5
-31.21%

$399.00

List price $580.00

DMX908S main

Kenwood eXcelon DMX908S

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (Sirius-XM Ready)

-19.05%

$849.99

List price $1050.00

Description


JL Audio brand icon

Authorized dealer




Subwoofer Features:

  • Two JL Audio 10W1v3-4 Subwoofer
  • Power Handling:
    • RMS: 600 watts total / 300 watts each
  • Recommended power range: 150 - 600 watts RMS
  • Wired to a 2 ohm load
  • Injection molded, mica-filled polypropylene cone
  • Rubber surround
  • DMA-optimized motor design
  • Elevated frame cooling enhances power and sound quality
  • Patented "floating cone attach method" technology
  • Vented Reinforcement Collar
  • Insert Molded Suspension / Coil / Terminal Sub-Assembly
  • Engineered Lead-Wire System
  • Xmax: 11.0 mm
  • Sensitivity: 84.2 dB
  • Matching Amplifier: JL Audio XD600/1v2
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

Enclosure Features:

  • For 2007-2013 Chevrolet / GMC Regular Wheelbase SUV's & Cadillac Escalade with Power Liftgate and Dark Titanium interior
  • Side-firing design
  • Sealed enclosure
  • Steel mesh grilles included

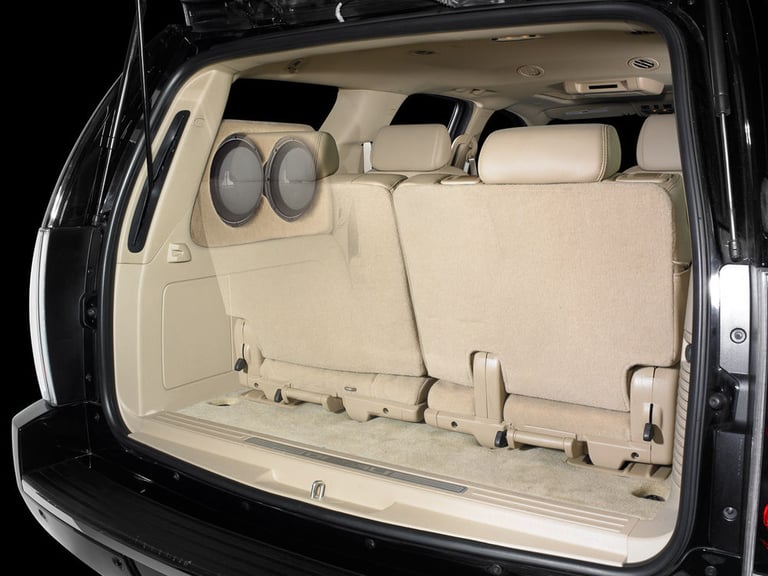

  • Stealthbox® Installs on the driver side rear window ledge
  • Will not fit extended wheelbase Chevrolet & GMC SUV's
  • Will not fit models without Power Liftgate option
  • Binding post terminals for secure and sturdy connection and installation
  • OEM Color: Dark Titanium
  • Color Match Grade: Good
  • Also available in the following OEM Colors:



Color Matching your Stealthbox®:

Some JL Audio Stealthboxes are not designed to perfectly match OEM colors. Some colors will contrast with OEM colors in order to provide a stylish setup. If you are looking for the closest color match, please select the JL Audio Stealthbox® color that is as close to your OEM color as possible and indicate your vehicle's interior color when ordering

Carpet Color Grade Identification
Perfect Actual exact factory color and texture (dye lot may differ slightly)
Excellent Precise color match, different texture
Good Very close to factory shade/tone
Fair Same basic color, different shade/tone
Poor Same basic color, substantially different shade/tone
Contrasts Not intended to match any factory color. Usually black. Good choice if no Good or better color match exists

Message from JL Audio: Our goal is to provide all Stealthbox® products in colors that match well with factory interiors. Because of availability issues with carpet colors, some Stealthbox® colors are not precise matches at this time. The match grades above give you an indication of how precise our color match is for each Stealthbox® model.

Check out the JL Audio SB-GM-ESC/10W1v3 Owner's Manual

Compatible Vehicles


Please use our Fitment Guide to determine specific compatibility for the submodel and audio features

The vehicle you have selected 2013 Toyota Sienna is not compatible. Change vehicle or See list of compatible similar products


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

SB-GM-SLVCRW/10TW3 small

JL Audio Stealthbox® SB-GM-SLVCRW/10TW3

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Dual JL Audio 10TW3-D4
• 800 Watts RMS
• For 1999-2006 Chevrolet Silverado / GMC Sierra Crew Cab Trucks
• Stealthbox Installs neatly behind the rear seat

(1)

$1699.99

List price $1699.99

SB-GM-4GSUVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-4GSUVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1249.99

List price $1249.99

SB-GM-3GSLVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-3GSLVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1199.99

List price $1199.99

SB-D-QDRAMD/10TW1 small

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Two JL Audio 10TW1-4 Subwoofers
• RMS: 600 watts per pair / 300 watts each
• For 2002-Up Dodge Ram
• Stealthbox Installs underneath rear seat

(3)

$1699.99

List price $1699.99

SB-H-PIO1K/10TW3 small

JL Audio Stealthbox® SB-H-PIO1K/10TW3

• Single JL Audio 10TW3-D4 Subwoofer
• Power handling: RMS 400 watts
• Sealed fiberglass enclosure
• Stealthbox® seamlessly installs beneath the driver's seat

$1299.99

List price $1299.99

SB-GM-SLVCC3/10TW3/BK2 small

JL Audio Stealthbox® SB-GM-SLVCC3/10TW3/BK2

• Sealed truck enclosure with 2 10" TW3 Shallow Mount Series Subwoofer
• Designed for select 2007-2013 vehicles from Chevrolet, GMC
• 800 watts per pair / 400 watts each RMS
• Final Impedance: 4-ohm
• Includes two JL Audio 10TW3-D8 subwoofers
• Installs easily under the truck's rear seat location

(4)

$1999.99

List price $1999.99

SB-J-GCHWK2/10W3v3/BK small

JL Audio Stealthbox® SB-J-GCHWK2/10W3v3/BK

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W3v3-2
• 500 Watts RMS Power Handling
• Stealthbox Installs into passenger-side rear cargo panel

(3)

$1199.99

List price $1199.99

SBX-F-BRONCG6/10TW1 small

JL Audio Stealthbox® SBX-F-BRONCG6/10TW1

• Sealed enclosure with 1 10" Stealth Series Subwoofer
• 300 watts RMS
• Final Impedance: 2-ohm
• Dimensions: 5-1/4" L x 14" H x 16-1/8" W
• Designed to fit behind the Passenger Side panel

(2)

$919.99

List price $1149.99

SB-GM-VETC6/10W1v3 small

JL Audio Stealthbox® SB-GM-VETC6/10W1v3

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W1v3-2
• 300 Watts RMS Power Handling
• Stealthbox Installs neatly into the rear corner of the hatch

(3)

$1149.99

List price $1149.99

SBX-F-MAVG1/10TW1 small

JL Audio Stealthbox® SBX-F-MAVG1/10TW1

• Sealed enclosure with 1 10" Stealth Series Subwoofer
• 300 watts RMS
• Final Impedance: 2-ohm
• Dimensions: 5-1/4" L x 16" H x 26-5/8" W

(1)

$679.99

List price $849.99

Specifications & Details


Subwoofer Specifications
Subwoofer Design
Round / Circle
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
300 watts
Woofer Surround
Butyl Rubber
Woofer Composition
Mica Injected Polypropylene - MIPP
Sensitivity
84.2 dB
Frequency Response
25 - 250 Hz
Xmax (millimeters)
11 mm
Subwoofer Size
10"
Enclosure Specifications
Number of Subwoofers
2
Box Style/Shape
Vehicle Specific
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Dark Titanium
Box Finish
Carpet
Final Wired Impedance
2-ohm
Type of Enclosure
Loaded
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SB-GM-ESC/10W1v3/GA2

Weight:

41.05lbs

Internal SKU:

sbgmesc10w1v3ga2

Internal Product ID:

98125

Customer Ratings & Reviews


JL Audio SB-GM-ESC/10W1v3/GA2 thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


DMH-WC5700NEX, AXPIO-IN1 small

Pioneer DMH-WC5700NEX with Dash Kit/Harness for 08-13 Infiniti G37 (With Nav)

6.8” Double-DIN Touchscreen Digital Multimedia Receiver with Apple CarPlay, Android Auto and Sirius XM Ready

(2)

$1545.99

List price $1734.99

MX770-ETXv3-SG-TK small

JL Audio MX770-ETXv3-SG-TK

225W Peak (70W RMS) 7.7" MX-Series Coaxial Marine Speakers with Enclosures

(2)

$599.99

List price $749.99

HDVD800_HE400i small

Sennheiser HDVD 800 + HIFIMAN HE-400i

Digital Headphone Amplifier and DAC plus Wired Over-Ear Planar Magnetic Headphones

(1)

$1588.78

List price $2698.95

LN32B530 small

Samsung LN32B530 (LN-32B530)

32" 1080p LCD HDTV with a Touch of Color Design

$559.99

List price $699.99

ABG8CQ-1 small

Audiobahn ABG8CQ-1 Single 8" Chrome Stamped Steel Deep Grill

(1)

$13.99

List price $24.99

No picture

Kenwood eXcelon DNR1007XR - New (Damaged Packaging, Product A+)

10.1" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Navigation, Apple CarPlay, Android Auto (Sirius XM Ready)

(2)

$1709.99

List price $2100.00

ICON-IDO-SILVER small

NuForce Icon iDo Silver (ICON-IDO-SILVER) Headphone Amp and DAC

48 kHz Sample Rate and 24-Bit Resolution USB DAC

$129.00

List price $249.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2013 Toyota Sienna

2006 Chevrolet Equinox

2024 Lincoln Nautilus

2020 Hyundai Elantra

1984 Toyota Pickup

2010 Scion xD

1984 Audi 4000

1995 Mercury Tracer

2002 Dodge Ram 2500 Van

2023 Lexus NX450h+

Vehicle
Store
Delete

2022 Can-Am Defender HD10 XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
