JL Audio Stealthbox® SB-J-UNLTD4D/13TW5v2/BK

Subwoofer Features:

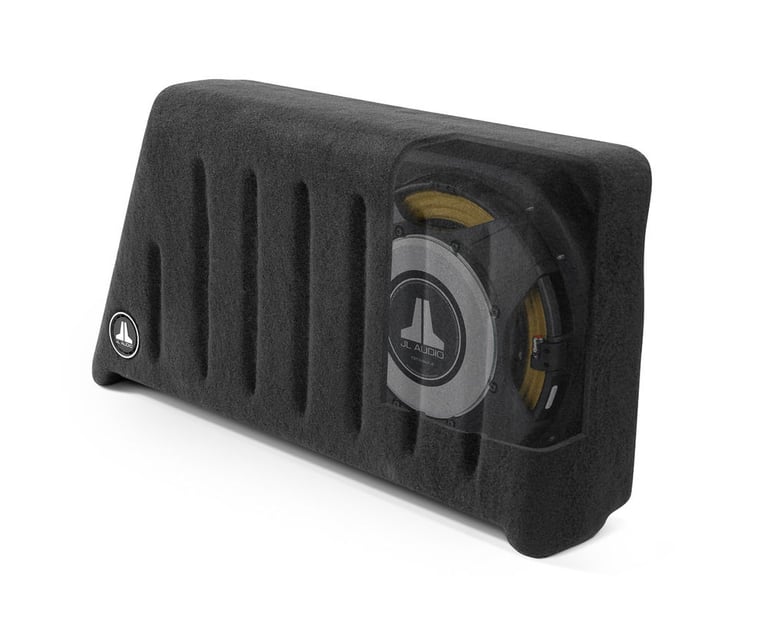

• One JL Audio 12W3v3-2 Subwoofer
• Power Handling:
• RMS: 600 watts
• Recommended Power Range: 250-600 watts
• Wired to a 2 ohm load
• Mica-filled polypropylene cone
• Santoprene surround
• Cast alloy basket
• 7-inch diameter voice coil
• Unique design allows for small airspace requirements
• 13% greater linear excursion capability over previous model
• Redesigned motor features an annular vent
• DMA-optimized motor designs
• Patented floating cone attach method technology
• Patented concentric tube architecture
• Frequency response: 20 - 200 Hz
• Sensitivity: 85.51 dB
• Xmax: 11 mm
• Matching Amplifier: JL Audio XD600/1v2
• 2 Year Manufacturer's Warranty

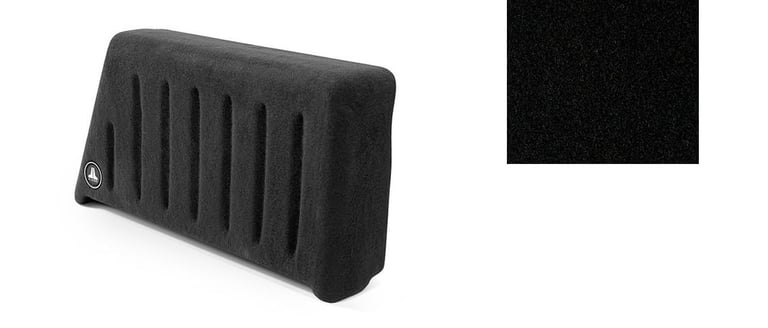

Enclosure Features:

• Compatible with select 2007-2018 vehicles from Jeep with Black Trunk
• Side-firing design
• Sealed fiberglass enclosure

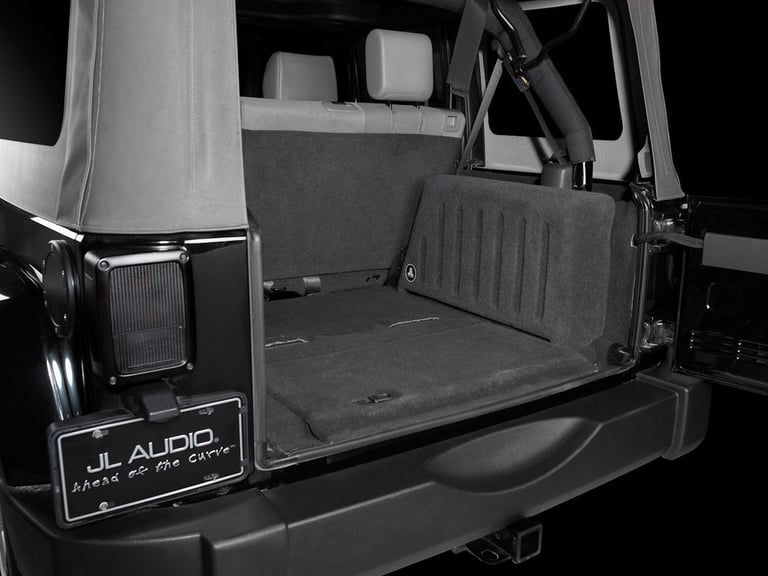

• Stealthbox® bolts solidly to the passenger-side rear wheel well
• Binding post terminals for secure and sturdy connection and installation
• Requires removal of factory “subwoofer, if so equipped

• For model years 2011-Up with a 12V accessory plug on the rear passenger side cargo panel/subwoofer, you must purchase a plain (without subwooofer) passenger side rear cargo trim panel (part #1pu12dx9ag) and a cover for the upper seat belt / roll bar (part #1pu18dx9ad) from Jeep/Mopar parts. Use of the accessory outlet is lost with Stealthbox® installation.

• OEM Color: with Black Trunk
• Color Match Grade: Excellent

Some JL Audio Stealthboxes are not designed to perfectly match OEM colors. Some colors will contrast with OEM colors in order to provide a stylish setup. If you are looking for the closest color match, please select the JL Audio Stealthbox® color that is as close to your OEM color as possible and indicate your vehicle's interior color when ordering

Message from JL Audio: Our goal is to provide all Stealthbox® products in colors that match well with factory interiors. Because of availability issues with carpet colors, some Stealthbox® colors are not precise matches at this time. The match grades above give you an indication of how precise our color match is for each Stealthbox® model.
