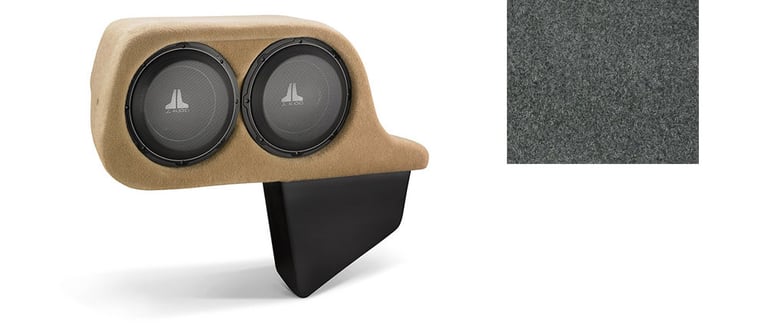

JL Audio SB-GM-ESCESV/10W1v3/GA2

Stealthbox for 2007-Up Chevrolet / GMC Extended Wheelbase SUV's & Cadillac Escalade ESV with Power Liftgate and Dark Titanium interior

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W1v3-2
• 300 Watts RMS
• For 2007-Up Chevrolet / GMC Extended Wheelbase SUV’s & Cadillac Escalade ESV with Power Liftgate and Ebony interior
• Stealthbox Installs on the driver side rear window ledge

See compatible vehicles Learn more about the sbgmescesv10w1v3ga2

We apologize

This item has been discontinued


Loading...
Limited time!
MBQD-SUBA-1 main

MB Quart MBQD-SUBA-1

400W RMS Loaded Dual 10" Amplified Subwoofer Enclosure for select 2016-2025 vehicles from Can-Am

-22.81%

$764.15

List price $989.99

RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Product Highlights


• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W1v3-2
• 300 Watts RMS
• For 2007-Up Chevrolet / GMC Extended Wheelbase SUV’s & Cadillac Escalade ESV with Power Liftgate and Ebony interior
• Stealthbox Installs on the driver side rear window ledge

Description


JL Audio brand icon

Authorized dealer




Subwoofer Features:

  • Two JL Audio 10W1v3-4 Subwoofer
  • Power Handling:
    • RMS: 600 watts total / 300 watts each
  • Recommended power range: 150 - 600 watts RMS
  • Wired to a 2 ohm load
  • Injection molded, mica-filled polypropylene cone
  • Rubber surround
  • DMA-optimized motor design
  • Elevated frame cooling enhances power and sound quality
  • Patented "floating cone attach method" technology
  • Vented Reinforcement Collar
  • Insert Molded Suspension / Coil / Terminal Sub-Assembly
  • Engineered Lead-Wire System
  • Xmax: 11.0 mm
  • Sensitivity: 84.2 dB
  • Matching Amplifier: JL Audio XD600/1v2
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

Enclosure Features:

  • For 2007-Up Chevrolet / GMC Extended Wheelbase SUV's & Cadillac Escalade ESV with Power Liftgate and Ebony interior
  • Side-firing design
  • Sealed enclosure
  • Steel mesh grilles included

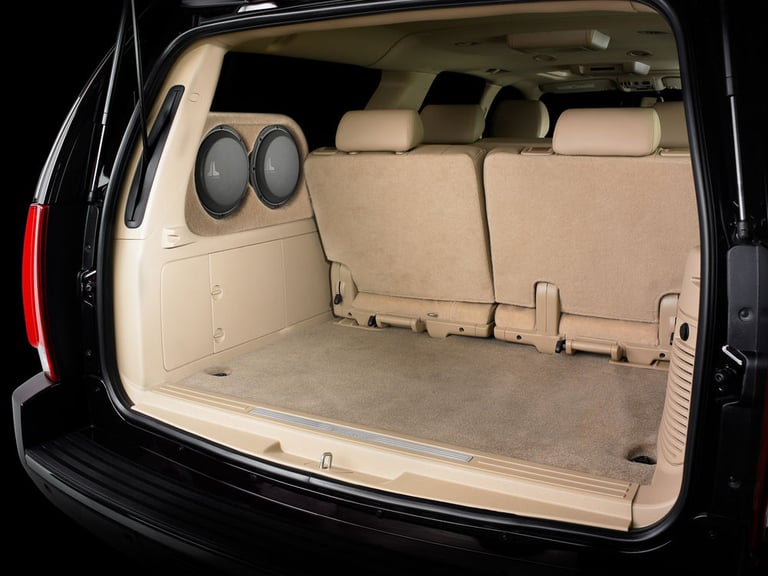

  • Stealthbox® Installs on the driver side rear window ledge
  • Will not fit regular wheelbase Chevrolet & GMC SUV's
  • Will not fit models without Power Liftgate option
  • Binding post terminals for secure and sturdy connection and installation
  • OEM Color: Ebony
  • Color Match Grade: Good
  • Also available in the following OEM Colors:



Color Matching your Stealthbox®:

Some JL Audio Stealthboxes are not designed to perfectly match OEM colors. Some colors will contrast with OEM colors in order to provide a stylish setup. If you are looking for the closest color match, please select the JL Audio Stealthbox® color that is as close to your OEM color as possible and indicate your vehicle's interior color when ordering

Carpet Color Grade Identification
Perfect Actual exact factory color and texture (dye lot may differ slightly)
Excellent Precise color match, different texture
Good Very close to factory shade/tone
Fair Same basic color, different shade/tone
Poor Same basic color, substantially different shade/tone
Contrasts Not intended to match any factory color. Usually black. Good choice if no Good or better color match exists

Message from JL Audio: Our goal is to provide all Stealthbox® products in colors that match well with factory interiors. Because of availability issues with carpet colors, some Stealthbox® colors are not precise matches at this time. The match grades above give you an indication of how precise our color match is for each Stealthbox® model.

Check out the JL Audio SB-GM-ESCESV/10W1v3 Owner's Manual

Compatible Vehicles


Please use our Fitment Guide to determine specific compatibility for the submodel and audio features

The vehicle you have selected 2017 Can-Am Defender HD10 is not compatible. Change vehicle or See list of compatible similar products


Best selling similar products

SB-D-QDRAMD/10TW1 small

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Two JL Audio 10TW1-4 Subwoofers
• RMS: 600 watts per pair / 300 watts each
• For 2002-Up Dodge Ram
• Stealthbox Installs underneath rear seat

(3)

$1699.99

List price $1699.99

SB-GM-4GSUVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-4GSUVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1249.99

List price $1249.99

SB-GM-3GSLVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-3GSLVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1199.99

List price $1199.99

Specifications & Details


Subwoofer Specifications
Subwoofer Design
Round / Circle
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
300 watts
Woofer Surround
Butyl Rubber
Woofer Composition
Mica Injected Polypropylene - MIPP
Sensitivity
84.2 dB
Frequency Response
25 - 250 Hz
Xmax (millimeters)
11 mm
Subwoofer Size
10"
Enclosure Specifications
Number of Subwoofers
2
Box Style/Shape
Vehicle Specific
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Dark Titanium
Box Finish
Carpet
Final Wired Impedance
2-ohm
Type of Enclosure
Loaded
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SB-GM-ESCESV/10W1v3/GA2

Weight:

44.70lbs

Internal SKU:

sbgmescesv10w1v3ga2

Internal Product ID:

98403
