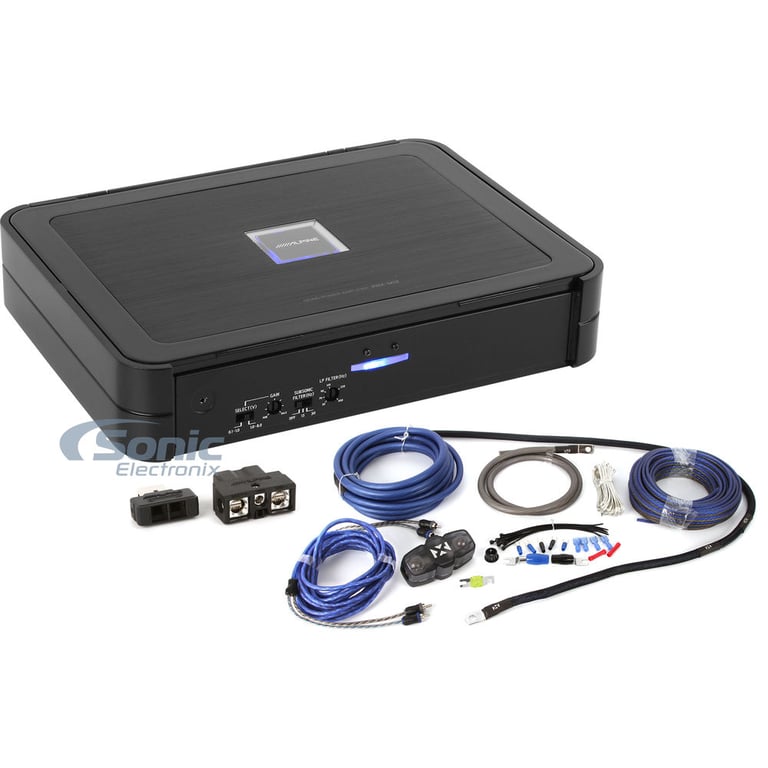

Alpine PDX-M12 1200W RMS Mono Car Amplifier + 4 Gauge Premium OFC Amp Kit

Class D Digital Car Amplifier + 100% Copper 4 Gauge Amp Installation Kit

Alpine
Shop all Alpine
EXCLUSIVE
Product videos
highlight-star-icon

• RMS: 1200W x 1 @ 4 ohm, 1200W x 1 @ 2 ohm
• Total RMS Power: 1200W
• CEA-2006 Compliant
• 6-Layer Glass Epoxy PC Board and Compact Size
• Thermal Protection Circuitry
• Dimensions: 7-9/16"D x 10-1/8"W x 2"H
• 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit

Learn more about the pdxm12_xkit42

We apologize

This item has been discontinued


Loading...
C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
Stage3 427F main

JBL Stage3 427F (STAGE3427FAM)

300W Peak (60W RMS) 4" Stage3 Series 2-Way Coaxial 3-ohm Car Speakers

3
-22.23%

$69.95

List price $89.95

Limited time!
TS-G1020S main

Pioneer TS-G1020S

420W Peak (60W RMS) 4" G-Series 2-way 4-ohm Coaxial Car Speakers

2
-24.63%

$48.99

List price $65.00

Product Highlights


• RMS: 1200W x 1 @ 4 ohm, 1200W x 1 @ 2 ohm
• Total RMS Power: 1200W
• CEA-2006 Compliant
• 6-Layer Glass Epoxy PC Board and Compact Size
• Thermal Protection Circuitry
• Dimensions: 7-9/16"D x 10-1/8"W x 2"H
• 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit

Description


Alpine brand icon

Authorized dealer

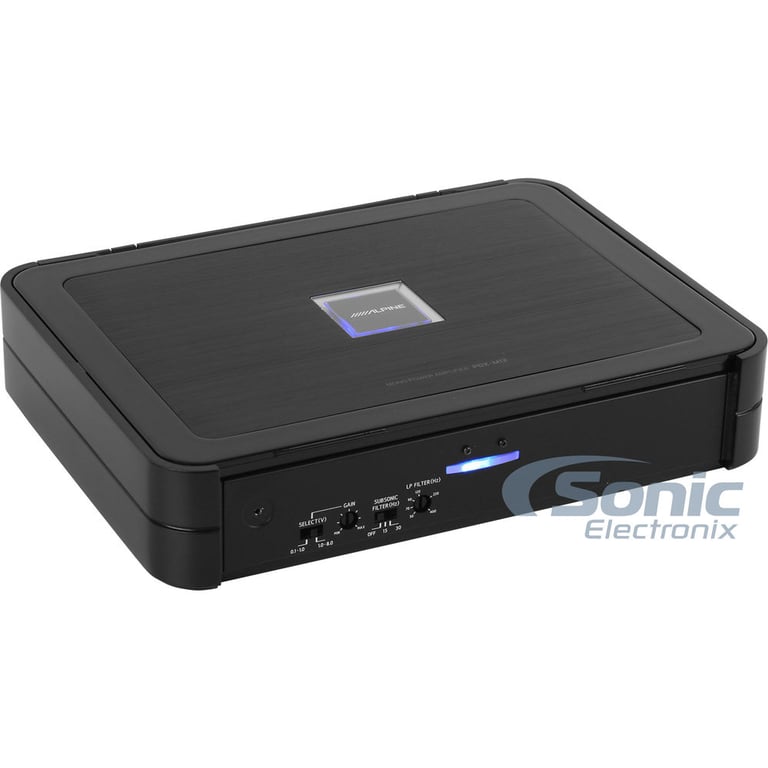

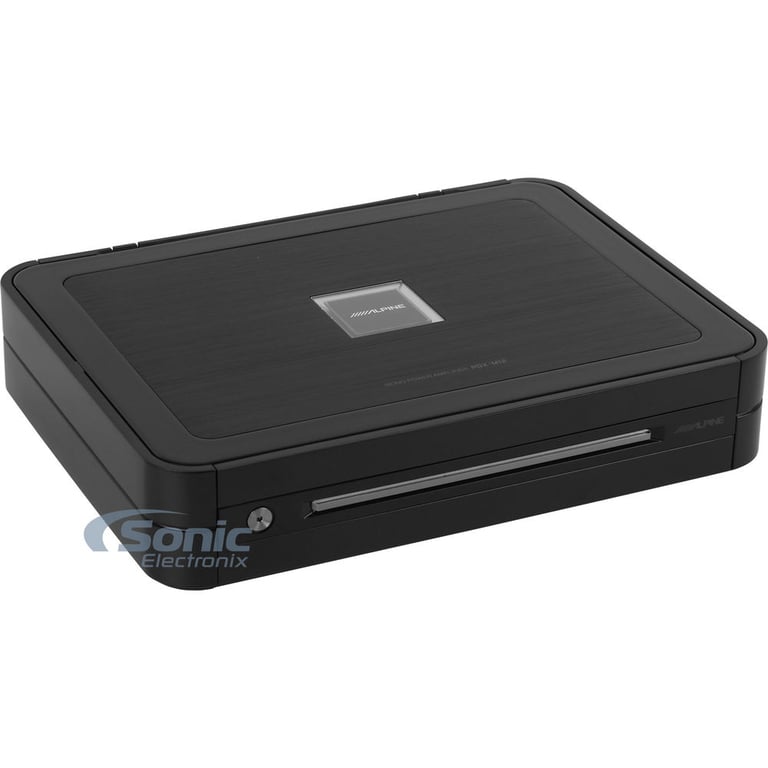

Alpine PDX-M12

1200W RMS PDX Series Monoblock Power Density Class D Digital Car Amplifier
Quantity: 1


General Features:

  • PDX Series 1-Channel Class D Car Amplifier
  • RMS Power Rating (@ 14.4V):
    • 4 ohm: 1200 watts x 1 chan.
    • 2 ohm: 1200 watts x 1 chan.
  • Total RMS output: 1200 watts
  • DC-DC PWM Power supply with STAR circuitry
  • Blue LED power/status indicator conveniently located on the top
  • Discrete pre-amp stage
  • 6-Layer glass epoxy PC board
  • Automatic over-current protection system
  • Soft start turn-on prevent initial system popping
  • 1-Channel monoblock operation
  • 1 Set of pre-amp outputs
  • Optional Alpine RUX-KNOB.2 available
  • System Protection circuitry keeps the amp running properly
  • Large aluminum alloy heatsink for extreme heat dissipation
  • Gold-plated RCA level inputs

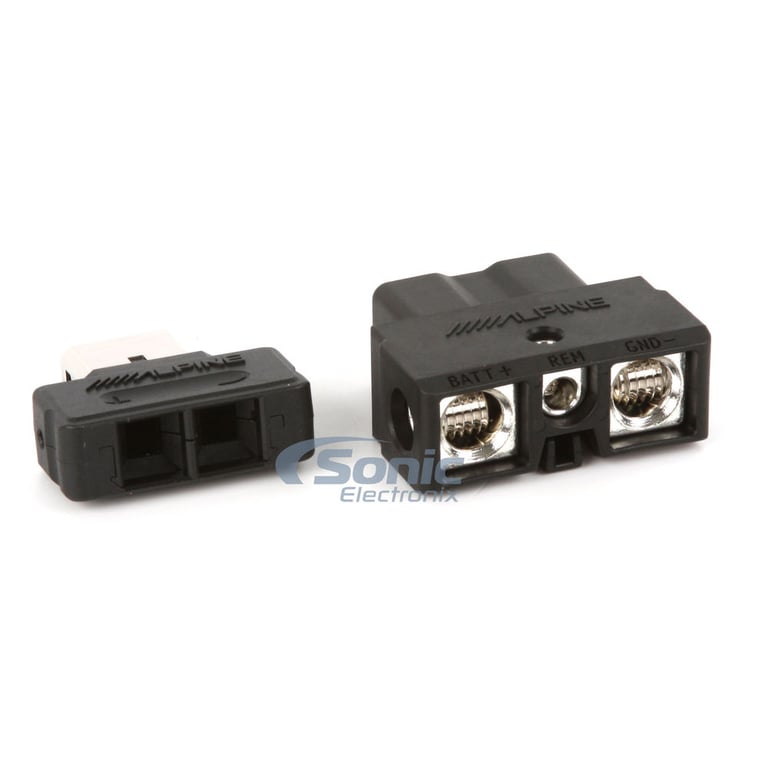

  • Proprietary screw terminals ensure a solid and secure connection
  • Input sensitivity: 0.1-8 V with input level

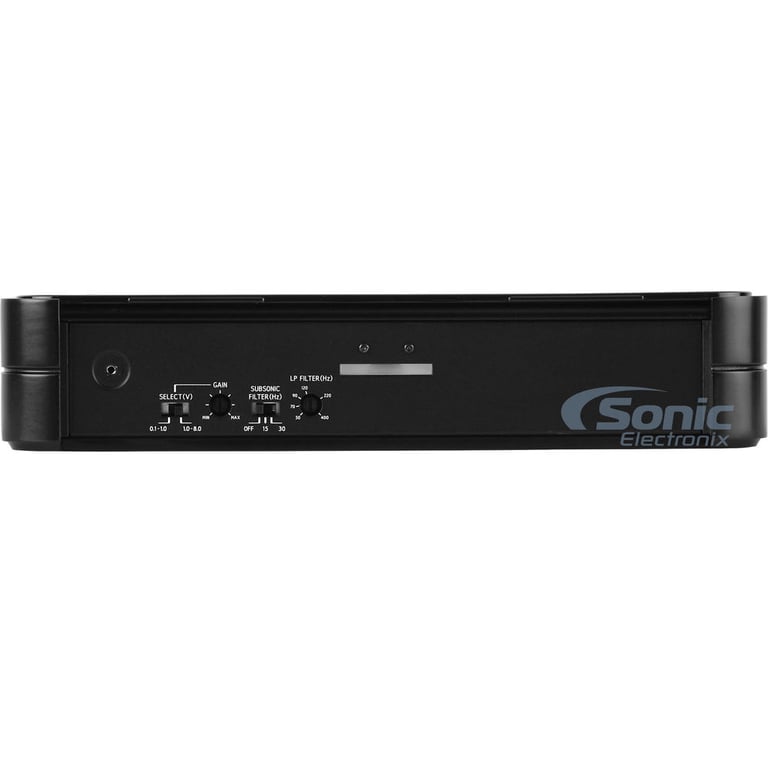

  • Variable low-pass filter (50-400 Hz, 24 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 5-100,000 Hz
  • Dimensions: 7-9/16"D x 10-1/8"W x 2"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

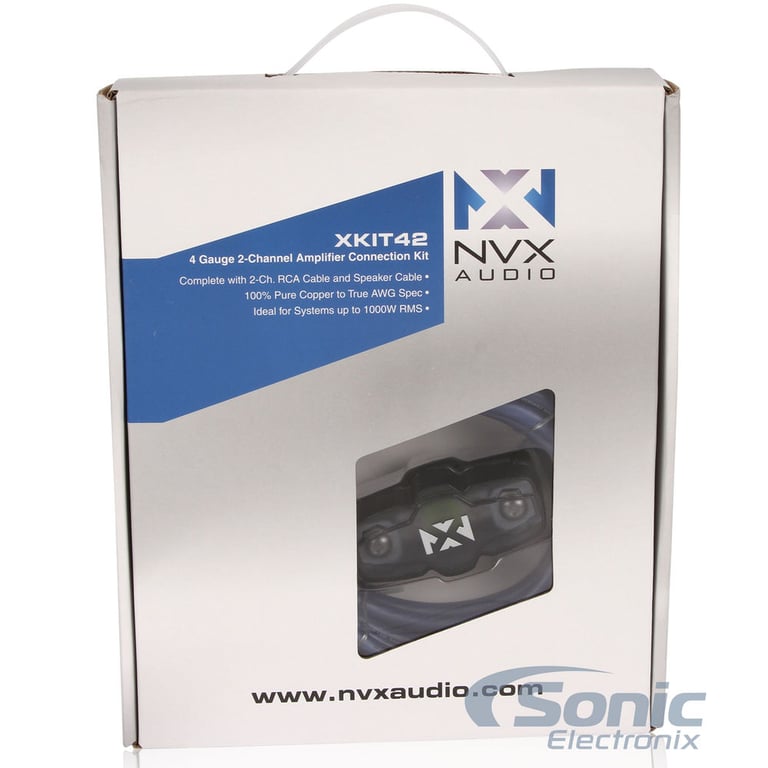

NVX XKIT42

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems

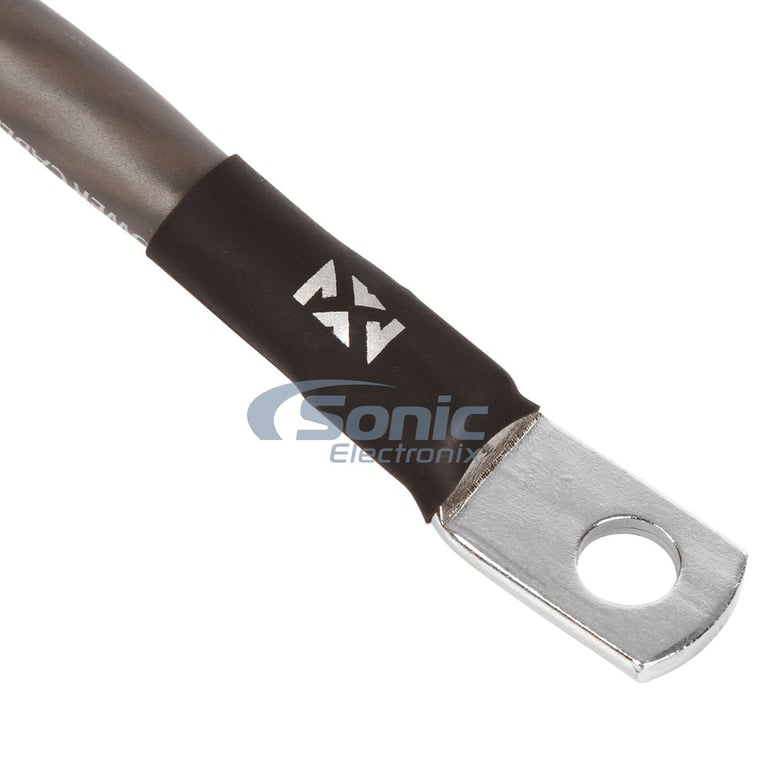

  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant

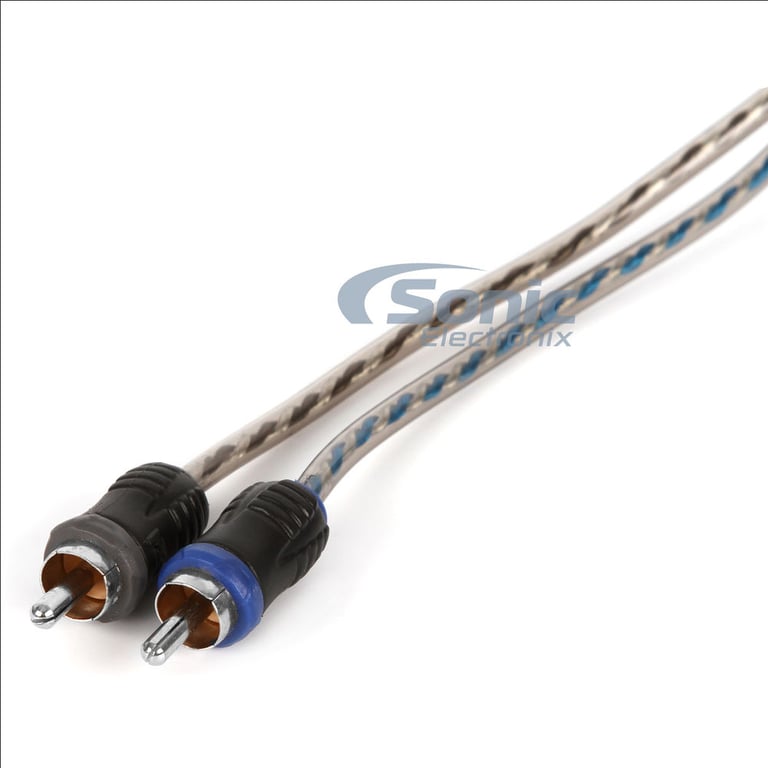

  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

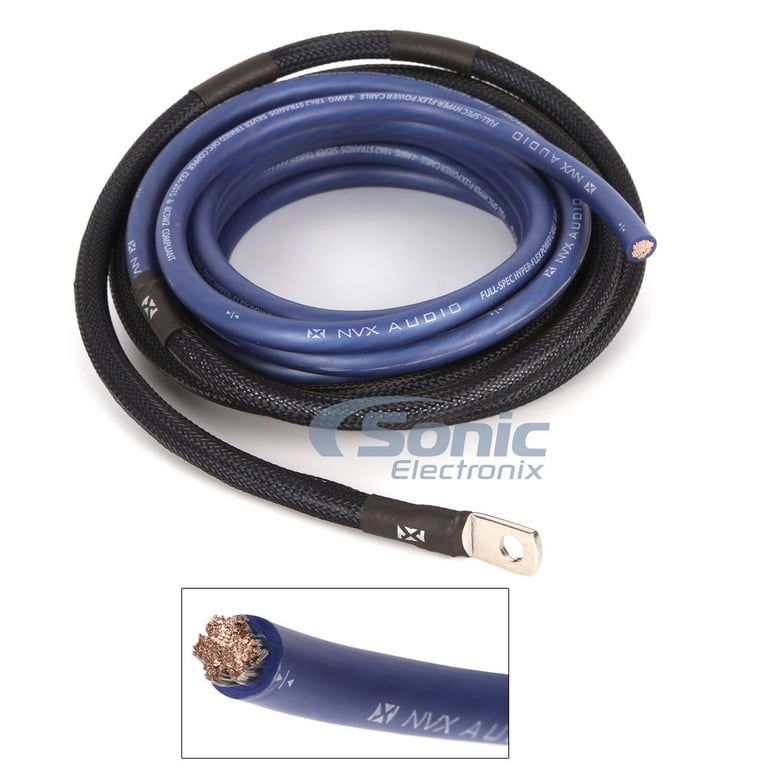

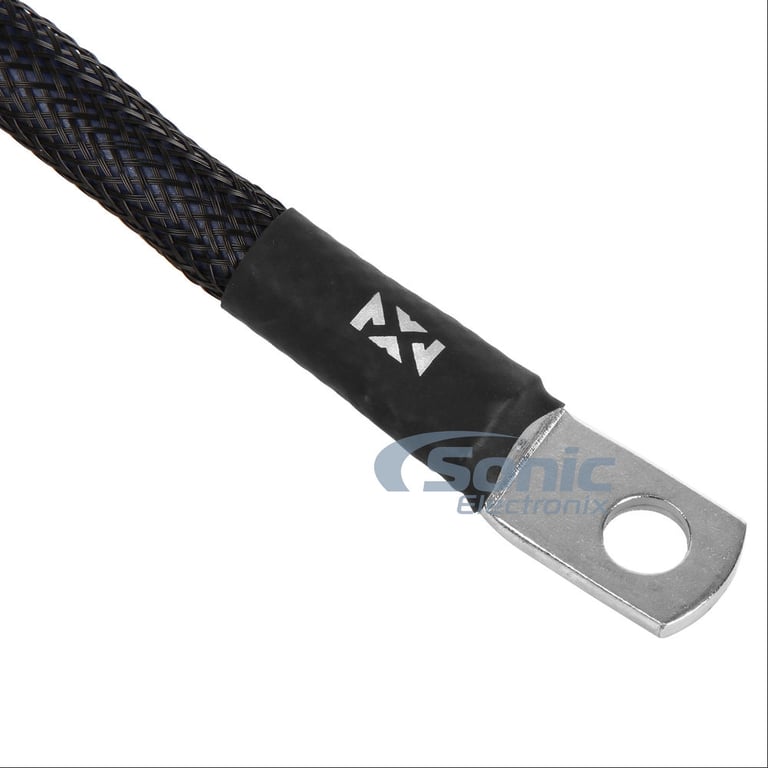

  1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal

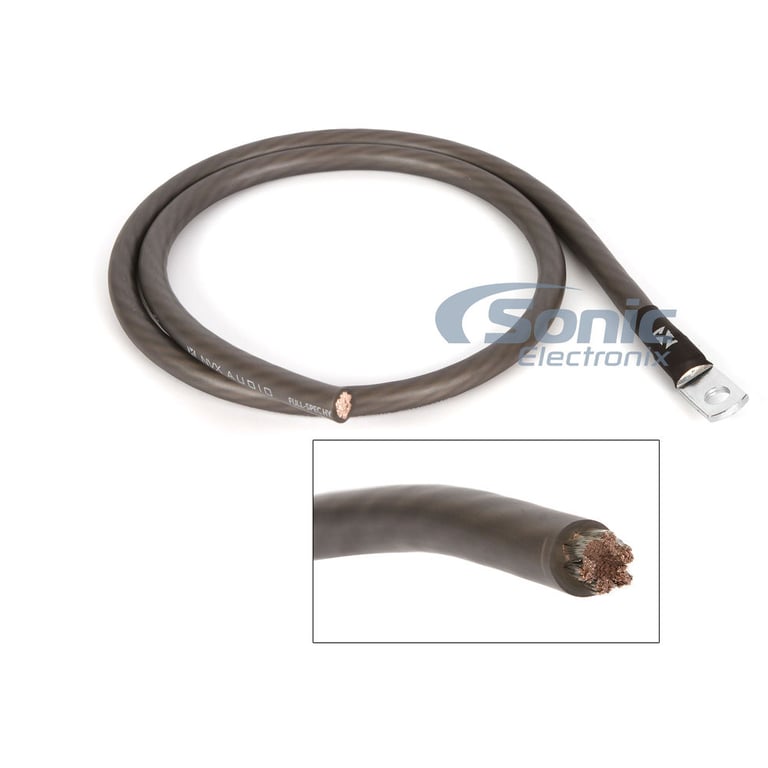

  2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal

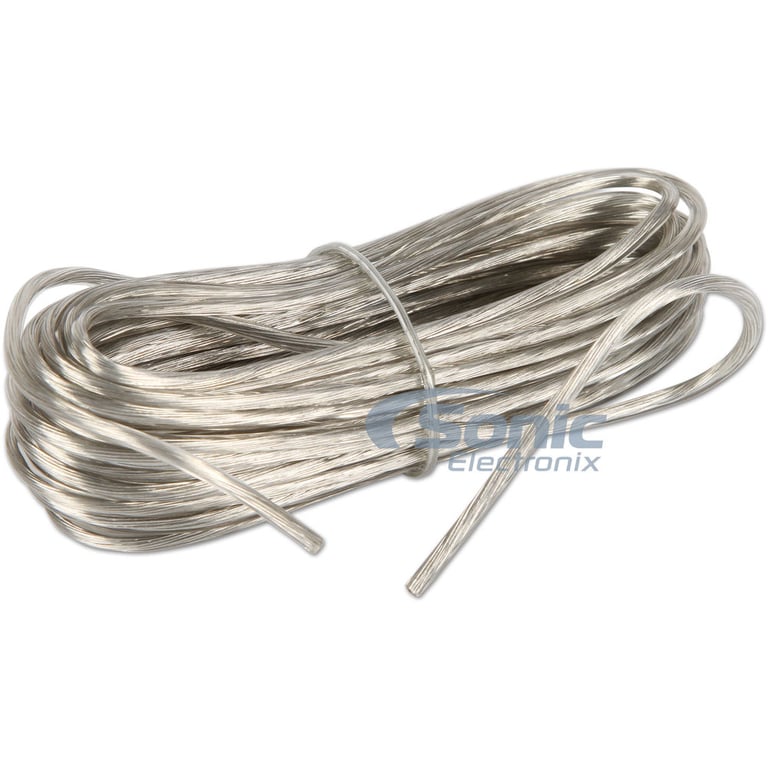

  3. 17 ft. Clear 18 gauge remote lead wire

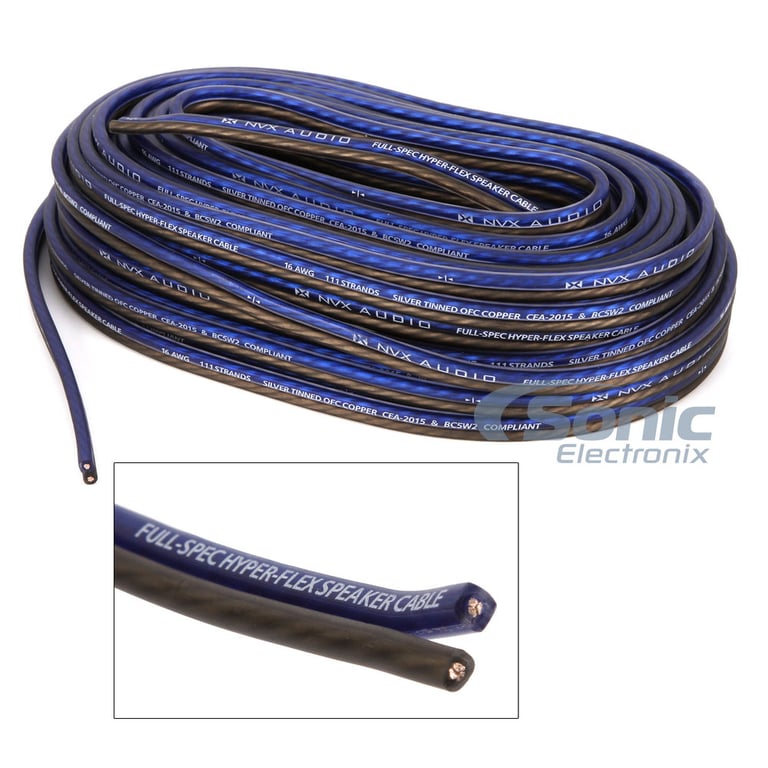

  4. 20 ft. Frosted Black/Blue 16 gauge speaker wire

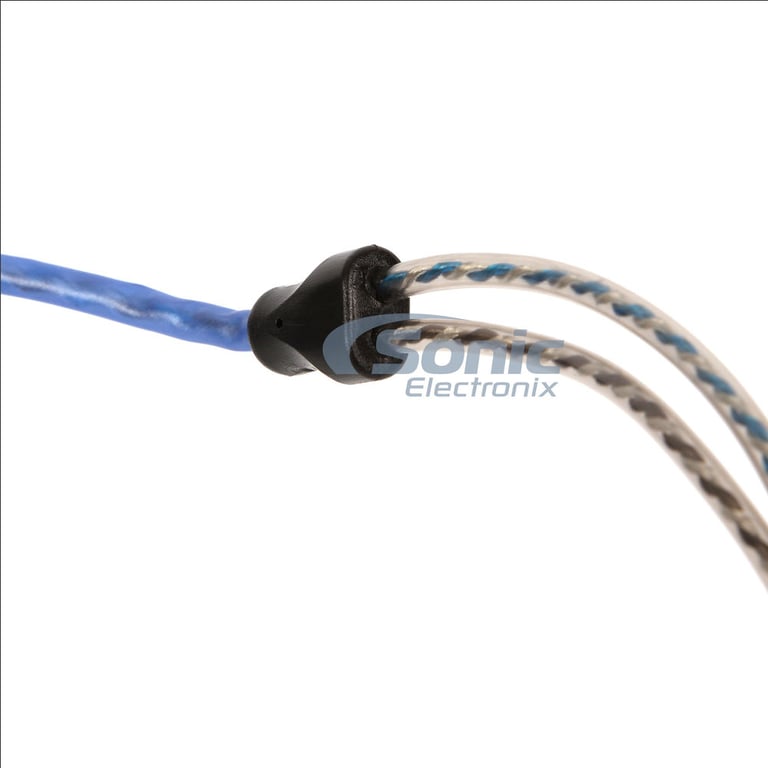

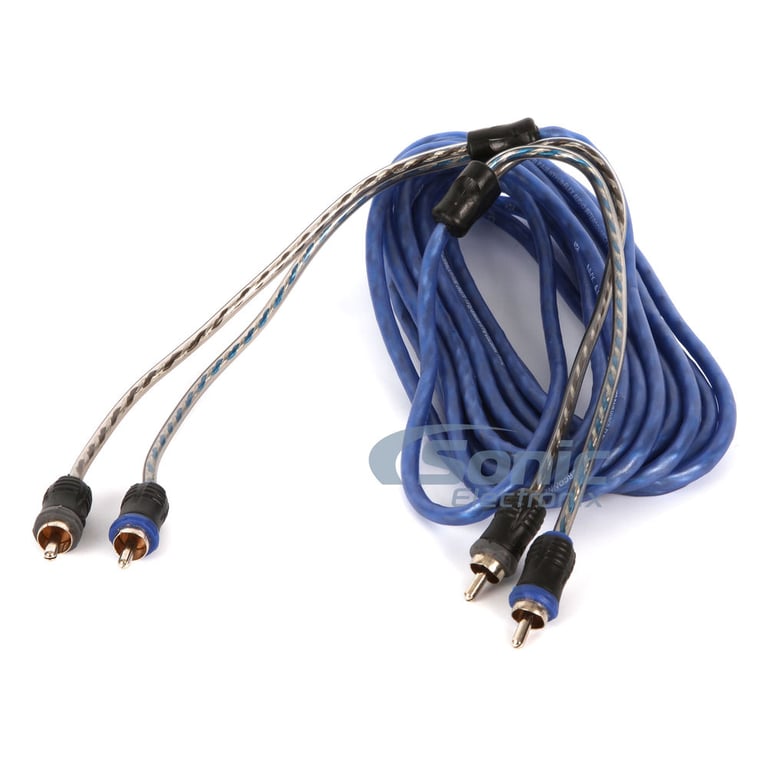

  5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

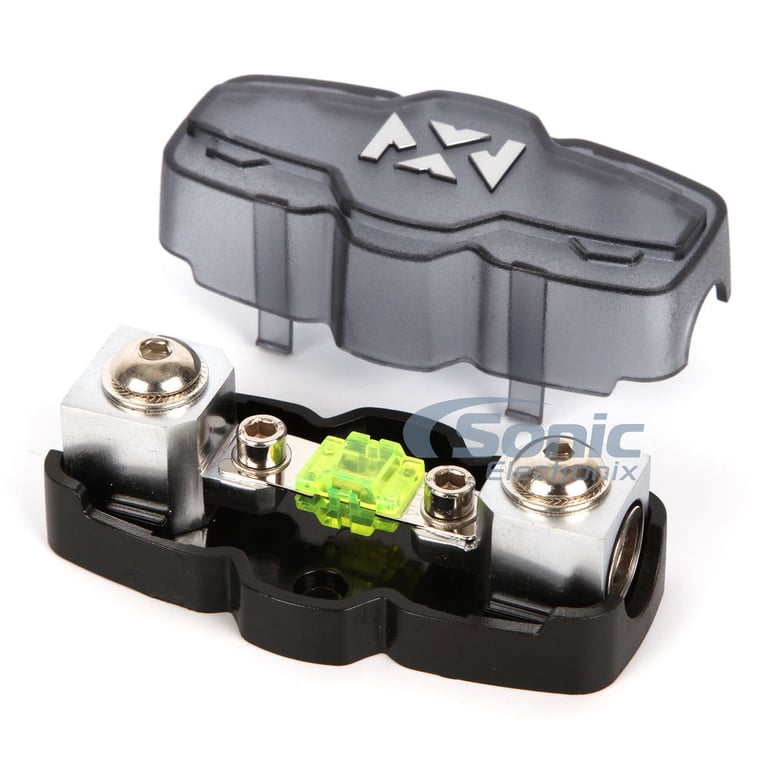

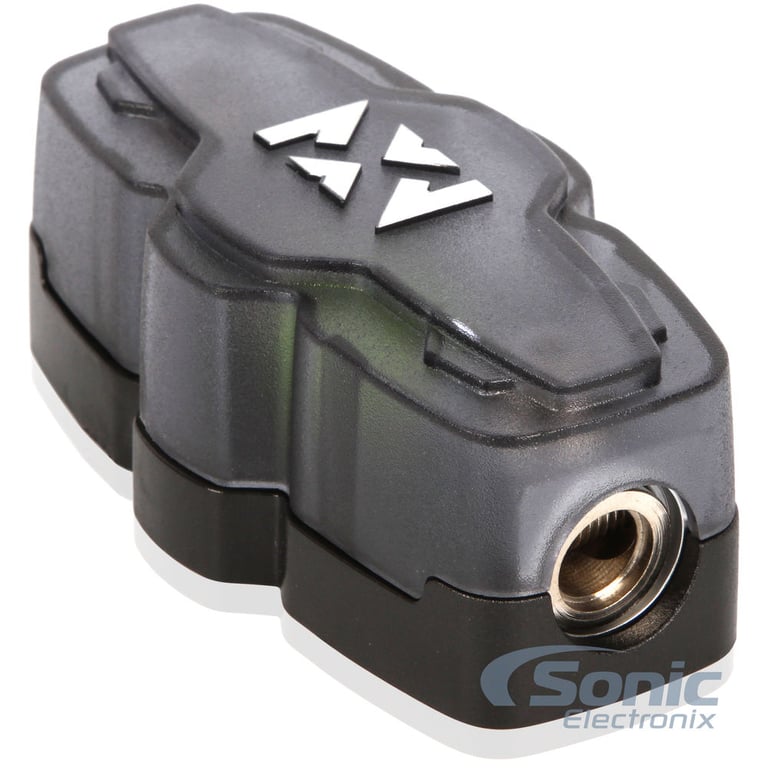

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse

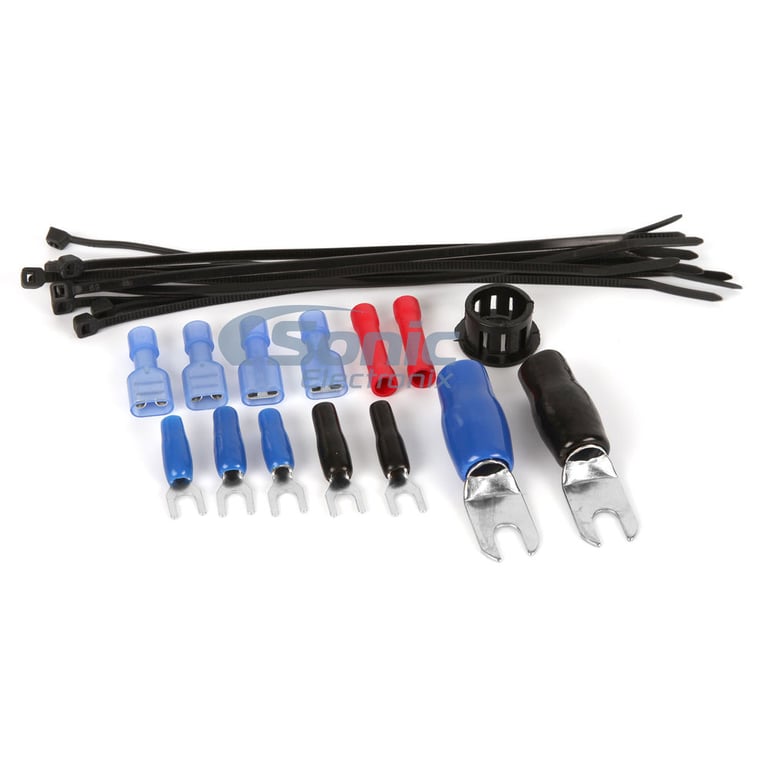

  7. One Black rubber firewall grommet
  8. Two 4 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tubes with the NVX logo
  14. Ten 6" Black zip ties

Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

CF-350mt main

JL Audio CF-350mt

70W RMS 3.5" CF Series Custom-Fit Midrange 4-ohm Tweeters

4
No picture

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

Club 34F main

JBL Club 34F (JBLSPKCB34F)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

4
-27.29%

$79.95

List price $109.95


Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.96

List price $2282.96

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.97

List price $2479.97

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1200 watts x 1 channel
RMS Power @ 2 ohms
1200 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Peak Power Output
Not Specified
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.004%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 400 Hz
Signal-to-Noise Ratio
92 dB
Remote bass/level controller
Yes

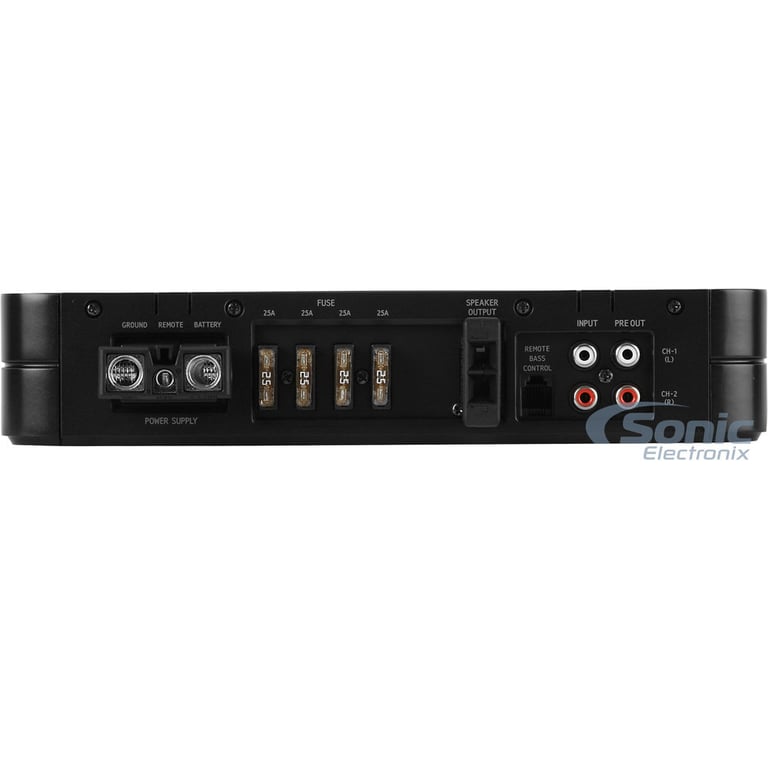

Fuse Rating
25A x 4
CEA-2031 Compliant
Yes
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
40 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
ANL/Mini-ANL
Fuse Size
100A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

PDX-M12_XKIT42

Weight:

16.80lbs

Internal SKU:

pdxm12_xkit42

Internal Product ID:

98550

Product and How-to Videos


Customer Ratings & Reviews


Alpine PDX-M12 1200W RMS Mono Car Amplifier + 4 Gauge Premium OFC Amp Kit thumbnail image

5 star
86%
4 star
14%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
5
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Durable

The following review is for XKIT42, which is a part of the bundle you are viewing.

The wire is so thick for quality sound production and yet so flexible. I didn't do my own install but the installer guy asked me about the kit and seemed to like the ease it offered

By Joseph on September 18, 2013

161 found this helpful


Quality

The following review is for XKIT42, which is a part of the bundle you are viewing.

Top quality kit. The power cable is very easy to bend, and the fuse block is well built. My only complaint is the oddball fuse

By Alex on January 13, 2014

156 found this helpful


NVX XKIT42

The following review is for XKIT42, which is a part of the bundle you are viewing.

This is the perfect kit for anything around 1000 watts RMS. I have it hooked to a NVX JAD1200.1, and it is perfect. I literally have nothing bad to say about this kit. Every wire is true to gauge and it comes with plenty of wire, even 40ft of speaker wire! The RCA works great and the wires are strong and flexible. It'd be nice if it was a little cheaper, but it's definitely worth it. NVX makes some of the best, high quality wires and instillation equipment.

By Smuck on January 9, 2014

154 found this helpful


Real nice

The following review is for XKIT42, which is a part of the bundle you are viewing.

This is a really nice kit has everything you need

By Clint on July 17, 2014

153 found this helpful


Great service again

The following review is for XKIT42, which is a part of the bundle you are viewing.

Another great buy! Chris took care of me again! Every one looking for car audio and your not shopping here your getting robbed!!!! If you don't believe me check for yourself. Just the customer service makes it worth buying anything from here. And any questions you have they are quick to get back to you and help you out.

By craig on August 31, 2014

148 found this helpful


great product!!!!

The following review is for XKIT42, which is a part of the bundle you are viewing.

this has to be the best connection kit I have ever used.. everything was flawlessly constructed and everything you need is in the kit, remember you get what you pay for... I am using this in a small suv that has no carpet but herculiner throughout and I need pure copper for corrosion resistance.. could be cheaper I guess..

By Dan on September 20, 2013

149 found this helpful


Not your average amp kit.

The following review is for XKIT42, which is a part of the bundle you are viewing.

If you're picking up a bad*ss amp, why wouldn't you pick up a PROPER wiring kit ?!
I've previously used NVX Power/Ground wire for a BIG 3 Upgrade install, and was blown away by the Quality of the wire. High Strand, True To Spec, Super Flexible, Very Durable, and Conducts Very Well. Same can be said for the Speaker Wire and RCAs. I wish NVX made a kit with their higher end RCA cables, but the ones with this kit definitely get the job done. The fact that the Power/Ground come Crimped and Shrink Wrapped really save on install time, and the flex wrap on the Power Wire makes the install look Very professional. I ended up using the other goodies (ties and connectors) for various other things, but its pretty cool that it comes with the kit.

By REM on July 8, 2014

146 found this helpful


Best wiring overall

The following review is for XKIT42, which is a part of the bundle you are viewing.

when i received this and opened it up i was amazed when i saw how a 4ga. wire could look so much like 0ga. and bend so easily. the speaker wire is so thick that you would not believe that it is speaker wire. the wires also make your music sound so much clearer than any other wiring can. all the components are the best in quality.

By Kevin S. on June 2, 2013

145 found this helpful


Very good wires at a cheap price

The following review is for XKIT42, which is a part of the bundle you are viewing.

Wire if true to gauge, also 100 percent copper very cheap price for the better quality of wires you get plus the hyper flex material makes it very easy to run wires ,overall great wires for price

By jason on May 26, 2014

145 found this helpful


Love this kit

The following review is for XKIT42, which is a part of the bundle you are viewing.

Great true 4 gauge wire kit. Both power/ground cables are flexible easy to work with, rca calbe is great. This kit comes with everything you need for an amp install. I will be using NVX amp kits for now on future installs.

By Ben on January 9, 2014

143 found this helpful



R19 small

Kicker r19 3/4" Silk Dome Resolution Tweeters

(1)

$79.99

List price $149.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 BMW X5

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
