See all parts that fit your 1986 323

Sony XS-XB690 (Open Box, Complete)

1000W Peak (150W RMS) 6" x 9" 3-Way XB Series Coaxial Car Speakers

Sony
Shop all Sony
highlight-star-icon

• 75 Watts RMS Each
•2-5/8" Polyester Main Tweeter
• 7/16" Balanced Dome Piezo Super Tweeter
• 4 Ohm Impedance
• Sensitivity: 91 dB
• Mounting Depth: 3.00"

Learn more about the ls-xsxb690-obc6

We apologize

This item has been discontinued

Description


Sony brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Very Good Condition:
A Very Good Open Box used product represents a well-cared-for product that has seen only brief installation and/or limited use, but remains in great condition. The item is complete, unmarked, and undamaged, but may show some limited signs of wear. Original packaging, paperwork or protective wrapping may be missing or slightly damaged from the item being opened. Product works perfectly. Warranty details are included in the item description or comments.


Sony XS-XB690 - 6x9" 3 Way Full Range Speaker





Built with Purpose

Built with Purpose

Let your music loose with Sony XB speakers. When paired up to a MEX-XB100BT head unit, these speakers complete with beefy internals, rigid MRC woofer cones, and smooth and natural high-end will deliver really BIG sound. Although purpose built for the MEX-XB100BT, the XB Series Speakers are designed to flourish when driven by any source.
(Sony XS-XB130 shown for reference only)




Premium Materials for Premium Line

Premium Materials for Premium Line

The Sony XS-XB690 6x9" speakers use a classic 3-way axial design. The woofer cone is constructed to stage smooth mid-range frequencies while the tweeters delivers clear high frequencies. The XS-XB690 power handling is 500 Watts Max Power and 75 Watts Rated power, with the ability to be driven with as little as 10 watts - for OEM integration.
(Sony XS-XB130 shown for reference only)






General Features:

  • 6" x 9" 3-Way XB Series Coaxial Car Speakers
  • Power Handling:
    • Peak: 1000 watts per pair / 500 watts each
    • RMS: 150 watts per pair / 75 watts each
  • Recommended Power Range: 10 - 75 watts RMS each
  • Multi Layered Mica Cellular Reinforced Woofers
  • HOP + Aramid Fiber Woofer Cone
  • 2-5/8" Polyester Main Tweeter
  • Balanced Dome MRC Mid-Range
  • 7/16" Balanced Dome Piezo Super Tweeter
  • High Energy Ferrite Magnet
  • Power Bass Response
  • Perfect compatibility with Sony MEX-XB head units
  • Top-mount Depth: 3.00"
  • Cut-out Diameter: 6-1/8" x 8-3/4"
  • 4 ohm impedance
  • Frequency Response: 40 - 22,000 Hz
  • Sensitivity: 91 +/- 2 dB
  • Authorized Internet Dealer
  • 30 Day Sonic Electronix Warranty
  • Priced Per Pair

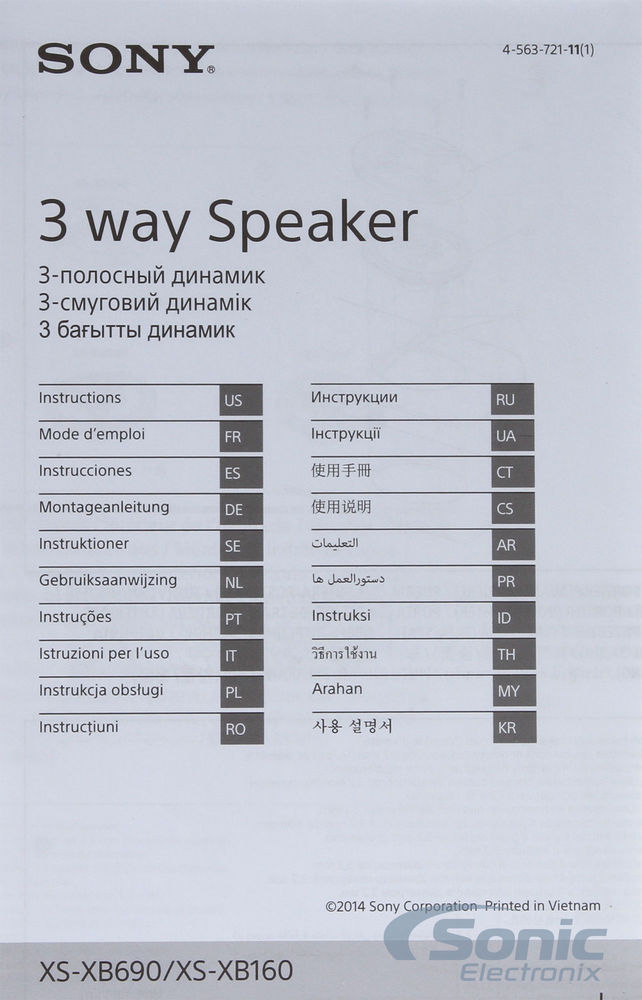

Check out the Sony XS-XB690 Owner's Manual

Specifications & Details


Speaker Specifications
Series
XB Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
6" x 9"
Design
3-way Coaxial
Tweeter Design
Dome
Tweeter Size
7/16
Tweeter Composition
Piezo
Woofer Composition
Multi Layered Mica Cellular Reinforced
Woofer Surround
Rubber
Peak Power Handling
500 watts
RMS Power Handling
75 watts
Sensitivity
91 dB
Frequency Response
40 - 22,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
3.00"
Cutout Dimensions
6-1/8 x 8-3/4
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
30 days
Labor Warranty Duration
30 days
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

XS-XB690-3

Weight:

6.50lbs

Internal SKU:

ls-xsxb690-obc6

Internal Product ID:

182341
