NAV-TV NTV-KIT552 Kit Interfaces the Nav N GO Powered Navigation

NAV-TV NNG-GM2 LVDS Navigation (NTV-KIT552)

Kit Interfaces the Nav N GO Powered Navigation System Into Select GM Vehicles Equipped With the CUE or LVDS MyLINK Media System

Kit Interfaces the Nav N GO Powered Navigation System Into Select GM Vehicles Equipped With the CUE or LVDS MyLINK Media System

• GM touch screen functions are used for the navigation control
• Interface allows for an optional backup camera to be added with no additional parts
• Navigation add-on type: T-Harness: video/touch interception
• Activation: OEM steering wheel button or provided push button switch
• Video Inputs: 1 composite (rear cam)

See compatible vehicles
List price $1499.99
Save: $300.99

$1199.00

Available. Ships in 1-2 weeks with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for
4 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
NAV-TV

Authorized dealer

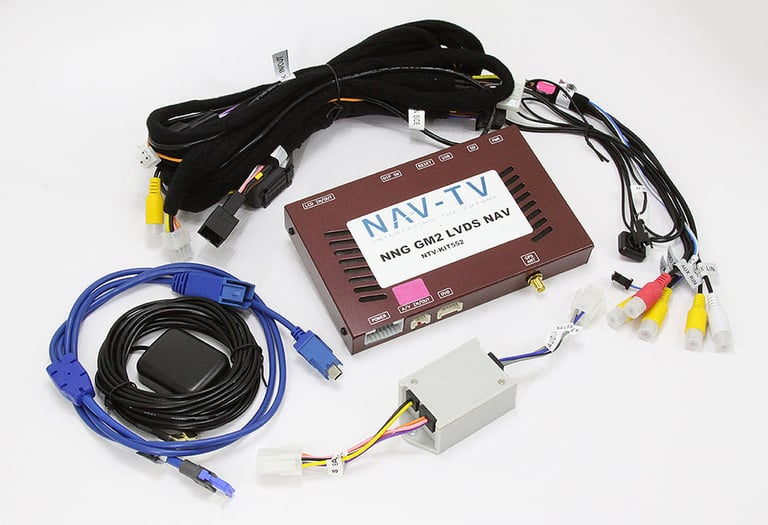

The NNG-GM2 kit interfaces the widely-used Nav N GO© powered navigation system into select GM vehicles equipped with the LVDS MyLINK media system. All factory GM touch screen functions are used for the navigation control and this interface allows for an optional backup camera to be added with no additional parts.

General Features:

  • Vehicle must be equipped with CUE or LVDS MyLINK media system
  • GM touch screen functions are used for the navigation control
  • Interface allows for an optional backup camera to be added with no additional parts
  • Navigation add-on type: T-Harness: video/touch interception
  • Plug & Play: No (must hardwire speaker if no top-center channel)
  • Activation: OEM steering wheel button or provided push button switch
  • Video Inputs: 1 composite (rear cam): selectable ON/OEM
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Compatibility List*:

  • 2014 - 2015 Buick LaCrosse - LVDS MyLink
  • 2014 -2015 Buick Regal - LVDS MyLink
  • 2013 - 2016 Cadillac ATS - CUE (NTV-KIT603 T-Harness REQUIRED)
  • 2014 - 2016 Cadillac CTS/CTS V - CUE (NTV-KIT603 T-Harness REQUIRED)
  • 2015 - 2015 Cadillac Escalade - CUE (NTV-KIT603 T-Harness REQUIRED)
  • 2013 - 2015 Cadillac SRX - CUE (NTV-KIT603 T-Harness REQUIRED)
  • 2013 - 2015 Cadillac XTS - CUE (NTV-KIT603 T-Harness REQUIRED)
  • 2015 - 2015 Chevrolet Corvette - LVDS MyLink (NTV-KIT556 T-Harness REQUIRED)
  • 2014 - 2016 Chevrolet Impala - LVDS MyLink
  • 2014 - 2016 Chevrolet Silverado - LVDS MyLink
  • 2015 - 2015 Chevrolet Suburban - LVDS MyLink
  • 2015 - 2015 Chevrolet Tahoe - LVDS MyLink

Check out the NAV-TV NTV-KIT552 Owner's Manual

*Note:
  • Corvette & ALL Cadillac will require an additional harness for proper functionality:
  • Check with your local dealer to establish what headunit your vehicle has if you are not sure.
COMPATIBLE VEHICLES

Please use our Fitment Guide to determine specific compatibility for the submodel and audio features

  • 2013 Cadillac ATS
  • 2013 Cadillac SRX
  • 2013 Cadillac XTS
  • 2014 Buick LaCrosse
  • 2014 Buick Regal
  • 2014 Cadillac ATS
  • 2014 Cadillac CTS
  • 2014 Cadillac SRX
  • 2014 Cadillac XTS
  • 2014 Chevrolet Impala
  • 2014 Chevrolet Impala Limited
  • 2014 Chevrolet Silverado 1500
  • 2014 Chevrolet Silverado 2500 HD
  • 2014 Chevrolet Silverado 3500 HD
  • 2014 GMC Sierra 1500
  • 2015 Buick LaCrosse
  • 2015 Buick Regal
  • 2015 Cadillac ATS
  • 2015 Cadillac CTS
  • 2015 Cadillac Escalade
  • 2015 Cadillac SRX
  • 2015 Cadillac XTS
  • 2015 Chevrolet Corvette
  • 2015 Chevrolet Impala
  • 2015 Chevrolet Impala Limited
  • 2015 Chevrolet Silverado 1500
  • 2015 Chevrolet Silverado 2500 HD
  • 2015 Chevrolet Silverado 3500 HD
  • 2015 Chevrolet Suburban
  • 2015 Chevrolet Tahoe
  • 2015 GMC Sierra 1500
FEATURES & SPECS
General Features
Compatible Vehicle Make and Model
Buick Lacrosse
Buick Regal
Cadillac CTS
Cadillac Escalade
Cadillac SRX
Cadillac XTS
Chevy Corvette
Chevy Impala
Chevy Silverado
Chevy Suburban
Chevy Tahoe
GMC Sierra
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
