JL Audio C3-650
450W 6.5" 2-Way Evolution C3 Series Convertible Component/Coaxial Car Speaker System
Quantity: 2 (Two Pair)
Product Features:
 |
 |
 |
 |
- 6.5" Evolution C3 Series 2-way Convertible Car Speakers
- Power Handling:
- Peak: 900 watts per set / 225 watts per channel
- RMS: 300 watts per set / 75 watts per channel
- Recommended Power Range: 25 - 150 watts per channel
- Mineral-Filled Polypropylene Cone
- Butyl Rubber Surround
- Injection-molded Polymer Basket
- 1.20" Voice Coil on Kapton® Former
- Low-Profile, Symmetrical Roll Spider
- Ferrite Woofer Magnet
- 1.0" Silk Soft Dome Tweeter
- Elevated Frame Cooling
- Convertible Drivers: Coaxial or Component
- Dynamic Motor Analysis (DMA) Optimized Motor
- Ferrofluid Cooling/Damping Neodymium Tweeter Magnet

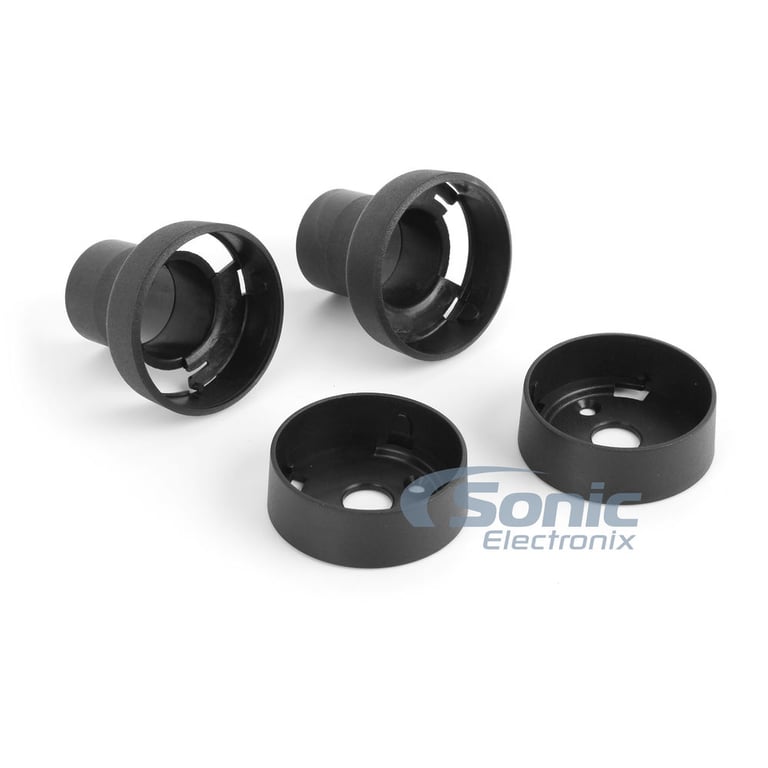

- Fixed Angle Flush-Mount, Surface-Mount and Coaxial-Mount Systems (Tweeter)
- 2-way crossover networks with 1st order low-pass and 2nd order high-pass filters
- Premium Mylar® Capacitors w/ Air-Core Inductors
- 4-Position Adjustable Tweeter Output Level
- 3-position Mid-range Presence Control
- Polyswitch tweeter protection

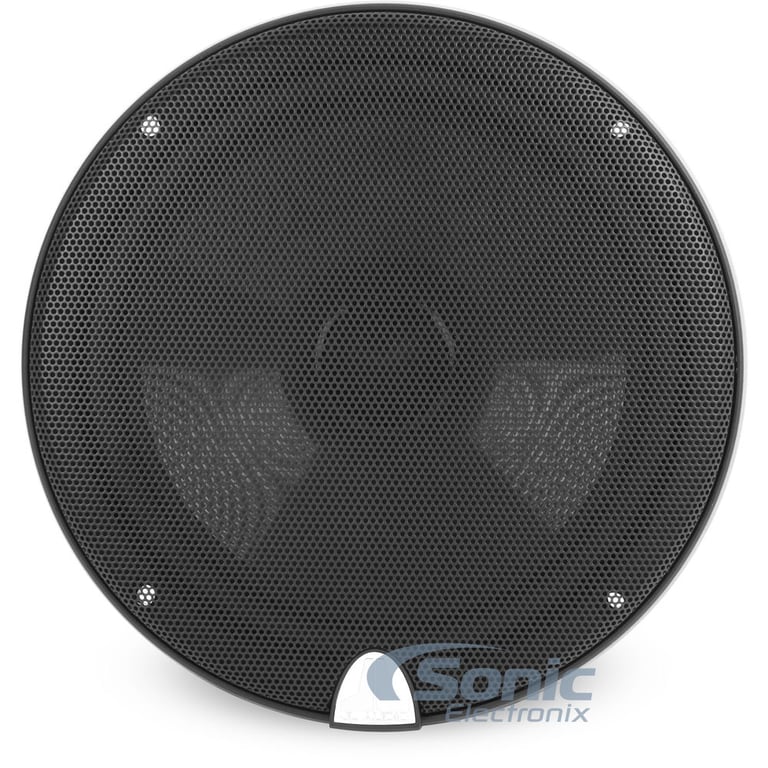

- Black steel mesh grille with an electroformed JL Audio logo Included
- Woofer Dimensions:
- Top-mount depth: 2.55"
- Cutout Dimensions: 5.56"
- Tweeter Dimensions: (Flush Mount)
- Top-mount depth: 0.71"
- Cutout Dimensions: 1.875"
- Crossover Dimensions:
- Width: 3.36"
- Height: 1.44"
- Depth: 4.72"
- Nominal Impedance: 4 ohm
- Efficiency: 90.0 dB @ 1 watt / 1 meter
- Frequency Response: 48 Hz - 25 KHz ± 3 dB
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Priced Per Complete 4-Channel Component System: 4 midwoofers, 4 tweeters and 4 crossover networks.
Check out the JL Audio C3-650 Owner's Manual
Alpine PDR-F50
500W PDR Series 4/3/2 Channel Class D Digital Amplifier
Quantity: 1
General Features:
- PDR Series 4-Channel Class D Car Amplifier
- RMS Power Rating:
- 4 ohm: 85 watts x 4 chan.
- 2 ohm: 125 watts x 4 chan.
- Bridged, 4 ohm: 250 watts x 2 chan.
- CEA-2006 Compliant Amplifier
- Dual-Feedback Modulation Loop
- Ultra Compact Chassis
- Soft start turn-on
- Rotatable Illuminated Alpine Badge
- LED Power (blue) and Protect (red) illumination
- Top-Side Control Panel w/ Removable Cover
- Voltage ON/OFF Sensing for OEM Upgrade
- 4/3 or 2 channel operation
- Input channel selecting
- Speaker-level (high-level) inputs via RCA with Remote Sensing*
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy heat-sink
- Input sensitivity: 200 mV - 4 V
- Frequency Response: 8 - 45,000 Hz +0/-3 dB
- Total Harmonic Distortion (THD): ≤0.02% (Ref: 10W into 4Ohm)
- Signal to Noise Ration: >106dB (Ref: 1W into 4Ohm)
- Damping Factor: >500
- Selectable crossover: OFF / HP / LP
- Variable crossover point: 50 - 400 Hz, 24 dB/octave
- Selectable Bass Boost (Rear Ch Only): 0, +6, +12 dB boost at 50 Hz
- Fuse Rating: 30 A x 2
- 12 Gauge speaker output terminals
- 4 gauge power and ground wiring is recommended for installation
- Weight: 5 lb 9 oz
- Dimensions: 9.0"W x 6.5"L x 2.0"H
- Authorized Internet Dealer
- 1-year Sonic Electronix Warranty
*When connecting the speaker output leads of the head unit to this unit with an RCA extension cable (sold separately), etc., you do not need to connect the remote turn-on lead, owing to the “REMOTE SENSING” function of this unit. However, the “REMOTE SENSING” function may not work depending on the signal source connected. In such a case, connect the remote turn-on lead to an incoming power supply cord (accessory power) in the ACC position.
NVX XKIT44
100% Copper, 4-Chan. True Spec 4 Gauge Amp Installation Kit w/RCA Interconnect & 60 ft Speaker Cable
Quantity: 1
Amplifier Kit Features:
- Complete 4 Gauge Amplifier Installation Kit
- Designed specifically for car audio systems up to 1000 watts RMS
- Premium power and ground wire provides optimal power transfer
- Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
- Direct-connect engineering
- Fewer connections for less signal distortion
- ANL/mini ANL Fuse holder offers ideal protection for high powered systems
- Envy-Flex cable and wire
- Full spec cable is true to gauge
- Strand Count: 1862
- BC-5W2 Compliant
- Authorized Internet Dealer
- 1-year Manufacturer's warranty
Kit includes:
- 20 ft. (6.1 meters) Frosted Blue 4 gauge main power wire with seamless crimp ring terminal and 6 ft. expandable sleeving
- 3 ft. (.91 meters) Frosted Gray 4 gauge main ground wire with seamless crimp ring terminal
- One 16 ft. (5 meters) 4-channel twisted construction RCA interconnect Cable (NVX XIV45)
- 20 ft. (6.1 meters) Clear 18 gauge remote lead wire
- 60 ft. (18.29 meters) Frosted Black/Blue 16 gauge speaker wire
- One NVX XMANL04 ANL/Mini-ANL fuse holder with 100 amp Mini-ANL fuse
- One 1/2" black rubber firewall grommet
- Two black 4 gauge nickel-plated spade terminals
- Three blue 16 gauge spade lugs
- Four 16 gauge quick disconnects
- Two black 16 gauge spade terminal
- Two 18 gauge red butt connector
- Ten 6" black zip ties
