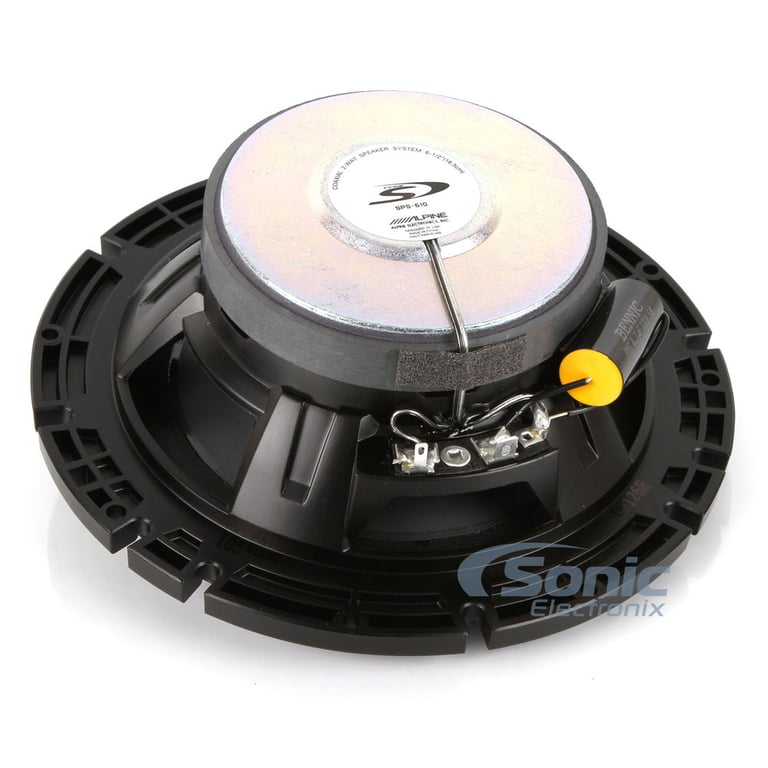

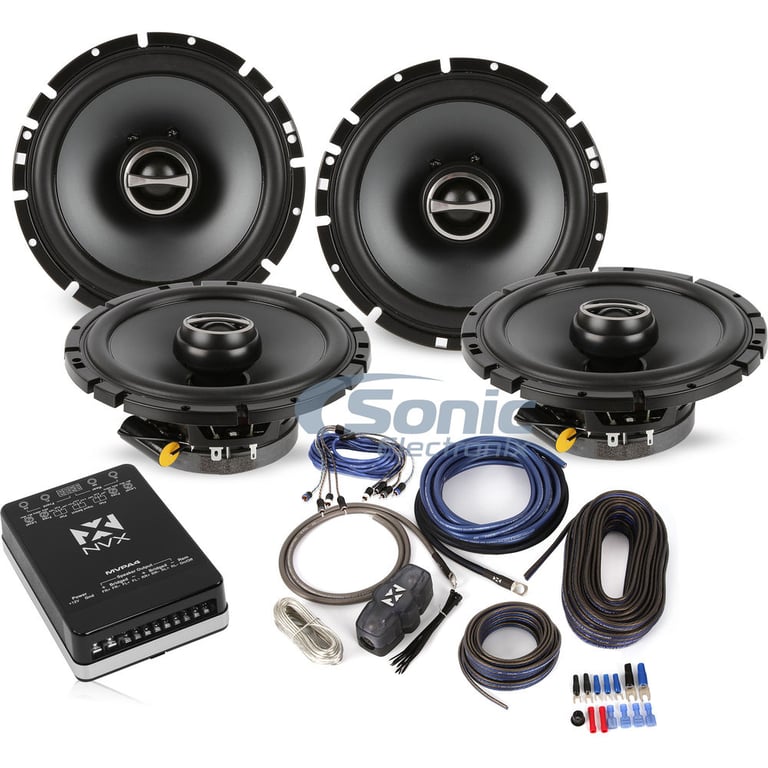

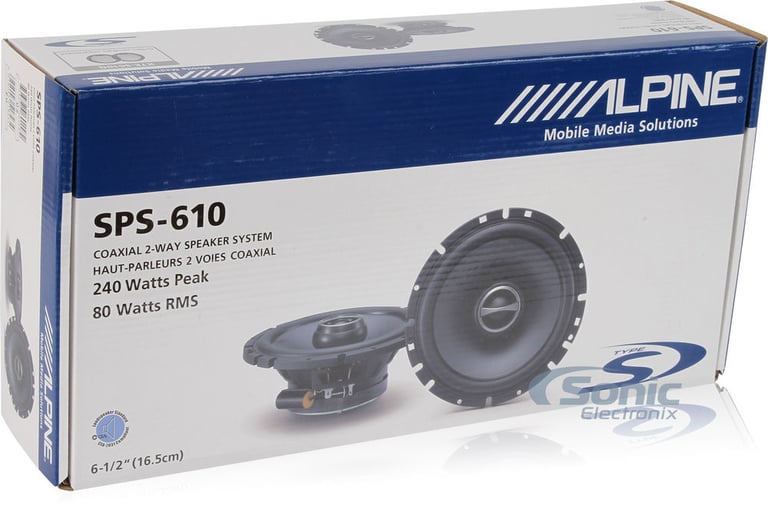

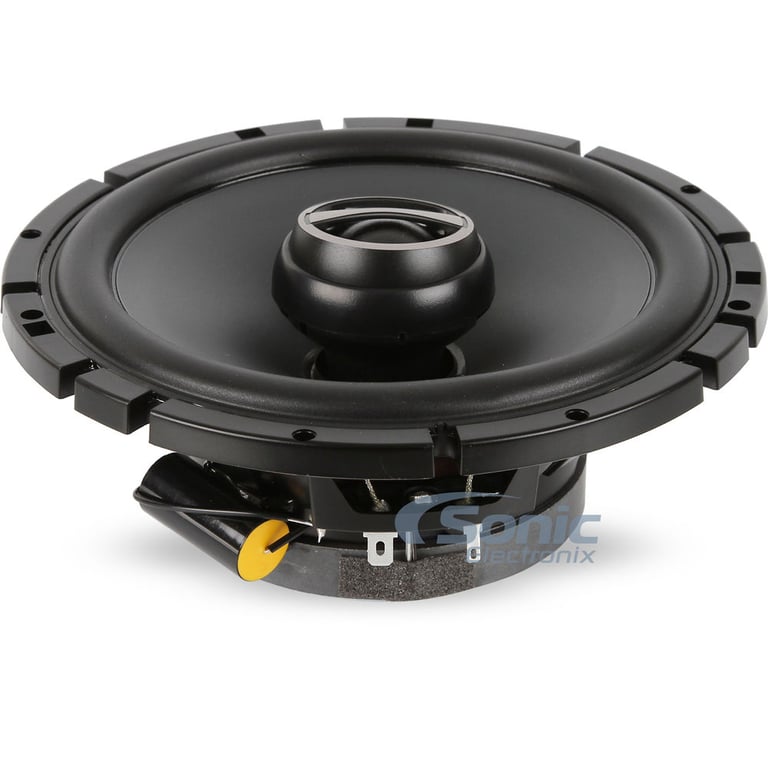

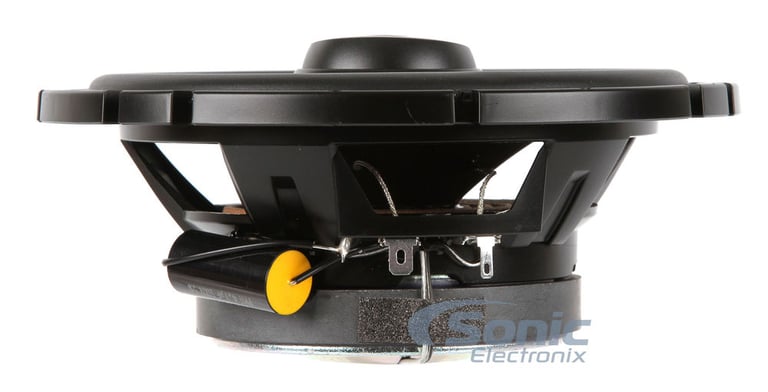

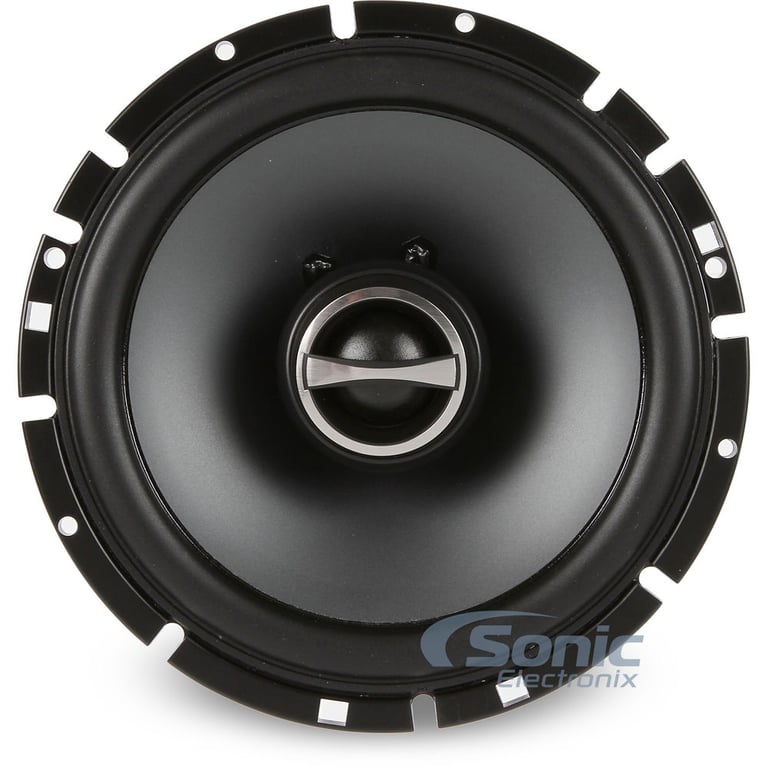

Alpine SPS-610
160W 6.5" 2-Way Type-S Coaxial Speakers w/ Silk Tweeters
Quantity: 2 (Two Pair)
General Features:
- 6-1/2" Type-S Series Car Speakers
- Power Handling:
- Peak: 960 watts per set / 240 watts each
- RMS: 320 watts per set / 80 watts each (CEA-2031 Certified)
- Tuned poly-mica cone woofer
- Butyl rubber surround for natural response and stability
- 1" Wide-Range Silk dome tweeter
- Optimized air-flow design
- Progressive Aramid Fiber Spider with optimized shape for deep bass and linearity
- HD Polymer frame
- Affordable premium quality upgrade to your factory audio system
- FEA optimized motor structure

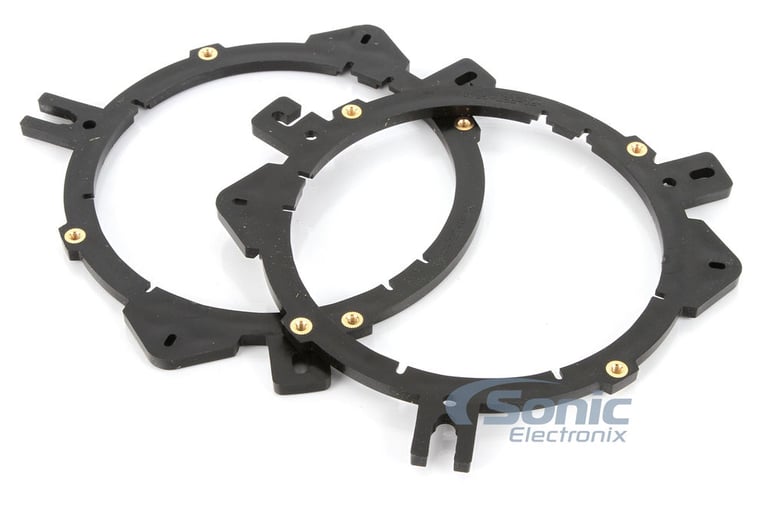

- OEM mounting adapters included
- Great power-efficient speakers
- Swivel-mount tweeter
- 4 ohm impedance
- Square-wire short voice coil
- New cone design allows for faster energy transfer & clarity
- Aramid reinforced TIL bobbin holds voice coil wire very rigid
- High grade network components
- Neodymium tweeter magnet structure
- Low distortion strontium woofer magnet
- Speaker grilles KTE-S610G optional and sold separately
- Top-mount depth: 2-1/4"
- 1-year SonicElectronix.com warranty
Priced Per Two Pair, Four Speakers Total

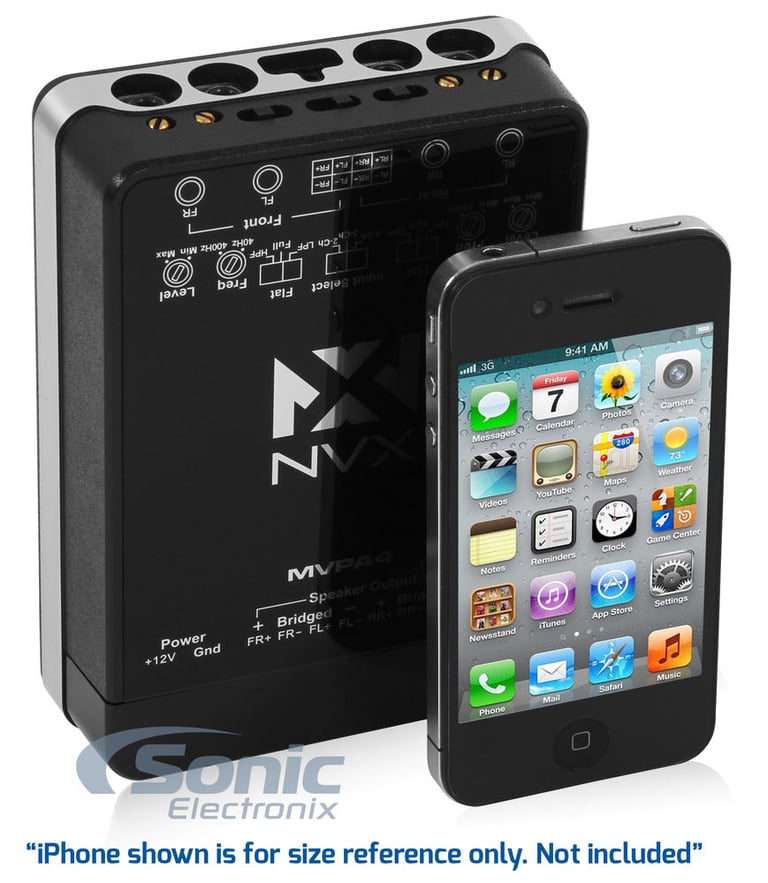

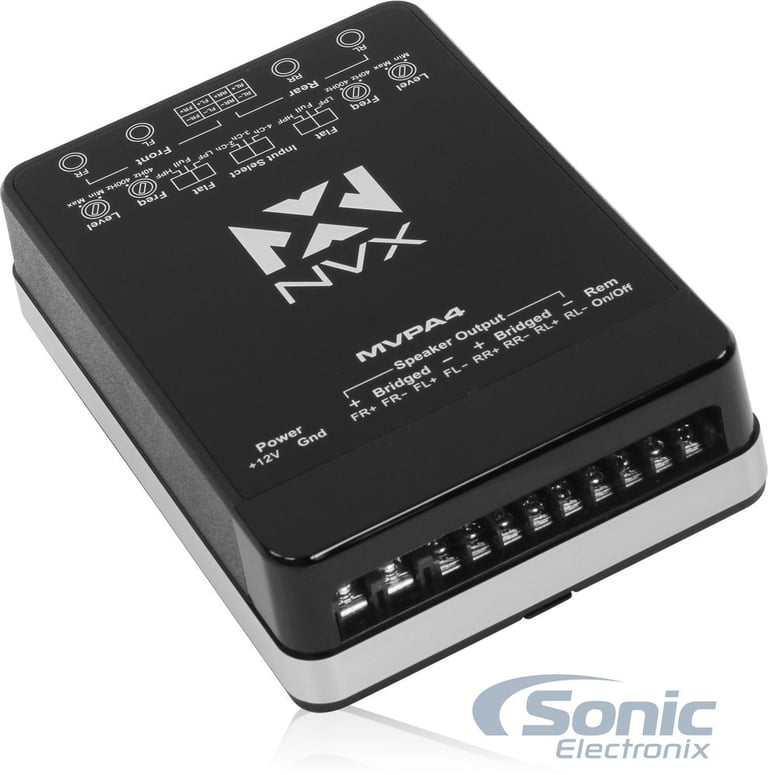

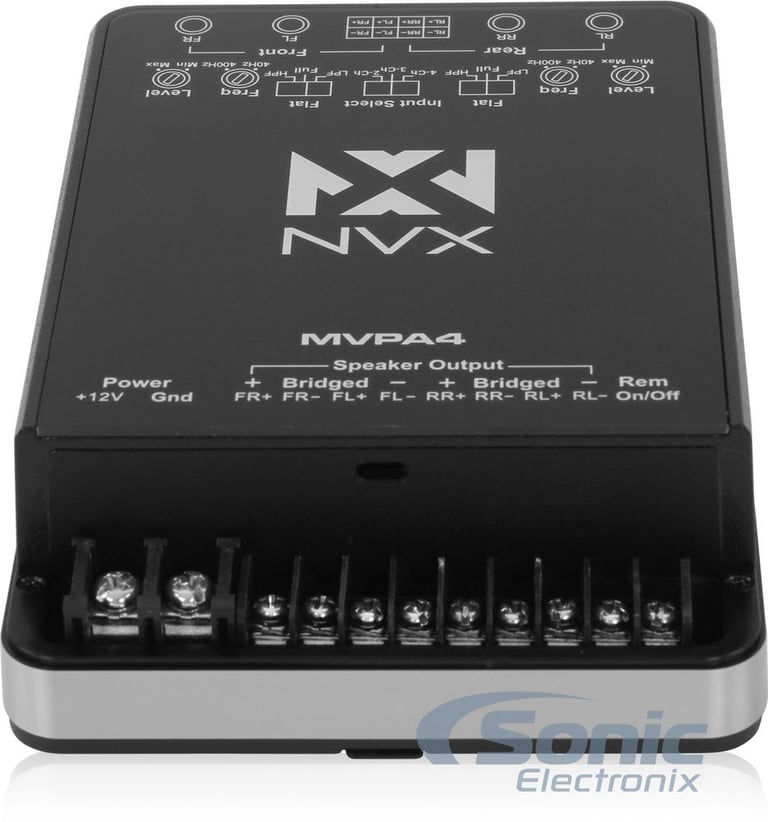

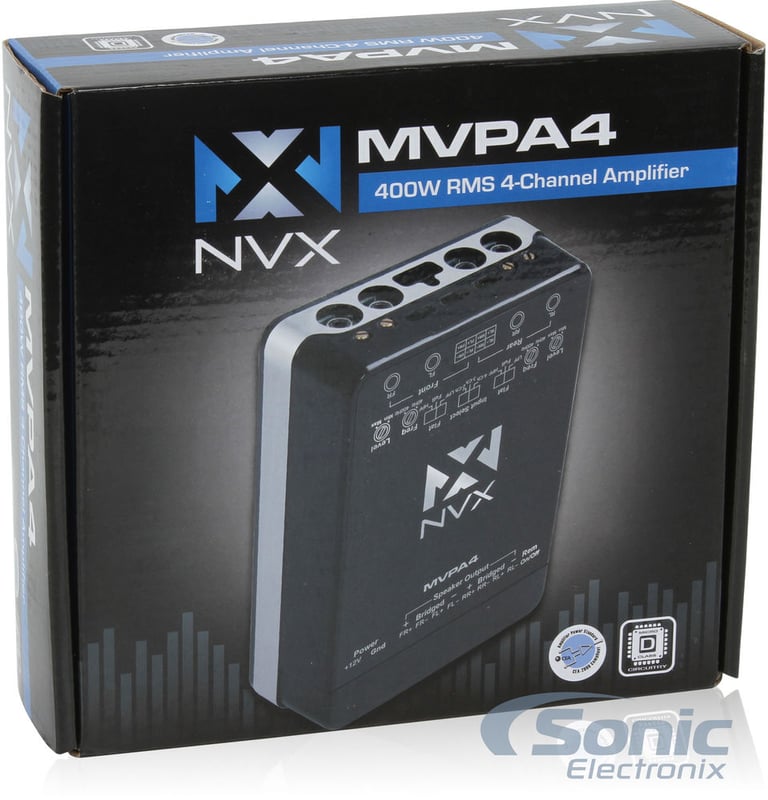

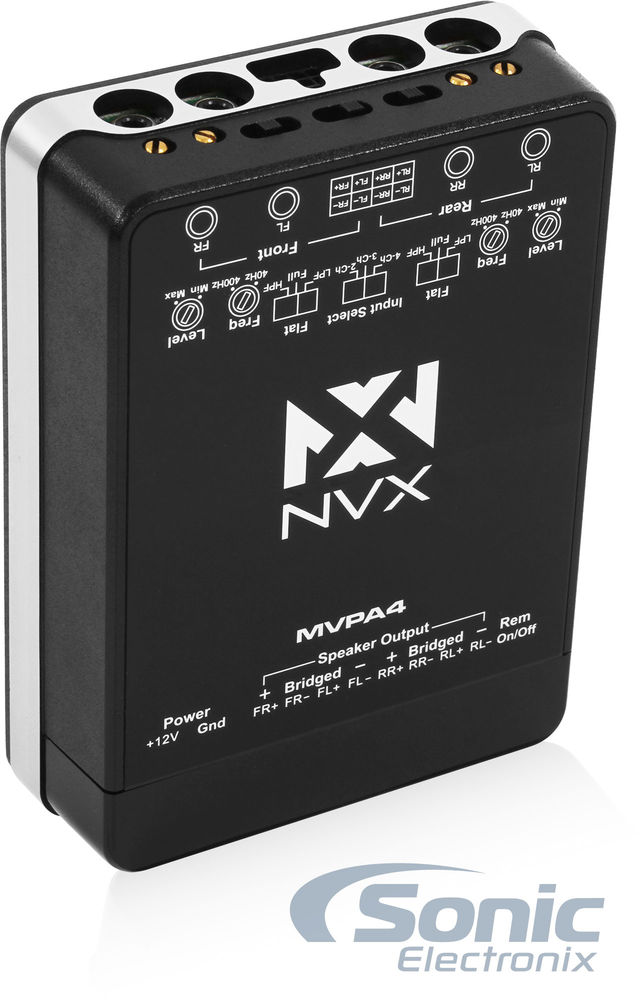

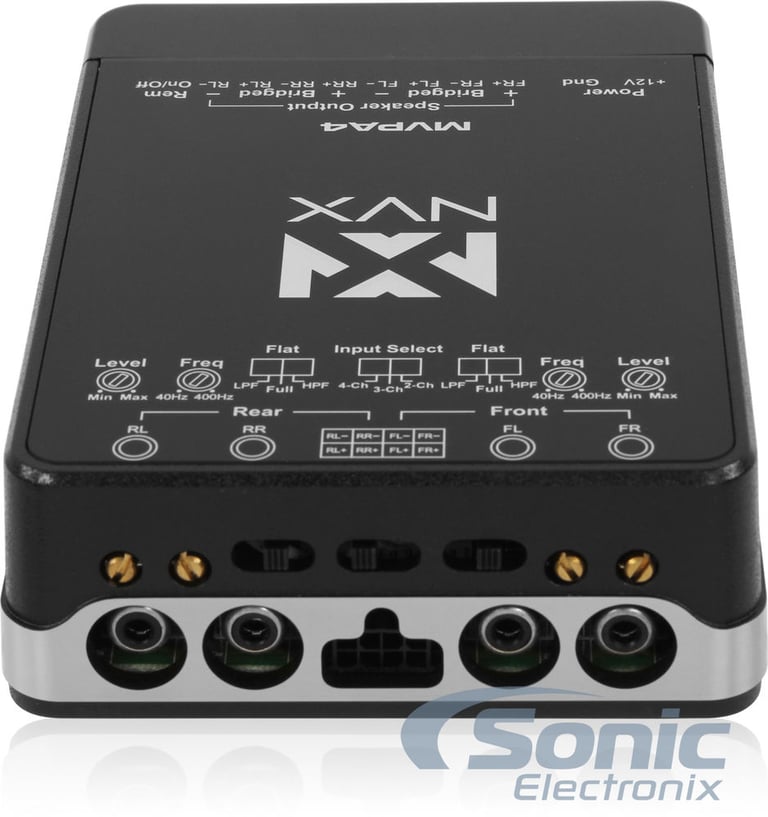

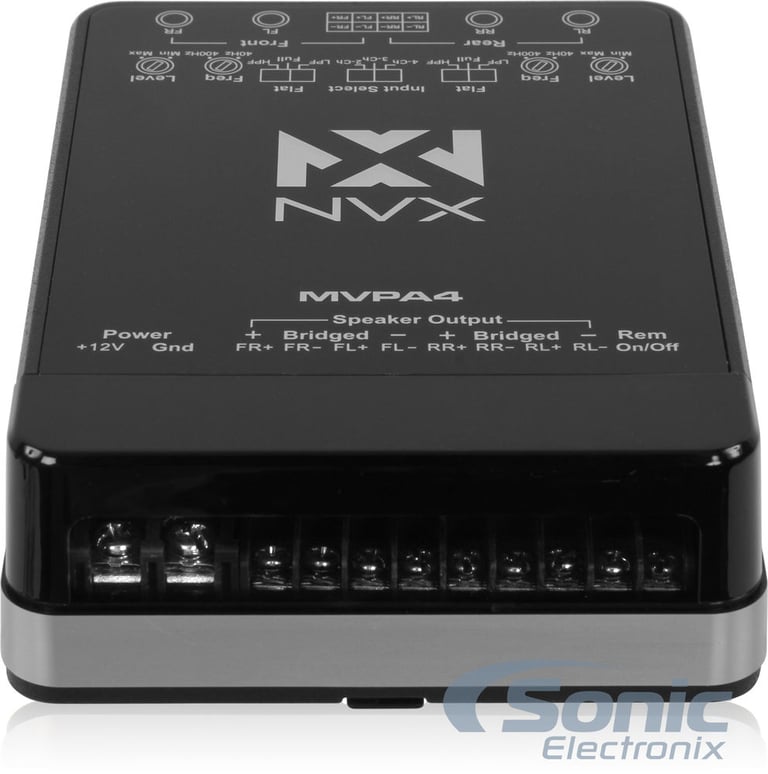

NVX MVPA4
Micro-V Series 400W RMS 4-Channel Bridgeable Micro Class D Compact Car Amplifier (MVPA.4)
Quantity: 1
General Features:
- MVP Series 4-Channel Class D Car Amplifier
- RMS Power Rating:
- 4 ohm: 50 watts x 4 chan.
- 2 ohm: 100 watts x 4 chan.
- Bridged, 4 ohm: 175 watts x 2 chan.
- Sonic Electronix Certified Power Rating*:
- 4 ohm: 93 watts x 4 chan.
- 2 ohm: 141 watts x 4 chan.
- Cutting edge Micro Class D technology allows amplifier to be extremely compact
- Pulse Width Modulated MOSFET power supply
- LED power (green) and protect (red) indicators
- Soft start turn-on
- 4/3/2 or Mono channel operation

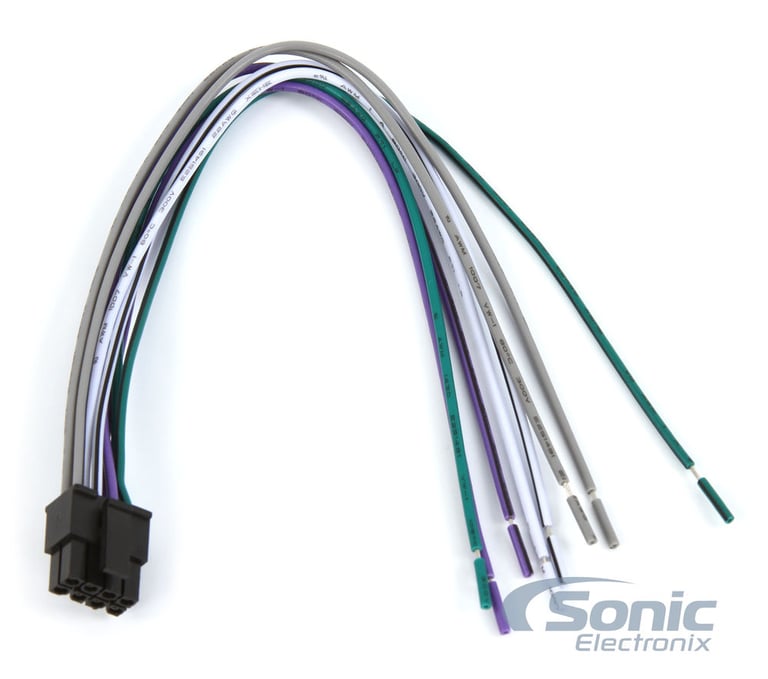

- Speaker-level (high-level) inputs with signal sensing for automatic turn-on
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Input sensitivity:
- Level: 0.2V-5V
- Operating voltage: 8-16V
- Variable high-pass filter (40-400 Hz)
- Variable low-pass filter (40-400 Hz)
- CEA-2006 compliant amplifier
- 8 gauge power and ground wiring is required for installation

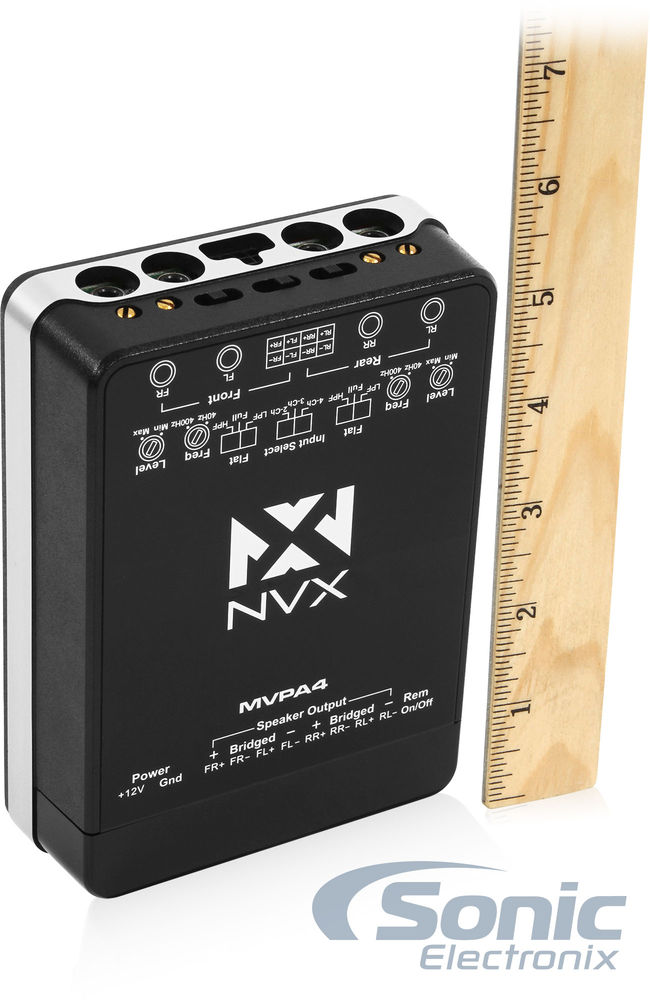

- Dimensions: 4"W x 5-7/16"L x 1-9/16"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.
NVX XKIT84
100% Copper, 4-Channel True Spec 8 Gauge Amplifier Installation Kit w/ RCA Interconnect and 65 ft Speaker Cable
Quantity: 1
General Features:
- 8 Gauge 4-Channel X-Series Complete Amplifier Installation Kit
- Designed specifically for car audio systems up to 600 watts RMS
- Premium power and ground wire provides optimal power transfer
- Made from 100% oxygen-free silver-tinned copper for a pure uninterrupted transfer of power and signal
- 4-Channel Audio Interconnect RCA cables are made with twisted-pair technology for noise reduction
- Solid Brass and satin-chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
- True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
- Strand Count: 735
- BC-5W2 Compliant
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Kit includes:

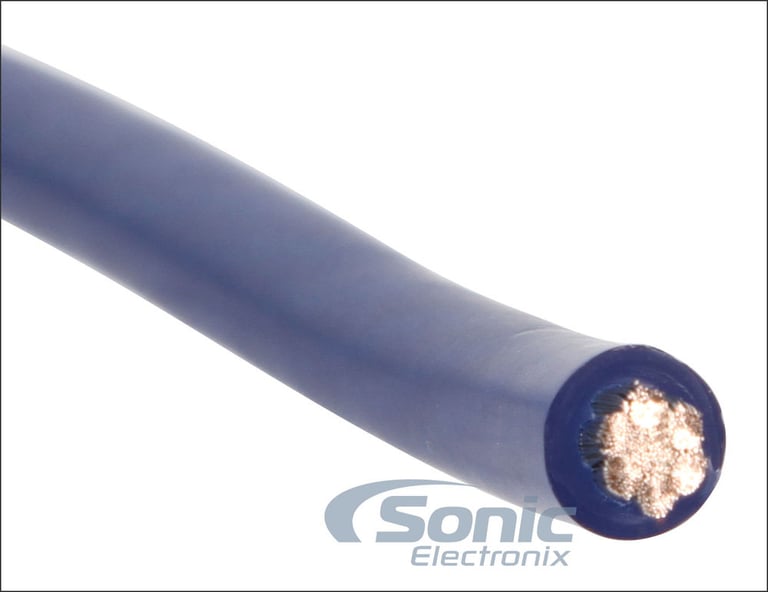

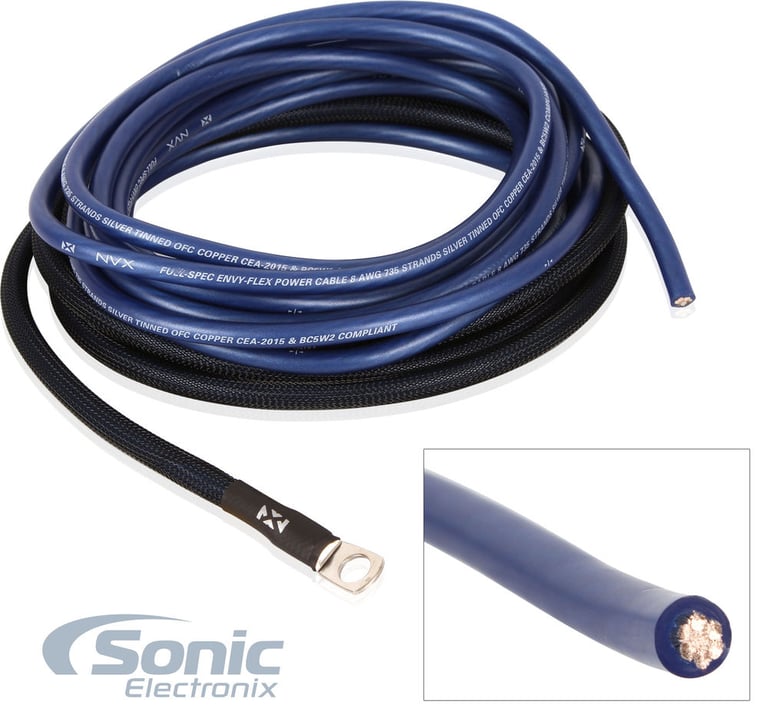

- 20 ft. (6.1 meters) Frosted Blue 8 gauge power wire with seamless crimp ring terminal

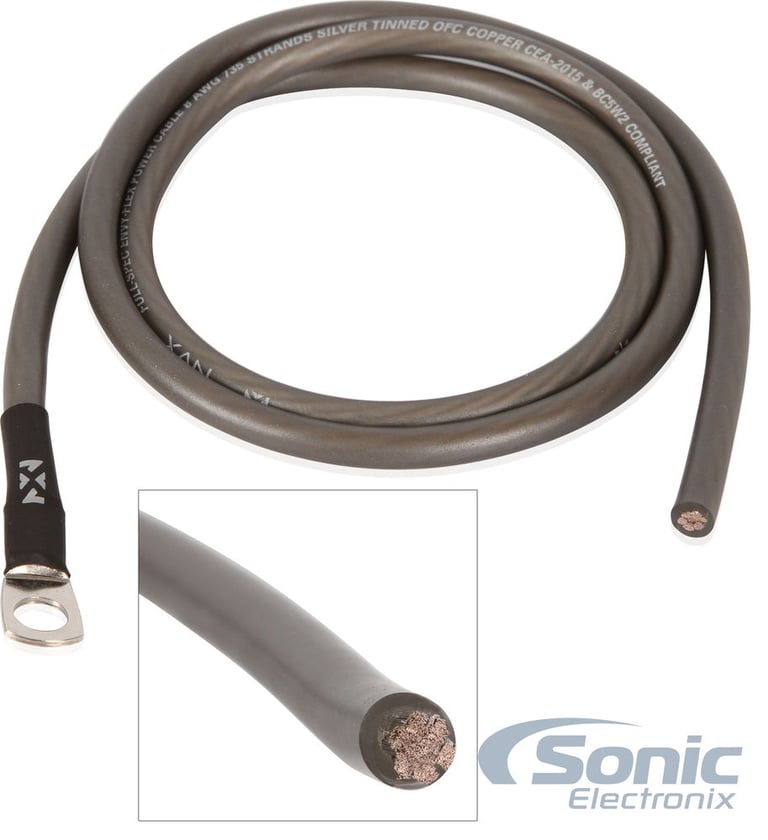

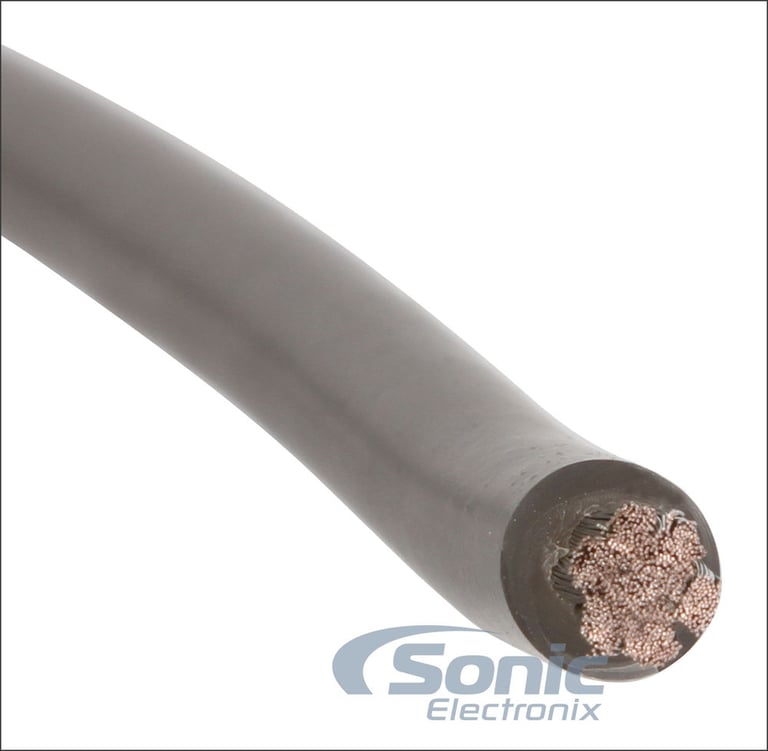

- 3 ft. (.91 meters) Frosted Gray 8 gauge ground wire with seamless crimp ring terminal

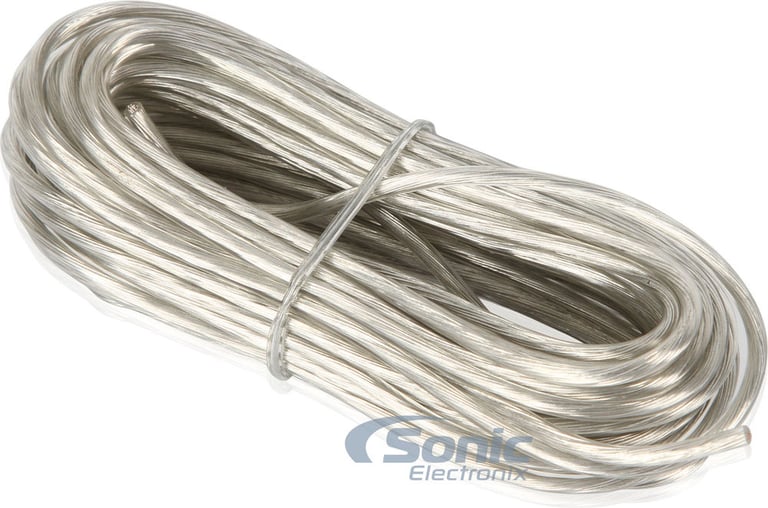

- 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

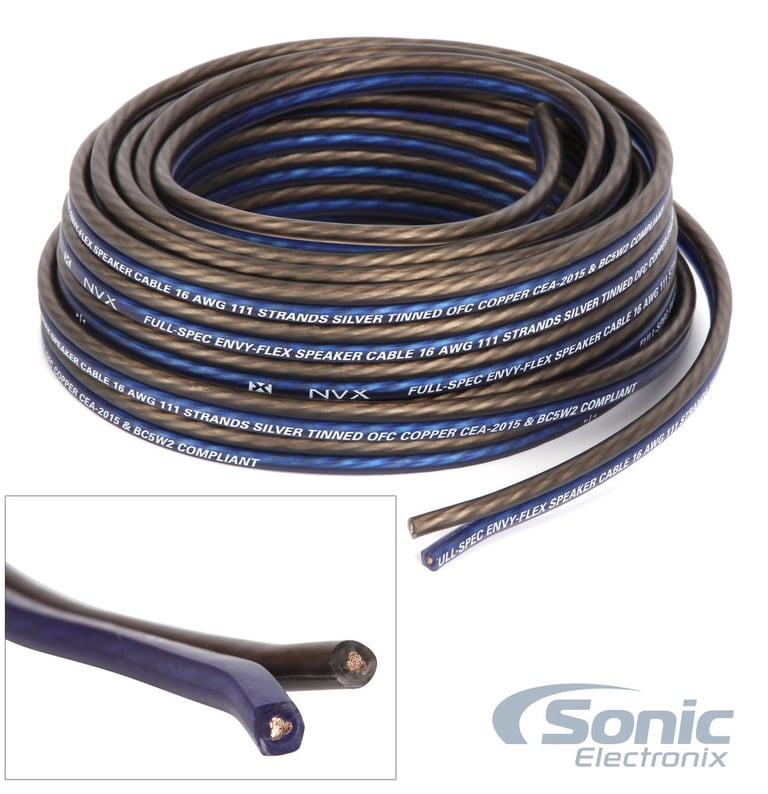

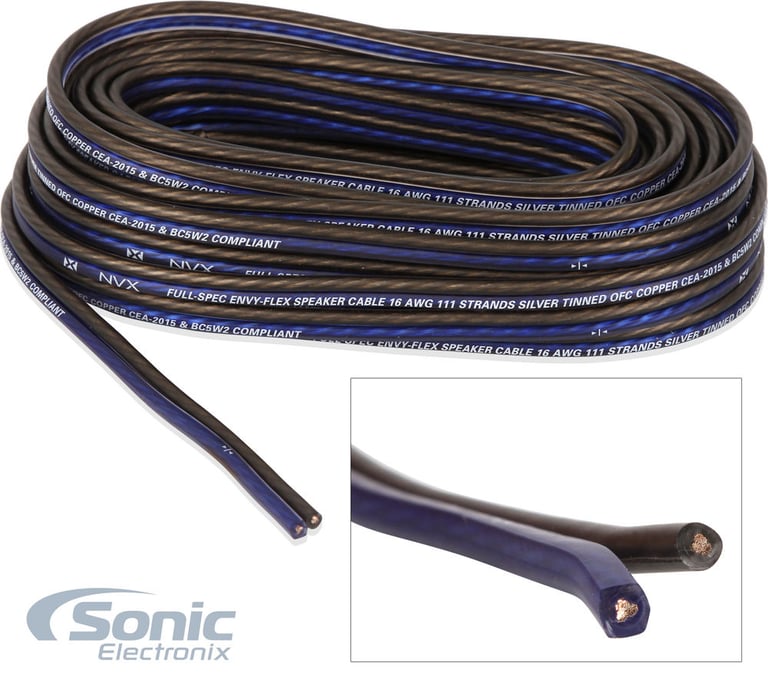

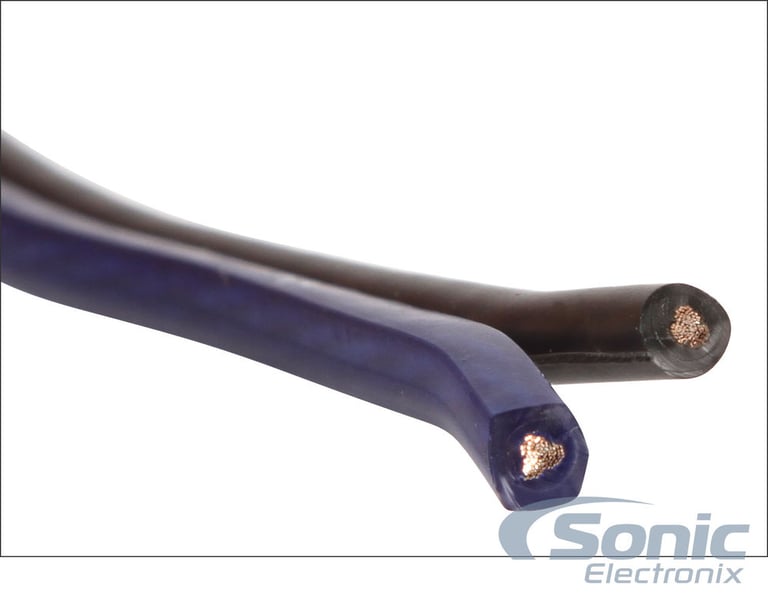

- 65 ft. (19.8 meters) Frosted Gray/Blue 16 gauge speaker wire -- includes a 40 ft. pack and a separate 25 ft. pack

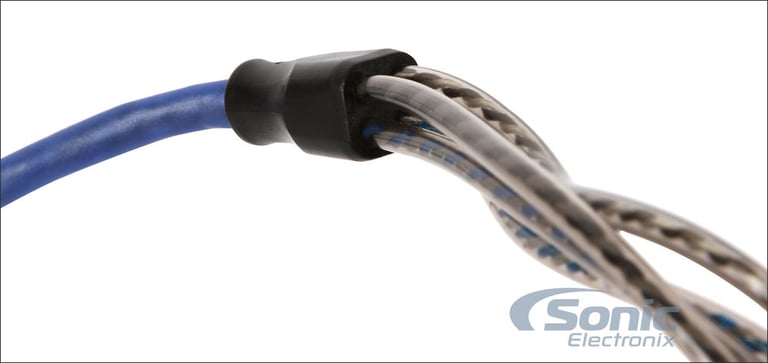

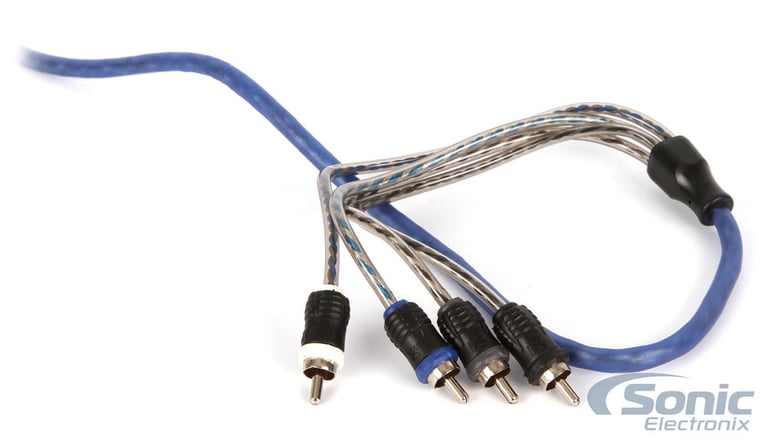

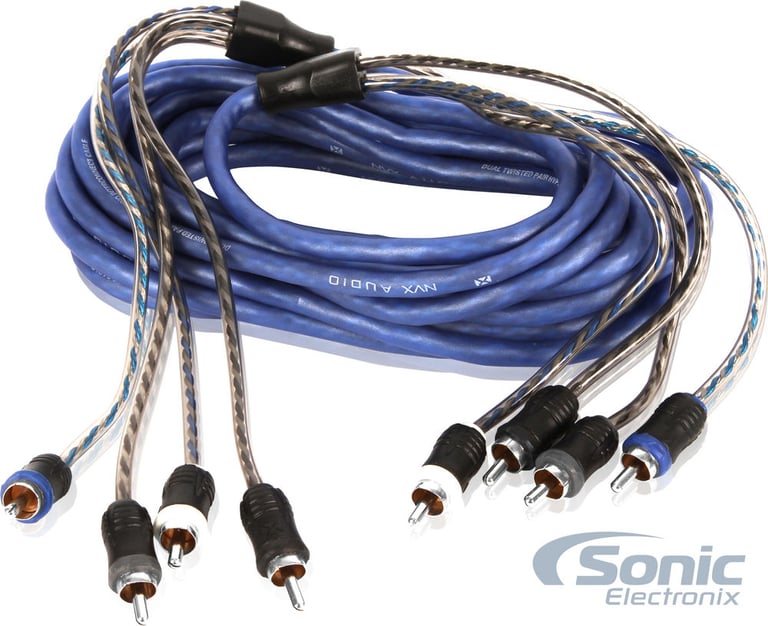

- One 16 ft. (5 meters) 4-channel twisted construction RCA interconnect Cable (NVX XIV45)

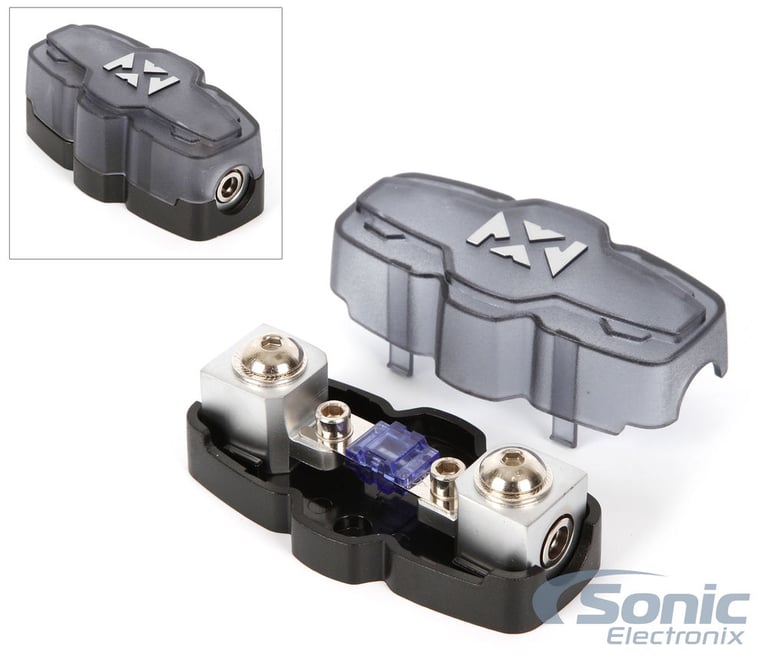

- One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse

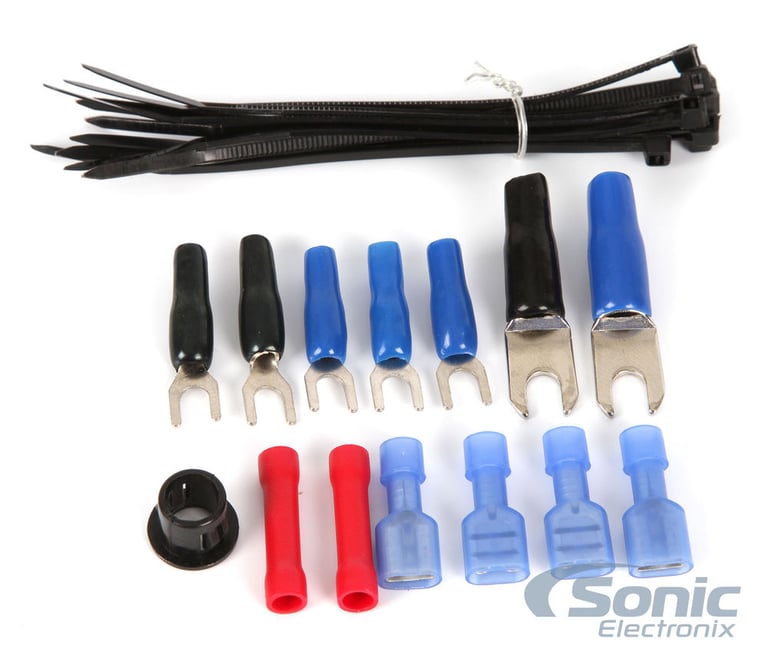

- One 5/16" black rubber firewall grommet
- Two 8 gauge spade terminals
- Two black 16 gauge nickel-plated spade lugs
- Three blue 16 gauge nickel-plated spade lugs
- One black 18 gauge spade terminal
- Two 18 gauge red butt connector
- Ten 4" black zip ties
