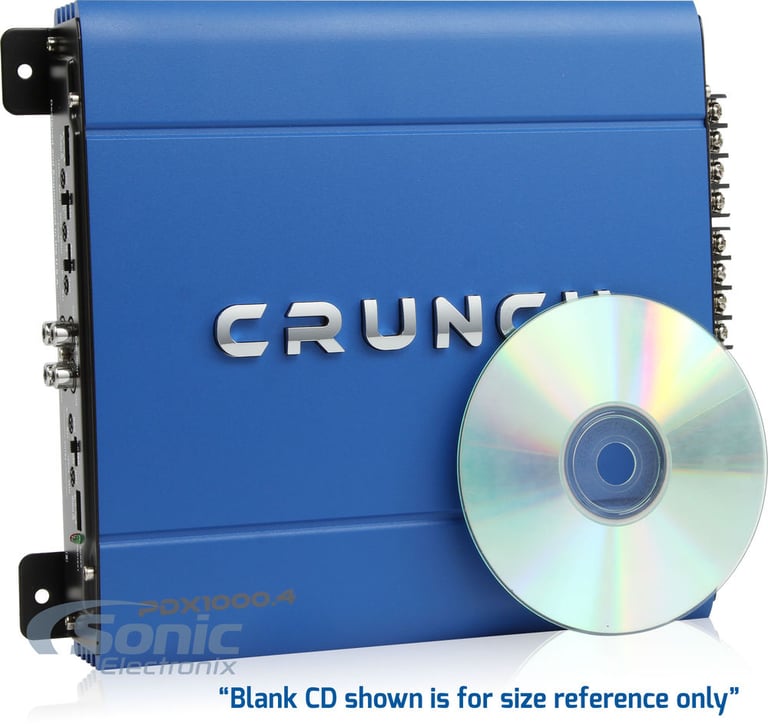

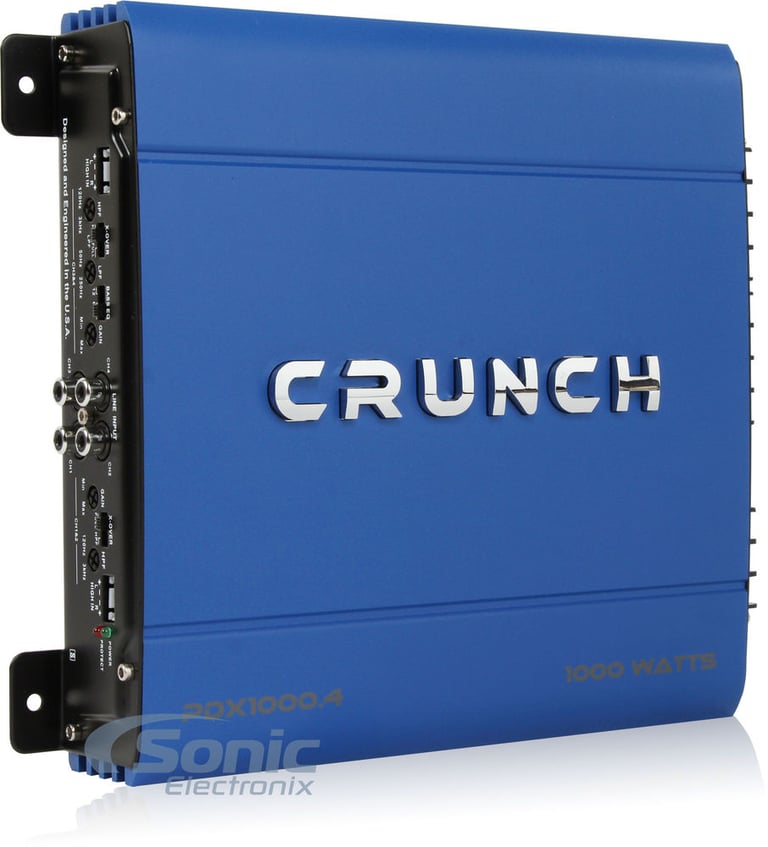

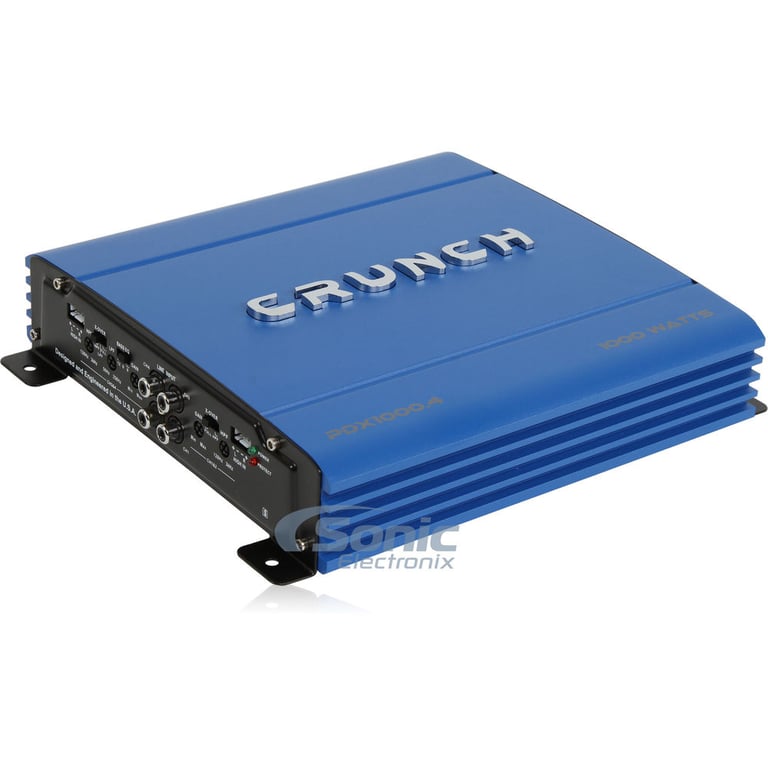

Crunch PDX-1000.4 - OPEN BOX

General Features:

• PDX Series 4-Channel Class A/B Car Amplifier
• MAX Power Rating (14.4V):
• 4 ohm: 125 watts x 4 chan.
• 2 ohm: 250 watts x 4 chan.
• Bridged, 4 ohm: 500 watts x 2 chan.
• RMS Power Rating:
• 4 ohm: 75 watts x 4 chan.
• 2 ohm: 125 watts x 4 chan.
• Bridged, 4 ohm: 250 watts x 2 chan.
• SEPP (Single Ended Push-Pull) output technology
• Pulse Width Modulated power supply
• LED power (green) and protect (red) indicators
• Slow un-mute soft start turn-on
• 4, 3 or 2 channel operation
• Speaker-level inputs
• Preamp RCA outputs to daisy chain multiple amps
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heatsink for extreme heat dissipation
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals

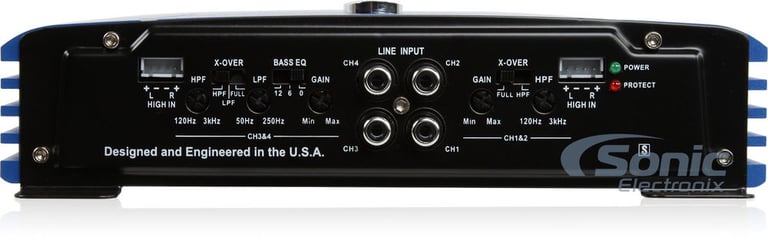

• Input sensitivity: 200mV-6V
• Variable high-pass filter 120 - 3,000 Hz, 12 dB/octave
• Variable low-pass filter 50 - 250 Hz, 12 dB/octave
• Variable Bass Boost: 0 - +12 dB bass boost at 45 Hz
• Damping factor: >180
• Signal-to-nose ratio: >98dB
• Frequency response: 20 - 20,000 Hz

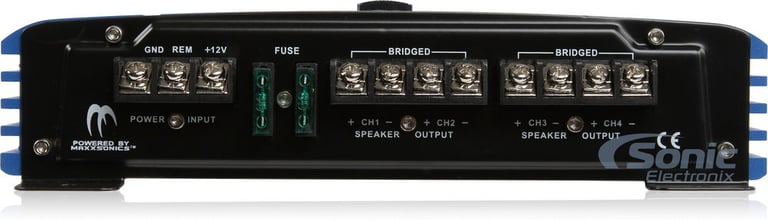

• Fuse rating: 30A x 2
• Dimensions: 10-1/4"L x 9-7/8"W x 2-1/16"H
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty
