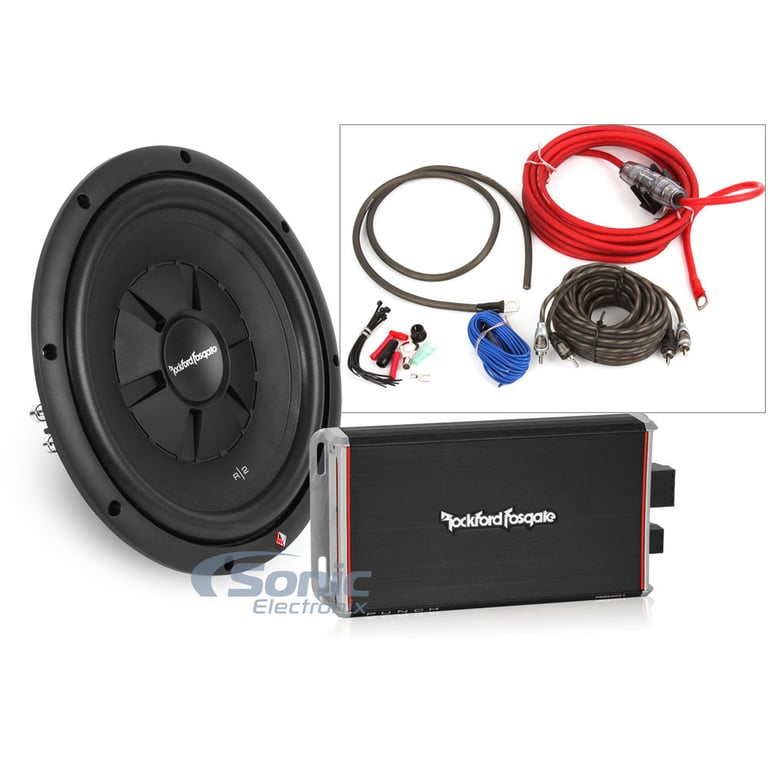

500W Rockford Fosgate Single 12" Subwoofer Bass Package

Key Benefits

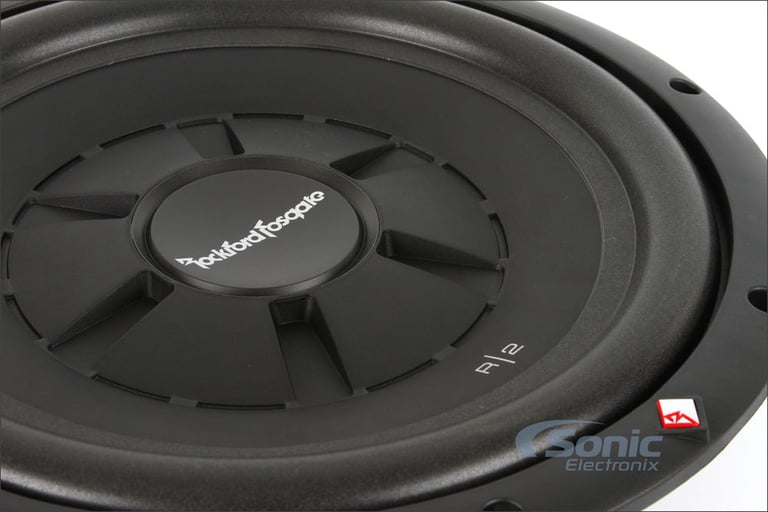

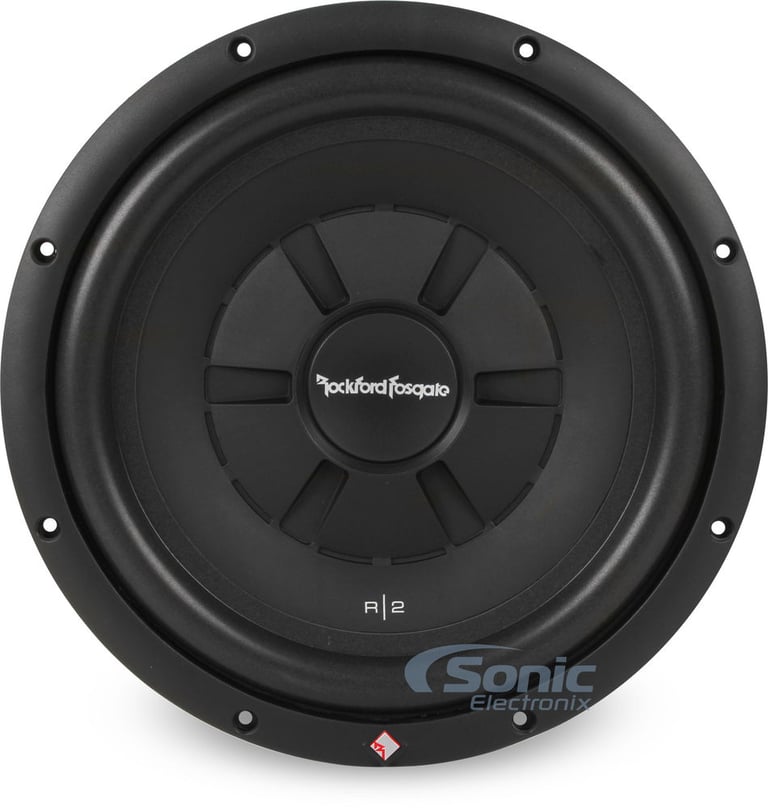

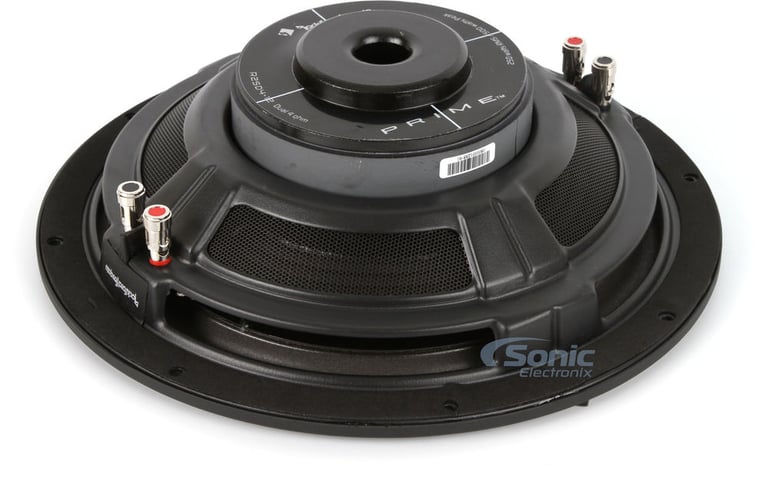

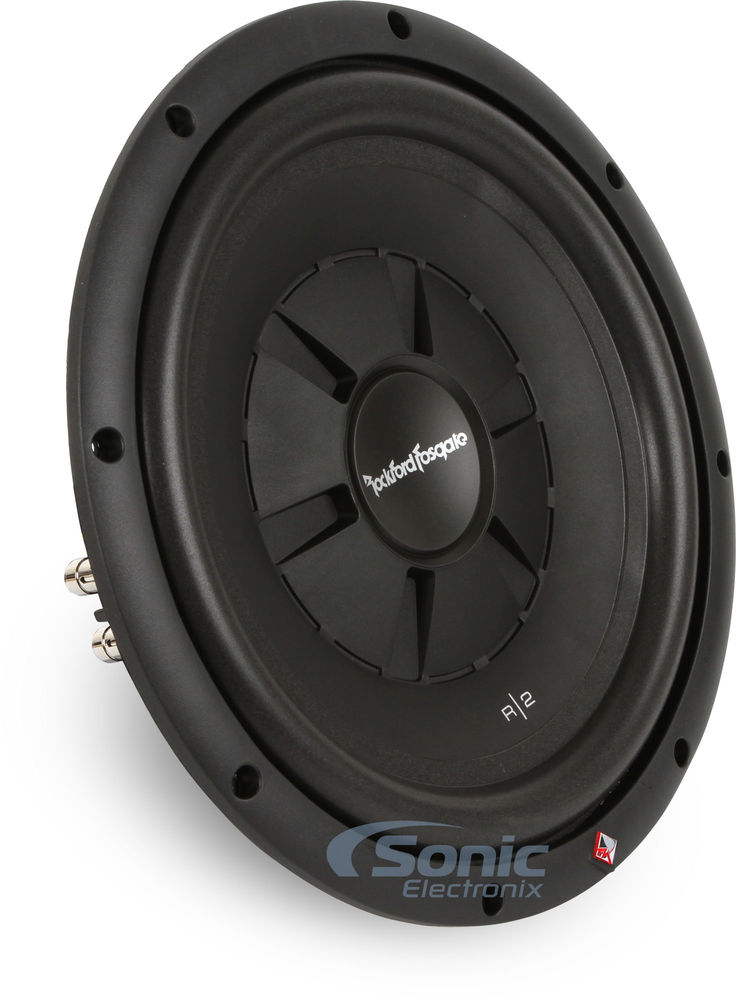

• 12" Dual 4 ohm Shallow Mount Prime Stage 2 Series Subwoofer
• Power Handling:
• Peak: 500 watts
• RMS: 250 watts
• CEA-2031 Compliant
• Klippel Verified

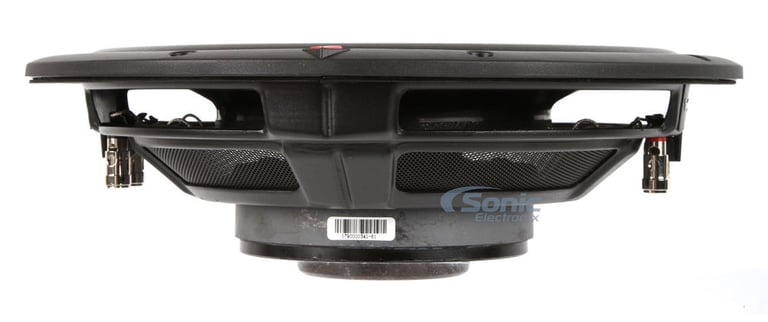

• Shallow Motor Assembly
• 12 AWG compression terminals
• Optimized for sealed enclosures
• Mica injected polypropylene cone
• StampCast basket with integrated spider venting
• Linear spider with embedded 16 AWG tinsel leads
• Unique low profile "inset" design, high excursion woofer
• High density compressed half-roll sealed poly-foam surround
• Proprietary attached tear & fatigue resistant poly-cotton spider
• Suited for sealed enclosure applications, capable for use in vented boxes as well
• Optimized motor magnetics with extended pole and bumped vented backplate
• Fatigue resistant and reduced strain "stitched on" flexible lead wire design
• Multi-point high-temp/high-strength neck joint bonding technique
• High temp copper voice coil with aluminum former
• All metal compression input terminal assembly
• Semi-flexible PVC integrated trim ring
• Heavy guage stamped steel frame
• Mounting Depth: 3.602"
• Cutout Diameter: 11.25"
• Magnet Weight: 51.0 oz
• Frequency Response: 43 - 250 Hz
• Xmax: 10 mm
• Sensitivity: 85 dB @ 1 watt / 1 meter
• Recommended Ported Enclosure: 1.79ft³ @40.0Hz
• Recommended Sealed Enclosure: 0.90ft³ @44.1Hz
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Priced Individually

General Features:

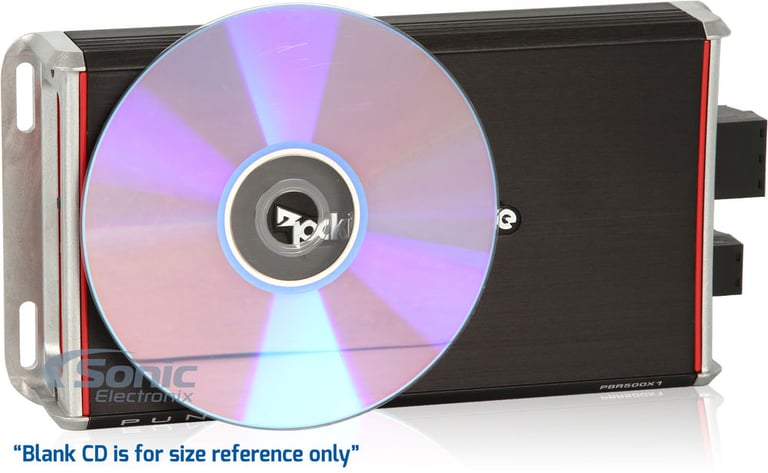

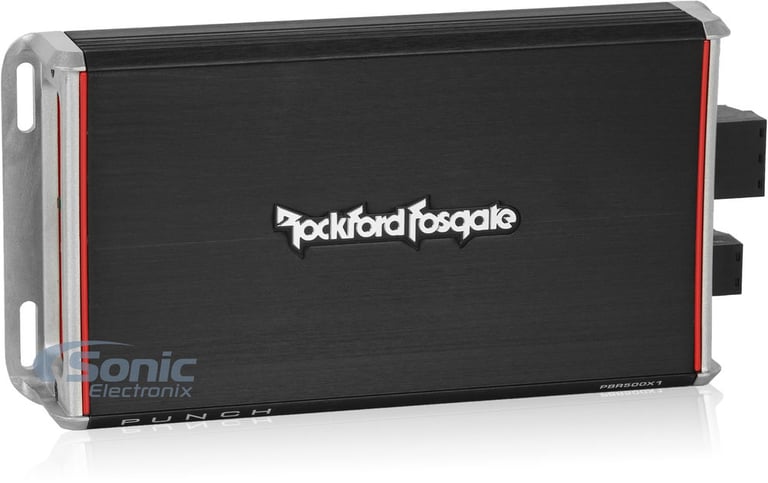

• Punch Series BR Monoblock Car Amplifier
• RMS Power Rating:
  • 4 ohm: 175 watts x 1 chan.
  • 2 ohm: 300 watts x 1 chan.
  • 1 ohm: 500 watts x 1 chan.
• Features Rockford Fosgate's Class-BR Topology
• CEA-2006 compliant amplifier
• Ultra compact chassis
• MOSFET output stage
• Boosted Rail amp technology
• Convection cooling design
• Extruded aluminum heat sink

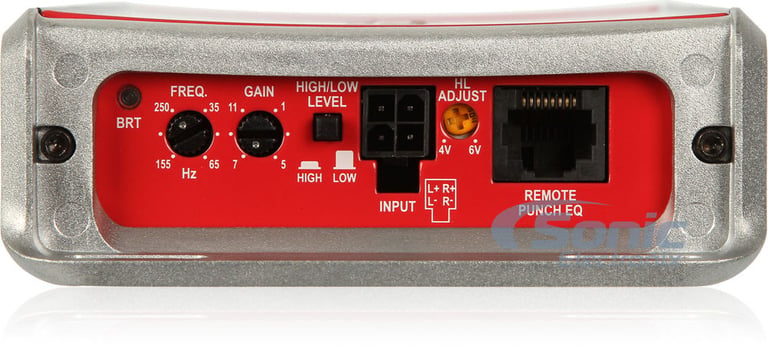

• Low level RCA input connection

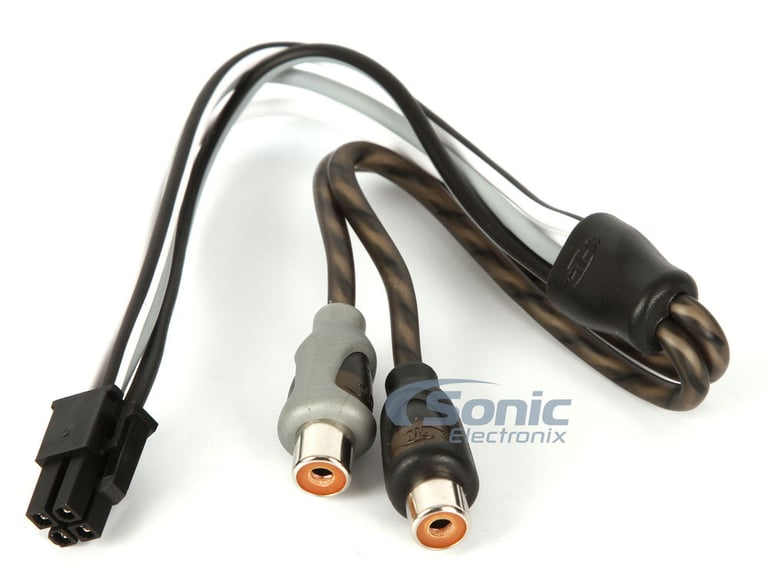

• High level speaker input connection
• 12dB / Octave Butterworth crossover
• Detachable Compression Terminals
• LED power (blue) and protect (red) indicators
• Variable 4-6 volt hi level DC offset voltage input turn-on control
• Features MEHSA3 (Maximum Efficiency Heat Sink Application - gen. 3)
• Perfect for smaller stealth installations
• Great for motorcycles and recreational vehicles
• Optional Remote Punch EQ provides 0dB to +18dB @ 45Hz
• Wiring w/ Mounting Plate for Harley-Davidson Motorcycles Available: Rockford Fosgate RFKHD9813

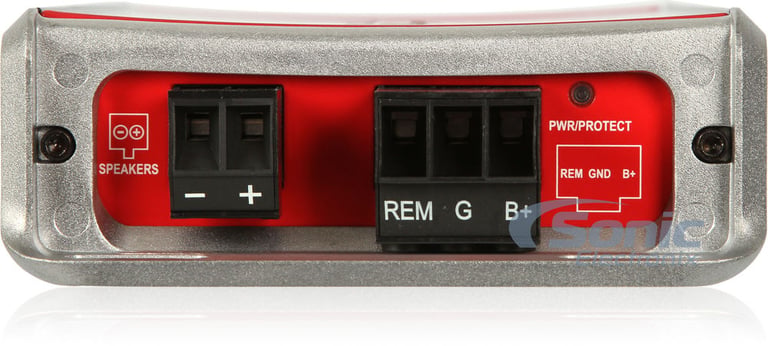

• 12 Gauge speaker wire output terminals
• 8 gauge OFC power and ground wiring is recommended for installation.
• 1-year Manufacturer's Warranty

Amplifier Specifications:

• Input sensitivity:
• Low level: 150mV - 4V
• High level: 400mV - 11V
• Operating voltage: 9 - 16 VDC
• Recommended fuse rating: 60 A x 1
  (not included)
• Max. current draw (13.8V Sinewave): 60 A
• Average current draw (13.8V Music): 30 A
• Frequency response: 20 - 250 Hz, +/- 3 dB
• Total harmonic distortion: <1.0%
• Signal to Noise Ratio: ≥105 dB
• CMRR: >55 dB @ 1 kHz
• Damping Factor: >200
• Crossover controls: 35 - 250 Hz Low Pass @ 12dB/Octave
• CEA-2006 Power Rating: 175W x 1 @ 4Ω ≤1.0% THD+N
• Weight: 3.30 lbs
• Dimensions: 8.25"L x 4.25"W x 1.53"H

General Features:

• 8 Gauge Amplifier Installation Kit
• Designed specifically for car audio systems up to 400 watts
• Premium power and ground wire provides optimal power transfer
• Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
• Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
• RCA Interconnects are made with twisted-pair technology for noise reduction
• Terminals are nickel-plated for excellent signal transfer

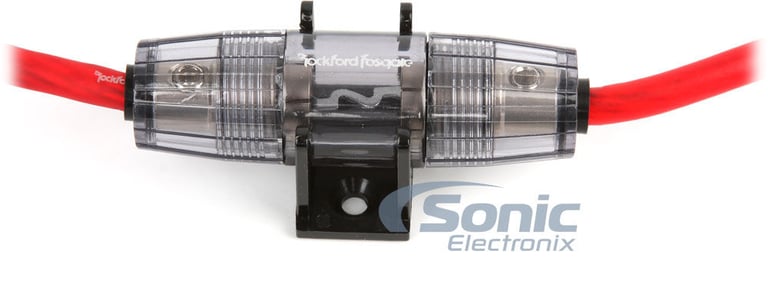

• AGU Fuse holder offers ideal protection for lower powered systems
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size

Package Includes:

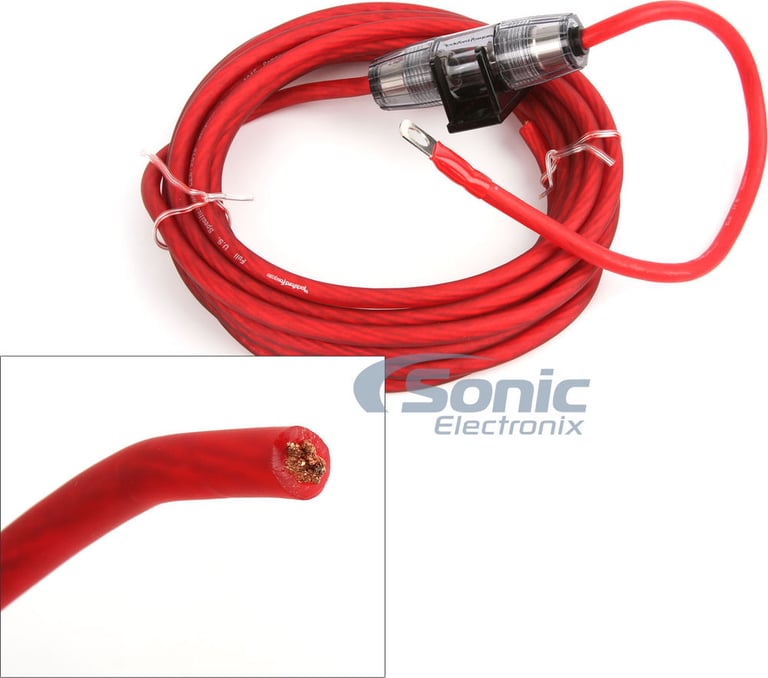

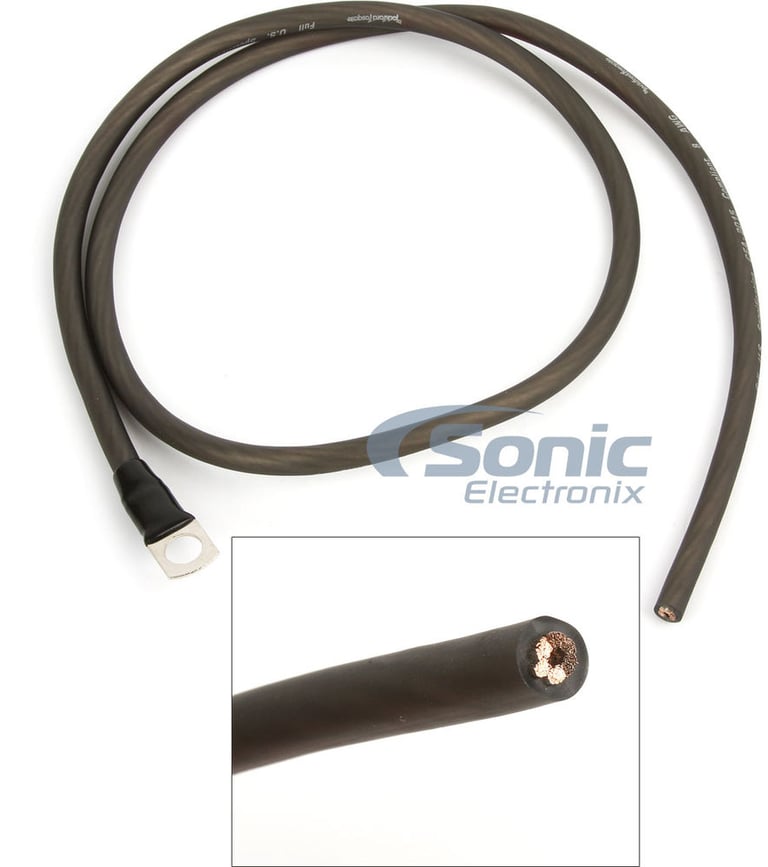

1. 17 feet of 8 AWG power wire
2. 3 feet of 8 AWG ground wire

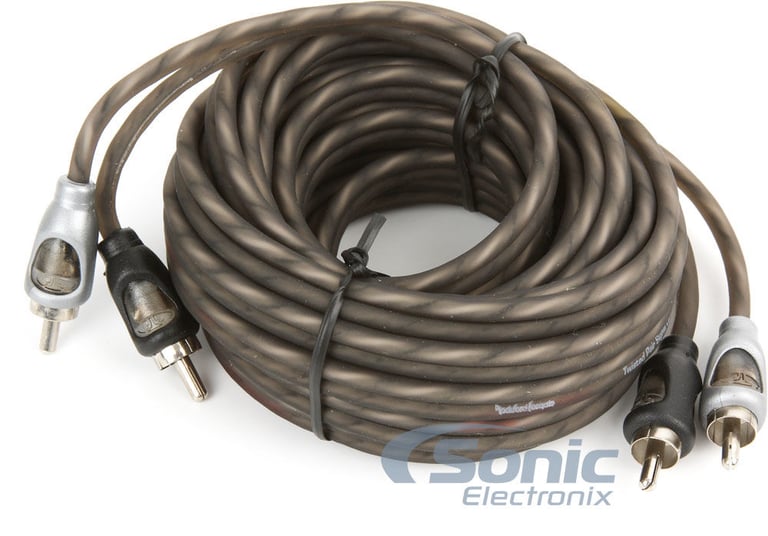

3. 20 feet twisted pair RCA
4. AGU fuse holder

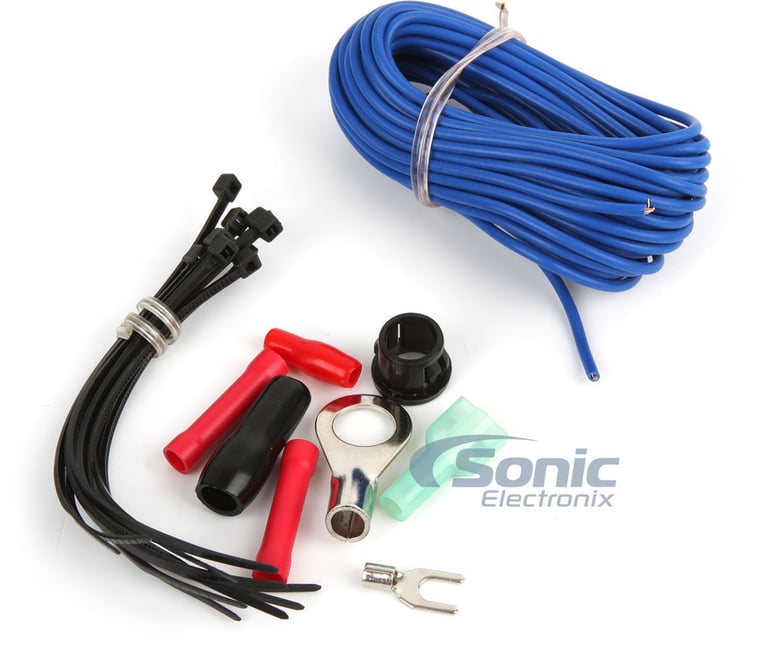

5. 20 feet of remote wire
6. 60 Amp fuse
7. Cable Ties
8. Butt connectors
9. Spade Terminals
10. Firewall Grommet
