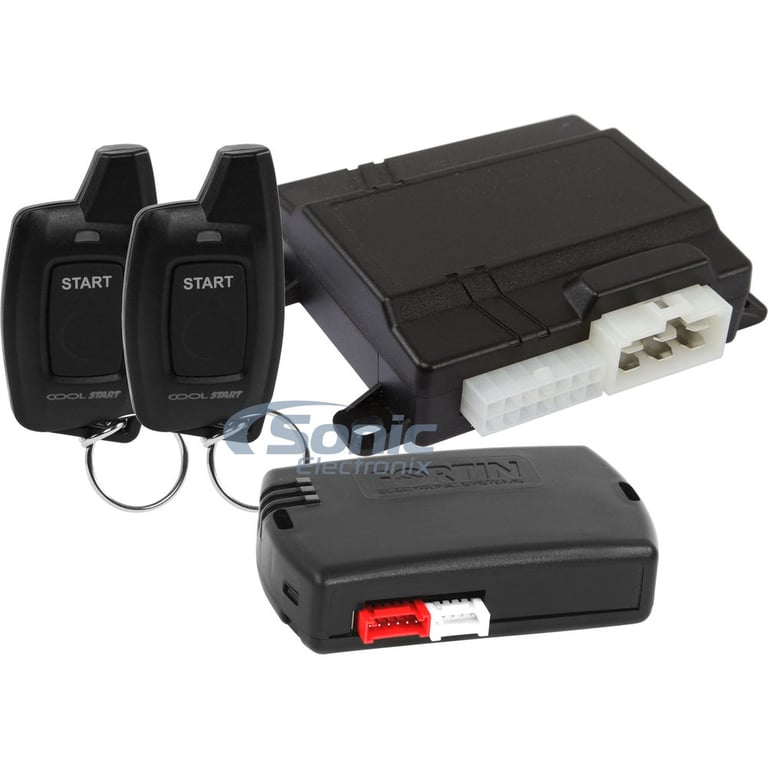

Crimestopper + Fortin 2-Way Remote Start System for Select 14 - Up GM Pickups

General Features:

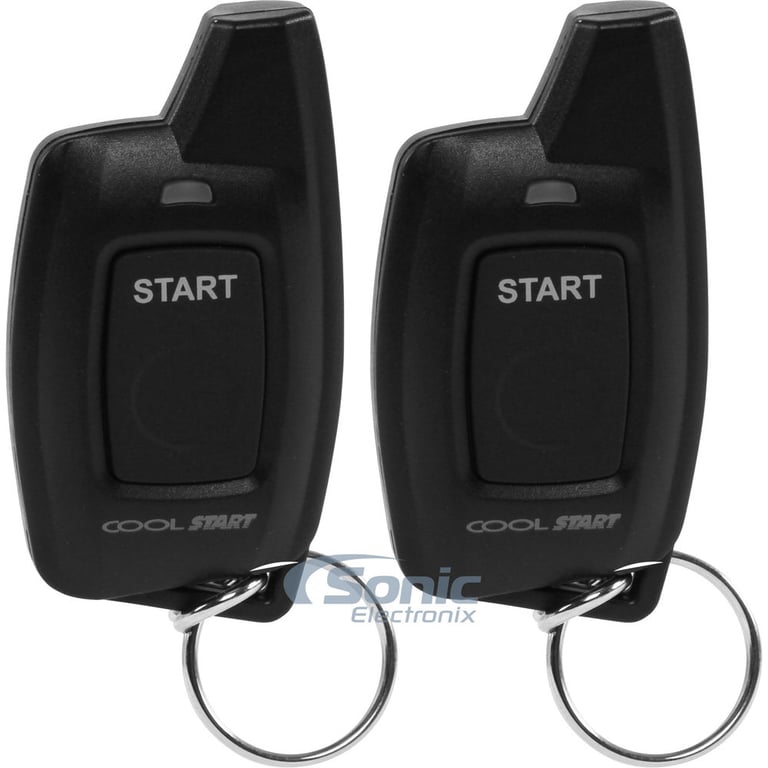

• 2-Way Keyless Entry & Remote Start with LED Paging Single-Button Transmitter
• Single-button (non-paging) sidekick remote control transmitter
• 2500ft range
• Command confirmation with LEDs (red & green) and through audible tones
• 2-Way data port for easy data module hook-up
• 25 programmable options
• Gas or diesel engine operation
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Convenience Features:

• Remote Start
• Turbo Timer mode with hand brake activation
• Valet mode
• Panic Mode
• Dome light outputs
• Keyless entry through single button
• Faster response time on remote for lock, unlock and start
• Programmable engine sensing modes: Tachometer (RPM), Tachless (Voltage) or Hybrid Mode
• Smart tachless mode monitors charging system of vehicle to assure better start
• Negative ignition, accessory and starter outputs
• Minimum crank time adjustable in 0.1 second increments (0.8 - 1.4 seconds)
• Programmable unlock pulse before remote start to disarm factory alarm
• High-current 10 amp (+) or (-) parking light output with on-board relay
• Negative horn-honk ouput with programmable 15-30 millisecond pulse time
• OEM alarm arm and disarm outputs

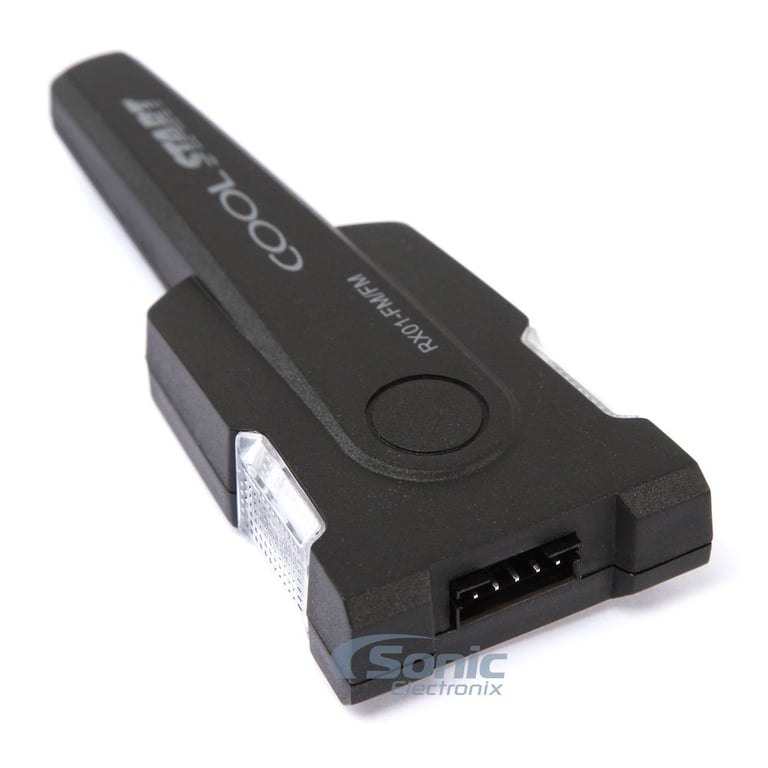

• LED and valet switch built into antenna mast
• Remote start diagnostics through LED

Vehicle compatibility

• Toyota
• 2014 - 2015 Corolla
• 2013 - 2015 Rav4

General Features:

• ALL-IN-ONE data immobilizer bypass, doorlock, alarm & remote start interface
• OEM Style T-Harness for 2014+ Silverado 1500, Sierra 1500 and 2015+ HD Pickups
• Module uses a multiple bus architecture to provide more complete functionality
• On-board LEDs for simplified programming and diagnostics
• Preloaded firmware for maximum compatibility
• Factory Fit T-Harness for easy install
Stand alone remote starter, with 3x Lock remote start
• Crimestopper RFALL641W 1-way, 4-button RF remote kit, 3500-foot range
• Crimestopper RFALL642W 2-way, 4-button RF remote kit, 3500-foot range
• FLU-100.2 Flash Link Updater required for Run Time configuration & advanced feature control
• 2-way datalink port for data-to-data (RS-232) communication with compatible remote-starters and security-systems
• 20 Pin general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems
• Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Specifications:

• (3)CAN-Bus controllers
• (3) General purpose controllers (J1850, Class 2, encrypted key etc.)
• (1) On-board relay (SPDT)
• (1) On-board relay (DPDT)
• (1) Analog controller 0-12VDC @ 20mV steps (Passlock, MUX)

Parts Included:

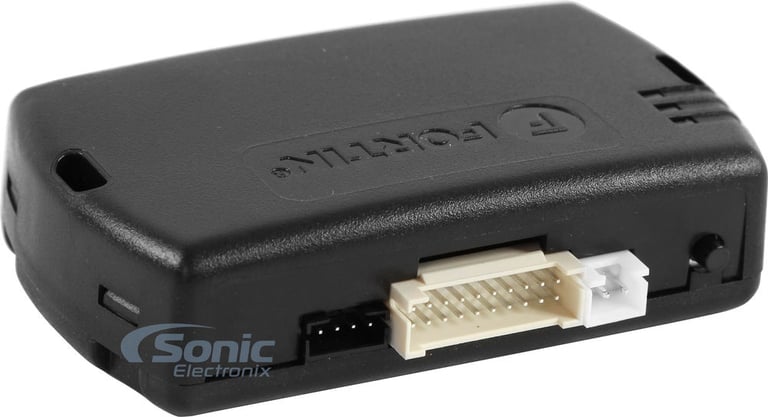

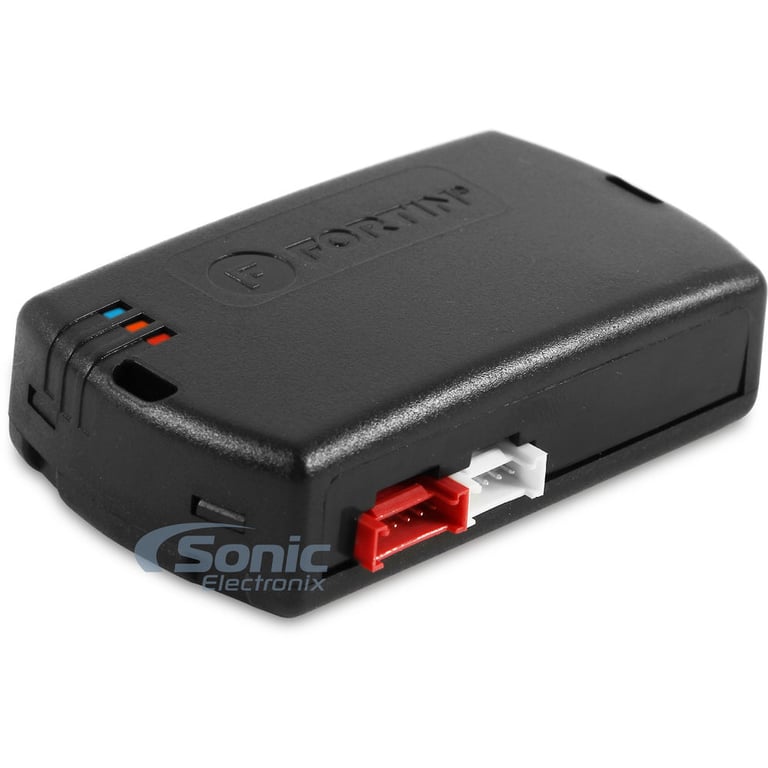

• EVO-ALL control module (firmware preloaded)
• Warning label

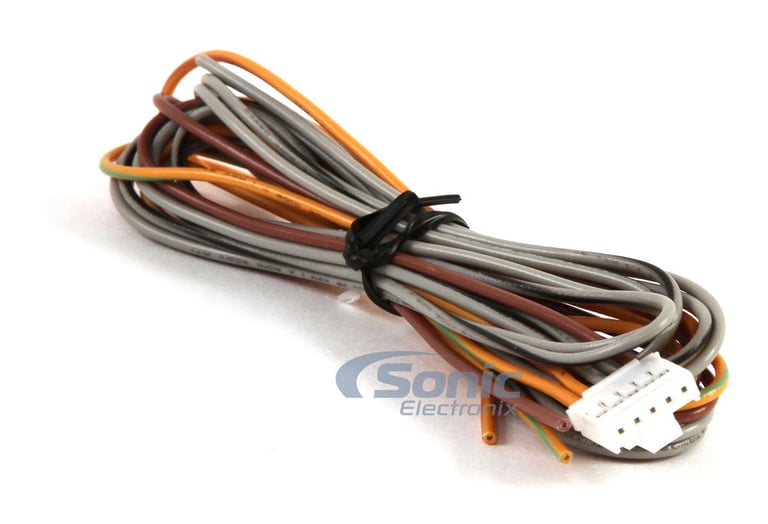

• 4 Pin Fortin 2-way data-link harness

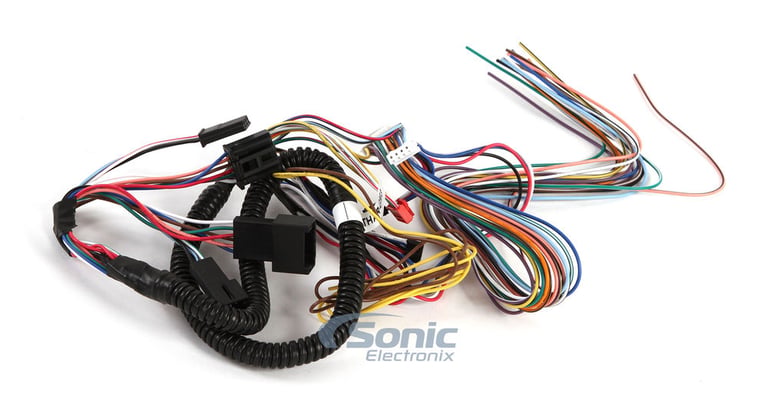

• Factory Fit T-Harness

Compatibility List:

• Chevrolet:
• 2014 - 2016 Silverado 1500
• 2015 - 2016 Silverado 2500
• 2015 - 2016 Silverado 3500
• 2015 - 2016 Suburban
• 2015 - 2016 Tahoe
• GMC:
• 2014 - 2016 Sierra 1500
• 2015 - 2016 Sierra 2500
• 2015 - 2016 Sierra 3500
• 2015 - 2016 Sierra HD
• 2015 - 2017 Yukon
