DLS Iridium 6.3i

6-1/2" Ultimate Iridium 3-way Component System (Ultimate Iridium 6.3 10-25536)

DLS
Shop all DLS
highlight-star-icon

6.5" Ultimate Iridium Component System • 160W Max • 100W RMS • Non-pressed paper cone woofer • Rubber surround • 3" Midrange dome speaker with rear chamber • 1.1" Silk dome tweeter in metal housing • 4 ohm impedance

Learn more about the dlsiridium63i

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

Description


DLS brand icon

Authorized dealer

Bringing it Around Town

The DLS Ultimate Iridium series speaker system is one of the best from this Swedish competition-oriented brand of car audio equipment. The Ultimate series speakers were designed to offer excellent performance and ease of installation that surpasses everything else. To go beyond the normal, DLS was critical with their material selection for these speakers. For clean high frequency response silk soft dome tweeters were used which offer superb transparency to give music that all around feel. High power handling results in more headroom so hybrid ferrite/neodymium magnets were used to bring power and heat efficiency to the table. Iridium speakers have non-pressed paper cones which have an easier roll off and allow for more shallow crossover slopes. Separating these speakers and providing the correct frequencies is a switchable crossover that contains foil coils and selectable tweeter attenuation. Mash this all together and you have an incredibly accurate and natural sounding speaker line that has been in car audio competitions around the world, literally!

  • 6-1/2" Ultimate Iridium Component System
  • Power Handling:
    • Peak: 320 watts per set / 160 watts each side
    • RMS: 200 watts per set / 100 watts each side

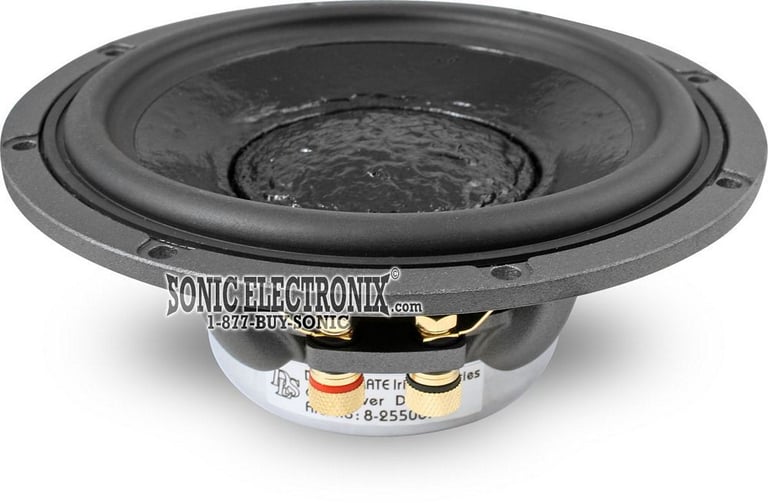

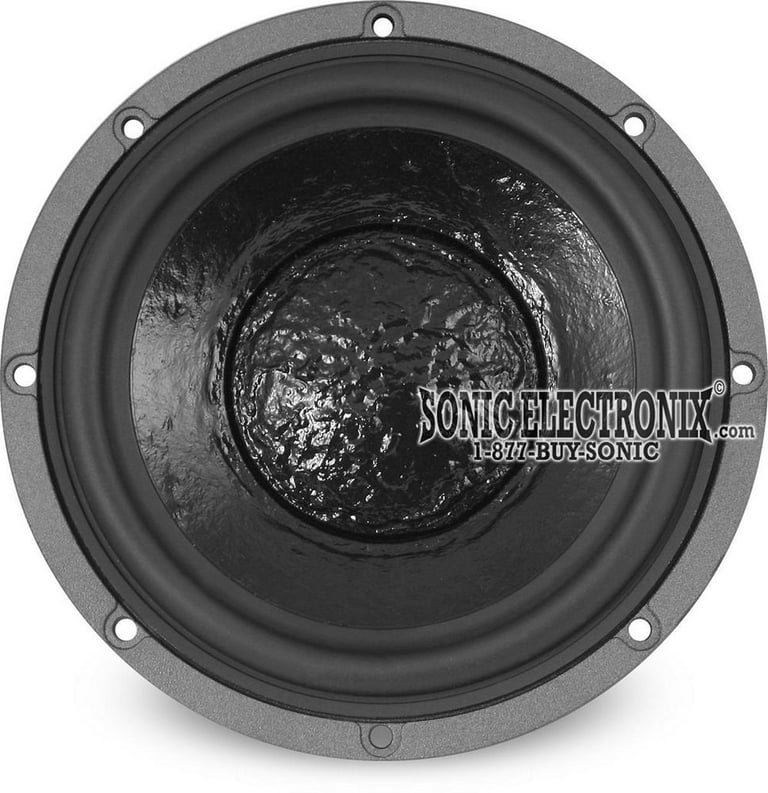

  • Non-pressed paper cone woofer
  • Rubber surround

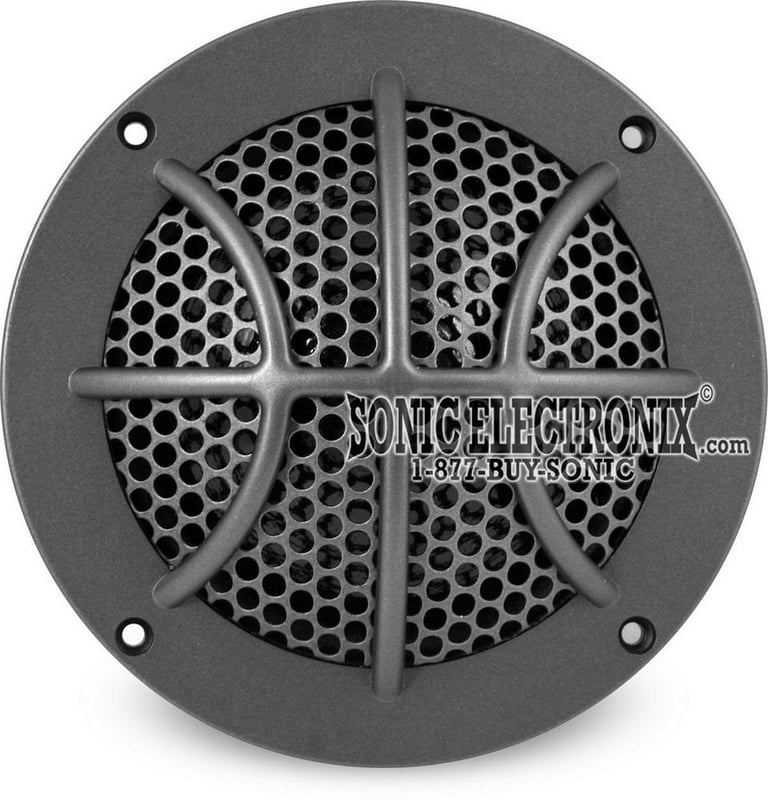

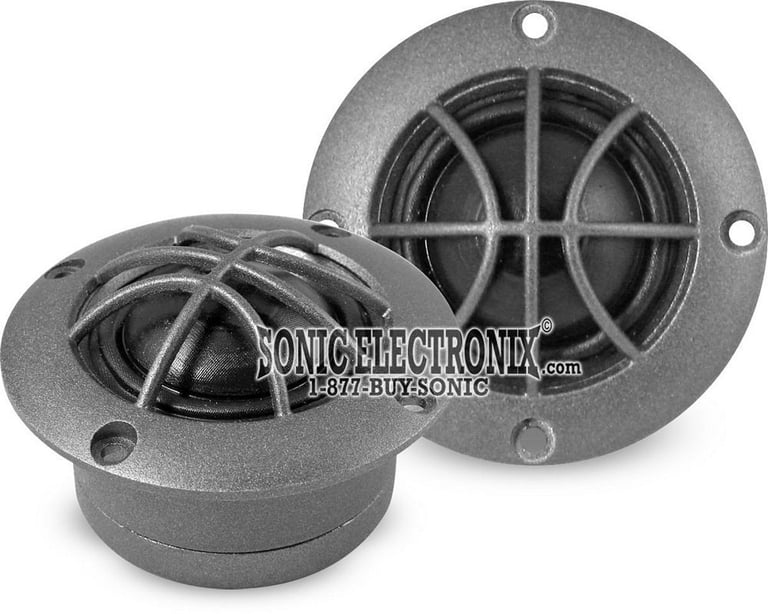

  • 3" Midrange dome speaker with rear chamber

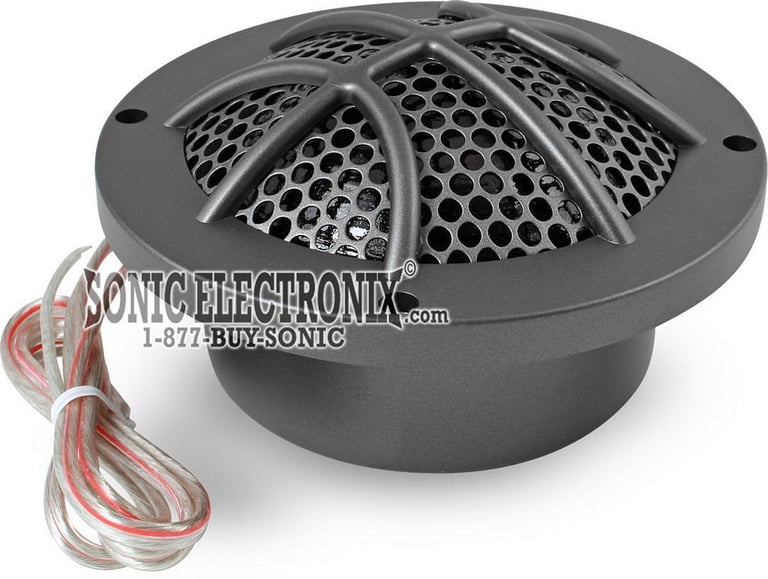

  • 1.1" Silk dome tweeter in metal housing
  • Die cast basket

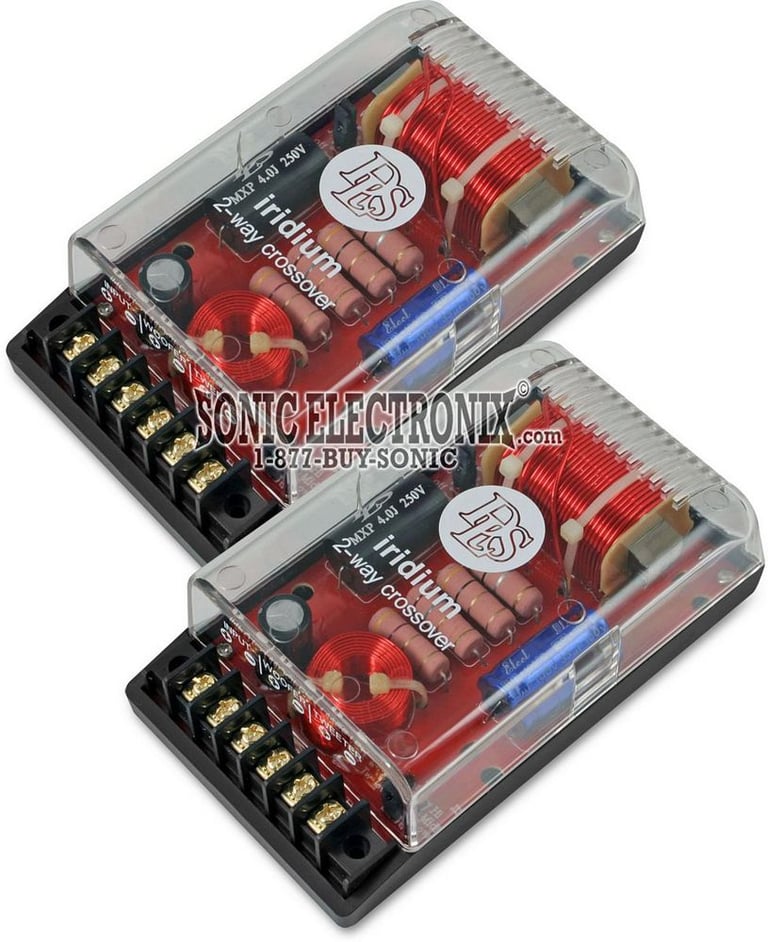

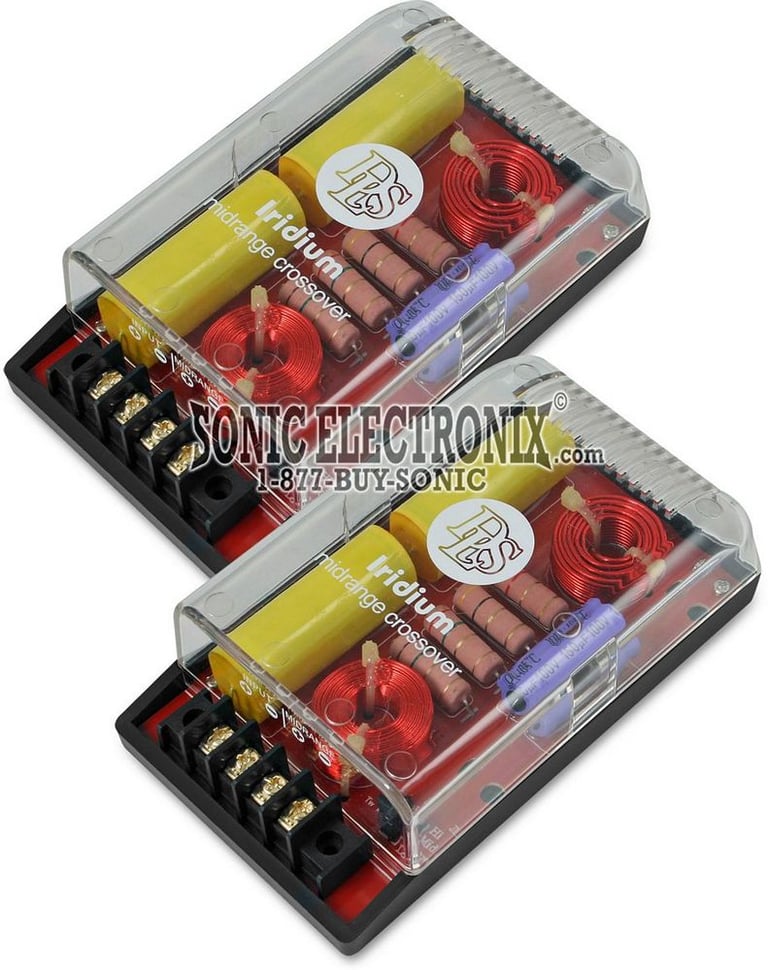

  • Filter boxes with selectable tweeter level
  • Filter with 6/12 dB slope (LP/HP)
  • 4 ohm impedance
  • 3" Voice coil

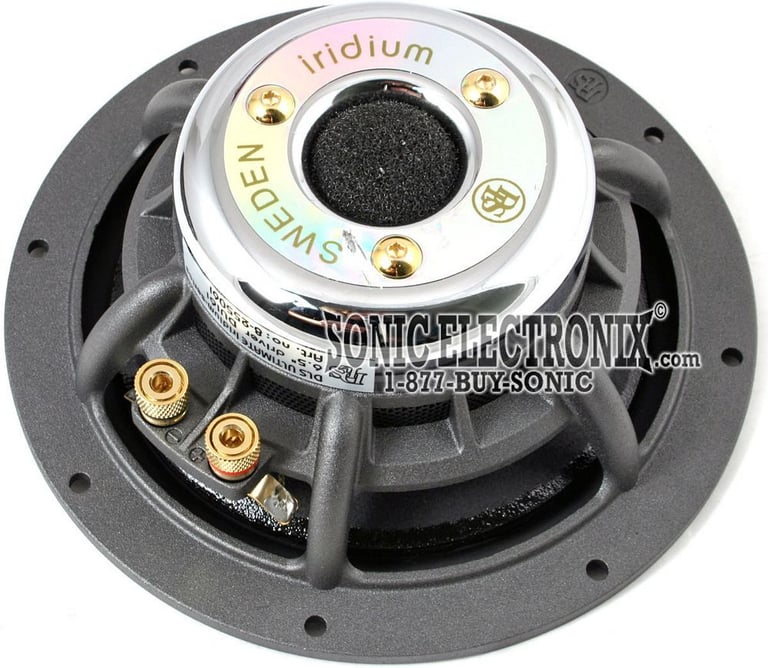

  • 3.35" Wide hybrid ferrite/neodymium magnet system
  • Top-mount depth: 2.56"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

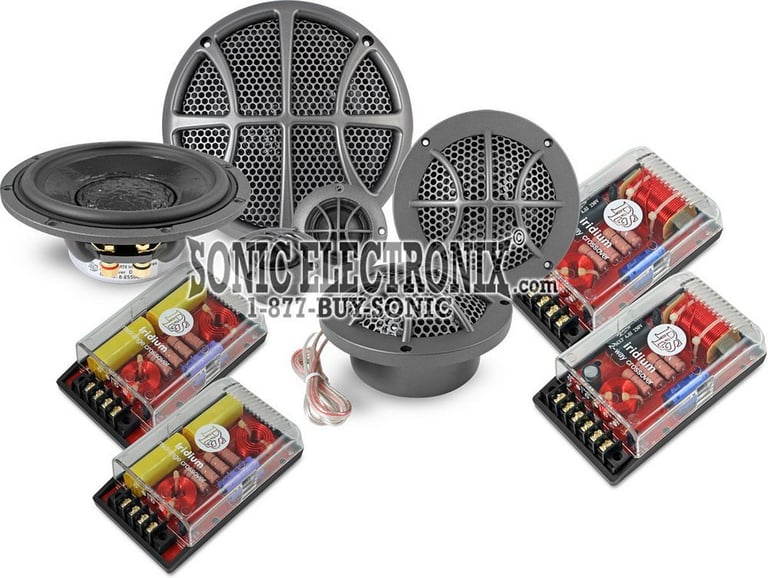

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

126
-30.01%

$349.95

List price $500.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

22
-35.00%

$194.99

List price $300.00


Best selling similar products

GX608C small

JBL GX608C (GX608CAM)

• 210 watts Peak Each, 70 watts RMS Each
• 1-13/16" Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 2.3 ohm
• Sensitivity: 92 dB

(7)

$119.95

List price $119.95

PNW-65CS2 small

AudioControl PNW-65CS2

• 125 watts Peak Each, 100 watts RMS Each
• 3/4" rear-dampened Hybrid Silk Dome tweeters
• Rigid Poly Mica cone material
• Impedance: 3 ohm
• Sensitivity: 88.8 dB

(4)

$319.00

List price $339.00

MPK 163.3 small

Hertz MPK163.3

• 300 watts Peak Each, 150 watts RMS Each
• Tetolon Soft Dome tweeters
• Pressed Pulp Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(2)

$999.99

List price $1175.00

Specifications & Details


Speaker Specifications
Speaker Size
6-1/2"
Design
3-way Component Speakers
Tweeter Design
Dome
Tweeter Composition
Silk
Woofer Composition
Non-Pressed Paper
Woofer Surround
Rubber
Peak Power Handling
160 watts
RMS Power Handling
100 watts
Sensitivity
91 dB
Frequency Response
50 - 25000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2.56"
Cutout Dimensions
5.5" x 5.5"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

DLS

Model Number:

IRIDIUM-6.3i

Weight:

18.00lbs

Internal SKU:

dlsiridium63i

Internal Product ID:

10487
