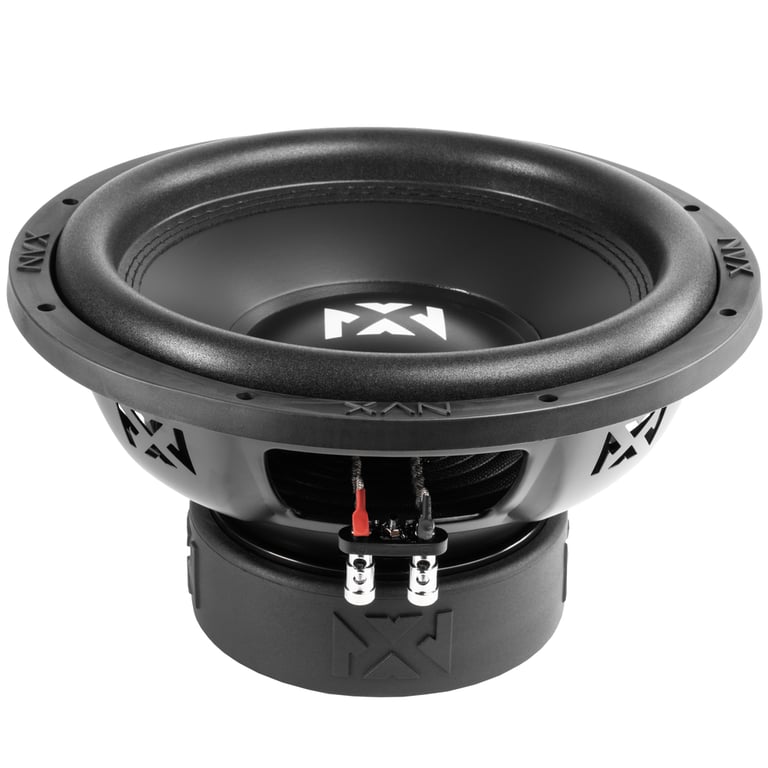

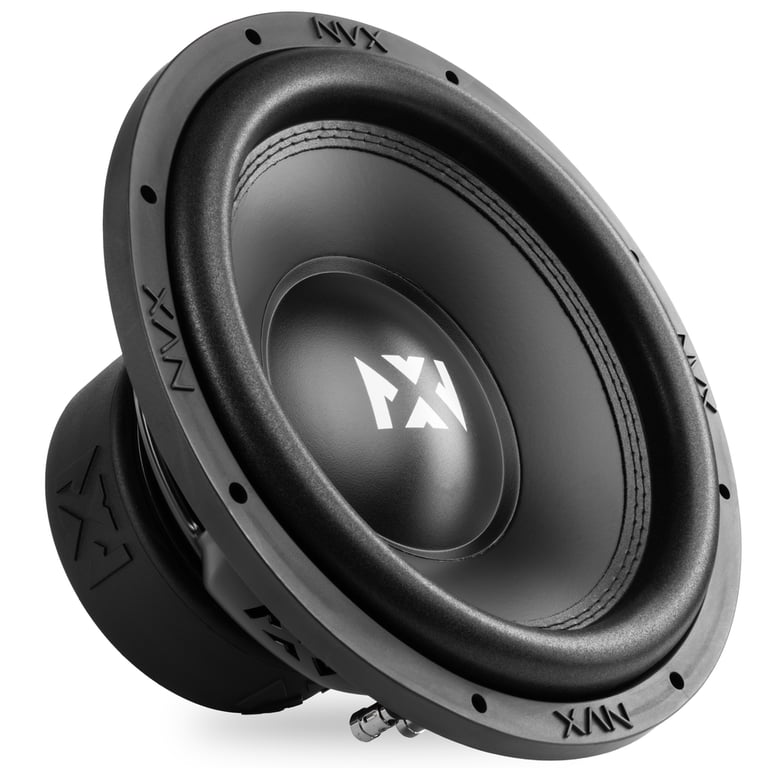

NVX VSW122v2 (Open Box, Acceptable Condition Used)

1200 Watt 12" VS-Series Dual 2-ohm Car Subwoofer (VSW 122 v2)

NVX
Shop all NVX
highlight-star-icon

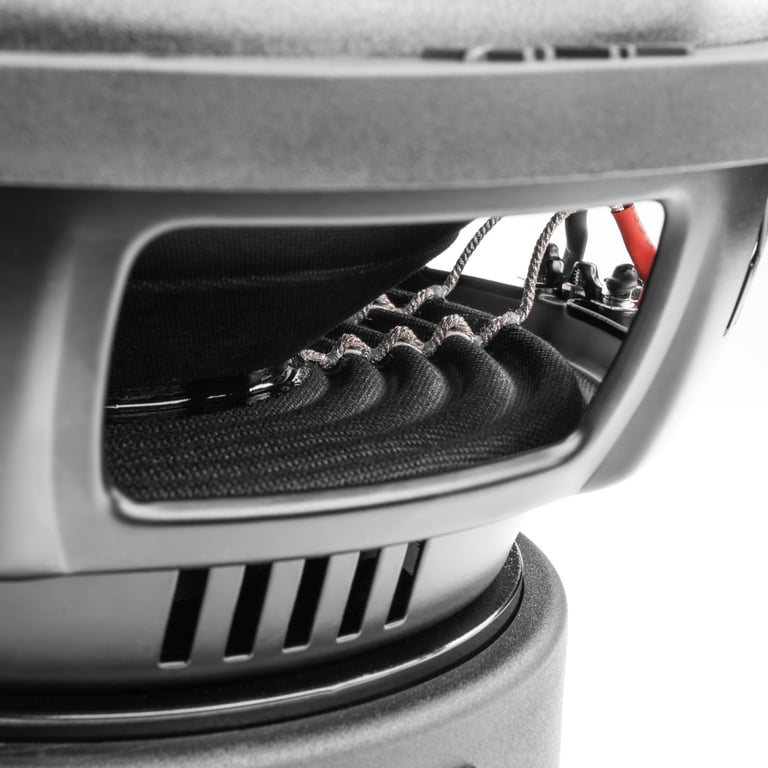

12" VS-Series Subwoofer • Dual 2-ohm Voice Coil • RMS Range: 450 - 600 Watts • Non-Pressed Paper With Woven Carbon Fiber Top • High Excursion Foam Surround • Stamped Steel Basket • Single Nomex Spider

Learn more about the ls-vsw122v2-obc4

We apologize

This item has been discontinued

Description


NVX brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Acceptable Condition:
An Acceptable Open Box used product is fairly worn and used, but functions and works. Signs of wear can include aesthetic issues such as scratches, dents, and worn corners or installation marks. The product may have identifying markings on it or show other signs of previous use. Original packaging, paperwork or protective wrapping may be missing or not included. Warranty details, if any, are included in the item description or comments.


The NVX VSW122v2 Offers an Incredible Listening Experience

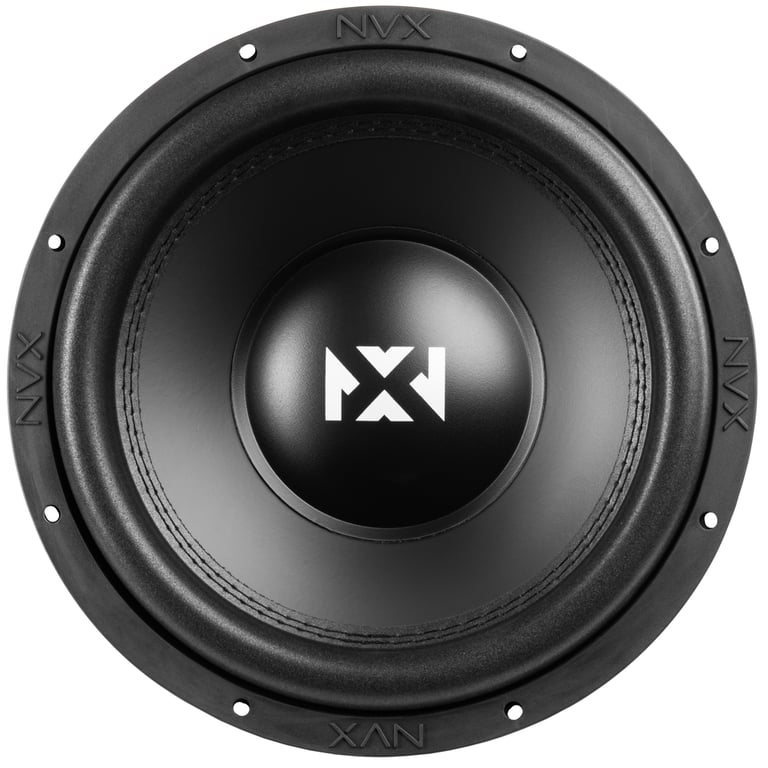

The NVX VS-Series is the perfect subwoofer solution. Designed from the ground up, the series utilizes excellent engineering found in the higher end NVX subwoofers. It features a non pressed treated paper cone with a custom tooled and optimized PP dust cap. Keeping the cone under control is a high-roll foam surround that is specially treated to give you maximum excursion. The VSW122V2 uses a 2.5" high-temperature aluminum voice coil that provides maximum current distribution and has a power handling range of 450-600 watts RMS. The subwoofer also features a shorting ring which is a conductive aluminum ring placed in the air gap between the pole piece and the voice coil former to reduce inductance, which in turn reduces distortion and allows the subwoofer to accurately play a higher part of the bass spectrum. All of these elements combined produce tight, deep and accurate bass that is sought after by bass-heads and audiophiles. If you are looking for an extremely well engineered subwoofer at an amazing price, the NVX VS-Series Subwoofers are the perfect choice!

The NVX VSW122v2 Offers an Incredible Listening Experience


CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.

Check out the NVX Team Demo at Slamology 2014 Here
The NVX VSW122v2 Offers an Incredible Listening Experience





General Features:

  • 12" VS-Series Version 2 Dual 2-ohm Car Subwoofer
  • Power Handling:
    • RMS: 450 - 600 watts
  • Aluminum Shorting Ring to prevent rises in inductance
  • Non Pressed Paper cone

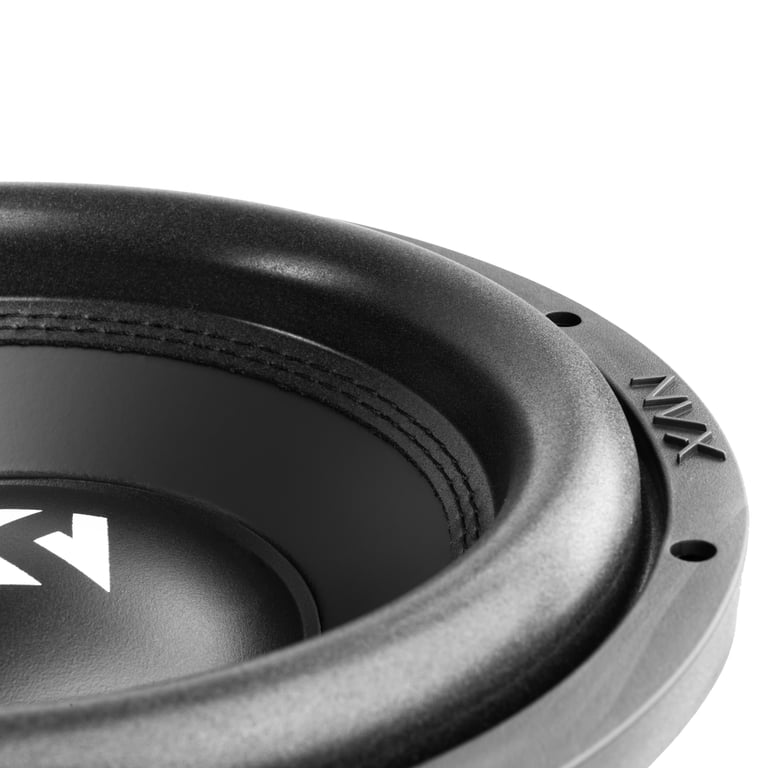

  • High Roll Custom Blended Foam surround

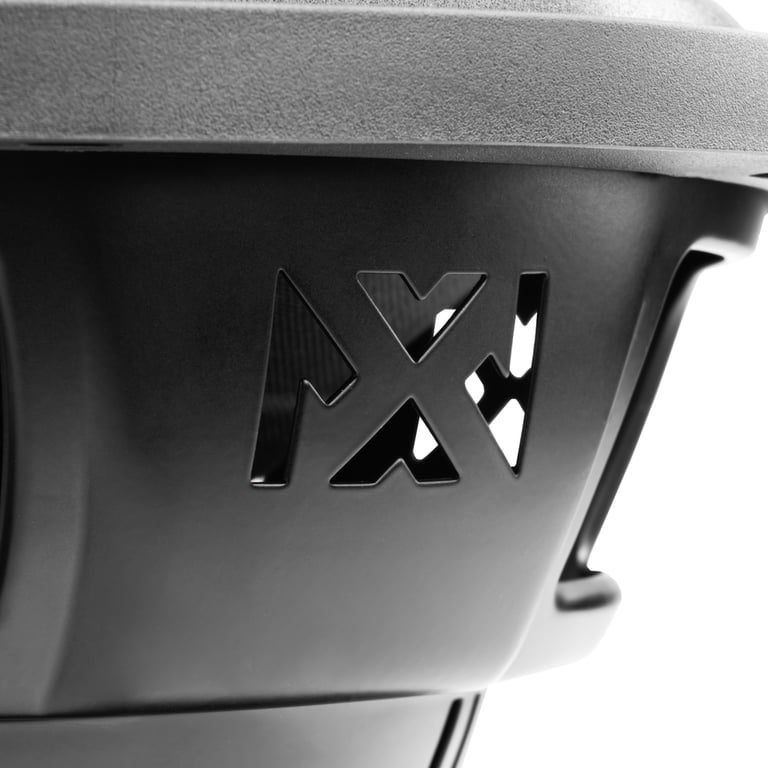

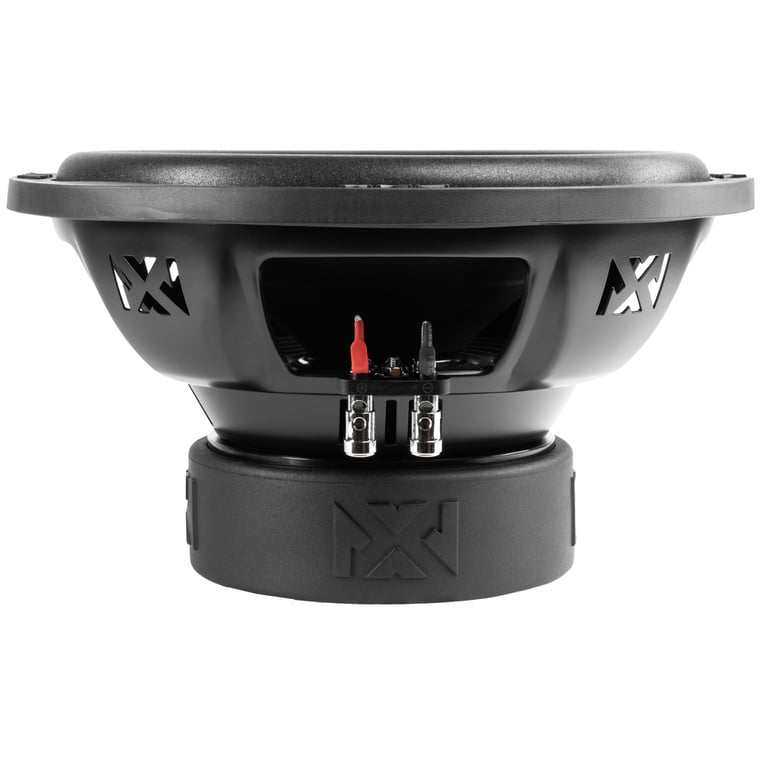

  • Stamped Steel basket
  • Single Nomex Spider
  • 100oz Y30 High Energy Ferrite Magnet
  • Impedance: Dual 2 Ohm
  • Mounting depth: 5.95" (151 mm)
  • Cutout diameter: 11.12" (282.50 mm)
  • Mounting Diameter: 11.63" (295.50 mm)
  • Overall Diamter: 12.44" (316 mm)
  • Frequency Response: 20 - 200 Hz
  • Sensitivity: 90 dB (1W/M)
  • Xmax: 12mm
  • Sd: 49.08 cm²
  • Resonance Frequency (Fs): 25 Hz
  • Net Weight: 15.58 lbs (7.05 kg)
  • Recommended Ported Enclosure: 1.75ft³
  • Recommended Sealed Enclosure: 1.25ft³
  • Authorized Internet Dealer
  • 1-Year Manufacturer's Warranty
  • Priced Individually


Additional Information:

Why a 12" Subwoofer? Choosing the right subwoofer size can be a difficult decision to make. To help with your decision, you can check out our K-Base Article, that breaks down the difference in the sound generated by the four most common subwoofer sizes. Click Here to read about The Differences In Subwoofer Sizes.

Check out the NVX VS-Series User Manual
Tips for Installing the your NVX VSW122v2 subwoofer


Subwoofer Wiring Guide


Wiring Guide to Wire 1 NVX VSW122v2 (Open Box, Acceptable Condition Used) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 NVX VSW122v2 (Open Box, Acceptable Condition Used) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 NVX VSW122v2 (Open Box, Acceptable Condition Used) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 NVX VSW122v2 (Open Box, Acceptable Condition Used) Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
VS Series
Subwoofer Size
12"
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.5"
Frequency Response
20 - 200 Hz
Sensitivity
90 dB
Xmax (millimeters)
12 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Foam
Magnet Structure
Double Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.00 cubic feet
Optimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.50 cubic feet
Minimum Ported Box Volume
1.50 cubic feet
Optimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
2.25 cubic feet
Top-Mount Depth (Mounting Depth)
5.95"
Cutout Diameter
11.12"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
25 Hz
Equivalent Compliance (Vas)
66.24 liters
Total Speaker Q Value (Qts)
0.396
Electrical Q Value (Qes)
0.437
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

NVX

Model Number:

VSW122v2-4

Weight:

15.58lbs

Internal SKU:

ls-vsw122v2-obc4

Internal Product ID:

173523
