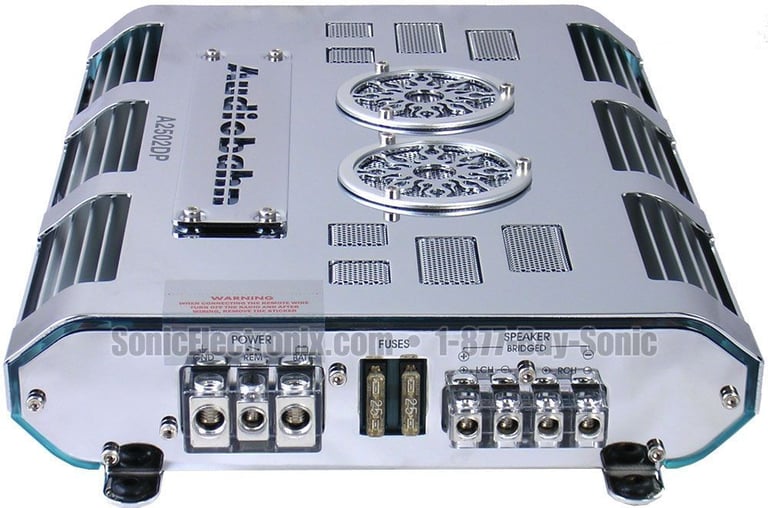

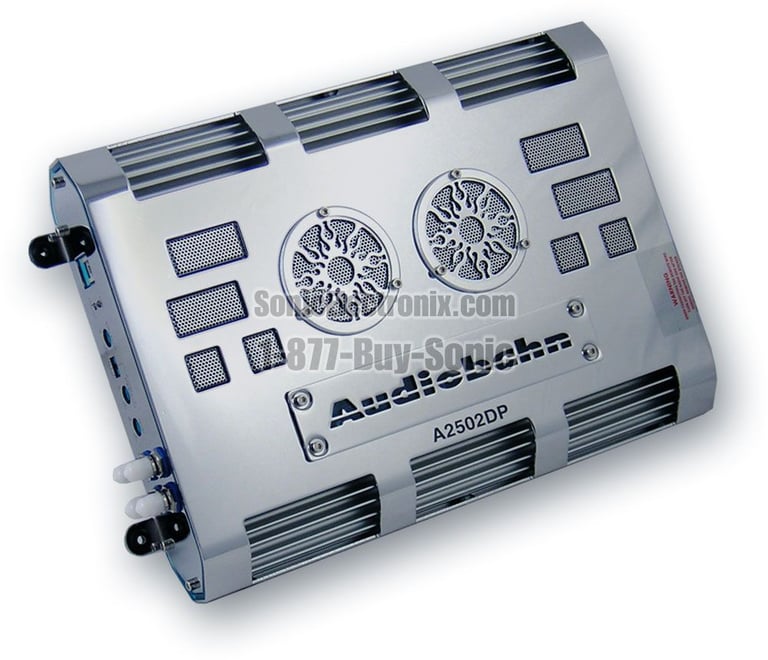

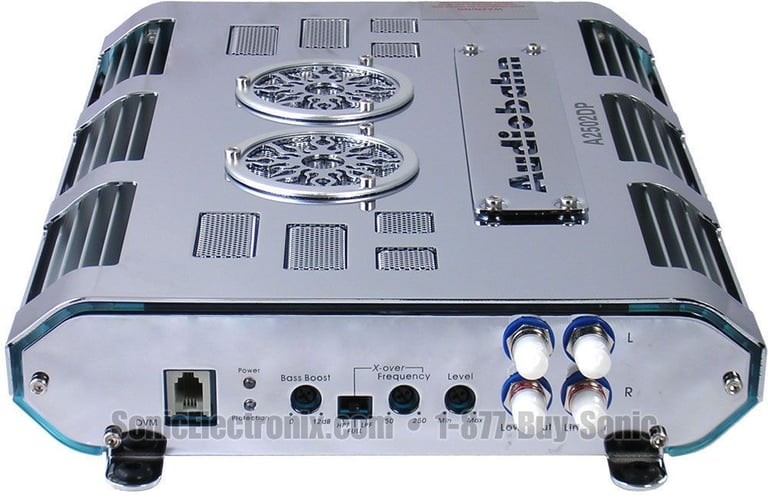

Audiobahn A2502DP

True Digital Series 2-Channel Amplifier

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

1 ohm stereo stable, 2 ohm bridged • True Digital Circuitry • Dual Cooling Fans • HP/LP Crossovers • Bass Boost • Cobalt Blue Illumination • 250/500/750 watts x 2 ch. (@ 4/2/1 ohm)

Learn more about the a2502dp

We apologize

This item has been discontinued


Loading...
99-5700 main

Metra 99-5700 Dash Kit

Install a new Single-DIN car stereo in select 1975-2000 vehicles from Ford, Mercury, Mazda

5
-12.50%

$27.99

List price $31.99

70-1770 main

Metra 70-1770 Wiring Harness

Install a new car stereo in select 1986-2004 vehicles from Ford, Mercury, Mazda

22
-14.31%

$5.99

List price $6.99

95-5704 main

Metra 95-5704 Dash Kit

Install a new Double-DIN car stereo in select 1992-1996 E Series

1
-38.72%

$37.99

List price $61.99

Limited time!
46CSC684 main

Kicker CSC68 (46CSC684)

450W Peak (150W RMS) 6x8” CS Series 2 Way Coaxial 4-ohm Speakers

11
-33.36%

$79.96

List price $119.99

Limited time!
CELEBRITY 100 main

JBL CELEBRITY 100 (JBLCELEBRITY100)

Single DIN Digital Audio Receiver with Bluetooth

2
-42.89%

$39.95

List price $69.95

Cerwin-Vega CV7BM

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

12

$109.00

List price $109.99

Limited time!

JBL Stage2 624 (STAGE2624)

480W Peak (80W RMS) 6.5" Stage2 Series 2 Way Coaxial 4-ohm Speakers

7
-42.02%

$57.95

List price $99.95

Pioneer TS-A6881F

700W Peak (160W RMS) 6x8" A-Series 4-way 4-ohm Coaxial Car Speakers

5
-40.01%

$65.99

List price $110.00

Product Highlights


1 ohm stereo stable, 2 ohm bridged • True Digital Circuitry • Dual Cooling Fans • HP/LP Crossovers • Bass Boost • Cobalt Blue Illumination • 250/500/750 watts x 2 ch. (@ 4/2/1 ohm)

Description


  • Class D, True Digital Circuitry 2-Channel Car Amplifier
  • RMS Power Rating:
    • 250 watts x 2 chan. @ 4 ohm
    • 500 watts x 2 chan. @ 2 ohm
    • 750 watts x 2 chan. @ 1 ohm
    • Bridged, 500 watts x 1 chan. @ 4 ohm
    • Bridged, 1000 watts x 1 chan. @ 2 ohm
  • Preamp Outputs
  • Cobalt Blue LED Illuminated Heat Sink Design (on/off switch for your preference)
  • Dual Cooling Fans
  • Chrome Flame Cooling Fan Grill Covers Included (other optional designs available and sold separately)
  • Double Sided Glass Epoxy Circuit Board
  • High Gloss Chrome Plated Finish
  • Optional Remote-mount Digital Volt-meter Display (Audiobahn ADM100T sold separately)
  • 4-Way Protection Circuitry: Thermal, Short Circuit, Overload, DC Offset
  • Variable Bass Boost: 0-12dB
  • Variable High-Pass Crossover: 50-250Hz
  • Variable Low-Pass Crossover: 50-250Hz
  • Signal-to-Noise Ratio: 100dB
  • Frequency Response: 20Hz-20kHz
  • THD: 0.05%
  • Input Sensitivity: 200mV - 8V
  • 4-gauge power and groud leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Dimensions: 12-7/8" L x 8-1/2" W x 2-1/16" H
  • 1-year SonicElectronix.com warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
250 watts x 2 channel
RMS Power @ 2 ohms
500 watts x 2 channel
RMS Power @ 1 ohm
750 watts x 2 channel
Bridged RMS Power
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
2-Channel
Total RMS Power Output
1500 watts
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
2 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
25A x 2

Item Details


Manufacturer:

Model Number:

A2502DP

Weight:

16.00lbs

Internal SKU:

a2502dp

Internal Product ID:

2306

Product and How-to Videos


Customer Ratings & Reviews


Audiobahn A2502DP thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.4
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Awesome amp

This is a very good amp for the price range that it is in. I use it to power a solo-baric and it slams. Only con about this amp is that it has no subsonic filter which is needed if your sub is in a ported enclosure.

By Phillip on May 25, 2005

9 found this helpful


One word, WOW.

This product is one hell of an amp, and for the price you cant beat it not even at factory purchase! I have this hooked up to 2 AudioBahn AW121T's giving them both 1000W in a ported Q-Logic box and man, do my windows shake, i dont have a rear view mirror due to the power of this amp, because it has broken 3 of them off, and my license plate keeps falling, i had to crazy glue it and glue gun it also. Next i will be getting 2 12's RL-p SoundSplinters and crack some windows.

By vanessa on April 23, 2005

4 found this helpful


good amp

this amp bangs...its real lould...and when u compare price with performance..there's not one better out there....i have this running on two pioneer tw-306dvc..abd they are banging..spl of 125 db...buy it soon

By miguel on March 12, 2005

4 found this helpful
