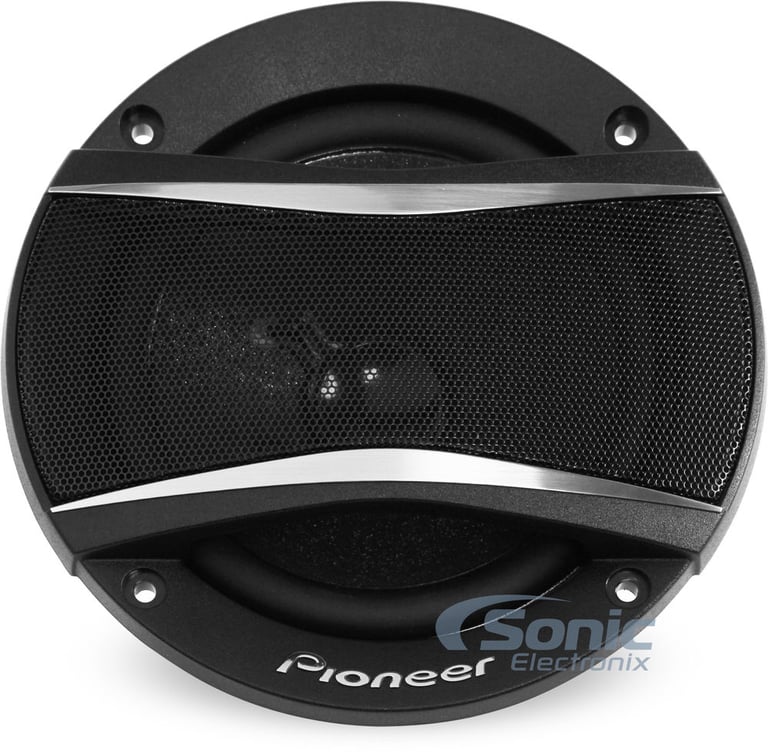

Pioneer TS-A1306C

300W 5-1/4" TS-A Series Component Car Speaker Speaker Package

Pioneer
Shop all Pioneer
highlight-star-icon

• 150Watts Max Each, 75Watts RMS Each
•Soft Dome, Tetron Net Tweeter
• Multilayer Mica Matrix Cone
• 4 Ohm Impedance
• Sensitivity: 90dB
• Mounting Depth: 2-1/8"

Learn more about the tsa1306c

We apologize

This item has been discontinued


Loading...
S2-S68 main

Alpine S2-S68

460W Peak (150W RMS) 6x8" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

3
-16.69%

$149.95

List price $180.00

Description


Pioneer brand icon

Authorized dealer

General Features:

  • 5-1/4" TS-A Series 2-way Separate Component System
  • Power Handling:
    • Peak: 300 watts per pair / 150 watts each
    • RMS: 150 watts per pari / 75 watts each
  • Recommended Power Range: 10 - 75 watts RMS per channel

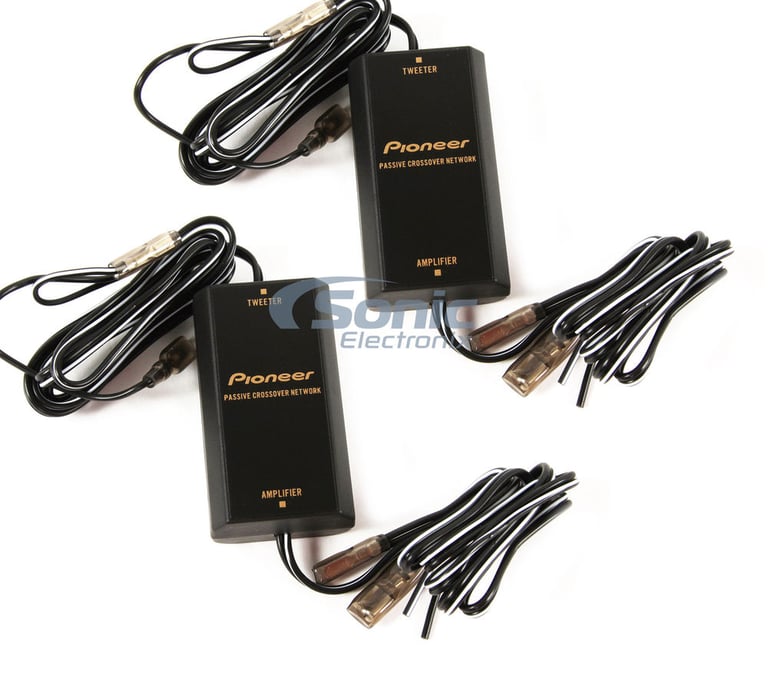

  • Passive Crossover Network

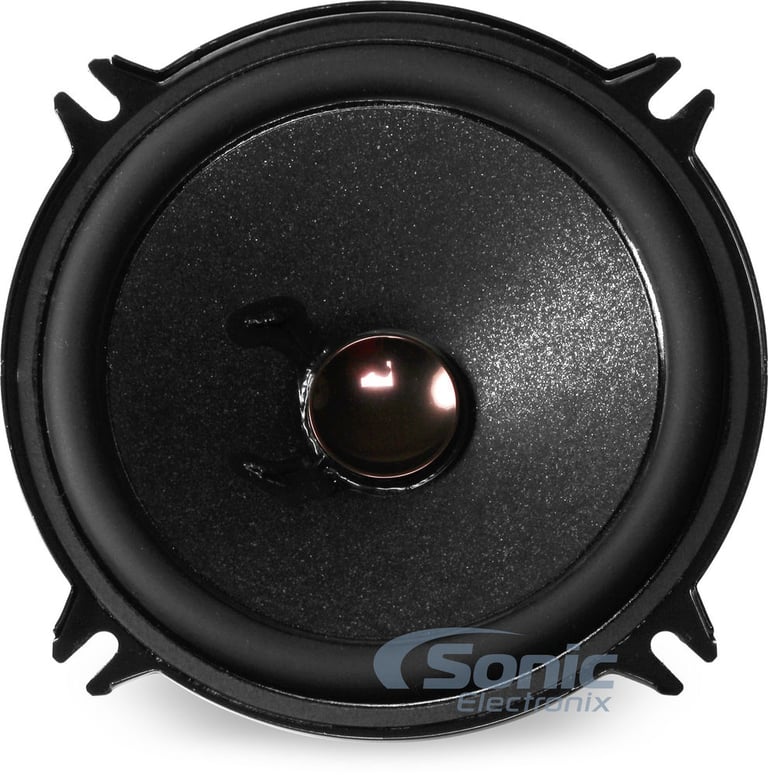

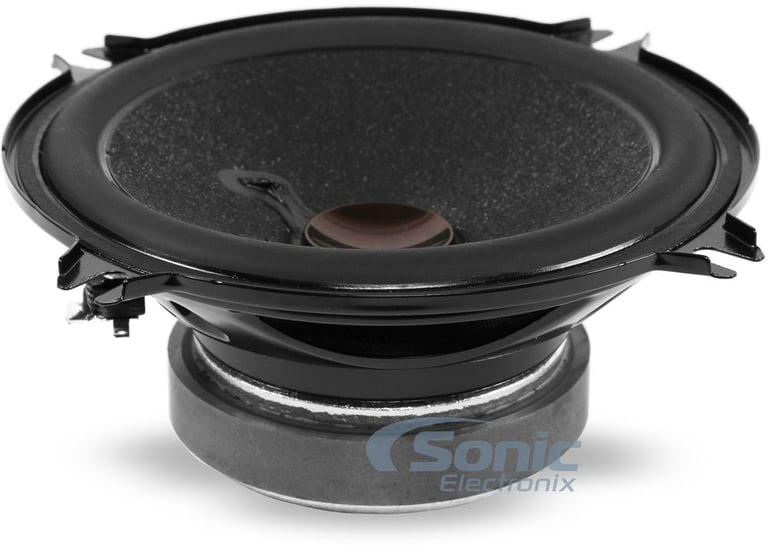

  • Multilayer Mica Matrix Cone
  • Elastic Polymer Surround

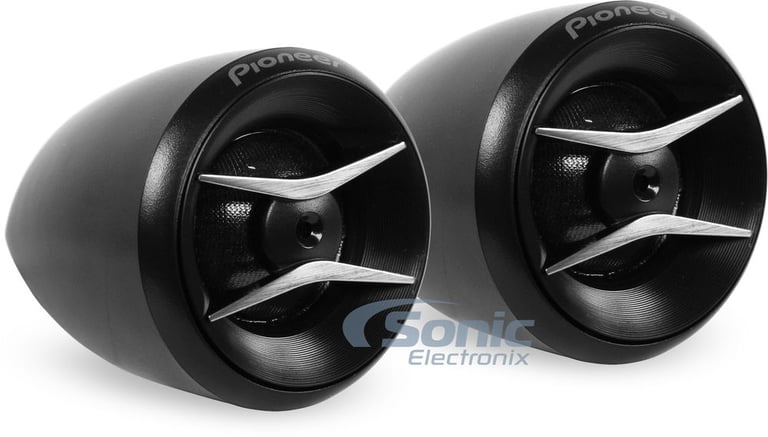

  • Soft Dome, Tetron Net Tweeter
  • Neodymium Tweeter Magnet
  • Crossover Frequency: 8300 Hz
  • Heat Resistant Voice Coil
  • 4 ohm impedance

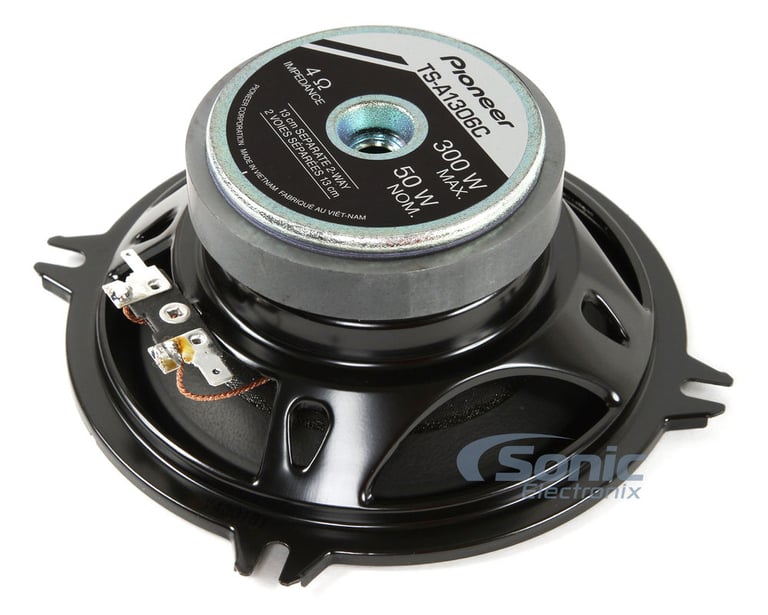

  • Ferrite magnet motor structure
  • Top-mount Depth: 2-1/8"
  • Cutout Dimensions: 4-3/4"
  • Frequency Response: 42 - 42,000 Hz
  • Sensitivity: 90dB
  • 1-year Sonic Electronix Warranty

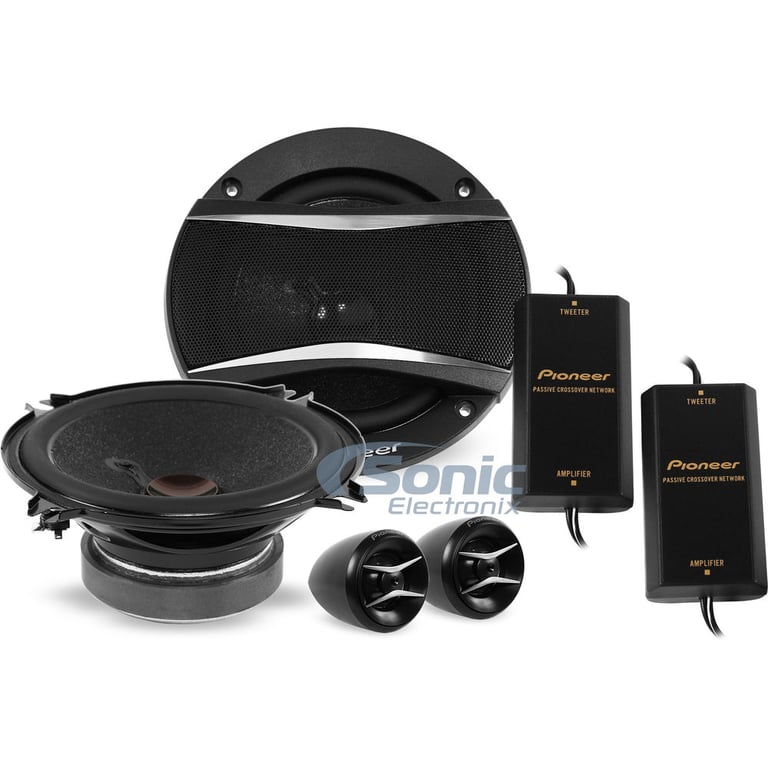

  • Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.



Product history:

Pioneer TS-A1306C thumbnail
(newest, current model)
Pioneer TS-A1305C thumbnail
(previous model, replaced by Pioneer TS-A1306C)
Pioneer TS-A1304C thumbnail
(previous model, replaced by Pioneer TS-A1305C)
Pioneer TS-A1302C thumbnail
(previous model, replaced by Pioneer TS-A1304C)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00


Best selling similar products

Reference 5030cx small

Infinity Reference 5030cx (REF5030CX)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(2)

$99.95

List price $249.95

REF507CF small

Infinity REF507CF (INFSPKRF507CFUS)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome Tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

$219.95

List price $249.95

DB5252 small

Polk Audio DB5252 (DB 5252)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" dual Silk Dome tweeters
• UV-Resistant Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(4)

$200.00

List price $209.99

Specifications & Details


Speaker Specifications
Priced Per
Component System
Number of Speakers
2 Speakers + 2 Tweeters
Speaker Size
5-1/4"
Design
2-way Component System
Tweeter Design
Soft Dome
Tweeter Composition
Tetron Net
Woofer Composition
Multilayer Mica Matrix
Woofer Surround
Elastic Polymer
Peak Power Handling
300 watts
RMS Power Handling
150 watts
Sensitivity
90 dB
Frequency Response
42 - 42000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-1/8"
Cutout Dimensions
4-3/4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-A1306C

Weight:

5.00lbs

Internal SKU:

tsa1306c

Internal Product ID:

106169

Customer Ratings & Reviews


Pioneer TS-A1306C thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.5
Design
5
Usability
4.5

Customer Reviews

Sort by:

Loading...

Good quality speaker system

Purchased these for a 94 Camry, should have purchased 6.5" instead of the 5.25", but made an adaptor ring out of thin hard board and worked fine. The tweeters need to be glued to the bracket as is OEM. They sound much more flat and smooth than OEM, you can turn them way up and they still sound good, running them with OEM premium stereo. Not sure why Pioneer decided to put the tweeter capacitor in a large box, takes up a lot of space. I did have the space but needed to wait for glue to dry to move on.

By Edgineer on December 4, 2017 Checkmark Icon Verified purchase

1 found this helpful


Pioneer component speakers

Great price for bang for the buck. Very crisp and clear midst and highs.

By Nash on December 31, 2016

1 found this helpful
