Pioneer TS-A1302C

5-1/4" 2-way A-Series Component Speakers System

Pioneer
Shop all Pioneer
highlight-star-icon

5.25" A-Series Component System • 180W Max • 35W RMS • Injection molded polypropylene cone with interlaced Aramid Fiber woofer • Butyl rubber surround • 7/8" Soft dome tweeter • Conex damper • 4 ohm impedance

Learn more about the tsa1302c

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsa1306c thumbnail

Pioneer TS-A1306C

OUR PRICE: $39.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


Pioneer brand icon

Authorized dealer

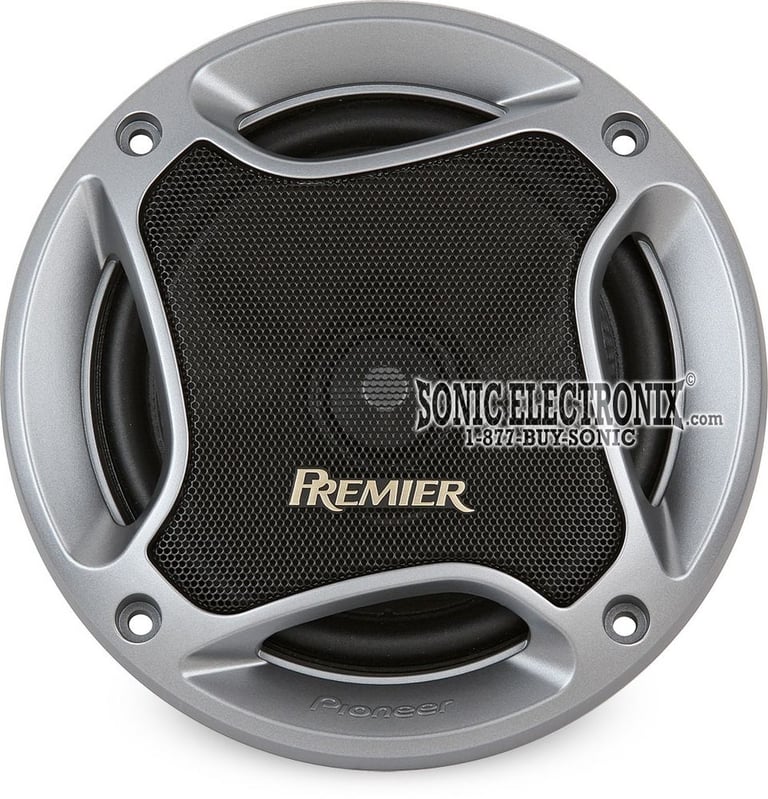

  • 5-1/4" A-Series Component System
  • Power Handling:
    • Peak: 360 watts per set / 180 watts each side
    • RMS: 70 watts per set / 35 watts each side

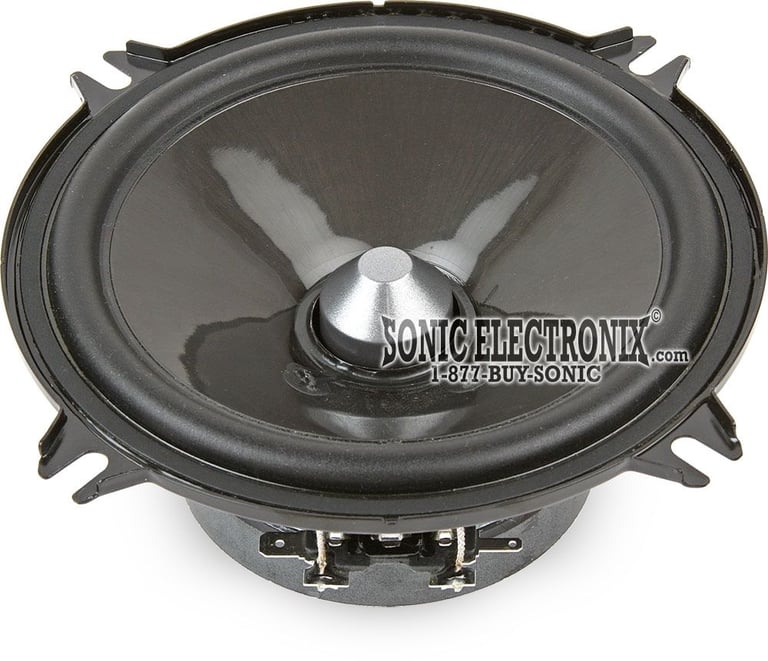

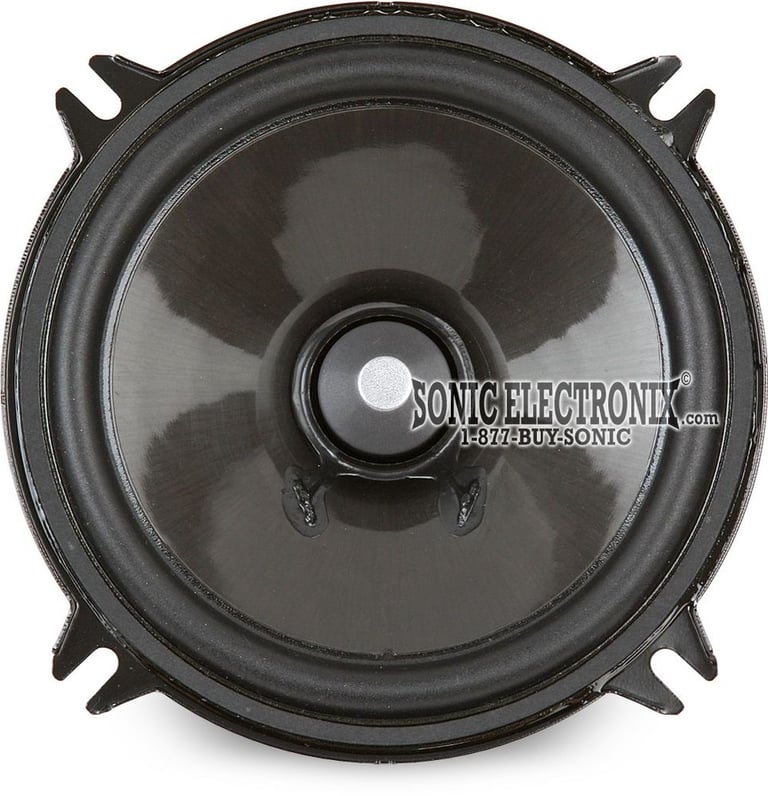

  • Injection molded polypropylene cone with interlaced Aramid Fiber woofer
  • Butyl rubber surround

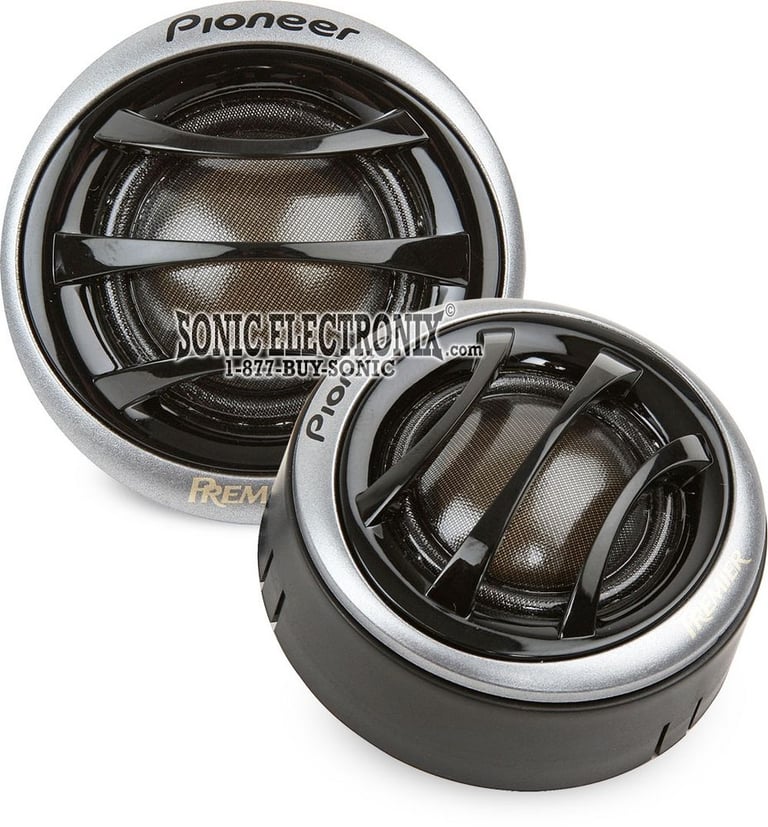

  • 7/8" Soft dome tweeter with magnetic fluid and neodymium magnet

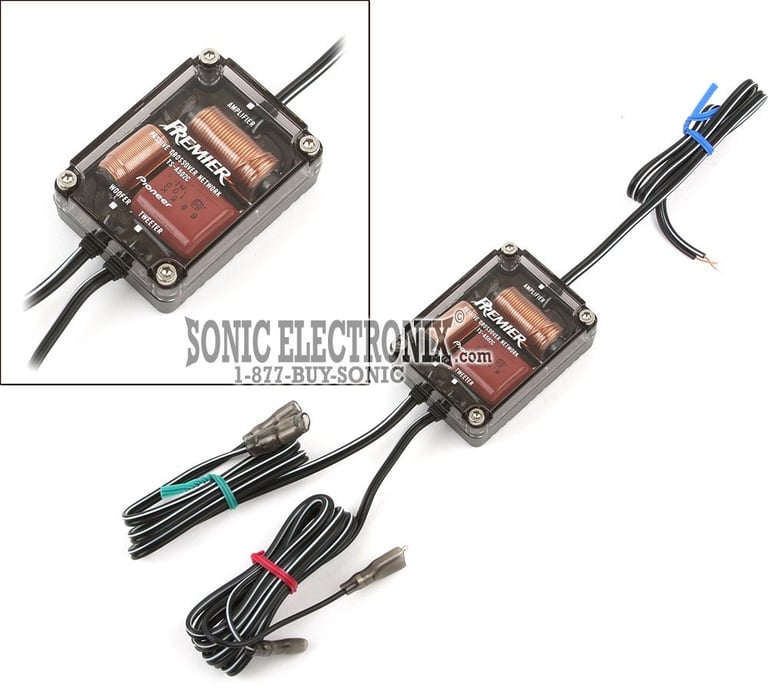

  • 2-Way external crossovers with low pass and high pass filter at 12 dB/octave

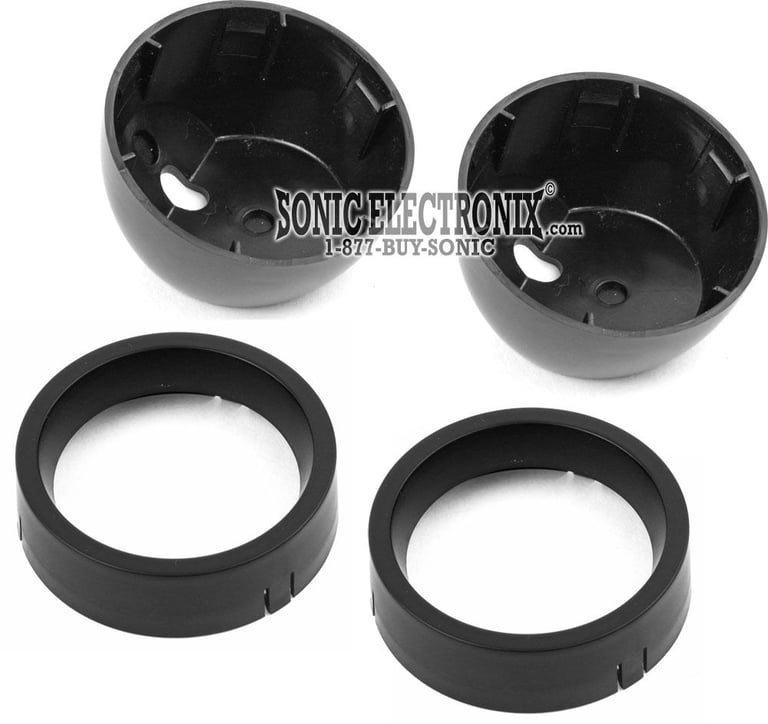

  • Surface, flush, or invisible tweeter mounting
  • Conex damper
  • Glass-Imide voice coil bobbin

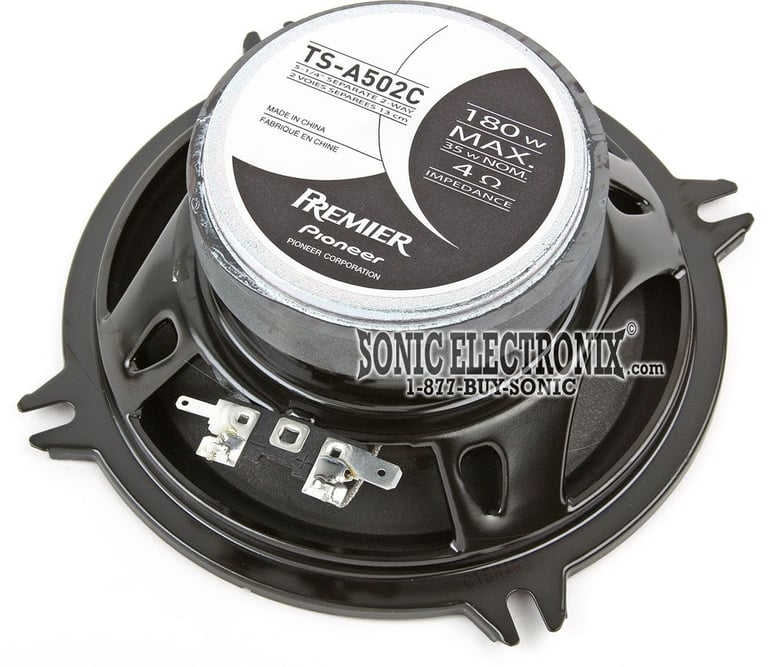

  • 4 ohm impedance
  • OFC Copper voice coil wire
  • Top-mount depth: 2-1/8"
  • 1-year SonicElectronix.com warranty

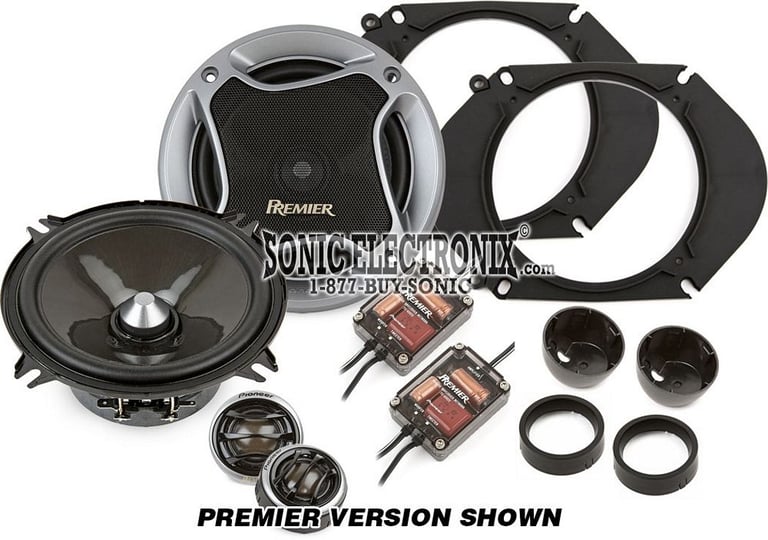

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.

Product history:

Pioneer TS-A1306C thumbnail
(newest, current model)
Pioneer TS-A1305C thumbnail
(previous model, replaced by Pioneer TS-A1306C)
Pioneer TS-A1304C thumbnail
(previous model, replaced by Pioneer TS-A1305C)
Pioneer TS-A1302C thumbnail
(previous model, replaced by Pioneer TS-A1304C)

Best selling similar products

Reference 5030cx small

Infinity Reference 5030cx (REF5030CX)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(2)

$99.95

List price $249.95

VSP525KIT small

NVX VSP525KIT

• 375 watts Peak Each, 125 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB
• Mounting Depth: 2.04"

(27)

$99.99

List price $119.99

REF507CF small

Infinity REF507CF (INFSPKRF507CFUS)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome Tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

$219.95

List price $249.95

Specifications & Details


Speaker Specifications
Speaker Size
5-1/4"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Composition
Teteron
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
180 watts
RMS Power Handling
35 watts
Sensitivity
90 dB
Frequency Response
36 - 30000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-1/8"
Cutout Dimensions
4-3/4" x 4-3/4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-A1302C

Weight:

5.00lbs

Internal SKU:

tsa1302c

Internal Product ID:

12227

Customer Ratings & Reviews


Pioneer TS-A1302C thumbnail image

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.5
Design
4.7
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great speakers

I bought these about six months ago and they are great. I am running them off my pioneer deck, no amp, and they are pretty clear. My friend with Amplified Rockford Fosgate components cant believe how clear mine sound. I plan to amplify them some day, but no rush, they do a great job of balancing out my system, with 2 12 inch pioneers in the back.

By Julian on June 29, 2010

10 found this helpful


good value, great speakers!

I did some research on many different component speaker systems before I purchased these Pioneers and found that these were just what I needed. They sound great and have plenty o' bass on the bottom. try'em, I think you'll like'em.

By Gorilla on July 28, 2009

8 found this helpful


cheap price with clear sound

great front components i run 45 watts rms and very happy

By roady on August 25, 2009

7 found this helpful


Great value

I have these in my car and I am very impressed with how good they sound. I run them straight off my deck, no factory or aftermarket amp, so they are seeing about 20 watts. I have the deck tuned so that pretty much no bass comes from the speakers, but I have cranked the bass a little with my subs off and these little suckers sound pretty damn good. Someday I plan on putting a pair in the rear of my car as well and then amplifying all of them.

I feel cheesy giving them all 5 stars but honestly, they deserve it.

By Julian on March 16, 2010

6 found this helpful


pioneer ts-a1302c

Great product replace my bose speakers in my Acura and they sound much better than them only thing u need a subwoofer to get the real beauty out of these beast

By jamrock on December 7, 2010

4 found this helpful


TSA are A+ for the cash

probably the best speakers you could ask for in that price range not enough bass but hey that's what subs are for the highs are superb

By Marty on May 3, 2010

5 found this helpful
