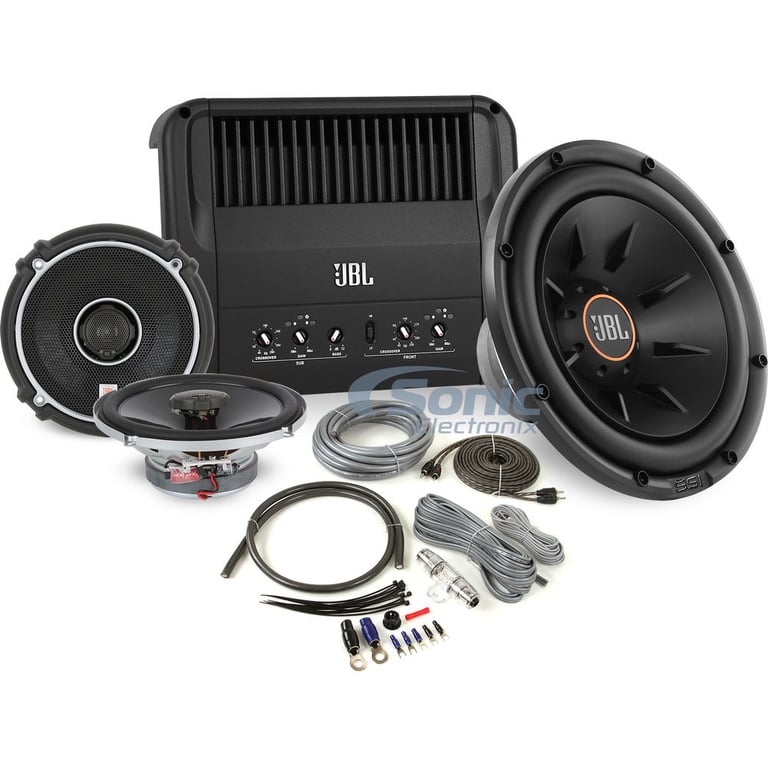

JBL Amplified 3-Channel Full Range Bundle

General Features:

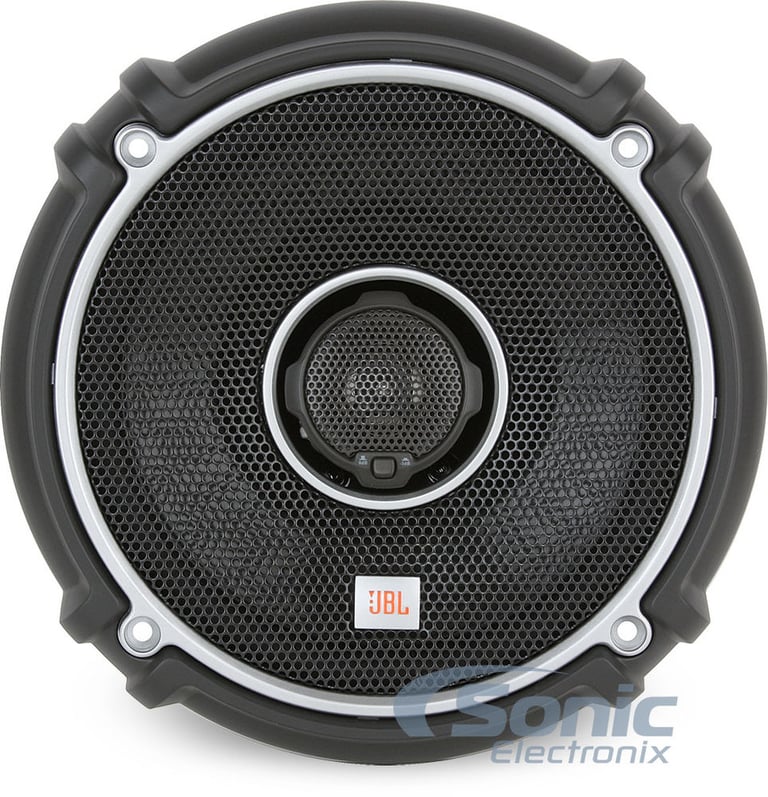

• 6-1/2" (also fits 6-3/4") Grand Touring Series 2-way Car Speakers
• Power Handling:
• Peak: 360 watts per pair / 180 watts each
• RMS: 120 watts per pair / 60 watts each
• Recommended Power Range: 10 - 75 watts RMS per channel
• Low-Q woofer design
• Patented Plus One® polypropylene cone material
• 1" High-bandwidth, edge-driven Mylar-titanium dome tweeter
• UniPivot™ rotating tweeter, rotates nearly 360 degrees
• 0 / +3dB level adjustment
• On-board crossover network

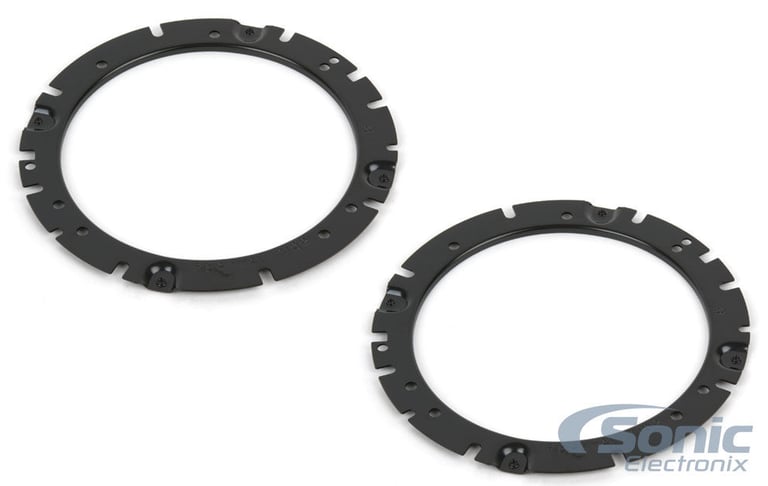

• Intermount III (patent no. 6,505,705) mounting system included
• Frequency response: 50 - 21,000 Hz
• 2 ohm impedance
• Sensitivity: 92 dB
• Top-mount depth: 2-1/16"
• Tweeter height: 13/16"
• Cutout dimensions: 5-1/4"
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Priced Per Pair

General Features:

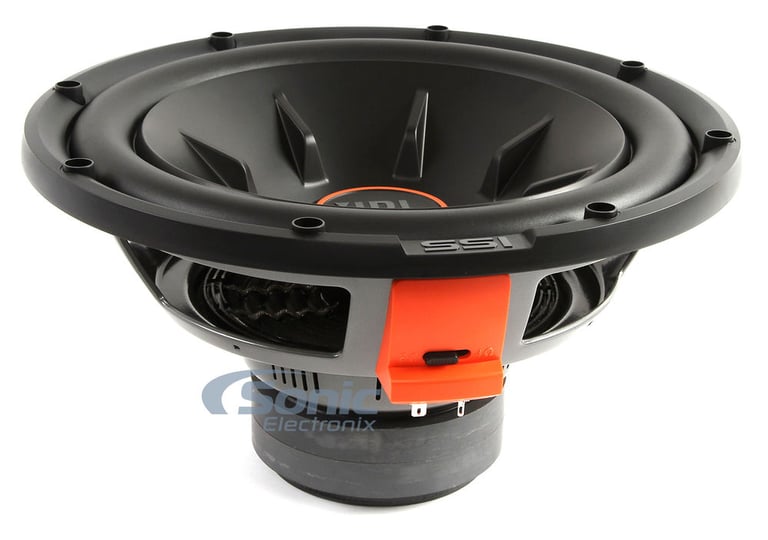

• 12" Series II Car Audio Subwoofer
• Power Handling:
• Peak: 1100 watts
• RMS: 275 watts
• Recommended power range: 150 - 350 watts RMS
• Nominal Impedance: Single 2 or 4 ohm
• Polypropylene Cone
• Nitrile Butadiene Rubber (NBR) Surround
• SSI™ (Selectable Smart Impedance)
• Oversized 2.0" Voice Coil
• Spade Quck-connect Terminals
• Stamped Steel Basket Frame
• Top-mount depth: 6-1/2"
• Cutout diameter: 11-1/4"
• Frequency Response: 25 ~ 175 Hz
• Xmax: 10.25 mm
• Sensitivity: 93 dB
• Sealed Enclosure Recommendation: 0.75ft³
• Ported Enclosure Recommendation: 2.50ft³
• *Infinite-baffle Mountable
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Priced Individually

*Infinite-baffle mounting is possible, but the subwoofer's mechanical power handling will be reduced because there will be no volume of air to stiffen the subwoofer's suspension and prevent overexcursion. If you choose infinite-baffle mounting, consider the RMS and peak power-handling ratings to be half of what is listed.

General Features:

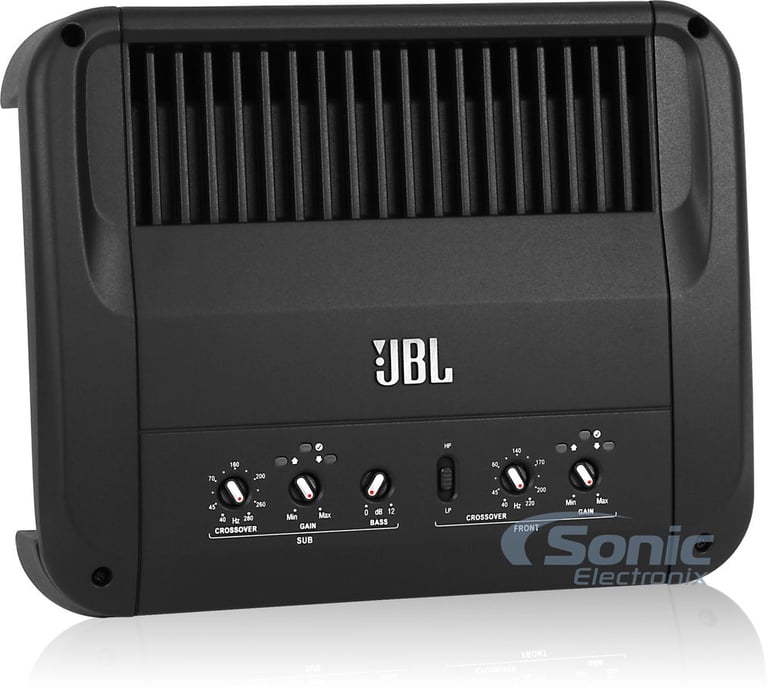

• 3-Channel GTO Series Class AB/D Car Amplifier
• Max Power Ratings: @15.5V, 10% THD
• 2 ohm: 160 watts x 2 chan. (1kHz) + 1050 watts x 1 chan. (50Hz)
• RMS Power Ratings: @14.4V, <1.0%
• 4 ohm: 50 watts x 2 chan. + 350 watts x 1 chan.
• 2 ohm: 75 watts x 2 chan. + 500 watts x 1 chan.
• Bridged, 4 ohm: 150 watts x 1 chan.
• Total max power output: 1370 watts
• CEA-2006 Compliant Amplifier
• Pulse Width Modulated MOSFET power supply
• Wired remote bass level control available, sold separately (Browse Bundled Savings Options)
• LED power (orange) and protect (red) indicators
• Built-in Gain Indicator LEDs with Setup CD
• Removable endcaps for clean, discreet look
• Soft start turn-on
• Nickle-plated RCA, Speaker and Power/Ground connectors

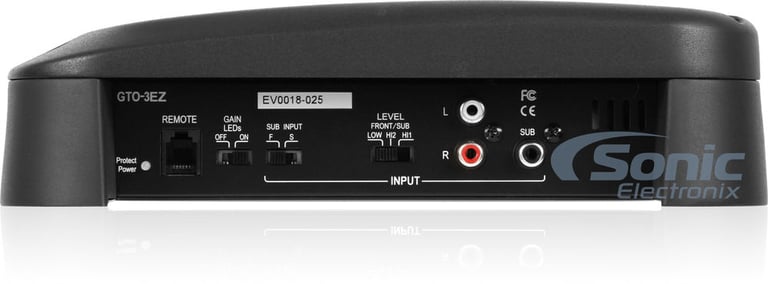

• Auto turn-on via an audio signal at any input connector (switch under chassis)
• Speaker-level (high-level) inputs, with supplied bare wire-to-RCA adapters
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Input sensitivity:
• Low level: 125mV - 5V
• High level: 300mV - 15V
• Frequency Response: 10 - 23,000 Hz
• Signal to Noise Ration: >85 dB

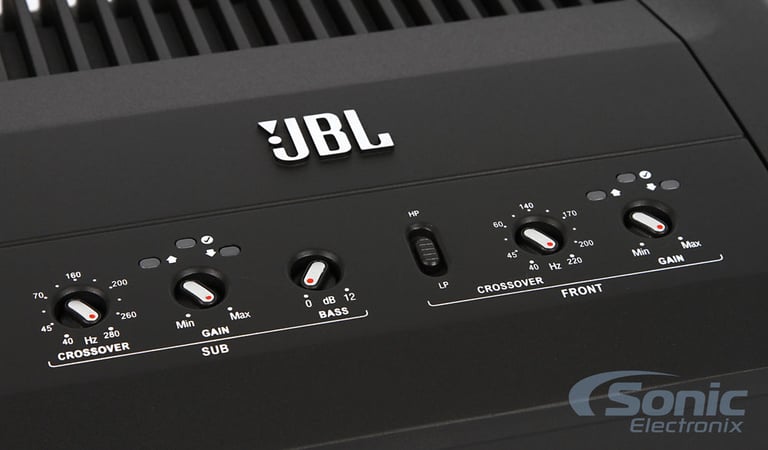

• Selectable crossover modes (front only): HP / LP
• Variable high/low-pass filter (front): 40 - 220 Hz
• Variable low-pass filter (sub): 40 - 280 Hz
• Variable Bass Boost (sub): 0 to +12 dB bass boost at 45 Hz

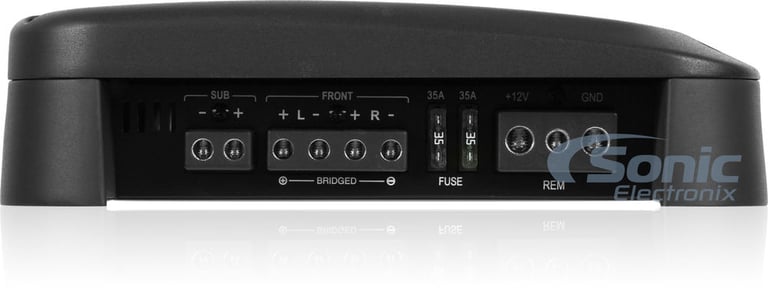

• Fuse Rating: 35A x 2
• 4 - 8 gauge power and ground wiring is recommended for installation.
• Dimensions: 9-11/16"W x 11-15/16"L x 2-9/16"H
• Authorized Internet Dealer
• 2 Year Manufacturer's Warranty

General Features:

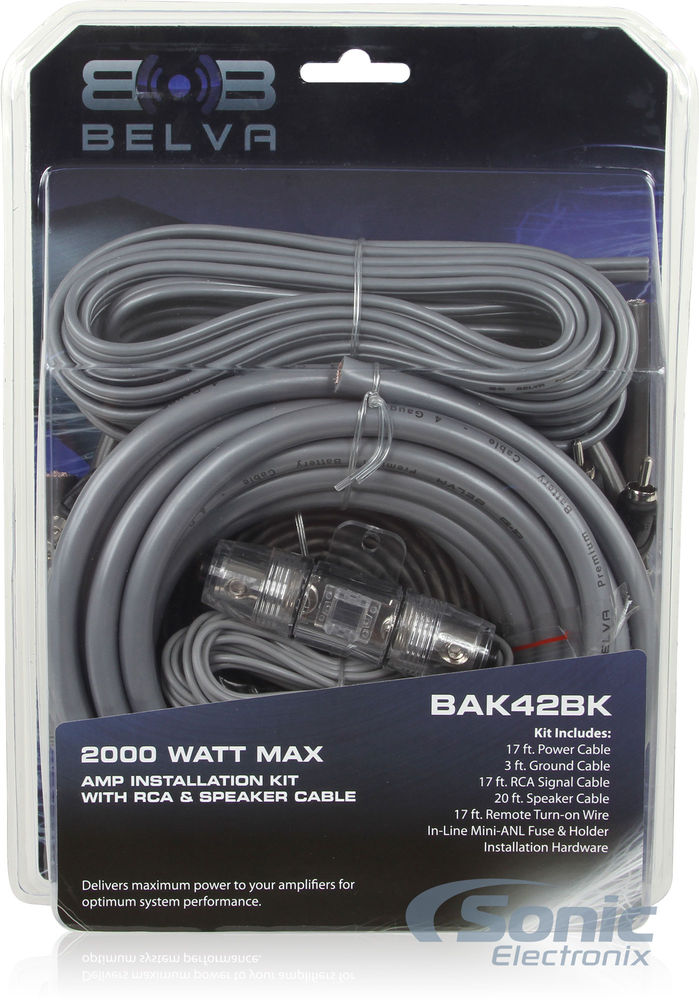

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. (5.2 meters) Black 4 gauge power wire
2. 3 ft. (.91 meters) Silver 4 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
5. 20 ft. (6.1 meters) Speaker cable
6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. One 4 Gauge Blue chrome plated ring terminals
9. One 4 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Blue Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
