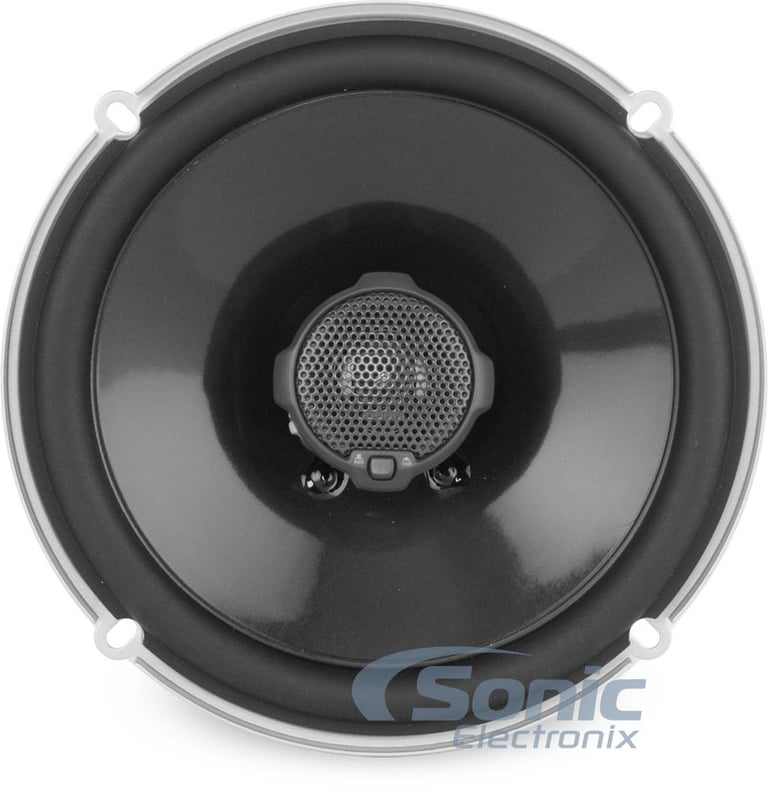

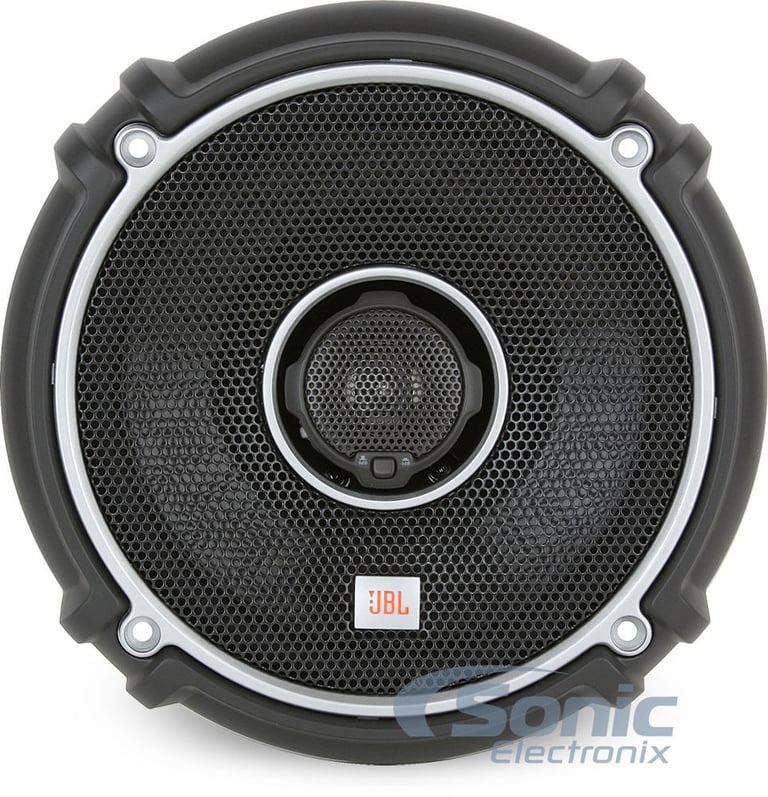

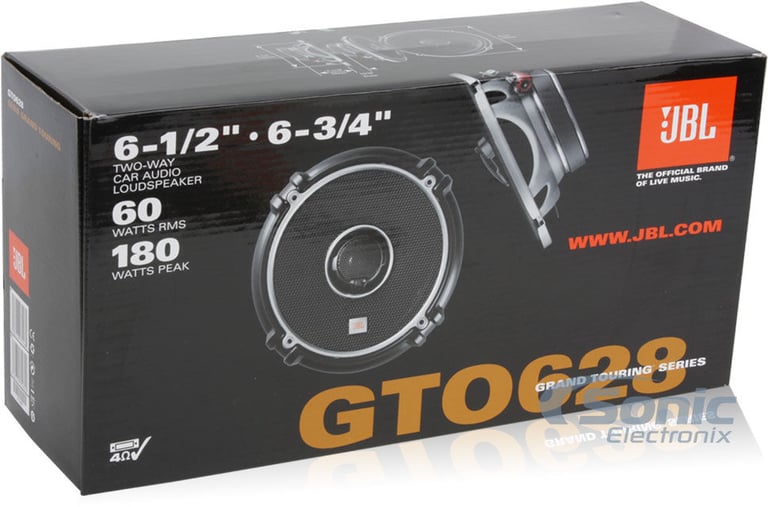

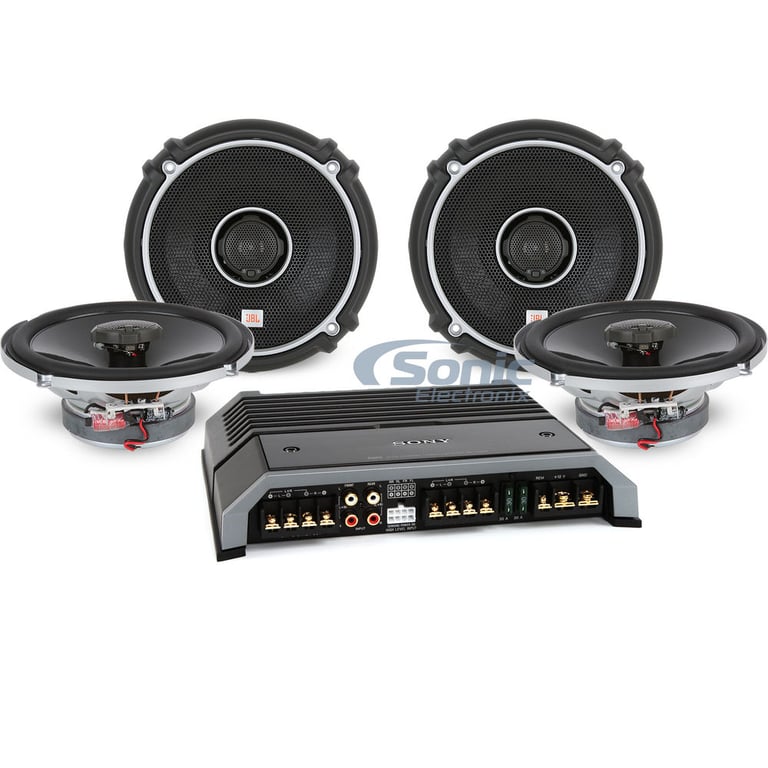

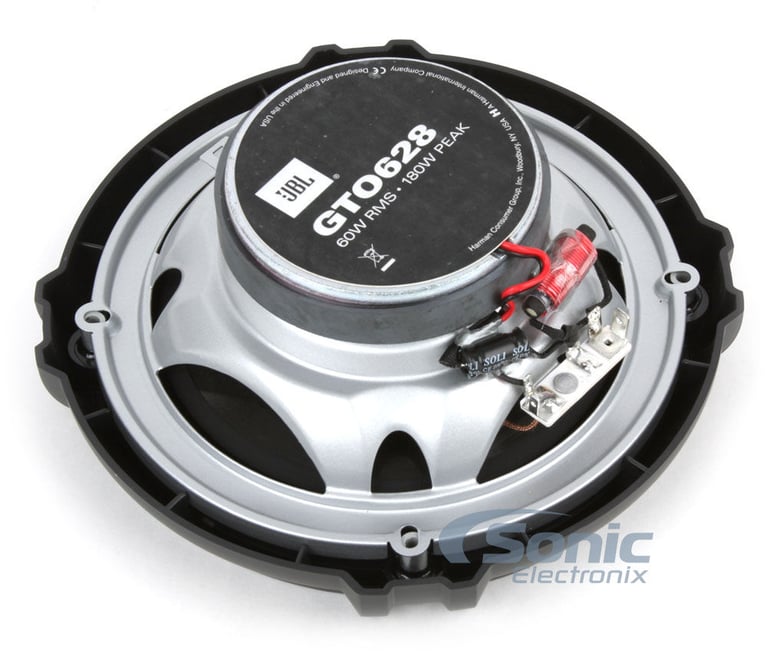

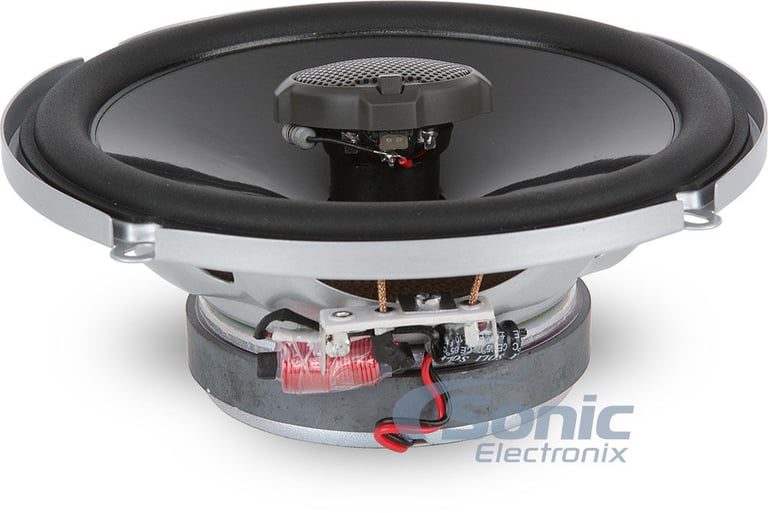

JBL GTO628
360W Max 6-1/2" / 6-3/4" 2-Way Grand Touring (GTO) Series Coaxial Speakers with 1" My-Ti Tweeters, Plus One Woofer Cone & 2-ohm Impedance
Quantity: 2 (Two Pairs, Four Speakers Total)
General Features:
- 6-1/2" (also fits 6-3/4") Grand Touring Series 2-way Car Speakers
- Power Handling:
- Peak: 720 watts per set / 180 watts each
- RMS: 240 watts per set / 60 watts each
- Recommended Power Range: 10 - 75 watts RMS per channel
- Low-Q woofer design
- Patented Plus One® polypropylene cone material
- 1" High-bandwidth, edge-driven Mylar-titanium dome tweeter
- UniPivot™ rotating tweeter, rotates nearly 360 degrees
- 0 / +3dB level adjustment
- On-board crossover network

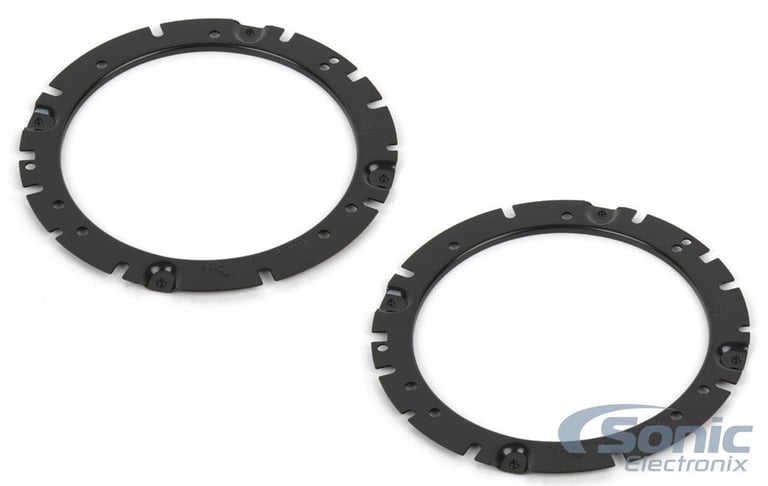

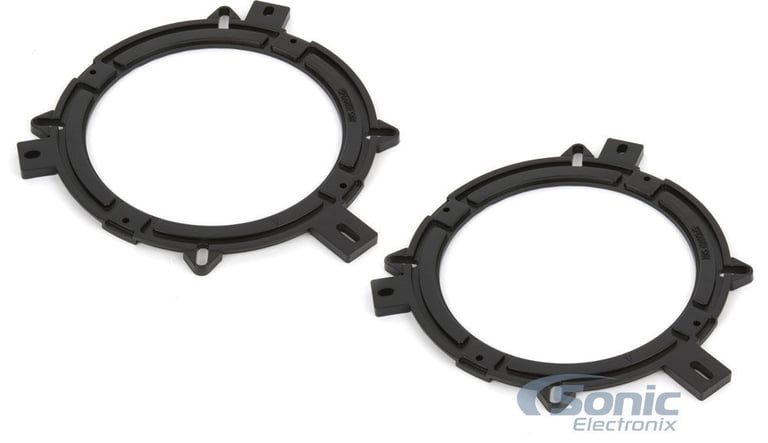

- Intermount III (patent no. 6,505,705) mounting system included
- Frequency response: 50 - 21,000 Hz
- 2 ohm impedance
- Sensitivity: 92 dB
- Top-mount depth: 2-1/16"
- Tweeter height: 13/16"
- Cutout dimensions: 5-1/4"
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Priced Per Set of Four Speakers

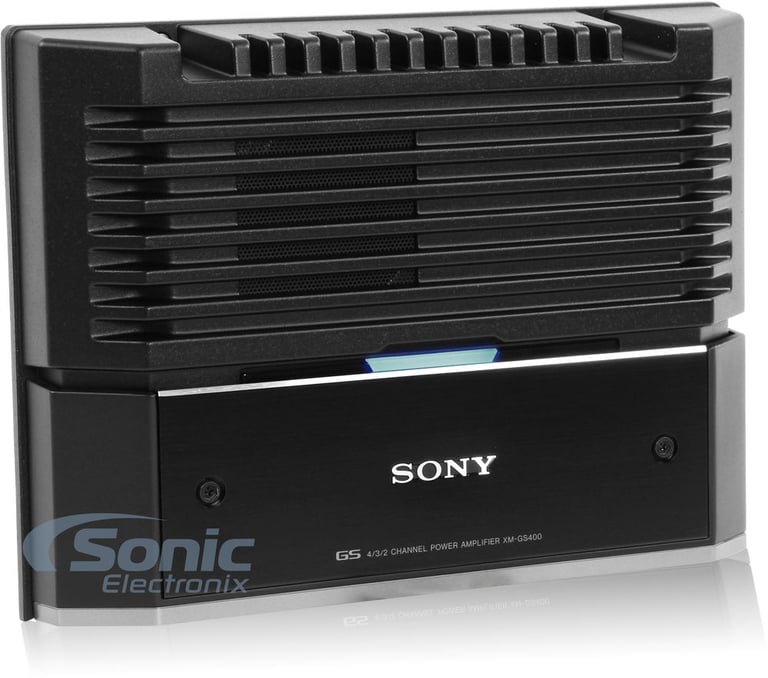

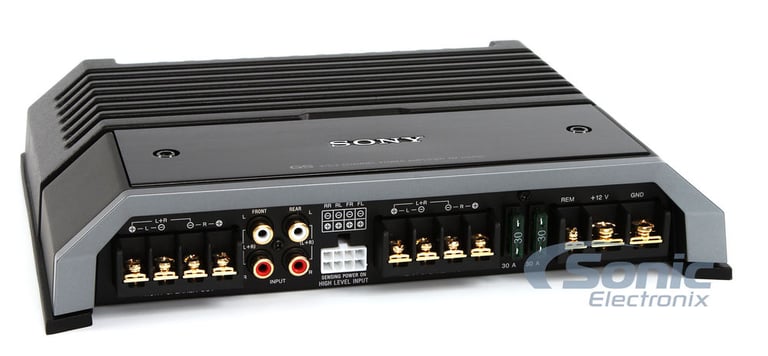

Sony XM-GS400
700W Max Compact 4 Channel GS Series Amplifier with High Level Inputs, Crossover Filters and a 3-year warranty!
Quantity: 1
 |
 |
General Features:
- 4-Channel GS Series Compact Car Amplifier
- Max Power Rating:
- 4 ohm: 150 watts x 4 chan.
- 2 ohm: 175 watts x 4 chan.
- Bridged, 4 ohm: 350 watts x 2 chan.
- RMS Power Rating @ 14.4V:
- 4 ohm: 70 watts x 4 chan.
- 2 ohm: 80 watts x 4 chan.
- Bridged, 4 ohm: 160 watts x 2 chan.
- Total power output: 320 watts RMS / 700 watts MAX
- CEA-2006 Compliant Amplifier
- Pulse Width Modulated MOSFET power supply

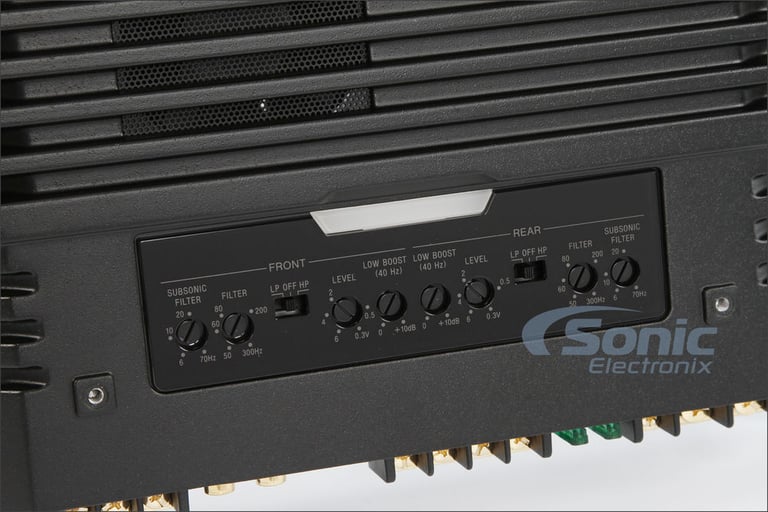

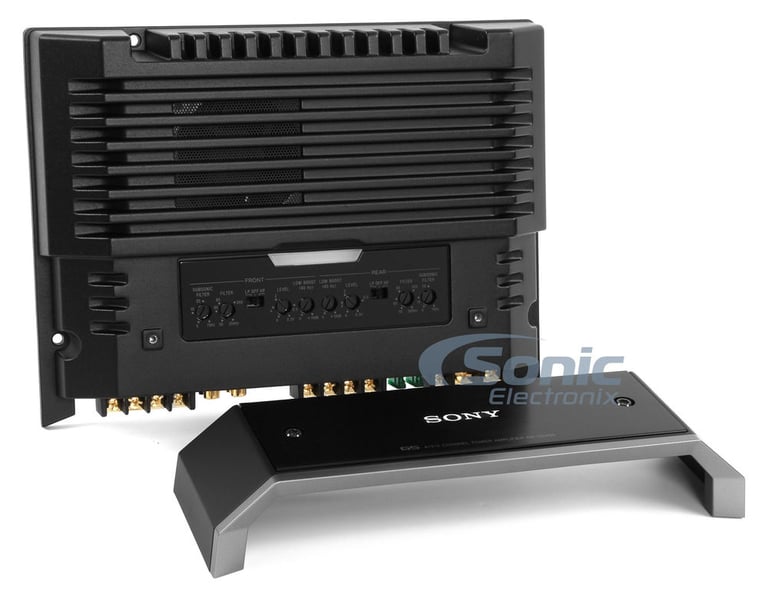

- Removable top panel conceals complete crossover & level controls
- Compact aluminum alloy chassis
- LED power (blue) and protect (red) indicators
- Soft start turn-on
- 4, 3 or 2 channel stereo operation

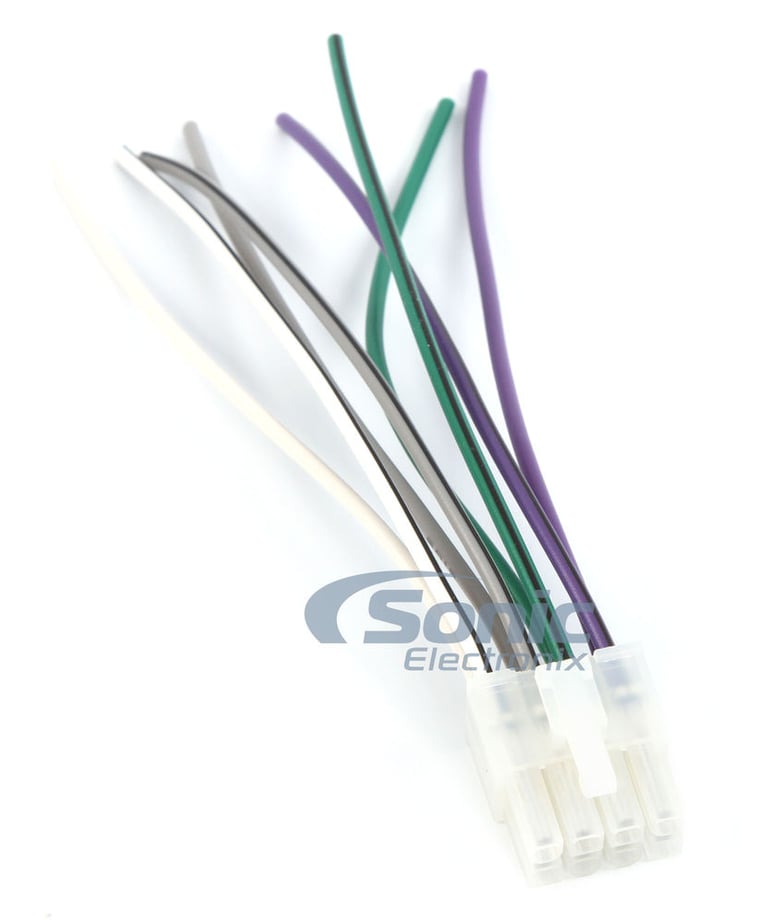

- Speaker-level (high-level) inputs with Auto Turn-on for OEM Integration
- Gold-plated RCA level inputs
- Gold-plated screw terminals
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- Input sensitivity:
- Low level: 300mV - 6V
- High level: 1.2V - 12V
- Frequency Response: 10 - 100,000 Hz (+0/-3 dB)
- Total Harmonic Distortion (THD): 0.05% (1kHz @4 ohm)
- Signal to Noise Ration: 93 dBA
- Selectable crossover modes: LP / OFF / HP
- Variable high-pass filter: 50 - 300 Hz, 12 dB/octave
- Variable low-pass filter: 50 - 300 Hz, 12 dB/octave
- Subsonic filter: 6 - 7 Hz , 12 dB/octave
- Variable Low/Bass Boost: 0 to +10 dB bass boost at 40 Hz
- Fuse Rating: 30A x 2
- 4 - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
- Dimensions: 10-3/4"W x 8"D x 2-1/8"H
- Authorized Internet Dealer
- 3 Year Manufacturer's Warranty
Check out the Sony XM-GS400 Owner's Manual
