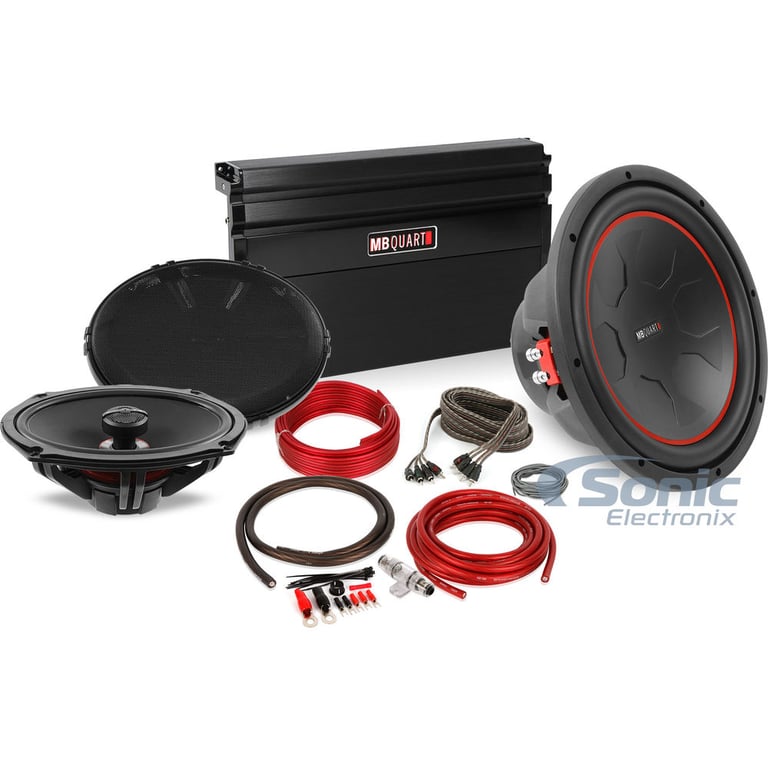

MB Quart 3-Channel Bundle w/ Two 6x9" Speakers, 12" Subwoofer & Amplifier

General Features:

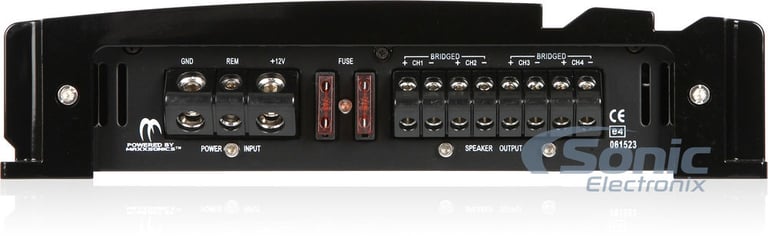

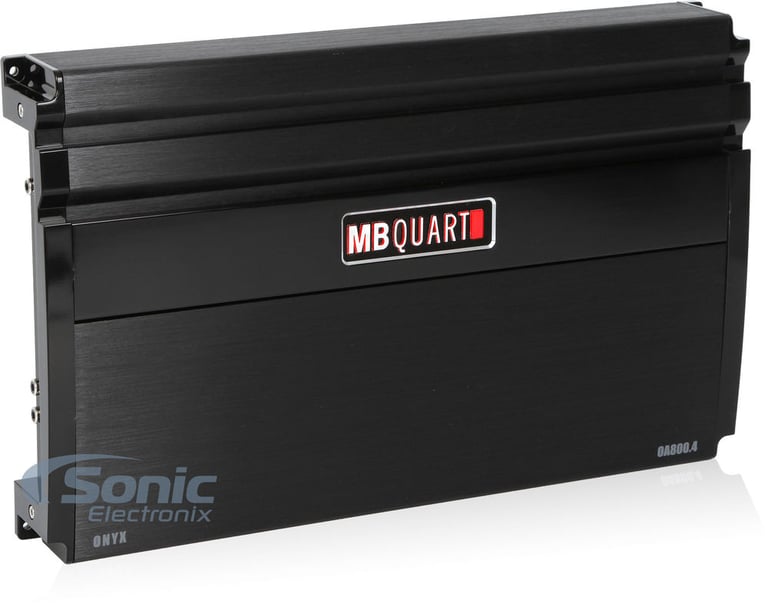

• Onyx Series 4-Channel Class SQ Car Amplifier
• RMS Power Rating:
• 4 ohm: 100 watts x 4 chan.
• 2 ohm: 200 watts x 4 chan.
• Bridged, 4 ohm: 400 watts x 2 chan.
• FLUID-FETS MOSFET Circuit maximizes power efficiency while improving sound quality

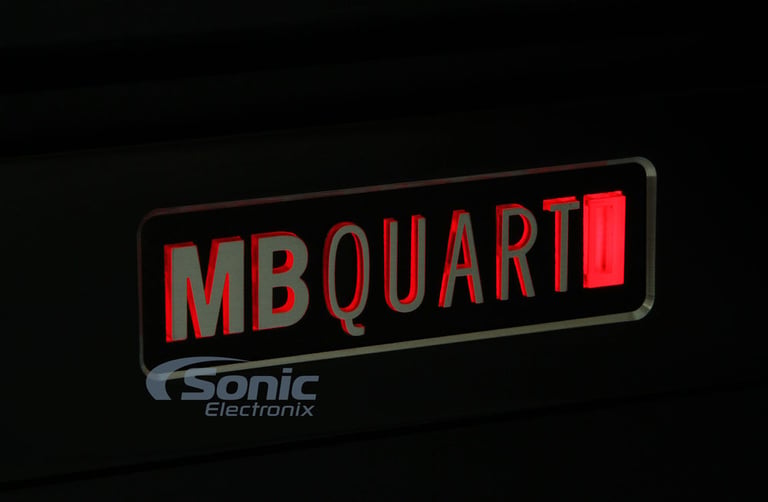

• Heavy duty aluminum alloy heat-sink with illuminated MB Quart logo
• LED power (green) and protect (red) indicators
• Unbalanced RCA jack inputs
• Built-in system diagnostics
• 2-Ohm Stable operation, bridgeable to 4-ohm
• 16 AWG speaker output connections
• Full-range Preamp RCA outputs to daisy chain multiple amps
  Full-range only if a full range signal is connected to input
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Selectable input modes: 4ch / 2ch , allows for one set of inputs to be used
• Input sensitivity: 200mV - 6V
• Selectable crossover modes: LP / HP / FULL
• Variable high-pass filter: 10 - 1,200 Hz
• Variable low-pass filter (Ch 3 & 4 only): 30 - 150 Hz
• Variable Bass Boost (Bass EQ, Ch 3 & 4 only): 0 - +9 dB at 45Hz
• Frequency response: 10 - 45,000 Hz
• Damping factor: >180
• Signal-to-noise Ratio: >92dB
• Total harmonic distortion: 0.05%
• Channel separation: >80dB
• Recommended Fuse Rating: 40A x 2
• Dimensions: 14.17"L x 9.45"W x 2.23"H
• 4 gauge power and ground wiring is recommended for installation
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

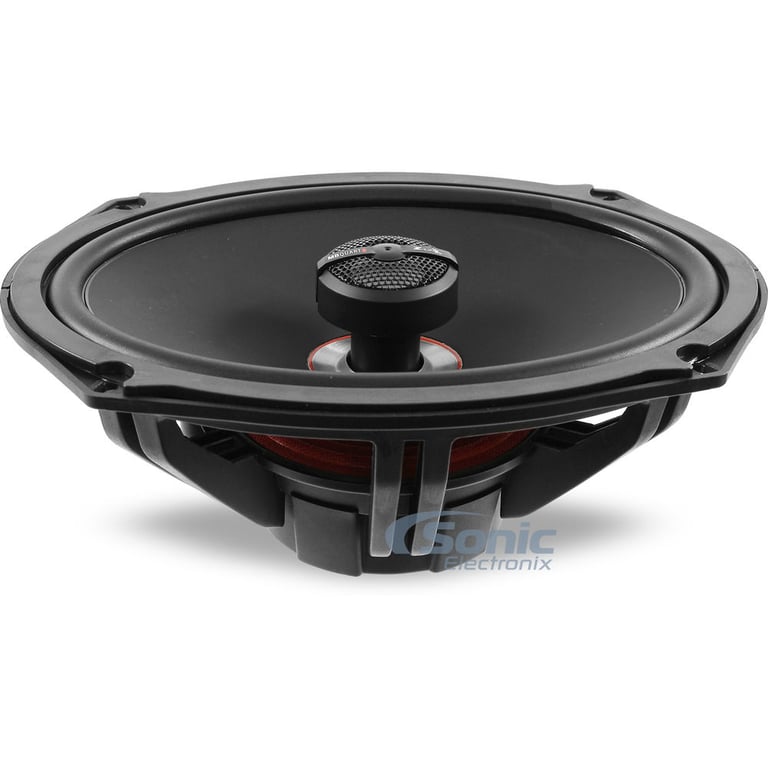

• 6 x 9" Z-Line Series 2-Way Car Speakers
• Power Handling:
• Peak: 280 watts per pair / 140 watts each
• RMS: 140 watts per pair / 70 watts each
• Mica-filled PP cone mated to UV butyl surround
• Composite basket w/original German-spec material
• 1" (30mm) ceramic coated titanium dome tweeter
• Military grade “A” titanium Dome
• Nano ceramic coating for extended range
• High heat tolerance handles more power
• Greatest weight to strength ratio of any metal
• Smooth response within the audible range
• Tweeter features nylon surround for lower fs
• 12bd/octave crossovers used throughout line
• Removable phase lens allows the tweeter to be tuned for the application
• 4 ohm impedance
• Frequency Response: 20-20,000 Hz
• Sensitivity: 89dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Priced Per Pair

General Features:

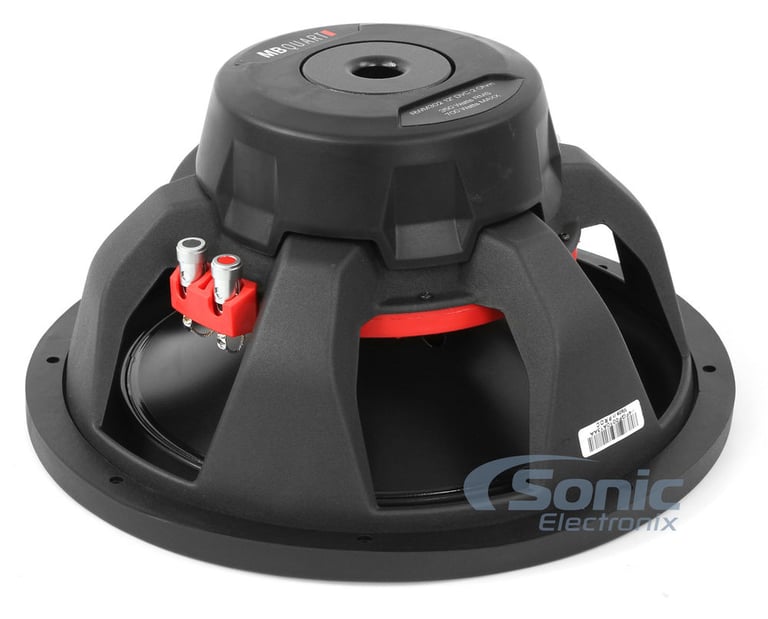

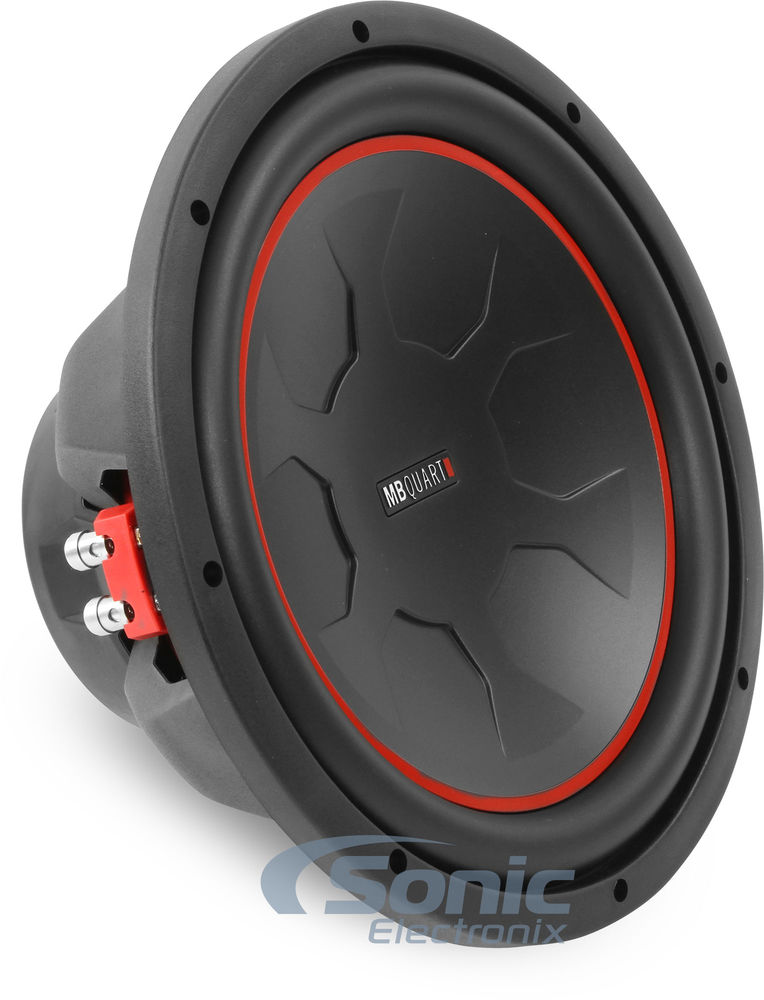

• 12" Dual 2 Ohm Reference Series Subwoofer
• Power Handling:
• Peak: 700 watts
• RMS: 350 watts
• Thermal formed polypropylene cone
• Heavy duty deep drawn stamped steel basket
• Dual Mirror Image spider design for extreme linear excursion
• Heat-dispersing vented pole plate
• UV resistant butyl rubber surround
• Push and insert style speaker terminals
• 2" dual 2 ohm voice coil on a vented aluminum former to dissipate maximum heat
• Anti-resonant magnet cover
• Resonance Frequency (Fs): 30-250 Hz
• Top-mount depth: 5-1/2"
• Sensitivity: 84.5 dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

• Complete 4 Gauge 4-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
• Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

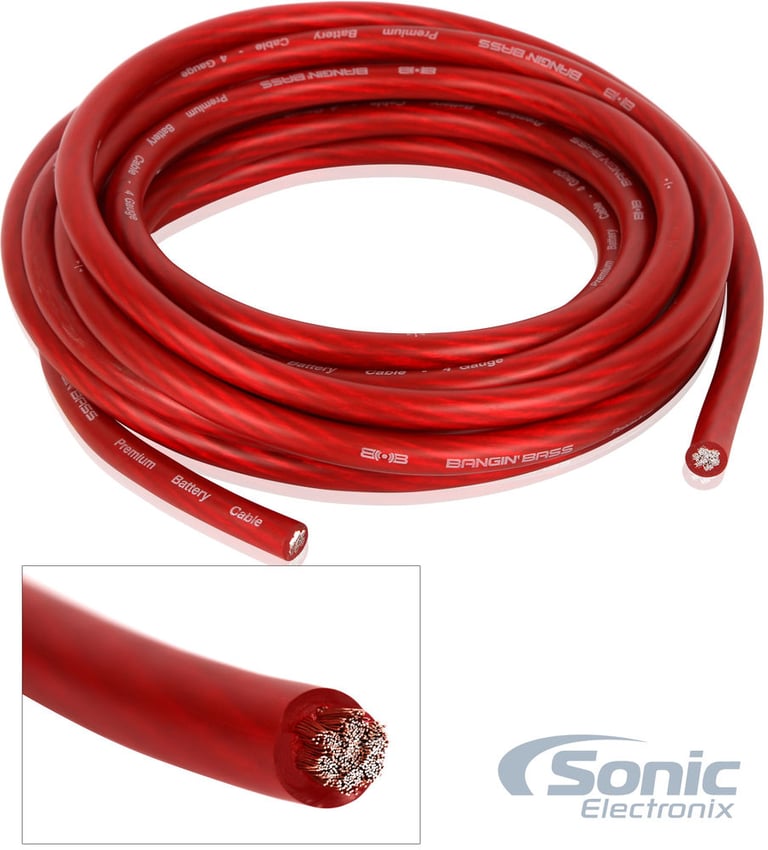

1. 17 ft. (5.2 meters) Red 4 gauge power wire

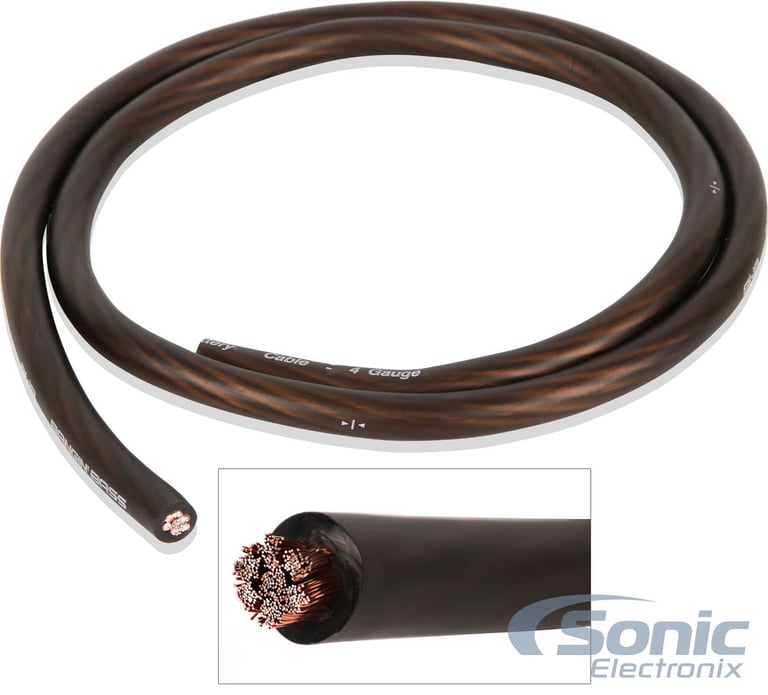

2. 3 ft. (.91 meters) Black 4 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
4. 17 ft. (5.2 meters) Helical Twist 4-channel RCA interconnect cable

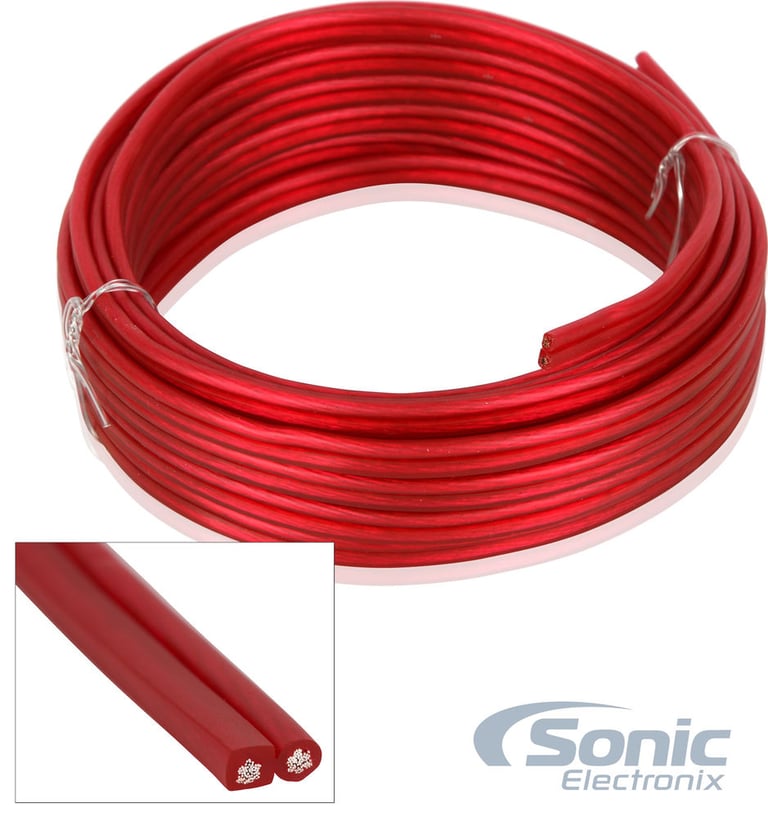

5. 65 ft. of Speaker Wire

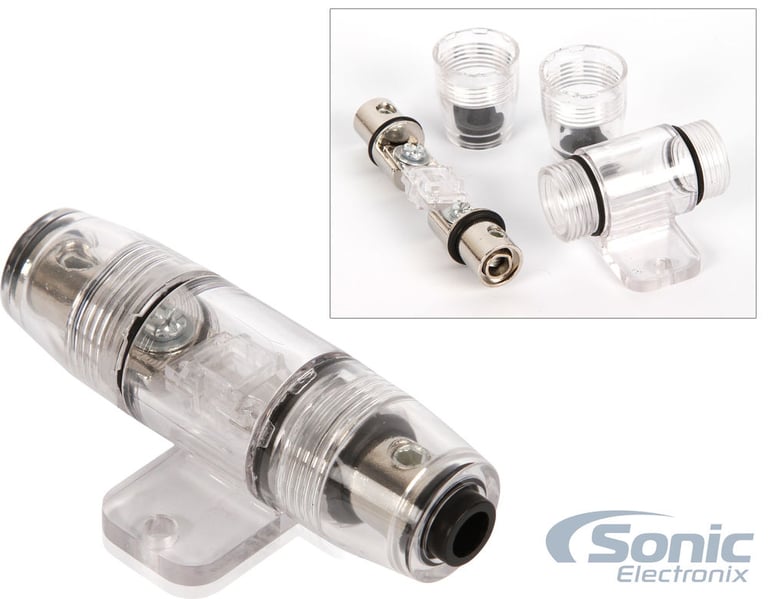

6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. One 4 Gauge red chrome plated ring terminals
9. One 4 Gauge black chrome plated ring terminal
10. Three 18 Gauge red Spade terminal
11. Two 18 Gauge black Spade terminal
12. One 18 Gauge red butt connector
13. Ten 4" Black zip ties
