Conaxsat (CNX) CNX-MINI

The Conaxsat CNX MINI has the same hardware as the CNX Duo except no PVR function. It works faster because the software does not include the PVR functionality.

General Features:

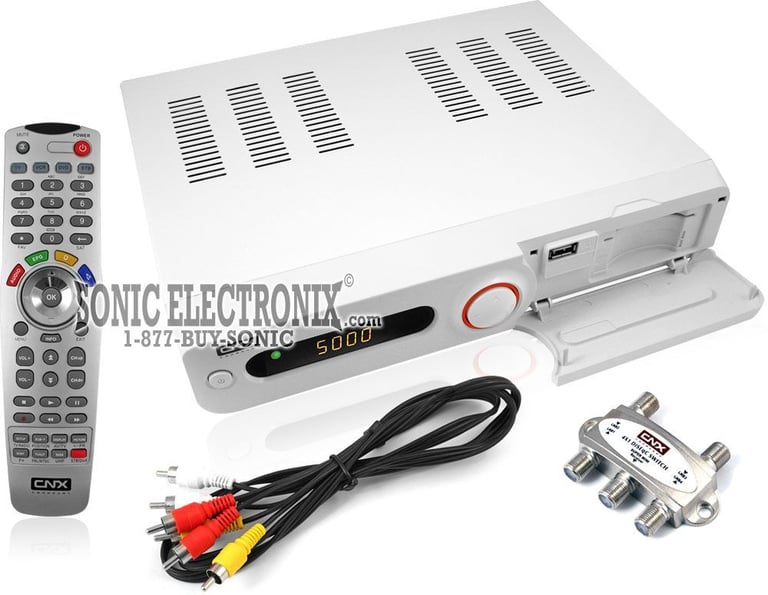

• FTA Satellite Receiver with Remote
• Upgrade Software & Update Channel Database through USB Port and RS232
• MPEG-II Digital & Fully DVB Compliant.
• C/KU band control for each antenna
• LNB Tone Switch 22KHz mode on/off

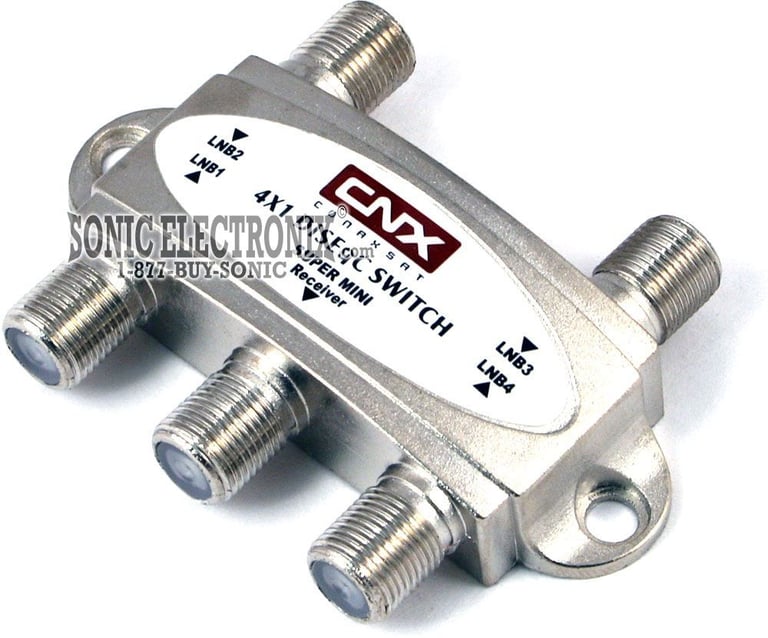

• Multi-LNB controlled by DiSeqC =>DiSEqC 1.0, 1.2 and USALS
• Total 5,000 Channels Programmable
• Blind Scan
• Picture In Graphic (PIG)
• Electronic Program Guide (EPG) for On Screen Channel Information
• Multi-language supported for Menu and OSD
• Zoom Function by 2x..4x
• Parental Lock
• Closed Caption Support

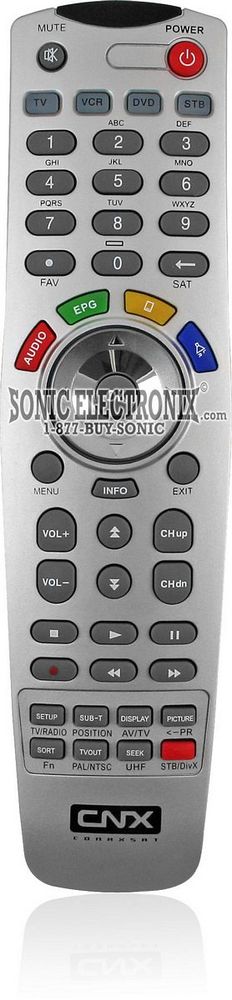

• Universal Remote Control
• Dolby Digital Bitstream Out through S/PDIF

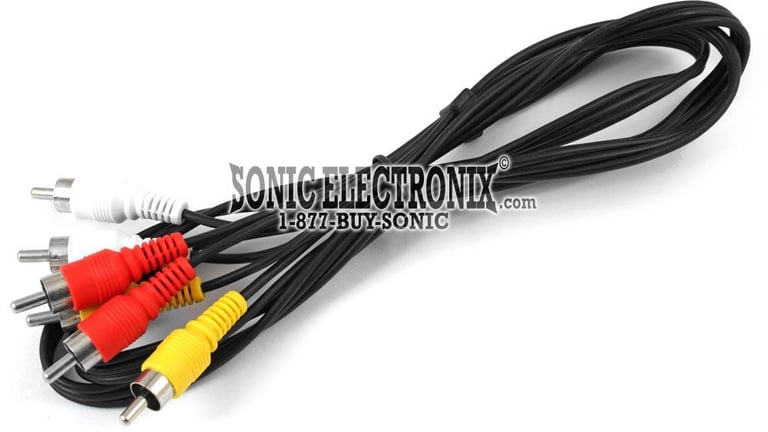

• CVBS Video & Audio Output via RCA
• Component Y/Pb/Pr Output via RCA
• S-Video Output
• MP3/JPEG File Play via USB Port

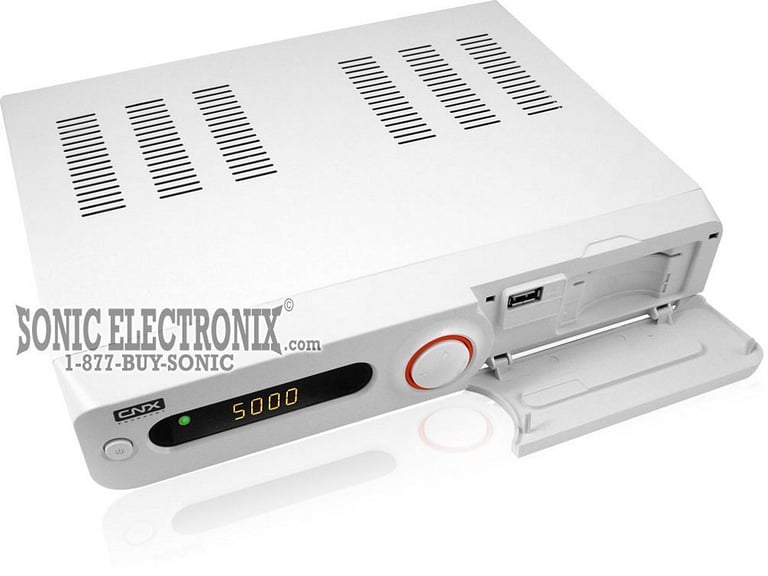

• 7-Segment(4-digit) Type of Front Panel Display
• 1-year SonicElectronix.com warranty

Specifications:

• SMART CARD(Optional) 1 Slot
• ISO 7816, GSM11.11 and EMV (payment systems) compatibility
• Type 1 × F Type, IEC169-24, Female
• Frequency Rage 950MHz to 2150MHz
• RF Impedance 75 Ohm unbanlanced
• Signal Level -65 to -25 dBm
• LNB Power 13.5/18.5Vdc +/- 5%, 0.5Amax, Overload Protected
• 22KHz Tone Frequency : 22KHz +/- 2KHz, 0.6Vpp +/- 0.2V
• DiSEqC Control Version1.0, 1.2, Tone burst A/B
• Demodulation QPSK
• Input Symbol Rate 2~45 Ms/s, SCPC/MCPC
• FEC Decoder Convolution Code Rate 1/2, 2/3, 3/4, 5/6 and 7/8 With
• Constraint Length K = 7
• Main Processor 32-bit ARM946 RISC Processor
• Flash Memory 4 Mbytes
• System Memory 32 Mbytes
• Channel Capacity Digital Channel: 5,000
• Front 7-segment Display (4 digit)

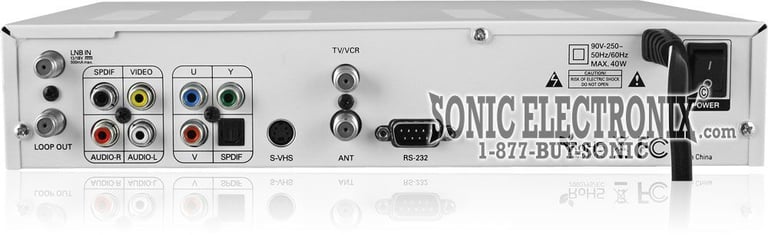

• RCA Output CVBS, L, R Output(Yellow, White, Red Jack) with volume control
• Component Video(YPbPr) Out
• S-VHS Output 4 Pin Mini
• SPDIF Dolby Digital Bitstream Out(Coaxal, Optical)
• Data Interface - RS-232, Bit Rate: 115,200baud
• Connector: 9-pin D-sub Male type
• USB : Type A Connector

Decoding Features:

• Transport Stream MPEG-2 ISO/IEC 13818 Transport Stream Specification
• Profile Level MPEG-2 MP@ML
• Input Rate Max. 90Mbit/s
• Aspect Ratio 4:3, 16:9, Letter Box
• Frame Rate 25Hz for PAL, 30Hz for NTSC
• Video Resolution 720x576(PAL), 720x480(NTSC)
• Teletext Through VBI
• Audio Decoding MPEG/MusiCam Layer I & II
• Audio Mode Single Channel/Dual Channel Joint Stereo/Stereo
• Frequency Response 20~20kHz, <+/-2dB
• 60Hz ~ 18kHz <+/- 0.5dB
• Sampling Rate 32, 44.1, 48KHz

** NOTE ** THIS RECEIVER IS MADE FOR FREE TO AIR USE ONLY AND IS WARRANTED ONLY AGAINST MANUFACTURER DEFECTS FOR SUCH USE. ANY "HACKING" OR "MODIFYING" TO ANY FTA RECEIVER THAT WE SELL WILL VOID THE SonicElectronix.com warranty ASSOCIATED WITH THE UNIT. ANY UNIT ATTEMPTED TO BE RETURNED THAT HAS THIRD PARTY SOFTWARE "LOADED" TO IT SUCH AS "BIN" FILES OR "HEX KEYS" WILL NOT BE ACCEPTED. ANY UNIT MODIFIED IN ANY WAY, SHAPE OR FORM AUTOMATICALLY VOIDS YOUR WARRANTY. WE DO NOT SUPPORT PIRACY AND WE DO NOT WARRANTY YOUR ATTEMPTS TO CIRCUMVENT ANY SATELLITE SIGNALS THAT ARE NOT PUBLIC (FREE TO AIR 'FTA') SIGNALS.

Free To Air (FTA) satellite are satellites that carry digital channels that are not encrypted by their service providers and require no subscription or monthly payment. They are provided free of charge by the provider and are perfectly legal to receive with an FTA receiver. There are Thousands of FTA channels available for free, in almost every language and venue type. Most notably in North America, all the major networks, and local channels as well as countless premium and High Definition digital signals.
