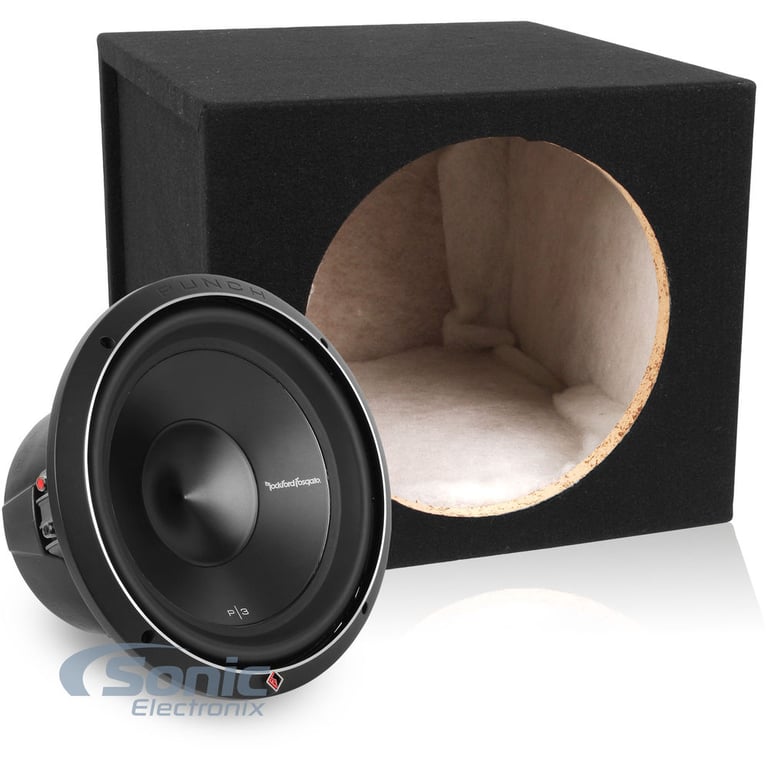

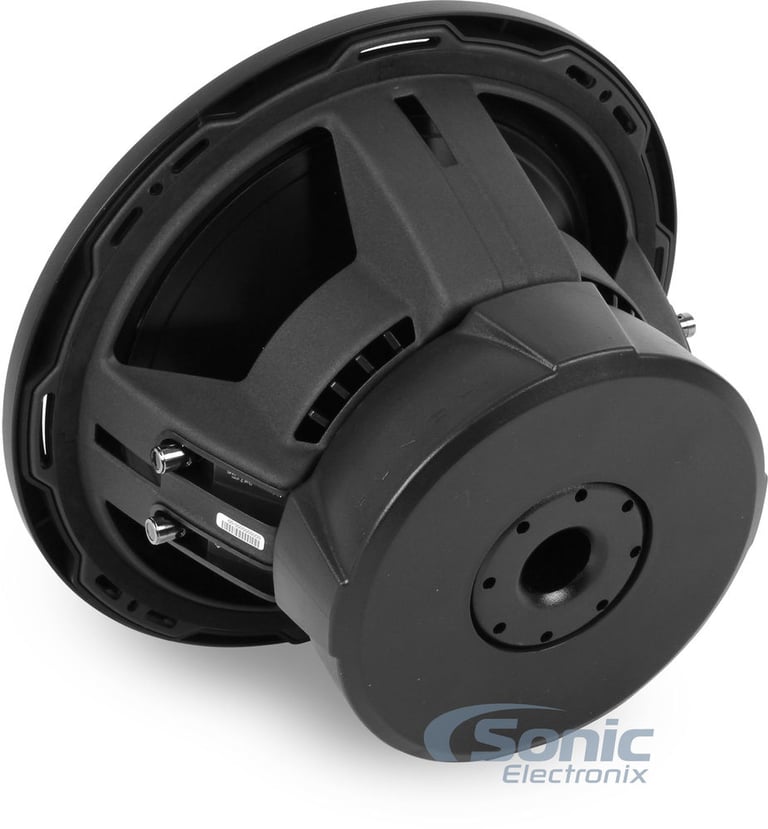

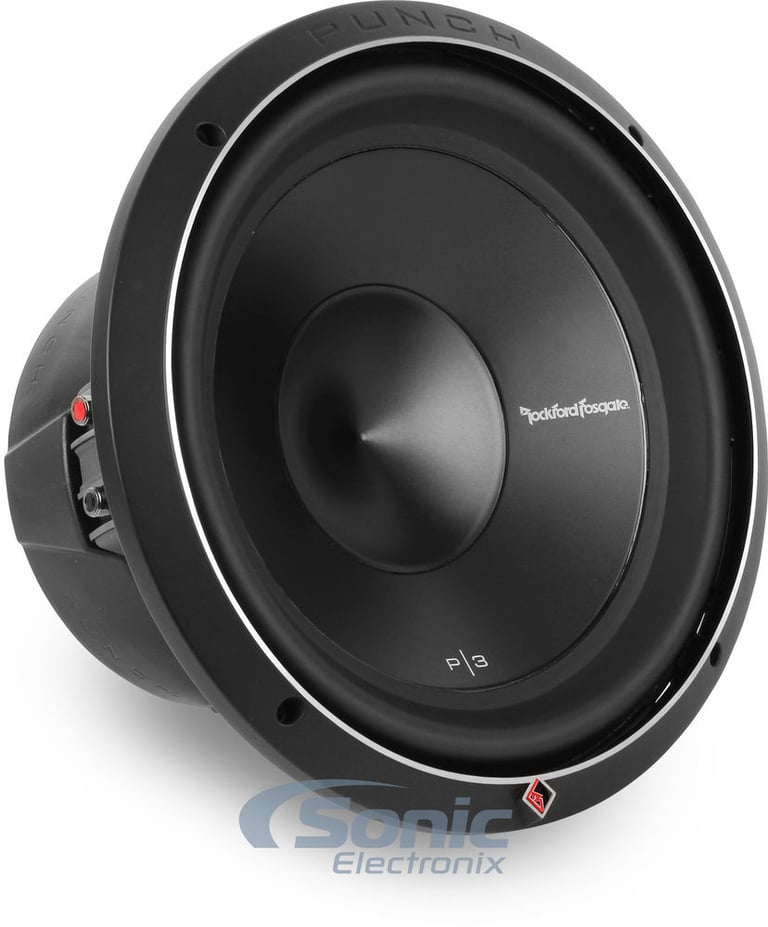

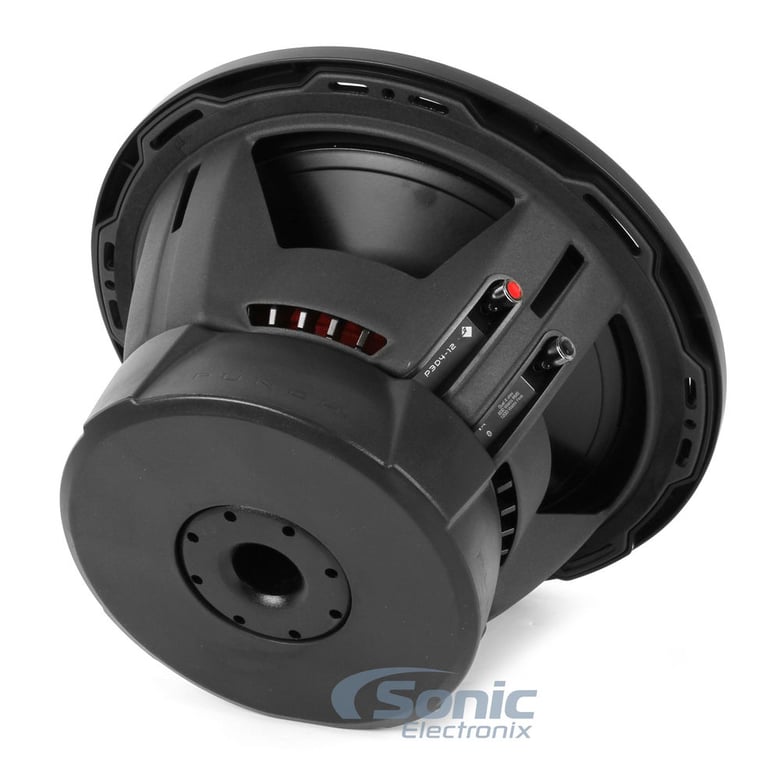

12" Rockford Fosgate P3D4-12 Subwoofer +Sealed Enclosure

1200W 12" Punch P3 Series Dual 4-Ohm Car Subwoofer + Sealed Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (1.5 cu ft airspace)

Rockford Fosgate
Shop all Rockford Fosgate
EXCLUSIVE
Product videos
highlight-star-icon

• 1200W Peak
• 600W RMS

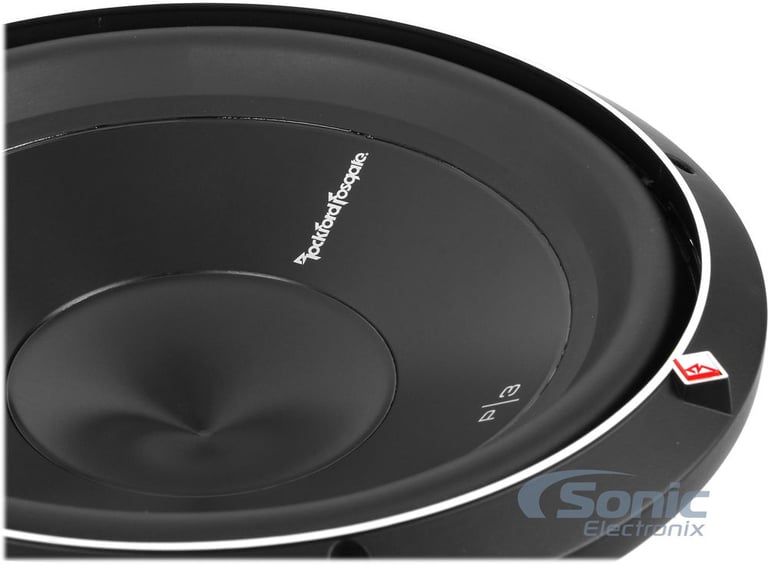

• Anodized Aluminum Heat Sinking Cone
• Santoprene Vertical Attach Surround Technique
• 4-Layer 2-1/2" Voice Coil

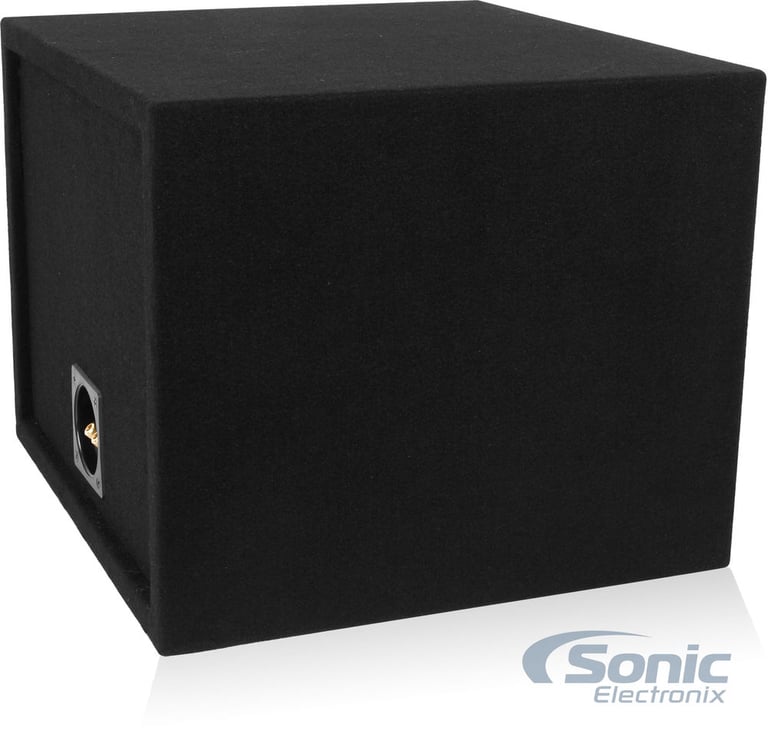

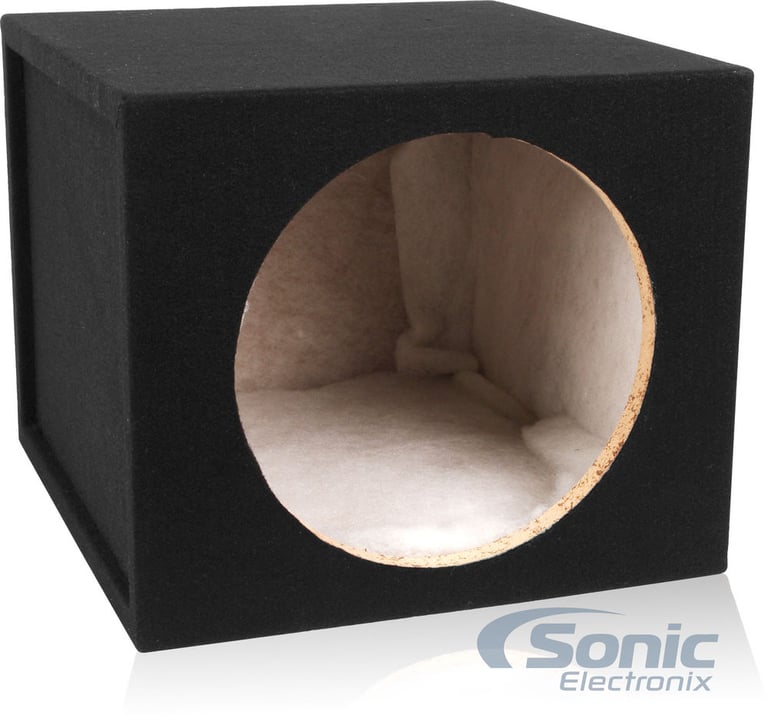

• 3/4" Medium Density Fiberboard Construction
• Durable Black Carpeting

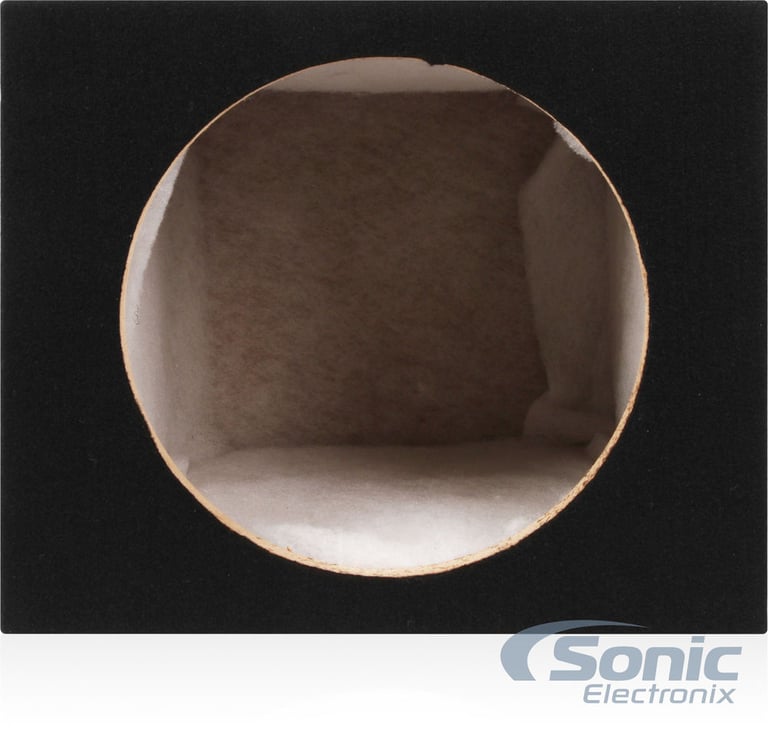

• Pre-Lined with Poly-Fil

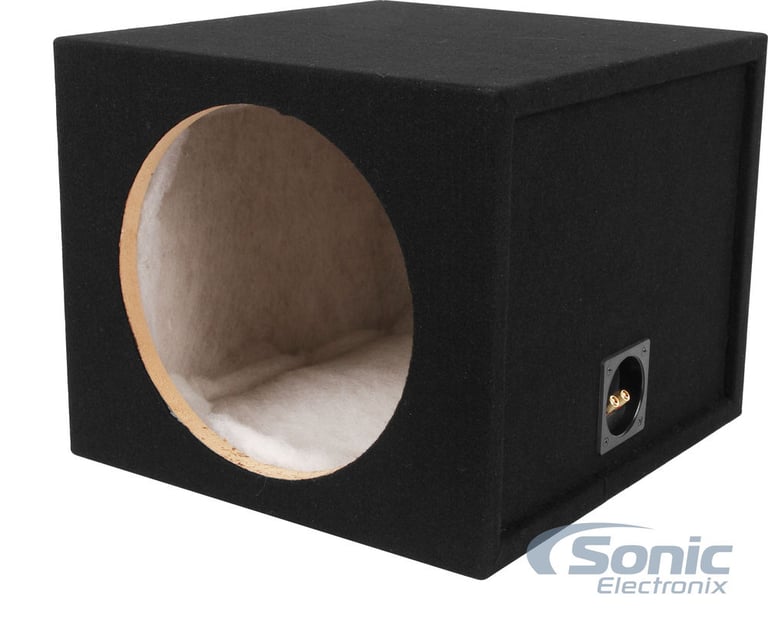

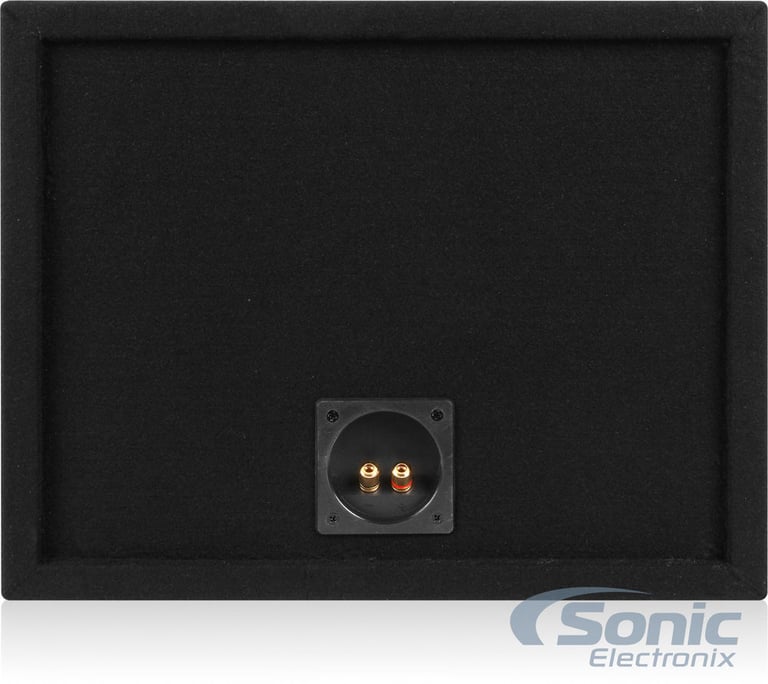

• Gold Speaker Terminals
• 1.5 Cubic ft Box Volume

Learn more about the p3d412_mdfs1215

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Product Highlights


• 1200W Peak
• 600W RMS
• Anodized Aluminum Heat Sinking Cone
• Santoprene Vertical Attach Surround Technique
• 4-Layer 2-1/2" Voice Coil
• 3/4" Medium Density Fiberboard Construction
• Durable Black Carpeting
• Pre-Lined with Poly-Fil
• Gold Speaker Terminals
• 1.5 Cubic ft Box Volume

Description


Rockford Fosgate brand icon

Authorized dealer




Taking Punch to a Higher Stage

Sonic Electronix is now carrying the brand new line of Rockford Fosgate Punch P3 Series Car Audio Subwoofers. The P3D4-12 Punch Series 12" Subwoofer has a peak power rating of 1200 watts and a RMS rating of 600 watts. This sub will produce some earth shaking bass and is constructed with an anodized aluminum cone and a vertical attach surround technique. This woofer is also equipped with a 2.5" Voice coil and a protective PVC textured magnet cover. Add some bumps in your trunk and enhance your cars stereo system with this Rockford Fosgate Punch Series Subwoofer.

While built on a long standing history of performance, the punch series woofers can deliver not only the output to satisfy you when you want it loud but maintain a level of sound quality for when you really want to "listen" to your music. Taking many design cues from the Power Series, Rockford Fosgate engineers continue to improve the Punch Series year after year making it one of the most sought after woofer lines for music and bass enthusiasts alike. With features like Dual tear & fatigue resistant poly-cotton spider for high strength and anodized aluminum voice coil formers to handle heat buildup in the motor structure under full power situations, these drivers are designed to perform.


Anodized Aluminum Voice Coil Former

Anodized Aluminum Voice Coil Former

By using an anodized aluminum voice coil former on their subwoofers, Rockford Fosgate is able to dissipate heat from the voice coil more efficiently. A hot voice coil can melt the adhesive bonds, which will lead to eventual subwoofer failure. The aluminum voice coil former acts as a heat-sink to dissipate thermal build-up on the voice coil cool during high SPL conditions.


CEA-2031 Rockford Fosgate Subwoofers

Conforms to CEA-2031

Rockford Fosgate has built this subwoofer to conform to the CEA-2031 loudspeaker power handling industry standards. This means that you can trust the subwoofer to have the capacity to safely handle the continuous (RMS) power rating. Having a CEA-2031 power handling is important when matching a subwoofer to an amplifier because the power ratings are accurate.


Rockford Fosgate Stitched Tinsel Leads

Stitched Tinsel Leads

To improve the reliability and performance by reducing fatigue and possible shorting, Rockford Fosgate has stitched the tinsel leads to the spider. The multipoint periodic stitching lead wires reduce the mass of the tinsel leads to spread the stress over a greater area. This improves the reliability and performance of the subwoofer.


Rockford Fosgate VAST Surround

VAST: Vertical Attach Surround Technique

In order to increase the surface area of the cone without causing any installation issues, Rockford Fosgate designed the Vertical Attach Surround Technique (VAST). By redesigning the manner in which the surround adheres to the basket, these speakers gain up to 25% more effective radiating cone area. This improves the nominal efficiency and maximum output.







Key Benefits

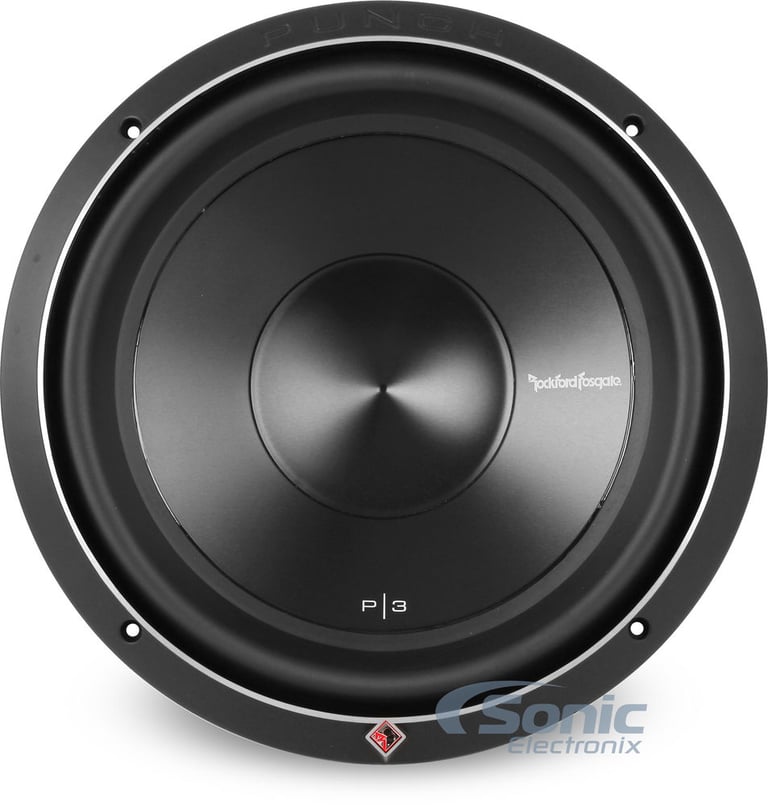

  • 12" Dual 4 ohm Punch Stage 3 Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Recommended power range: 300 - 700 watts RMS
  • CEA-2031 Compliant
  • Klippel Verified
  • Flex-fit™ Mounting pattern
  • Proprietary spider venting/cooling technique
  • StampCast basket with integrated spider venting
  • Sturdy 16 gauge compound bend frame geometry
  • High modulus Kevlar™ re-inforced paper-pulp cone
  • Semi-flexible, PVC removable protective motor cover
  • Multi-point high-temp/high-strength neck joint bonding technique
  • Tall-profile VAST™ Santoprene™ surround for larger surface area
  • Dual tear & fatigue resistant poly-cotton spider with woven tinsel leads
  • Fatigue resistant and reduced strain "stitched on" flexible lead wire design

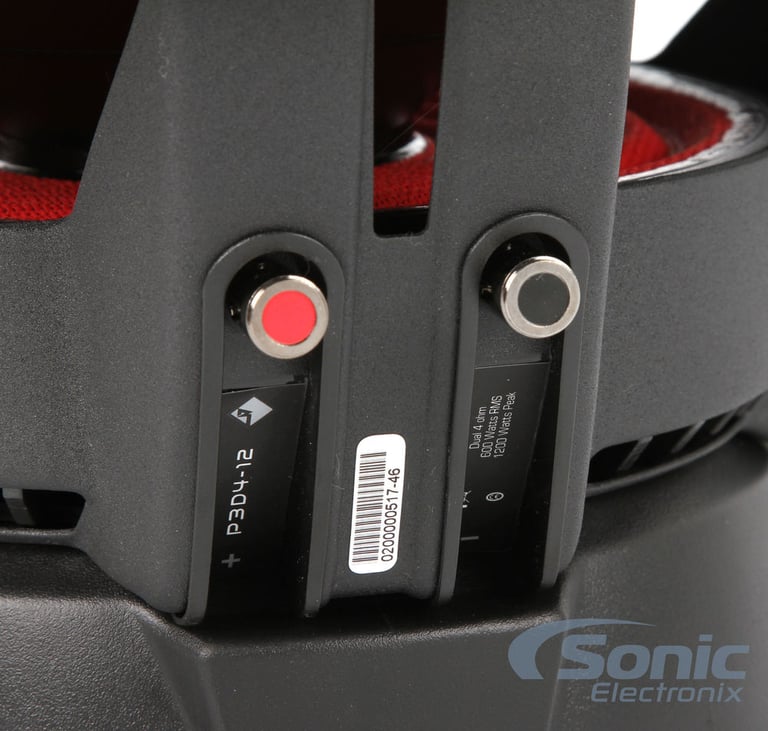

  • Proprietary all metal, radially oriented compression input terminal assembly
  • Optimized motor magnetics with extended pole and bumped vented backplate
  • High temp 2.5" voice coil w/ spun-laced Nomex™ insulating re-inforcement collar
  • Die-Cast aluminum soft-touch painted trim ring allows for optional integrated grill
  • Stamped Mesh Grille Insert Available: Rockford Fosgate P2P3G-12

  •
  • Mounting Depth: 6.66"
  • Cutout Diameter: 11.25"
  • Magnet Weight: 96 oz
  • Frequency Response: 27.7 - 250 Hz
  • Xmax: 15.9mm
  • Sensitivity: 85 dB @ 1 watt / 1 meter
  • Recommended Ported Enclosure: 1.79ft³
  • Recommended Sealed Enclosure: 1.02ft³
  • Matching Amplifiers: (one subwoofer)
  • Matching Amplifier: (two subwoofers)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

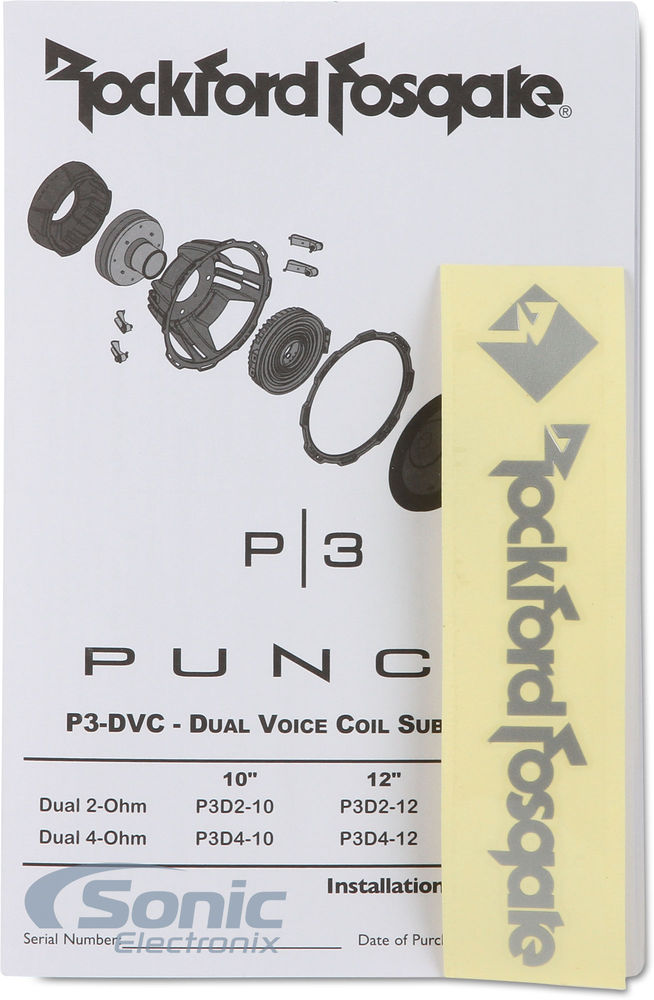

Check out the Rockford Fosgate P3 Series Owner's Manual

Tips for Installing the ::P3D4-12 Subwoofer::



Best selling similar products

TNE212D small

MTX Audio TNE212D

• Sealed enclosure with 2 12" Terminator Series Subwoofer
• 200 watts RMS each
• Final Impedance: 2-ohm
• Dimensions: 29.63" L x 14" H x 13.5" W

(32)

$219.95

List price $249.95

R2S-1X10 small

Rockford Fosgate Prime R2S-1X10

• Sealed truck enclosure with 1 10" Prime R2 Series Subwoofer
• 200 watts RMS (400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 19" L x 13.5" H x 5.25" W x 3.25" W2

(17)

$239.99

List price $239.99

49L7TDF122 small

Kicker L7TDF122 (49L7TDF122)

• Sealed truck enclosure with 1 12" Solo-Baric L7 Series Subwoofer
• 300-600 watts RMS Power Rating
• Final Impedance: 2-ohm
• Dimensions: 23 7/8" L x 6 1/2" H x 15" W

(5)

$399.99

List price $429.99

CLS113RG-W7AE small

JL Audio CLS113RG-W7AE

• ProWedge 13" W7AE Loaded Sealed Subwoofer Enclosure
• 3000W Peak
• 1500W RMS
• 3 Ohm Final Impedance
• High Grade Black Carpet Finish
• Engraved JL Audio and W7 Logos
• Rear Firing Design
• 10th Anniversary Edition W7 Subwoofer

(8)

$2199.99

List price $2299.99

TRTP122 small

Kicker TRTP122 (48TRTP122)

• Sealed truck enclosure with 2 12" CompRT Series Subwoofer
• 250-500 watts RMS Power Rating
• Final Impedance: 2-ohm
• Dimensions: 27 1/2" L x 6 1/8" H x 14 5/8" W

(4)

$349.99

List price $379.99

BXSQ112 small

NVX BXSQ112

• Sealed enclosure with 1 12" SQ Series Subwoofer
• 600 watts RMS (1200 watts Peak)
• Final Impedance: 2-ohm

$349.99

List price $479.99

49DL7TDF122 small

Kicker DL7TDF122 (49DL7TDF122)

• Sealed enclosure with 2 12" Solo-Baric L7T Series Subwoofer
• 1200 watts RMS Power
• Final Impedance: 2-ohm
• Dimensions: 38-3/16" L x 8-1/4" H x 17-1/8" W

(1)

$749.99

List price $849.99

BE-TSLAY-G1P small

NVX Loaded BOOST Box - 2020-2023 Tesla Model Y - BE-TSLAY-G1P (Passenger's Side)

• Sealed BOOST enclosure with 1 10" N Series Subwoofer (Passenger Side)
• Fits select 2020-2023 Model Y (5-seat models only)
• 500 watts RMS (1000 watts Peak)
• Final Impedance: 2-ohm

(2)

$279.99

List price $562.99

BE-TOYHIG3-VS102 small

NVX Loaded BOOST Box - 2014-2019 Toyota Highlander - BE-TOYHIG3-VS102

• Sealed BOOST enclosure with 1 10" N Series Subwoofer
• Fits select 2014-2019 Highlander and Highlander Hybrid
• 500 watts RMS (1000 watts Peak)
• Final Impedance: 2-ohm

(2)

$349.99

List price $437.99

TL7T122 small

Kicker TL7T122 (46TL7T122)

• Sealed truck enclosure with 1 12" Solo-Baric L7T Series Subwoofer
• 600 watts RMS power handling
• Final Impedance: 2-ohm
• Dimensions: 21.5" L x 13.75" H x 7.75" W x 4.375" W2

(9)

$295.96

List price $399.99

Specifications & Details


Subwoofer Specifications
Series
Punch P3 Series
Subwoofer Size
12"
RMS Power Handling
600 watts
Peak Power Handling
1200 watts
Woofer Composition
Anodized Aluminum
Woofer Surround
Santoprene Rubber
Sensitivity
85 dB
Frequency Response
27.7 - 250 Hz
Subwoofer Design
Round / Circle
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

P3D4-12_MDFS1215

Weight:

46.25lbs

Internal SKU:

p3d412_mdfs1215

Internal Product ID:

106923
