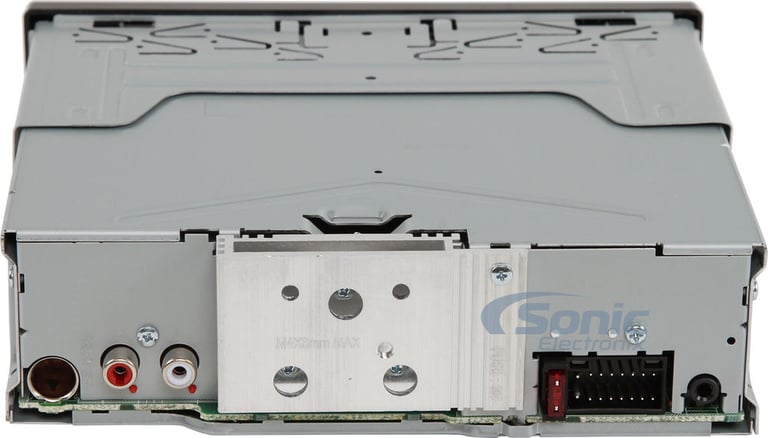

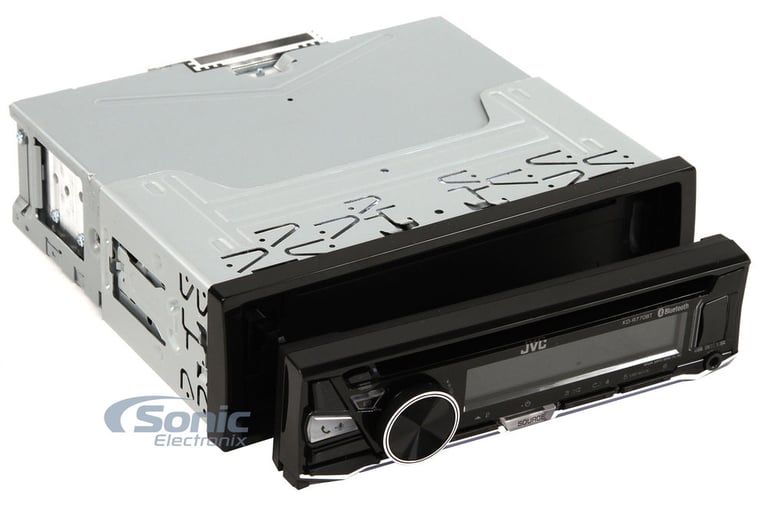

JVC KD-R770BT

Single DIN Bluetooth In-Dash CD Car Stereo with Android USB and FLAC playback

JVC
Shop all JVC
Product videos
highlight-star-icon

• 50W x 4 Chan. MAX • 22W x 4 Chan. RMS
• 3 Sets of 4V Preamp Outputs
• 13-band graphic equalizer
• Pandora Control for Smartphone (Android via Bluetooth)
• iHeartRadio Control for Smartphone (Android via Bluetooth)
• FLAC Support

Learn more about the kdr770bt

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
480BRGB main

Boss Elite 480BRGB

Double DIN Digital Media Receiver with Bluetooth

17

Product Highlights


• 50W x 4 Chan. MAX • 22W x 4 Chan. RMS
• 3 Sets of 4V Preamp Outputs
• 13-band graphic equalizer
• Pandora Control for Smartphone (Android via Bluetooth)
• iHeartRadio Control for Smartphone (Android via Bluetooth)
• FLAC Support

Description


JVC brand icon

Authorized dealer
















General Features:

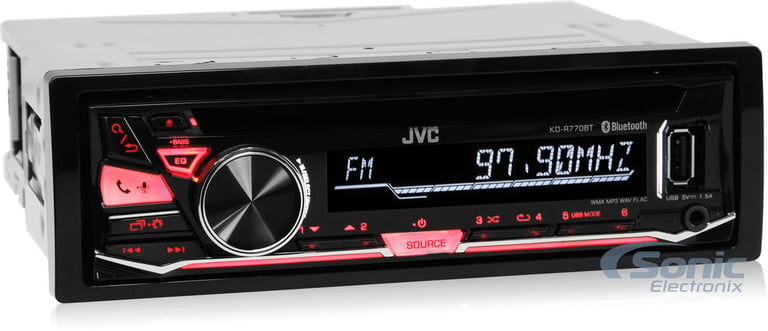

  • JVC KD-R770BT In-Dash Receiver
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 22 watts x 4 channels
  • Theft-deterrent, detachable face plate: Optional Receiver Faceplate Case Available
  • CD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • AM/FM tuner with 18FM/6AM presets

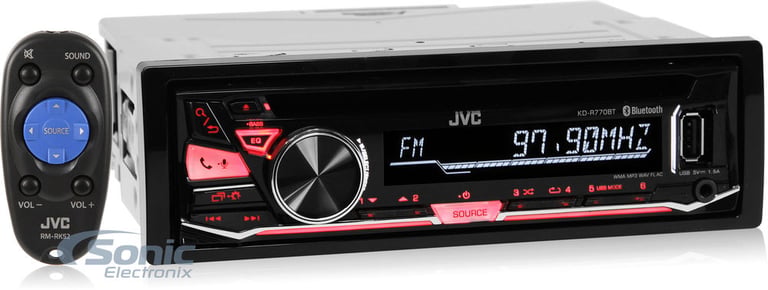

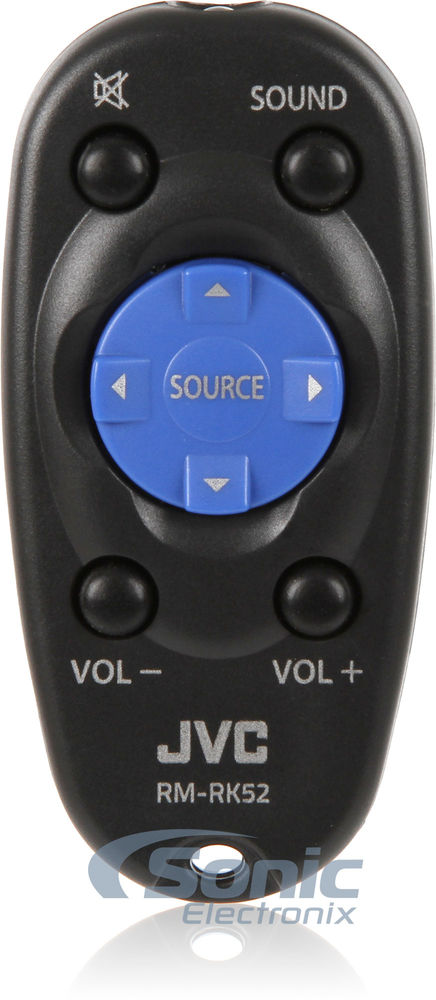

  • Remote control included
  • Pandora Control for Smartphone (Android via Bluetooth)
  • iHeartRadio Control for Smartphone (Android via Bluetooth)
  • JVC Smart Music Control via Bluetooth
  • K2 Technology
  • Android Automatic Pairing
  • FLAC Support
  • iPod/iPhone Charge via USB (1.5A max)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Playback and Audio Features:

  • CD/CD-R/RW , MP3/WMA Playback
  • MP3/WMA/WAV/FLAC Playback via USB
  • 13-band graphic equalizer with 8 selectable tone curves (7 Preset, 1 User)
  • 3.5mm Front Auxiliary Input
  • Front USB Input
  • iPod/iPhone Charge via USB (1.5A max)
  • 3 Sets of 4V preamp outputs (front, rear and subwoofer)

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth Profiles Supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • Works with most Bluetooth enabled cell phones

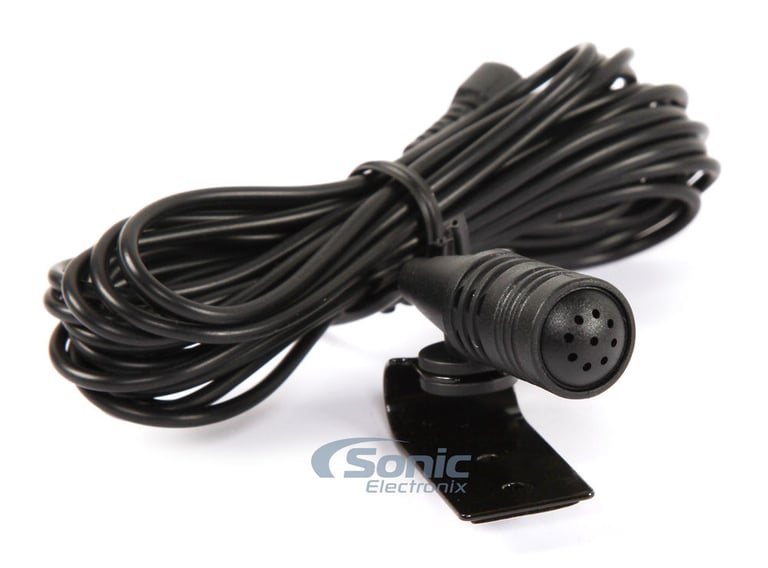

  • Includes a external wired microphone for clear, convenient, distortion-free talking
  • Maximum communication rage: 32.8 feet (approx, line of sight)

Expandability Options:





Product history:

JVC KD-R770BT thumbnail
(newest, current model)
JVC KD-R760 thumbnail
(previous model, replaced by JVC KD-R770BT)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

DMH-1800NEX small

Pioneer DMH-1800NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" WVGA Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 2 volts preamp outputs
• 13-Band Customizable Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Easy to use graphic user interface

(59)

$339.99

List price $420.00

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

DAX800XR small

Kenwood eXcelon DAX800XR

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from GMC, Chevrolet, Nissan
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(1)

$999.00

List price $1500.00

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

RB10TUN14 small

Stinger HEIGH10 - RB10TUN14 for 2014-2021 Tundra

• 10.1" Single DIN and Double DIN In-Dash Digital Multimedia Receiver
• Compatible with select 2014-2025 Tundra and Tundra i-Force Max
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• iGo Navigation System-ready (Optional)
• 3 sets of 4 volts preamp outputs
• 15 Band Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Wireless streaming audio with aptX for better sound quality

$999.00

List price $999.00

UTE-73BT small

Alpine UTE-73BT

• Single DIN Digital Media Receiver
• 1-line Digital LED Backlit Display with RGB illumination
• Control music/other apps via iPhone and Android
• 3 sets of 2 volts preamp outputs
• 3-Band Parametric Equalizer
• NFC-compatible for select Android devices
• Built-in amplifier

(44)

$149.95

List price $180.00

CV15BT small

Cerwin-Vega CV15BT

• Single DIN Bluetooth Digital Media Receiver
• Digital LED Backlit Display
• USB/SD/AUX Input
• Three sets of 5 volts preamp outputs
• Multiple Preset EQ

(3)

$69.99

List price $69.99

DMH-W3050NEX small

Pioneer DMH-W3050NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• Built-in Amazon Alexa
• 3 sets of 4 volts preamp outputs
• 13-Band Customizable Graphic Equalizer
• SiriusXM Satellite Radio Ready
• iDatalink Maestro compatibility
• Built-in Wi-fi

(1)

$469.99

List price $620.00

D9-MST2015L-64GB small

Dynavin D9-MST2015L-64GB

• Replaces the 4" factory screen with a 10" touchscreen
• Custom Fit In-Dash Bluetooth Digital Multimedia Receiver
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• Built-in Navigation
• 3 sets of 3 volts preamp outputs
• 16-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Integrated CANBUS for steering wheel controls

(2)

$899.99

List price $899.99

DMX709S small

Kenwood eXcelon DMX709S

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" WVGA Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic Equalizer with Digital Time Alignment
• SiriusXM Satellite Radio Ready
• Short chassis for flexible installation

(39)

$399.00

List price $600.00

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security
Detachable Faceplate
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
13-band graphic
Smartphone Integration
Compatible Smartphones
iPhone (iOS)
Android
iPhone Control
Pandora Control
Android Control
Pandora Control
Expandability Features
Inputs
Auxiliary (Front)
Auxiliary (Rear)
Steering Wheel Control Compatible
DO NOT USE - Yes
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Radio Data System (RDS)
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KD-R770BT

Weight:

4.00lbs

Internal SKU:

kdr770bt

Internal Product ID:

106951

Product and How-to Videos


  • JVC Bluetooth Stereo Control Receivers | CES 2014
  • How To Install a Car Stereo (Single & Double DIN) | Car Audio 101

Customer Ratings & Reviews


JVC KD-R770BT thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
5
Features
4.7
Design
5
Usability
4.6

Customer Reviews

Sort by:

Loading...

Nice Deal

The following review is for a previous version (KD-R760).

Great price, fast shipping, easy install. I would recommend this to everyone .

By none on October 31, 2015

9 found this helpful


Nice Stereo For the Money

The following review is for a previous version (KD-R760).

We purshased this stereo to replace the miata factory stereo. Great sound, display, controls, and definitely the leds.

By james on May 31, 2016

2 found this helpful


Perfecto !!

The following review is for a previous version (KD-R760).

I bought this specific head unit / receiver from Sonic's ebay store. I paid for it late weds afternoon and had it at my door by 10 am friday.
Hookup / Install was fast and easy, Having done several installs on my own, I was surprised how quick it went.
The only issue I had was w/ setup after install. Once I figured out how the menu worked it went easily enough. I did the firmware update today and that also went quite fast, about 2 minutes.
I did lose my settings but that's very minor. In less than 5 minutes, everything was back to my custom user settings.
I'd recommend this unit for anyone looking for a new car stereo.

By blaster on October 12, 2015

3 found this helpful


great price and service

The following review is for a previous version (KD-R760).

each and every time i called your business on product info i got a answer as i was looking for and the sales rep was right on with my needs and what i was looking for . if the delievery and the service stay the same and the prices stay below others as they are you will be getting more business from me and my family and of coarse i have already passed on the savings and service to my streetrodder friends . thank you so much bob

By Robert on December 14, 2015

1 found this helpful


AMAZING!!!!!!!!

The following review is for a previous version (KD-R760).

I definitely would recommend this beautiful radio. I ordered 2 for both of my cars, absolutely amazing and I didn't even have to change my speakers. the sound quality is superb. this was my first radio installation and sonic electronics couldn't have made it easier with there excellent discounts. A big thanks to the staff and company.

By Nigel on April 15, 2016 Checkmark Icon Verified purchase
1999 Honda Accord
2002 Honda Accord


JVC radio

The following review is for a previous version (KD-R760).

I love this radio. The only thing is it doesn't keep time very well so i don't leave the clock on the display.

By Cindy on March 1, 2016


Great buy!

The following review is for a previous version (KD-R760).

I absolutely love it! I really like that I can easily connect it to my phone and the colors are pretty cool too! Did I mention it was easy to install also?! Very quick delivery as well and we did not upgrade the shipping. An equivalent CD player from our local electronics store was going to cost nearly triple of what I paid! All around great buy!

By Kelsey on February 5, 2016




RPS 1245 small

Reikken RPS 1245

12V 45A Smart Charger, Maintainer and Power Supply

$229.99

List price $299.00

PS14KX small

Pyramid PS14KX

Regulated 13.8V DC 14 Amp Power Supply

(4)

$69.99

List price $109.99

MBTP small

MA Audio MBTP (Gold)

Gold Plated Positive Battery Terminal

(1)

$1.99

List price $9.99

VS12SH small

Cerwin-Vega VS12SH

600W Peak (300W RMS) Loaded Single 12" Passive Slim Spare Tire Enclosure

(2)

$339.99

List price $371.99

No picture

Planet Audio P9278B

Single DIN Bluetooth In-Dash DVD/CD/AM/FM Receiver w/ 7" Slide-Down Display

$129.99

List price $0.00

CS-AW7240 small

JVC Arsenal CS-AW7240

12" Dual 4 ohm Subwoofer

$124.99

List price $319.99

LHB535 small

LG LHB535

Blu-Ray Disc Home Theater System with NetCast Entertainment Access, Integrated WiFi and DVD Up-Scaling

$369.99

List price $499.99

10W3v3-4 small

JL Audio 10W3v3-4

500W RMS 10" W3v3 Series Single 4-ohm Subwoofer

(56)

$419.99

List price $419.99

Li-S1600CK small

XS Power Li-S1600CK

5000W 23.4 Ah Lithium Iron Phosphate Racing Battery with 16V IntelliCharger

$1099.98

List price $1299.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 Kia Optima

2007 Mitsubishi Eclipse

2012 Ford E Series

1984 Chrysler E Class

2001 Toyota Echo

1981 Dodge Aries

2014 Buick Encore

1985 Dodge 600

2016 Subaru Outback

1973 Audi Fox

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
