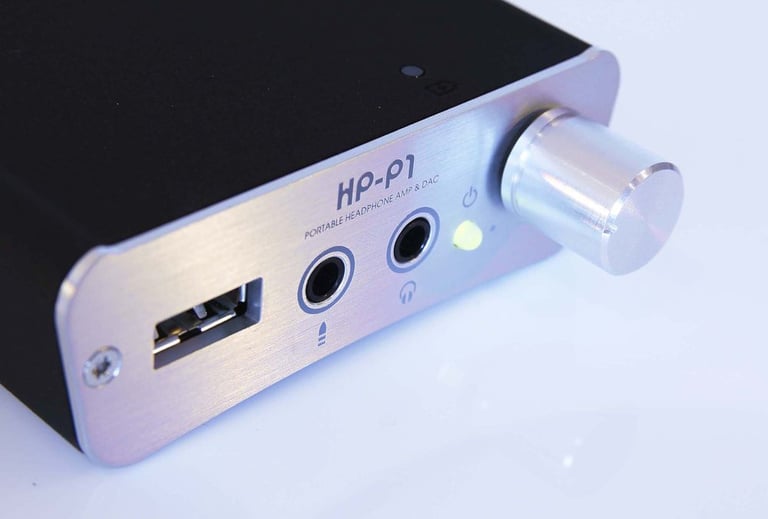

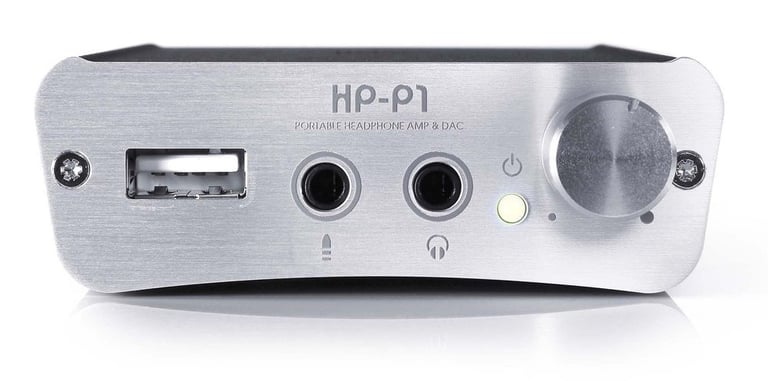

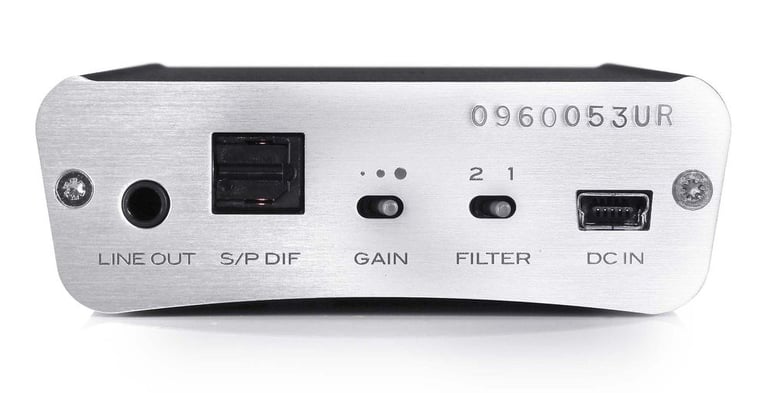

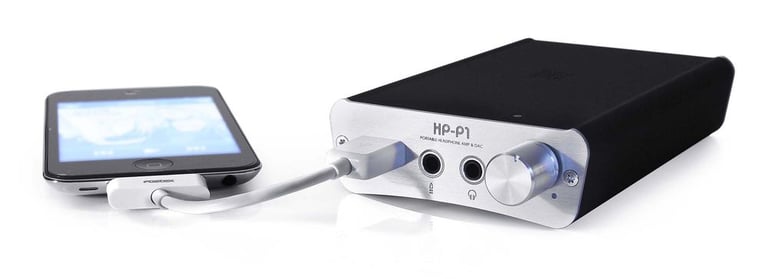

Fostex HP-P1

General Features:

• Fostex HP-P1 Portable Headphone Amplifier and 32-bit DAC
• Digital connection from iPod/iPhone to HP-P1 via 30-pin dock connector
• High quality 32-bit DAC (AKM4480) and headphone amp for maximum sound quality
• Lithium-Ion rechargeable battery (approx 7 hours)
• USB powered operation also available
• Hi/Mid/Low 3-step gain control on the headphone out drives all headphone types
• Auxiliary analog Line Input for other MP3 players
• S/PDIF Digital Out for professional recording
• Analog Line Out for connection to an analog amplifier or a recorder
• Unique Digital Filter - use regular filter or unique “minimum delay filter” without pre-echo
• Housed in a rigid aluminum alloy chassis
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Specifications:

• Digital Input
• Connector: USB type A for Dock Connector iPod/iPhone connection
• Analog Input
• Connector: Stereo mini jack
• Maximum input: Approx. 3.0 Vrms
• Headphone Output
• Connector: Stereo mini
• Maximum output power: 80 mW + 80 mW
• Applicable load impedance: 16 ohm or more
• Frequency response: 20 Hz to 20 kHz +/- 0.3 dB (at 32 ohm load, 80 mW output power)
• Line Out
• Connector: Stereo mini
• Nominal output level: -10 dBV
• Digital Output
• Connector: Optical
• Format: S/PDIF format (IEC 60958-3)
• DC In
• Connector: USB Type mini B
• General
• Power supply: Internal lithium-ion battery or USB
• Charging time: Approx. 5 hours (HP-P1 power at off)
• Continuous operating time: Approx. 7 hours (iPod/iPhone connected, headphone output, 32Ω, normal temperature)
• Accessories: 50mm Dock connector USB cable, USB power cable (Type A to mini B)

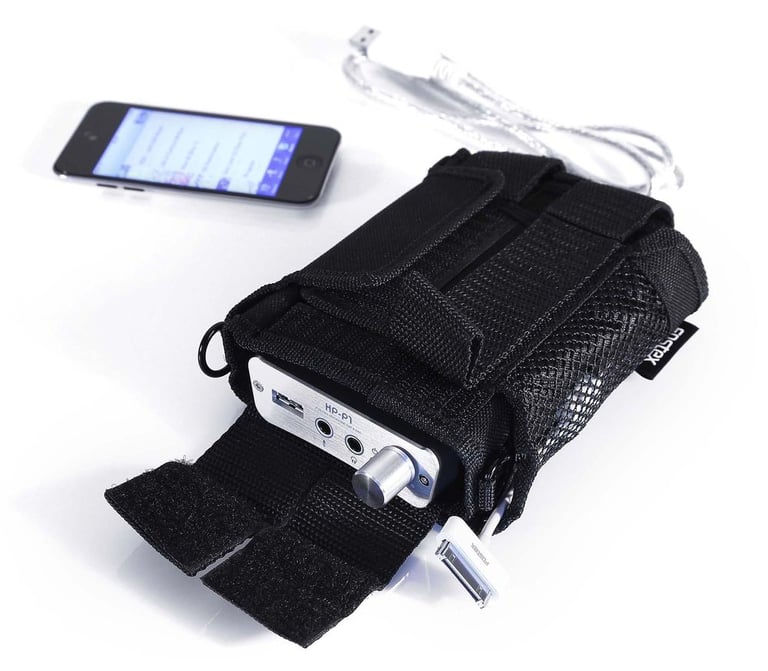

• Exclusive carrying case
• External dimensions: 75(W) x 25(H) x 130(D) mm
• Weight: Approx. 260 g

The HP-P1 is made for:

• iPod Touch (2nd, 3rd, 4th Generation)
• iPod Touch 5th Generation*
• iPod Classic (6th Generation)
• iPod Nano (4th, 5th, 6th Generation)
• iPhone 5*
• iPhone 4
• iPhone 3GS
• iPhone 3G
• *The HP-P1 firmware must be V.1.1.2 or later. For connection with HP-P1, use the Apple genuine Lightning-30pin adapter or Lightning-USB cable
