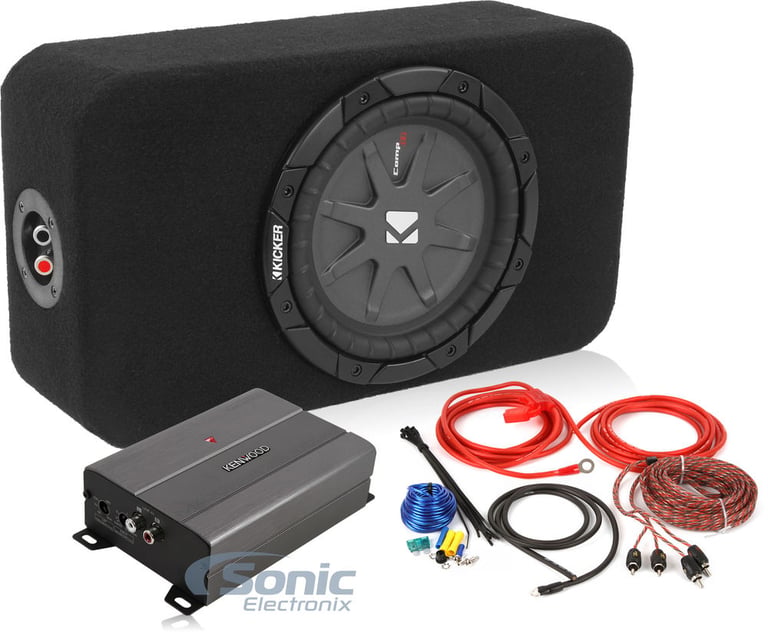

Kicker Compact 8" Enclosed Subwoofer with Kenwood Digital Amplifier

Subwoofer Features:

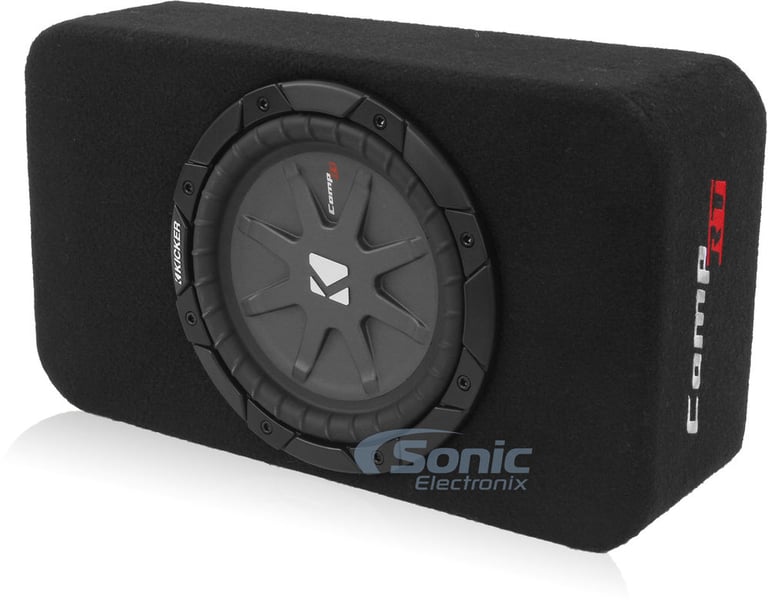

• 8" CompRT Series Ultra Thin Subwoofer
• Power Handling:
• Peak: 600 watts
• RMS: 300 watts
• Recommended power range: 100 - 300 watts RMS @ 2ohm
• Enclosure impedance: 2 ohm
• Injection-molded polypropylene cone
• Tough Santoprene surround with interlocking front gasket
• Weather-proof for outdoor powersports applications
• Double venting for max cooling
• Inverted-bumped back plate and bumped top plate
• High-temp voice coil for increased power handling
• Resonance Frequency (Fs): 49.2 Hz
• Top-mount depth: 2-11/16"
• Sensitivity: 84.8dB
• Frequency response: 30 - 500 Hz
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

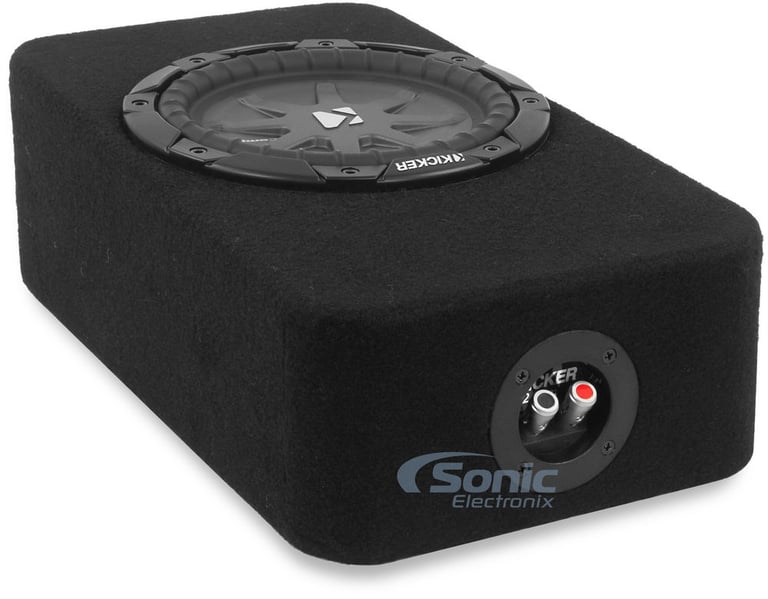

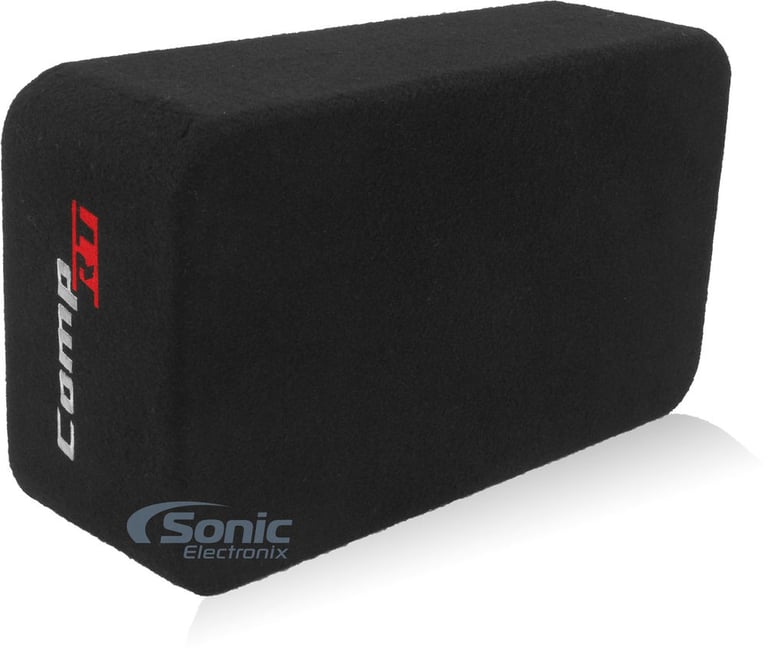

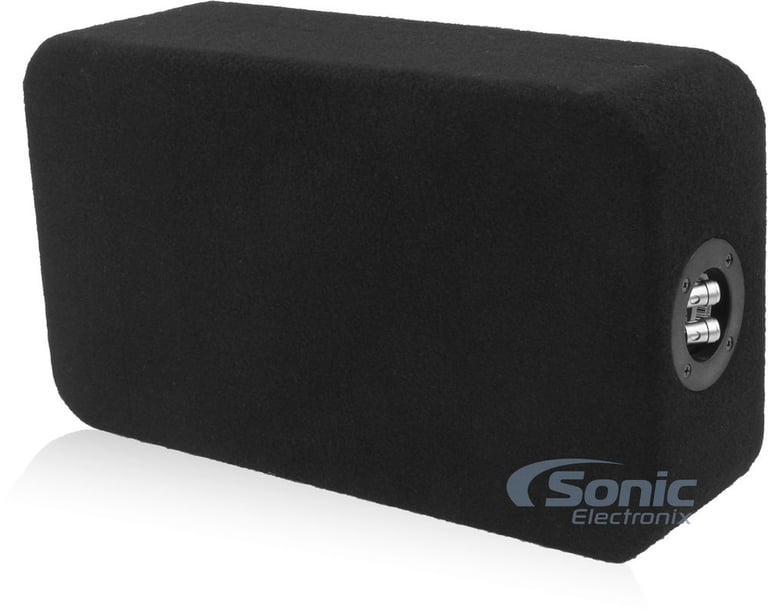

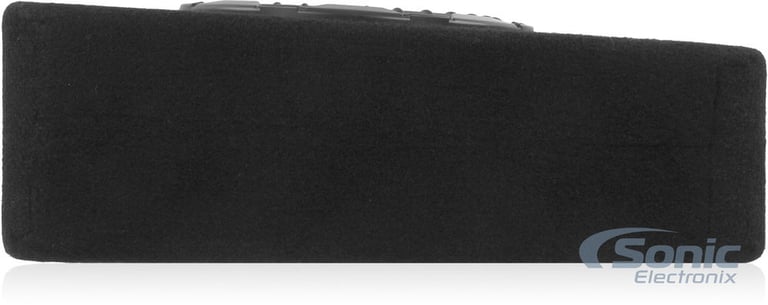

• Single 8" Sealed Compact Enclosure
• Smallest sub-loaded enclosures from KICKER
• Compact, Truck enclosure styleEasy-to-use impedance designated at the terminal cup assembly
• Tough KICKER wood enclosure
• Dense gray carpeting

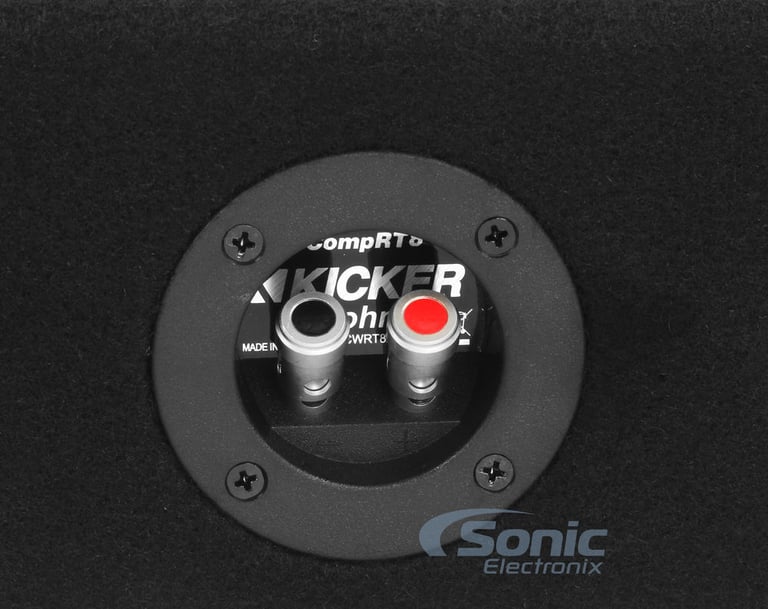

• 10AWG Nickle plated, spring post terminals
• Dimensions: 4-3/8"TD x 5-3/8"BD x 16-1/8"H x 9"W

General Features:

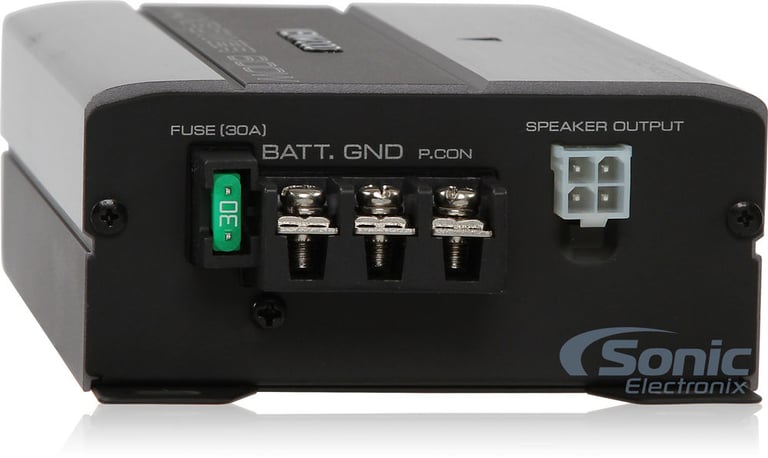

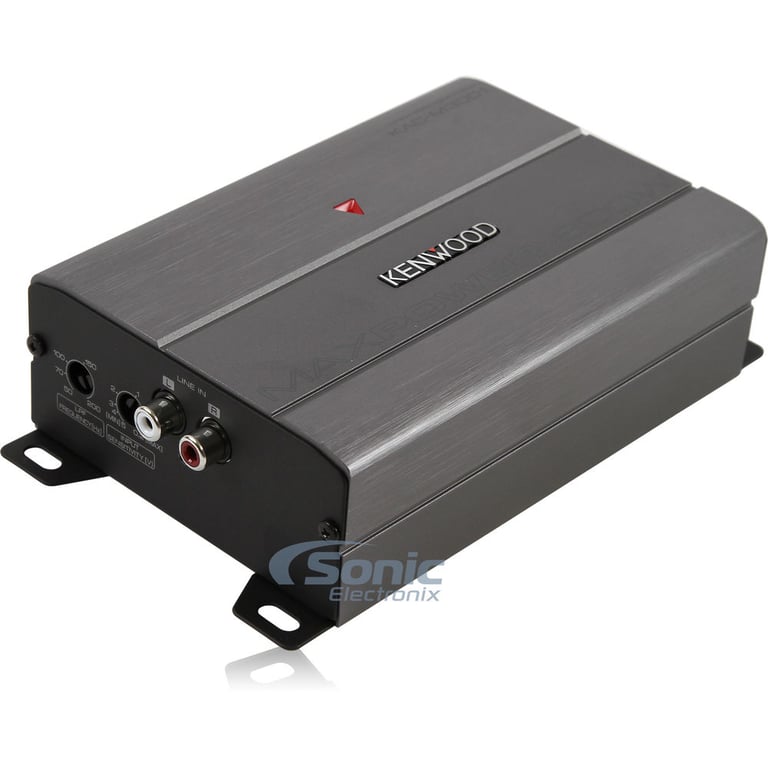

• Compact Series Monoblock Class D Car / Marine Amplifier
• RMS Power Rating:
• 4 ohm: 200 watts x 1 chan.
• 2 ohm: 300 watts x 1 chan.
• Max power output: 600 watts x 1 chan.
• Conformal-coated circuit board — suitable for power sports and marine applications
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Mono channel operation

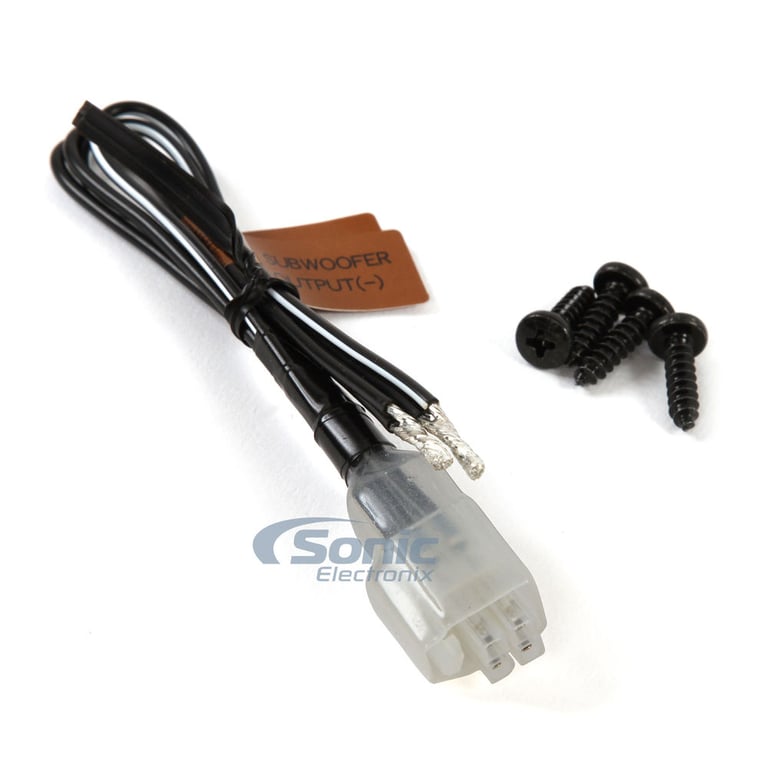

• Speaker-level (high-level) inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Input sensitivity:
• Low level: 0.2V-5V
• High level: 4V-12V
• Frequency Response: 20 - 200 Hz
• Signal to Noise Ration: 97 dB
• Variable low-pass filter: 20 - 200 Hz, 24 dB/octave
• Fuse Rating: 30A x 1
• CEA-2006 compliant amplifier
• 10 gauge power and ground wiring is recommended for installation.
• Dimensions: 5-11/16"W x 3-7/8"L x 1-3/4"H
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty

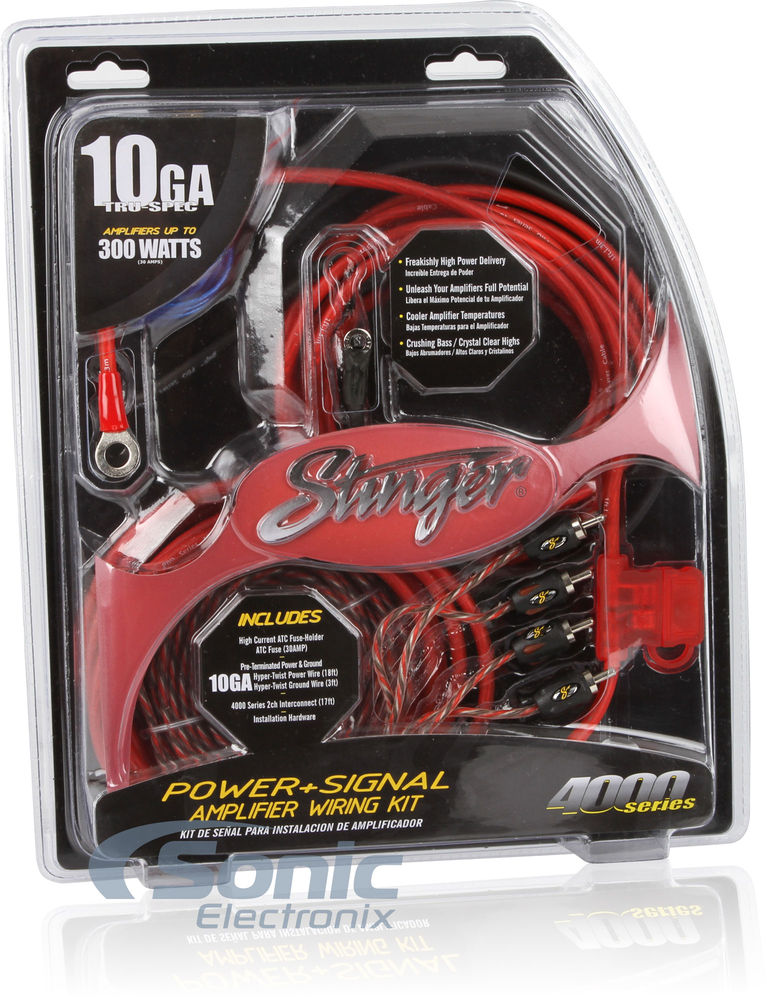

• 10 Gauge 4000 Series Power & Signal Amplifier Wiring Kit
• Designed specifically for car audio systems up to 200 watts
• Premium power and ground wire provides optimal power transfer
• Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
• Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
• RCA Interconnects are made with twisted-pair technology for noise reduction
• ATC inline style fuse holder offers ideal protection
• Pre-Terminated power connections for reliable performance
• Wire is true to spec for optimal current delivery
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

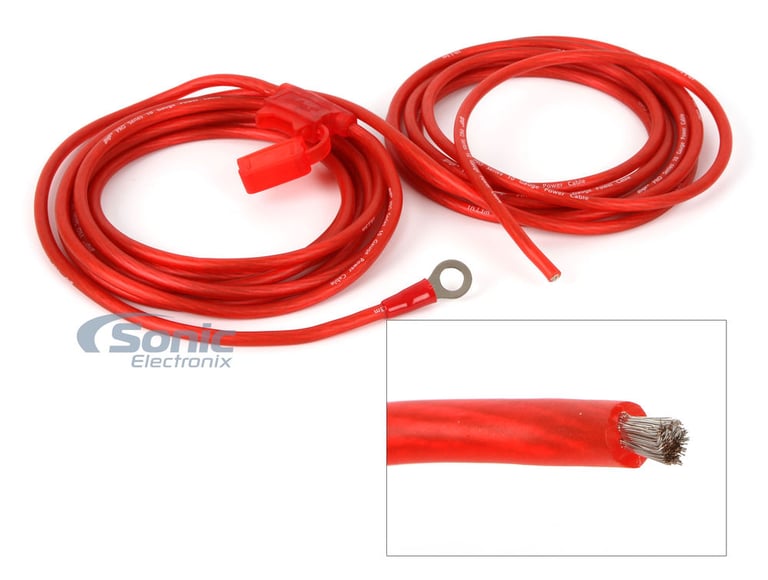

1. 17 ft. 10 Gauge translucent red power wire
2. 3 ft. 10 Gauge translucent black ground wire

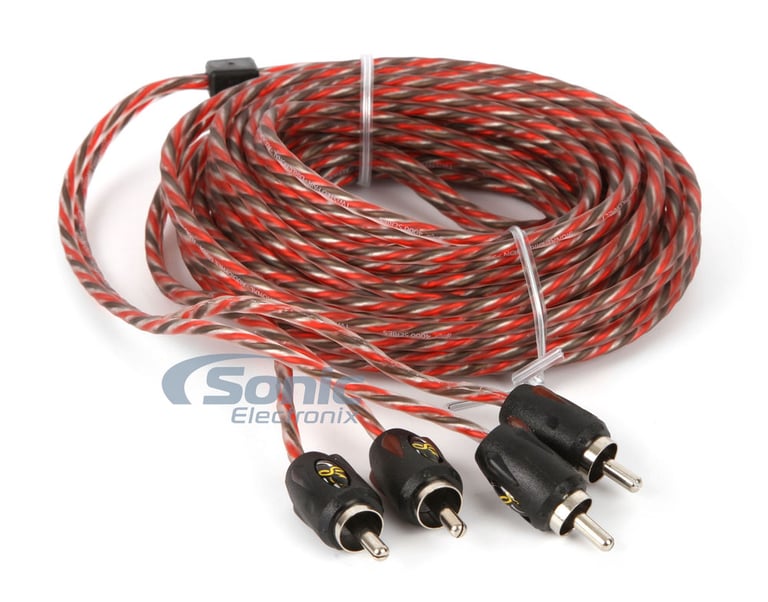

3. 17 ft. 2 Channel Twisted-pair interconnect cables

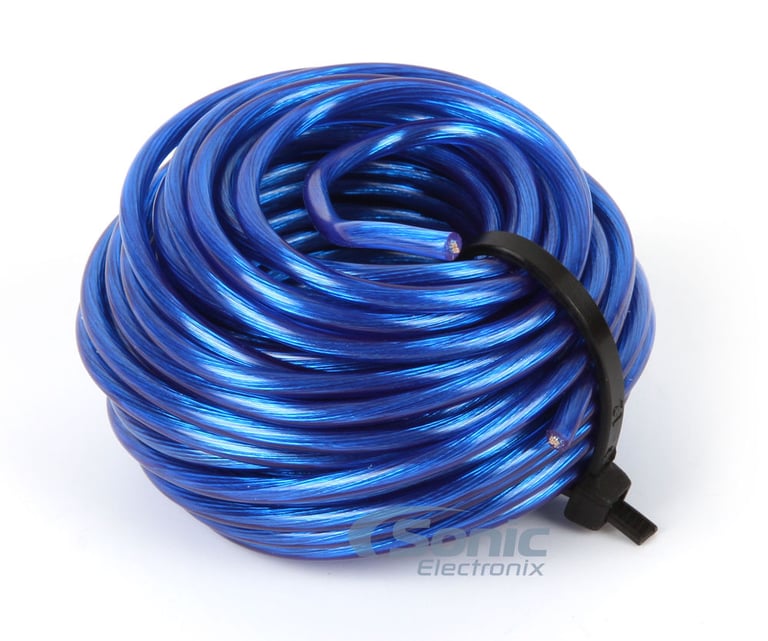

4. 17 ft. 18 Gauge blue remote wire

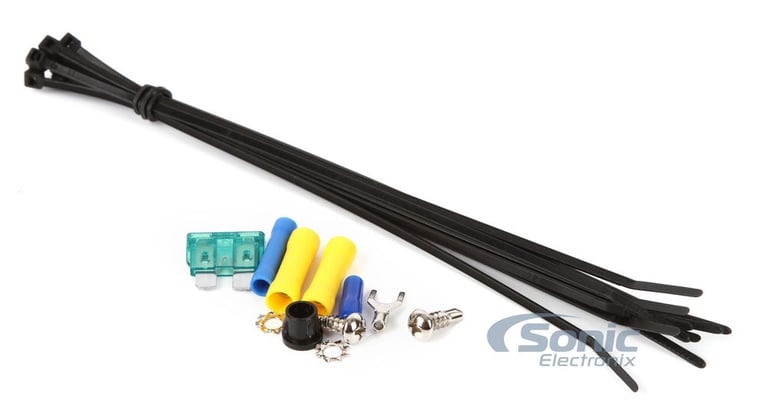

5. ATC inline style fuse holder
6. 30 Amp ATC style fuse
