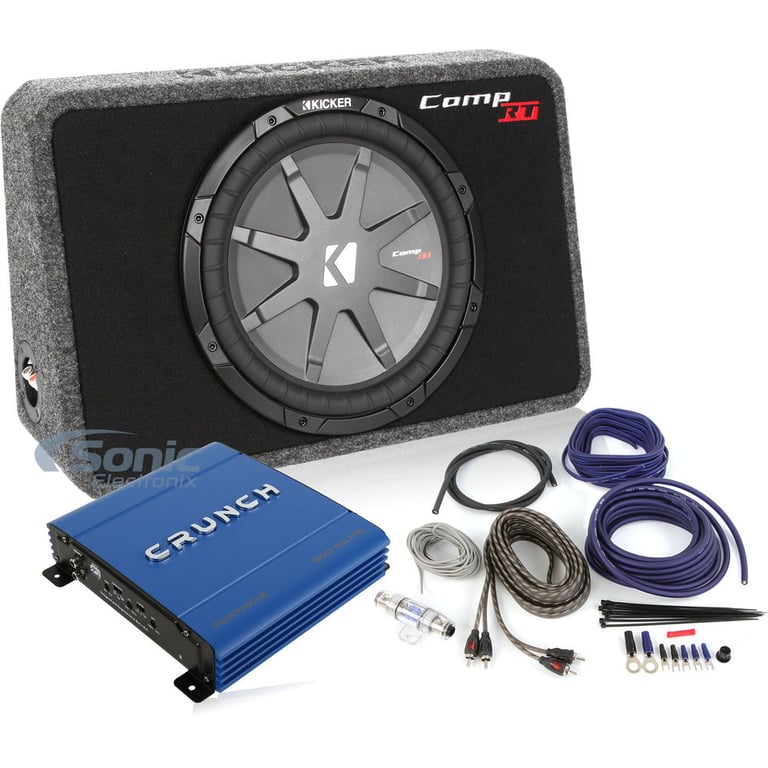

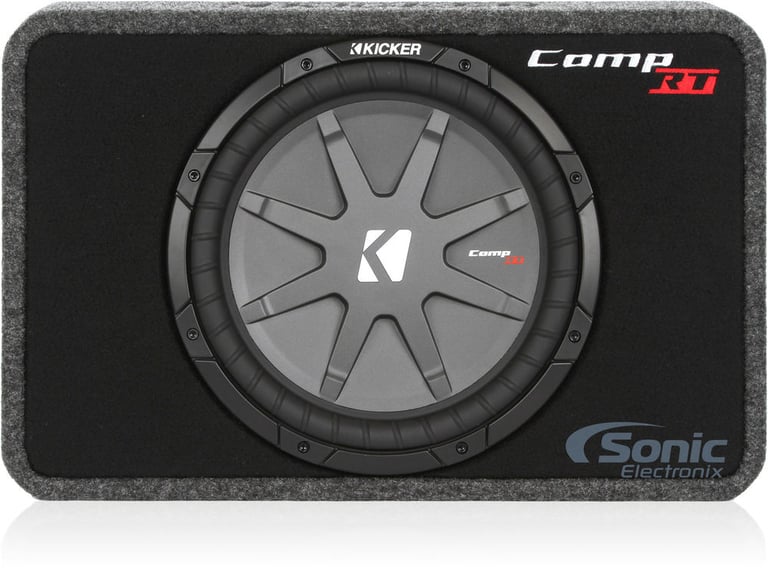

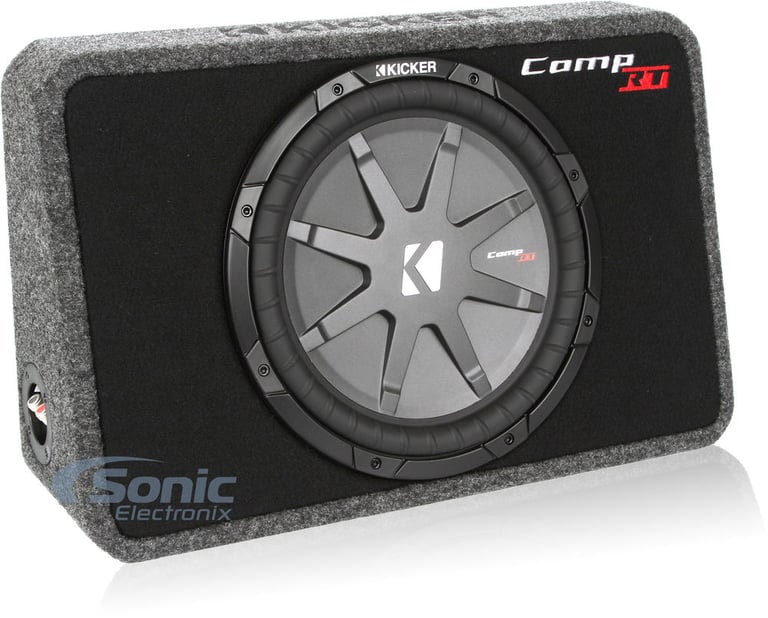

Kicker 40TCWRT124 (TCWRT124)
Compact 12" Loaded Comp RT Shallow Subwoofer Truck Enclosure with 4 ohm Final Impedance
Quantity: 1
Subwoofer Features:
- 12" Dual 2 Ohm CompRT Series Subwoofer
- Power Handling:
- Peak: 1000 watts
- RMS: 500 watts
- Enclosure impedance: 4 ohm (Wired internally in series to final 4 ohm impedance)
- Injection-molded polypropylene cone
- Tough Santoprene surround with interlocking front gasket
- Dual pair of spring-loaded wire terminals custom designed for shallow mount installations
- Weather-proof for outdoor powersports applications
- Double venting for max cooling
- Inverted-bumped back plate and bumped top plate for full voice-coil clearance and excursion while maintaining a shallow profile
- High-temp voice coil for increased power handling
- Resonance Frequency (Fs): 32.7 Hz
- Top-mount depth: 3-3/4"
- Sensitivity: 87.1 dB
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

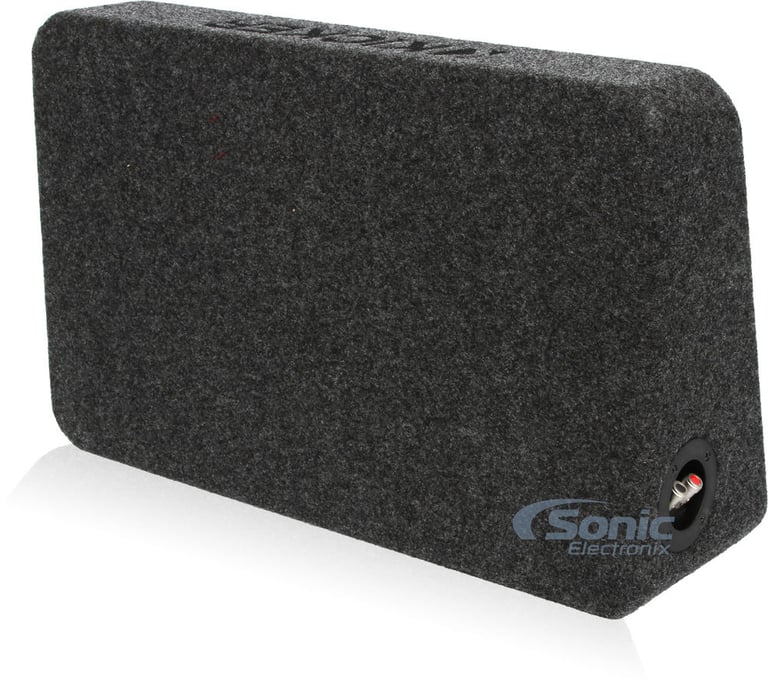

- Single 12" Sealed Truck Enclosure
- Smallest sub-loaded enclosures from KICKER
- Easy-to-use impedance designated at the terminal cup assembly
- Tough KICKER wood enclosure
- Dense gray carpeting
- Monogrammed, carbon-fiber front baffle
- Dimensions: 3-9/16"TD x 6-3/4"BD x 13-1/4"H x 21-1/2"W

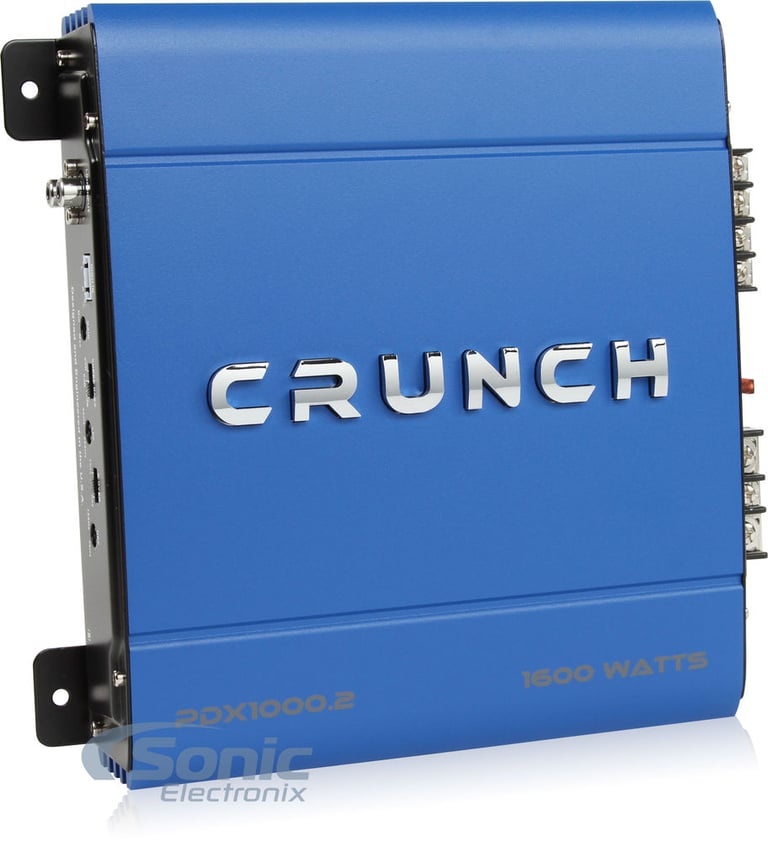

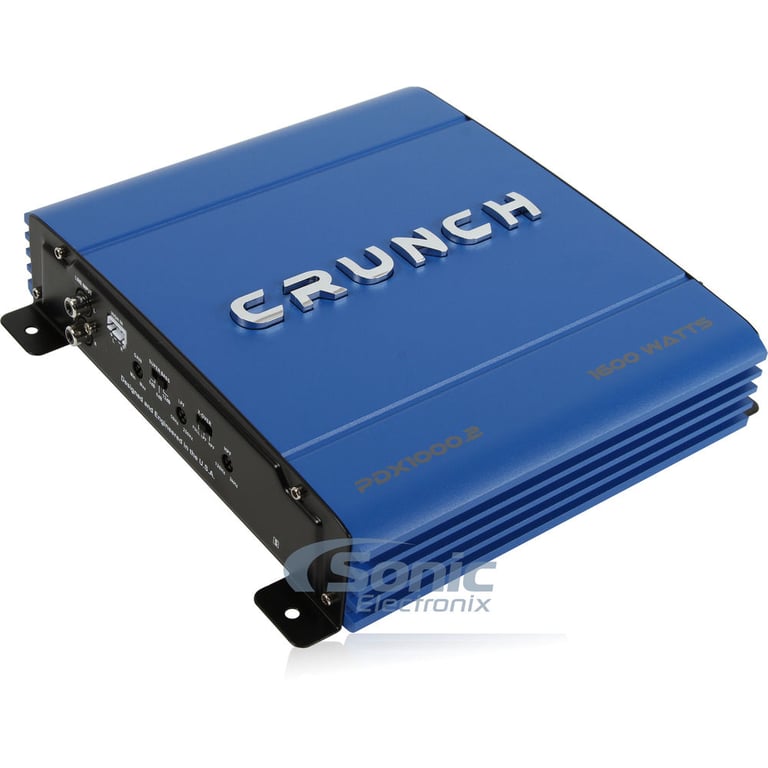

Crunch PDX-1000.2
1000W Max 2-Channel Class A/B PDX Series Car Amplifier
Quantity: 1
General Features:
- PDX Series 2-Channel Class A/B Car Amplifier
- MAX Power Rating (14.4V):
- 4 ohm: 250 watts x 2 chan.
- 2 ohm: 500 watts x 2 chan.
- Bridged, 4 ohm: 1000 watts x 1 chan.
- RMS Power Rating:
- 4 ohm: 125 watts x 2 chan.
- 2 ohm: 250 watts x 2 chan.
- Bridged, 4 ohm: 500 watts x 1 chan.
- SEPP (Single Ended Push-Pull) output technology
- Pulse Width Modulated power supply
- LED power (green) and protect (red) indicators
- Slow un-mute soft start turn-on
- 2/1 channel operation
- Speaker-level inputs
- Preamp RCA outputs to daisy chain multiple amps
- 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy heatsink for extreme heat dissipation
- Nickel-plated RCA level inputs
- Nickel-plated screw terminals

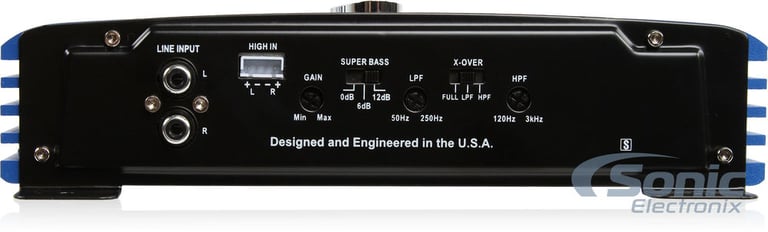

- Input sensitivity: 200mV-6V
- Variable high-pass filter 120 - 3,000 Hz, 12 dB/octave
- Variable low-pass filter 50 - 250 Hz, 12 dB/octave
- Variable Bass Boost: 0 - +12 dB bass boost at 45 Hz
- Damping factor: >180
- Signal-to-nose ratio: >98dB
- Frequency response: 20 - 20,000 Hz

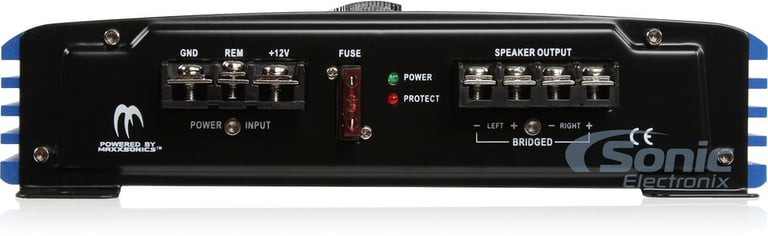

- Fuse rating: 20A x 2
- Dimensions: 9-7/8"L x 9-7/8"W x 2-1/16"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

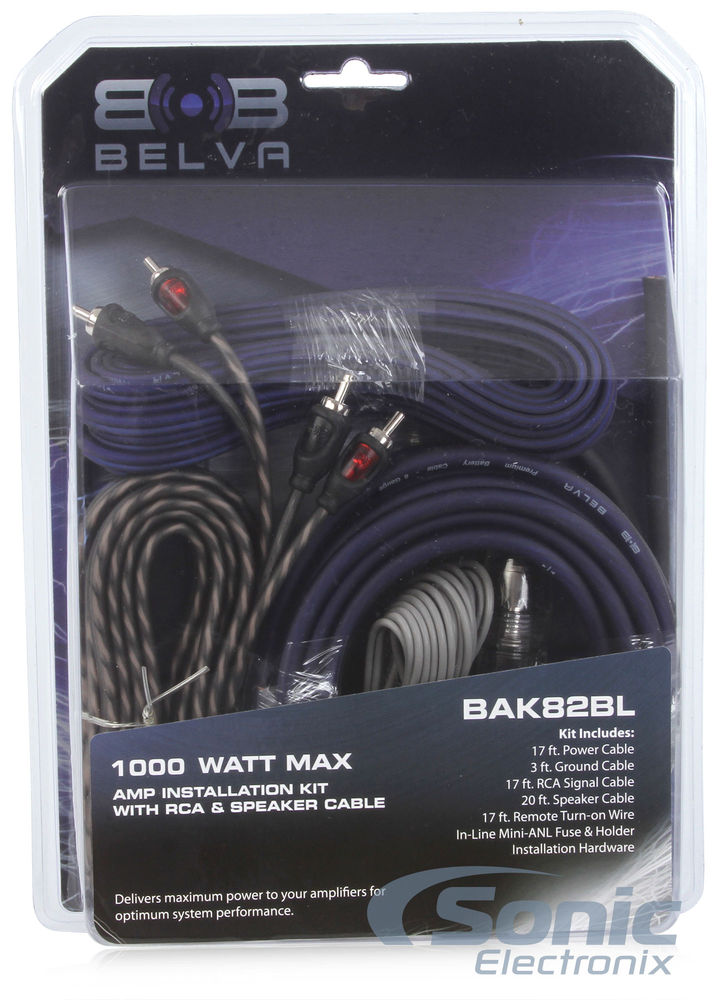

Belva BAK82BL (Blue)
Primary Color: Blue - Complete 8 Gauge Amplifier Wiring Kit with 2-Channel RCA Cable (CCA Wiring)
Quantity: 1
General Features:
- Complete 8 Gauge 2-Channel Amplifier Installation Kit
- Designed specifically for car audio systems up to 500 watts RMS
- Premium Powerflex power and ground wire provides optimal power transfer
- Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
- Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
- Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
- Mini-ANL Fuse holder with a 60 amp Mini-ANL fuse offers ideal protection
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Kit includes:

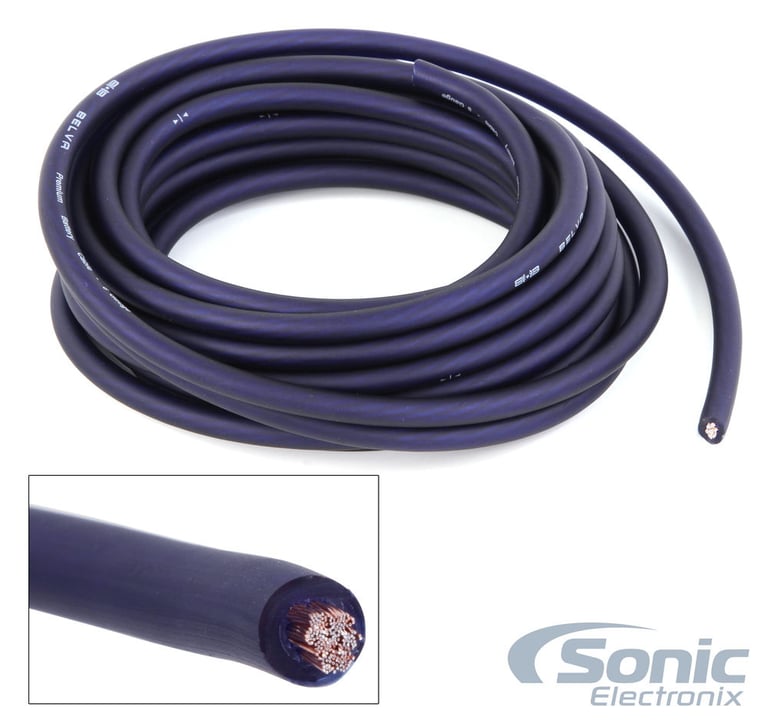

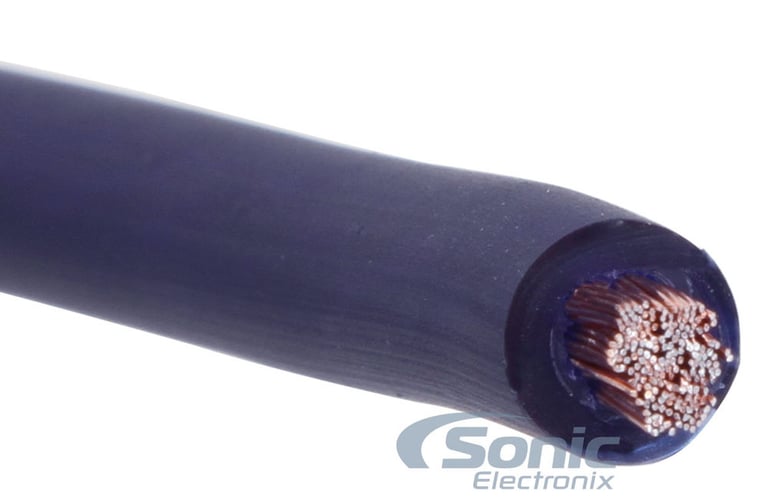

- 17 ft. (5.2 meters) Blue 8 gauge power wire

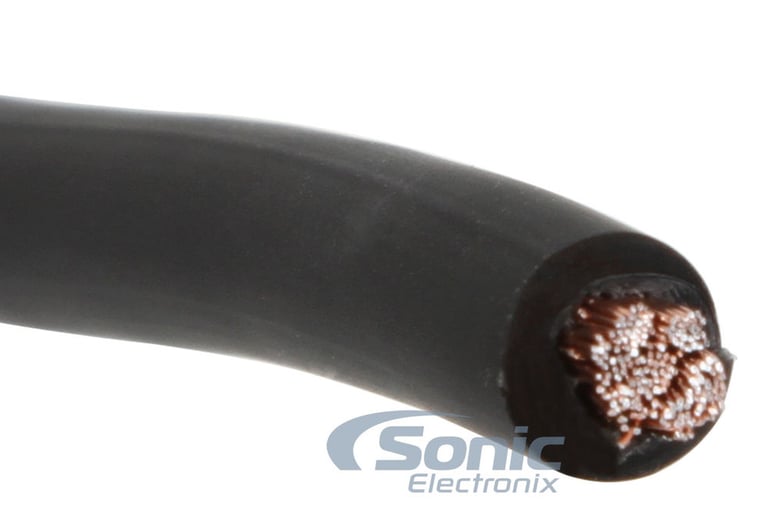

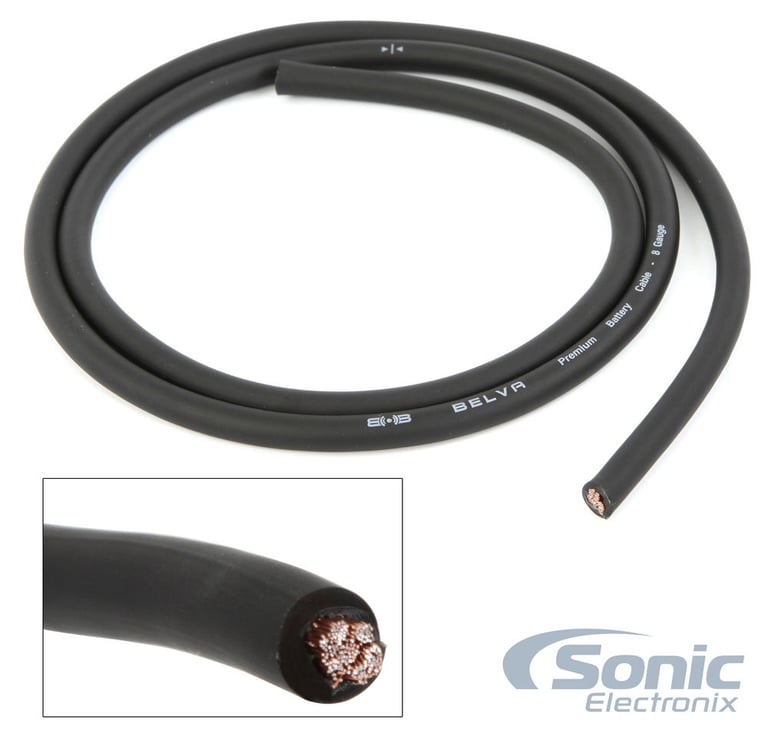

- 3 ft. (.91 meters) Black 8 gauge ground wire

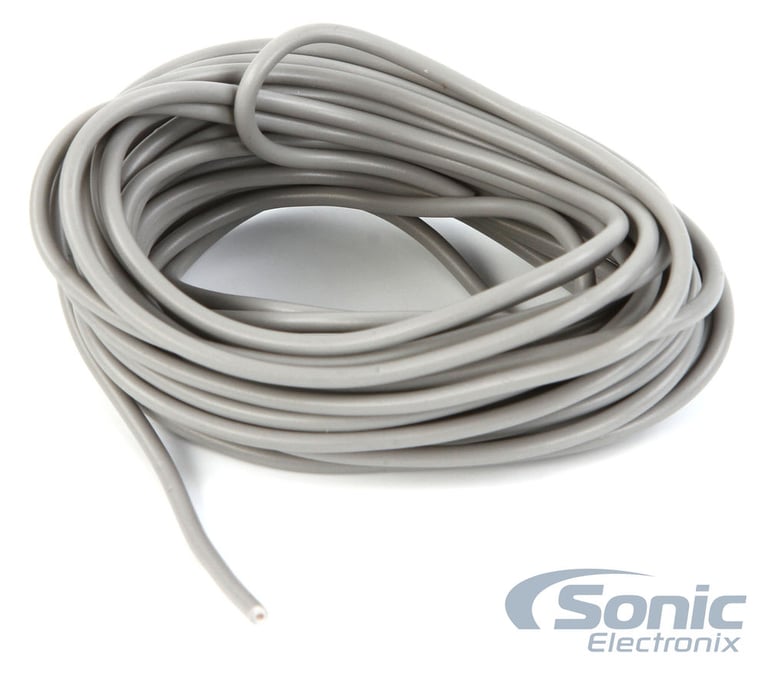

- 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

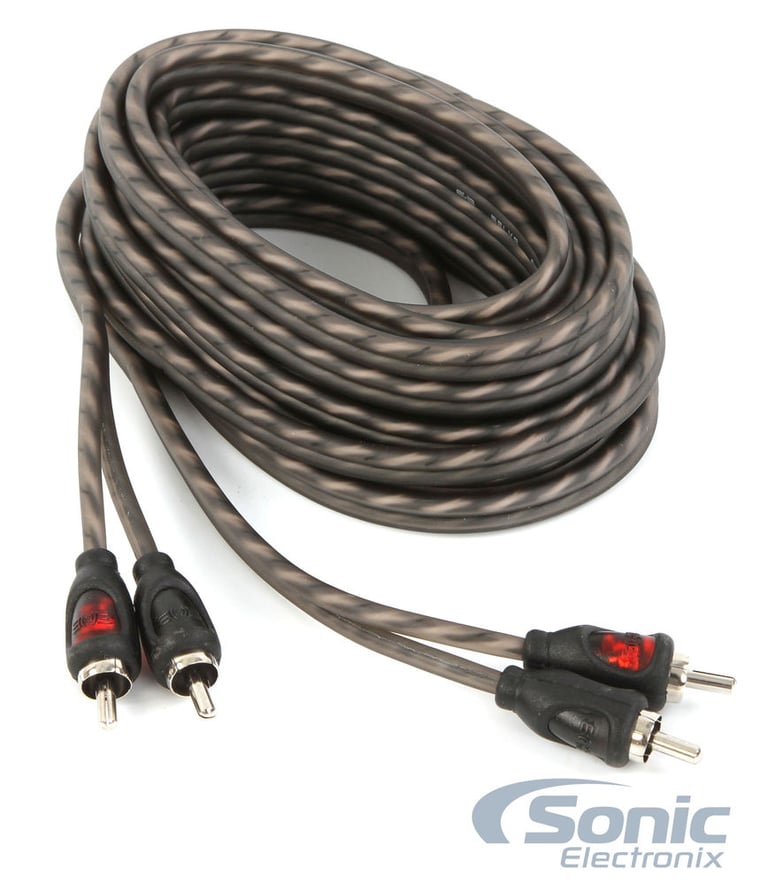

- 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

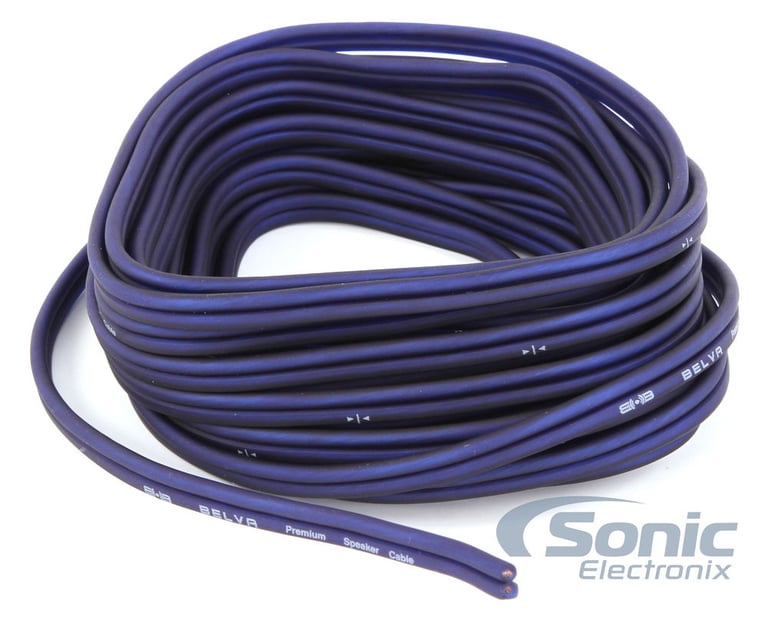

- 20 ft. (6.1 meters) Speaker cable

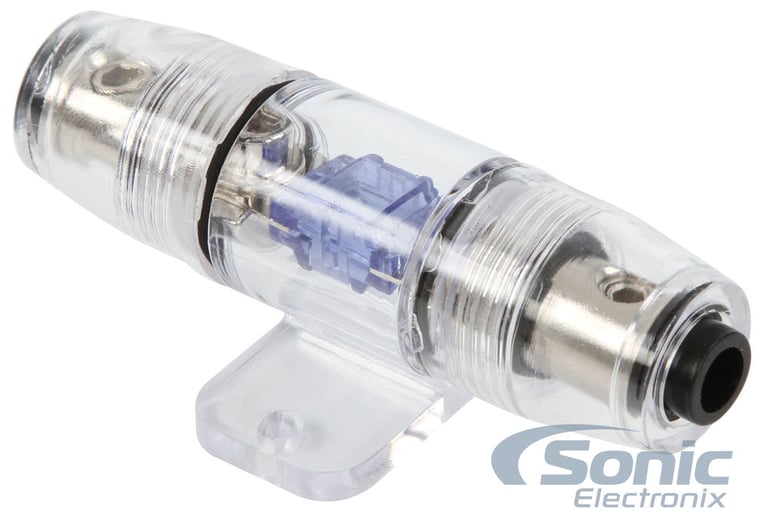

- One In-line Mini-ANL Fuse Holder with a 60 amp Mini-ANL fuse

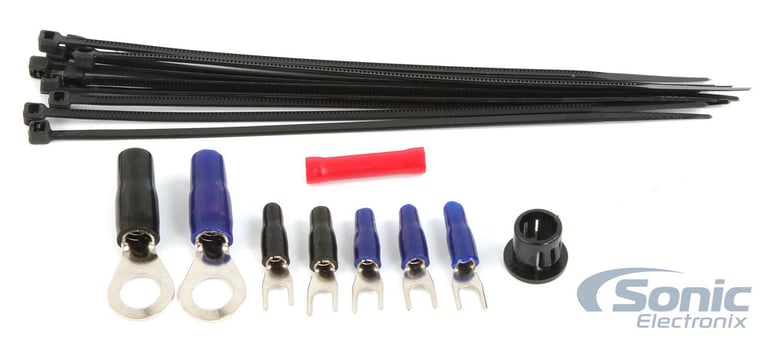

- One black rubber firewall grommet
- One 8 Gauge Blue chrome plated ring terminals
- One 8 Gauge Black chrome plated ring terminal
- Three 18 Gauge Blue Spade terminal
- Two 18 Gauge Black Spade terminal
- One 18 Gauge Red butt connector
- Ten 4" Black zip ties
