JL Audio RD900/5 (Open Box, Great)

900W RMS Class D RD Series 5 Channel Car Amplifier

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• 70 watts x 4 channel + 225 watts x 1 channel @ 4 ohm
• 100 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 5-Channel Amplifier

Learn more about the ls-rd9005-u8

We apologize

This item has been discontinued

Product Highlights


• 70 watts x 4 channel + 225 watts x 1 channel @ 4 ohm
• 100 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 5-Channel Amplifier

Description


JL Audio brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

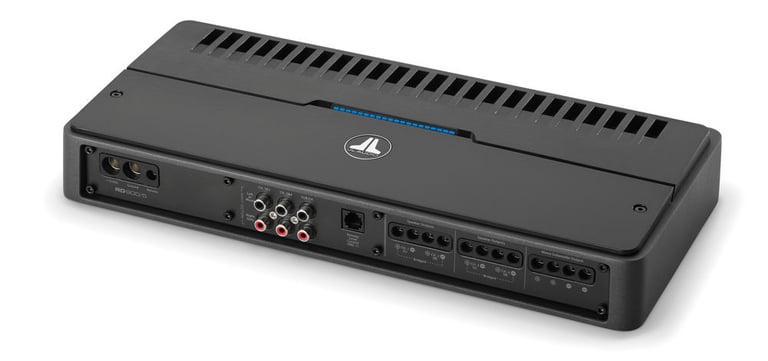

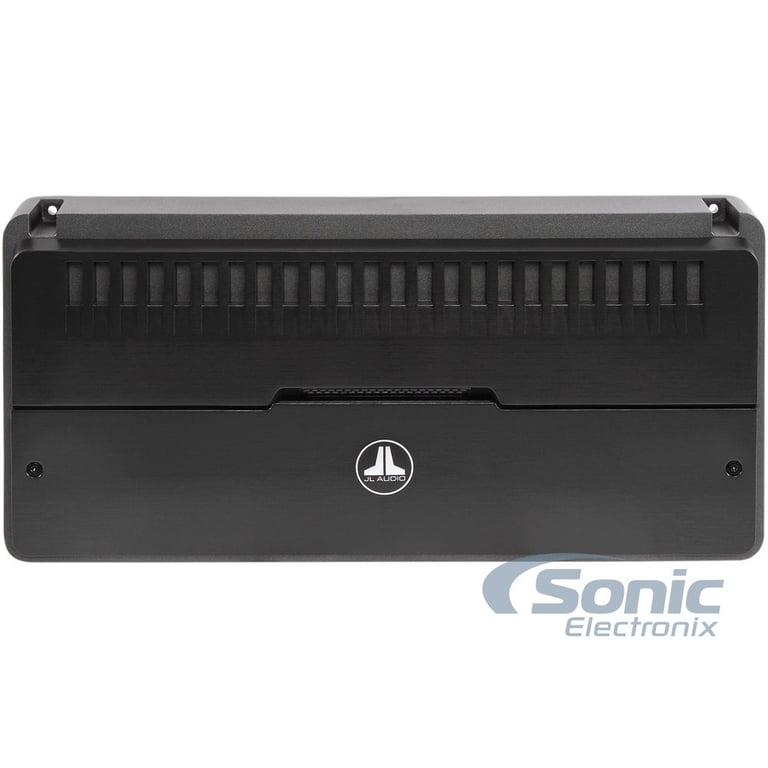

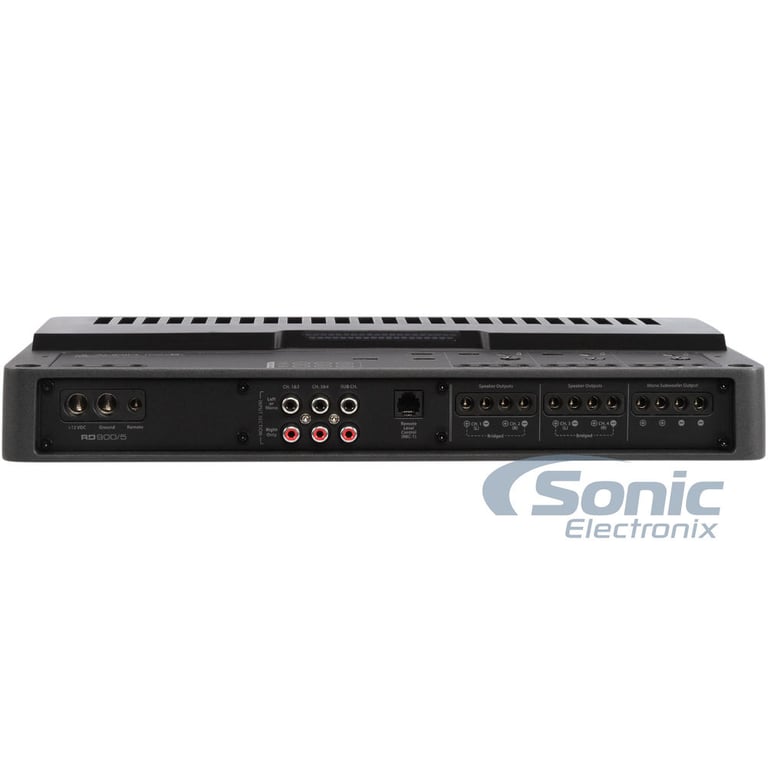

JL Audio RD900/5

Crafted as an all-in-one, total system solution, the RD900/5 is engineered to power a complete audio system consisting of a subwoofer + four satellite system with 900 watts of high-performance sound. Equipped with exclusive NexD switching technology, this complete power package efficiently generates a potent 70 watts of crystal-clear audio into 4 ohms, plus a robust 500 watts for a subwoofer system, all from a single compact chassis. Each pair of main channels is also fully bridgeable, stoutly producing 200 watts of full-range audio bliss (into 4 ohms), creating an ultra-powerful 3-channel amplifier.

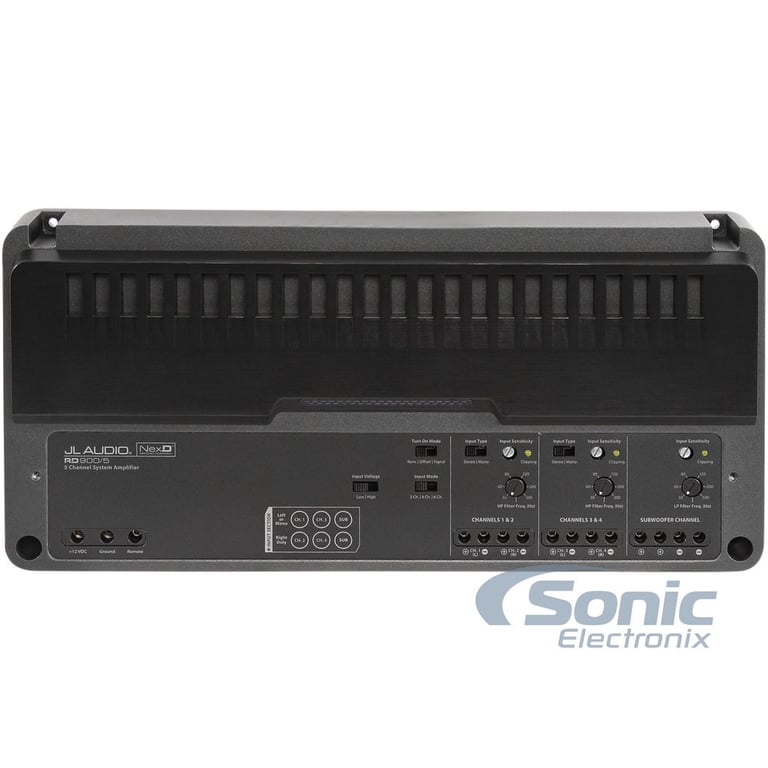

Conveniently located on top of the RD900/5, you’ll find a complement of studio-grade signal processing features, all hidden beneath a removable protective cover. Each pair of main channels is equipped with a 12 dB / octave high-pass filter, with a dedicated low-pass filter for its subwoofer channel. All three crossovers offer continuously variable frequency selection from 50-500 Hz, for precise filtering. Dual-range, differential-balanced inputs are also onboard, capable of accepting most input voltage levels, plus automatic turn-on capability (via signal sensing or DC-offset sensing) for maximum versatility.

LED clipping indicators are also standard equipment for each channel section. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity settings, quickly and accurately, with no special equipment needed. The RD900/5 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition.


Product Details:

  • RD Series Class D 2 ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 70 watts x 4 channel + 225 watts x 1 channel
    • 2 ohm: 100 watts x 4 channel + 500 watts x 1 channel
    • Bridged: 200 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
  • Total power output: 900 watts
  • Onboard LED clipping indicator rings
  • Optional wired bass level remote control (sold separately)
  • Speaker-level (high-level) inputs (Requires adapter like the JL Audio XD-CLRAIC2-SW)
  • Signal sensing remote turn-on
  • NextD switching amplifier technology
  • Differential-balanced inputs help eliminate noise
  • Advanced Rollback Protection System prevents thermal shut-down
  • Input sensitivity:
    • Low level: 200mV - 2 volts
    • High level: 800mV - 8 volts
  • Frequency Response: 12 - 22000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >104 dB
  • Variable high-pass filter: 50 - 500 Hz
  • Variable low-pass filter: 50 - 500 Hz
  • Fuse Rating: 80A (AFS, AGU or MaxiFuse)
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 14.66" L x 6.96" W x 2.13" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: RD900/5

Specifications & Details


Key Features
Amplifier Key Features
Speaker Level Inputs
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
70 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
225 watts x 1 channel
RMS Power @ 3 ohm
325 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Series
RD Series
Amplifier Class
D
Number of Channels
5-Channel
Total RMS Power Output
900 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
12 - 22000 Hz
THD at Rated RMS Power
<1%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
>104 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
80A x 1
Total Fuse Rating
80
Strappable
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
200mV - 2 volts
High-Level Input Sensitivity
800mV - 8 volts
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Adhesive brand badge
Allen wrench
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RD900/5

Weight:

8.98lbs

Internal SKU:

ls-rd9005-u8

Internal Product ID:

231553
