Kicker CompVT CVT124 (43CVT124)

800W Peak (400W RMS) 12" CompVT Series Single 4-ohms Subwoofer

Kicker
Shop all Kicker
Product videos
highlight-star-icon

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene - IMPP Cone
• Santoprene Rubber Surround
• Mount depth: 4-3/8"
• Sensitivity: 87.1 dB

Learn more about the 43cvt124

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

52cvt124 thumbnail

Kicker CVT124 (52CVT124)

OUR PRICE: $199.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65A-150 main

SSV Works US2-C65A-150

Loaded 8" Cage-Mount Speaker-Pods Enclosure with SSV Works Speakers

Product Highlights


• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene - IMPP Cone
• Santoprene Rubber Surround
• Mount depth: 4-3/8"
• Sensitivity: 87.1 dB

Description


Kicker brand icon

Authorized dealer

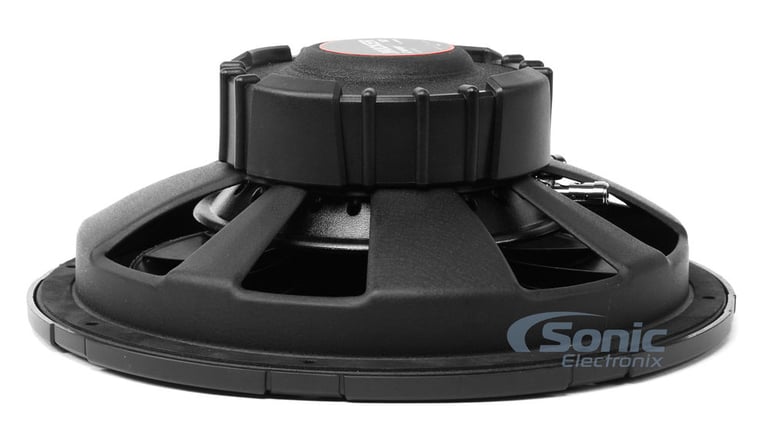

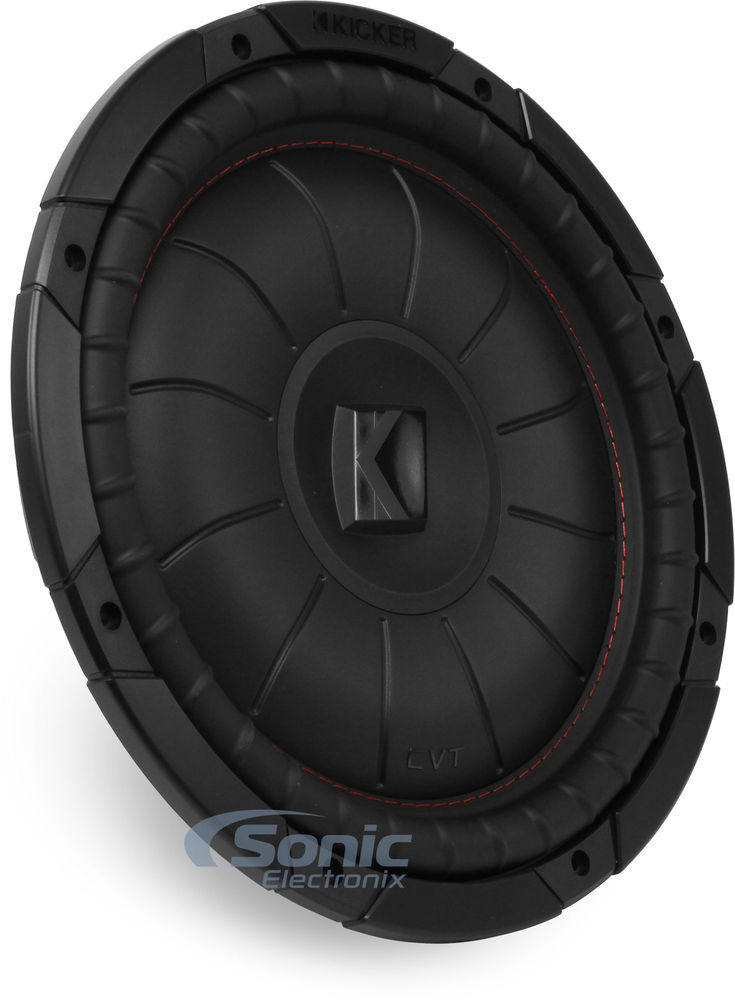

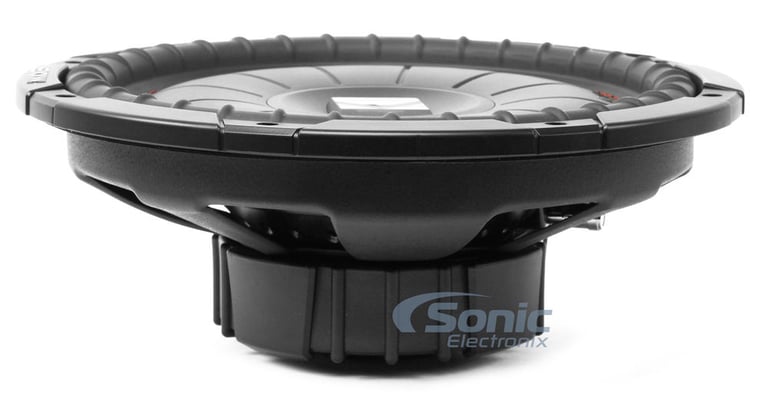

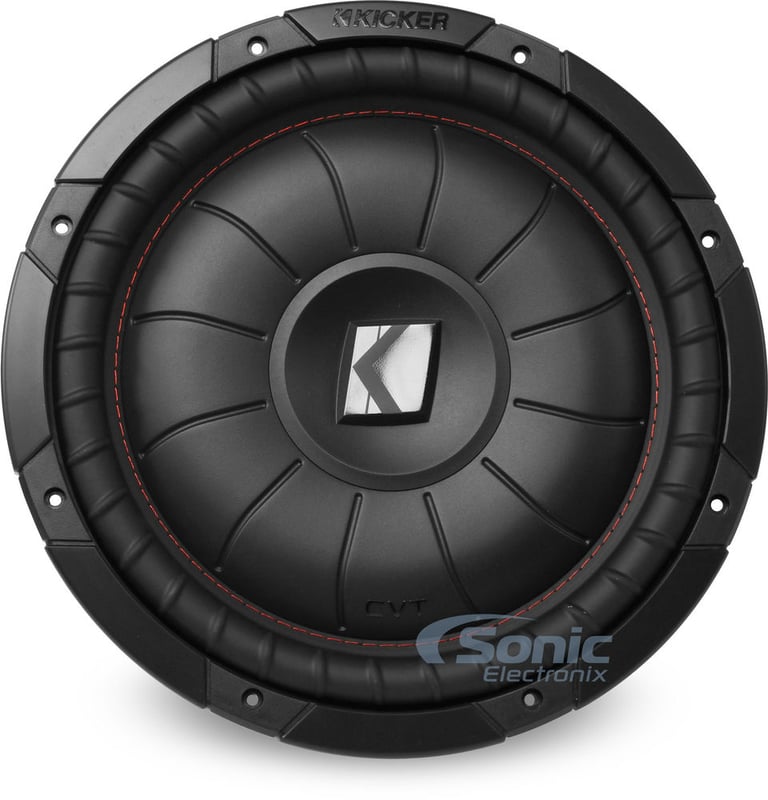

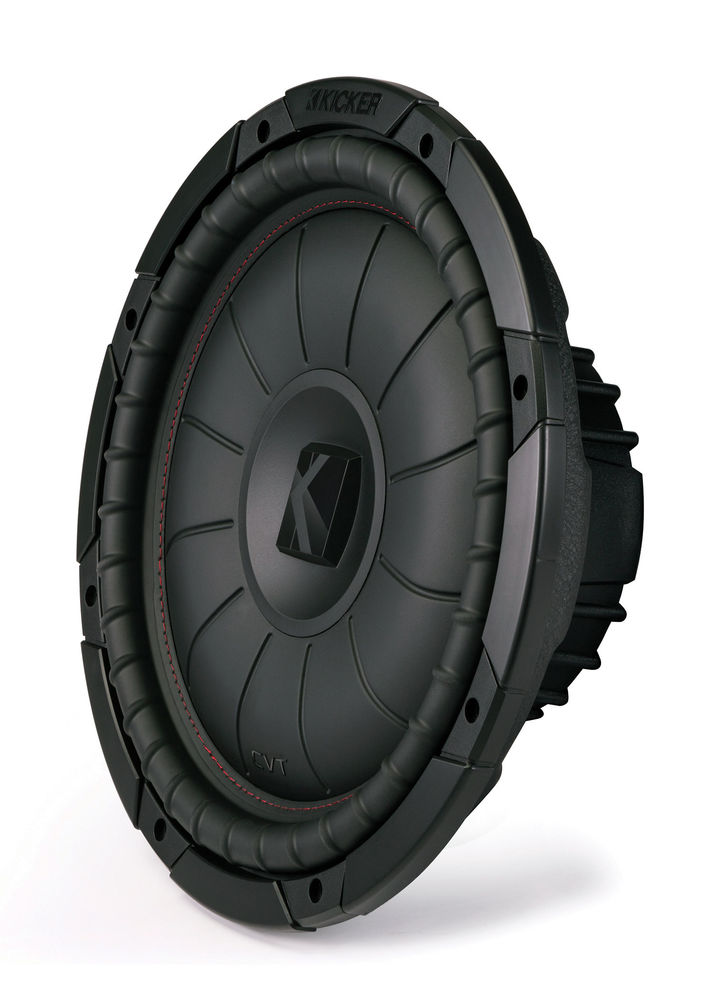

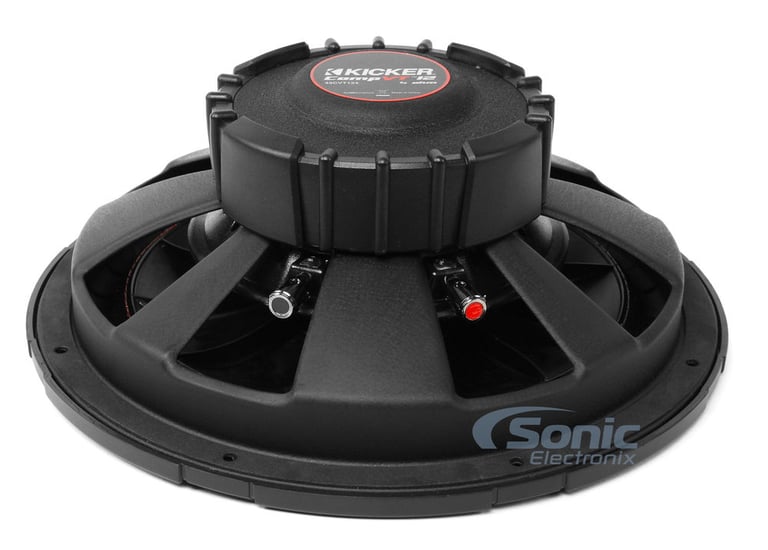

Kicker CompVT CVT124

The CompVT is made for you. A wide Santoprene surround holds a stiff ribbed cone. Perimeter venting keeps the motor cool, and the stamped steel basket is specially shaped to provide plenty of bass, without needing plenty of depth. The CompVT 12-Inch Subwoofer works best with a sealed or ported enclosure and 400 watts of recommended power.


Product Details:

  • 12" Single 4 ohm CompVT Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Injection Molded Polypropylene - IMPP Cone
  • Santoprene Rubber Surround
  • Slimline driver
  • Full perimeter venting
  • UniPlate™ black plate and pole piece
  • 10.5 mm Xmax
  • Frequency Response: 25 - 500 Hz
  • Resonance Frequency (Fs): 32.7 Hz
  • Sensitivity: 87.1 dB
  • Recommended sealed box volume: 1.0 cubic feet - 4.6 cubic feet
  • Recommended ported box volume: 1.75 cubic feet - 2.25 cubic feet
  • Top-mount depth: 4-3/8"
  • Cutout diameter: 11"
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

  • Priced Individually

PDF IconKicker 43CVT124 owner’s manual

Product history:

Kicker 52CVT124 thumbnail
(newest, current model)
Kicker CVT124 thumbnail
(previous model, replaced by Kicker CVT124 (52CVT124))
Kicker 10CVT124 thumbnail
(previous model, replaced by Kicker CompVT CVT124 (43CVT124))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker CompVT CVT124 (43CVT124) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker CompVT CVT124 (43CVT124) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker CompVT CVT124 (43CVT124) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Kicker CompVT CVT124 (43CVT124) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
CompVT Series
Subwoofer Size
12"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
25 - 500 Hz
Sensitivity
87.1 dB
Xmax (millimeters)
10.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Santoprene Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
Yes
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.0 cubic feet
Maximum Sealed Box Volume
4.6 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
2.25 cubic feet
Top-Mount Depth (Mounting Depth)
4-3/8"
Cutout Diameter
11"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32.7 Hz
Equivalent Compliance (Vas)
2.15 liters
Total Speaker Q Value (Qts)
0.518
Electrical Q Value (Qes)
0.546
Electrical Resistance of Voice Coil (Re)
2.16 ohm
Mechanical Q Value (Qms)
10.16
What is in the box?
Paperwork
User manual
Warranty/Registration card
Brand sticker/decal
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

CVT124

Weight:

12.66lbs

Internal SKU:

43cvt124

Internal Product ID:

107681

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How to Install a Car Subwoofer in a Box

Customer Ratings & Reviews


Kicker CompVT CVT124 (43CVT124) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.7
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Awesome

This subwoofer is awesome. I had the Boss Diablo and was not impressed due to manufacture defects. Returned the Boss and decided to just spend more money on something better. Sedric from customer support was awesome to work with and guided me towards this one. I was super impressed with this sub for a shallow mount. I have it mounted in the 12" atrend box for a 2010 Ram 1500 and hooked up to a Kenwood KAC-7205 2 channel. This sub hits extremely hard for being a shallow mount! I am super happy with this purchase and Sedric!

By luke on July 27, 2017 Checkmark Icon Verified purchase

32 found this helpful


By Jarett on August 11, 2024 Checkmark Icon Verified purchase

2 found this helpful


Great Subs

I love the look and the way they sound. They sound great!!

By Luis on January 2, 2025 Checkmark Icon Verified purchase

1 found this helpful
