AudioControl EQL Black Blue Trunk Mount Equalizer and Pre-Amp

AudioControl EQL - Black

2-Channel Trunk Mount Dual Bandwidth Graphic Equalizer and Pre-Amp with 5-year warranty*!

2-Channel Trunk Mount Dual Bandwidth Graphic Equalizer and Pre-Amp with 5-year warranty*!

• Trunk Mount Equalizer and Pre-Amp
• PFM Subsonic Filter
• Line and Speaker Level Inputs
7 Band, 1 Octave Equalizer
6 Band, 1/2 Octave Bass EQ
• Color: Black Blue

Use code "Audio15" at checkout for 15% off!

List price $279.99
Save: $50.00

$229.99

Special Order. Ships at Later Date with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
AudioControl

Authorized dealer


For over two decades, AudioControl has been designing and manufacturing award-winning autosound products at our factory located in the rainforests of the Pacific Northwest. During this period, countless sound-off winning contestants have chosen AudioControl products to give them the competitive edge. "Can you really win without AudioControl", was part of an article written commenting on competition winning systems. Nothing sounds better than an awesome recording played back on a kickbutt system. Unfortunately, the acoustics of your vehicle can take away from your systems performance. While AudioControl products do not change the laws of physics (although they act like they do), autosound enthusiasts have long known that AudioControl products "make good stereo sound better"

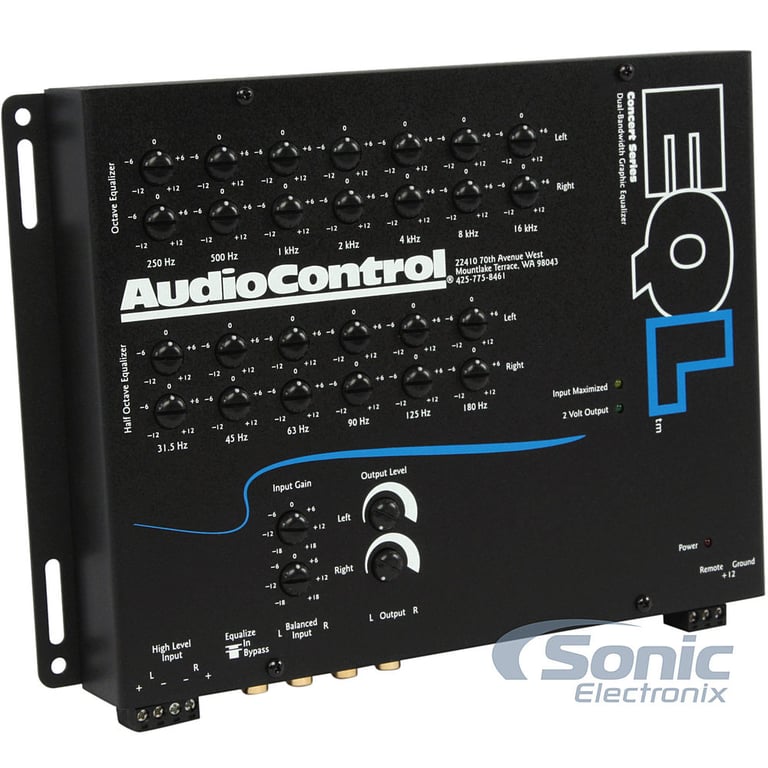

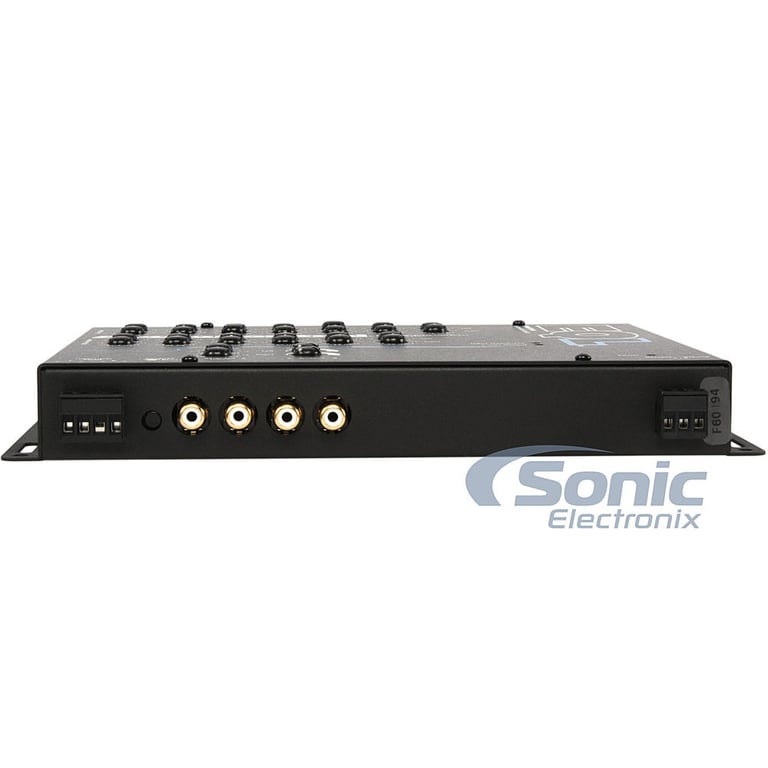

The AudioControl EQL - 2 Channel Trunk-Mount 13 Band Equalizer

The EQL works wonders with any 2 channel audio system: From existing factory installed setups to custom audiophile-grade systems. Level-matching circuitry allows connection to either preamp-level or speaker-level inputs. The EQL also features thirteen-band, dual-bandwidth equalization and a Programmable Frequency Match (PFM) filter for precise bass control.

Key Features:

Dual Bandwidth Equalizer - 13 bands:

The dual bandwidth design of the EQL concentrates more control in the lower bass frequencies where the interior of an automobile causes problems. The higher frequency controls are spaced on octave centers to give you complete control up to 16,000 Hz. No simple dash-mount equalizer gives you this kind of flexibility.

Level Matching:

True standards in car stereo are hard to find. Every manufacturer has a slightly different interpretation of things. The input and output level controls on the EQL bring everything together. Now any head unit can be connected to any amplifier and the will system sound great.

Balanced Input:

The EQL takes noise rejection a step further than the average by incorporating balanced differential input circuitry. By looking at the output from your source unit in a different way the EQL can reject up to 60 dB of radiated noise.

Programmable Frequency Match Filter:

AudioControl's Programmable Frequency Match (PFM) filter system brings out the best in any system. A modular programmable low-cut frequency filter allows the system installer to easily customize the bass roll-off to match any speaker design. Unruly subwoofer boxes can finally be brought under control.



General Features:

  • Trunk Mount Equalizer and Pre-Amp
  • 6 Band, 1/2 Octave Bass EQ
  • 7 Band, 1 Octave Equalizer
  • Programmable Frequency Match (PFM) Subsonic Filter
  • Line and Speaker Level Inputs
  • Balanced Inputs
  • Input and Output Level Matching Controls
  • Color: Black Blue
  • Weight: 3 lbs
  • Dimensions: 1.25" H x 8.9" L x 6.9" W
  • Authorized Internet Dealer
  • 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)

EQL Specifications:

  • Frequency Response: 10 Hz to 20 kHz ± 1 dB
  • Total Harmonic Distortion (THD): 0.005%
  • Signal to Noise Ratio (SNR): 110 dB at full output
  • Maximum Output Level: 7.5 volts rms
  • Input Gain: ± 18 dB
  • PFM Filter Slope: 18 dB per octave
  • PFM Frequency: Programmable 15 to 100 Hz
  • Factory Shipped @ 33Hz
  • Power Supply: Variable isolation. Transformer switching supply
  • Fuse Rating: 2 amps
  • Balanced Input Yes
  • Ground Isolation Jumpers: Yes
  • Country of origin: USA
  • Check out the The AudioControl EQL Owner's Manual

Product history:

AudioControl EQL thumbnail
(newest, current model)
AudioControl EQL-WHITE thumbnail
(previous model, replaced by AudioControl EQL - Black)
FEATURES & SPECS
Equalizer Specifications
Type of Equalizer
Graphic
Equalizer Bands
13 band
Equalizer Frequencies
31.5 - 16,000 Hz
Built-in Crossover
None
Built-in Bass Reconstruction
No
Line Driver
No
Speaker Level Inputs
Yes
Total Number of Inputs
2
Total Number of Outputs
1
Button Color
Black
Max Output Level
7.5Vrms
Frequency Response
10 - 20,000 Hz
THD (Total Harmonic Distortion)
0.005%
Signal-to-Noise Ratio
110 dB
Width
8.90"
Height
1.25"
Depth
6.90"
Warranty and Return Policy
Parts Warranty Duration
5 years
Labor Warranty Duration
5 years
Warranty Provider
Manufacturer
