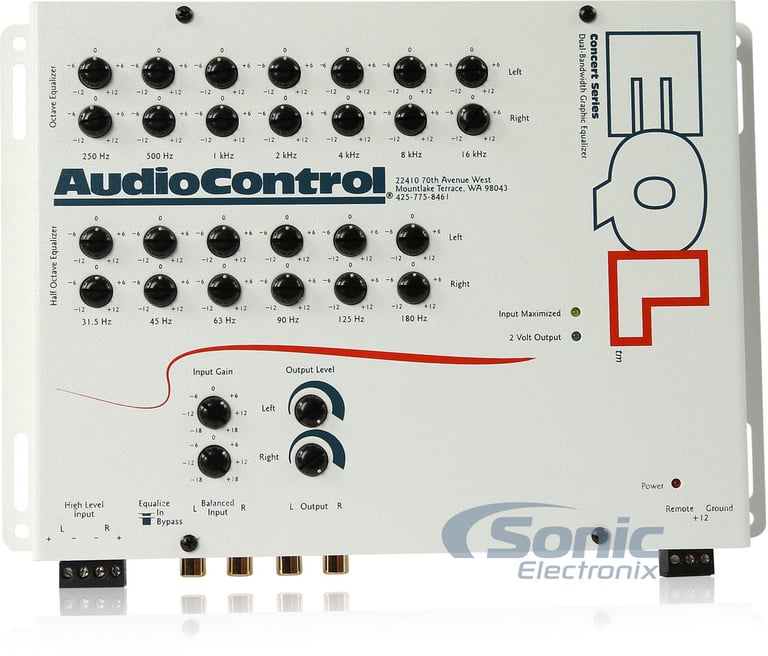

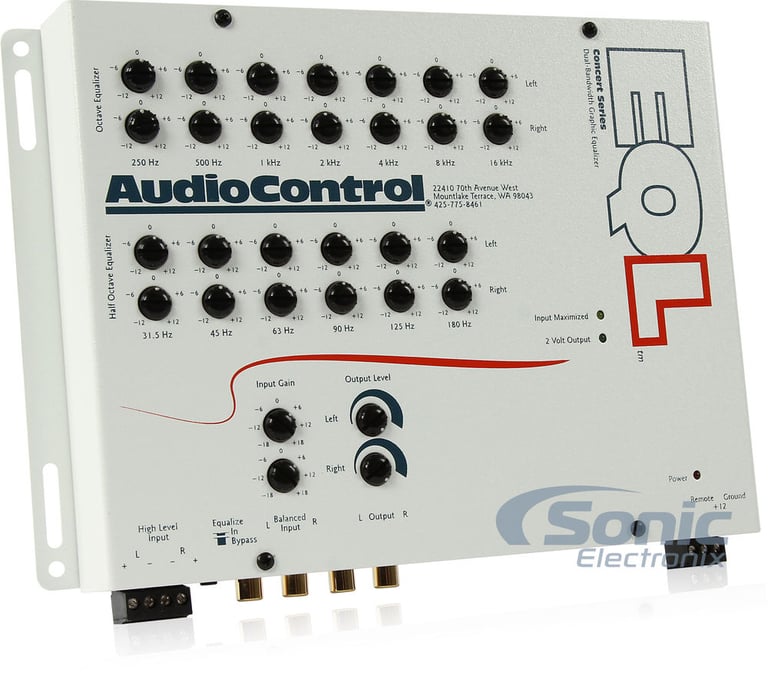

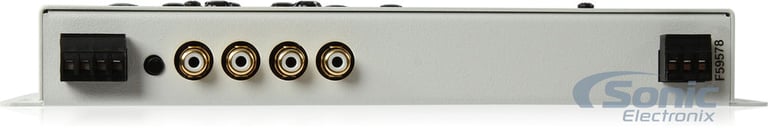

AudioControl EQL (White)

2-Channel Trunk Mount Dual Bandwidth Graphic Equalizer and Pre-Amp with 5-year warranty*!

Product videos
highlight-star-icon

• Trunk Mount Equalizer and Pre-Amp
• PFM Subsonic Filter
• Line and Speaker Level Inputs
7 Band, 1 Octave Equalizer
• Color: Sierra White

Learn more about the eql-white

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

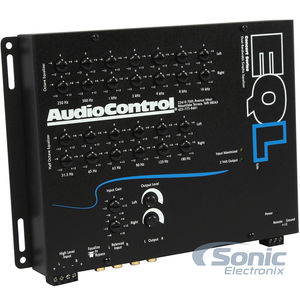

eql-blackblue thumbnail

AudioControl EQL - Black

OUR PRICE: $249.00

View item

Product Highlights


• Trunk Mount Equalizer and Pre-Amp
• PFM Subsonic Filter
• Line and Speaker Level Inputs
7 Band, 1 Octave Equalizer
• Color: Sierra White

Description


AudioControl brand icon

Authorized dealer


For over two decades, AudioControl has been designing and manufacturing award-winning autosound products at our factory located in the rainforests of the Pacific Northwest. During this period, countless sound-off winning contestants have chosen AudioControl products to give them the competitive edge. "Can you really win without AudioControl", was part of an article written commenting on competition winning systems. Nothing sounds better than an awesome recording played back on a kickbutt system. Unfortunately, the acoustics of your vehicle can take away from your systems performance. While AudioControl products do not change the laws of physics (although they act like they do), autosound enthusiasts have long known that AudioControl products "make good stereo sound better".


The AudioControl EQL - 2 Channel Trunk-Mount 13 Band Equalizer

The EQL works wonders with any 2 channel audio system: From existing factory installed setups to custom audiophile-grade systems. Level-matching circuitry allows connection to either preamp-level or speaker-level inputs. The EQL also features thirteen-band, dual-bandwidth equalization and a Programmable Frequency Match (PFM) filter for precise bass control.

Key Features:

Dual Bandwidth Equalizer - 13 bands:

The dual bandwidth design of the EQL concentrates more control in the lower bass frequencies where the interior of an automobile causes problems. The higher frequency controls are spaced on octave centers to give you complete control up to 16,000 Hz. No simple dash-mount equalizer gives you this kind of flexibility.

Level Matching:

True standards in car stereo are hard to find. Every manufacturer has a slightly different interpretation of things. The input and output level controls on the EQL bring everything together. Now any head unit can be connected to any amplifier and the will system sound great.

Balanced Input:

The EQL takes noise rejection a step further than the average by incorporating balanced differential input circuitry. By looking at the output from your source unit in a different way the EQL can reject up to 60 dB of radiated noise.

Programmable Frequency Match Filter:

AudioControl's Programmable Frequency Match (PFM) filter system brings out the best in any system. A modular programmable low-cut frequency filter allows the system installer to easily customize the bass roll-off to match any speaker design. Unruly subwoofer boxes can finally be brought under control.



General Features:

  • Trunk Mount Equalizer and Pre-Amp
  • 6 Band, 1/2 Octave Bass EQ
  • 7 Band, 1 Octave Equalizer
  • Programmable Frequency Match (PFM) Subsonic Filter
  • Line and Speaker Level Inputs
  • Balanced Inputs
  • Input and Output Level Matching Controls
  • Color: Sierra White
  • Also Available In Salmon Gray
  • Now available in Black: EQL - Black
  • Weight: 3 lbs
  • Dimensions: 1.25" H x 8.9" L x 6.9" W
  • Authorized Internet Dealer
  • 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)

EQL Specifications:

  • Frequency Response: 10 Hz to 20 kHz ± 1 dB
  • Total Harmonic Distortion (THD): 0.005%
  • Signal to Noise Ratio (SNR): 110 dB at full output
  • Maximum Output Level: 7.5 volts rms
  • Input Gain: ± 18 dB
  • PFM Filter Slope: 18 dB per octave
  • PFM Frequency: Programmable 15 to 100 Hz
  • Factory Shipped @ 33Hz
  • Power Supply: Variable isolation. Transformer switching supply
  • Fuse Rating: 2 amps
  • Balanced Input Yes
  • Ground Isolation Jumpers: Yes
  • Country of origin: USA
Check out the The AudioControl EQL Owner's Manual

Product history:

AudioControl EQL thumbnail
(newest, current model)
AudioControl EQL-WHITE thumbnail
(previous model, replaced by AudioControl EQL - Black)

Specifications & Details


Equalizer Specifications
Type of Equalizer
Graphic
Equalizer Bands
13 band
Equalizer Frequencies
31.5 - 16,000 Hz
Built-in Crossover
None
Built-in Bass Reconstruction
No
Line Driver
No
Speaker Level Inputs
Yes
Total Number of Inputs
2
Total Number of Outputs
1
Max Output Level
7.5Vrms
Frequency Response
10 - 20,000 Hz
THD (Total Harmonic Distortion)
0.005%
Signal-to-Noise Ratio
110 dB
Width
8.90"
Height
1.25"
Depth
6.90"
Warranty and Return Policy
Parts Warranty Duration
5 years
Labor Warranty Duration
5 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EQL-WHITE

Weight:

3.00lbs

Internal SKU:

eql-white

Internal Product ID:

8053

Product and How-to Videos


Customer Ratings & Reviews



5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.7
Design
4.7
Usability
5

Customer Reviews

Sort by:

Loading...

Thank God it's Made in USA!!!

The unit is pretty awesome. I bought it for a system to be used in my basement. I paired it with a hefty Soundstream Tarantula amplifier. Lots of power, lots of clarity. Source unit is a vintage Sony walkman. Am very pleased with the overall sound quality, especially considering how little I paid for the system.

By Steve on August 29, 2013

21

found this helpful.

great tuning!

if you have a amp running a component set. Then this is some thing you should look into! It even sends a higher volt signal to your amp acting as a inline line driver! Must get!

By kenny on October 7, 2011

17

found this helpful.

Awesome product, value

So far I am extremely pleased with product especially since it was a gift works flawlessly fine tuned with a real time spectrum analyzer (R.T.A.)..

Pros: great clean sound easy installation USA built.great build quality and, all tuning frequencies are dead on.the crossover is a plus but would be nice if it was a three way but the two way works great.

Cons: only minor thing is some of the knob a bit hard to turn than others not a big deal but made tuning a Lil difficult for precision tuning.

I will most definitely reccomended this wonderful unit.

By Zman on October 18, 2016 Checkmark Icon Verified purchase

1

found this helpful.
