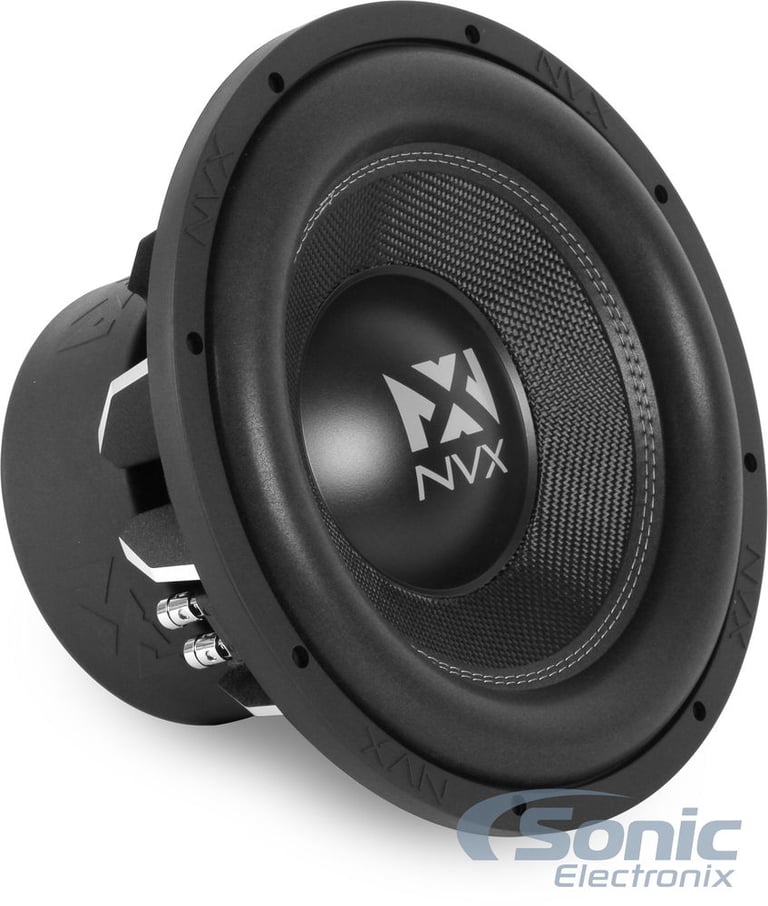

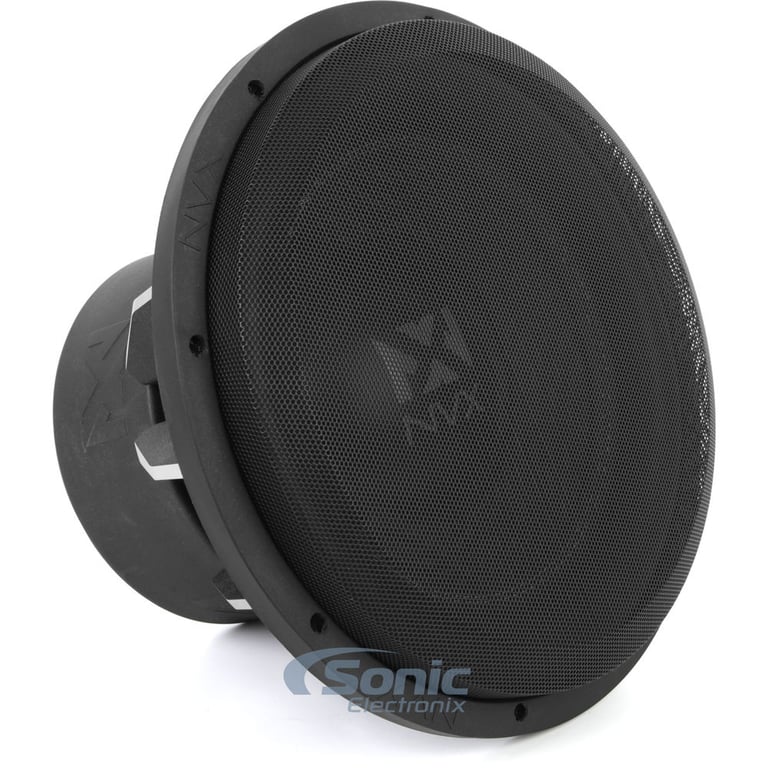

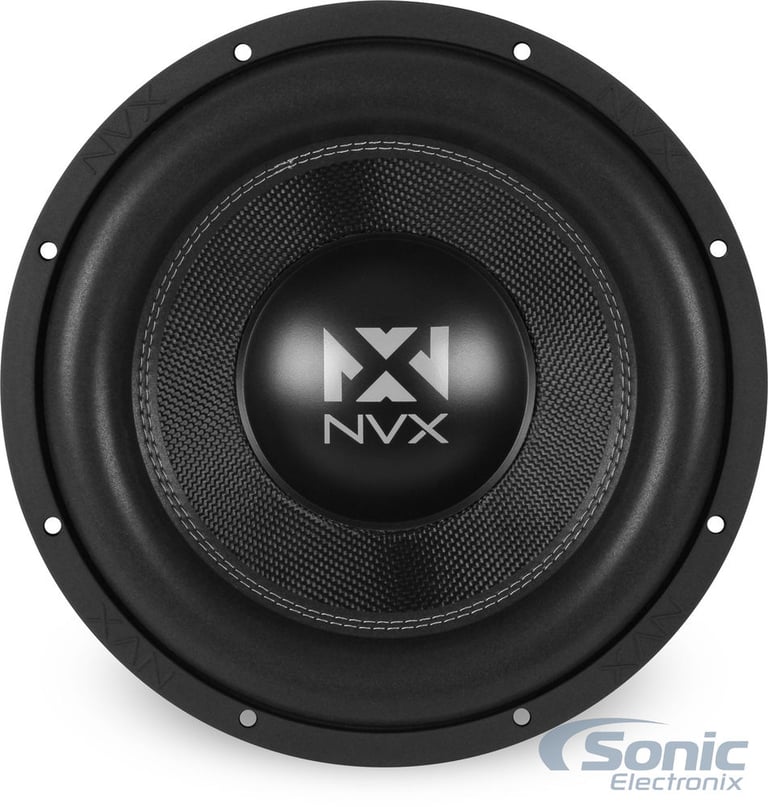

NVX 12" VCW122 1000W RMS Subwoofer with NVX Grille

VCW122 1000W 12" VC-Series Dual 2-ohm Car Subwoofer + VCW12GR 12" Subwoofer Grille

NVX
Shop all NVX
Product videos
highlight-star-icon

• Power Range (RMS) 850-1000 Watts
• Woven Fiber Pressed Paper Cone
• Custom High Roll Foam Surround With Nylon Stitching
• Die Cast Aluminum Basket
• Dual Nomex Spiders
• 12" Protective Subwoofer Grille
• Grille is Perfect for Use with NVX VCW Series Subwoofers
• High Quality Construction

Learn more about the vcw122_vcw12gr

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

LPHTY01 main

PAC LPHTY01

Vehicle Specific Audio Integration T-Harness for select 1985-2021 vehicles from Toyota, Subaru, Scion

-54.27%

$58.99

List price $129.00

72-8110 main

Metra 72-8110

Install New Speakers and Tweeters in select 2003-2025 vehicles from Subaru, Toyota, Scion

8
AXBUCH-T3 main

Axxess AXBUCH-T3

Install a New Car Stereo and Add or Retain Backup Camera in select 2013-2016 vehicles from Toyota, Scion

-11.54%

$45.99

List price $51.99

82-8149 main

Metra 82-8149

6x9" Speaker Adapters for select 2012-2024 vehicles from Lexus, Toyota

8
-50.01%

$18.99

List price $37.99

82-8150 main

Metra 82-8150

6" - 6 3/4" Speaker Adapter for select 2012-2024 Camry Hybrid and Camry and Concept

2
-10.81%

$32.99

List price $36.99

82-3016 main

Metra 82-3016

Speaker Adapters to Mount Tweeter without Adapter or Modification for select 1990-2024 vehicles from Dodge, Subaru, Ram

1
-52.02%

$11.99

List price $24.99

SWRTY-61J main

Crux SWRTY-61J Wiring Interface

Install new car stereo and retains steering wheel audio controls and other factory features in select 2003-2019 vehicles from Toyota, Lexus

-35.71%

$102.60

List price $159.60

Product Highlights


• Power Range (RMS) 850-1000 Watts
• Woven Fiber Pressed Paper Cone
• Custom High Roll Foam Surround With Nylon Stitching
• Die Cast Aluminum Basket
• Dual Nomex Spiders
• 12" Protective Subwoofer Grille
• Grille is Perfect for Use with NVX VCW Series Subwoofers
• High Quality Construction

Description


NVX brand icon

Authorized dealer




Incredible Bass with Ability to Perform in a Tight Space!

NVX's VC-Series car subwoofers are about to blow you away. The VCW122 is a jack-of-all-trades and has been engineered to the highest standards. The woven fiber pressed paper cone and custom High Roll foam surround with Nylon stitching help reproduce tight and accurate bass, keeping cone distortion to a minimum even at the highest volume levels. The next key components in the design of the VCW122 are the large dual 3" High Temperature Aluminum voice coils and triple stacked motor structure. These features combined help this sub handle some serious power at 850-1000 Watts RMS. The dual voice coils also give you many options for different Ohm load wiring configurations. With all the above engineering elements combined, the VCW122 subwoofer gives you better sound and build quality than many subs costing almost twice as much. Plus, they will sound great in a small sealed enclosure for those who do not have a lot of space!




NVX VC Series Subwoofer Breakdown

Surround: Most materials used in commercial subwoofer surrounds rip and tear at peak levels. Keeping this in mind, the NVX team developed a custom high-roll foam surround that gives their subs improved linearity and MORE output. Combining that with high-strength adhesive and nylon stitching means that this subwoofer will last through some serious audio output!

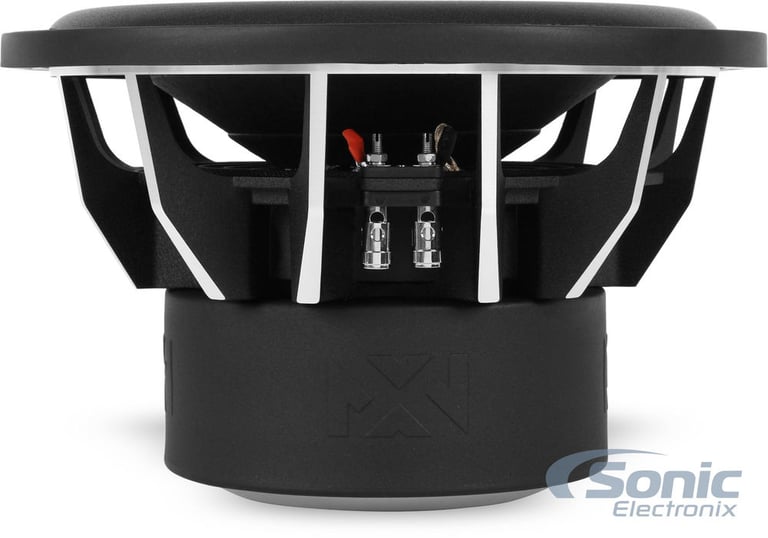

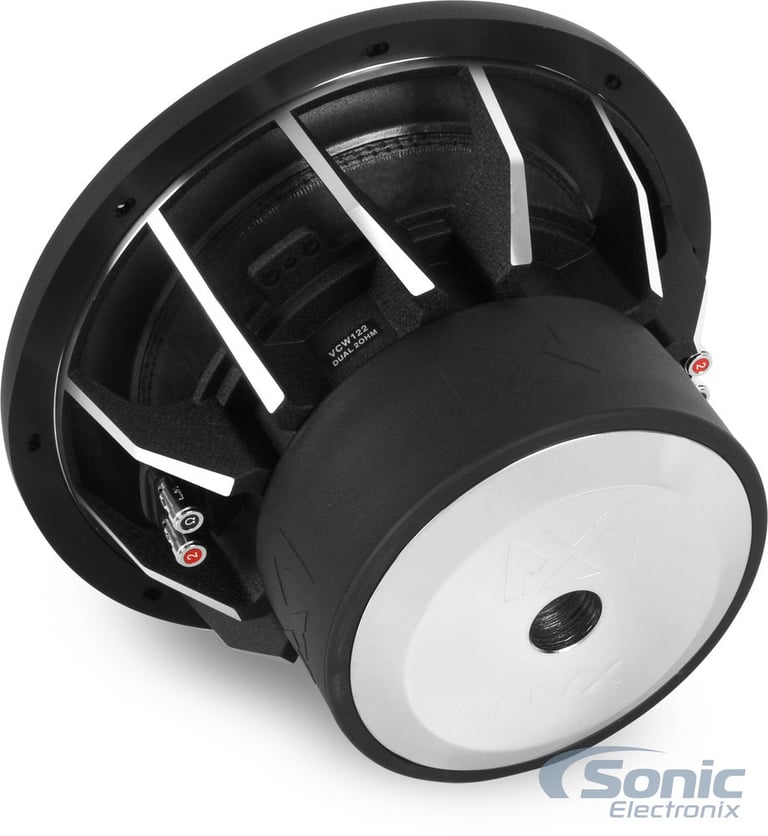

Basket: The 3-dimensional cast provides outstanding strength while keeping the subwoofer light due to the aluminum construction. Aluminum is a non-ferrous metal, which means the basket will not interfere with the magnetic energy of the voice coil and motor structure.

Spiders: The Dual Poly-Cotton Spiders are designed to be durable and long-lasting. They give the voice coil the suspension it needs and restore the subwoofer to its normal resting position with ease.

Voice Coil: The 3" (2.5" for the VCW102 and VCW 104) High Temperature Aluminum Voice Coil along with the triple-stacked magnet give massive power handling capability for the VC Series Subwoofers. The effective heat dissipation of the voice coil allows you to play the subwoofer louder without distortion.




CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.

Check out the NVX Team Demo at Slamology 2014 Here





NVX VCW122 Version 3 (VCW122v3)

2400W Peak (1200W RMS) 12" VC-Series v3 Dual 2-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 12" Dual 2 ohm VC Series Subwoofer
  • Power Handling:
    • Peak: 2400 watts
    • RMS: 1200 watts

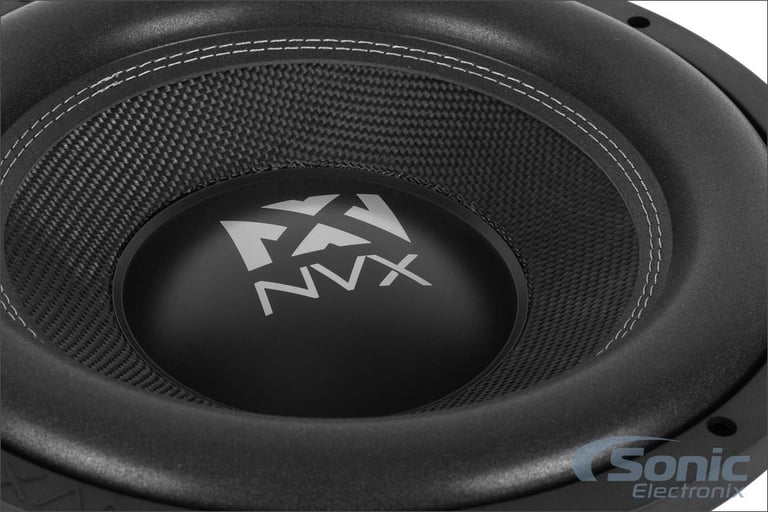

  • Carbon Fiber Enhanced Non-Pressed Paper Cone
  • Custom High Roll Foam Surround with black nylon stitching
  • Die cast aluminum vented basket
  • Dual progressive-roll spiders with integrated flat-braided leads
  • 3" 4-Layer High Temperature Black Aluminum Voice coil
  • Optimized high-velocity pole vent
  • One-piece T-Yoke with integrated gap venting
  • 202 oz. Triple Stacked High Energy Y35 Ferrite with protective rubber boot
  • 23 mm Xmax (one-way) for massive air movement
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 25 Hz
  • Sensitivity: 85 dB (1W/1m)
  • Optimal sealed box volume: 0.85 cubic feet
  • Optimal ported box volume: 1.85 cubic feet
  • Top-mount depth: 7.02"
  • Cutout diameter: 11.26"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

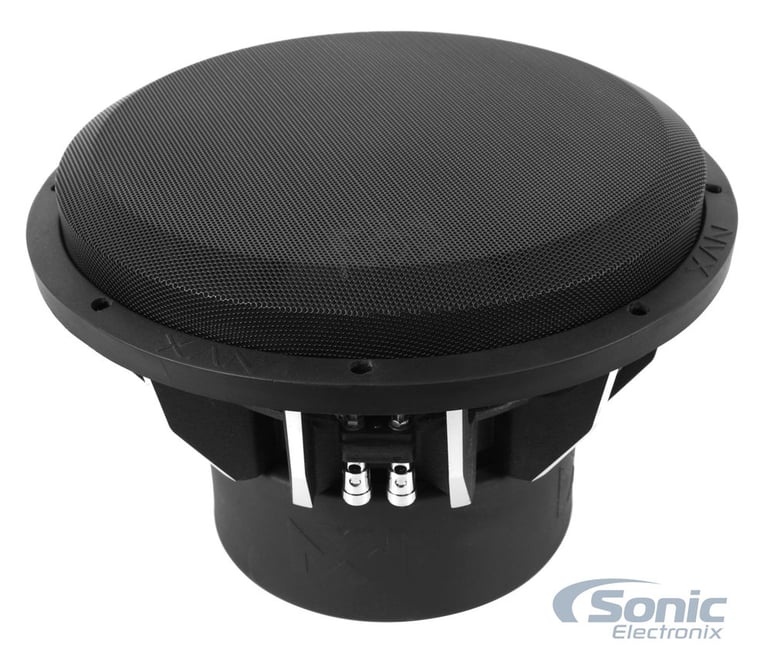

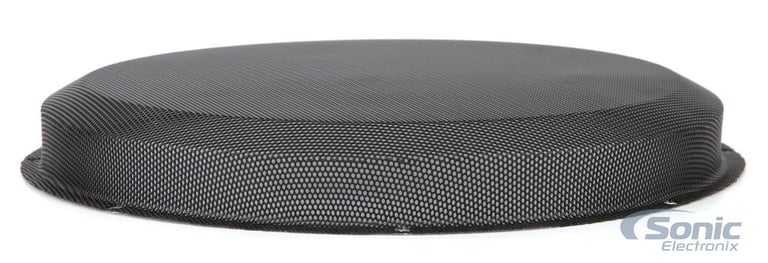

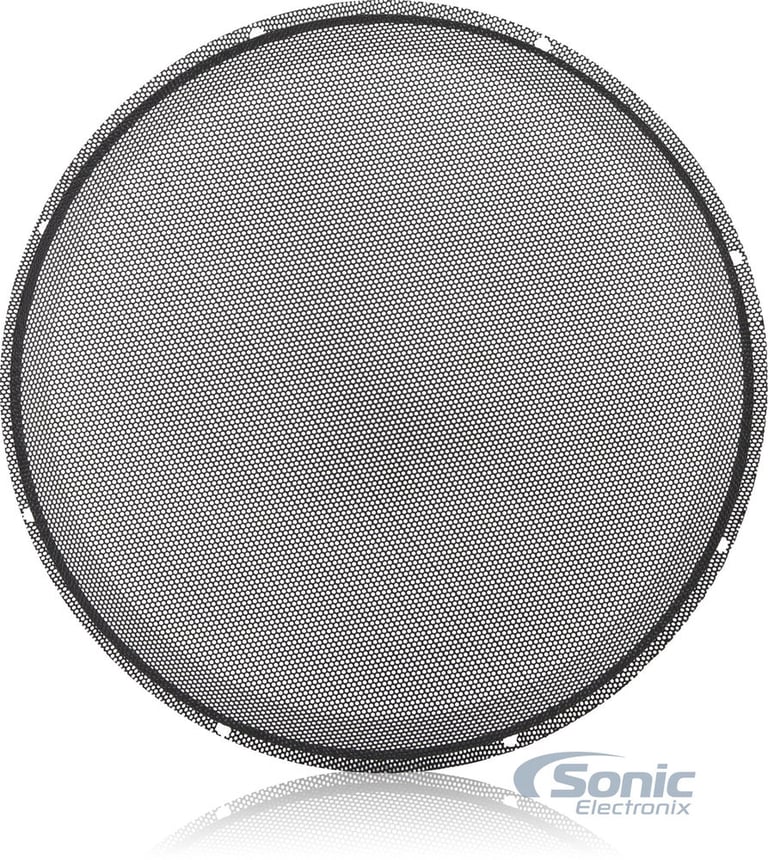

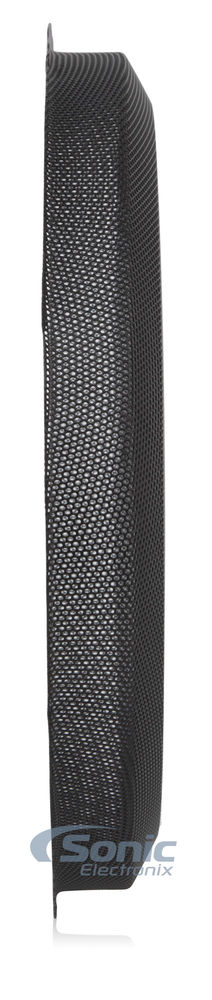

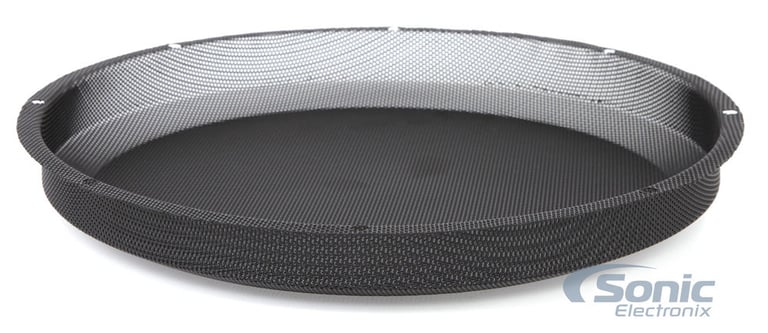

NVX VCW12GR

Mesh Grille for NVX 12" VC-Series V1 and V2 Subwoofers
Quantity: 1

Product Features:

  • Mesh grille for select NVX 12" subwoofers
  • Designed to fit NVX VC-series V1 and V2 subwoofers

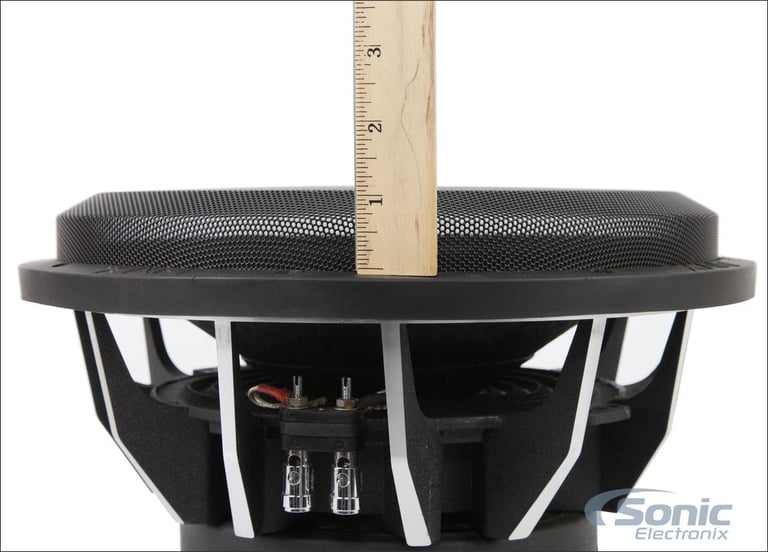

  • Fits between the gasket and frame of subwoofers
  • High quality construction to keep your subwoofer protected
  • Pre-drilled bolt pattern
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 NVX 12" VCW122 1000W RMS Subwoofer with NVX Grille Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 NVX 12" VCW122 1000W RMS Subwoofer with NVX Grille Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 NVX 12" VCW122 1000W RMS Subwoofer with NVX Grille Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 NVX 12" VCW122 1000W RMS Subwoofer with NVX Grille Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
KFC-XP6903C, XBAF69, SDSK2, SDRLR1, BTK106 main

Kenwood eXcelon KFC-XP6903C with Installation Accessories

200W RMS 6"x9" 3-way Component Speakers with Speaker Baffles, Sound Damping, Roller, and Panel Removal Kit

187
-38.13%

$255.34

List price $412.71

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
VC Series
Subwoofer Size
12"
Peak Power Handling
2000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
3"
Frequency Response
20 - 200 Hz
Sensitivity
85 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Woven Fiber Pressed Paper
Woofer Surround
High Roll Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Optimum Sealed Box Volume
0.85 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Optimum Ported Box Volume
1.85 cubic feet
Maximum Ported Box Volume
2.75 cubic feet
Top-Mount Depth (Mounting Depth)
7.02"
Cutout Diameter
11.26"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
24 Hz
Equivalent Compliance (Vas)
33.81 liters
Total Speaker Q Value (Qts)
0.32
Electrical Resistance of Voice Coil (Re)
3.2 ohm
Mechanical Q Value (Qms)
2.849
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

VCW12GR,VCW122

Weight:

35.51lbs

Internal SKU:

vcw122_vcw12gr

Internal Product ID:

108617

Product and How-to Videos


  • NVX VC-Series Car Audio Subwoofers
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


NVX 12

5 star
90%
4 star
7%
3 star
2%
2 star
1%
1 star
0%



Durability
4.8
Value
4.9
Features
4.9
Design
5
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

NVX Audio VCW 12 Dual 2 ohm

The following review is for VCW122v3, which is a part of the bundle you are viewing.

this sub is a beast !! it can hit the lows just awesome !!! for the price this sub is just awesome ! takes what other more expensive subwoofer i had wont take ! many of my friends are switch over brands because of how good mine sound and how well they take the power . ill be getting more for sure

By Brad on January 28, 2013

114 found this helpful


Killer Sub

The following review is for VCW122v3, which is a part of the bundle you are viewing.

I have this sub in a 2007 Hyundai Tiburon in the ported box it came with, it fit nicely in my car and I have my trunk divided in half so this baby takes it up and I still have some room.

I've been doing Car Audio for about 5 years now and have had a good handful of subs (l7's, CVR's, Boss{junk, I know}, Clarion and a rockford t1 etc)

This sub pounds nice, it is a little hazy on the rock songs but keeps up beautifully with rap and hip hop. It hits pretty hard, Im feeding it ~900 RMS and she pounds. After about an hour of heavy play - 80% volume - I can smell the voice coil a little; so prolonged use might not be its strong point.

This sub is great for a modest hard hitting system for daily use and to impress some friends or piss off some neighbors. But if you want a windshield cracker I'd say go a little higher up on the totem pole.


on a side note, the middle cover that says NVX blew off after a few weeks of use, might be more bass than they expected.

By Patrick on September 26, 2013

114 found this helpful


Impressed already

The following review is for VCW122v3, which is a part of the bundle you are viewing.

I just purchased this Subwoofer and I have to admit that I was skeptical when i placed the order. Sonic Electronix was fast and this product is every bit the beast that it's portrayed to be! The design screams hard hitting, low bass. The design reminds me of the old school Solobaric 12's I had in High School (1996). I cannot wait to hook everything up. I will have a more in depth review once everything is installed.

By nathan on September 6, 2013

107 found this helpful


Amazing

The following review is for VCW122v3, which is a part of the bundle you are viewing.

I have two of these and they sound amazing! hits amazing low frequencies. best subs i have ever heard!

By sherman216 on August 30, 2013

105 found this helpful


OMG

The following review is for VCW122v3, which is a part of the bundle you are viewing.

I have been into car audio for 20+ years and this is the best quality, best sounding, best performing, toughest subwoofer I have ever owned. BLOWS everything else in its class away EASLY.. plain out awesome in EVERY way.

By NVfleXerado on July 23, 2013

104 found this helpful


Love nvx

The following review is for VCW122v3, which is a part of the bundle you are viewing.

Was looking for a good quality subwoofer and saw some great reviews on this nvx vcw 12 2 so I took a chance on it and boy am I glade I did this sub hits hard and low I would recommend this to everyone. Has good quality build and can take some power so I will buying nvx for all my products that I will be putting in my car and sonic has great fast shipping too, good job nvx and sonic.

By Christopher on May 15, 2014

101 found this helpful


12 Inches of BOOM

The following review is for VCW122v3, which is a part of the bundle you are viewing.

This woofer is heavy, beautiful and sounds like it was sent from the Gods. Best value you can find for an amazing sub! Getting a second as soon as I decide on a box for my subs!

By Robert on July 17, 2014

102 found this helpful


This thing bumps

The following review is for VCW122v3, which is a part of the bundle you are viewing.

This thing is insane I have it hooked up to the Nvx JAD 1200.1 at 1 Ohm and i installed it last weekend its not even close to broken in but, it is so Loud. Have in in a 1.8 ported and at half power you will have people yelling at you at stop lights :)

By Bassboy on November 17, 2013

103 found this helpful


nvx vcw122 awesomw

The following review is for VCW122v3, which is a part of the bundle you are viewing.

I bought one of these 12s had it hooked up on 1500 Watt hifonics p thing slammed hard for a 12 would recommend a answer box then. I. Had though. These like small boxes

By bass head on September 17, 2013

100 found this helpful


Great Subwoofer!

The following review is for VCW122v3, which is a part of the bundle you are viewing.

The NVX VCW 122 is a monster and it's marked at a great price! These subs get LOW and LOUD. I have owned quite a few NVX products and it's definitely great product! I definitely recommend the NVX VCW subs to anybody looking for great bass at a great price

By Ethan on November 12, 2013

98 found this helpful




SB-F-EXPL2/10W3v3/GA small

JL Audio SB-F-EXPL2/10W3v3/GA

Stealthbox for 2002-2005 Ford Explorer 4dr with Graphite interior

$699.99

List price $999.99

No picture

Hifonics BX12SQD2 ( SQUARE )

Square Brutus Series Dual 2 ohms 12" Subwoofer

$89.99

List price $199.99

SEXv2-12D4 small

RE Audio SEXv2-12D4- OPEN BOX

750W 12" SE-X v2 Series Dual 4 ohm Subwoofer

$119.99

List price $499.99

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Toyota Camry

2003 Mitsubishi Montero

2021 Volvo XC40

2012 Volkswagen Golf

2024 MINI Countryman

1959 Lincoln Capri

2002 Mazda MPV

1985 Chevrolet Chevette

2002 Hummer H1

2009 Jaguar XF

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
