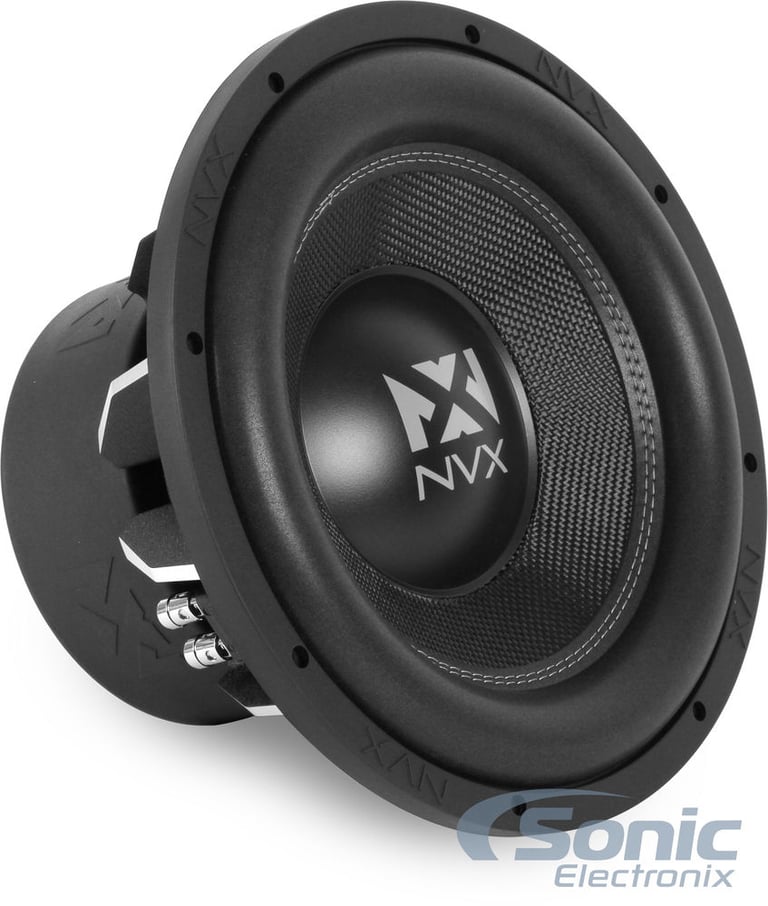

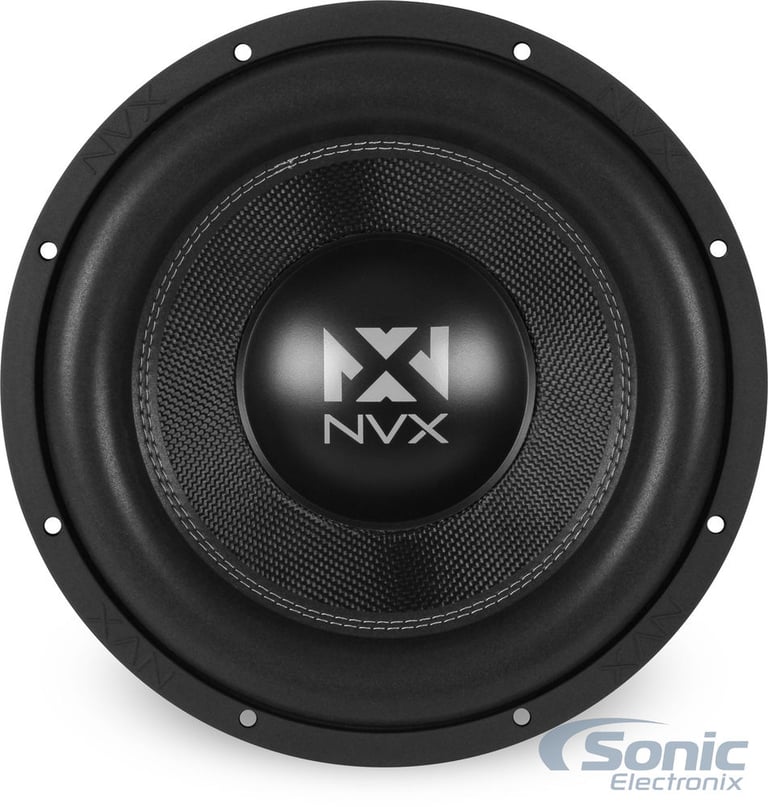

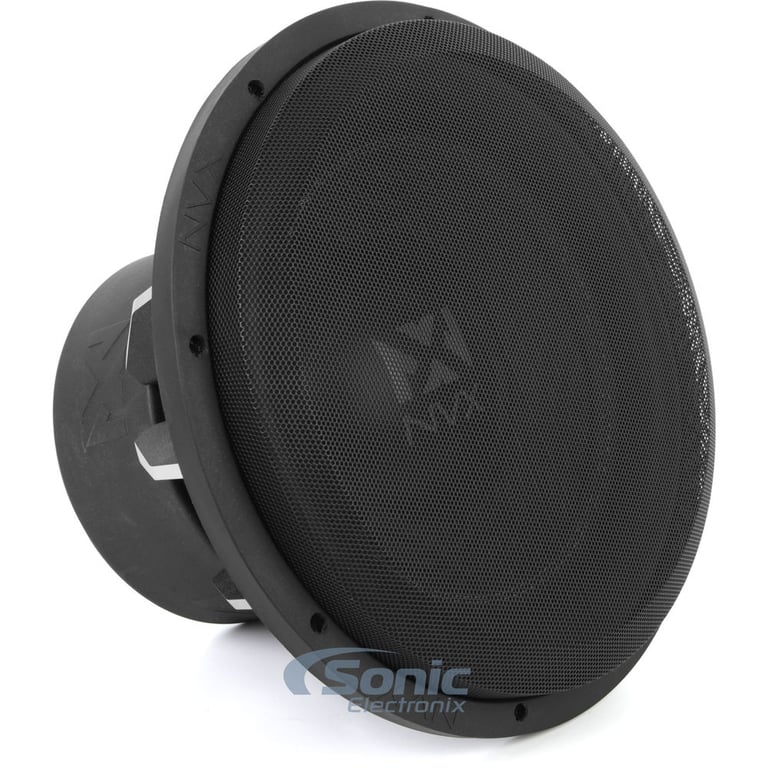

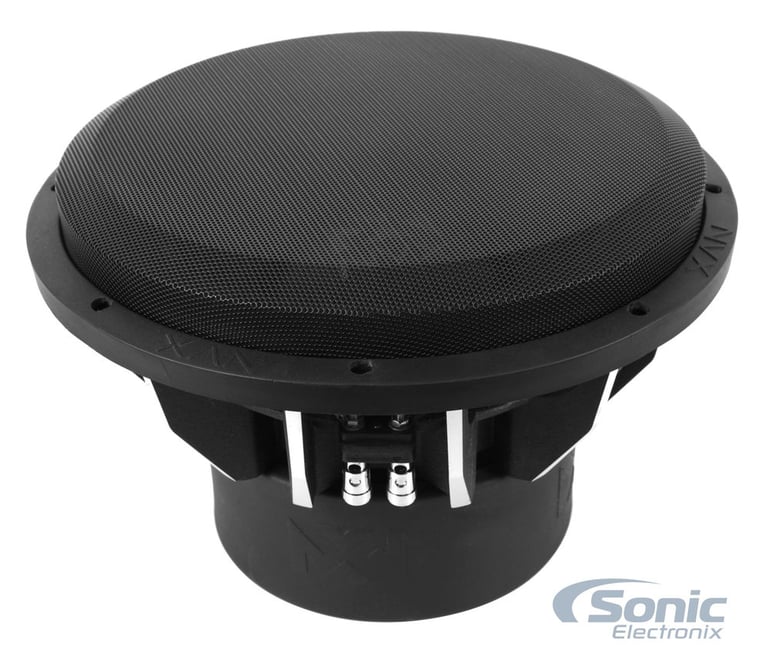

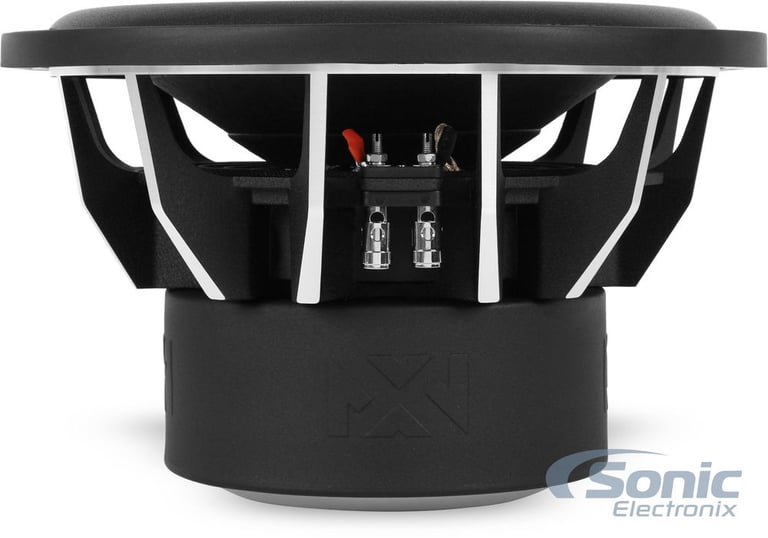

NVX 12" VCW124 1000W RMS Subwoofer with Free NVX Grille

VCW124 1000W 12" VC-Series Dual 4-ohm Car Subwoofer + VCW12GR 12" Subwoofer Grille

NVX
Shop all NVX
Product videos
highlight-star-icon

• Power Range (RMS) 850-1000 Watts

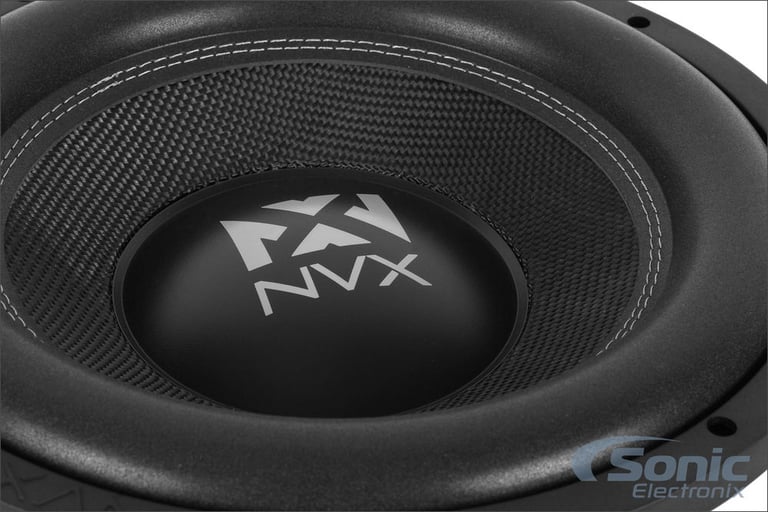

• Woven Fiber Pressed Paper Cone
• Custom High Roll Foam Surround With Nylon Stitching
• Die Cast Aluminum Basket
• Dual Poly-Cotton Spiders

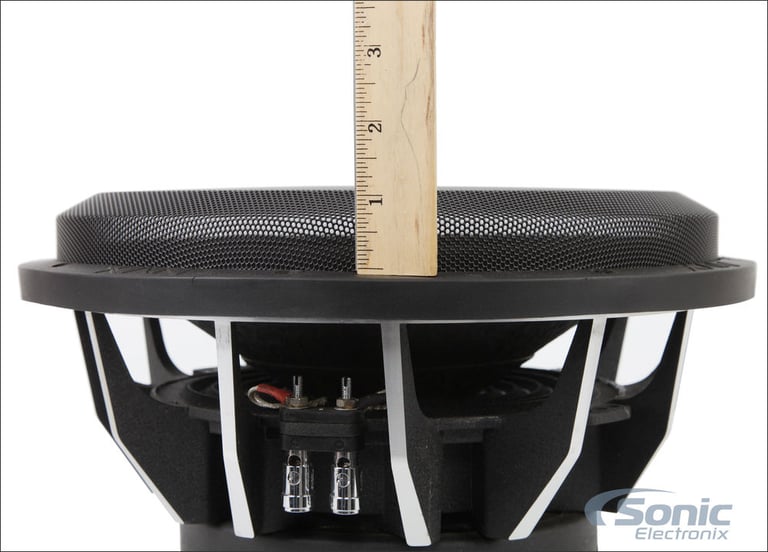

• 12" Protective Subwoofer Grille
• Perfect for Use with NVX VCW Series Subwoofers
• High Quality Construction

Learn more about the vcw124_vcw12gr

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Product Highlights


• Power Range (RMS) 850-1000 Watts
• Woven Fiber Pressed Paper Cone
• Custom High Roll Foam Surround With Nylon Stitching
• Die Cast Aluminum Basket
• Dual Poly-Cotton Spiders
• 12" Protective Subwoofer Grille
• Perfect for Use with NVX VCW Series Subwoofers
• High Quality Construction

Description


NVX brand icon

Authorized dealer




Incredible Bass with Ability to Perform in a Tight Space!

NVX's VC-Series car subwoofers are about to blow you away. The VCW124 is a jack-of-all-trades and has been engineered to the highest standards. The woven fiber pressed paper cone and custom High Roll foam surround with Nylon stitching help reproduce tight and accurate bass, keeping cone distortion to a minimum even at the highest volume levels. The next key components in the design of the VCW124 are the large dual 3" High Temperature Aluminum voice coils and triple stacked motor structure. These features combined help this sub handle some serious power at 850-1000 Watts RMS. The dual voice coils also give you many options for different Ohm load wiring configurations. With all the above engineering elements combined, the VCW124 subwoofer gives you better sound and build quality than many subs costing almost twice as much. Plus, they will sound great in a small sealed enclosure for those who do not have a lot of space!




NVX VC Series Subwoofer Breakdown


Surround: Most materials used in commercial subwoofer surrounds rip and tear at peak levels. Keeping this in mind, the NVX team developed a custom high-roll foam surround that gives their subs improved linearity and MORE output. Combining that with high-strength adhesive and nylon stitching means that this subwoofer will last through some serious audio output!

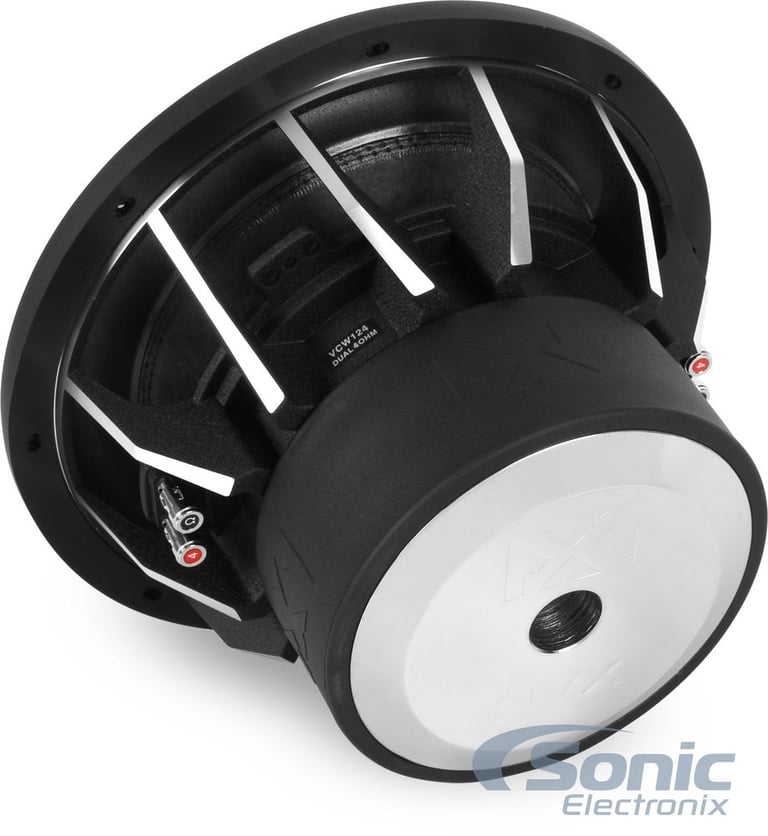

Basket: The 3-dimensional cast provides outstanding strength while keeping the subwoofer light due to the aluminum construction. Aluminum is a non-ferrous metal, which means the basket will not interfere with the magnetic energy of the voice coil and motor structure.

Spiders: The Dual Poly-Cotton Spiders are designed to be durable and long-lasting. They give the voice coil the suspension it needs and restore the subwoofer to its normal resting position with ease.

Voice Coil: The 3" (2.5" for the VCW102 and VCW 104) High Temperature Aluminum Voice Coil along with the triple-stacked magnet give massive power handling capability for the VC Series Subwoofers. The effective heat dissipation of the voice coil allows you to play the subwoofer louder without distortion.




CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.

Check out the NVX Team Demo at Slamology 2014 Here





NVX VCW124 Version 3 (VCW124v3)

2400W Peak (1200W RMS) 12" VC-Series v3 Dual 4-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 12" Dual 4 ohm VC Series Subwoofer
  • Power Handling:
    • Peak: 2400 watts
    • RMS: 1200 watts
  • Carbon Fiber Enhanced Non-Pressed Paper Cone
  • Custom High Roll Foam Surround with black nylon stitching
  • Die cast aluminum vented basket
  • Dual progressive-roll spiders with integrated flat-braided leads
  • 3" 4-Layer High Temperature Black Aluminum Voice coil
  • Optimized high-velocity pole vent
  • One-piece T-Yoke with integrated gap venting
  • 202 oz. Triple Stacked High Energy Y35 Ferrite with protective rubber boot
  • 23 mm Xmax (one-way) for massive air movement
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 25 Hz
  • Sensitivity: 85 dB (1W/1m)
  • Optimal sealed box volume: 0.85 cubic feet
  • Optimal ported box volume: 1.85 cubic feet
  • Top-mount depth: 7.02"
  • Cutout diameter: 11.26"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

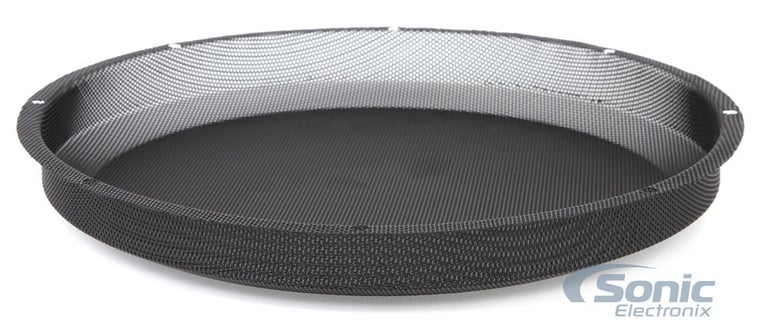

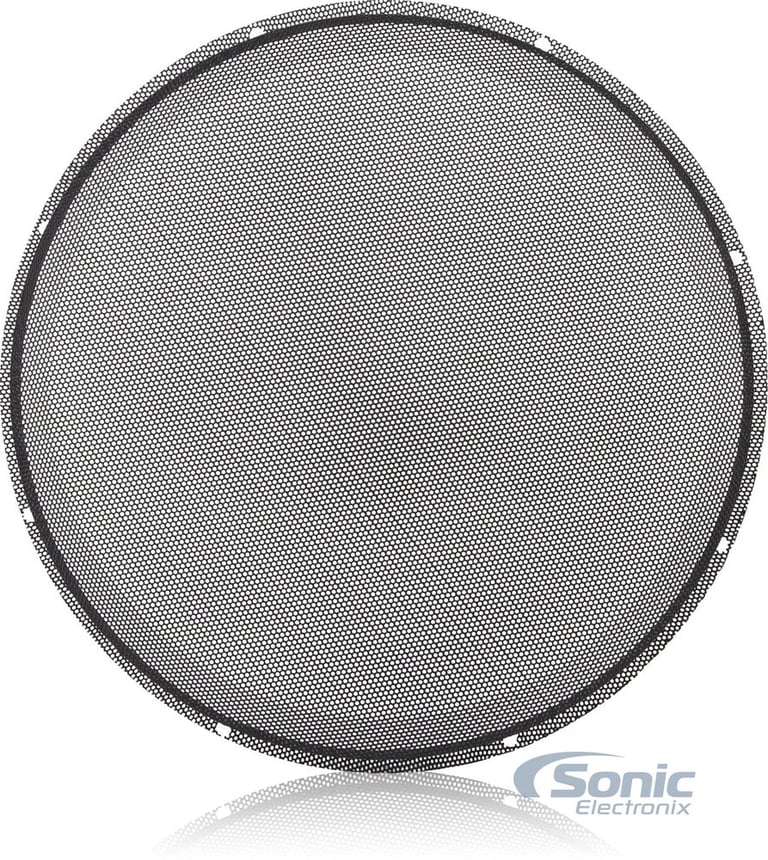

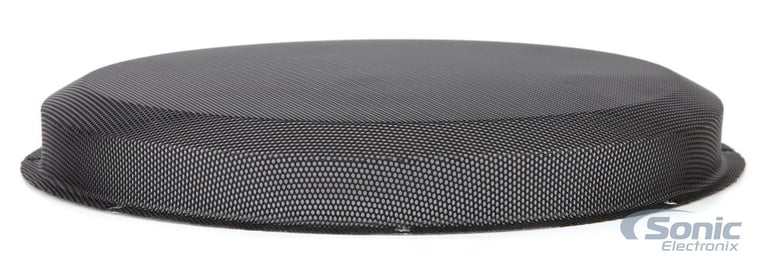

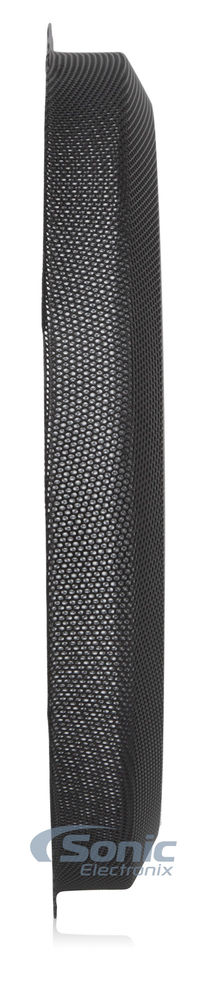

NVX VCW12GR

Mesh Grille for NVX 12" VC-Series V1 and V2 Subwoofers
Quantity: 1

Product Features:

  • Mesh grille for select NVX 12" subwoofers
  • Designed to fit NVX VC-series V1 and V2 subwoofers
  • Fits between the gasket and frame of subwoofers
  • High quality construction to keep your subwoofer protected
  • Pre-drilled bolt pattern
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 NVX 12" VCW124 1000W RMS Subwoofer with Free NVX Grille Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 NVX 12" VCW124 1000W RMS Subwoofer with Free NVX Grille Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 NVX 12" VCW124 1000W RMS Subwoofer with Free NVX Grille Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 NVX 12" VCW124 1000W RMS Subwoofer with Free NVX Grille Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
VC Series
Subwoofer Size
12"
Peak Power Handling
2000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Frequency Response
20 - 200 Hz
Sensitivity
85 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Woven Fiber Pressed Paper
Woofer Surround
Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Optimum Sealed Box Volume
0.85 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Optimum Ported Box Volume
1.85 cubic feet
Maximum Ported Box Volume
2.75 cubic feet
Top-Mount Depth (Mounting Depth)
7.02"
Cutout Diameter
11.26"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
26 Hz
Equivalent Compliance (Vas)
33.79 liters
Total Speaker Q Value (Qts)
0.38
Electrical Q Value (Qes)
0.435
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

VCW12GR,VCW124

Weight:

36.01lbs

Internal SKU:

vcw124_vcw12gr

Internal Product ID:

108619
