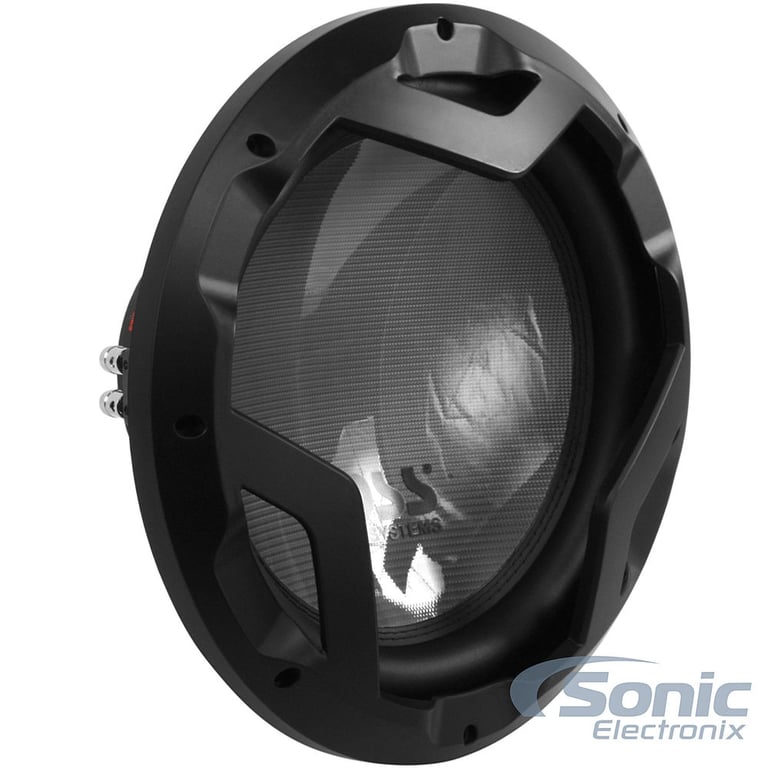

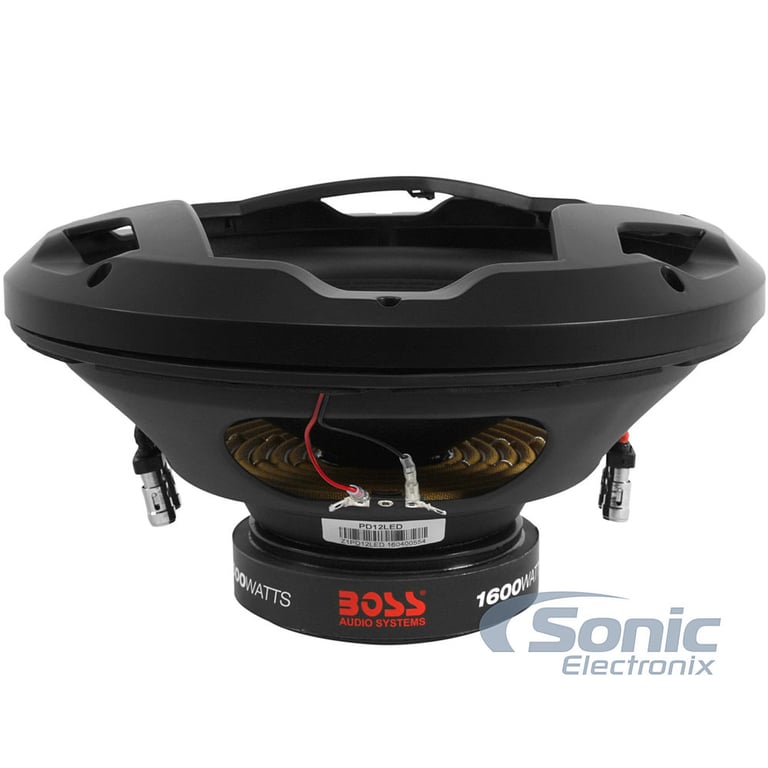

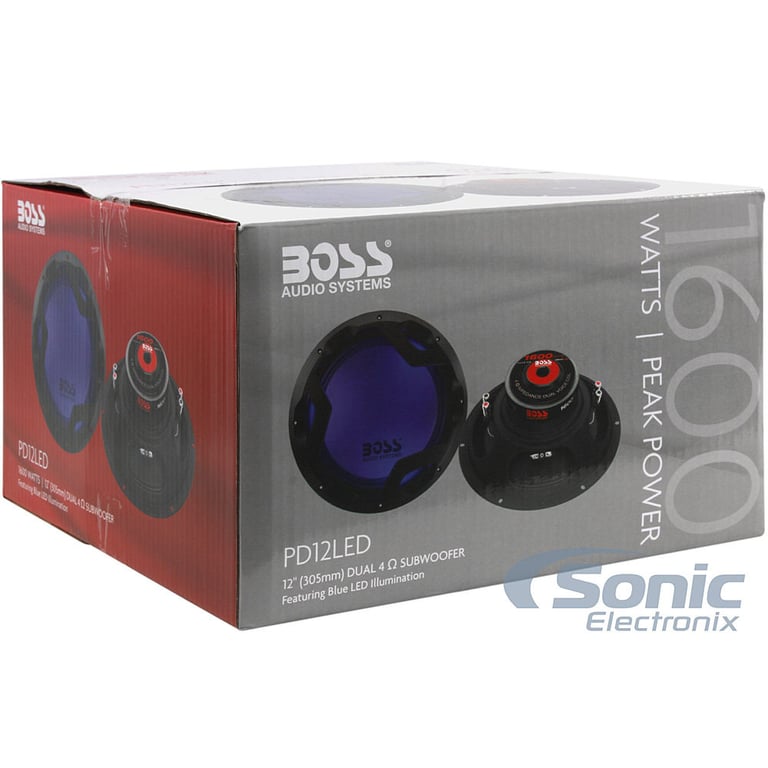

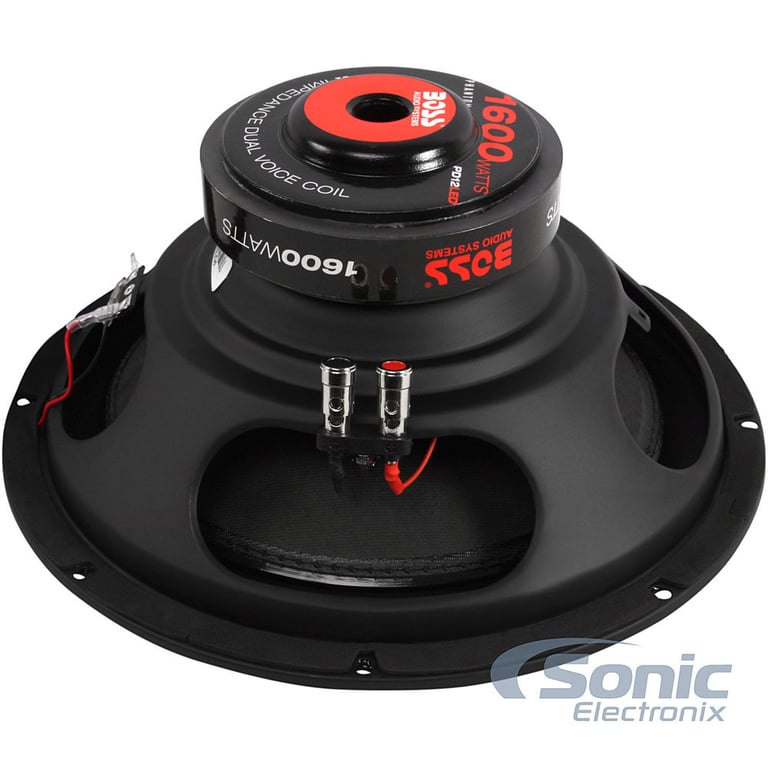

Boss PD12LED

1600W Peak (800W RMS) 12" Dual 4-Ohm Car Subwoofer with LED Illumination

Boss
Shop all Boss
Product videos
highlight-star-icon

• 800 Watts RMS
• 1600 Watts Max
• Polypropylene and Paper Cone
• Rubber Surround
• Aluminum Basket
• Push Terminals

Learn more about the pd12led

We apologize

This item has been discontinued


Loading...
MP69 main

DS18 MP69

Adapts 6x9" Speaker Space to 6.5" Speaker and 1.38" Tweeter

2
PRO-HY6.2MSL main

DS18 PRO-HY6.2MSL (Sold Individually)

300W Peak (150W RMS) 6.5" Pro Hybrid Coaxial Midrange 2-ohm Speaker with Compression Driver Horn

2
VPRO65HS main

NVX VPRO65HS (Sold Individually)

350W Peak (175W RMS) 6.5" V-Series Pro 2 Way Coaxial Shallow Loudspeaker

3
-27.09%

$69.99

List price $95.99

Limited time!
SM2P104 main

Soundstream SM2P.104 (Sold Individually)

500W Peak (250W RMS) 10" Pro Audio 2-Way Coaxial 4-ohm Speaker

1
-31.38%

$69.99

List price $101.99

Product Highlights


• 800 Watts RMS
• 1600 Watts Max
• Polypropylene and Paper Cone
• Rubber Surround
• Aluminum Basket
• Push Terminals

Description


Boss brand icon

Authorized dealer

General Features:

  • 12" Dual Voice Coil 4-Ohm LED Illuminated Subwoofer
  • Power Handling:
    • Peak: 1600 watts
    • RMS: 800 watts
  • Recommended power range: 650 - 800 watts RMS

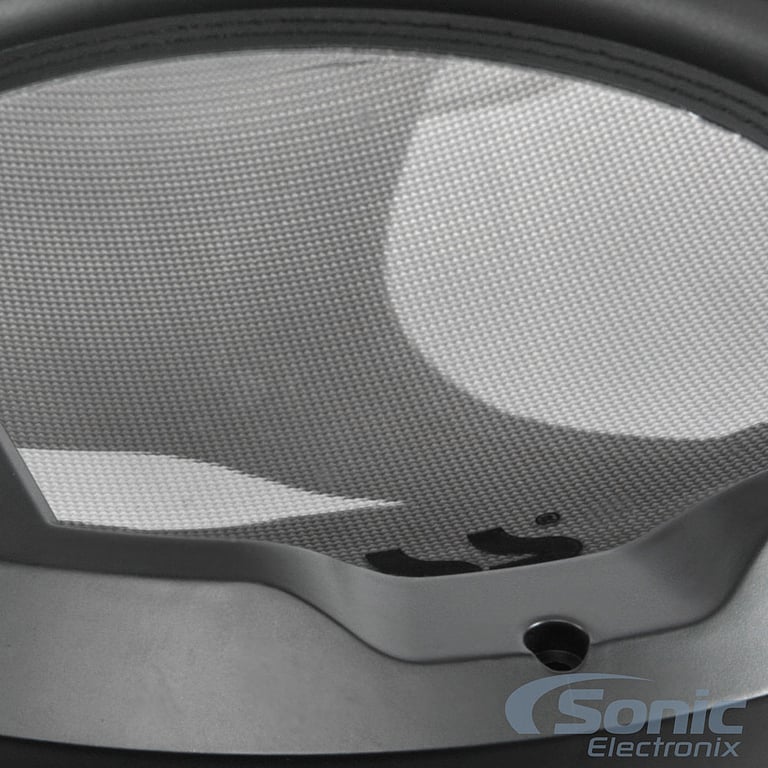

  • Polypropylene and Paper Cone
  • Rubber Surround
  • Aluminum Basket

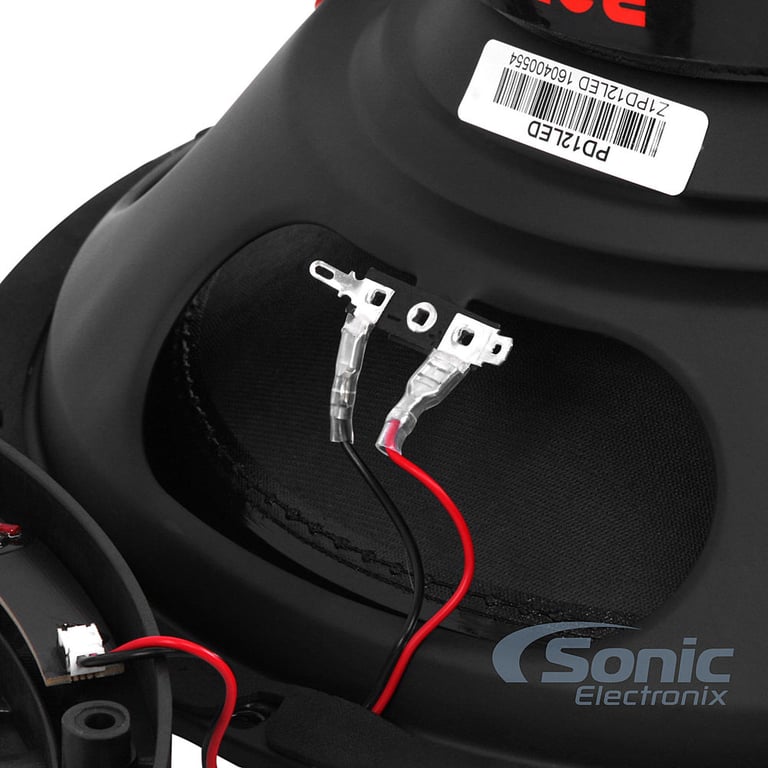

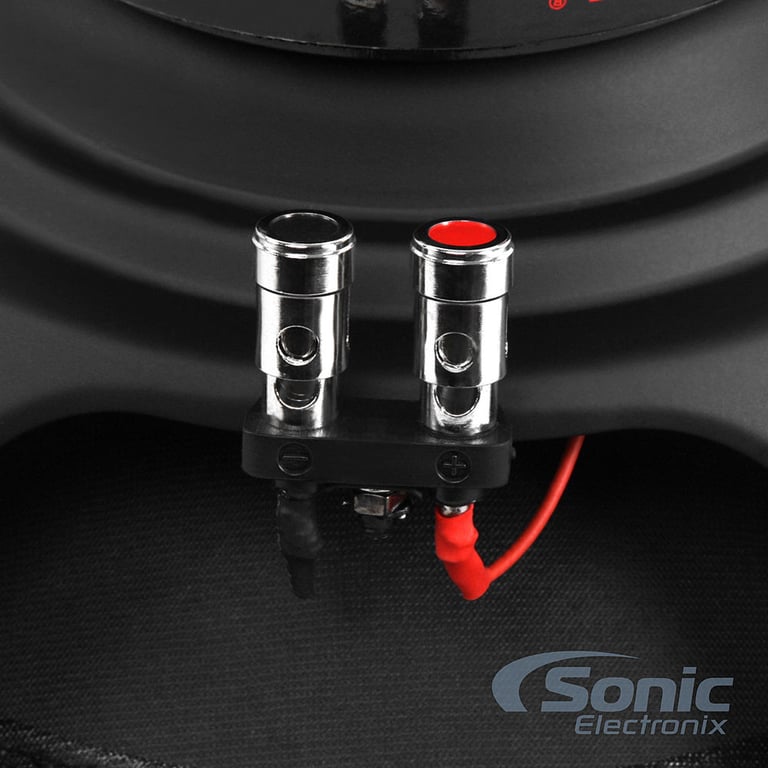

  • Push Terminals
  • Aluminum Voice Coil

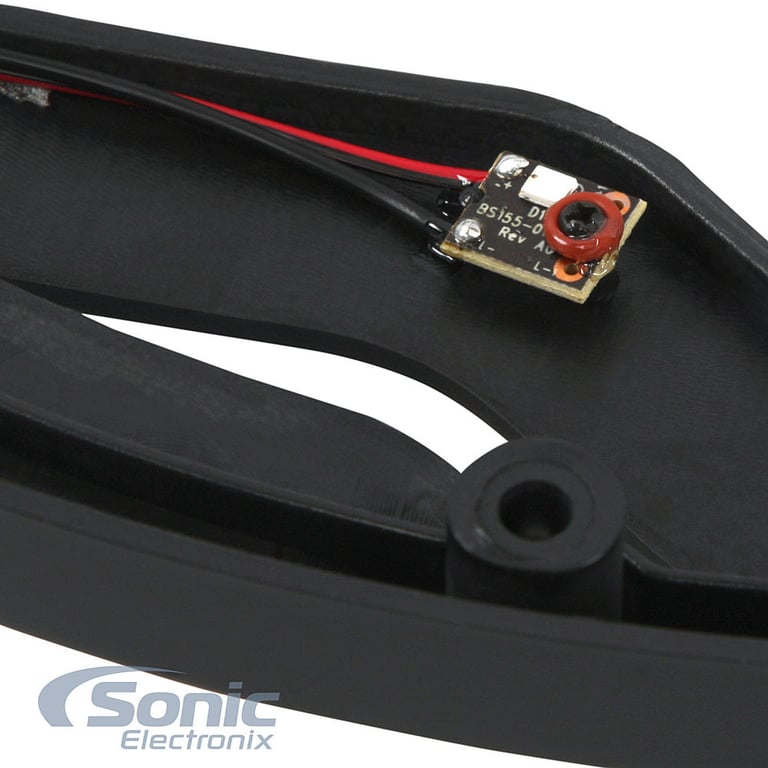

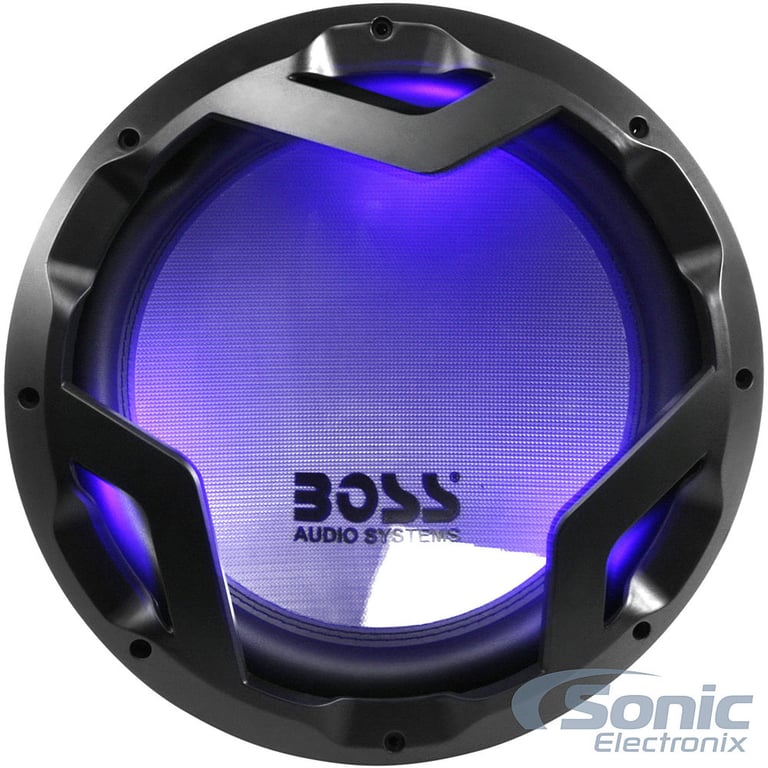

  • Blue LED Illuminated Cone
  • Sensitivity: 85 dB
  • Resonance Frequency (Fs): 26 Hz
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 2 years Manufacturer's warranty

Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Boss PD12LED Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Boss PD12LED Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Boss PD12LED Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Boss PD12LED Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1600 watts
RMS Power Handling
800 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
85 dB
Xmax (millimeters)
10 mm
Subwoofer Design
Round / Circle
Woofer Composition
Polypropylene and Paper
Woofer Surround
Rubber
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.65 cubic feet
Optimum Ported Box Volume
1.5 cubic feet
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
26 Hz
Equivalent Compliance (Vas)
2.57 liters
Total Speaker Q Value (Qts)
0.689
Electrical Q Value (Qes)
0.82
Mechanical Q Value (Qms)
4.56
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PD12LED

Weight:

11.50lbs

Internal SKU:

pd12led

Internal Product ID:

108991

Product and How-to Videos


  • How to Install a Car Subwoofer in a Box
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Boss PD12LED thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

johnblood from new york

sealed box 1.25 cu, poly fill, powered by 600 rms mono amp... took about 4 hours to break in... this sub sounds just like my jl audio 12w3v3... it hits all the notes low lows... lows... mids... and highs... and did i mention it can get really loud... it plays like it is actually 800 rms... go figure... most of boss audio subwoofers are way over stated, but not this one... it is also very musical and blends in with the interior speakers... i can't believe this sub is only 50.00... only time will tell if it can last... buy this subwoofer with confidence...

By Anonymous on September 15, 2019

6 found this helpful
