JBL Subwoofer + Kicker Amplifier Upgrade Bundle

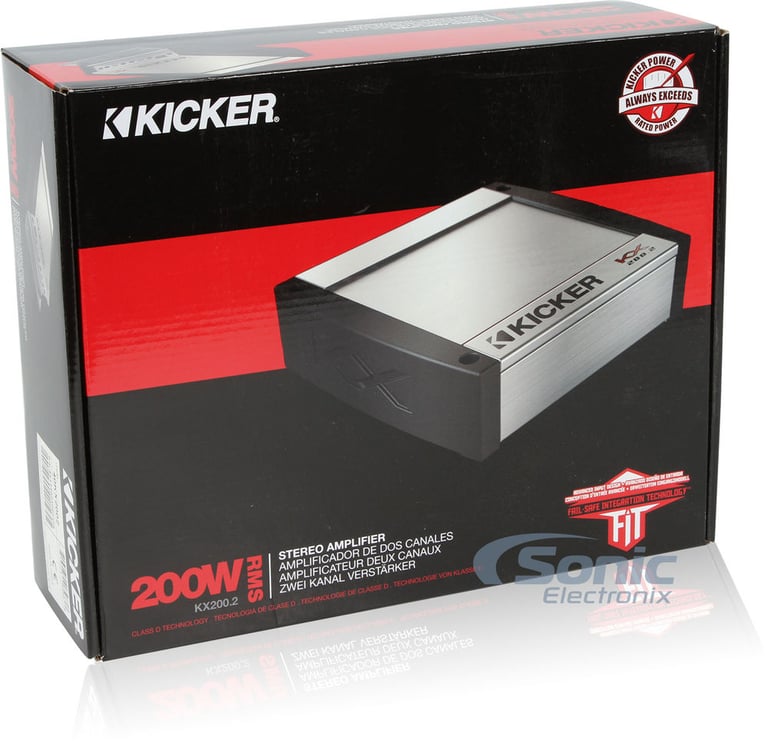

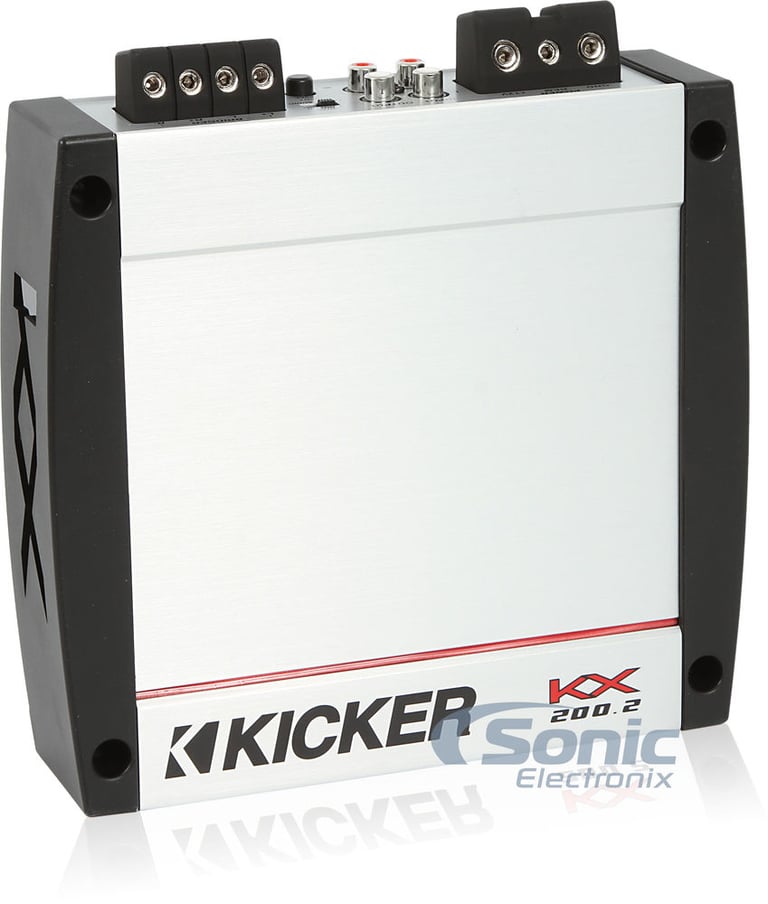

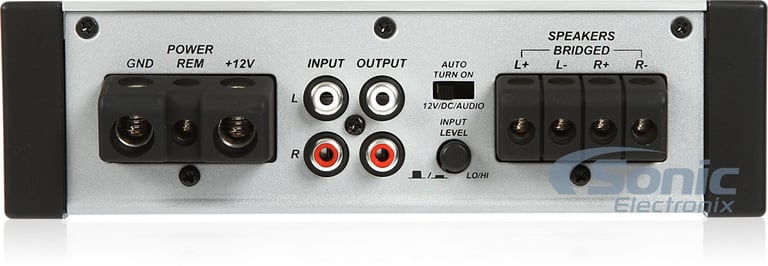

CS1214 250W 12" CS Series Subwoofer + KX200.2 200W RMS KX Series 2-Channel Amplifier + XKIT82 2-Ch 8 Gauge Amplifier Installation Kit

JBL
Shop all JBL
EXCLUSIVE
Product videos
highlight-star-icon

• Subwoofer: RMS Power: 250W

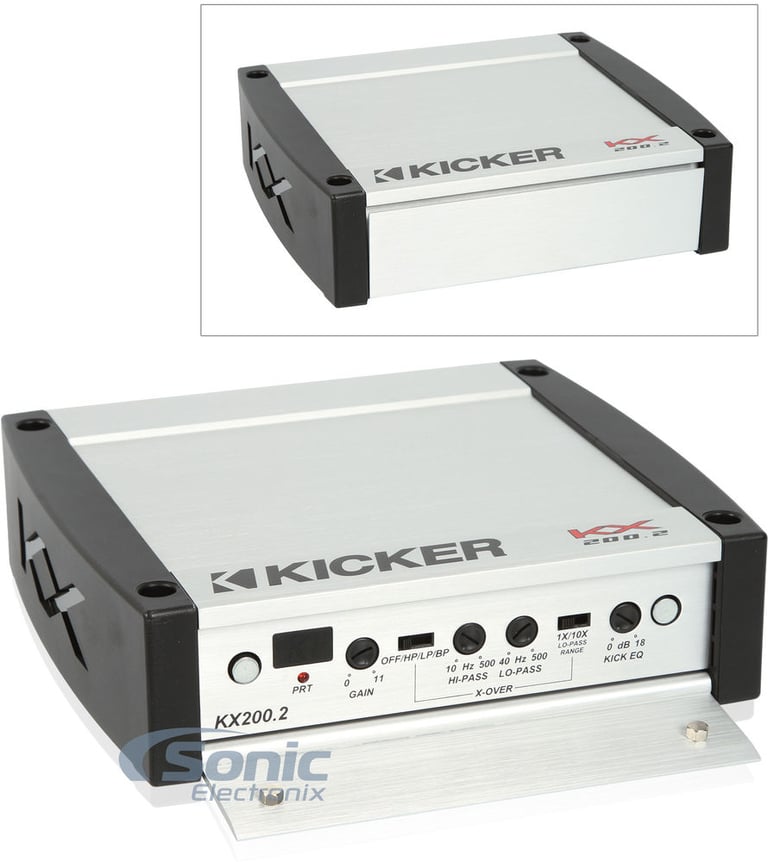

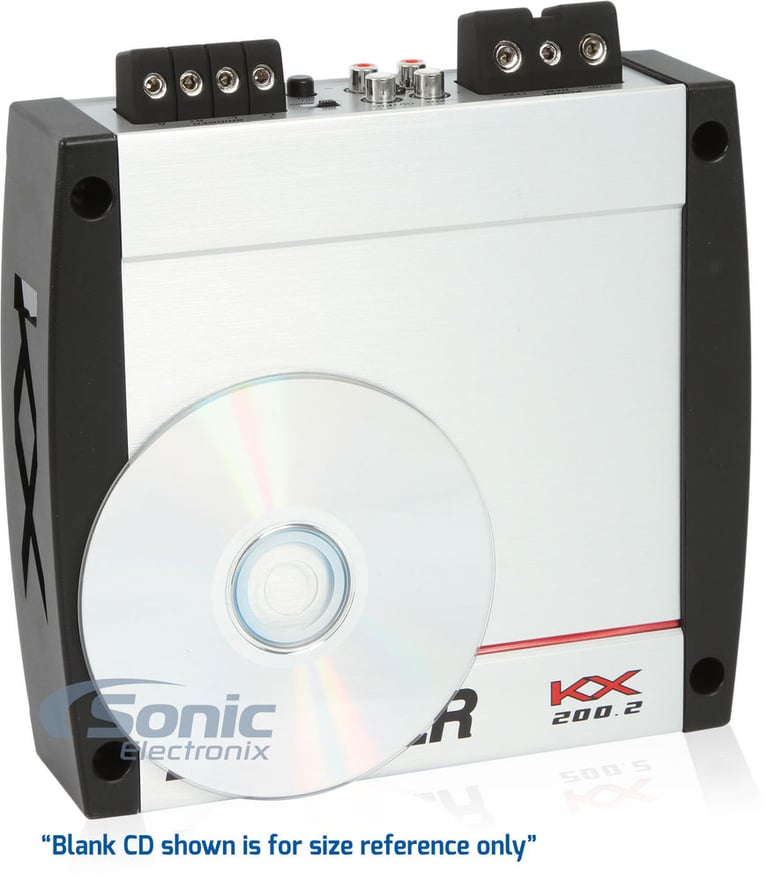

• Amplifier: 50W x 2 Chan. @ 4 ohm
• 100W x 2 Chan. @ 2 ohm

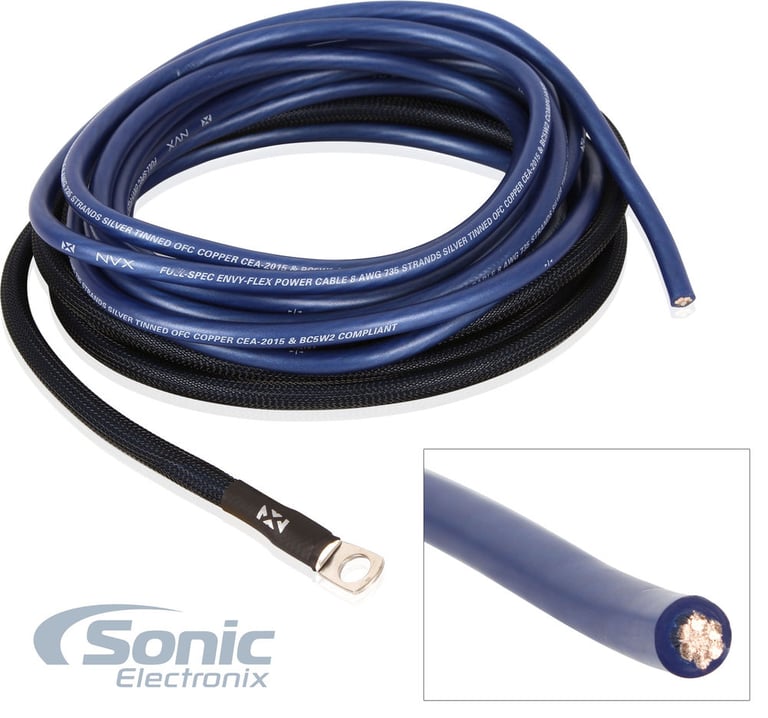

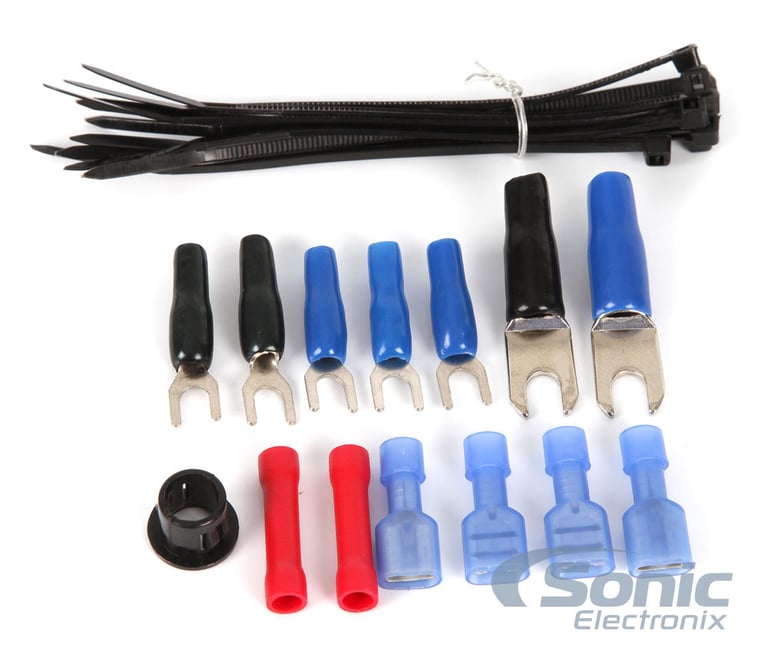

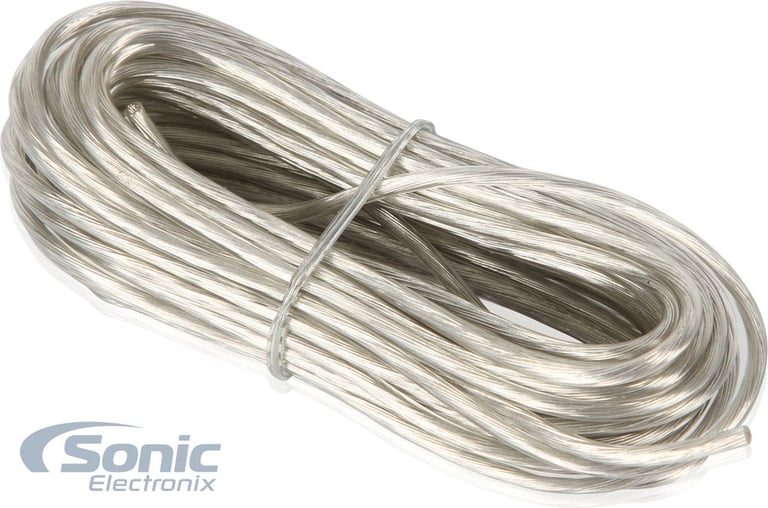

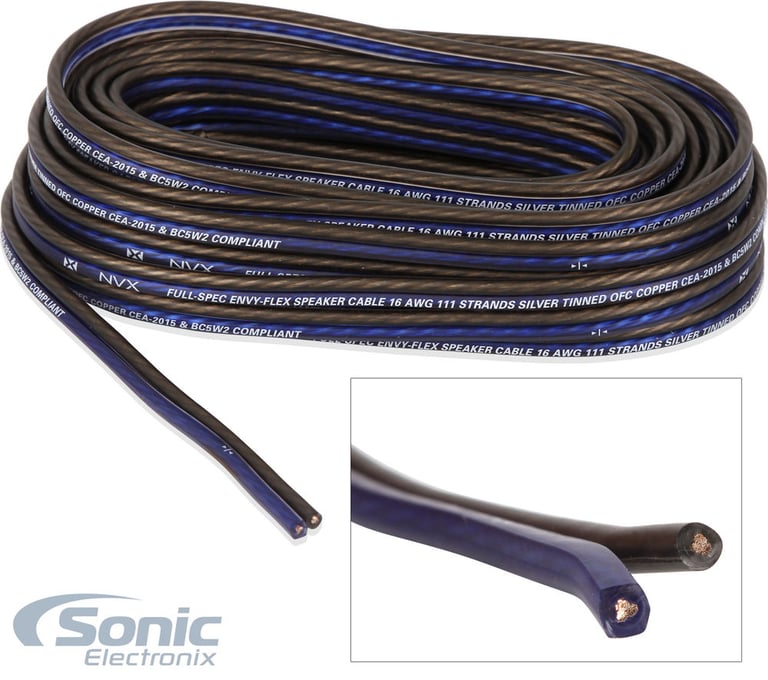

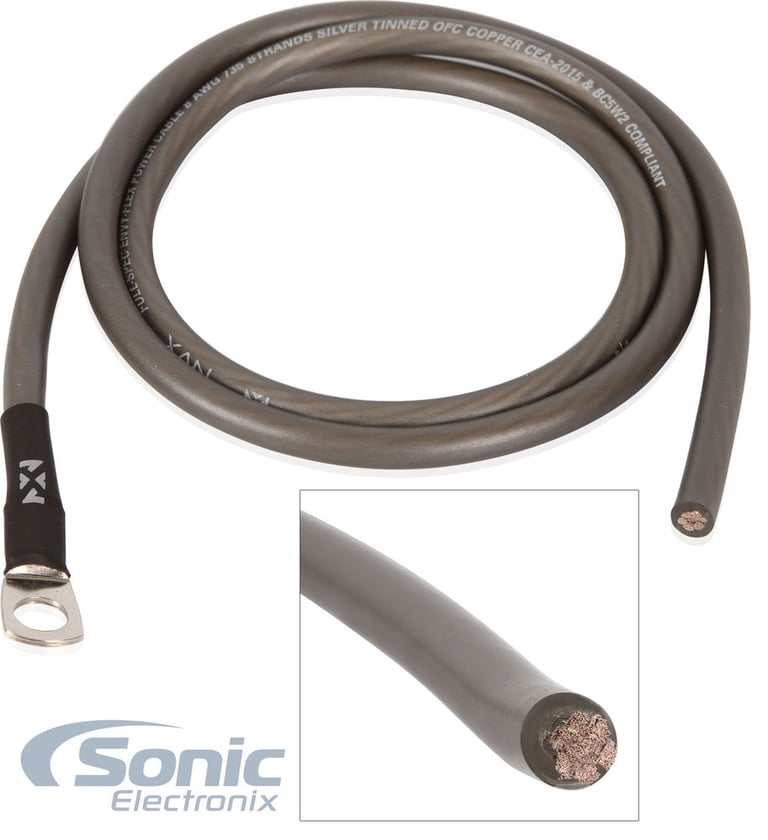

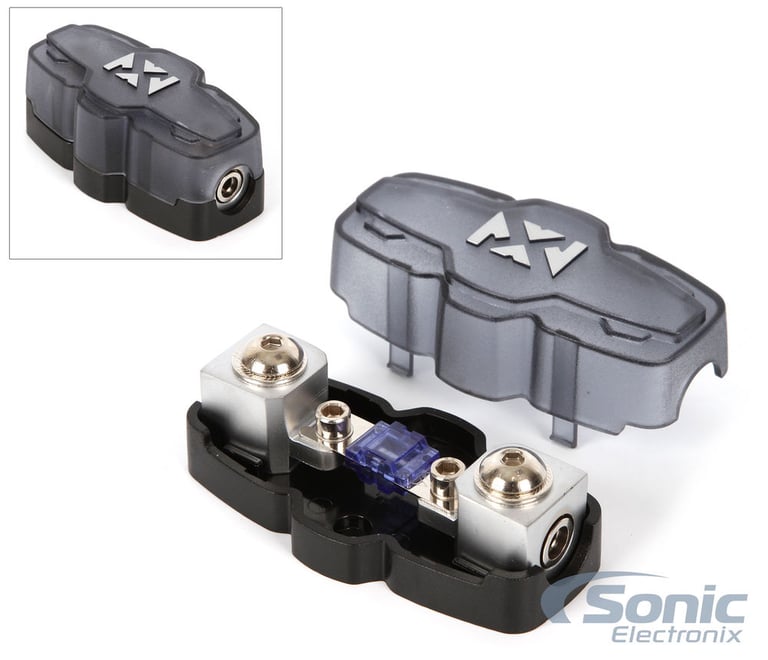

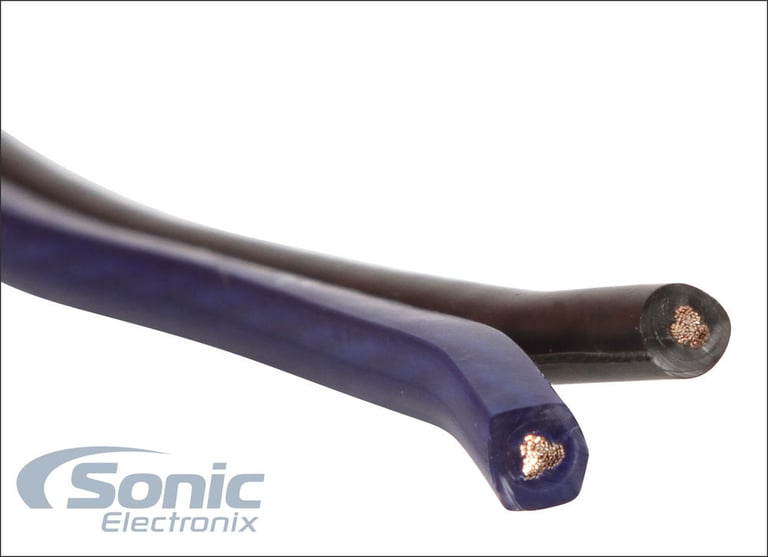

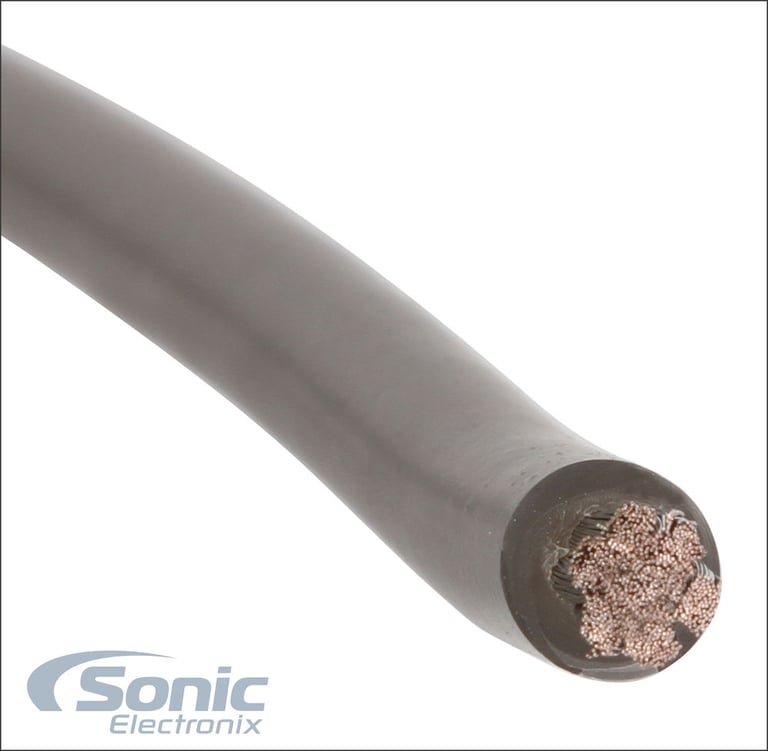

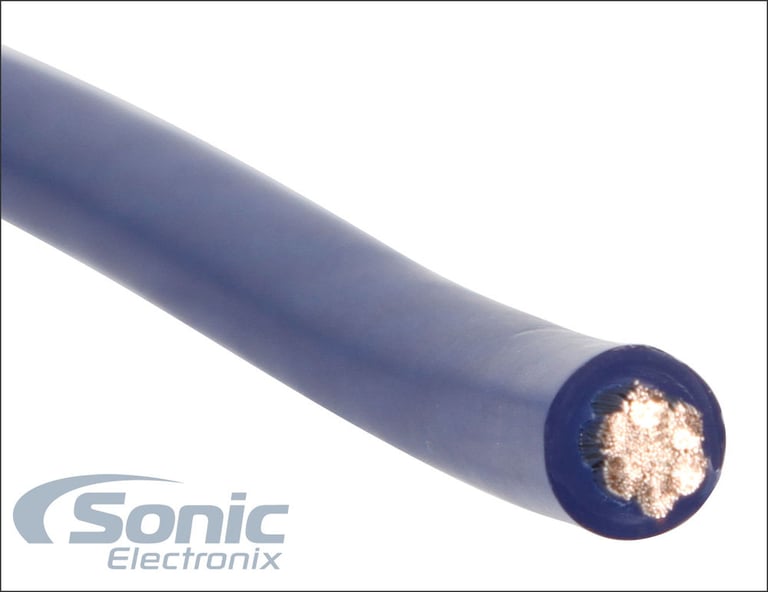

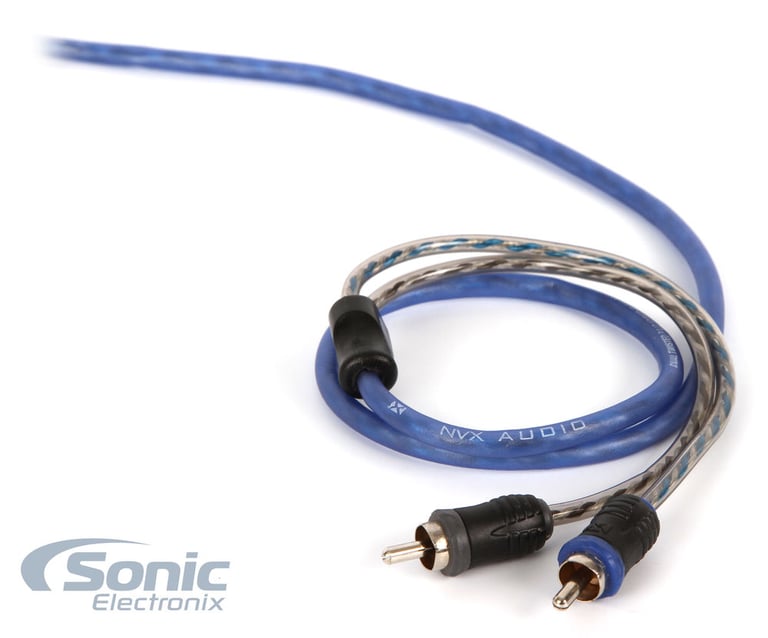

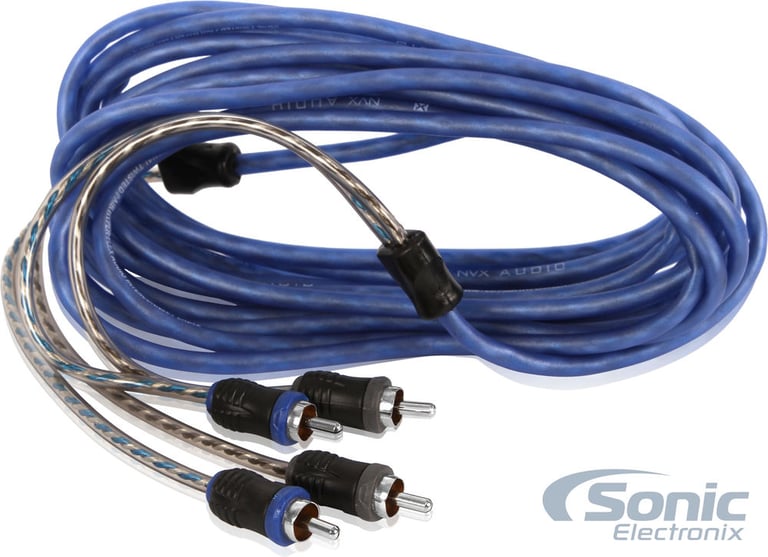

• 8 Gauge 2-Channel Complete Amplifier Installation Kit

Learn more about the cs1214_40kx2002_xkit82

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-4568 main

Metra 72-4568

Install New Speakers in select 1990-2021 vehicles from Chevrolet, GMC, Buick

121
-33.36%

$9.99

List price $14.99

40-GM10 main

Metra 40-GM10

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

45
MDA1B main

Scosche MDA1B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

366
-33.07%

$5.99

List price $8.95

GM40B main

Scosche GM40B Wiring Harness

Install a new car stereo in select 2004-2021 vehicles from GMC, Chevrolet, Pontiac

1
GM1599B main

Scosche GM1599B / GM1599

Double DIN Installation Dash Kit for select 2004-2012 vehicles from Chevrolet, Pontiac, Saturn

24
C2R-GM11B main

PAC C2R-GM11B Wiring Interface

Install a new car stereo and retains the safety warning chimes and other factory features in select 2004-2009 vehicles from Chevrolet, Pontiac

4
-58.07%

$116.99

List price $279.00

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

48
-42.51%

$22.99

List price $39.99

Product Highlights


• Subwoofer: RMS Power: 250W
• Amplifier: 50W x 2 Chan. @ 4 ohm
• 100W x 2 Chan. @ 2 ohm
• 8 Gauge 2-Channel Complete Amplifier Installation Kit

Description


JBL brand icon

Authorized dealer



Great "Boom" For The Buck!

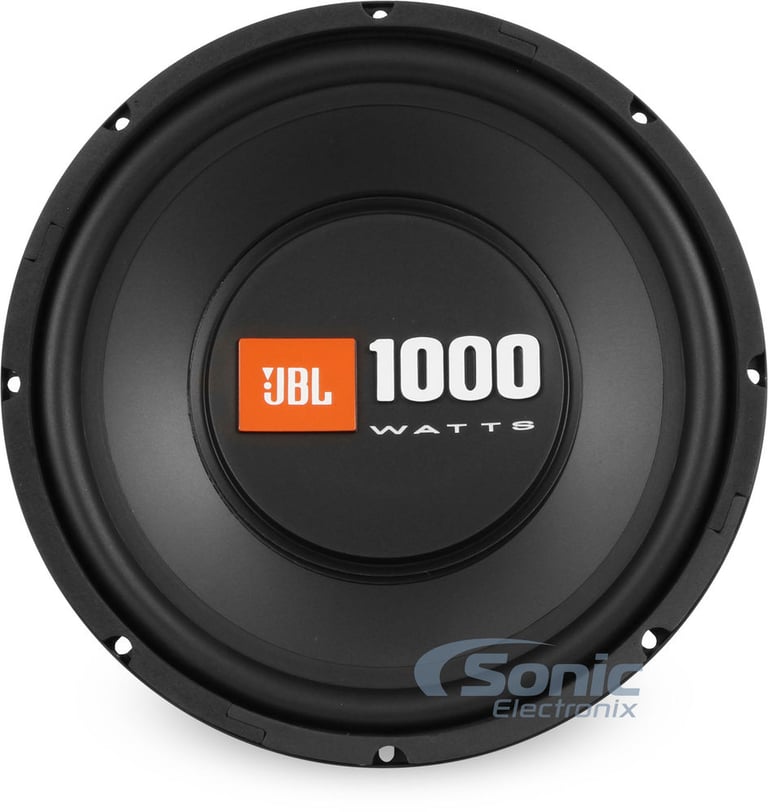

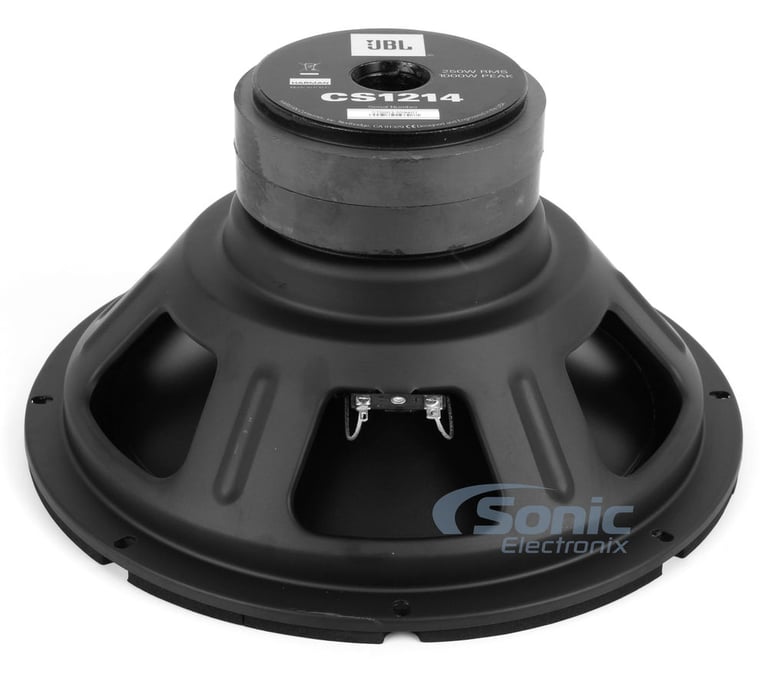

With 1000 watts of peak power handling and 250 watts RMS, the JBL CS Series CS1214 subwoofer handles a serious amount of power. Some of its great features include a frequency response of 35Hz – 200Hz which enables you to hear the wide bass range that you’ve always wanted. And with a sensitivity of 90dB, it provides for better performance at lower power levels. The woofer cone is polypropylene and very light, ensuring maximum performance and efficiency. JBL also uses a progressive spider on the CS Series, which offers better control at the excursion limits, rather than the linear spider commonly used by other manufacturers. This helps reduce distortion even at the highest output levels.



The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


  • Description Coming Soon!

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL Subwoofer + Kicker Amplifier Upgrade Bundle Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JBL Subwoofer + Kicker Amplifier Upgrade Bundle Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL Subwoofer + Kicker Amplifier Upgrade Bundle Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL Subwoofer + Kicker Amplifier Upgrade Bundle Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.15%

$211.66

List price $232.98

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
CS Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
250 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
1-1/2"
Frequency Response
35 - 200 Hz
Sensitivity
90 dB
Xmax (millimeters)
6.6 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
.75 cubic feet
Optimum Sealed Box Volume
1 cubic feet
Maximum Sealed Box Volume
1.1 cubic feet
Minimum Ported Box Volume
.75 cubic feet
Optimum Ported Box Volume
1 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
6-1/16"
Cutout Diameter
11"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28 Hz
Equivalent Compliance (Vas)
76.7 liters
Total Speaker Q Value (Qts)
.54
Electrical Q Value (Qes)
.57
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
8.85
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

CS1214_KX200.2_XKIT82

Weight:

20.43lbs

Internal SKU:

cs1214_40kx2002_xkit82

Internal Product ID:

109521
